Chapter 8: Statement-Level Control Structures

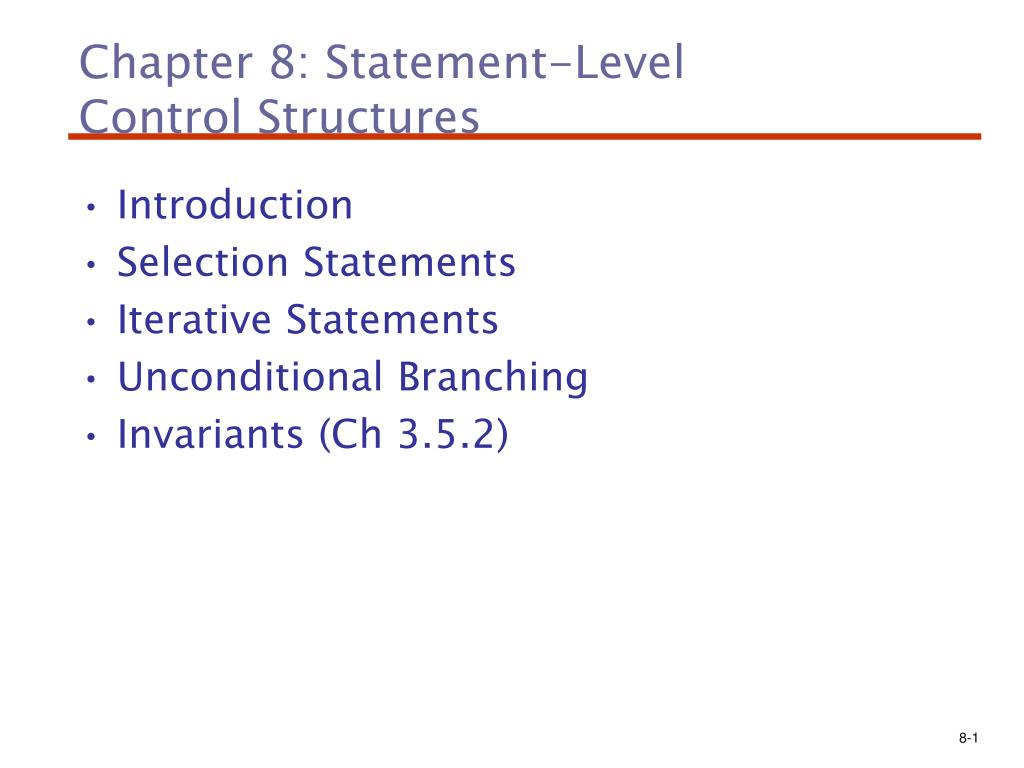

1. Chapter 8: Statement-Level Control Structures • Introduction • Selection Statements • Iterative Statements • Unconditional Branching • Invariants (Ch 3.5.2)

2. Control Statements: Evolution • Control statements • Statements that select or repeat control flow • Statements in FORTRAN I were based directly on IBM 704 hardware • Much research and argument in the 1960s about the issue • One important result: It was proven that all algorithms represented by flowcharts can be coded with only two-way selection and pretest logical loops, without needing “goto”

3. Control Structure • A control structure is a control statement and the statements whose execution it controls • Design question • Should a control structure have multiple entries? Or allowing “goto”? • Structured programming: • The structure of the program text should help us understand what the program does. • The flow of control through the program is evident from the syntactic structure of the program text, i.e., single-entry/single-exit.

4. Selection Statements • A selection statement provides the means of choosing between two or more paths of execution • Two-way selectors • General form: if control_expression then clause else clause • ALGOL 60: if (boolean_expr) then statement (then clause) else statement (else clause) The statements could be single or compound

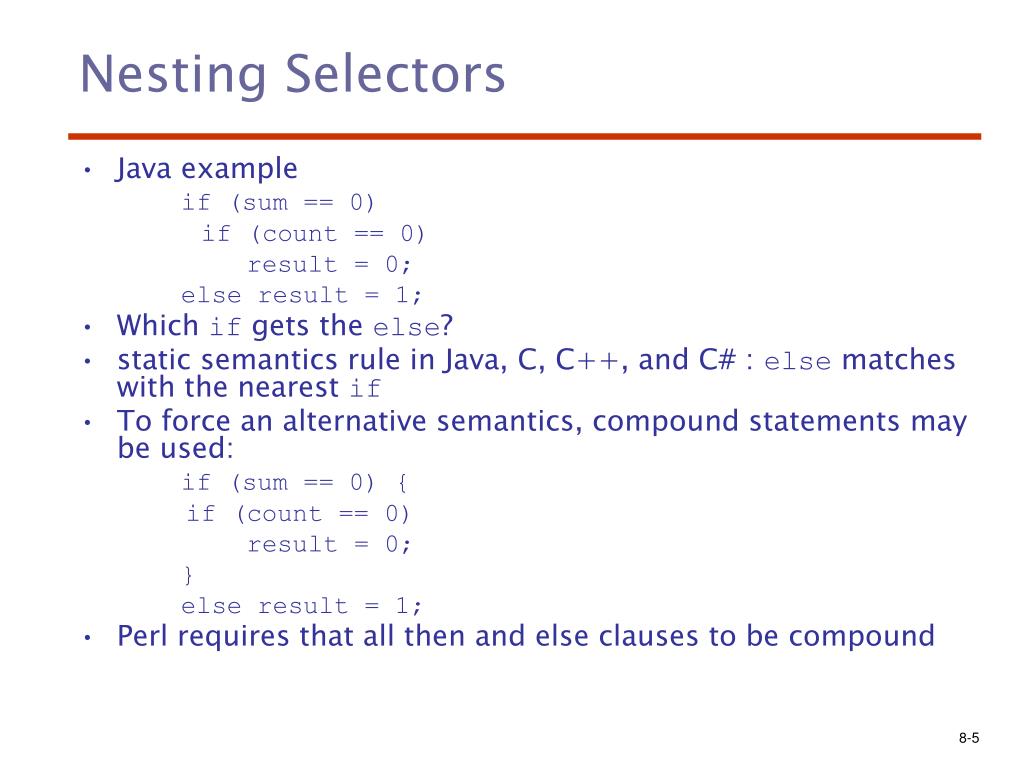

5. Nesting Selectors • Java example if (sum == 0) if (count == 0) result = 0; else result = 1; • Which if gets the else? • static semantics rule in Java, C, C++, and C# : else matches with the nearest if • To force an alternative semantics, compound statements may be used: if (sum == 0) { if (count == 0) result = 0; } else result = 1; • Perl requires that all then and else clauses to be compound

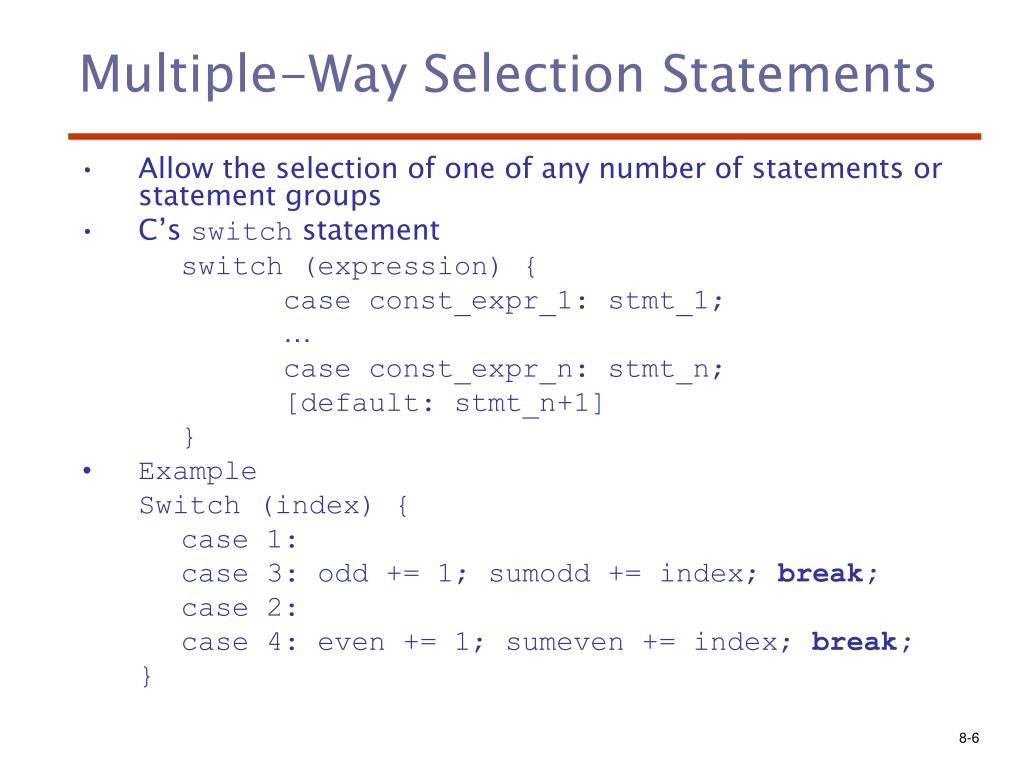

6. Multiple-Way Selection Statements • Allow the selection of one of any number of statements or statement groups • C’s switch statement switch (expression) { case const_expr_1: stmt_1; … case const_expr_n: stmt_n; [default: stmt_n+1] } • Example Switch (index) { case 1: case 3: odd += 1; sumodd += index; break; case 2: case 4: even += 1; sumeven += index; break; }

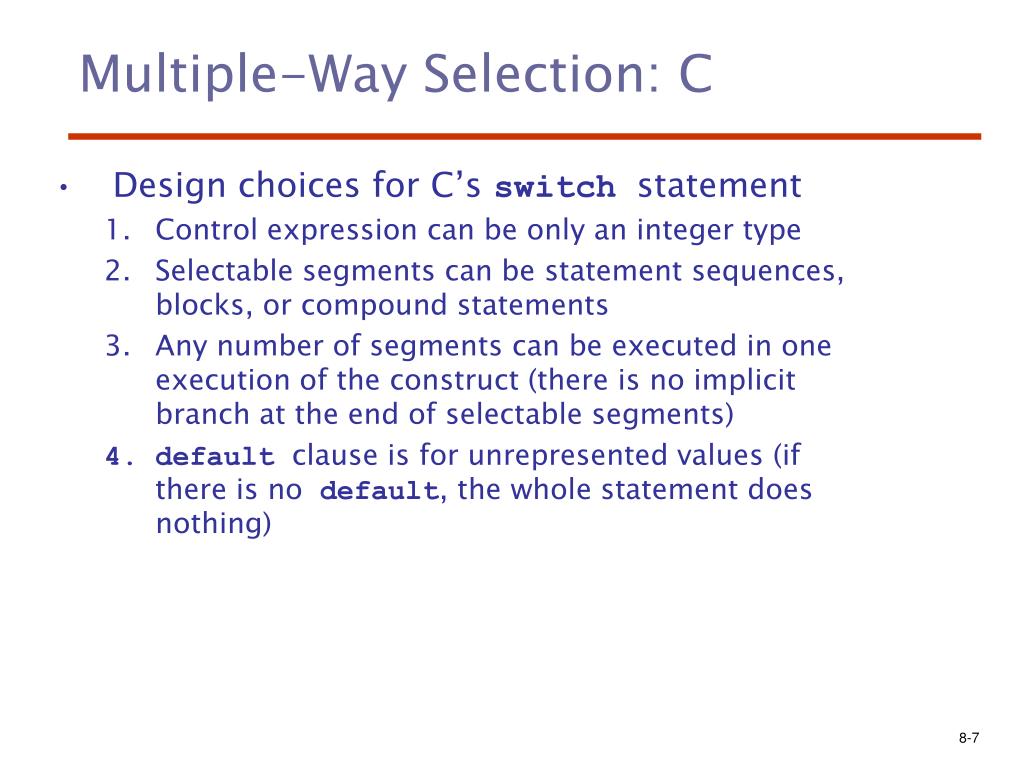

7. Multiple-Way Selection: C • Design choices for C’s switch statement • Control expression can be only an integer type • Selectable segments can be statement sequences, blocks, or compound statements • Any number of segments can be executed in one execution of the construct (there is no implicit branch at the end of selectable segments) • default clause is for unrepresented values (if there is no default, the whole statement does nothing)

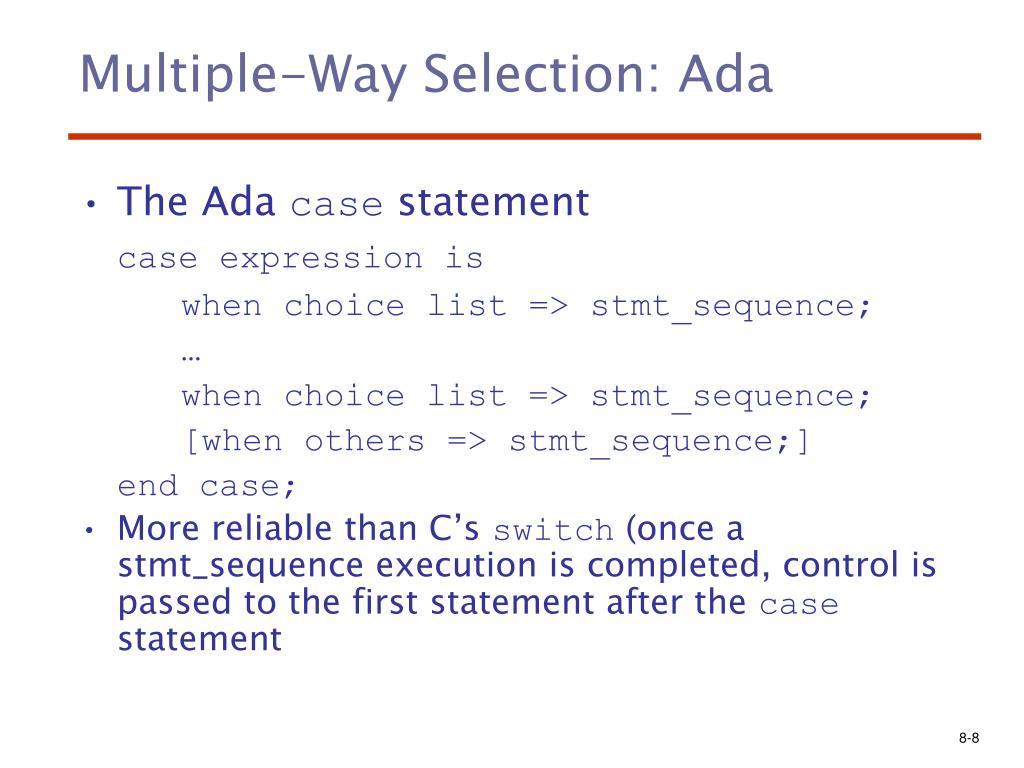

8. Multiple-Way Selection: Ada • The Ada case statement case expression is when choice list => stmt_sequence; … when choice list => stmt_sequence; [when others => stmt_sequence;] end case; • More reliable than C’s switch (once a stmt_sequence execution is completed, control is passed to the first statement after the case statement

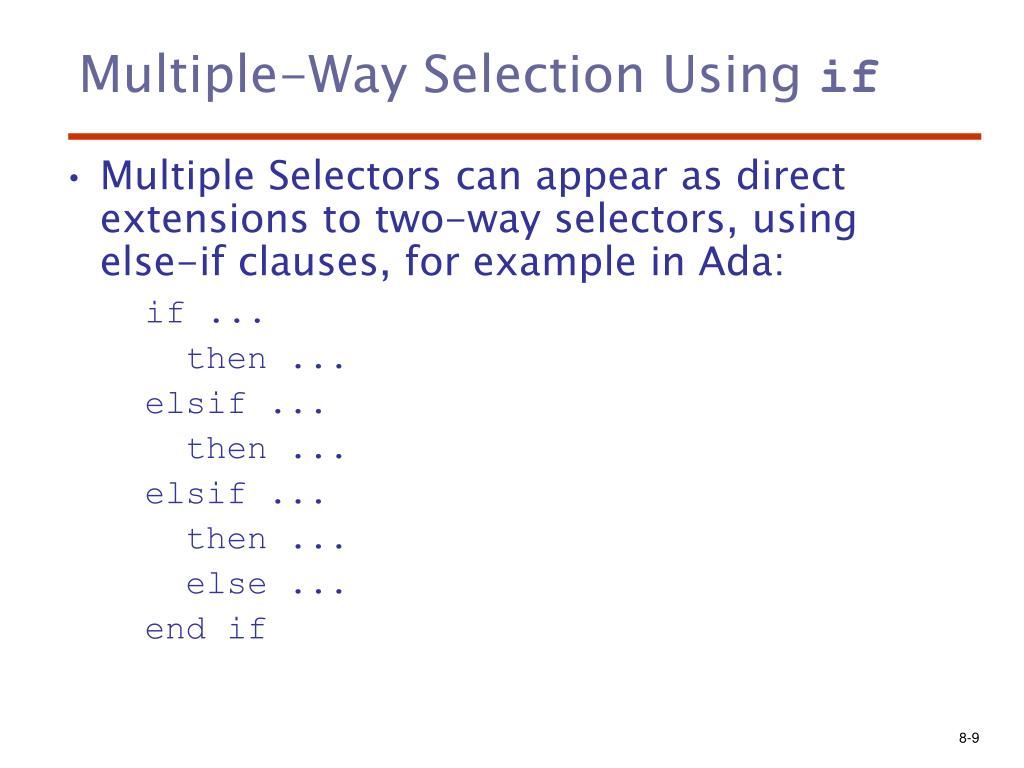

9. Multiple-Way Selection Using if • Multiple Selectors can appear as direct extensions to two-way selectors, using else-if clauses, for example in Ada: if ... then ... elsif ... then ... elsif ... then ... else ... end if

10. Iterative Statements • The repeated execution of a statement or compound statement is accomplished either by iteration or recursion • General design issues for iteration control statements: 1. How is iteration controlled? 2. Where is the control mechanism in the loop?

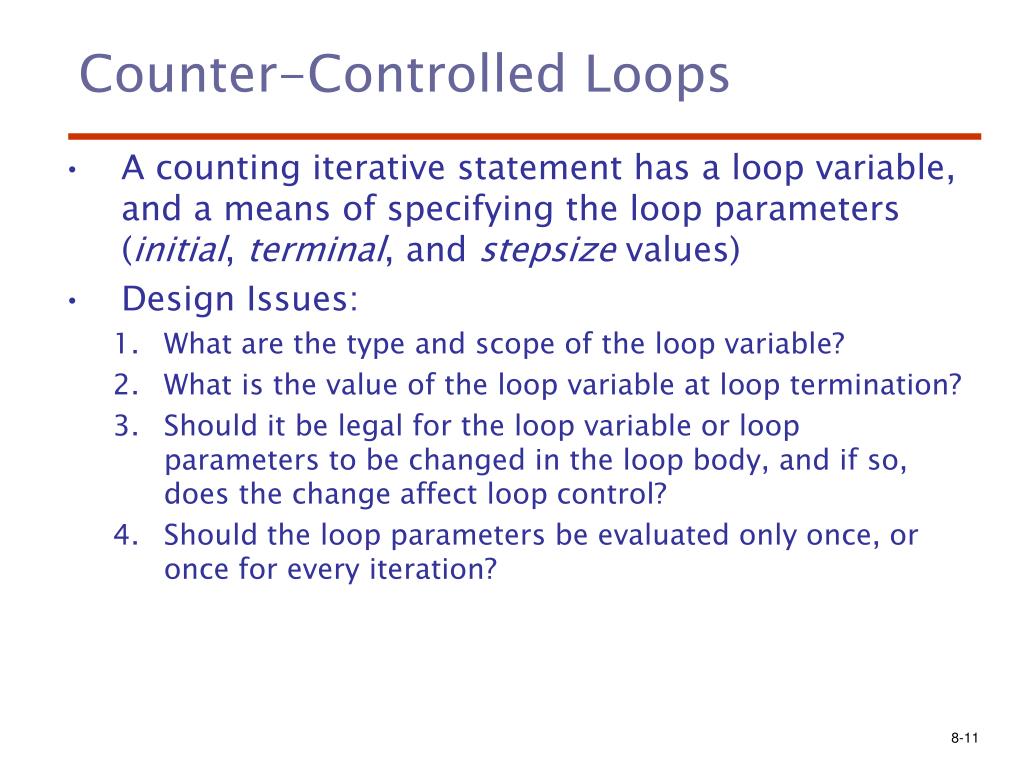

11. Counter-Controlled Loops • A counting iterative statement has a loop variable, and a means of specifying the loop parameters (initial, terminal, and stepsize values) • Design Issues: • What are the type and scope of the loop variable? • What is the value of the loop variable at loop termination? • Should it be legal for the loop variable or loop parameters to be changed in the loop body, and if so, does the change affect loop control? • Should the loop parameters be evaluated only once, or once for every iteration?

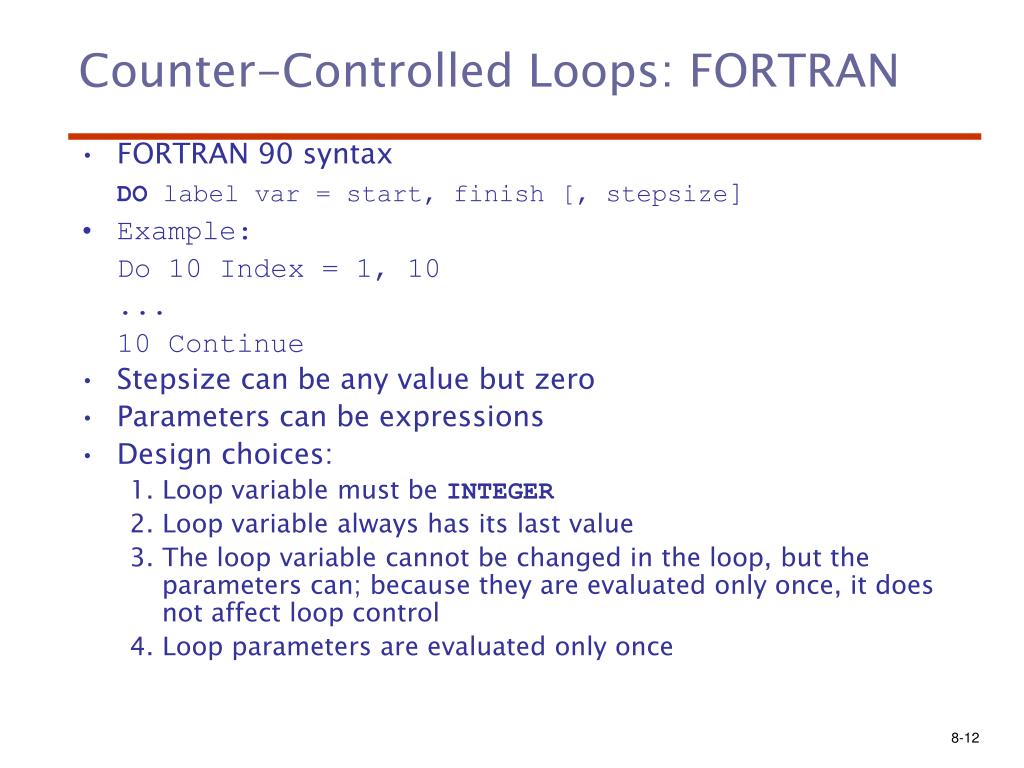

12. Counter-Controlled Loops: FORTRAN • FORTRAN 90 syntax DO label var = start, finish [, stepsize] • Example: Do 10 Index = 1, 10 ... 10 Continue • Stepsize can be any value but zero • Parameters can be expressions • Design choices: 1. Loop variable must be INTEGER 2. Loop variable always has its last value 3. The loop variable cannot be changed in the loop, but the parameters can; because they are evaluated only once, it does not affect loop control 4. Loop parameters are evaluated only once

13. Counter-Controlled Loops: Pascal • Pascal’s for statement for variable := initial (to|downto) final do statement • Example for i := 1 to 5 do A[i] := 0 • Design choices: • Loop variable must be an ordinal type of usual scope • After normal termination, loop variable is undefined • The loop variable cannot be changed in the loop; the loop parameters can be changed, but they are evaluated just once, so it does not affect loop control • Loop parameters are evaluated Just once

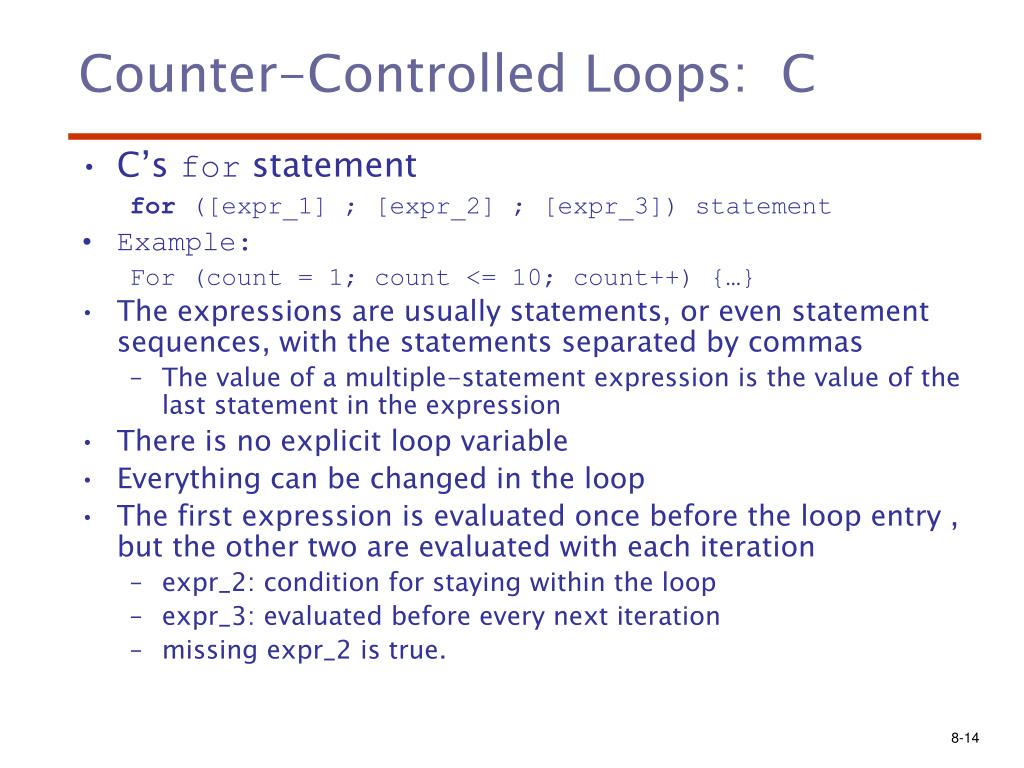

14. Counter-Controlled Loops: C • C’s for statement for ([expr_1] ; [expr_2] ; [expr_3]) statement • Example: For (count = 1; count <= 10; count++) {…} • The expressions are usually statements, or even statement sequences, with the statements separated by commas • The value of a multiple-statement expression is the value of the last statement in the expression • There is no explicit loop variable • Everything can be changed in the loop • The first expression is evaluated once before the loop entry , but the other two are evaluated with each iteration • expr_2: condition for staying within the loop • expr_3: evaluated before every next iteration • missing expr_2 is true.

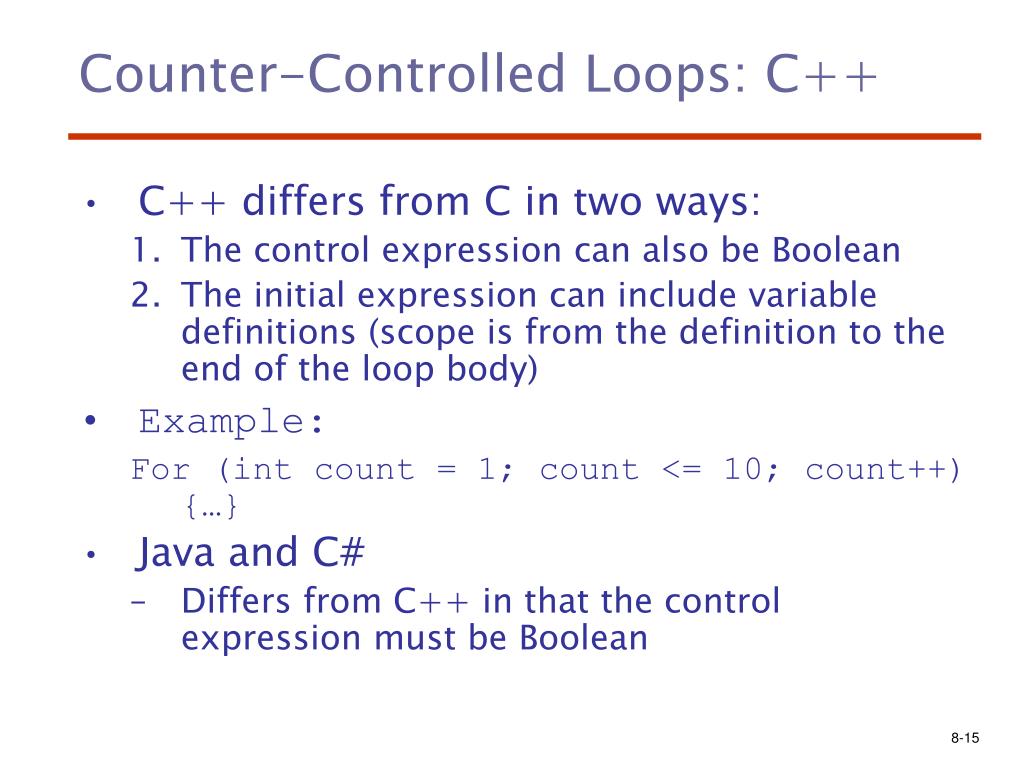

15. Counter-Controlled Loops: C++ • C++ differs from C in two ways: • The control expression can also be Boolean • The initial expression can include variable definitions (scope is from the definition to the end of the loop body) • Example: For (int count = 1; count <= 10; count++) {…} • Java and C# • Differs from C++ in that the control expression must be Boolean

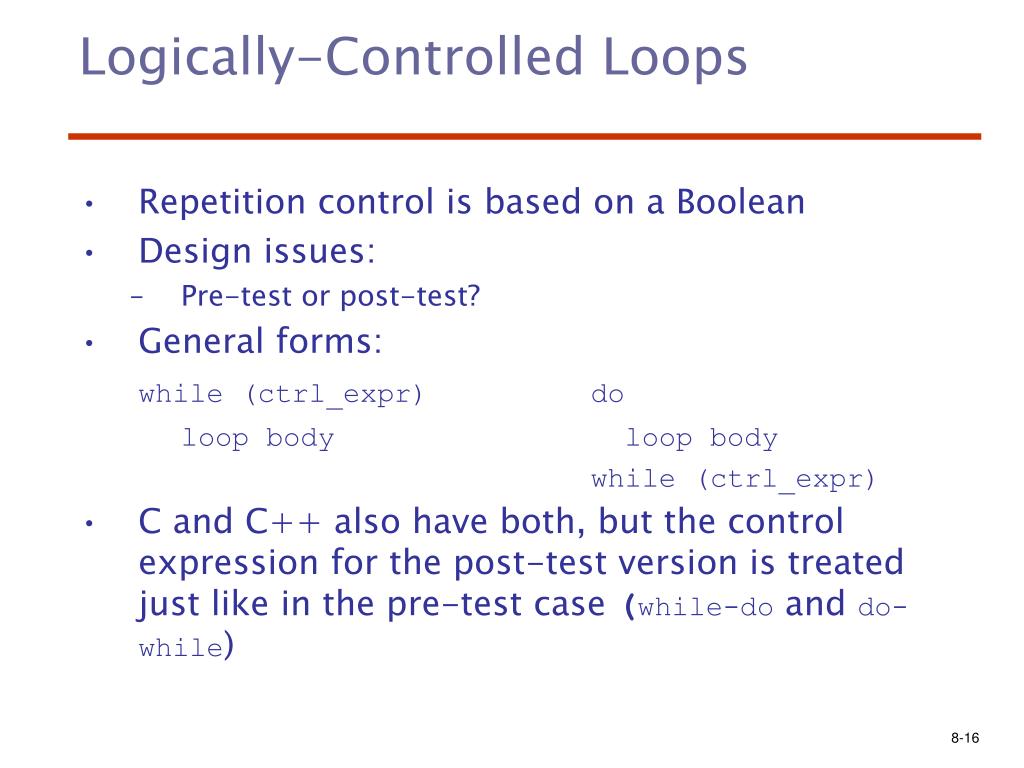

16. Logically-Controlled Loops • Repetition control is based on a Boolean • Design issues: • Pre-test or post-test? • General forms: while (ctrl_expr) do loop body loop body while (ctrl_expr) • C and C++ also have both, but the control expression for the post-test version is treated just like in the pre-test case (while-do and do- while)

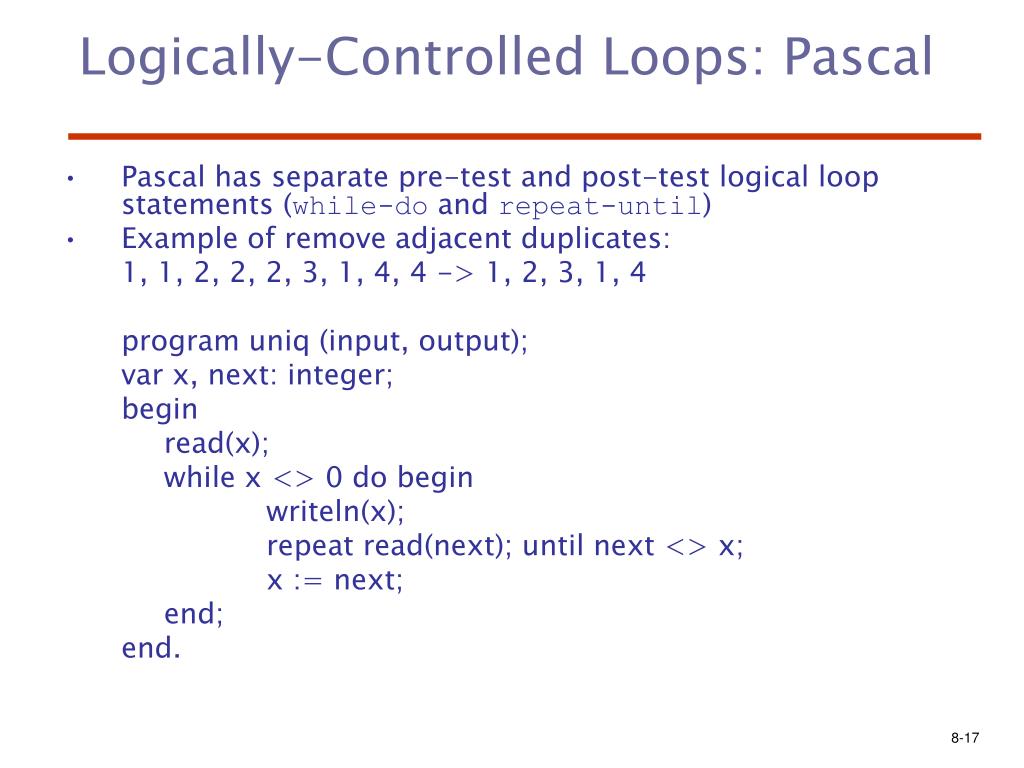

17. Logically-Controlled Loops: Pascal • Pascal has separate pre-test and post-test logical loop statements (while-do and repeat-until) • Example of remove adjacent duplicates: 1, 1, 2, 2, 2, 3, 1, 4, 4 -> 1, 2, 3, 1, 4 program uniq (input, output); var x, next: integer; begin read(x); while x <> 0 do begin writeln(x); repeat read(next); until next <> x; x := next; end; end.

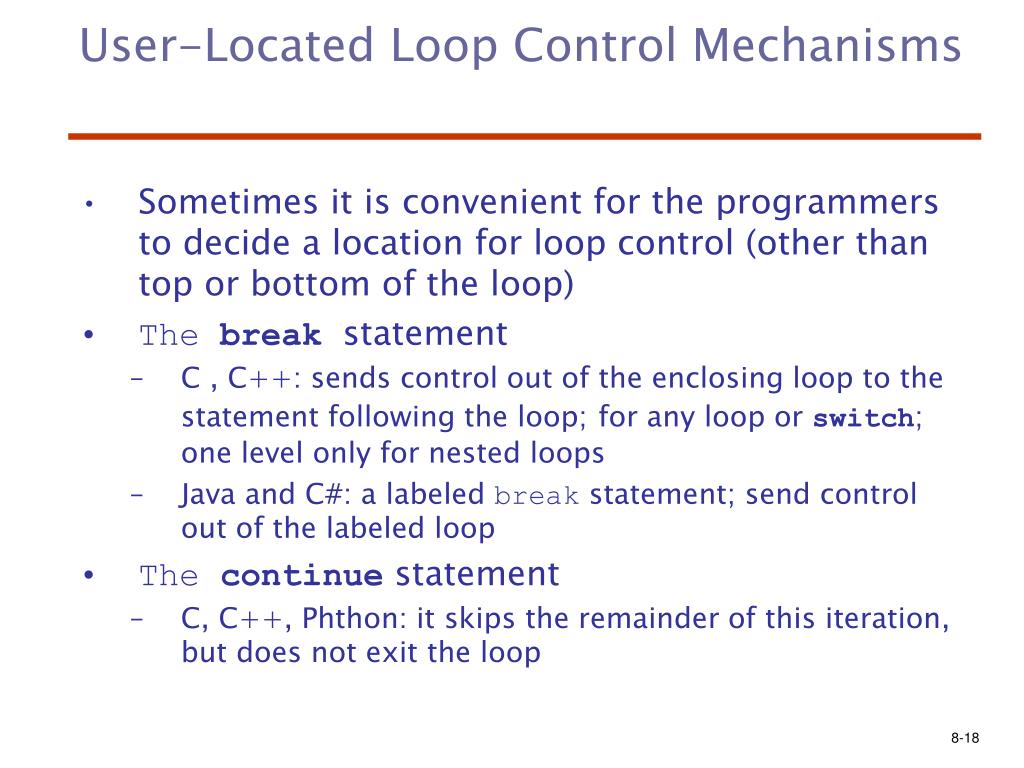

18. User-Located Loop Control Mechanisms • Sometimes it is convenient for the programmers to decide a location for loop control (other than top or bottom of the loop) • The break statement • C , C++: sends control out of the enclosing loop to the statement following the loop;for any loop or switch; one level only for nested loops • Java and C#: a labeled break statement; send control out of the labeled loop • The continue statement • C, C++, Phthon: it skips the remainder of this iteration, but does not exit the loop

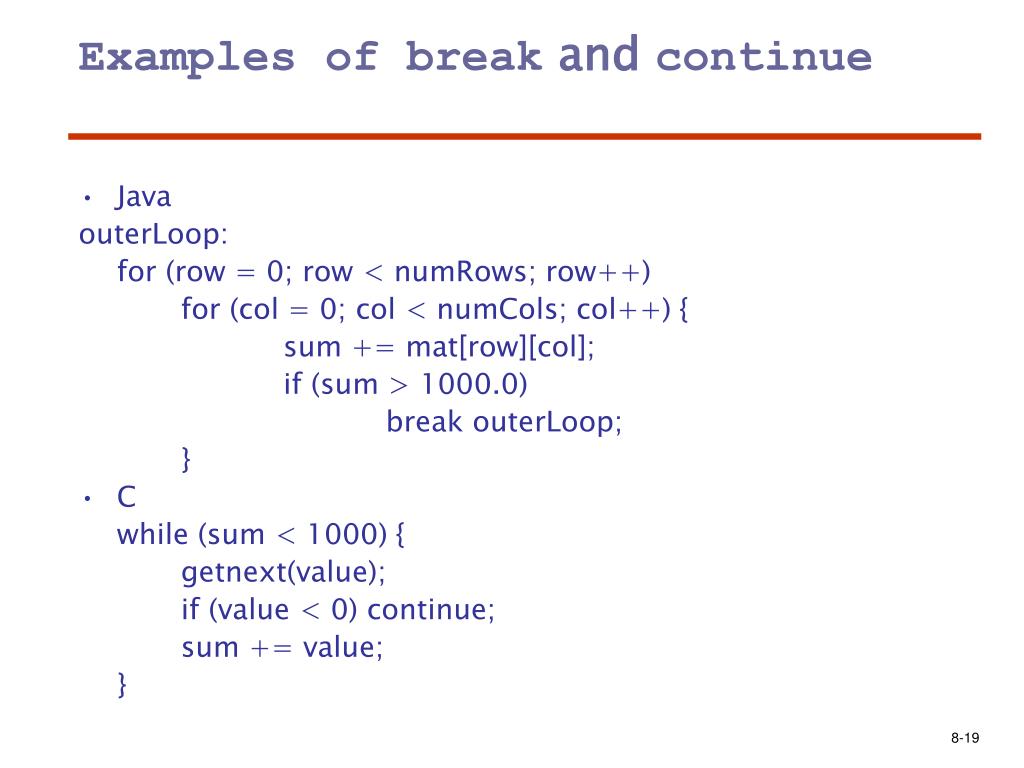

19. Examples of break and continue • Java outerLoop: for (row = 0; row < numRows; row++) for (col = 0; col < numCols; col++) { sum += mat[row][col]; if (sum > 1000.0) break outerLoop; } • C while (sum < 1000) { getnext(value); if (value < 0) continue; sum += value; }

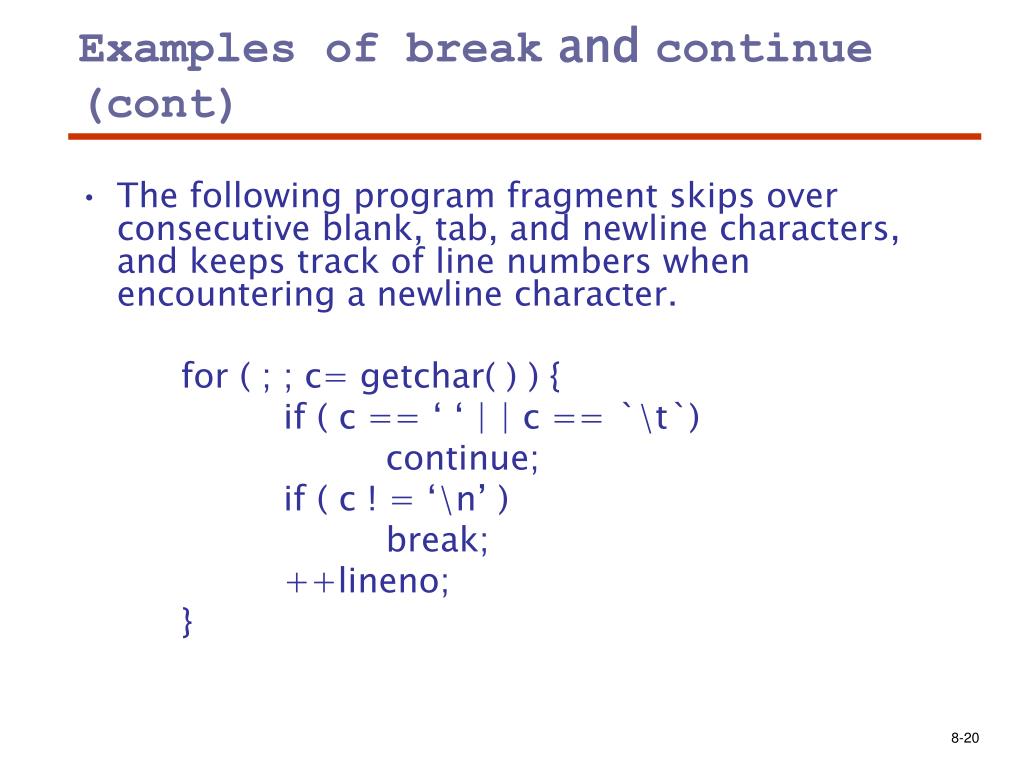

20. Examples of break and continue (cont) • The following program fragment skips over consecutive blank, tab, and newline characters, and keeps track of line numbers when encountering a newline character. for ( ; ; c= getchar( ) ) { if ( c == ‘ ‘ | | c == `\t`) continue; if ( c ! = ‘\n’ ) break; ++lineno; }

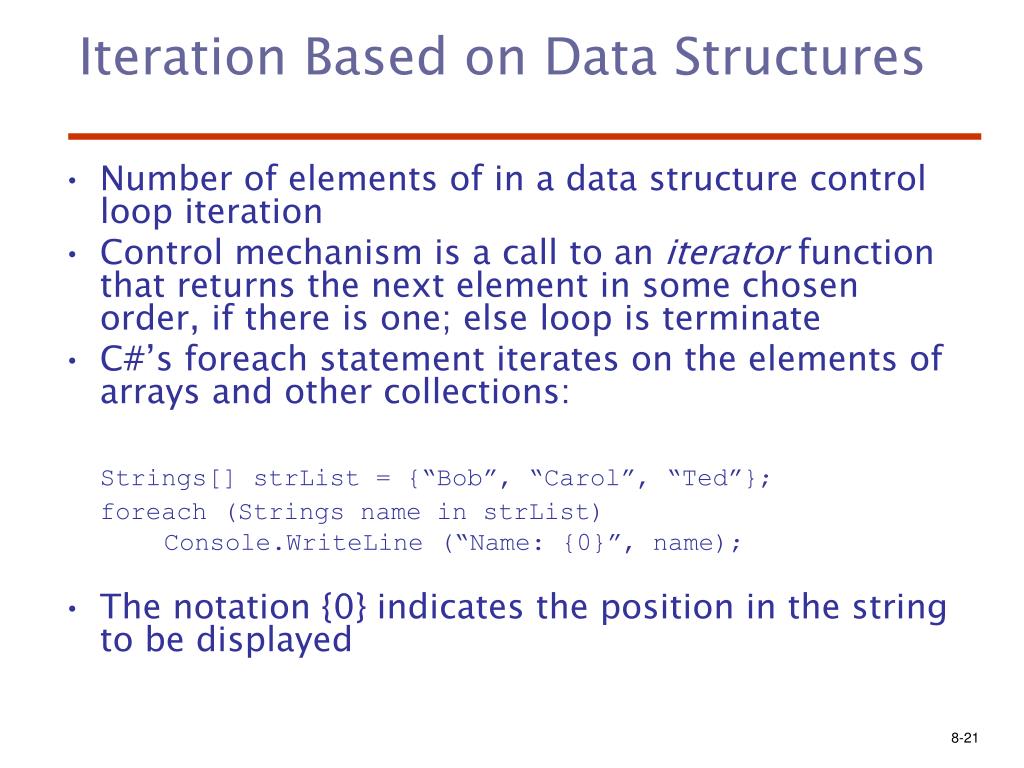

21. Iteration Based on Data Structures • Number of elements of in a data structure control loop iteration • Control mechanism is a call to an iterator function that returns the next element in some chosen order, if there is one; else loop is terminate • C#’s foreach statement iterates on the elements of arrays and other collections: Strings[] strList = {“Bob”, “Carol”, “Ted”}; foreach (Strings name in strList) Console.WriteLine (“Name: {0}”, name); • The notation {0} indicates the position in the string to be displayed

22. Unconditional Branching • Transfers execution control to a specified place in the program • Well-known mechanism: goto statement • Represented one of the most heated debates in 1960’s and 1970’s • Major concern: Readability • Some languages do not support goto statement (e.g., Module-2 and Java) • C# offers goto statement (can be used in switch statements)

23. Syntax of statements in C

24. Invariants • An assertion is a true/false condition about the state of a computation, e.g., x > y. • An invariant at some point in a program is an assertion that holds whenever the point is reached at run time. • Correctness is a property of dynamic computation. Invariants are a bridge between the static program text and the dynamic progress of a computation. • It is best to start with invariants and use them to design the program. • Invariants will be enclosed with braces { and }.

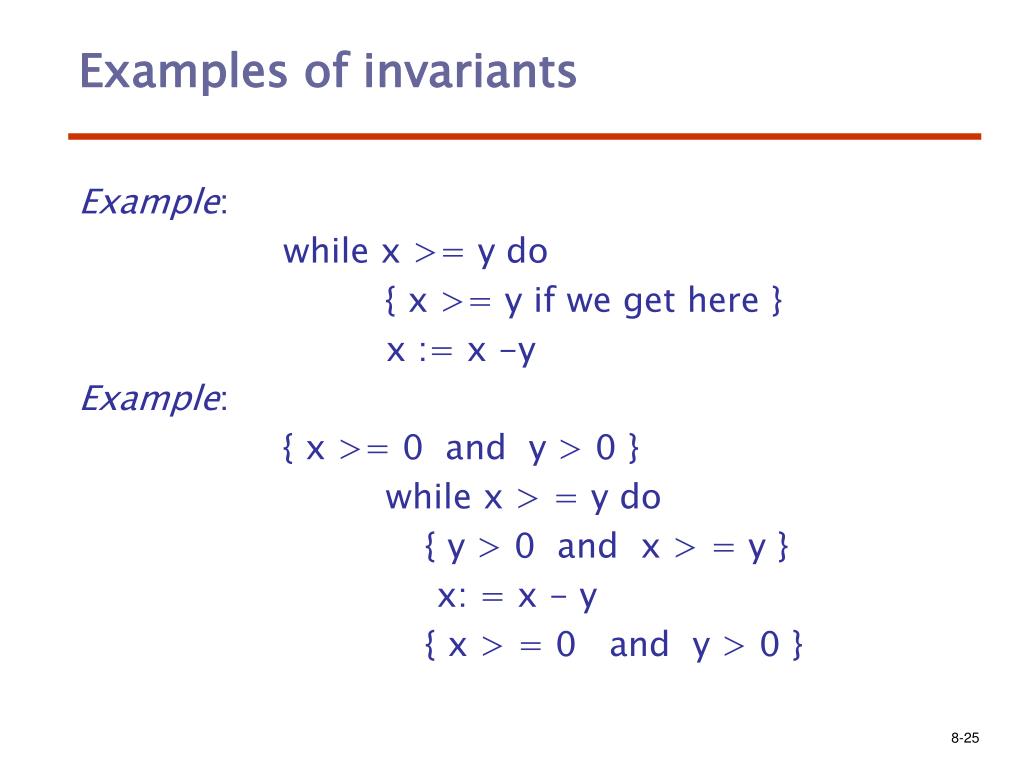

25. Examples of invariants Example: while x >= y do { x >= y if we get here } x := x -y Example: { x >= 0 and y > 0 } while x > = y do { y > 0 and x > = y } x: = x - y { x > = 0 and y > 0 }

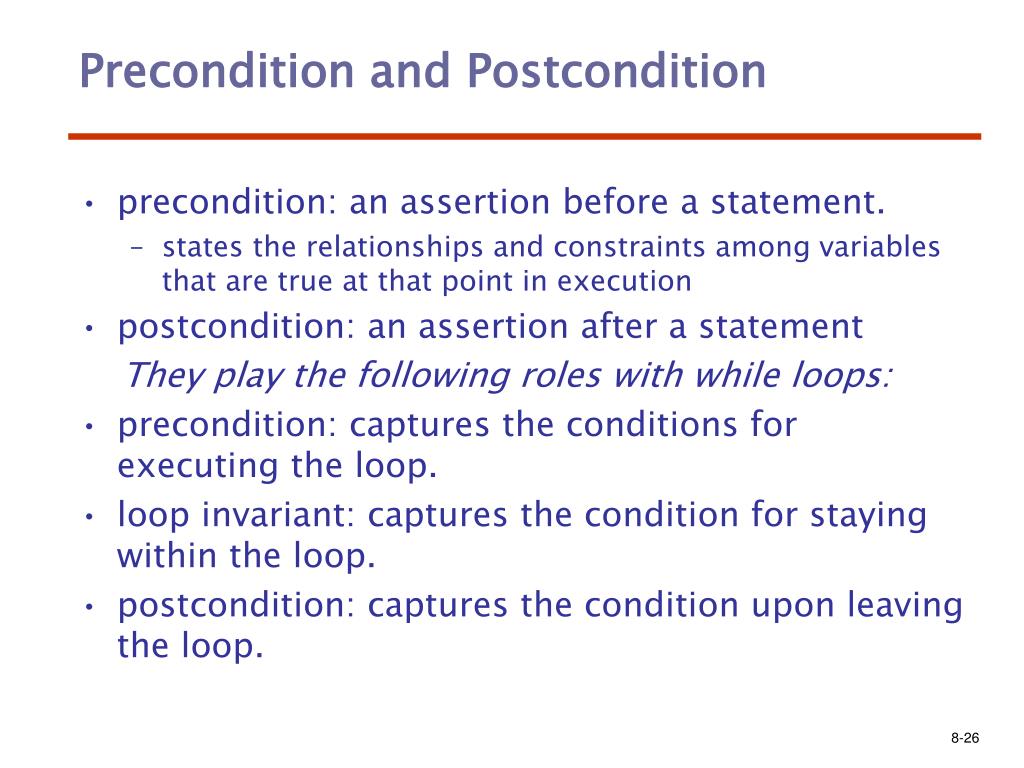

26. Precondition and Postcondition • precondition: an assertion before a statement. • states the relationships and constraints among variables that are true at that point in execution • postcondition: an assertion after a statement They play the following roles with while loops: • precondition: captures the conditions for executing the loop. • loop invariant: captures the condition for staying within the loop. • postcondition: captures the condition upon leaving the loop.

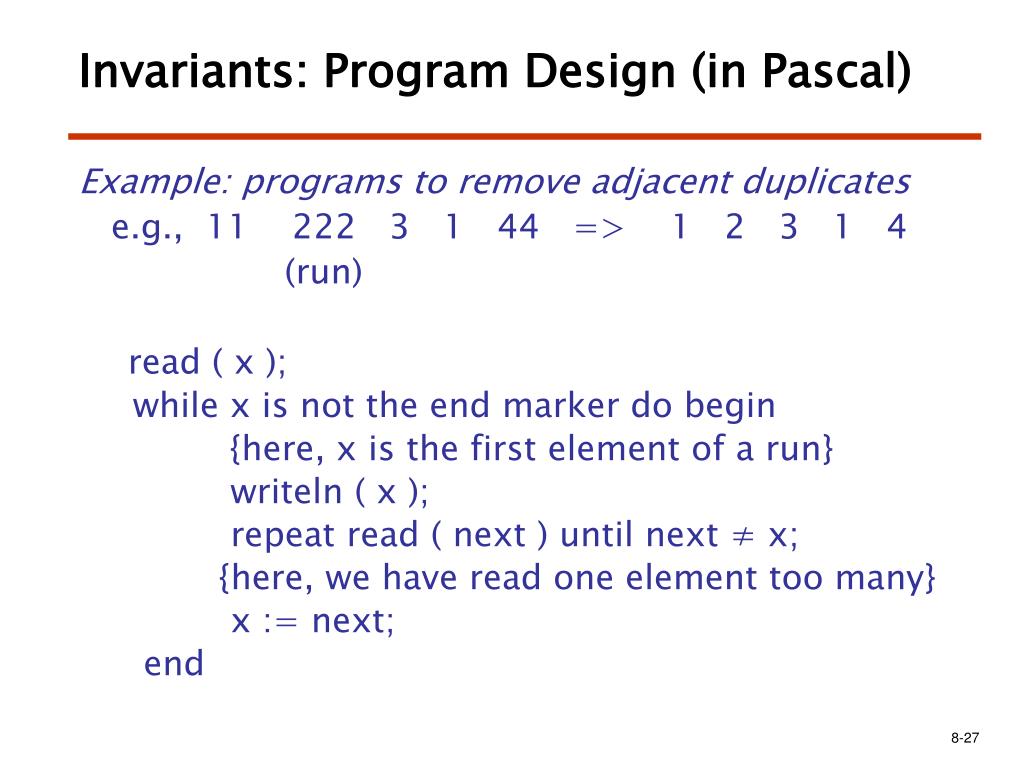

27. Invariants: Program Design (in Pascal) Example: programs to remove adjacent duplicates e.g., 11 222 3 1 44 => 1 2 3 1 4 (run) read ( x ); while x is not the end marker do begin {here, x is the first element of a run} writeln ( x ); repeat read ( next ) until next ≠ x; {here, we have read one element too many} x := next; end

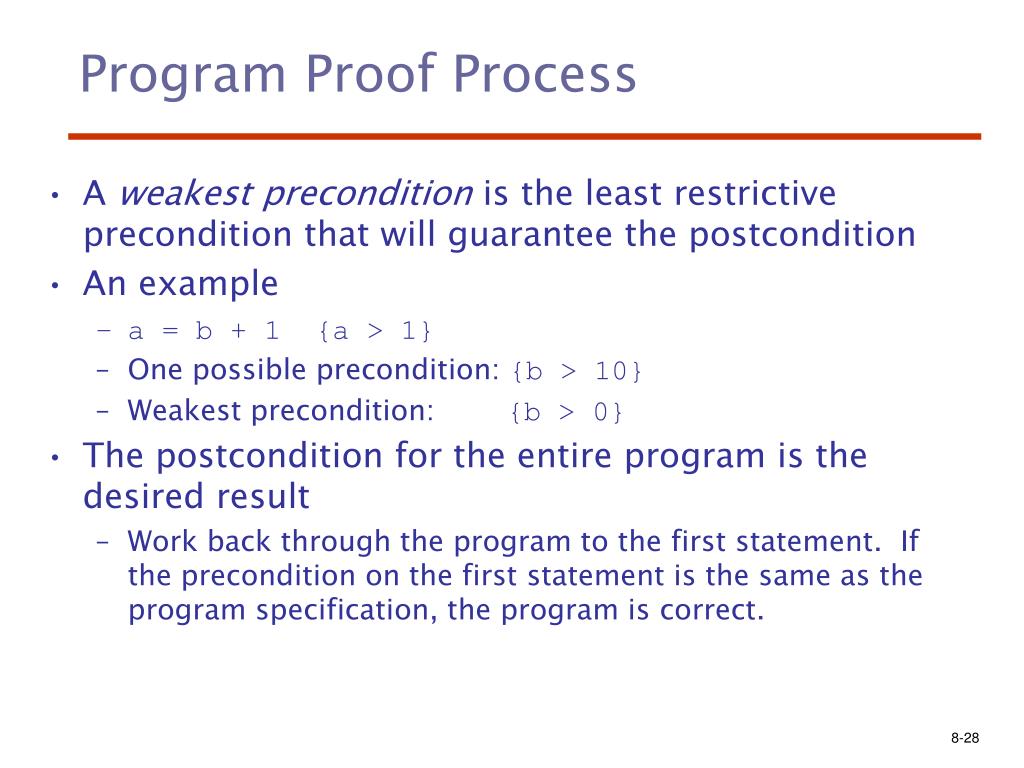

28. Program Proof Process • A weakest precondition is the least restrictive precondition that will guarantee the postcondition • An example • a = b + 1 {a > 1} • One possible precondition: {b > 10} • Weakest precondition: {b > 0} • The postcondition for the entire program is the desired result • Work back through the program to the first statement. If the precondition on the first statement is the same as the program specification, the program is correct.
