Instruction Execution Mechanism and Control Flow Generation

Understand how instructions are stored, fetched, and executed in a computing system, including the use of registers, memory, phases, and control flow mechanisms. Explore the generation of status bits for conditional branches and dynamically changing program flow based on conditions.

thuong
Télécharger la présentation

Instruction Execution Mechanism and Control Flow Generation

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Instruction Storage and Usage • Instructions are stored in a memory called instruction memory • To execute each instruction, we get the instruction out of memory, store in a register called instruction register (may be more than one single register of n-bits depending on the number of words in an instruction), and carry out operations on data path to achieve the desired result • It may take more than one cycle to execute an instruction • Each cycle is called phase (or state) in instruction execution • Actions in one cycle is stored in one nano-instruction • For each instruction (micro-instruction per book), multiple nano instructions, one for each phase, are stored in nano_inst_mem • Instructions are fetched one at a time pointed by a counter, called program counter • For each instruction, nano instructions are fetched from nano memory, using a counter called nano-program counter

  2. Inst Mem WIAD Nano Inst Mem INAD PC IAddr Control NPC INST NAddr IIAD WNAD Input Output RA1 RA2 M- Reg WOUT Reg File OpCode EMR EALU EI S H I F T A L U WM Mem Unit Cond Code RM WR Data Addr SC WA EM WDAD Adding Program Memory • Program memory has • A PC • Memory • Mechanism to change PC

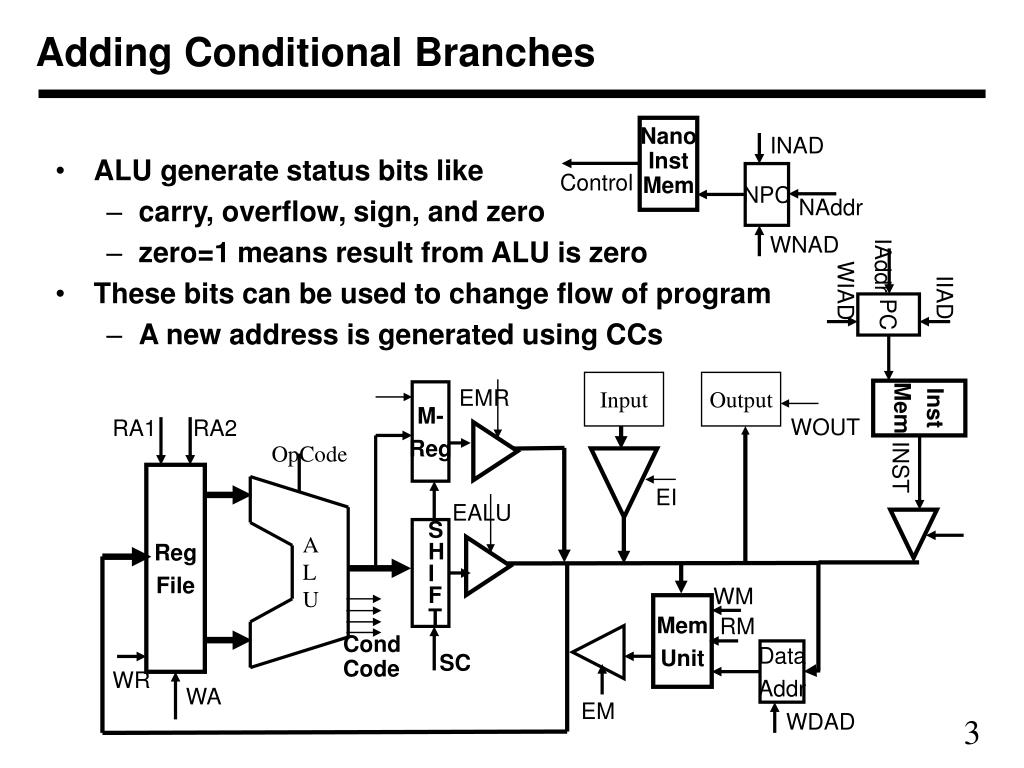

  3. Inst Mem Nano Inst Mem IIAD INAD PC INST Control NPC IAddr NAddr WIAD WNAD Input Output RA1 RA2 M- Reg WOUT Reg File OpCode EMR EALU EI S H I F T A L U WM Mem Unit Cond Code RM WR Data Addr SC WA EM WDAD Adding Conditional Branches • ALU generate status bits like • carry, overflow, sign, and zero • zero=1 means result from ALU is zero • These bits can be used to change flow of program • A new address is generated using CCs

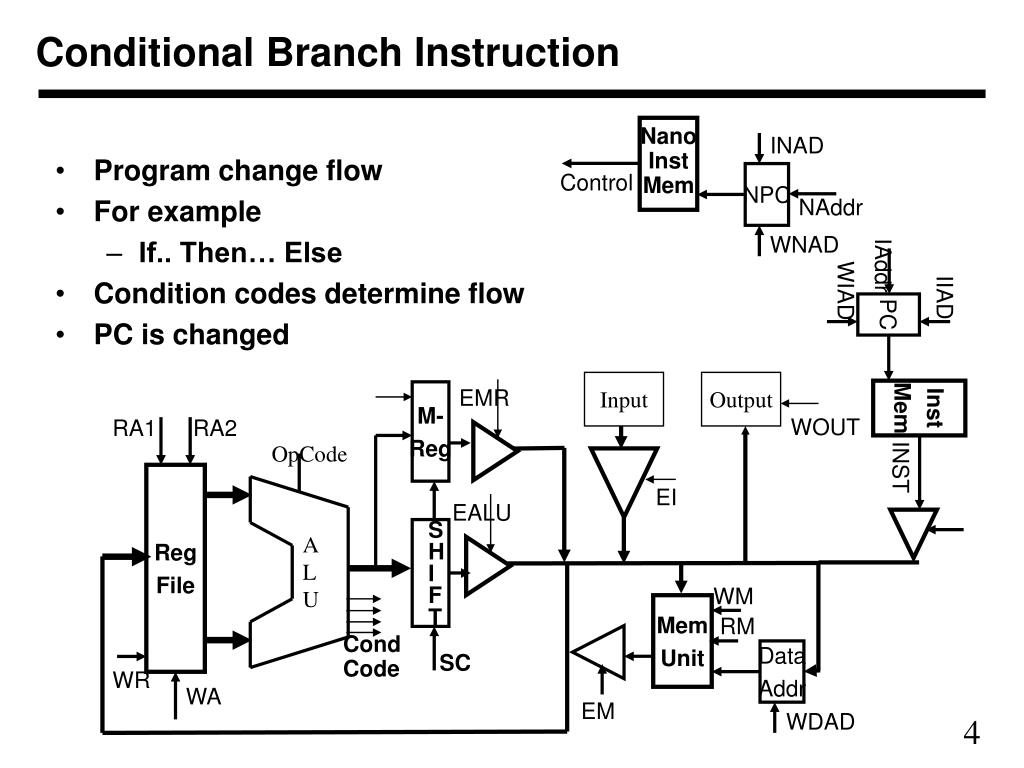

  4. Inst Mem Nano Inst Mem IIAD INAD PC INST Control NPC IAddr NAddr WIAD WNAD Input Output RA1 RA2 M- Reg WOUT Reg File OpCode EMR EALU EI S H I F T A L U WM Mem Unit Cond Code RM WR Data Addr SC WA EM WDAD Conditional Branch Instruction • Program change flow • For example • If.. Then… Else • Condition codes determine flow • PC is changed
