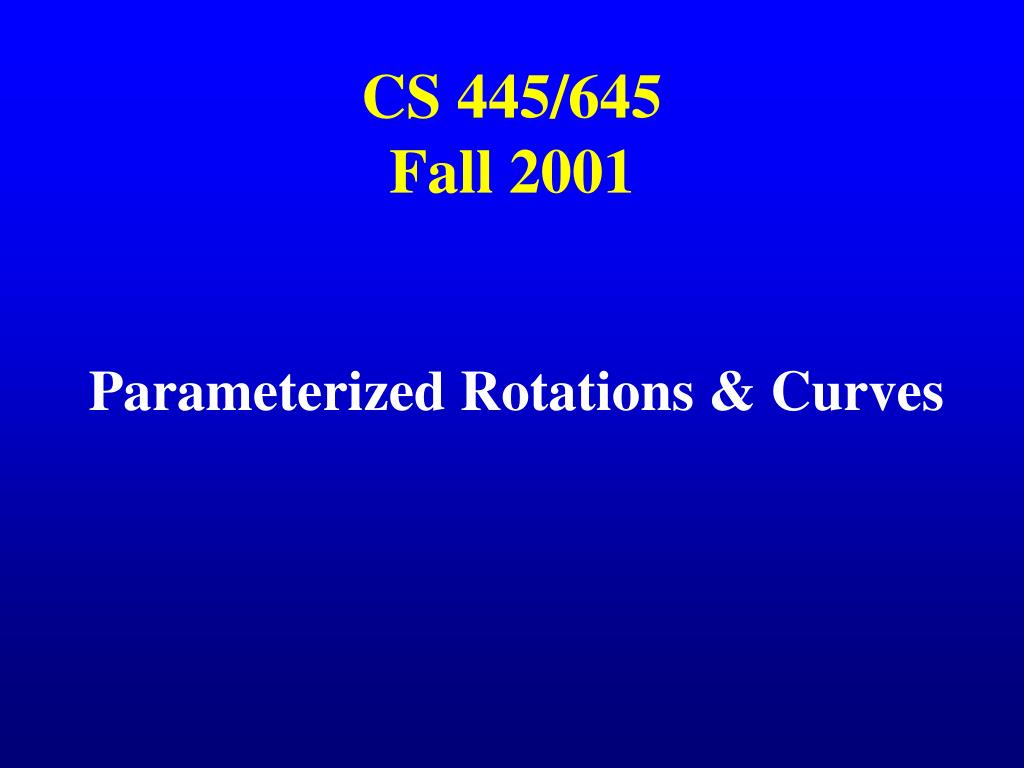

  1. CS 445/645Fall 2001 Parameterized Rotations & Curves

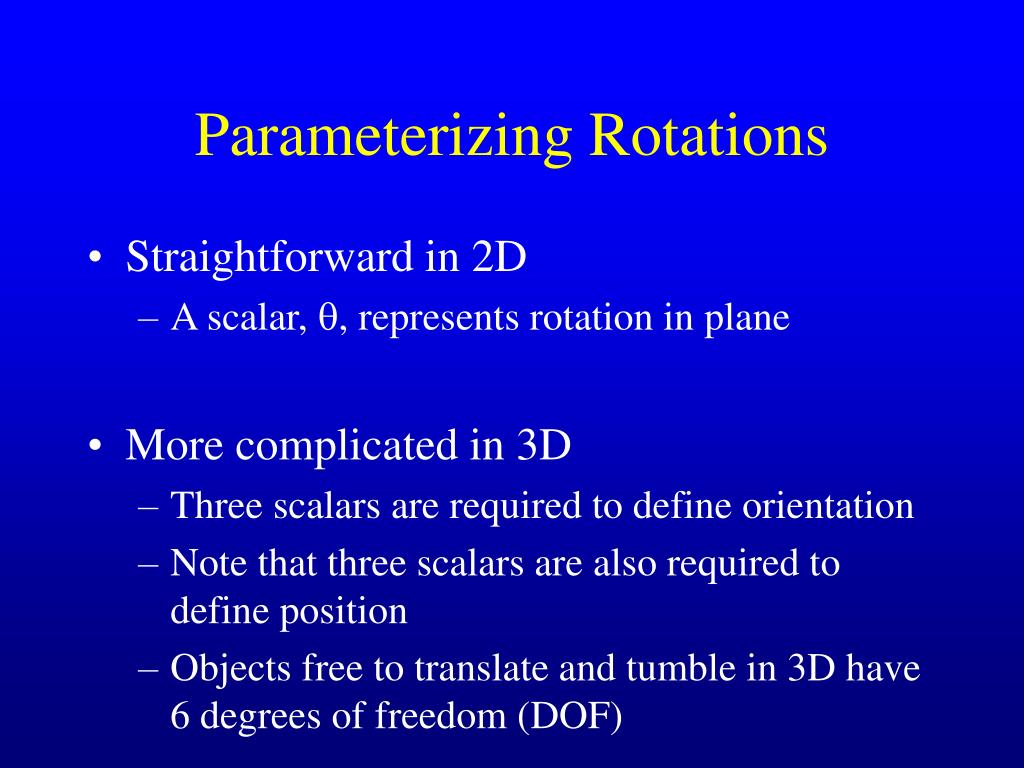

  2. Parameterizing Rotations • Straightforward in 2D • A scalar, q, represents rotation in plane • More complicated in 3D • Three scalars are required to define orientation • Note that three scalars are also required to define position • Objects free to translate and tumble in 3D have 6 degrees of freedom (DOF)

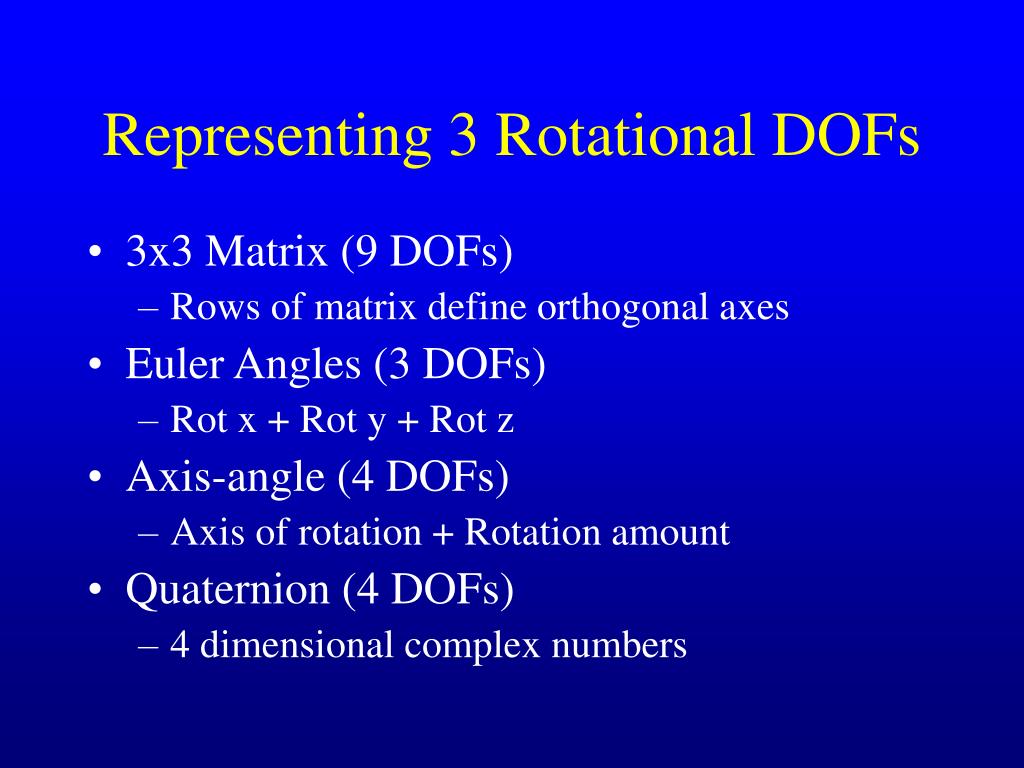

  3. Representing 3 Rotational DOFs • 3x3 Matrix (9 DOFs) • Rows of matrix define orthogonal axes • Euler Angles (3 DOFs) • Rot x + Rot y + Rot z • Axis-angle (4 DOFs) • Axis of rotation + Rotation amount • Quaternion (4 DOFs) • 4 dimensional complex numbers

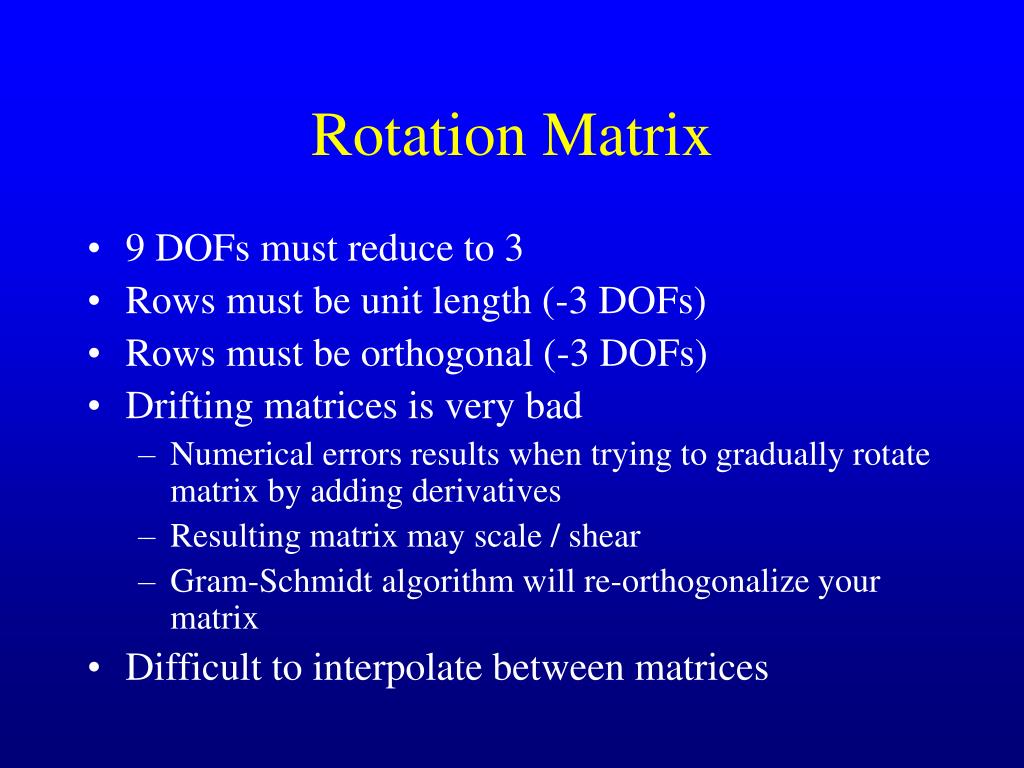

  4. Rotation Matrix • 9 DOFs must reduce to 3 • Rows must be unit length (-3 DOFs) • Rows must be orthogonal (-3 DOFs) • Drifting matrices is very bad • Numerical errors results when trying to gradually rotate matrix by adding derivatives • Resulting matrix may scale / shear • Gram-Schmidt algorithm will re-orthogonalize your matrix • Difficult to interpolate between matrices

  5. Euler Angles • (qx, qy, qz) = RzRyRx • Rotate qx degrees about x-axis • Rotate qy degrees about y-axis • Rotate qz degrees about z-axis • Axis order is not defined • (y, z, x), (x, z, y), (z, y, x)… are all legal • Pick one

  6. Euler Angles • Rotations not uniquely defined • ex: (z, x, y) = (90, 45, 45) = (45, 0, -45)takes positive x-axis to (1, 1, 1) • cartesian coordinates are independent of one another, but Euler angles are not • Gimbal Lock • Term derived from mechanical problem that arises in gimbal mechanism that supports a compass or a gyro

  7. Gimbal Lock

  8. Gimbal Lock • Occurs when two axes are aligned • Second and third rotations have effect of transforming earlier rotations • ex: Rot x, Rot y, Rot z • If Rot y = 90 degrees, Rot z == -Rot x

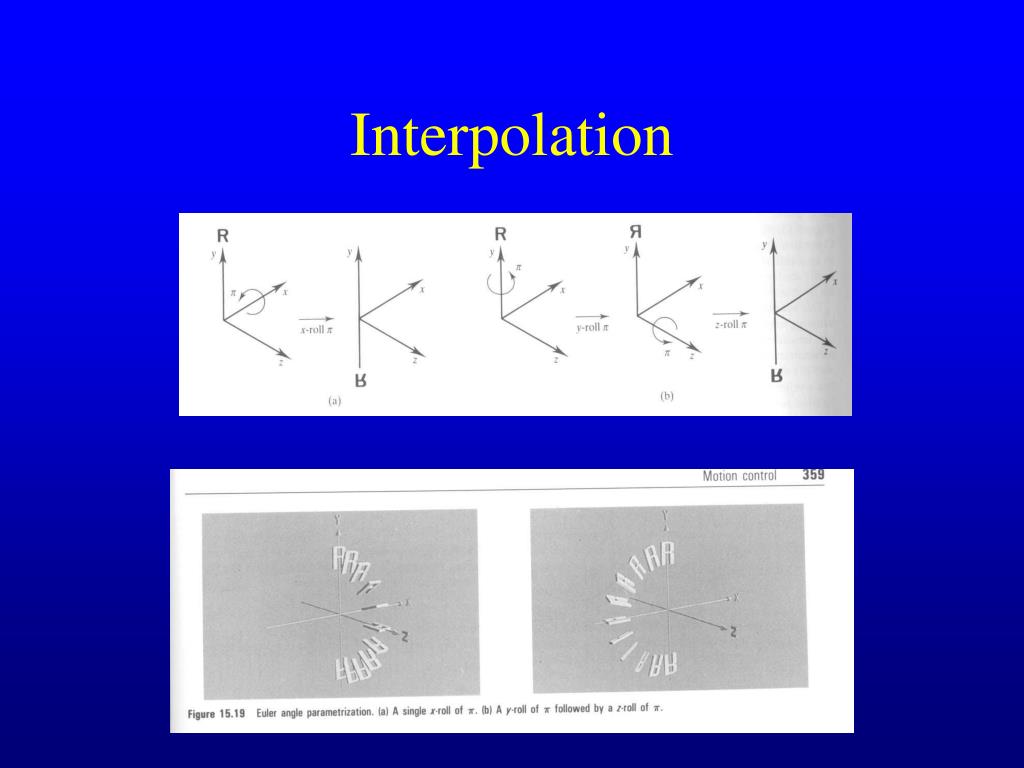

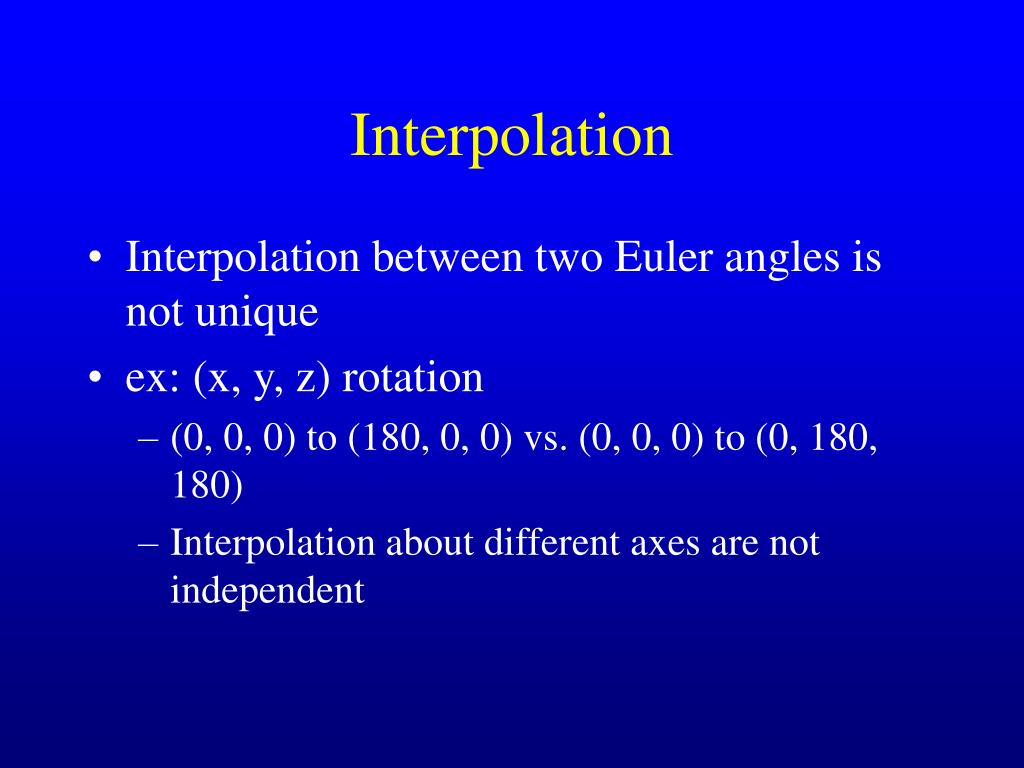

  9. Interpolation • Interpolation between two Euler angles is not unique • ex: (x, y, z) rotation • (0, 0, 0) to (180, 0, 0) vs. (0, 0, 0) to (0, 180, 180) • Interpolation about different axes are not independent

  10. Interpolation

  11. Axis-angle Notation • Define an axis of rotation (x, y, z) and a rotation about that axis, q: R(q, n) • 4 degrees of freedom specify 3 rotational degrees of freedom because axis of rotation is constrained to be a unit vector

  12. rperp = r – (n.r) n q V = nx (r – (n.r) n) = nxr Rr rpar = (n.r) n r n Axis-angle Notation Rr = Rrpar + Rrperp = Rrpar + (cos q) rperp + (sin q) V =(n.r) n + cos q(r – (n.r)n) + (sin q) n x r = (cos q)r + (1 – cos q) n (n.r) + (sin q) n x r

  13. Axis-angle Rotation Given r – Vector in space to rotate n – Axis in space about which to rotate q – The amount about n to rotate Solve r’ – The rotated vector r’ r n

  14. Axis-angle Rotation • Step 1 • Compute rk an extended version of the rotation axis, n • rk = (n ¢ r) r rk r’ r

  15. Axis-angle Rotation • Compute r? • r? = r– (n¢r) n r? r’ r

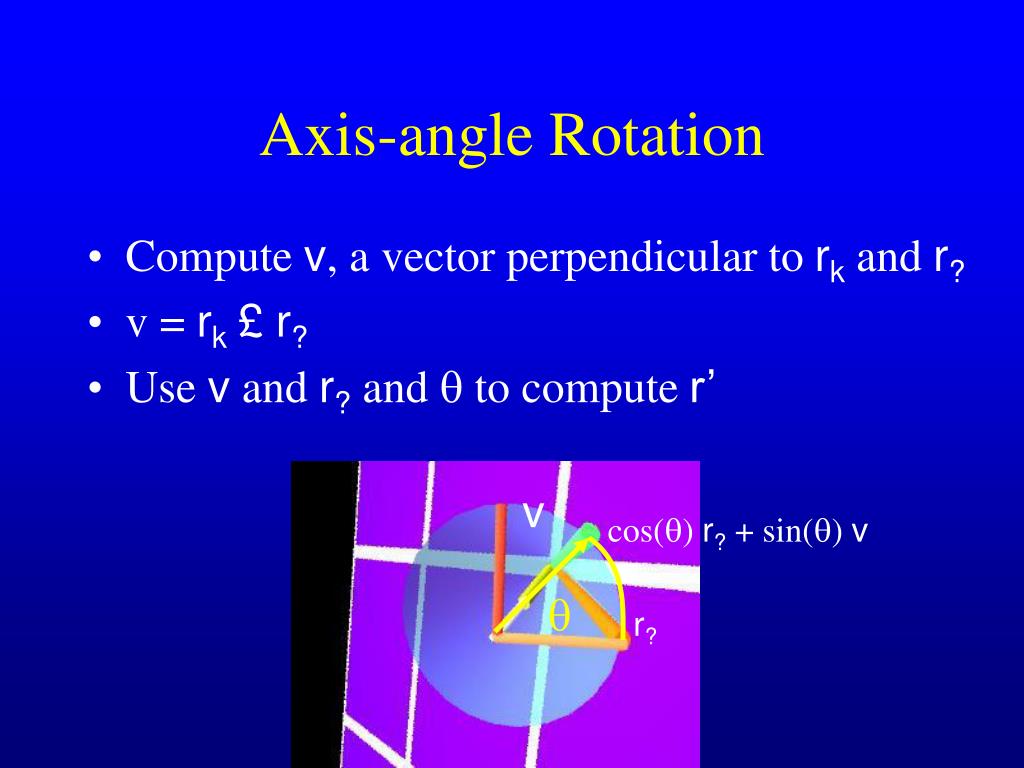

  16. v q Axis-angle Rotation • Compute v, a vector perpendicular to rk and r? • v = rk£ r? • Use v and r? and q to compute r’ cos(q) r? + sin(q) v r?

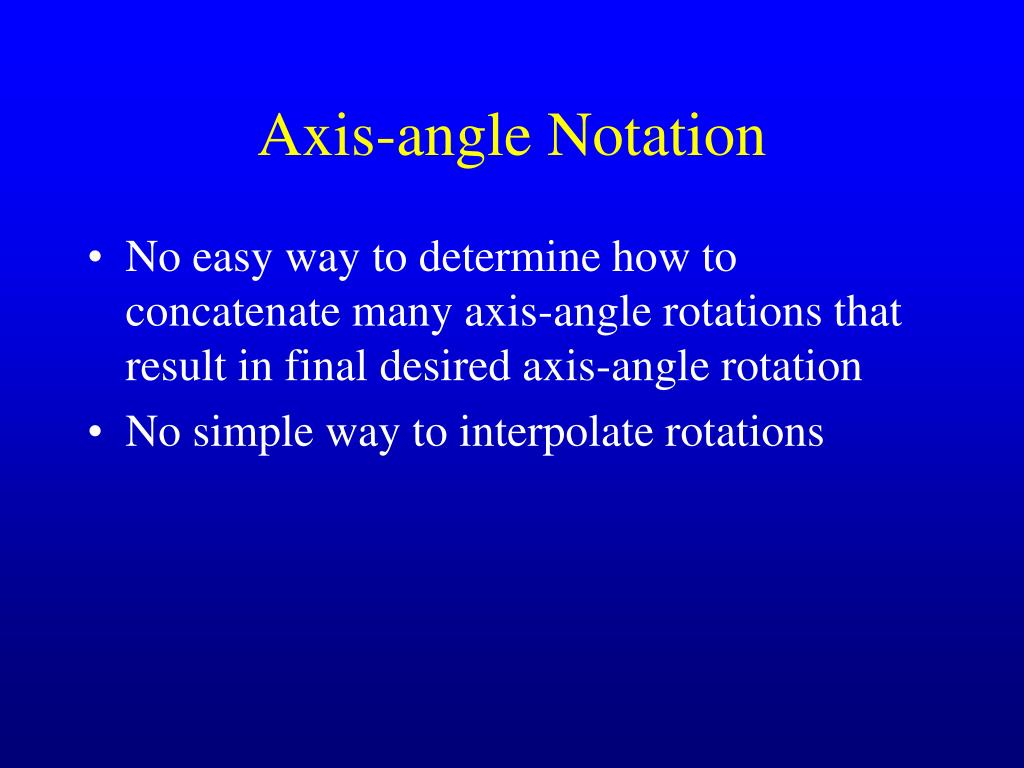

  17. Axis-angle Notation • No easy way to determine how to concatenate many axis-angle rotations that result in final desired axis-angle rotation • No simple way to interpolate rotations

  18. Quaternion • Remember complex numbers: a + ib • Where i2 = -1 • Invented by Sir William Hamilton (1843) • Remember Hamiltonian path from Discrete II? • Quaternion: • Q = a + bi + cj + dk • Where i2 = j2 = k2 = -1 and ij = k and ji = -k • Represented as: q = (s, v) = s + vxi + vyj + vzk

  19. Quaternion • Let q1 = (s1, v1) and q2 = (s2, v2) • q1q2 = (s1s2 – v1.v2, s1v2 + s2v1 + v1 x v2) • Conjugate = q1’ = (s, -v) • q1q1’ = s2 + |v|2 = |q|2 = magnitude • If q has unit magnitude • q’ = q-1 (conjugate = inverse) • Define a pure quaternion: p = (0, r), r = unit vector • Rotating p by q • (0, cos2q r + (1 – cos2q) n (n.r) + sin2qn.r)

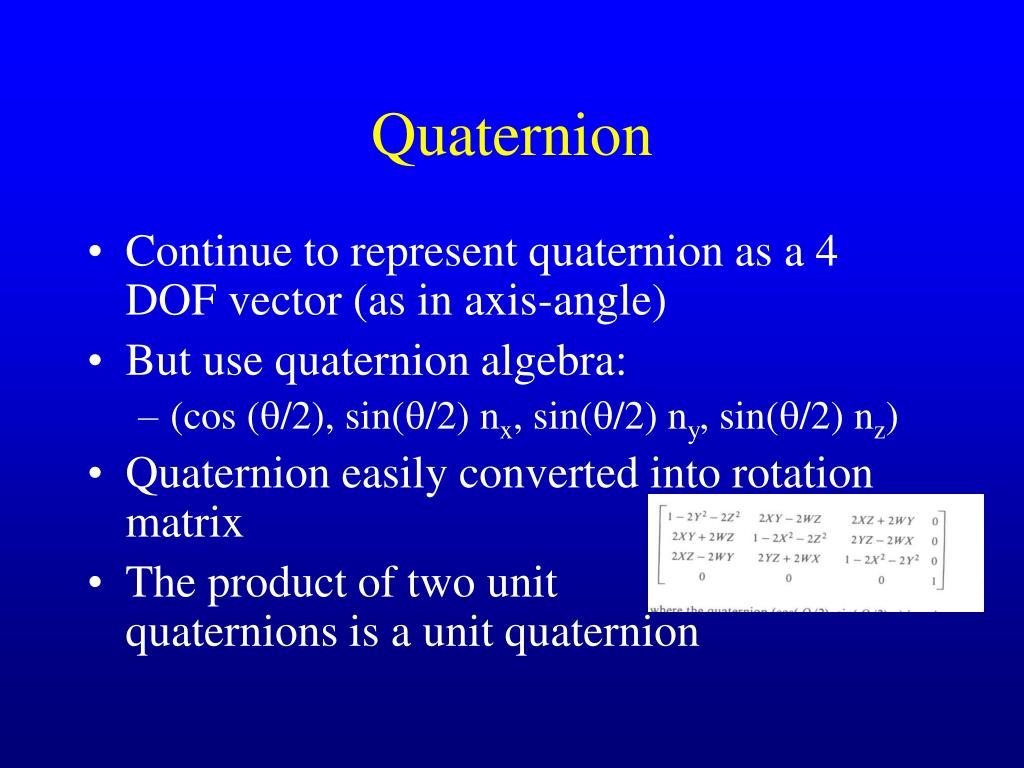

  20. Quaternion • Continue to represent quaternion as a 4 DOF vector (as in axis-angle) • But use quaternion algebra: • (cos (q/2), sin(q/2) nx, sin(q/2) ny, sin(q/2) nz) • Quaternion easily converted into rotation matrix • The product of two unit quaternions is a unit quaternion

  21. Quaternion Example • X-roll of p • (cos (p/2), sin (p/2) (1, 0, 0)) = (0, (1, 0, 0)) • Y-roll 0f p • (0, (0, 1, 0)) • Z-roll of p • (0, (0, 0, 1)) • Ry (p) followed by Rz (p) • (0, (0, 1, 0) times (0, (0, 0, 1)) = (0, (0, 1, 0) x (0, 0, 1) = (0, (1, 0, 0))

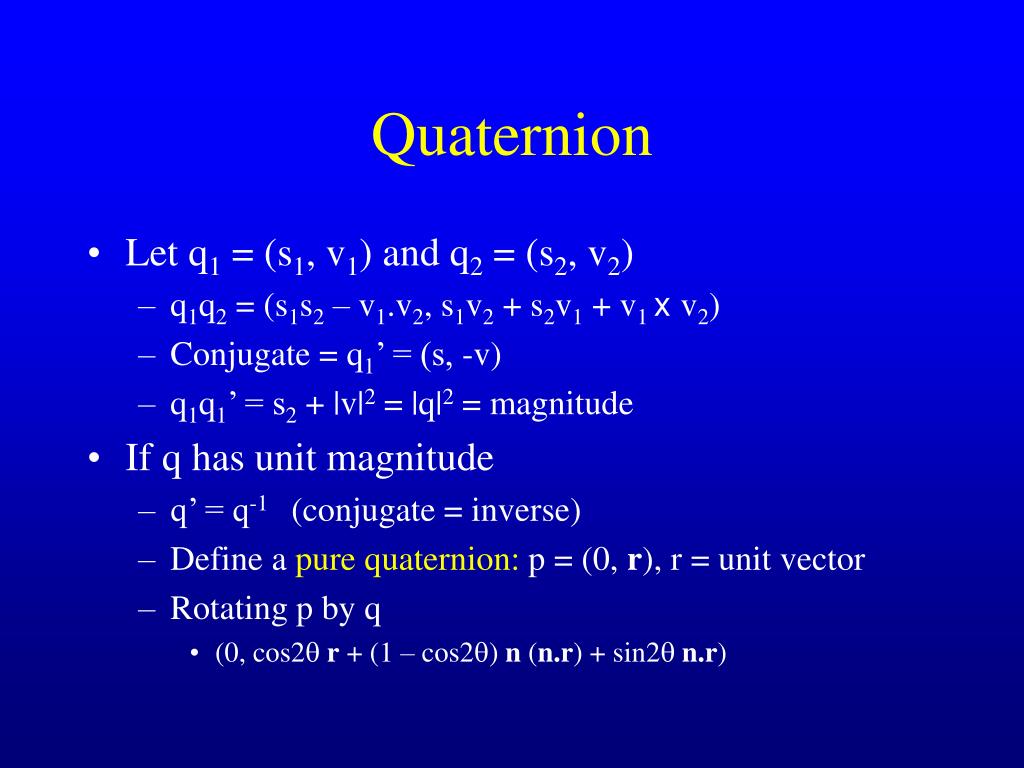

  22. Quaternion Interpolation • Biggest advantage of quaternions • Interpolation • Cannot linearly interpolate between two quaternions because it would speed up in middle • Instead, Spherical Linear Interpolation, slerp() • Used by modern video games for third-person perspective • Why?

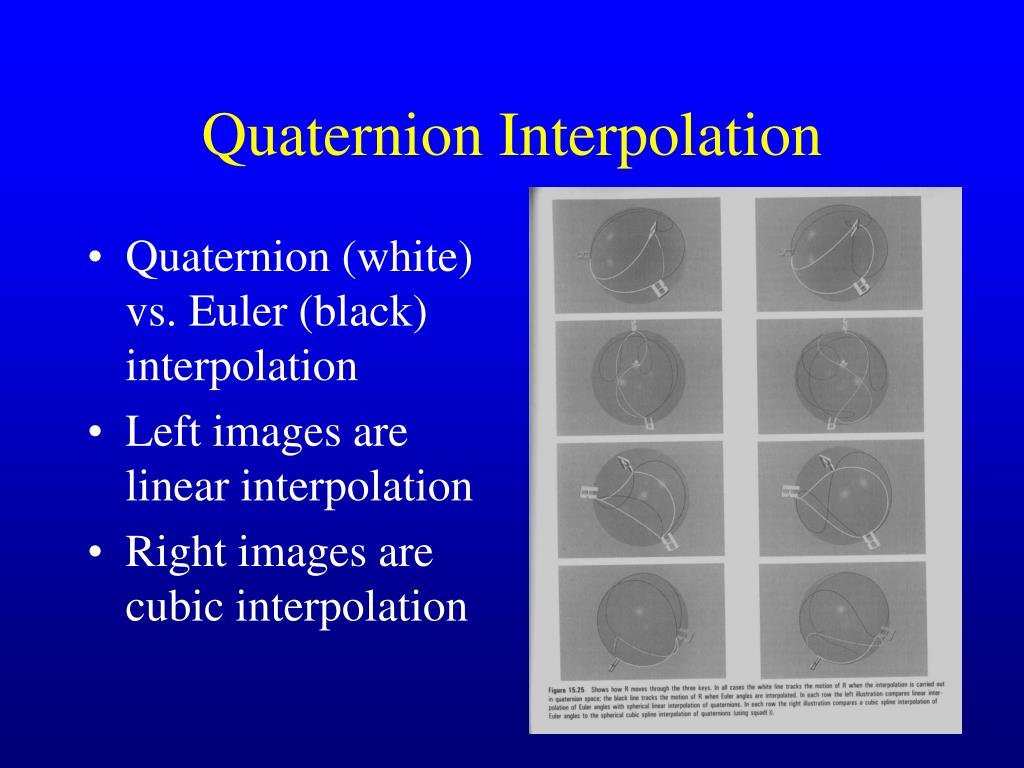

  23. Quaternion Interpolation • Quaternion (white) vs. Euler (black) interpolation • Left images are linear interpolation • Right images are cubic interpolation

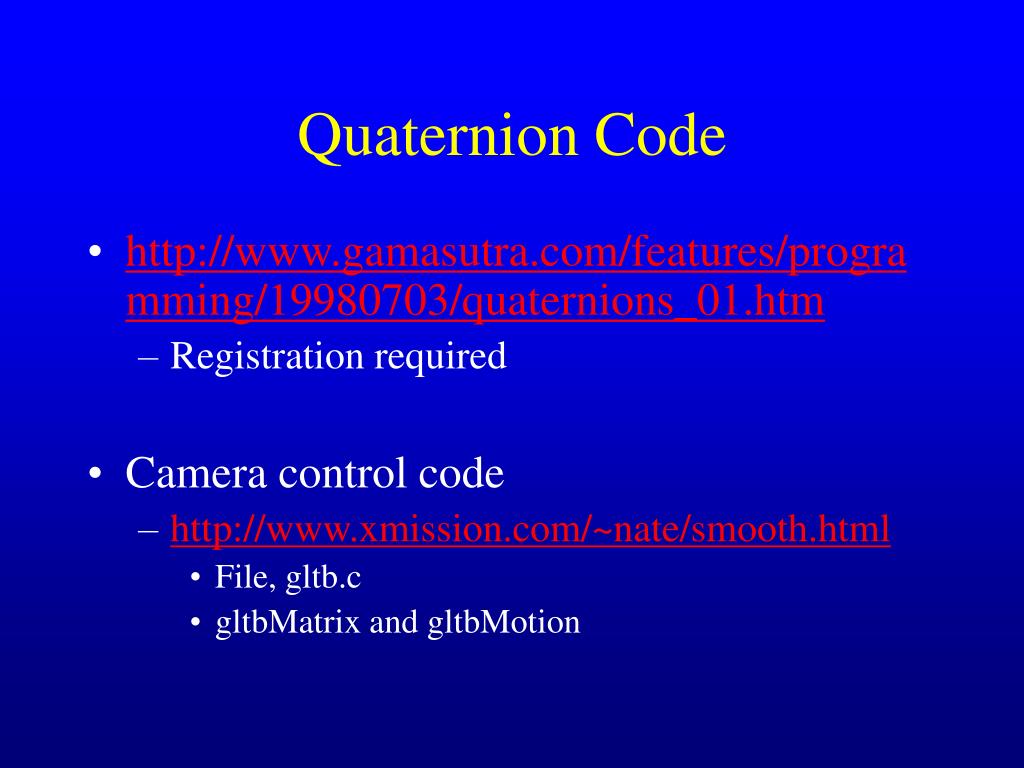

  24. Quaternion Code • http://www.gamasutra.com/features/programming/19980703/quaternions_01.htm • Registration required • Camera control code • http://www.xmission.com/~nate/smooth.html • File, gltb.c • gltbMatrix and gltbMotion

  25. Representations of Curves • Problems with series of points used to model a curve • Piecewise linear - Does not accurately model a smooth line • It’s tedious • Expensive to manipulate curve because all points must be repositioned • Instead, model curve as piecewise-polynomial • x = x(t), y = y(t), z = z(t) • where x(), y(), z() are polynomials

  26. Specifying Curves • Control Points • A set of points that influence the curve’s shape • Knots • Control points that lie on the curve • Interpolating Splines • Curves that pass through the control points (knots) • Approximating Splines • Control points merely influence shape

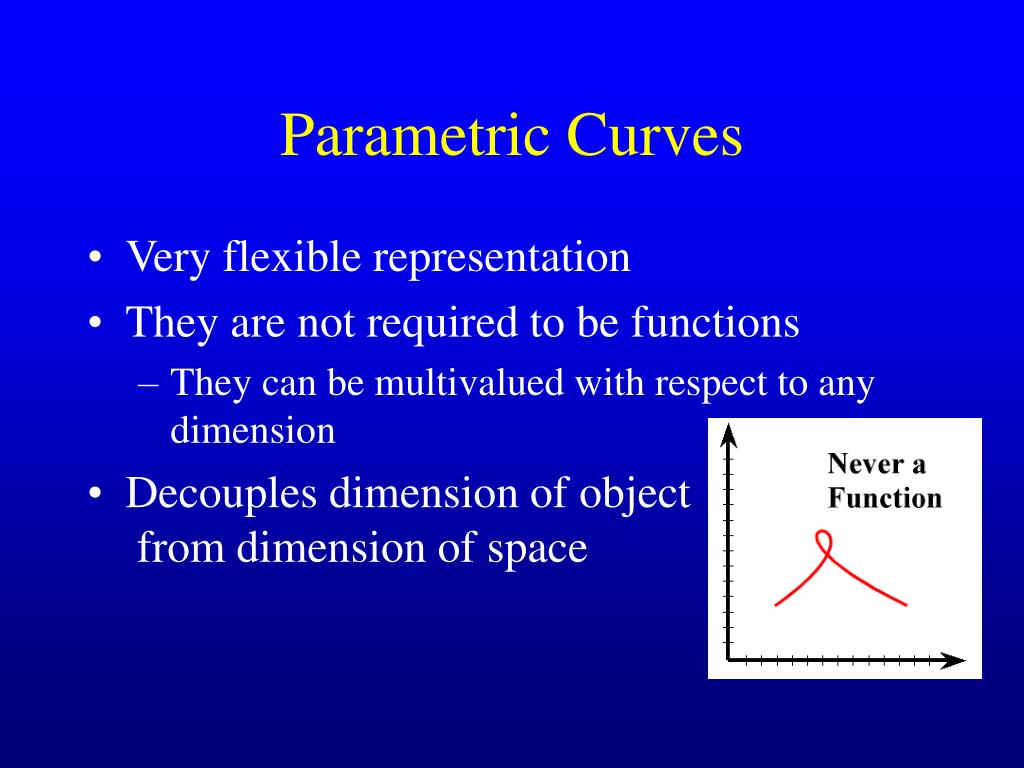

  27. Parametric Curves • Very flexible representation • They are not required to be functions • They can be multivalued with respect to any dimension • Decouples dimension of object from dimension of space

  28. Cubic Polynomials • x(t) = axt3 + bxt2 + cxt + dx • Similarly for y(t) and z(t) • Let t: (0 <= t <= 1) • Let T = [t3 t2 t 1] • Coefficient Matrix C • Curve: Q(t) = T.C

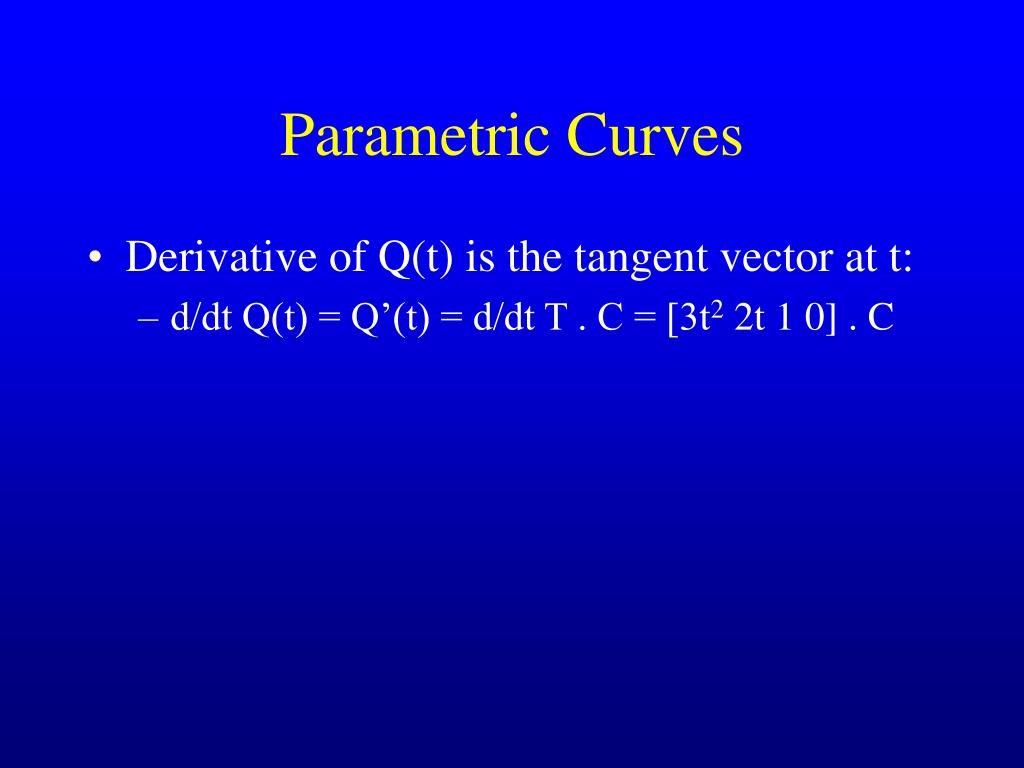

  29. Parametric Curves • Derivative of Q(t) is the tangent vector at t: • d/dt Q(t) = Q’(t) = d/dt T . C = [3t2 2t 1 0] . C

  30. Piecewise Curve Segments • One curve constructed by connecting many smaller segments end-to-end • Continuity describes the joint

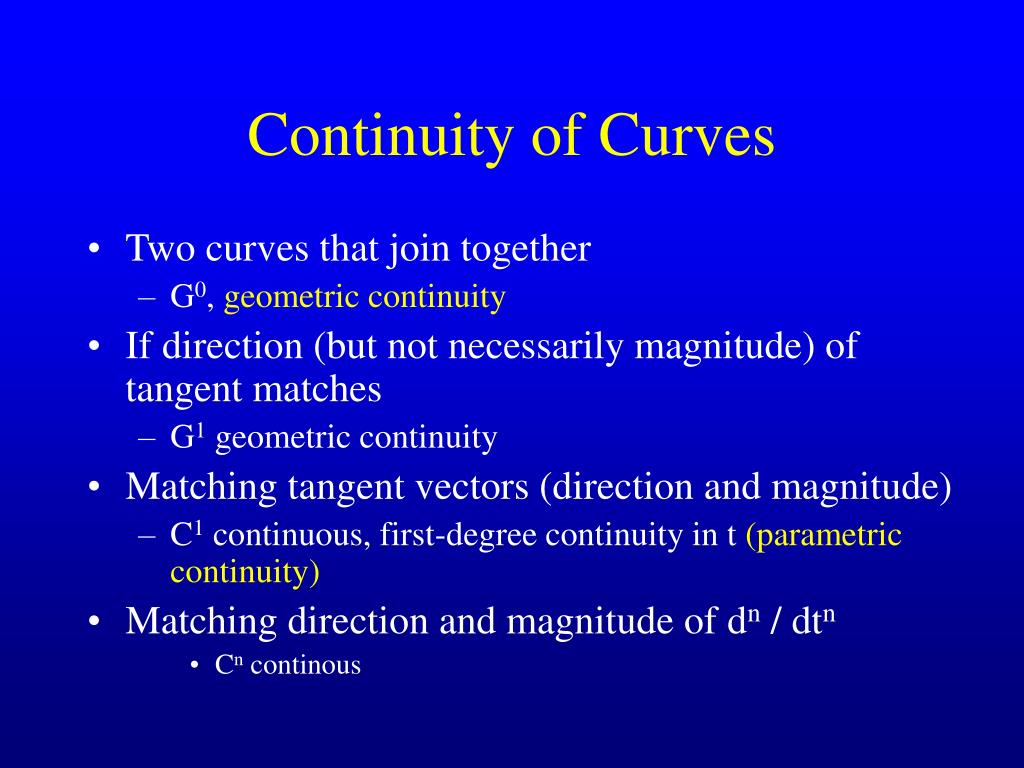

  31. Continuity of Curves • Two curves that join together • G0, geometric continuity • If direction (but not necessarily magnitude) of tangent matches • G1 geometric continuity • Matching tangent vectors (direction and magnitude) • C1 continuous, first-degree continuity in t (parametric continuity) • Matching direction and magnitude of dn / dtn • Cn continous

  32. Parametric Cubic Curves • In order to assure C2 continuity, curves must be of at least degree 3 • Here is the parametric definition of a spline in two dimensions

  33. Parametric Cubic Splines • Can represent this as a matrix too

  34. Coefficients • So how do we select the coefficients? • [ax bx cx dx] and [ay by cy dy] must satisfy the constraints defined by the knots and the continuity conditions

  35. Parametric Curves • Difficult to conceptualize curve as • x(t) = axt3 + bxt2 + cxt + dx • Instead, define curve as weighted combination of 4 well-defined cubic polynomials • Each curve type defines different cubic polynomials and weighting schemes

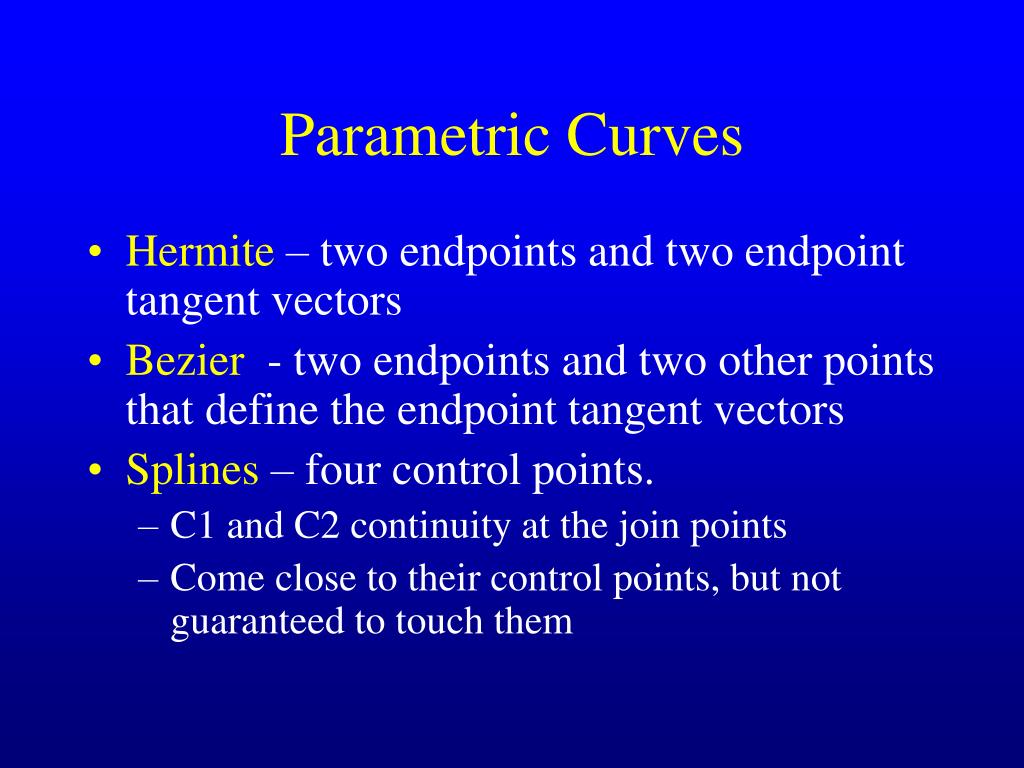

  36. Parametric Curves • Hermite – two endpoints and two endpoint tangent vectors • Bezier - two endpoints and two other points that define the endpoint tangent vectors • Splines – four control points. • C1 and C2 continuity at the join points • Come close to their control points, but not guaranteed to touch them

  37. Hermite Cubic Splines • An example of knot and continuity constraints

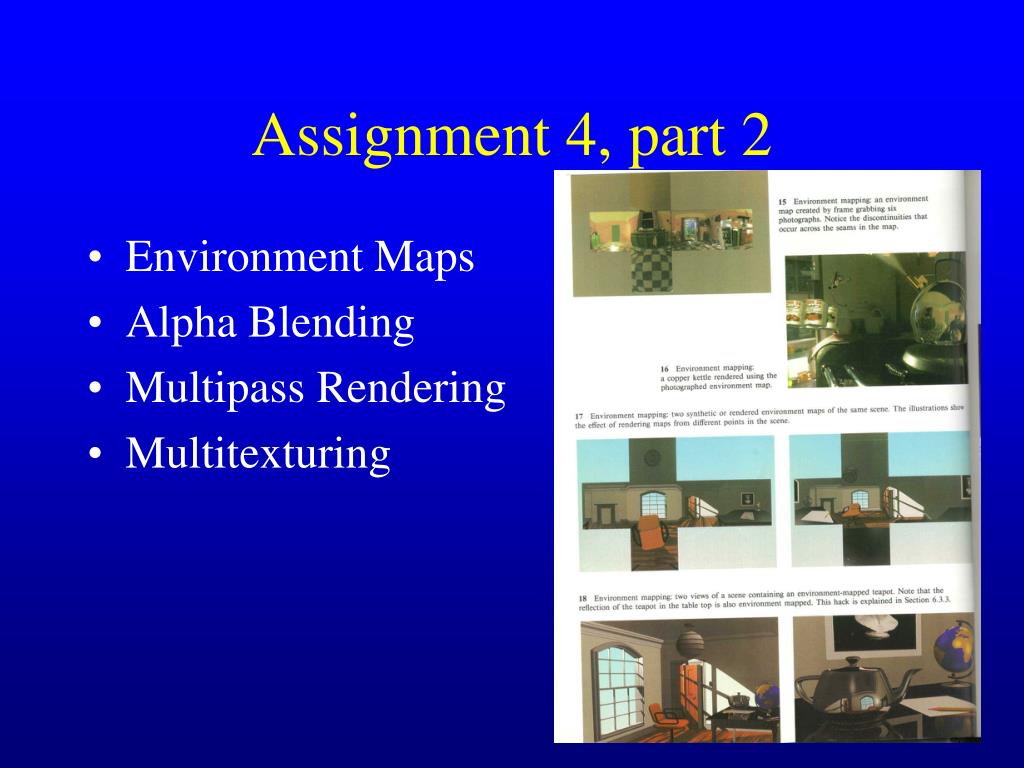

  38. Assignment 4, part 2 • Environment Maps • Alpha Blending • Multipass Rendering • Multitexturing

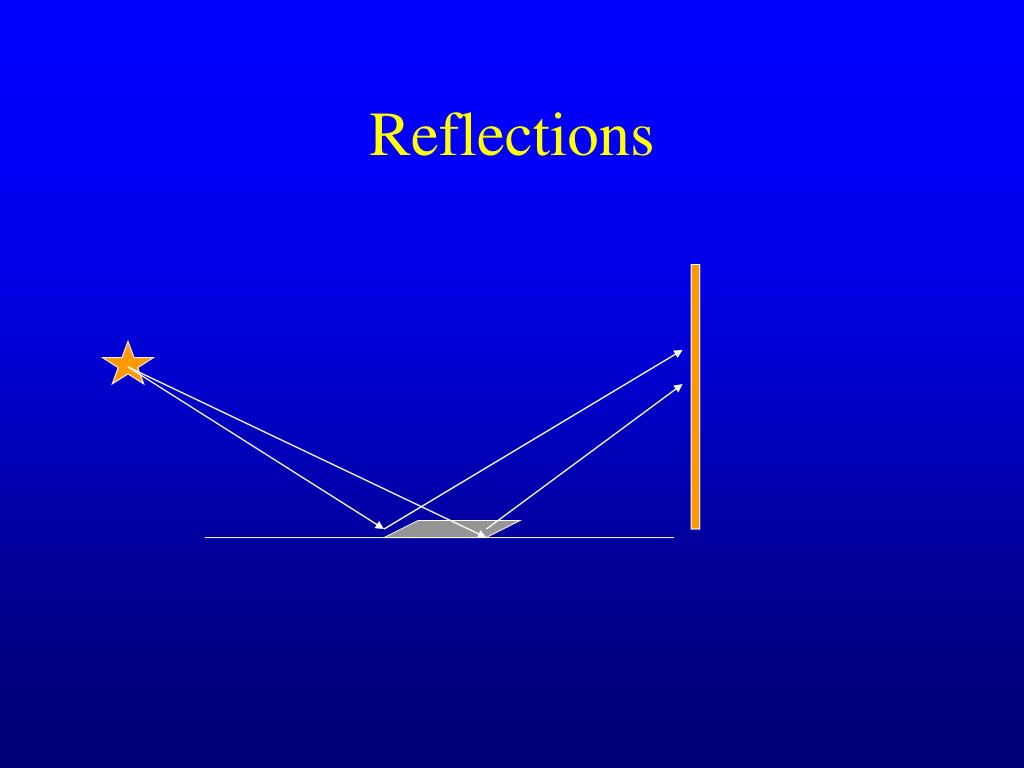

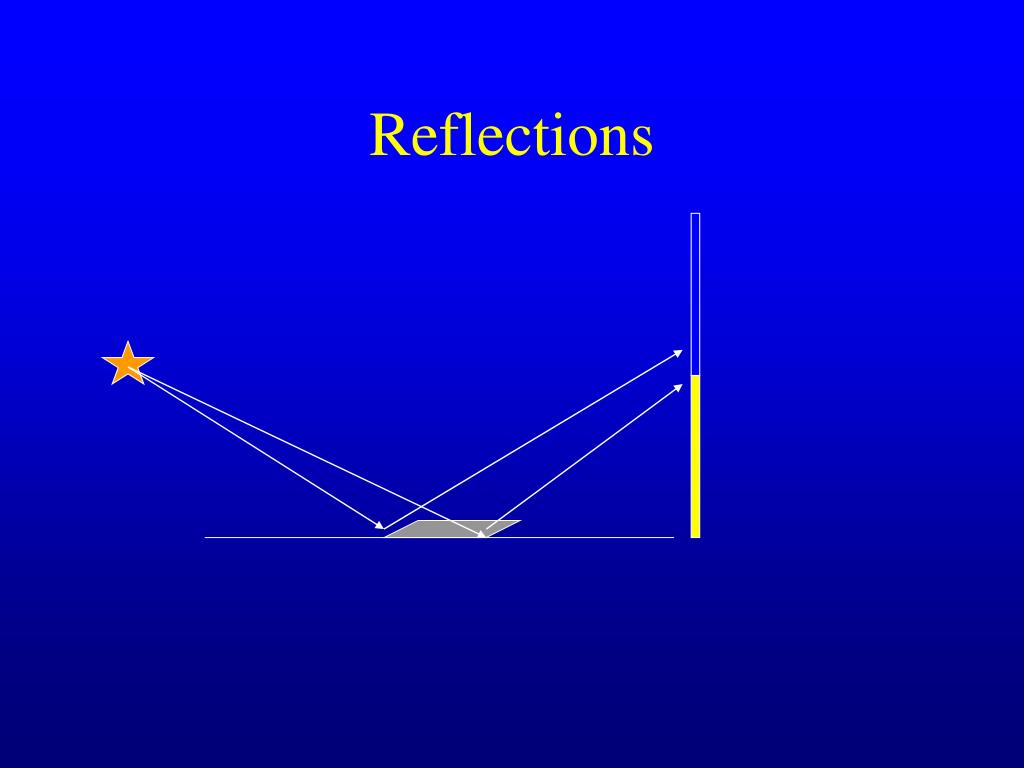

  39. Reflections

  40. Reflections

  41. Using Quaternions in Assignment 4 part 2 • Nate’s ‘Smooth’ program uses axis-angle to represent the rotation • He then uses glRotate to convert this to a rotation matrix and adds it to the modelview matrix stack • Instead, you convert axis-angle to quaternion and then to rotation matrix • You then put this rotation matrix on stack
