  1. Survey and Proposal on Binary Search Algorithms for Longest Prefix Match Author: Hyesook Lim, Member, IEEE, and Nara Lee, Student Member, IEEE Publisher: IEEE COMMUNICATIONS SURVEYS & TUTORIALS Presenter: Yu Hao, Tzeng Date: 2012/10/03

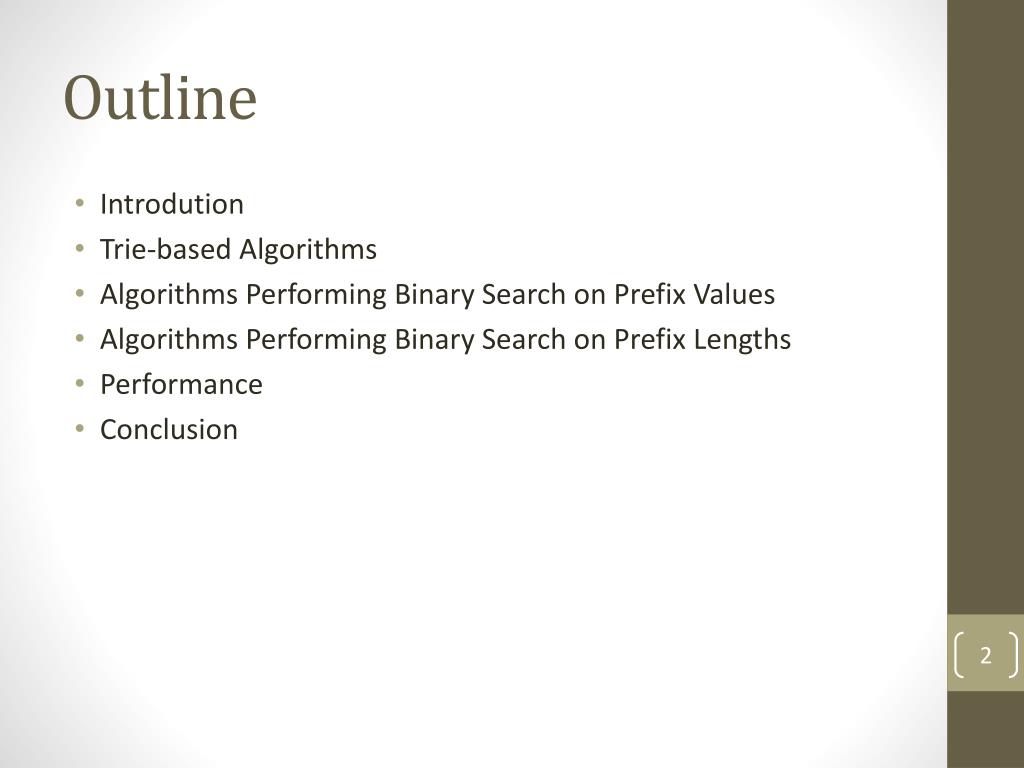

  2. Outline • Introdution • Trie-based Algorithms • Algorithms Performing Binary Search on Prefix Values • Algorithms Performing Binary Search on Prefix Lengths • Performance • Conclusion

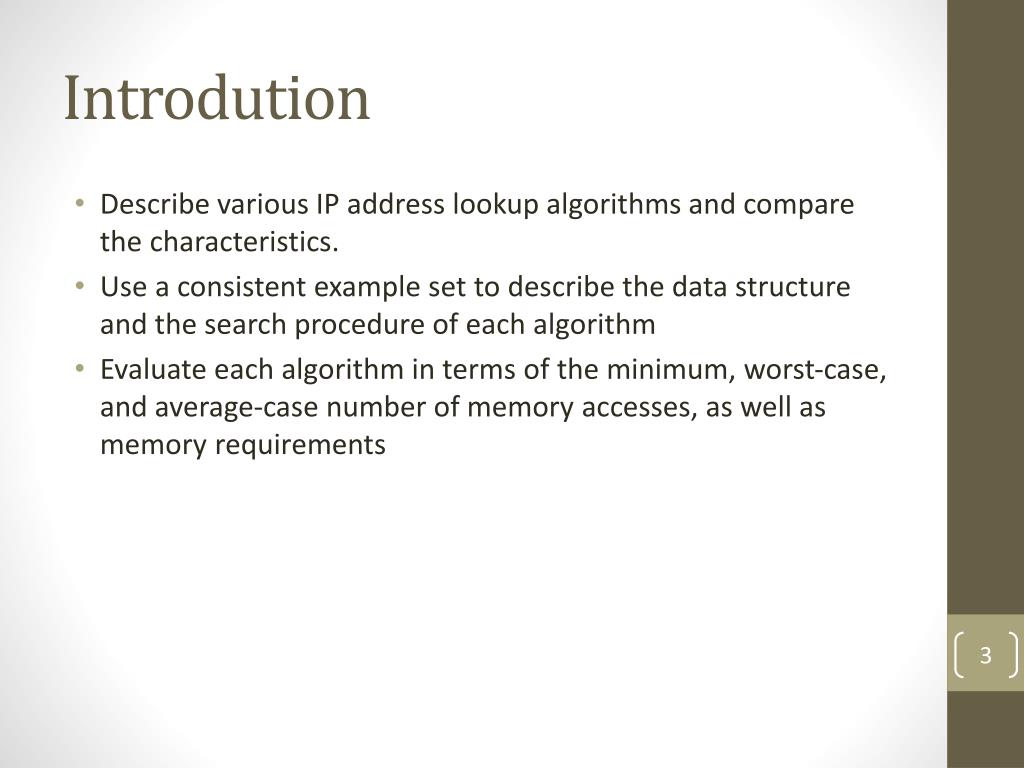

  3. Introdution • Describe various IP address lookup algorithms and compare the characteristics. • Use a consistent example set to describe the data structure and the search procedure of each algorithm • Evaluate each algorithm in terms of the minimum, worst-case, and average-case number of memory accesses, as well as memory requirements

  4. Trie-based Algorithms • Binary Trie (B-Trie) • Path-Compressed Trie (PC-Trie) • Priority Trie (P-Trie)

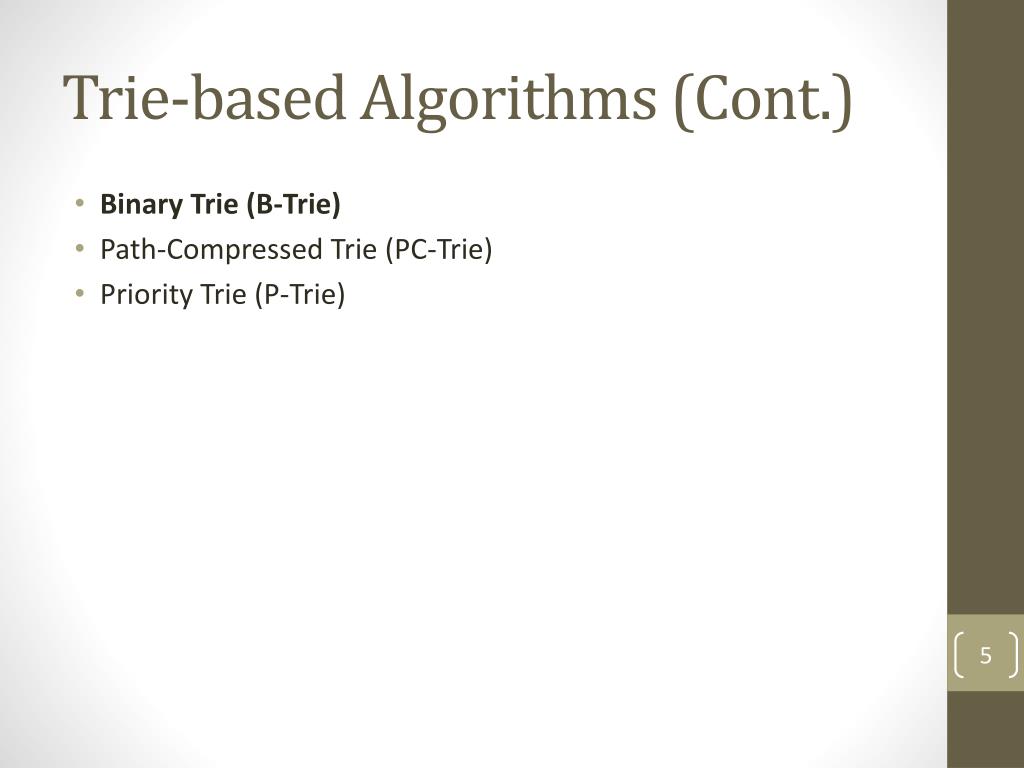

  5. Trie-based Algorithms (Cont.) • Binary Trie (B-Trie) • Path-Compressed Trie (PC-Trie) • Priority Trie (P-Trie)

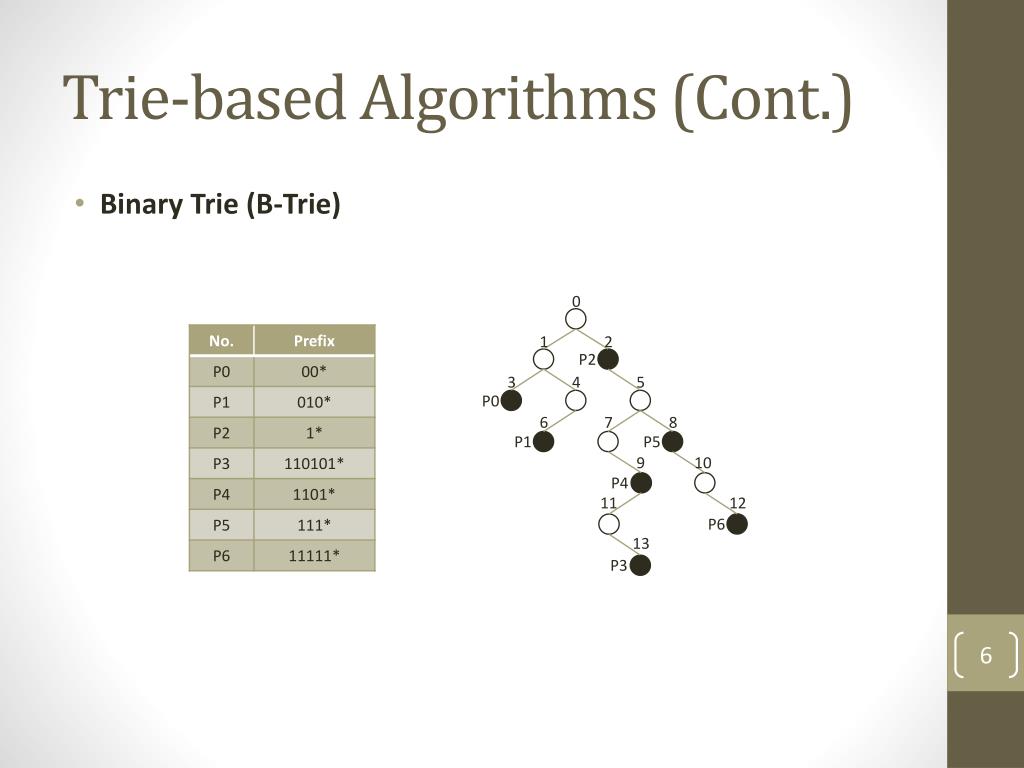

  6. Trie-based Algorithms (Cont.) 0 • Binary Trie (B-Trie) 1 2 3 4 5 6 7 8 9 10 P2 11 12 P0 13 P1 P5 P4 P6 P3

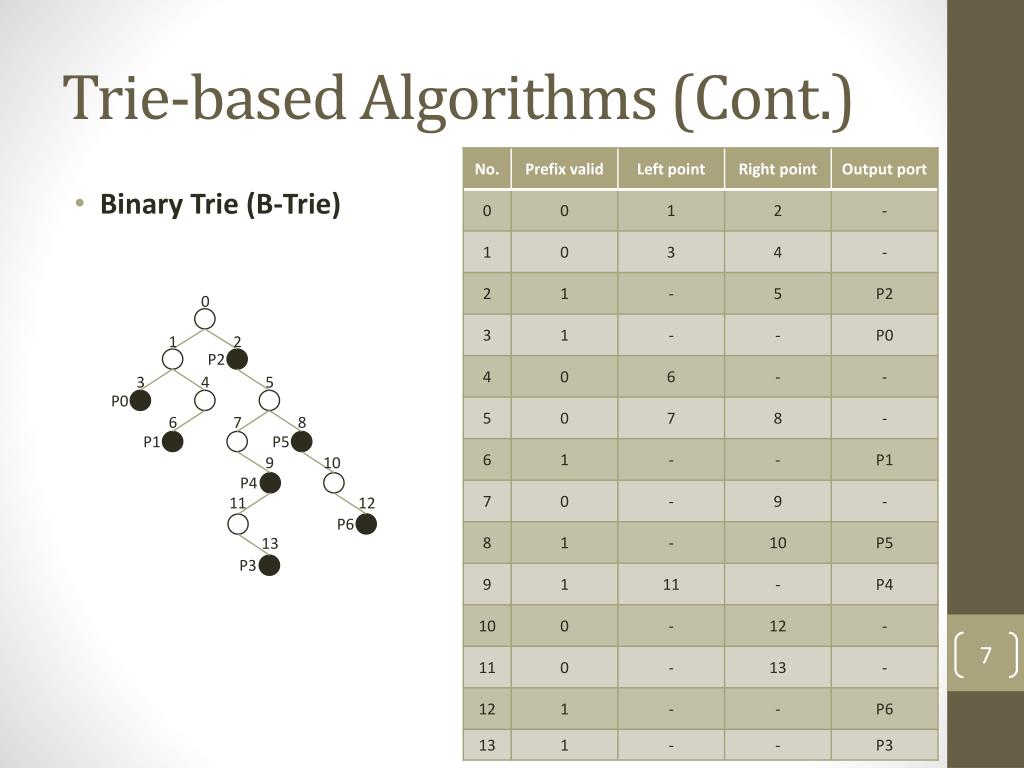

  7. Trie-based Algorithms (Cont.) 0 • Binary Trie (B-Trie) 1 2 3 4 5 6 7 8 9 10 P2 11 12 P0 13 P1 P5 P4 P6 P3

  8. Trie-based Algorithms (Cont.) 0 • Binary Trie (B-Trie) • Example • Input : 110100 • Path : 0 -> 2 -> 5 -> 7 -> 9 -> 11 -> NULL • Best matching prefix (BMP) : P2 -> P4 1 2 3 4 5 6 7 8 9 10 P2 11 12 P0 13 P1 P5 P4 P6 P3

  9. Trie-based Algorithms (Cont.)

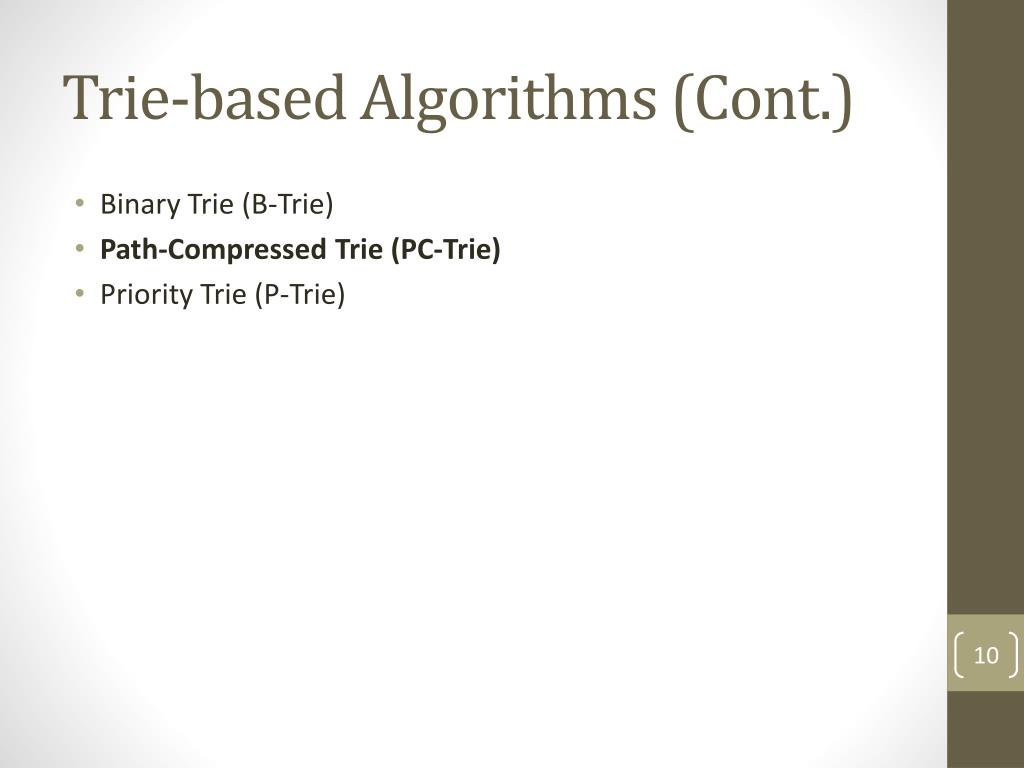

  10. Trie-based Algorithms (Cont.) • Binary Trie (B-Trie) • Path-Compressed Trie (PC-Trie) • Priority Trie (P-Trie)

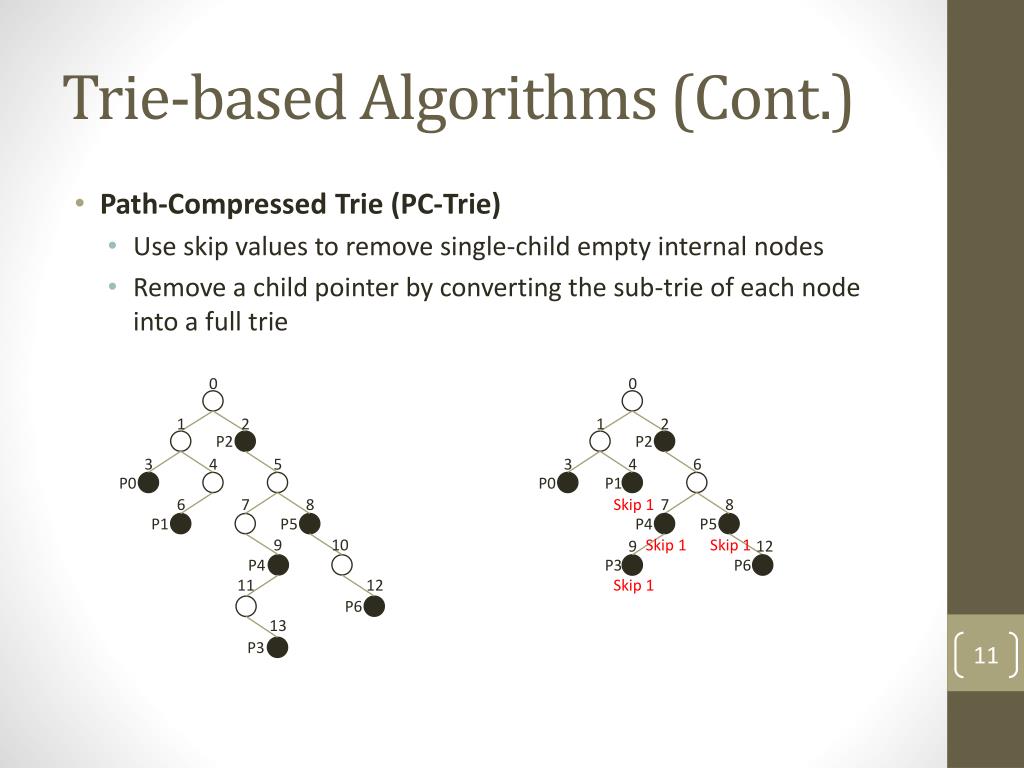

  11. Trie-based Algorithms (Cont.) 0 0 • Path-Compressed Trie (PC-Trie) • Use skip values to remove single-child empty internal nodes • Remove a child pointer by converting the sub-trie of each node into a full trie 1 1 2 2 3 3 4 4 5 6 6 7 7 8 8 9 10 9 12 P2 P2 11 12 P0 P0 P1 13 P4 P1 P5 P5 P6 P4 P3 Skip 1 P6 Skip 1 Skip 1 P3 Skip 1

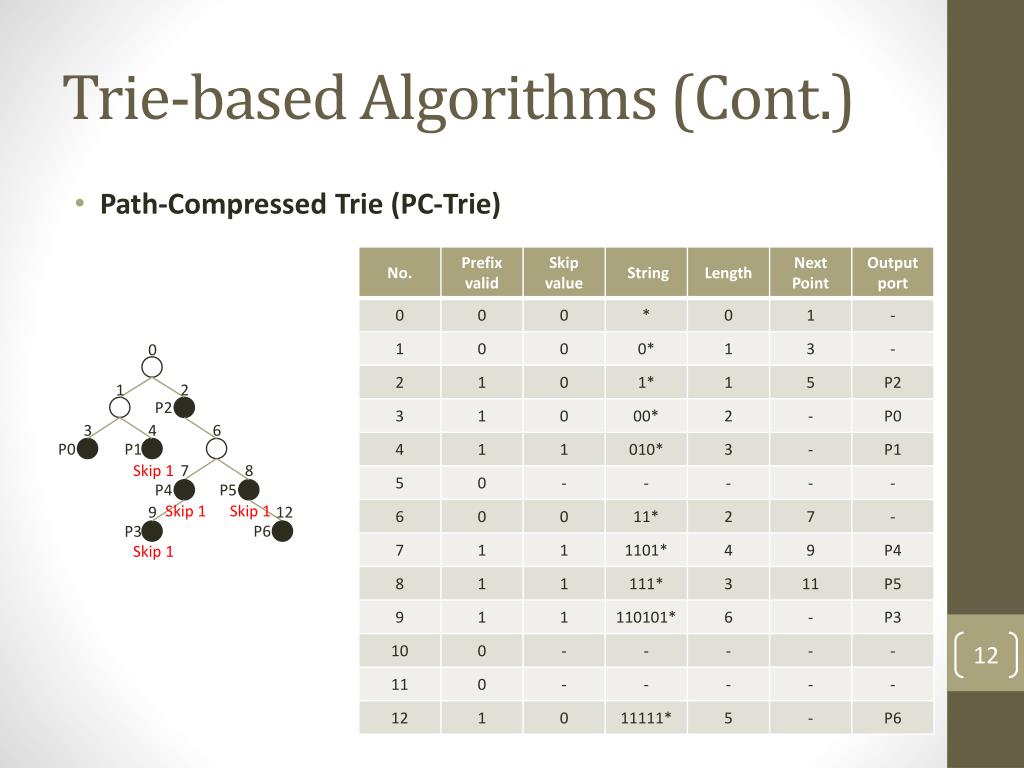

  12. Trie-based Algorithms (Cont.) 0 • Path-Compressed Trie (PC-Trie) 1 2 3 4 6 7 8 9 12 P2 P0 P1 P4 P5 P6 P3 Skip 1 Skip 1 Skip 1 Skip 1

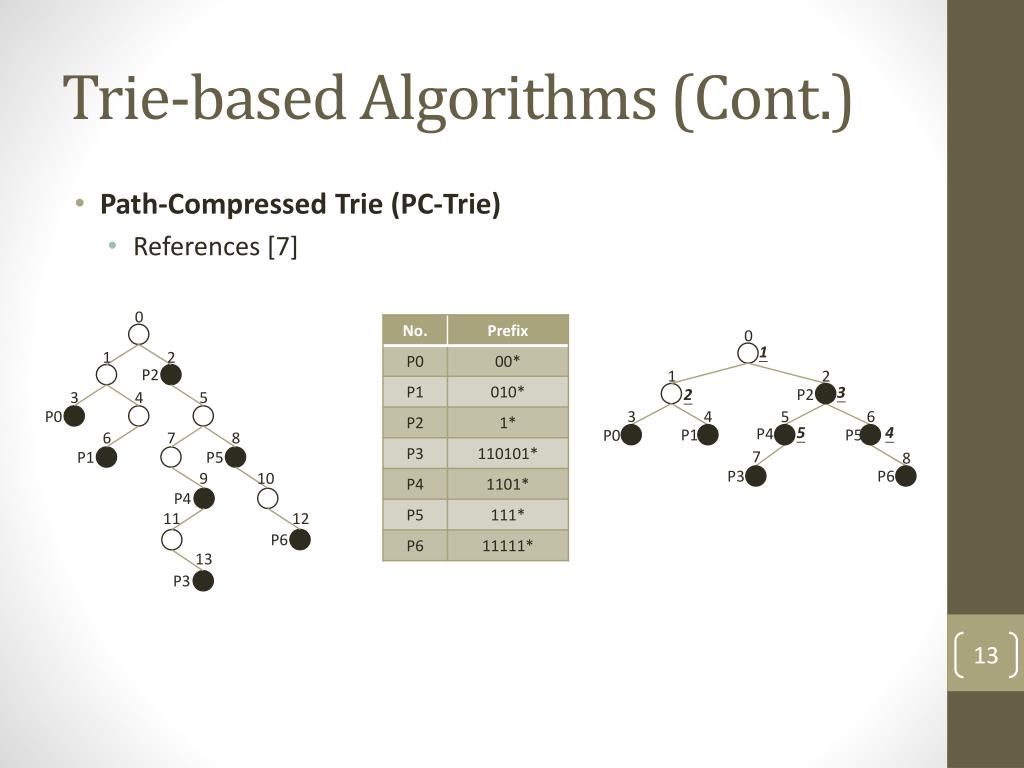

  13. Trie-based Algorithms (Cont.) 0 • Path-Compressed Trie (PC-Trie) • References [7] 1 2 3 4 5 6 7 8 0 9 10 1 P2 1 2 11 12 3 2 P2 P0 3 4 6 5 13 5 4 P4 P5 P1 P0 P1 P5 7 8 P3 P6 P4 P6 P3

  14. Trie-based Algorithms (Cont.) • Path-Compressed Trie (PC-Trie) • References [7] 0 1 1 2 3 2 P2 3 4 6 5 5 4 P4 P5 P1 P0 7 8 P3 P6

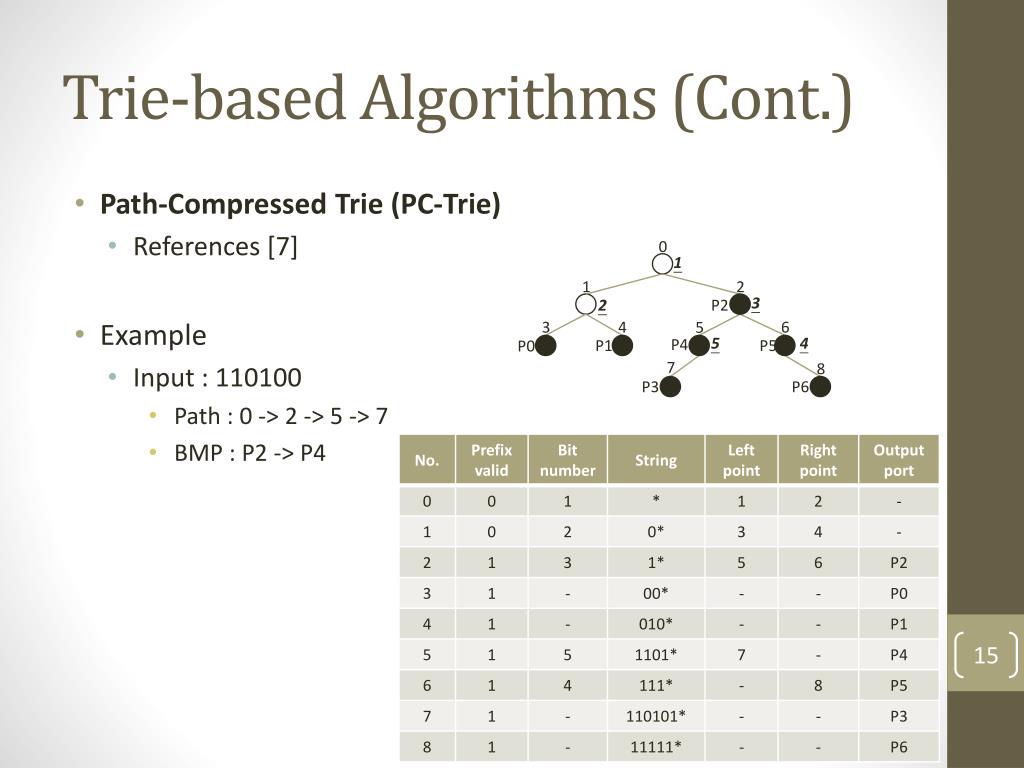

  15. Trie-based Algorithms (Cont.) • Path-Compressed Trie (PC-Trie) • References [7] • Example • Input : 110100 • Path : 0 -> 2 -> 5 -> 7 • BMP : P2 -> P4 0 1 1 2 3 2 P2 3 4 6 5 5 4 P4 P5 P1 P0 7 8 P3 P6

  16. Trie-based Algorithms (Cont.)

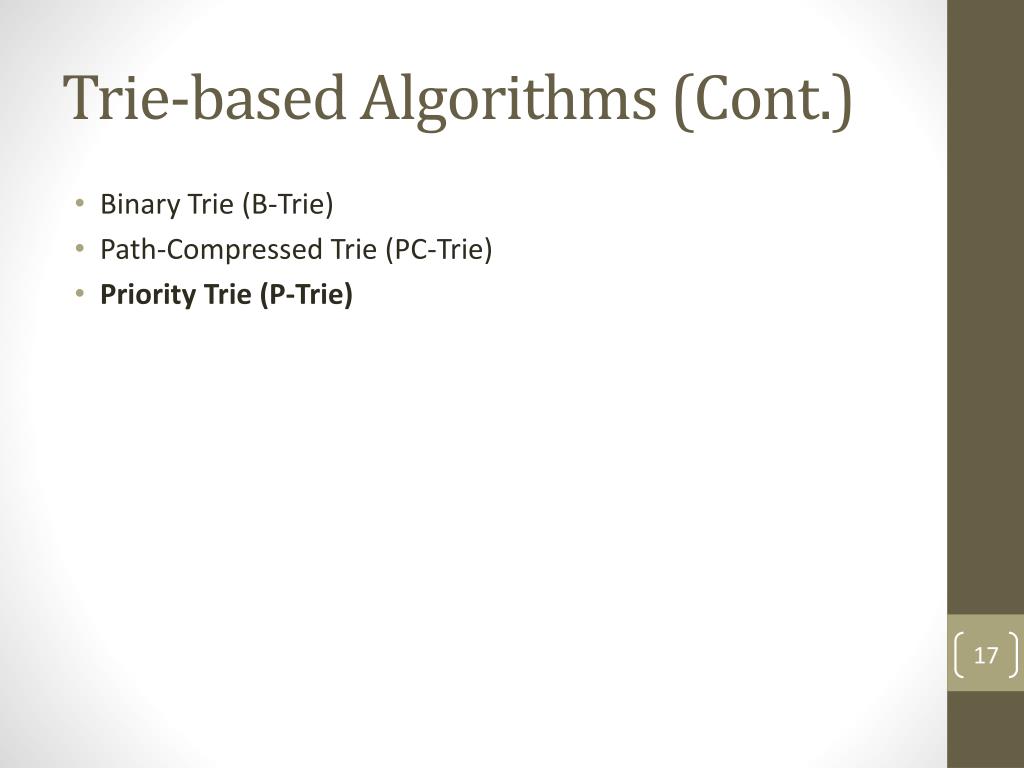

  17. Trie-based Algorithms (Cont.) • Binary Trie (B-Trie) • Path-Compressed Trie (PC-Trie) • Priority Trie (P-Trie)

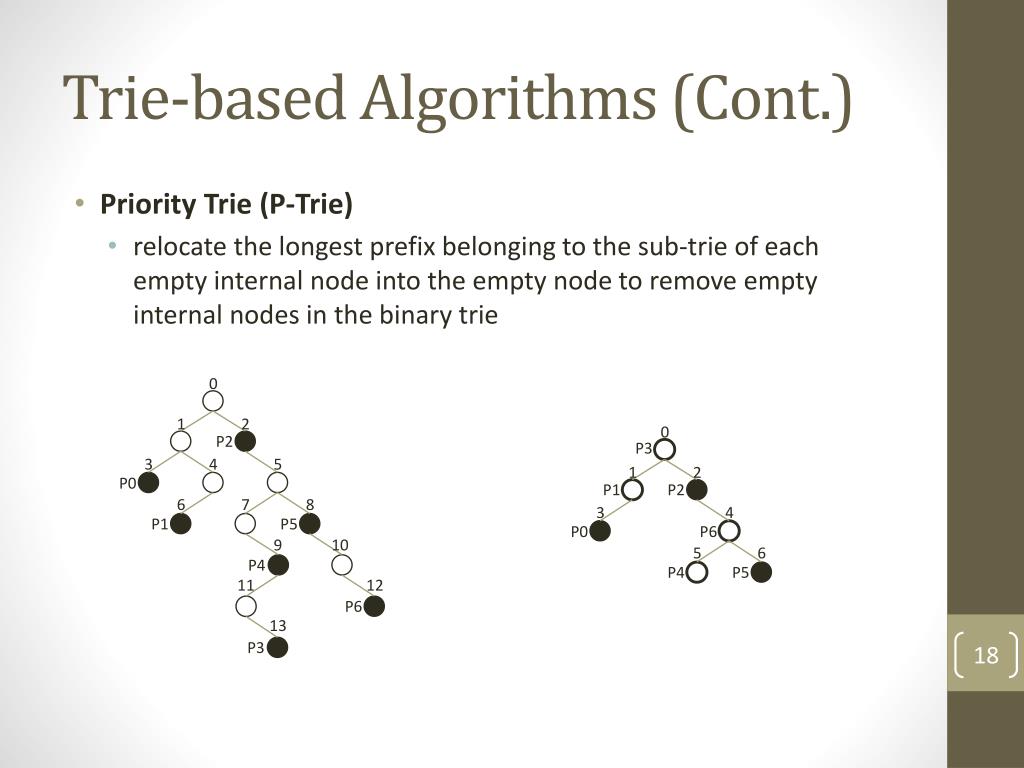

  18. Trie-based Algorithms (Cont.) 0 0 • Priority Trie (P-Trie) • relocate the longest prefix belonging to the sub-trie of each empty internal node into the empty node to remove empty internal nodes in the binary trie 1 1 2 2 3 3 4 5 4 6 5 7 6 8 9 10 P2 P2 11 12 P3 P0 P0 13 P1 P1 P5 P5 P4 P6 P4 P6 P3

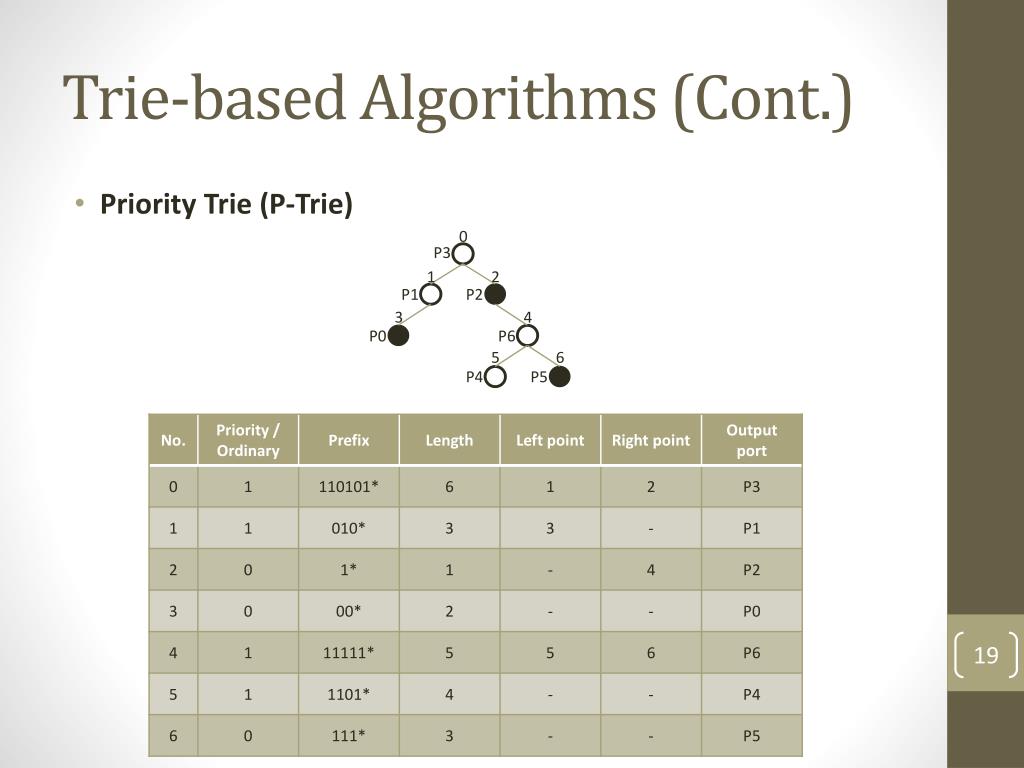

  19. Trie-based Algorithms (Cont.) 0 • Priority Trie (P-Trie) 1 2 3 4 5 6 P2 P3 P0 P1 P5 P6 P4

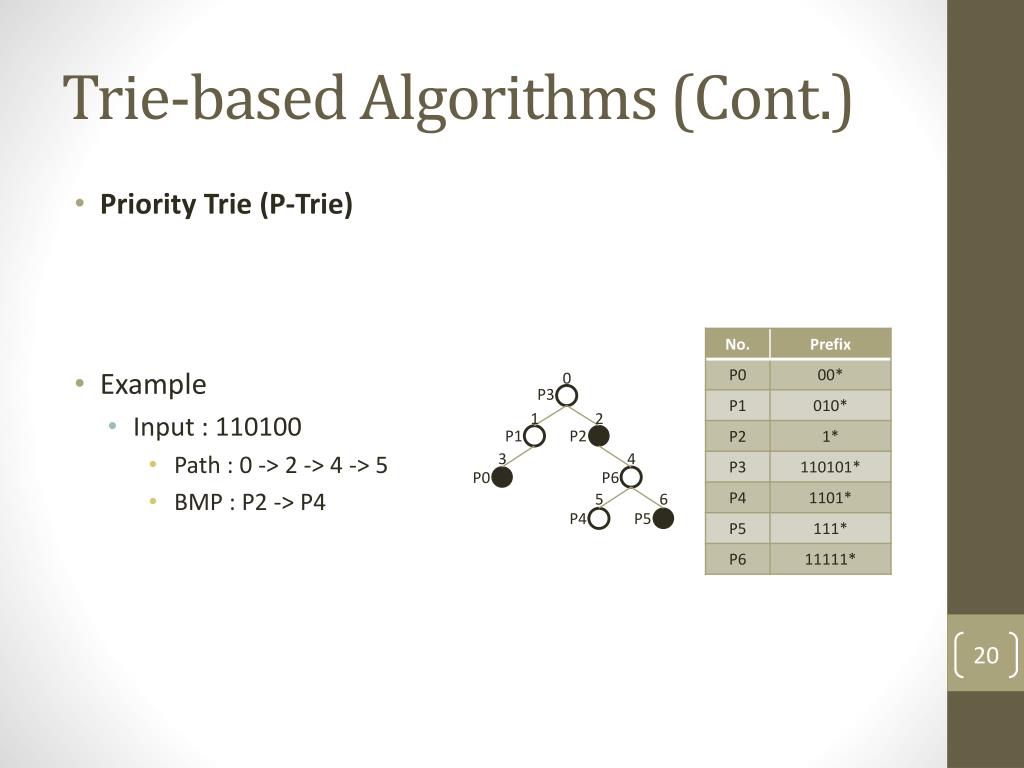

  20. Trie-based Algorithms (Cont.) 0 • Priority Trie (P-Trie) • Example • Input : 110100 • Path : 0 -> 2 -> 4 -> 5 • BMP : P2 -> P4 1 2 3 4 5 6 P2 P3 P0 P1 P5 P6 P4

  21. Trie-based Algorithms (Cont.)

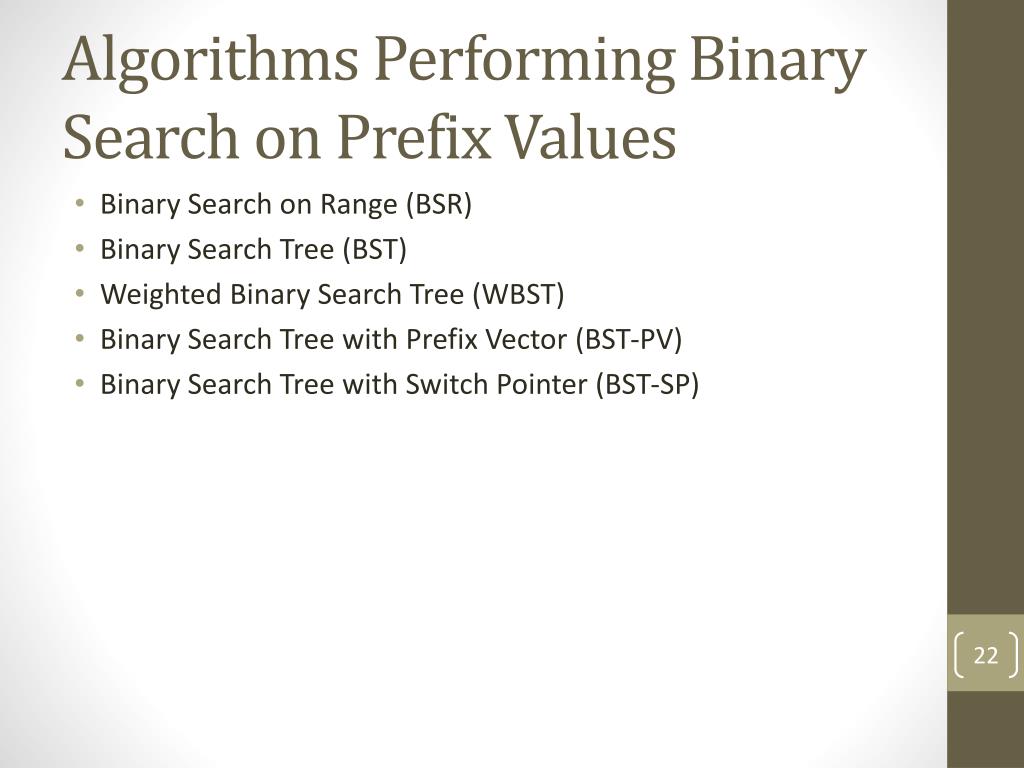

  22. Algorithms Performing Binary Search on Prefix Values • Binary Search on Range (BSR) • Binary Search Tree (BST) • Weighted Binary Search Tree (WBST) • Binary Search Tree with Prefix Vector (BST-PV) • Binary Search Tree with Switch Pointer (BST-SP)

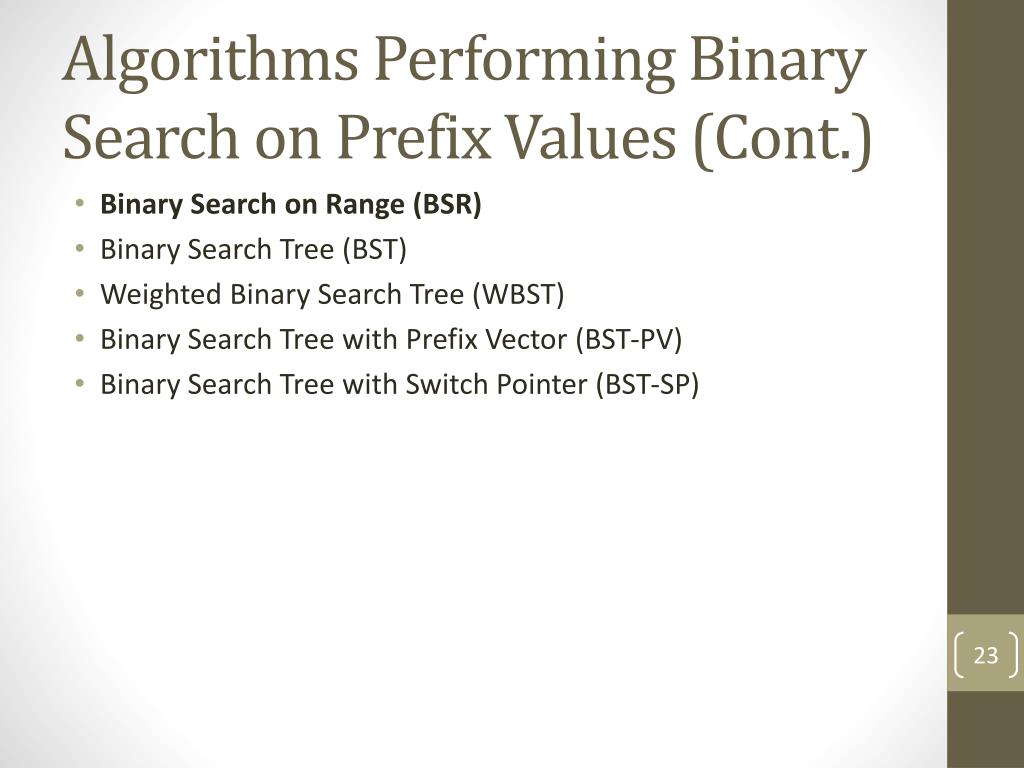

  23. Algorithms Performing Binary Search on Prefix Values (Cont.) • Binary Search on Range (BSR) • Binary Search Tree (BST) • Weighted Binary Search Tree (WBST) • Binary Search Tree with Prefix Vector (BST-PV) • Binary Search Tree with Switch Pointer (BST-SP)

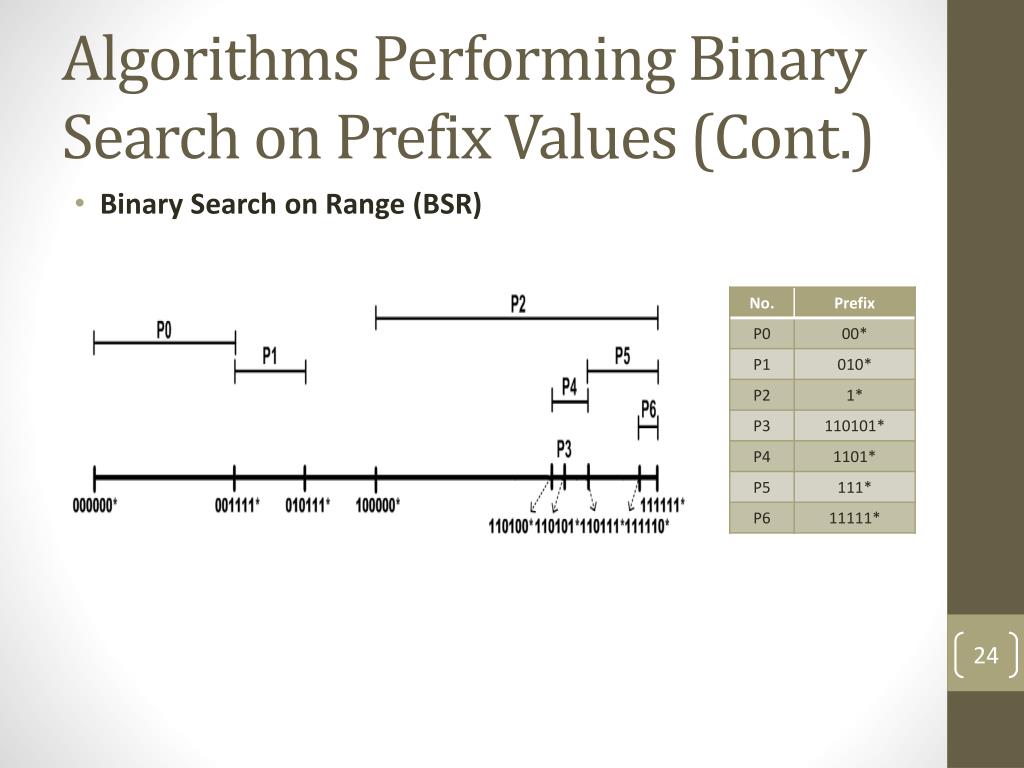

  24. Algorithms Performing Binary Search on Prefix Values (Cont.) • Binary Search on Range (BSR)

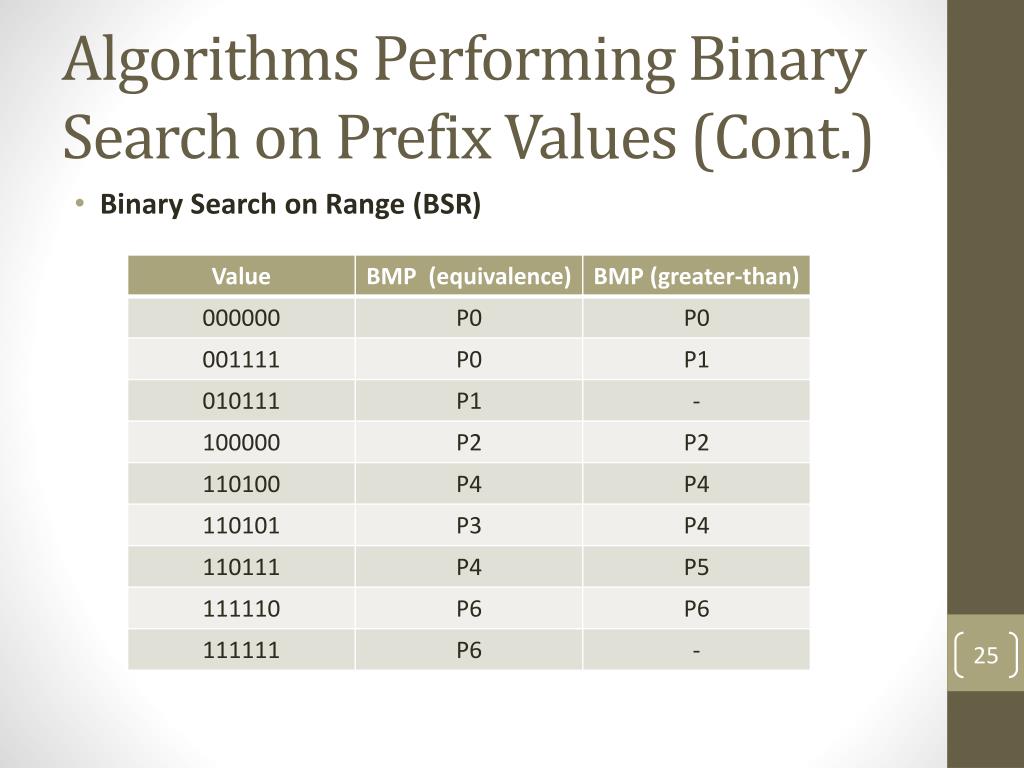

  25. Algorithms Performing Binary Search on Prefix Values (Cont.) • Binary Search on Range (BSR)

  26. Algorithms Performing Binary Search on Prefix Values (Cont.) • Binary Search on Range (BSR) • Example • Input : 110100 • BMP : P4

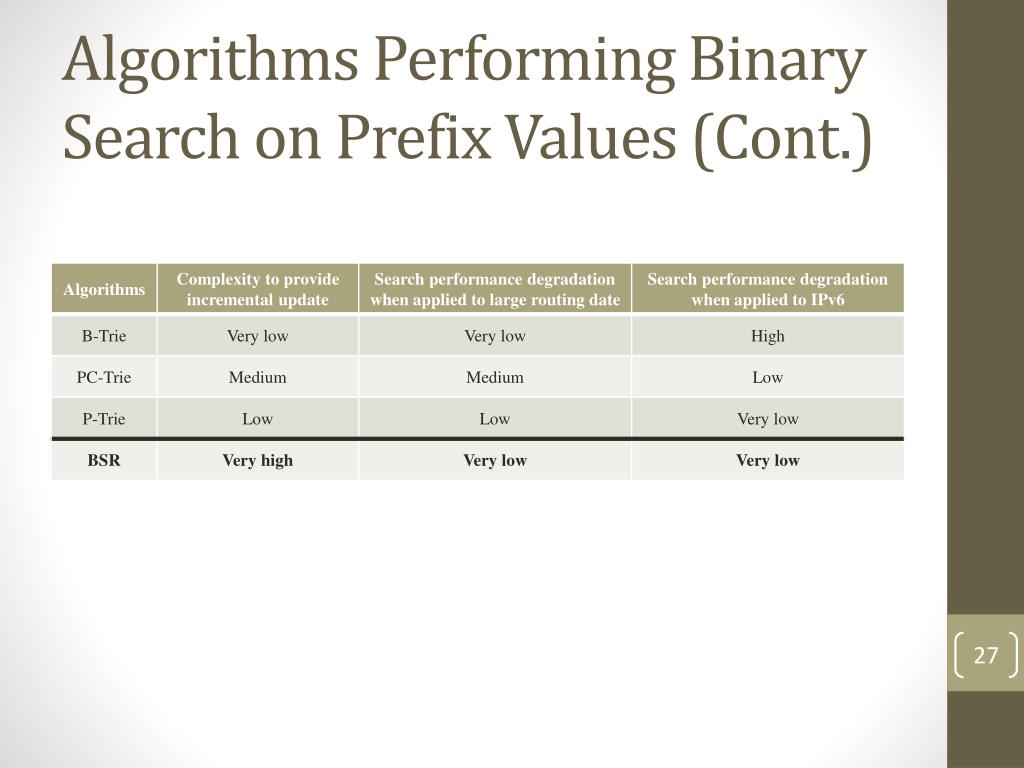

  27. Algorithms Performing Binary Search on Prefix Values (Cont.)

  28. Algorithms Performing Binary Search on Prefix Values (Cont.) • Binary Search on Range (BSR) • Binary Search Tree (BST) • Weighted Binary Search Tree (WBST) • Binary Search Tree with Prefix Vector (BST-PV) • Binary Search Tree with Switch Pointer (BST-SP)

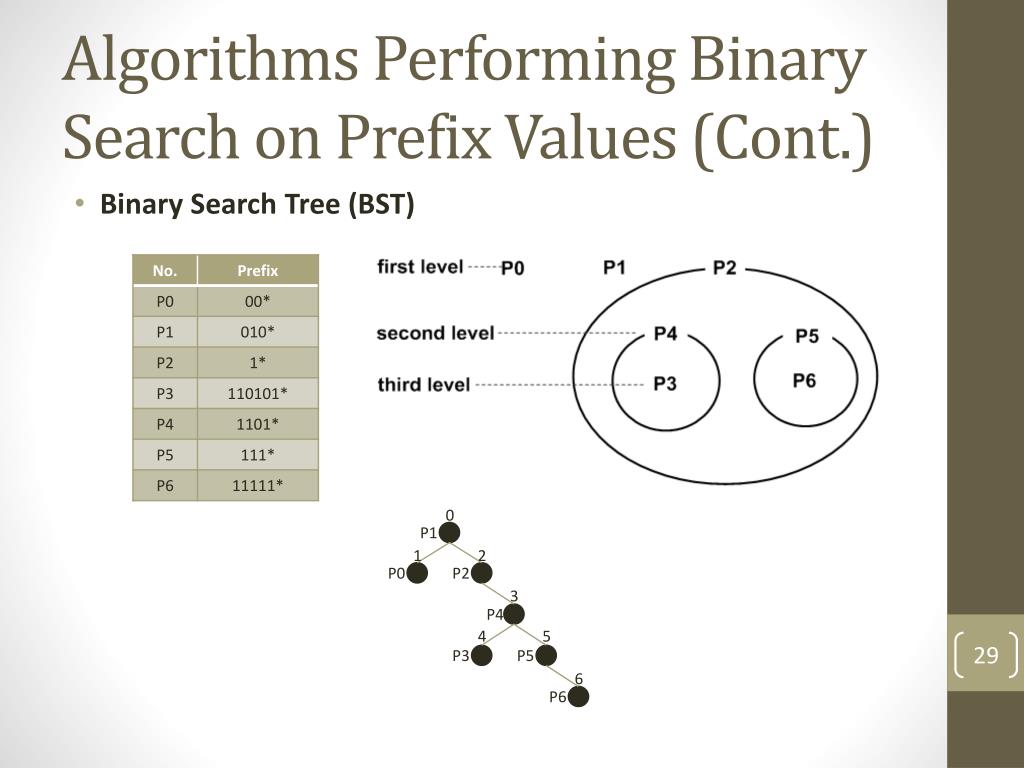

  29. Algorithms Performing Binary Search on Prefix Values (Cont.) 0 • Binary Search Tree (BST) 1 2 3 4 5 6 P1 P2 P0 P4 P5 P3 P6

  30. Algorithms Performing Binary Search on Prefix Values (Cont.) 0 • Binary Search Tree (BST) 1 2 3 4 5 6 P1 P2 P0 P4 P5 P3 P6

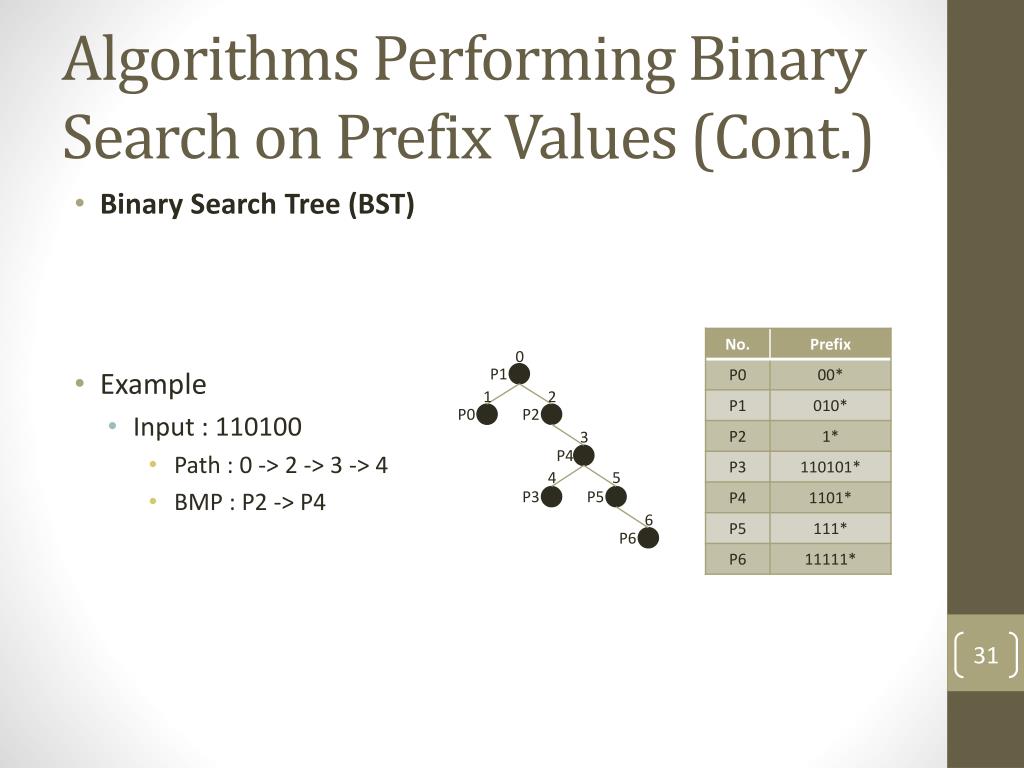

  31. Algorithms Performing Binary Search on Prefix Values (Cont.) 0 • Binary Search Tree (BST) • Example • Input : 110100 • Path : 0 -> 2 -> 3 -> 4 • BMP : P2 -> P4 1 2 3 4 5 6 P1 P2 P0 P4 P5 P3 P6

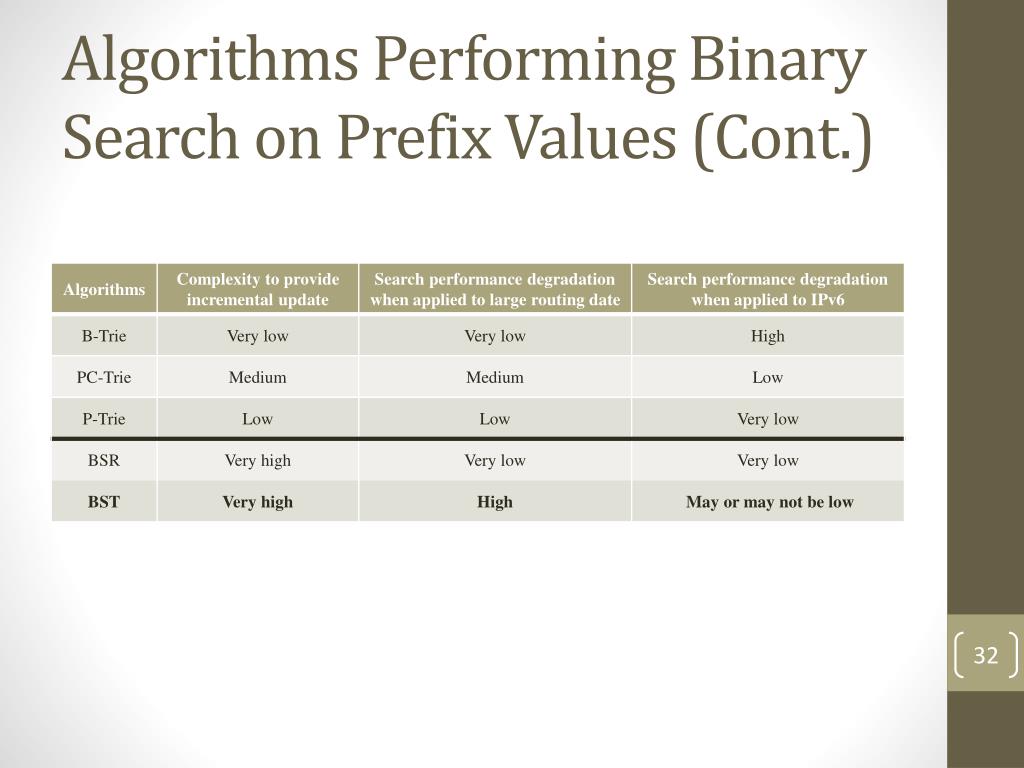

  32. Algorithms Performing Binary Search on Prefix Values (Cont.)

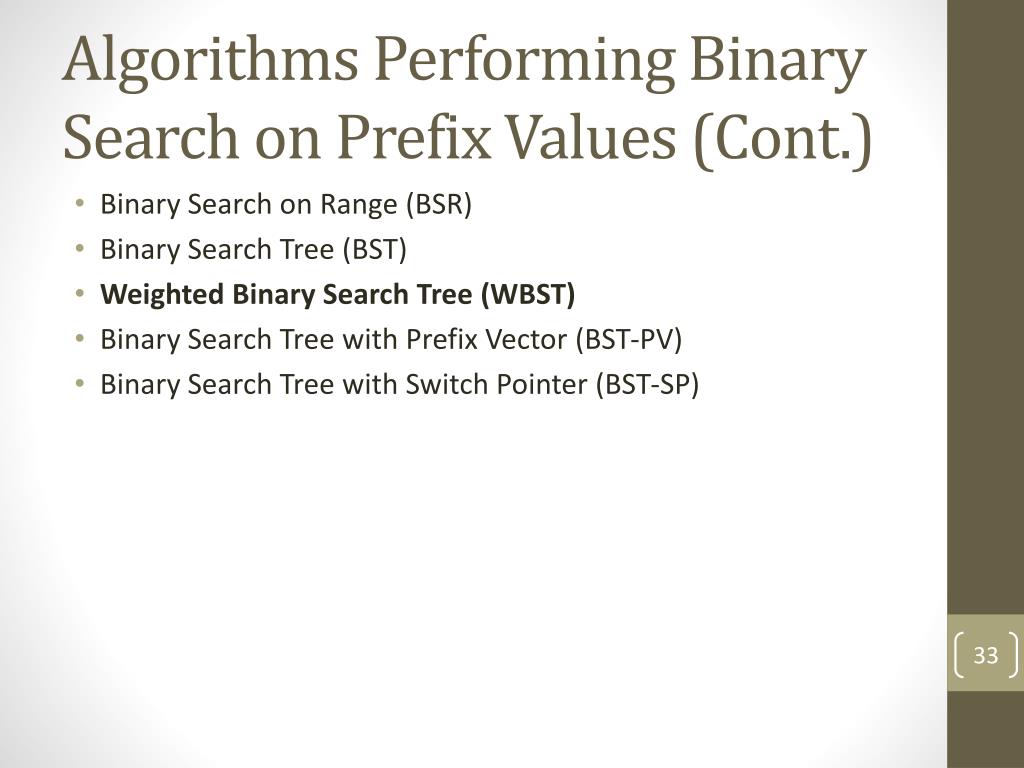

  33. Algorithms Performing Binary Search on Prefix Values (Cont.) • Binary Search on Range (BSR) • Binary Search Tree (BST) • Weighted Binary Search Tree (WBST) • Binary Search Tree with Prefix Vector (BST-PV) • Binary Search Tree with Switch Pointer (BST-SP)

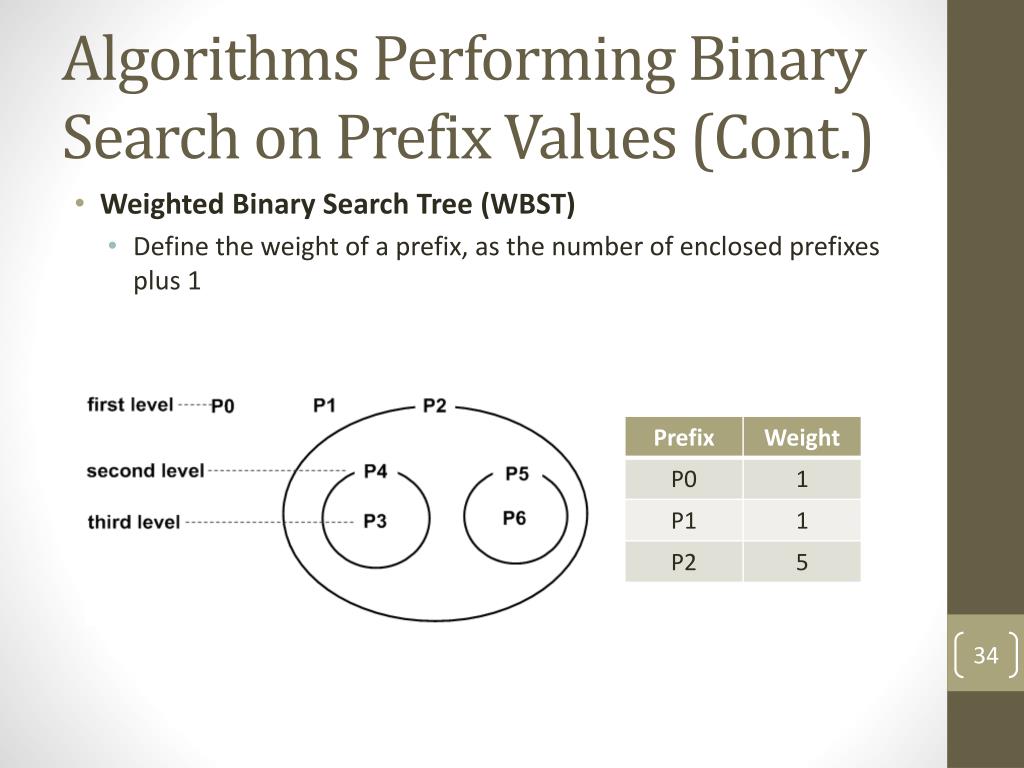

  34. Algorithms Performing Binary Search on Prefix Values (Cont.) • Weighted Binary Search Tree (WBST) • Define the weight of a prefix, as the number of enclosed prefixes plus 1

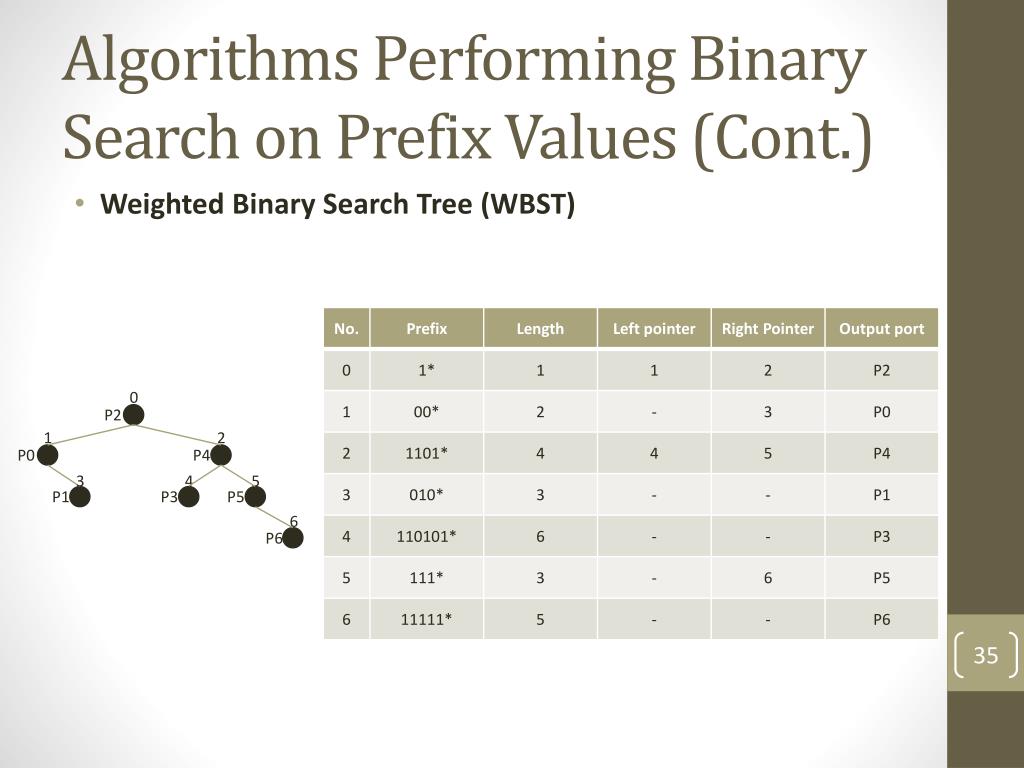

  35. Algorithms Performing Binary Search on Prefix Values (Cont.) • Weighted Binary Search Tree (WBST) 0 P2 1 2 P0 P4 3 4 5 P1 P3 P5 6 P6

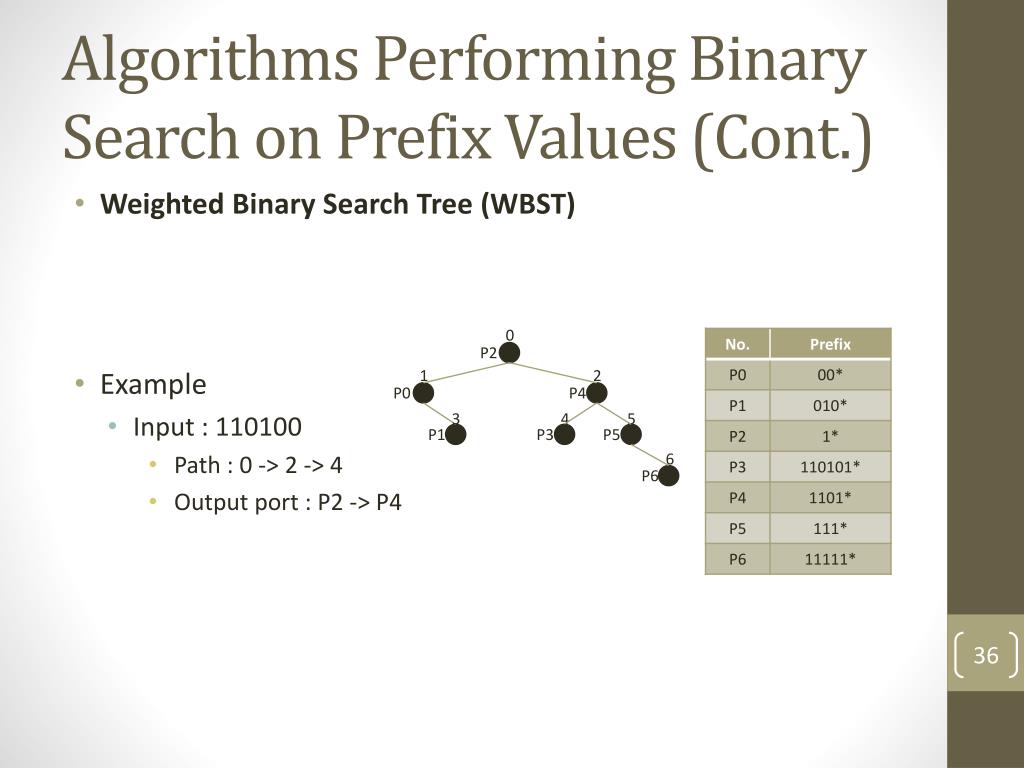

  36. Algorithms Performing Binary Search on Prefix Values (Cont.) • Weighted Binary Search Tree (WBST) • Example • Input : 110100 • Path : 0 -> 2 -> 4 • Output port : P2 -> P4 0 P2 1 2 P0 P4 3 4 5 P1 P3 P5 6 P6

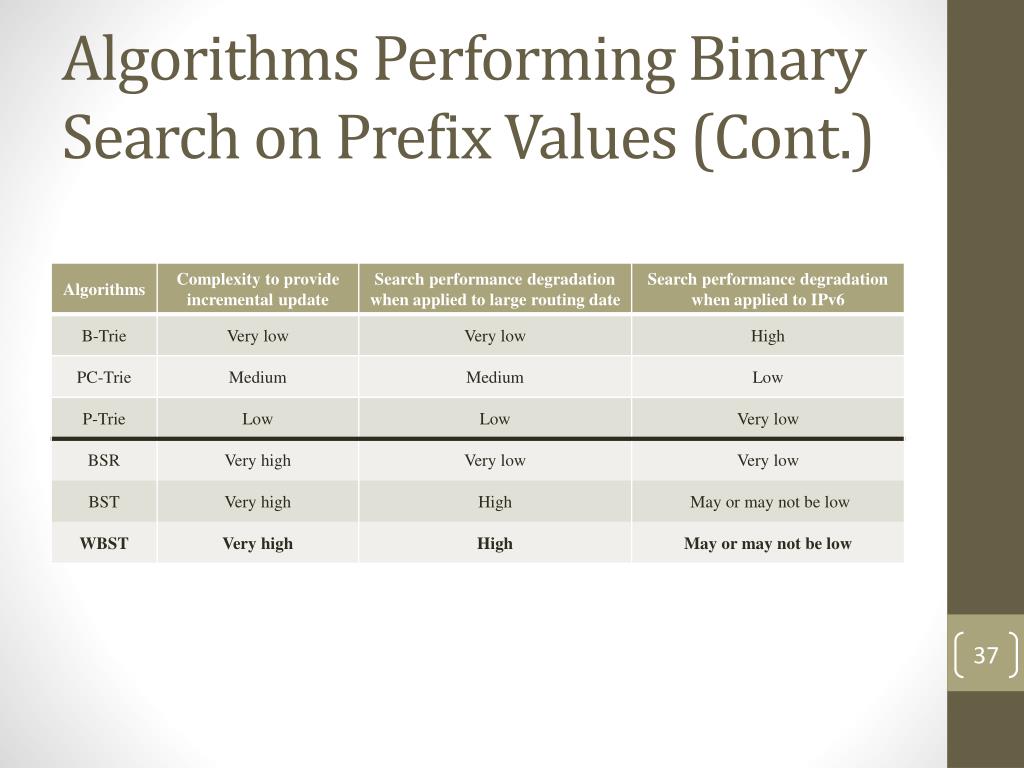

  37. Algorithms Performing Binary Search on Prefix Values (Cont.)

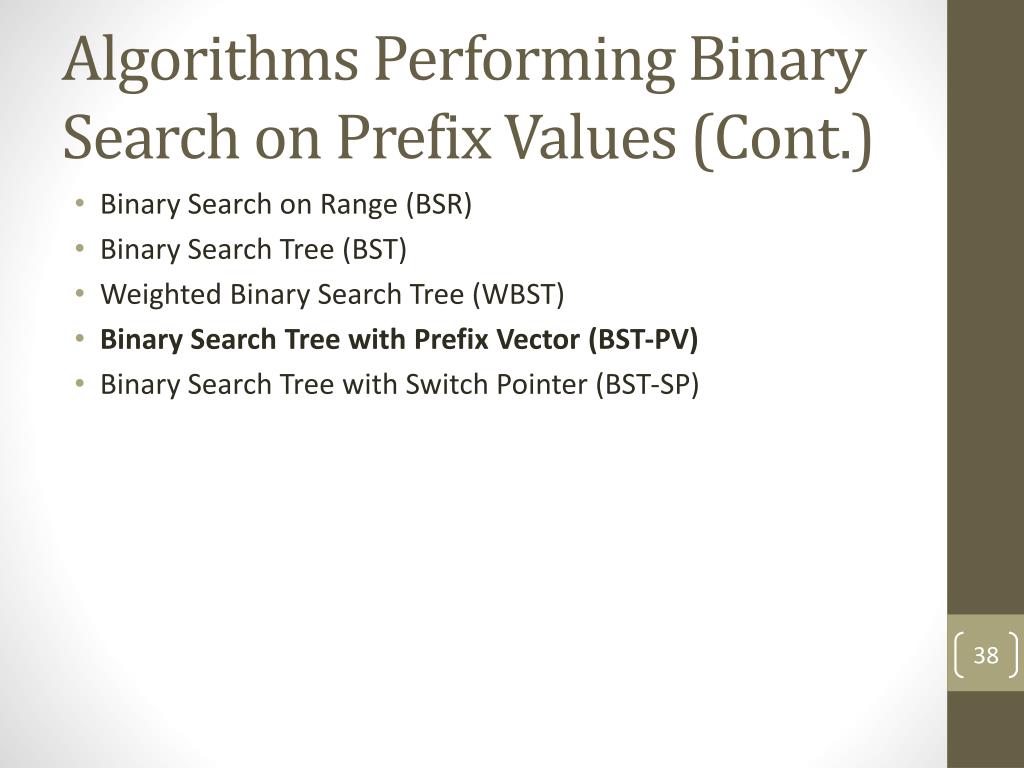

  38. Algorithms Performing Binary Search on Prefix Values (Cont.) • Binary Search on Range (BSR) • Binary Search Tree (BST) • Weighted Binary Search Tree (WBST) • Binary Search Tree with Prefix Vector (BST-PV) • Binary Search Tree with Switch Pointer (BST-SP)

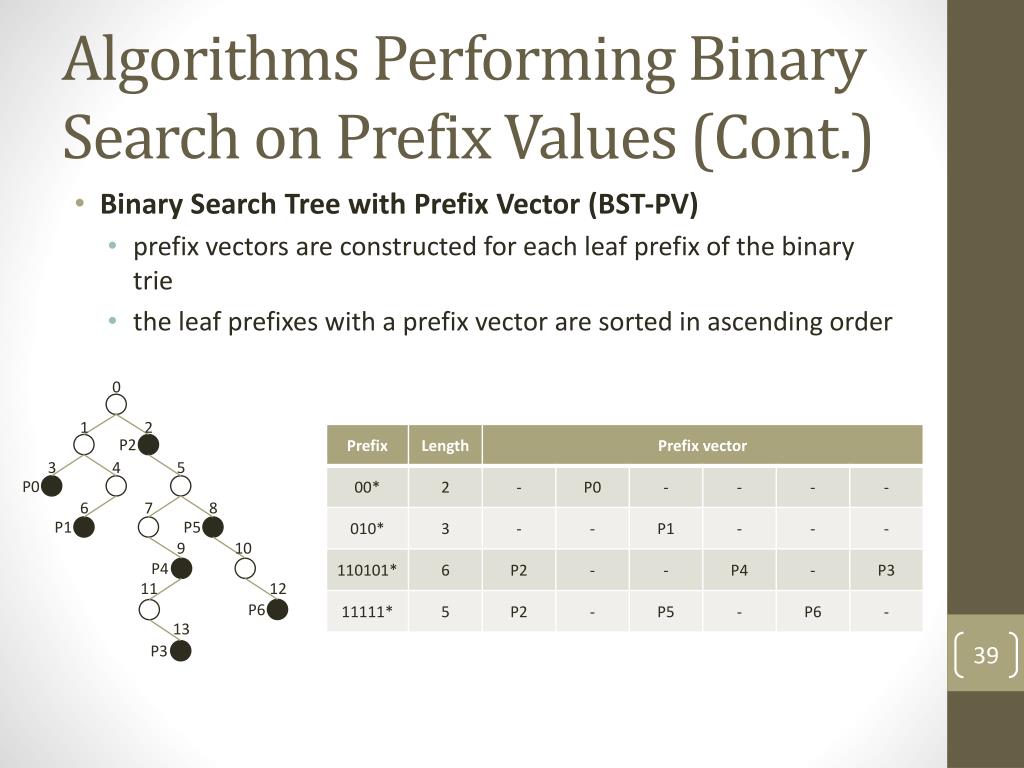

  39. Algorithms Performing Binary Search on Prefix Values (Cont.) 0 • Binary Search Tree with Prefix Vector (BST-PV) • prefix vectors are constructed for each leaf prefix of the binary trie • the leaf prefixes with a prefix vector are sorted in ascending order 1 2 3 4 5 6 7 8 9 10 P2 11 12 P0 13 P1 P5 P4 P6 P3

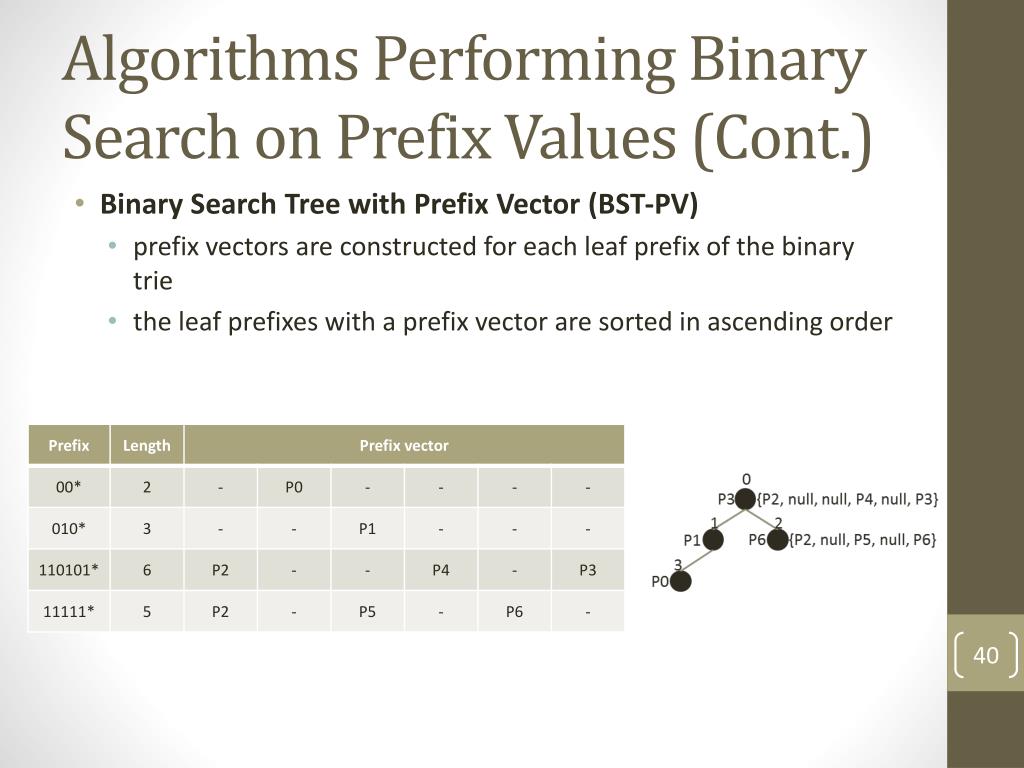

  40. Algorithms Performing Binary Search on Prefix Values (Cont.) • Binary Search Tree with Prefix Vector (BST-PV) • prefix vectors are constructed for each leaf prefix of the binary trie • the leaf prefixes with a prefix vector are sorted in ascending order

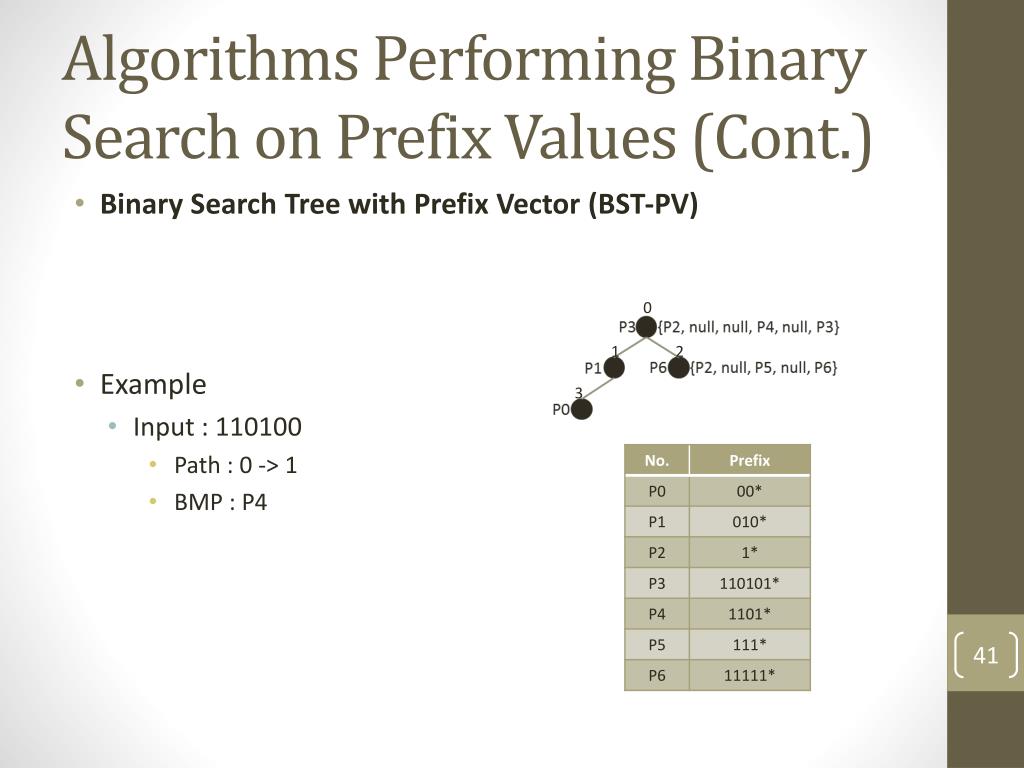

  41. Algorithms Performing Binary Search on Prefix Values (Cont.) • Binary Search Tree with Prefix Vector (BST-PV) • Example • Input : 110100 • Path : 0 -> 1 • BMP : P4 0 1 2 3

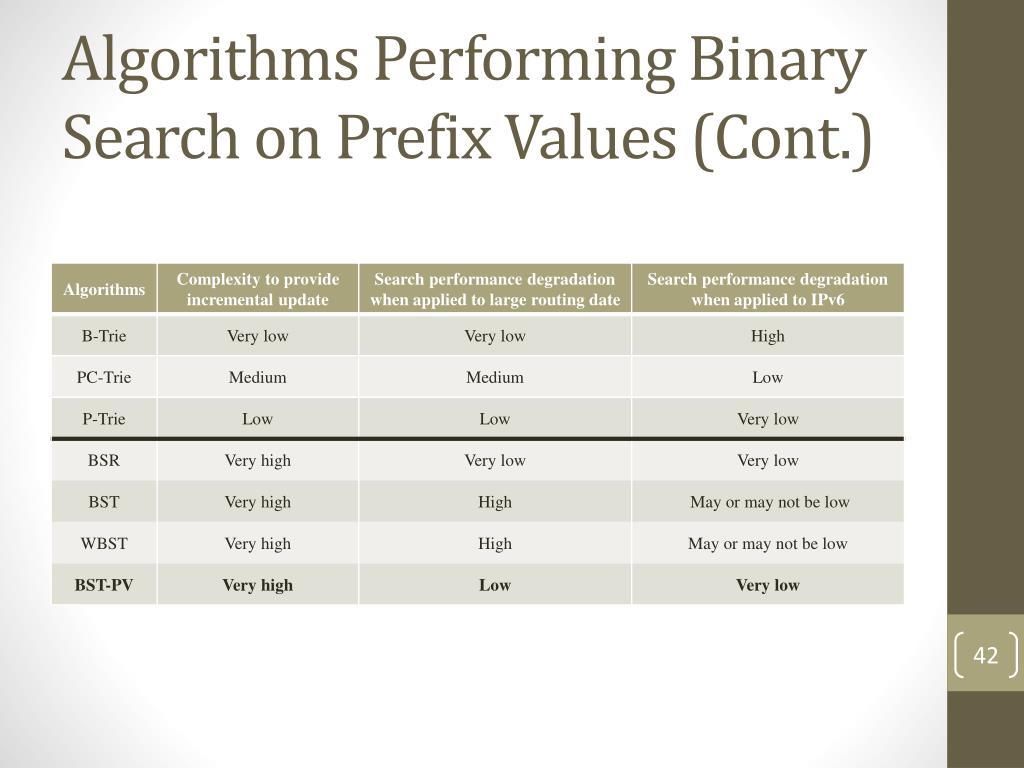

  42. Algorithms Performing Binary Search on Prefix Values (Cont.)

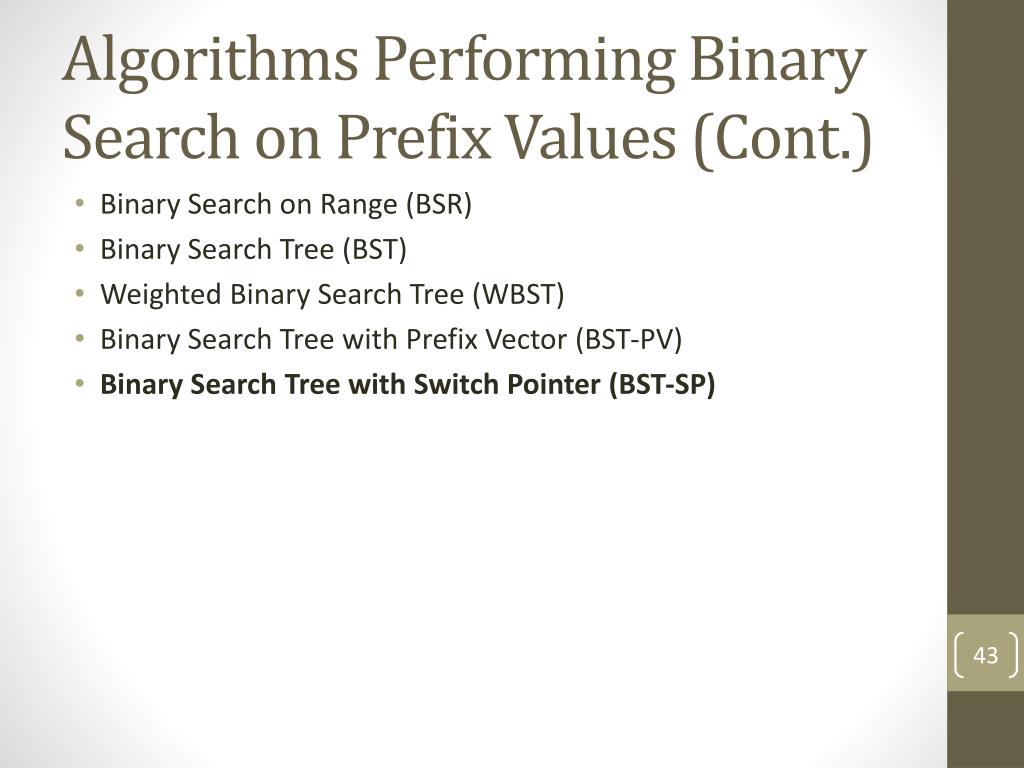

  43. Algorithms Performing Binary Search on Prefix Values (Cont.) • Binary Search on Range (BSR) • Binary Search Tree (BST) • Weighted Binary Search Tree (WBST) • Binary Search Tree with Prefix Vector (BST-PV) • Binary Search Tree with Switch Pointer (BST-SP)

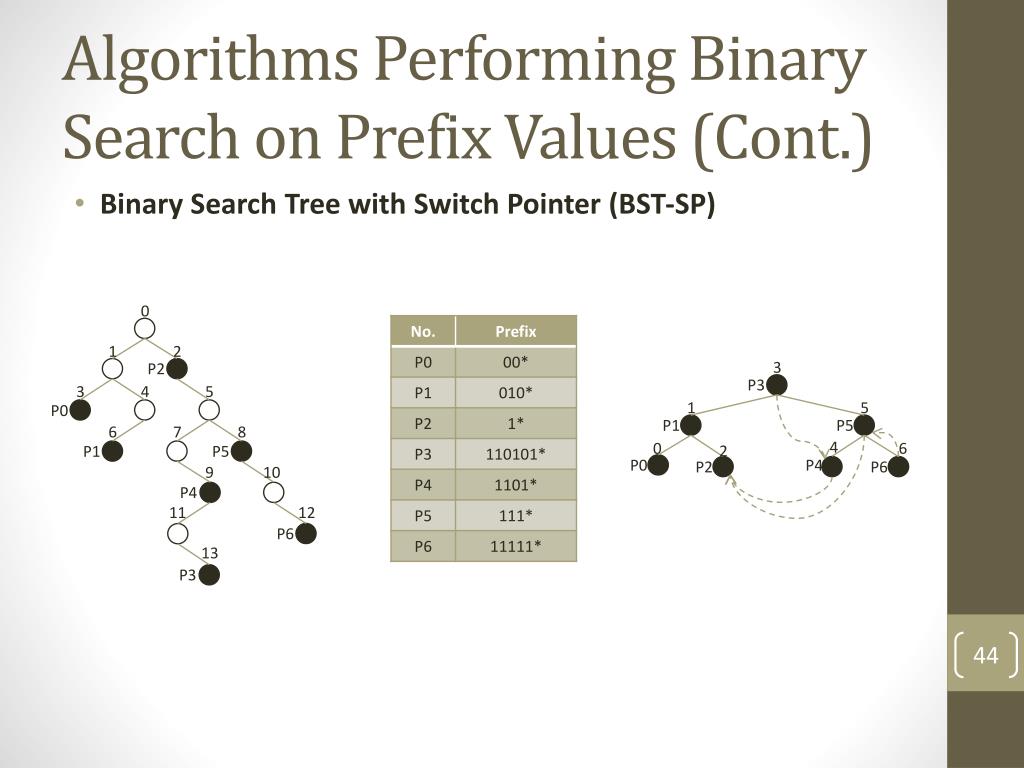

  44. Algorithms Performing Binary Search on Prefix Values (Cont.) 0 • Binary Search Tree with Switch Pointer (BST-SP) 1 2 3 4 5 6 7 8 9 10 3 P2 P3 11 12 1 5 P0 P1 P5 13 4 6 0 2 P1 P5 P0 P4 P2 P6 P4 P6 P3

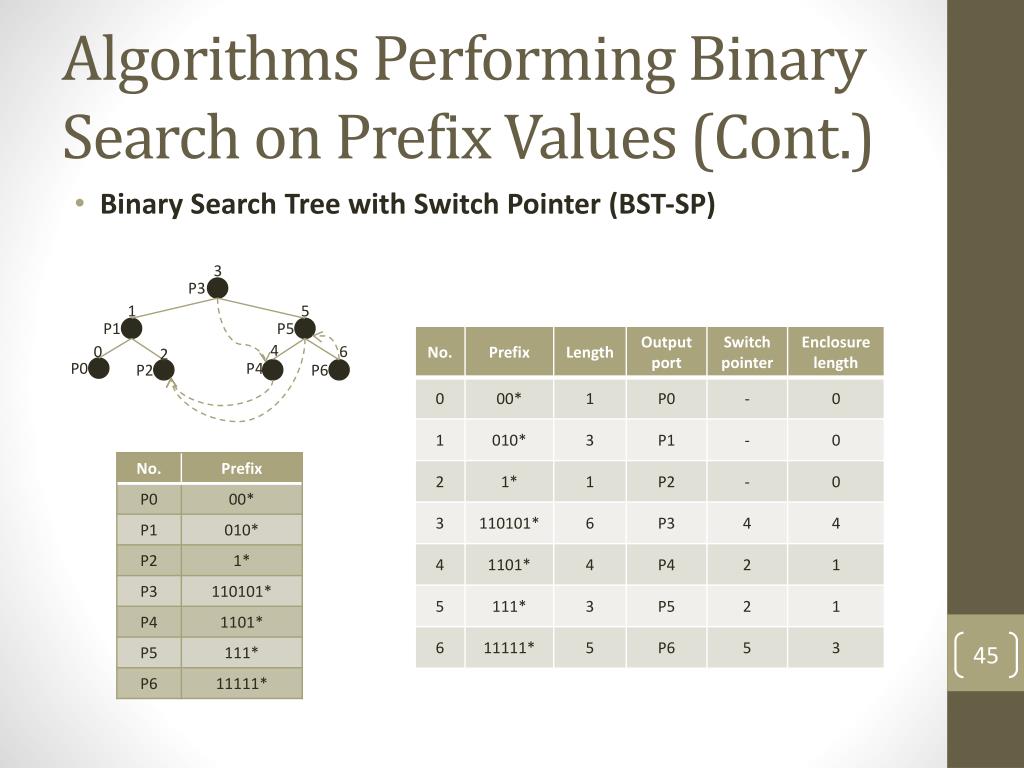

  45. Algorithms Performing Binary Search on Prefix Values (Cont.) • Binary Search Tree with Switch Pointer (BST-SP) 3 P3 1 5 P1 P5 4 6 0 2 P0 P4 P2 P6

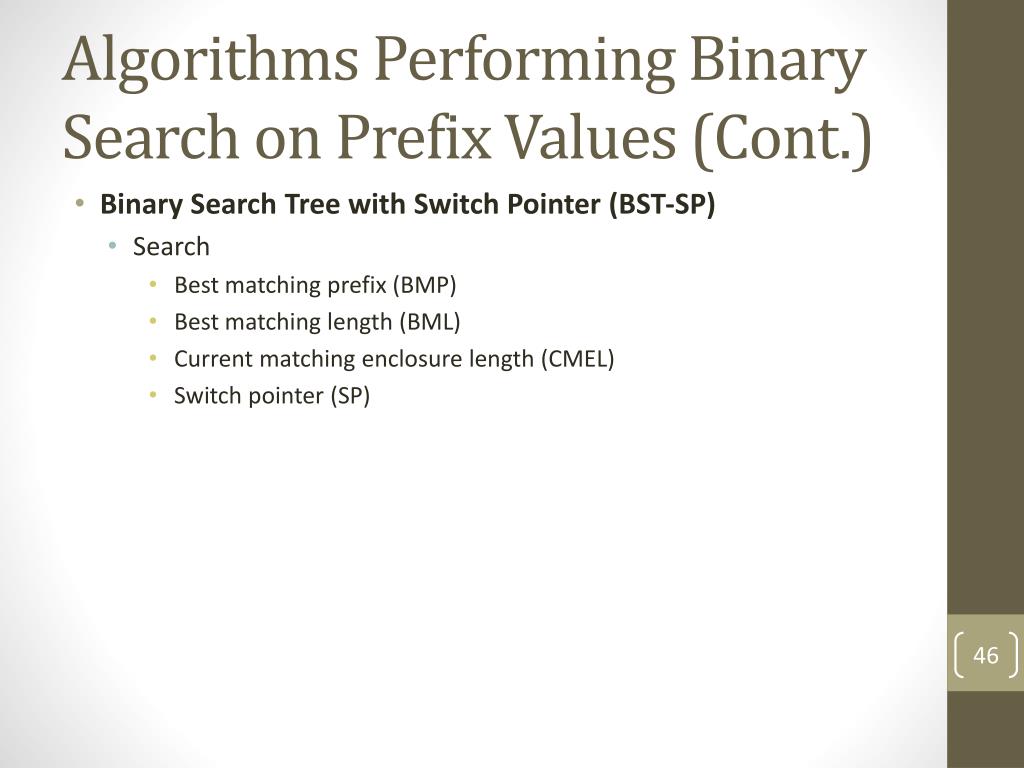

  46. Algorithms Performing Binary Search on Prefix Values (Cont.) • Binary Search Tree with Switch Pointer (BST-SP) • Search • Best matching prefix (BMP) • Best matching length (BML) • Current matching enclosure length (CMEL) • Switch pointer (SP)

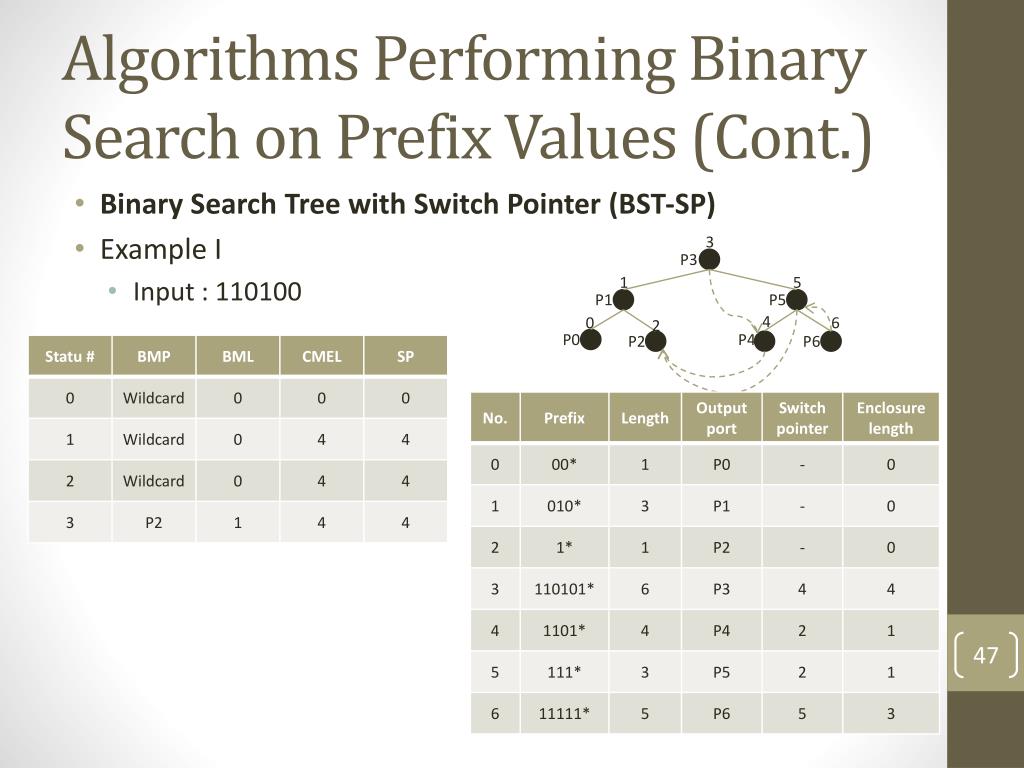

  47. Algorithms Performing Binary Search on Prefix Values (Cont.) • Binary Search Tree with Switch Pointer (BST-SP) • Example I • Input : 110100 3 P3 1 5 P1 P5 4 6 0 2 P0 P4 P2 P6

  48. Algorithms Performing Binary Search on Prefix Values (Cont.) • Binary Search Tree with Switch Pointer (BST-SP) • Example II • Input : 111000 3 P3 1 5 P1 P5 4 6 0 2 P0 P4 P2 P6

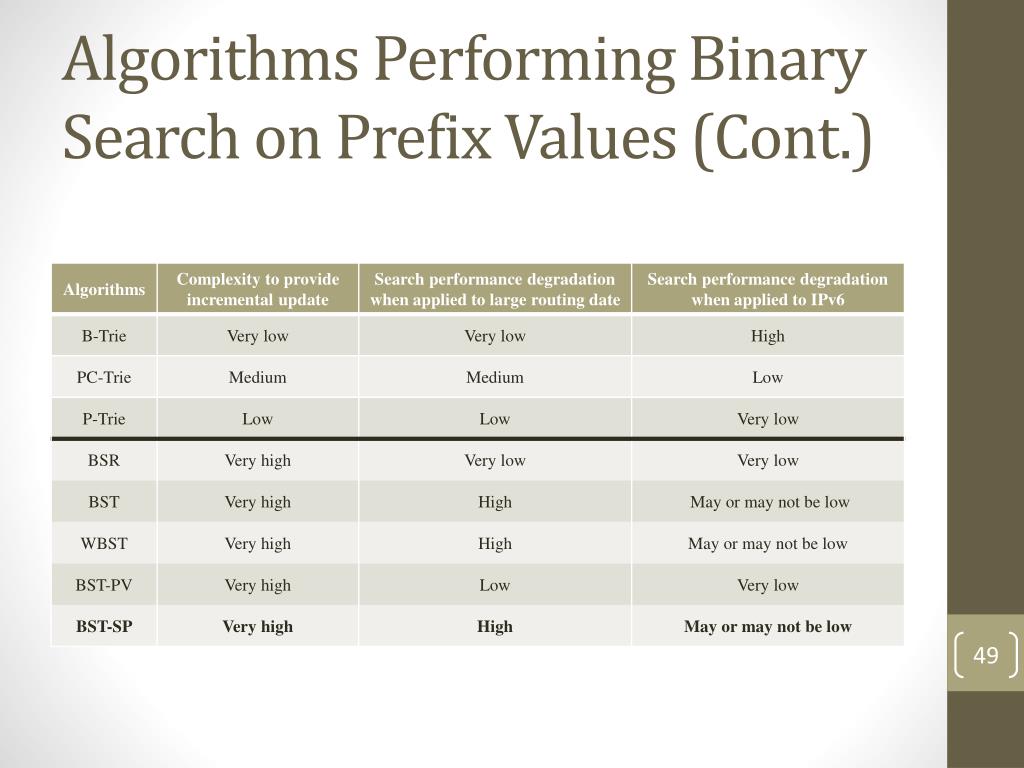

  49. Algorithms Performing Binary Search on Prefix Values (Cont.)

  50. Algorithms Performing Binary Search on Prefix Lengths (Cont.) • Waldvogels Binary Search on Length (W-BSL) • Binary Search on Length in a Leaf-Pushed Trie (L-BSL) • logW-Elevator Algorithm (logW-E) • Binary Search on Lengths in Multiple Tries (BSL-MT)
