  1. Modern CryptographyLecture 4 Yongdae Kim

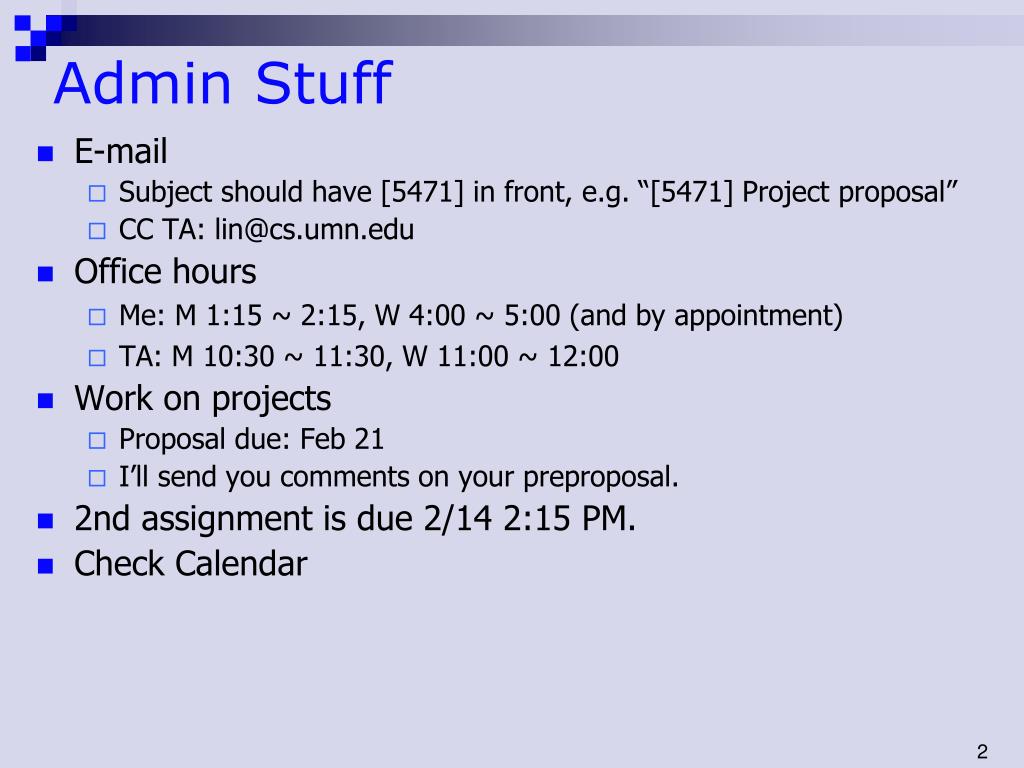

  2. Admin Stuff • E-mail • Subject should have [5471] in front, e.g. “[5471] Project proposal” • CC TA: lin@cs.umn.edu • Office hours • Me: M 1:15 ~ 2:15, W 4:00 ~ 5:00 (and by appointment) • TA: M 10:30 ~ 11:30, W 11:00 ~ 12:00 • Work on projects • Proposal due: Feb 21 • I’ll send you comments on your preproposal. • 2nd assignment is due 2/14 2:15 PM. • Check Calendar

  3. Recap • Math… • Proof techniques • Divisibility: a dividesb (a|b) if  c such that b = ac • GCD, LCM, relatively prime, existence of GCD • Eucledean Algorithm • d = gcd (a, b)   x, y such that d = a x + b y. • gcd(a, b) = gcd(a, b + ka) • Modular Arithmetic • a≡b (mod m) iff m | a-b iff a = b + mk for some k • a≡b (mod m), c≡d (mod m) a+c ≡(b+d) (mod m), ac ≡ bd (mod m) • gcd(a, n) =1  a has an arithmetic inverse modulo n. • Counting, probability, cardinality, … • Security Overview • one-way function if f(x) is easy to compute for all x  X, but it is computationally infeasible to find any x  X such that f(x) =y. • trapdoor one-way function if given trapdoor information, it becomes feasible to find an x  X such that f(x) =y.

  4. Security: Overview

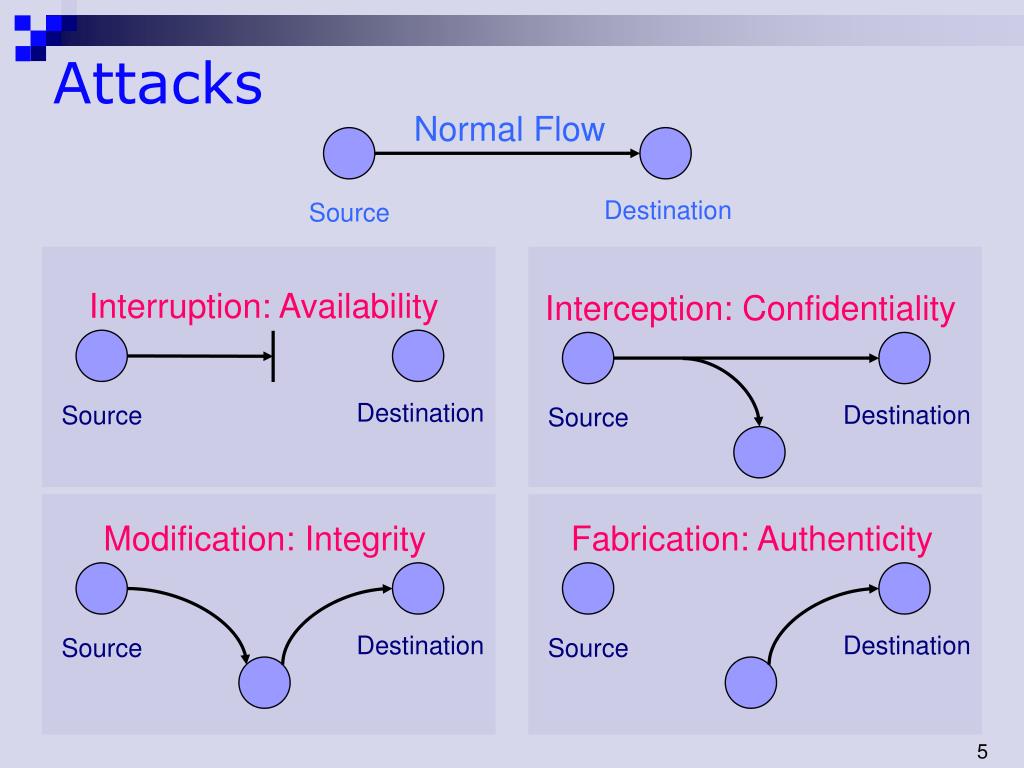

  5. Attacks Normal Flow Destination Source Interruption: Availability Interception: Confidentiality Destination Destination Source Source Modification: Integrity Fabrication: Authenticity Destination Destination Source Source

  6. Taxonomy of Attacks • Passive attacks • Eavesdropping • Traffic analysis • Active attacks • Masquerade • Replay • Modification of message content • Denial of service

  7. Big picture Trusted third party (e.g. arbiter, distributor of secret information) Bob Alice Information Channel Message Message Secret Information Secret Information Eve

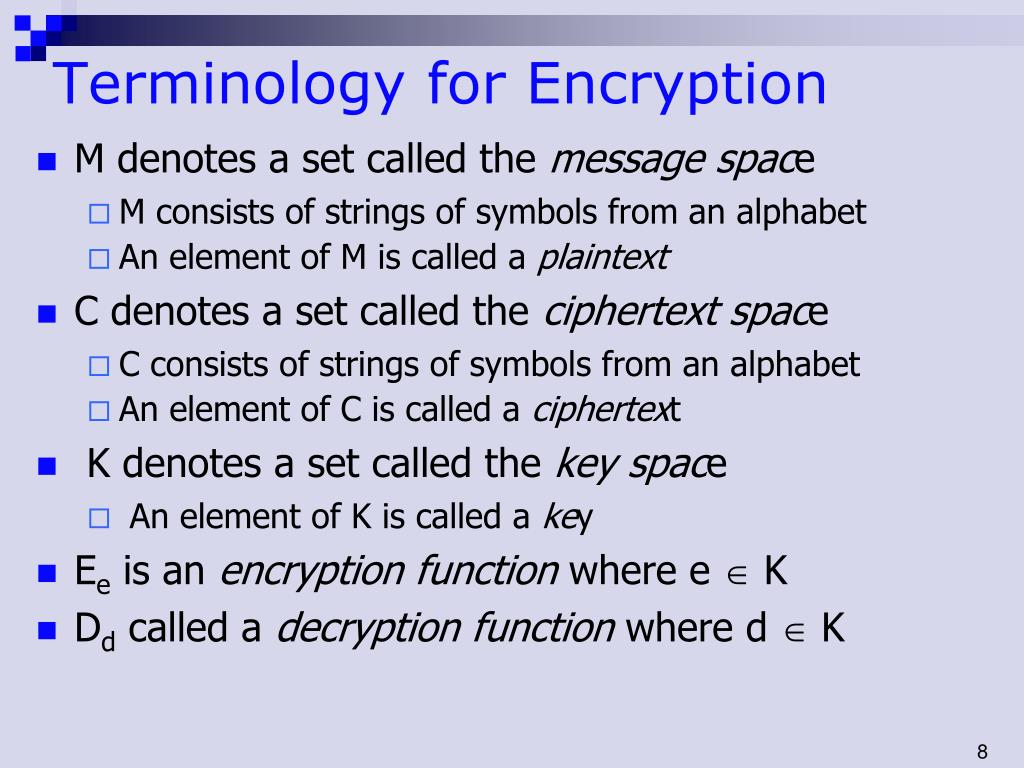

  8. Terminology for Encryption • M denotes a set called the message space • M consists of strings of symbols from an alphabet • An element of M is called a plaintext • C denotes a set called the ciphertext space • C consists of strings of symbols from an alphabet • An element of C is called a ciphertext • K denotes a set called the key space • An element of K is called a key • Ee is an encryption function where e  K • Dd called a decryption function where d  K

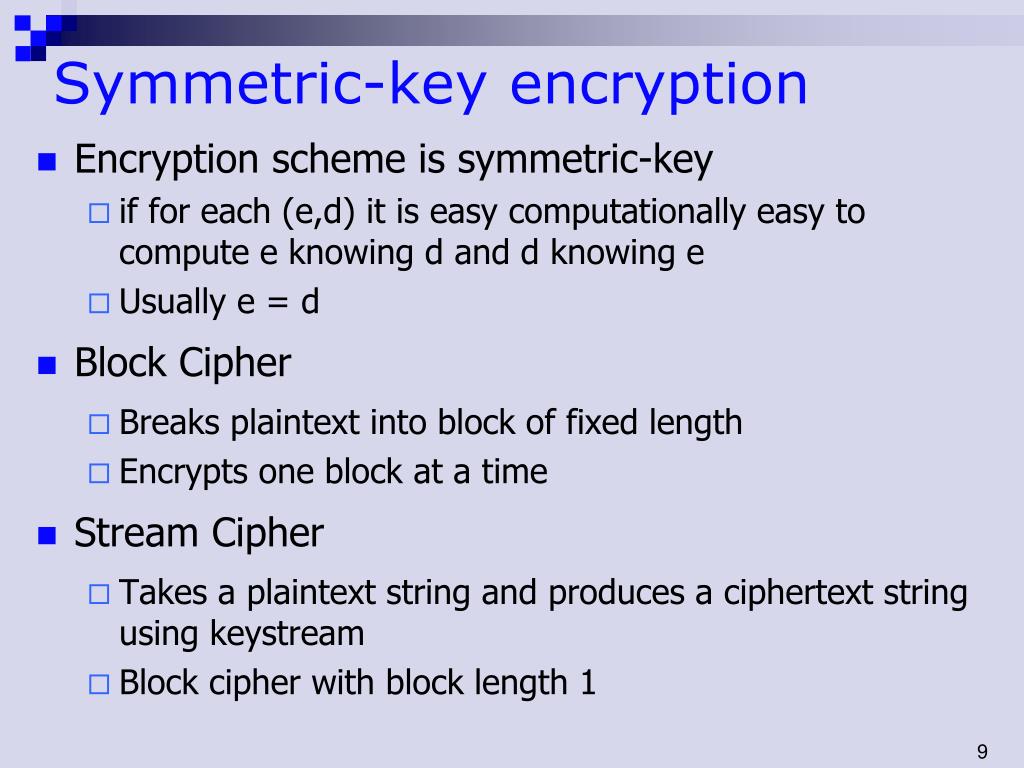

  9. Symmetric-key encryption • Encryption scheme is symmetric-key • if for each (e,d) it is easy computationally easy to compute e knowing d and d knowing e • Usually e = d • Block Cipher • Breaks plaintext into block of fixed length • Encrypts one block at a time • Stream Cipher • Takes a plaintext string and produces a ciphertext string using keystream • Block cipher with block length 1

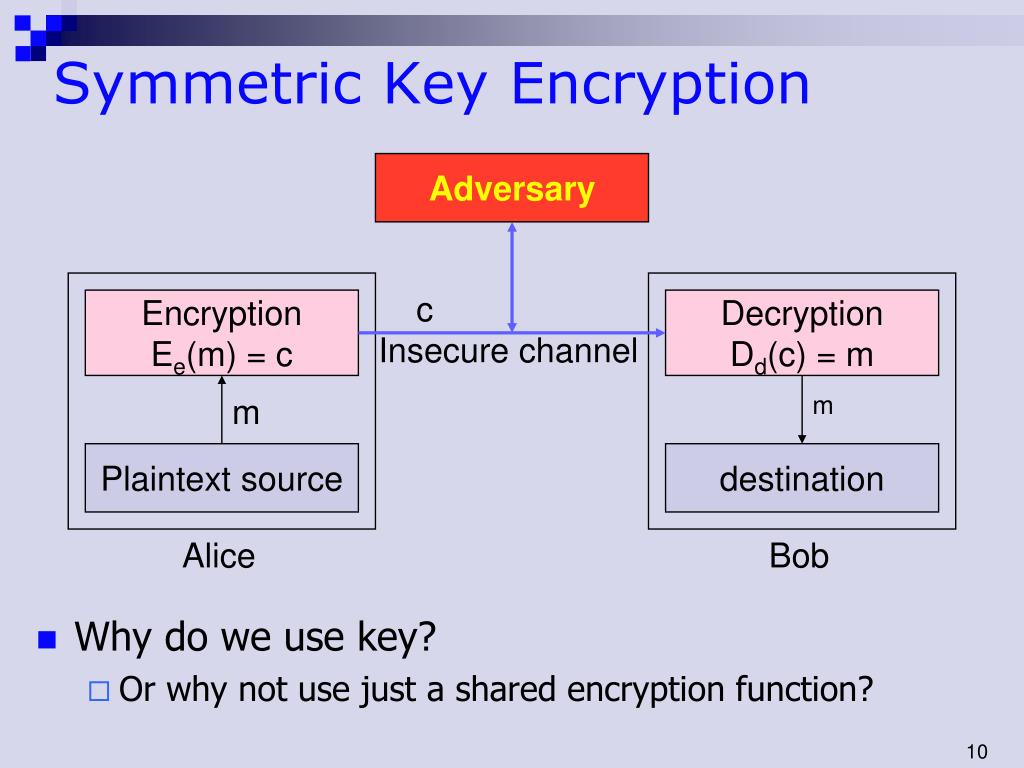

  10. Symmetric Key Encryption • Why do we use key? • Or why not use just a shared encryption function? Adversary c Insecure channel Encryption Ee(m) = c Decryption Dd(c) = m m m Plaintext source destination Alice Bob

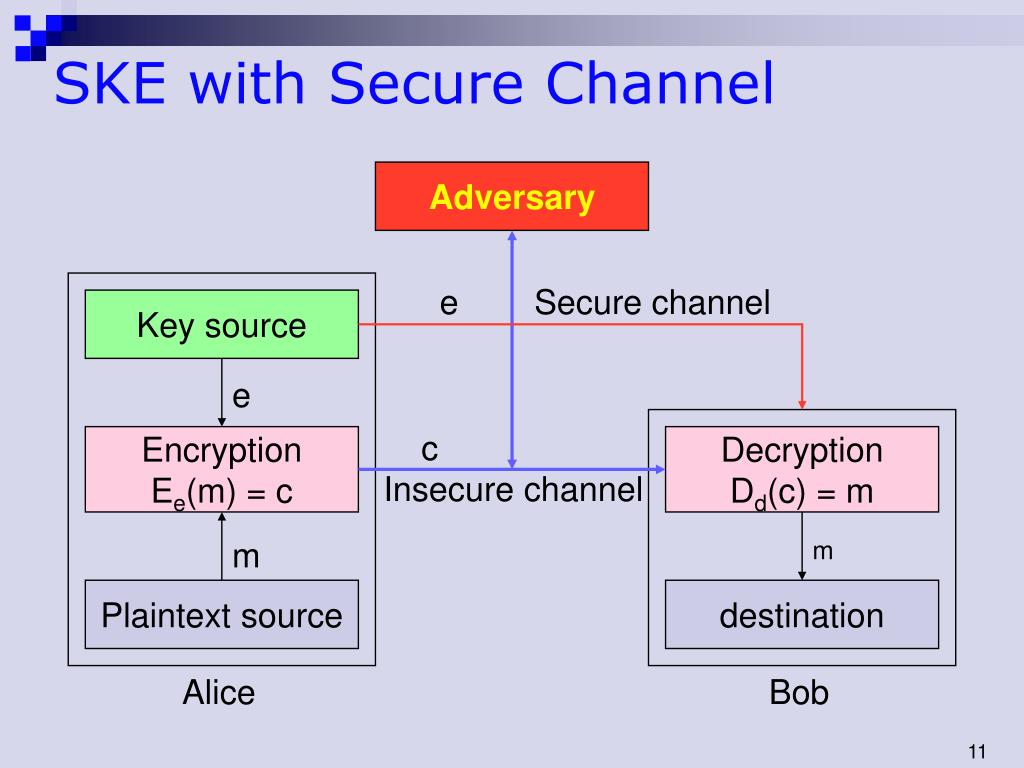

  11. SKE with Secure Channel Adversary e Secure channel Key source e c Insecure channel Encryption Ee(m) = c Decryption Dd(c) = m m m Plaintext source destination Alice Bob

  12. Public-key Encryption (Crypto) • Every entity has a private key SKand a public key PK • Public key is known to all • It is computationally infeasible to find SK from PK • Only SK can decrypt a message encrypted by PK • If A wishes to send a private message M to B • A encrypts M by B’s public key, C = EBPK(M) • B decrypts C by his private key, M = DBSK(C)

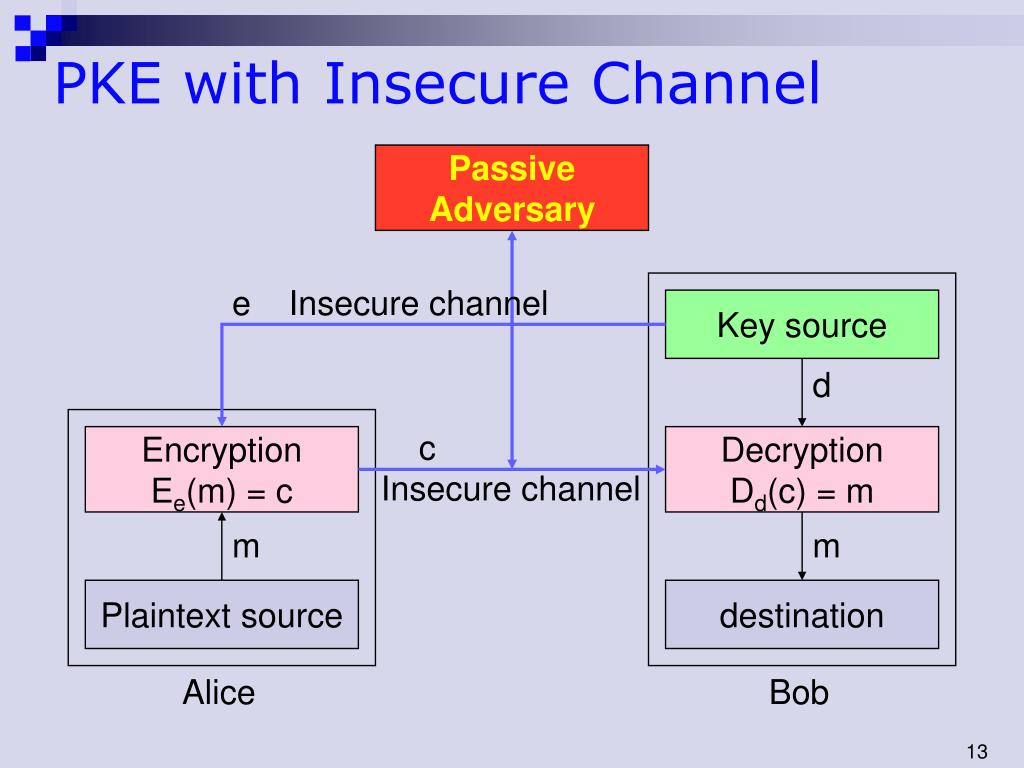

  13. PKE with Insecure Channel Passive Adversary e Insecure channel Key source d c Insecure channel Encryption Ee(m) = c Decryption Dd(c) = m m m Plaintext source destination Alice Bob

  14. e e’ Ee’(m) e Ee(m) Public key should be authentic! • Need to authenticate public keys Ee(m)

  15. Digital Signatures • Primitive in authentication and non-repudiation • Signature • Process of transforming the message and some secret information into a tag • Nomenclature • M is set of messages • S is set of signatures • SA is signature transformation from M to S for A, kept private • VA is verification transformation from M to S for A, publicly known

  16. Definitions • Digital Signature - a data string which associates a message with some originating entity • Digital Signature Generation Algorithm – a method for producing a digital signature • Digital signature verification algorithm – a method for verifying that a digital signature is authentic (i.e., was indeed created by the specified entity). • Digital Signature Scheme - consists of a signature generation algorithm and an associated verification algorithm

  17. Digital Signature with Appendix • Schemes with appendix • Requires the message as input to verification algorithm • Rely on cryptographic hash functions rather than customized redundancy functions • DSA, ElGamal, Schnorr etc.

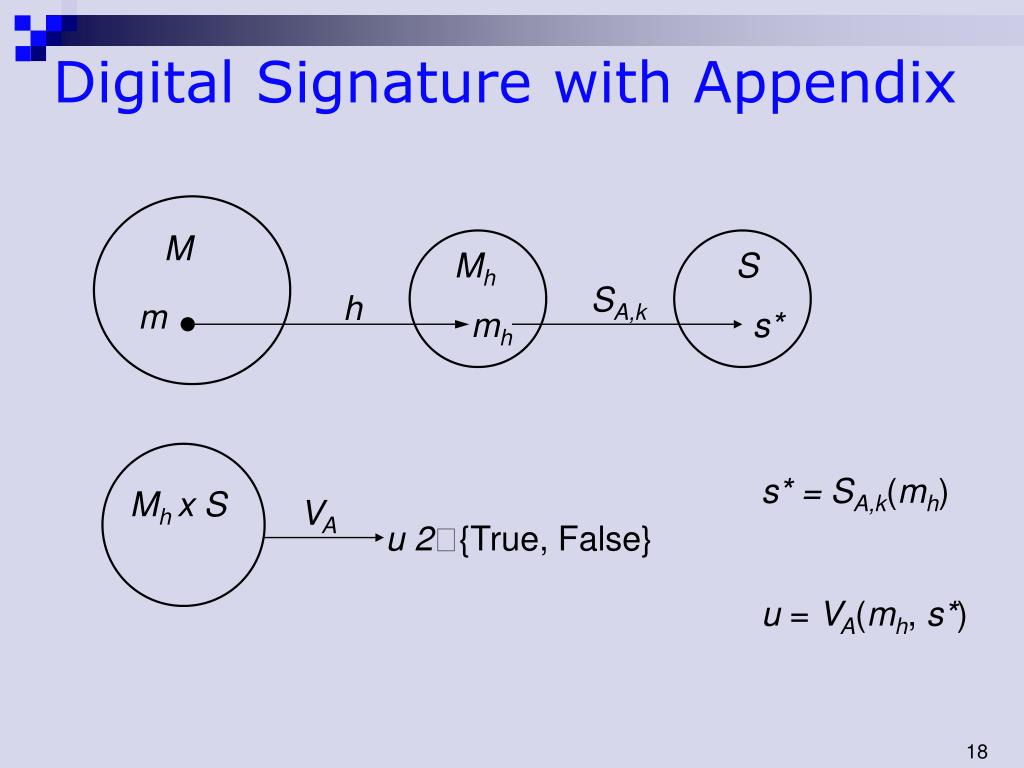

  18. Mh x S VA u 2{True, False} Digital Signature with Appendix M Mh S SA,k h m mh s* s* = SA,k(mh) u = VA(mh, s*)

  19. Hash function and MAC • A hash function is a function h • compression — h maps an input x of arbitrary finite bitlength, to an output h(x) of fixed bitlength n. • ease of computation — h(x) is easy to compute for given x and h • Properties • one-way: for a given y, find x’ such that h(x’) = y • collision resistance: find x and x’ such that h(x) = h(x’) • MAC (message authentication codes) • both authentication and integrity • MAC is a family of functions hk • ease of computation (if k is known !!) • compression, x is of arbitrary length, hk(x) has fixed length • computation resistance: given (x’,hk(x’)) it is infeasible to compute a new pair (x, hk(x)) for any new x x’

  20. Message Authentication Code MAC • MAC is a family of functions hk • ease of computation (if k is known !!) • compression, x is of arbitrary length, hk(x) has fixed length • computation resistance: given (x’,hk(x’)) it is infeasible to compute a new pair (x, hk(x)) for any new x x’ • Typical use • A ! B: (x, H = hk(x)) • B: verifies if H = hk(x) • Properties • Without k, no one can generate valid MAC. • Without k, no one can verify MAC. • both authentication and integrity

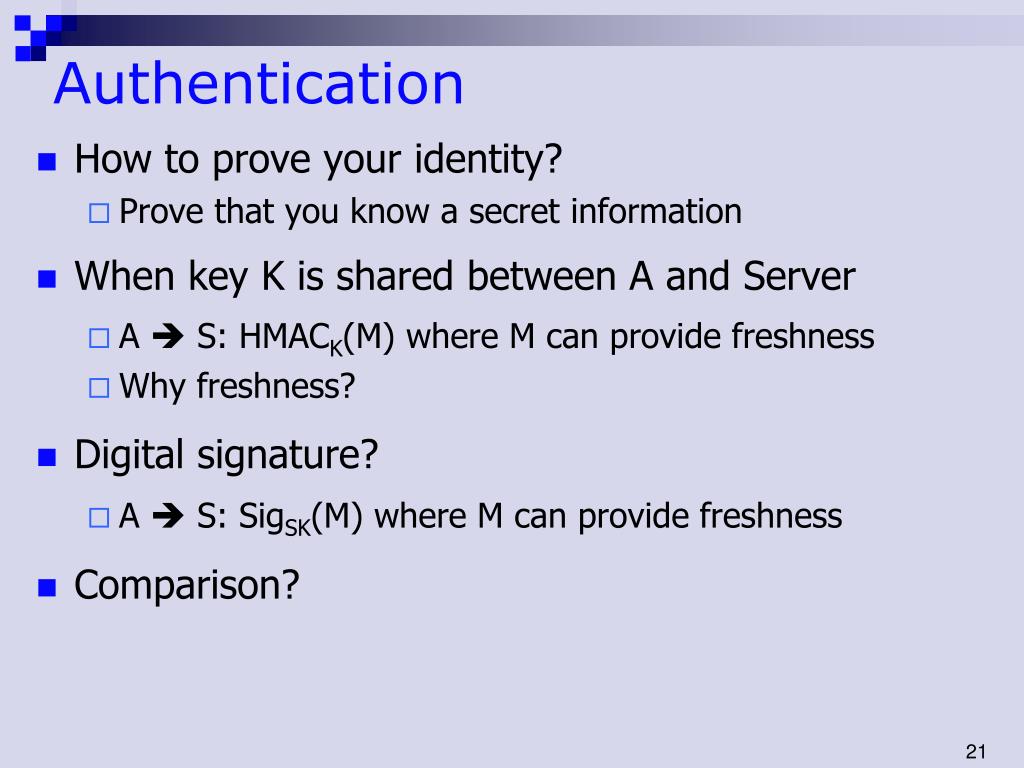

  21. Authentication • How to prove your identity? • Prove that you know a secret information • When key K is shared between A and Server • A  S: HMACK(M) where M can provide freshness • Why freshness? • Digital signature? • A  S: SigSK(M) where M can provide freshness • Comparison?

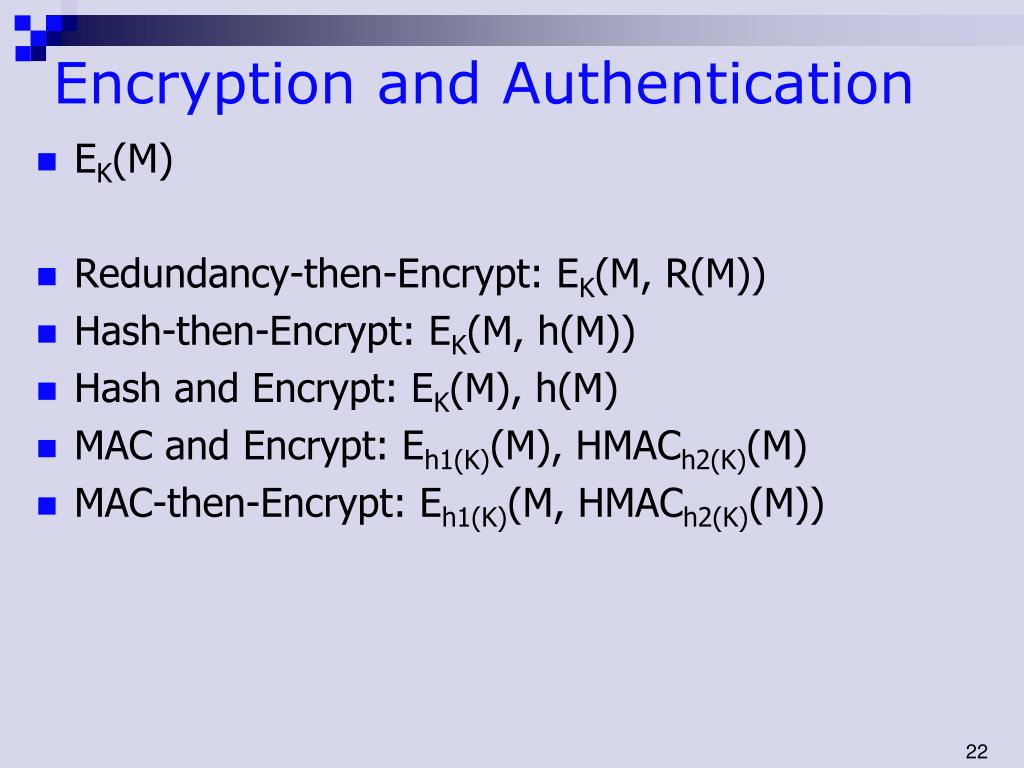

  22. Encryption and Authentication • EK(M) • Redundancy-then-Encrypt: EK(M, R(M)) • Hash-then-Encrypt: EK(M, h(M)) • Hash and Encrypt: EK(M), h(M) • MAC and Encrypt: Eh1(K)(M), HMACh2(K)(M) • MAC-then-Encrypt: Eh1(K)(M, HMACh2(K)(M))

  23. Key Management Through SKE • Each entity Ai shares symmetric key Ki with a TTP • TTP generates a session key Ks and sends EKi(Ks) • Pros • Easy to add and remove entities • Each entity needs to store only one long-term secret key • Cons • Initial interaction with the TTP • TTP needs to maintain n long-term secret keys • TTP can read all messages • Single point of failure

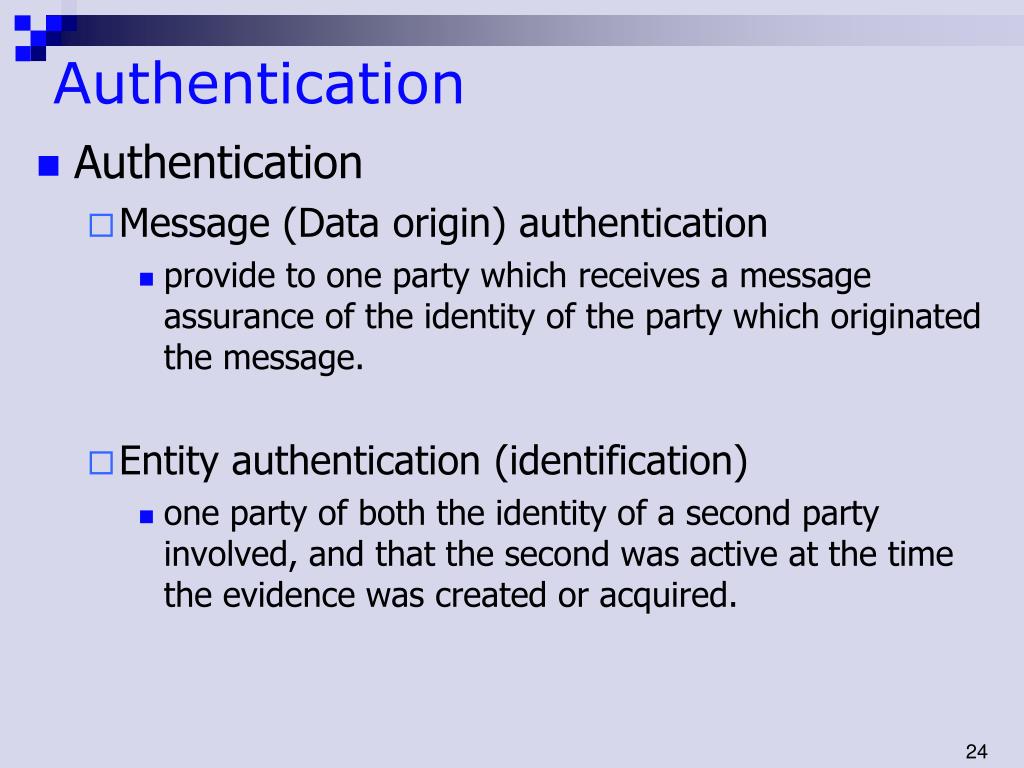

  24. Authentication • Authentication • Message (Data origin) authentication • provide to one party which receives a message assurance of the identity of the party which originated the message. • Entity authentication (identification) • one party of both the identity of a second party involved, and that the second was active at the time the evidence was created or acquired.

  25. Key Management • Key establishment • Process to whereby a shared secret key becomes available to two or more parties • Subdivided into key agreement and key transport. • Key management • The set of processes and mechanisms which support key establishment • The maintenance of ongoing keying relationships between parties

  26. Key Management Through SKE • Pros • Easy to add and remove entities • Each entity needs to store only one long-term secret key • Cons • Initial interaction with the TTP • TTP needs to maintain n long-term secret keys • TTP can read all messages • Single point of failure KA, KB 1. A, B 2. EKA(SK), EKB(SK) 3. ESK(“Hi”), EKB(SK) 4. ESK(“Hi, Alice”) KA KB

  27. Key Management Through PKE • Advantages • TTP not required • Only n public keys need to be stored • The central repository could be a local file • Problem • Public key authentication problem • Solution • Need of TTP to certify the public key of each entity 0xDAD12345 Alice 0xBADD00D1 Bob 1. Alice, PKA 2. Bob, PKB SKA,PKA SKB,PKB

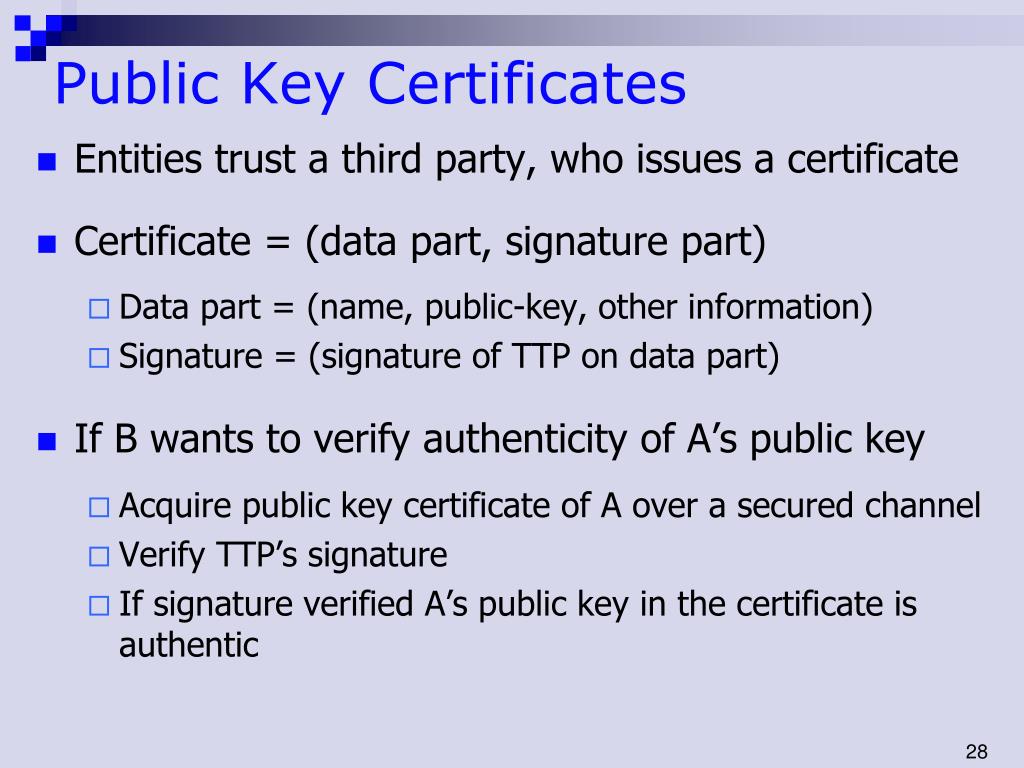

  28. Public Key Certificates • Entities trust a third party, who issues a certificate • Certificate = (data part, signature part) • Data part = (name, public-key, other information) • Signature = (signature of TTP on data part) • If B wants to verify authenticity of A’s public key • Acquire public key certificate of A over a secured channel • Verify TTP’s signature • If signature verified A’s public key in the certificate is authentic

  29. ID-based Cryptography • No public key • Public key = ID (email, name, etc.) • PKG • Private key generation center • SKID = PKGS(ID) • PKG’s public key is public. • distributes private key associated with the ID • Encryption: C= EID(M) • Decryption: DSK(C) = M

  30. Discussion (PKI vs. Kerberos vs. IBE) • On-line vs. off-line TTP • Implication? • Non-reputation? • Revocation? • Scalability? • Trust issue?

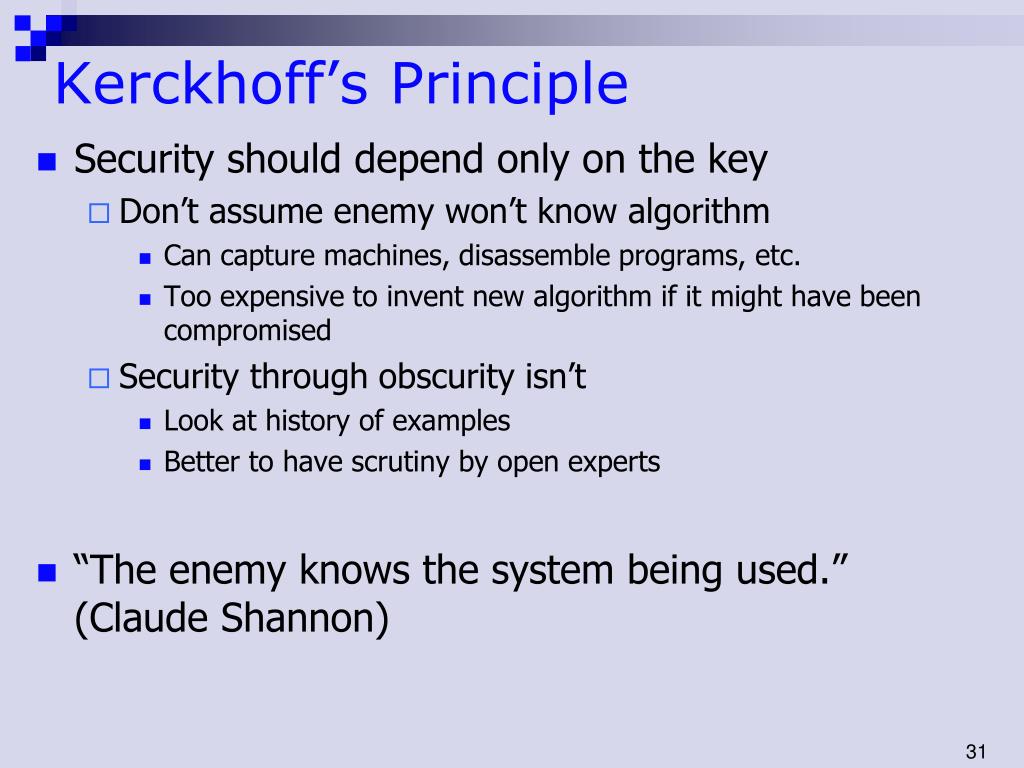

  31. Kerckhoff’s Principle • Security should depend only on the key • Don’t assume enemy won’t know algorithm • Can capture machines, disassemble programs, etc. • Too expensive to invent new algorithm if it might have been compromised • Security through obscurity isn’t • Look at history of examples • Better to have scrutiny by open experts • “The enemy knows the system being used.” (Claude Shannon)

  32. Classical and Block Ciphers

  33. Some History: Caesar Cipher I LOVE YOU K NQXG AQW

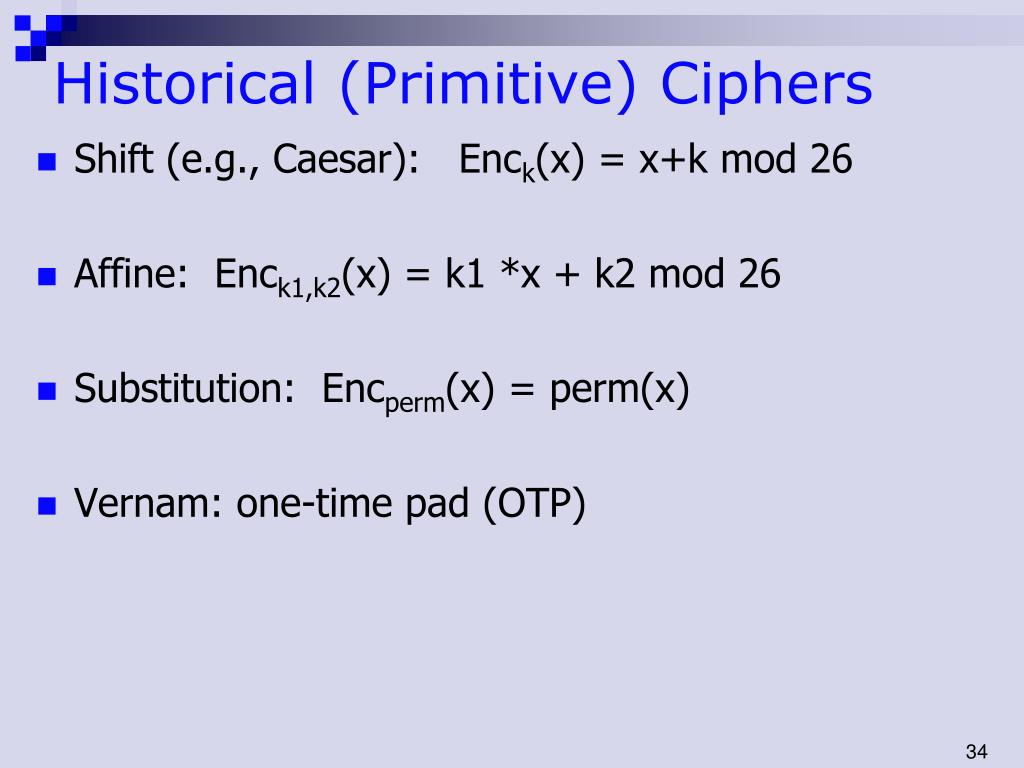

  34. Historical (Primitive) Ciphers • Shift (e.g., Caesar): Enck(x) = x+k mod 26 • Affine: Enck1,k2(x) = k1 *x + k2 mod 26 • Substitution: Encperm(x) = perm(x) • Vernam: one-time pad (OTP)

  35. Analysis • Kerckhoff’s Principle • Shift cipher • Average number of trials = 26/2 = 13 :-) • Substitution cipher

  36. Vernam One-time pad • C = P  K • Vernam offers perfect information-theoretic security, but: • How long does the OTP keystream needs to be? • Key length = Plaintext length = Ciphertext length • How do Alice and Bob exchange the keystream?

  37. Average time for exhaustive key search

  38. Block Cipher • Definition • Modes of operation • Strengthening Block Cipher • Product/Feistel Cipher • DES

  39. Block Cipher • E: VnKVn • Vn = {0,1}n, K = {0, 1}k, n is called block length, k is called key size • E(P, K) = C for K  K and P, C  Vn • E(P, K) = EK(P) is invertible mapping from Vn to Vn • EK: encryption function • D(C, K) = DK(C) is the inverse of EK • Dk: decryption function P (plaintext) P (plaintext) E K Key EK C (ciphertext) C (ciphertext)

  40. Evaluation of Block Cipher • Estimated security level: sufficient scrutiny by expert cryptanalysis • Key size • Throughput • Block size • Block size impacts both security (larger is desirable) and complexity (larger is more costly to implement). • Complexity of cryptographic mapping • Algorithmic complexity affects the implementation costs both in terms of development and fixed resources • Data expansion • Error propagation

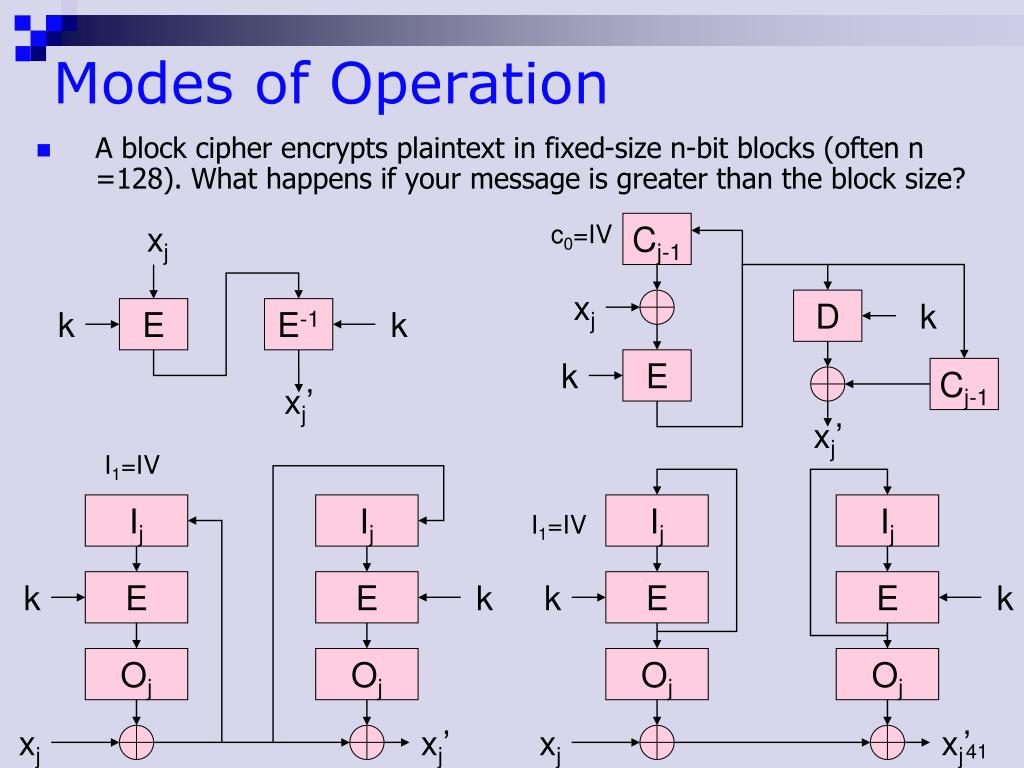

  41. k D Modes of Operation • A block cipher encrypts plaintext in fixed-size n-bit blocks (often n =128). What happens if your message is greater than the block size? xj c0=IV Cj-1 xj k E E-1 k k E Cj-1 xj’ xj’ I1=IV Ij Ij Ij Ij I1=IV k E E k k E E k Oj Oj Oj Oj xj xj’ xj xj’

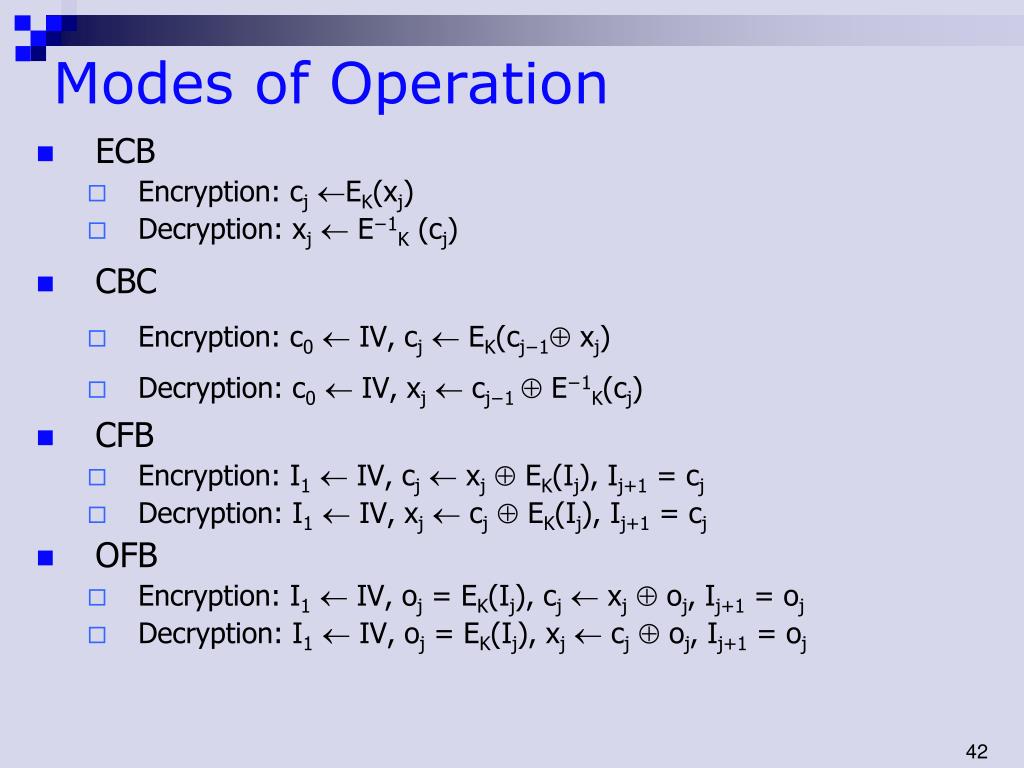

  42. Modes of Operation • ECB • Encryption: cjEK(xj) • Decryption: xj E−1K (cj) • CBC • Encryption: c0 IV, cj EK(cj−1 xj) • Decryption: c0 IV, xj cj−1  E−1K(cj) • CFB • Encryption: I1 IV, cj xj EK(Ij), Ij+1 = cj • Decryption: I1 IV, xj cj EK(Ij), Ij+1 = cj • OFB • Encryption: I1 IV, oj = EK(Ij), cj xj oj, Ij+1 = oj • Decryption: I1 IV, oj = EK(Ij), xj cj oj, Ij+1 = oj

  43. Modes of Operation (CTR) CTR CTR+1 CTR+N-1 k E k E k E x1 x2 xN c1 c2 cN CTR CTR+1 CTR+N-1 k E k E k E c1 c2 cN x1 x2 xN

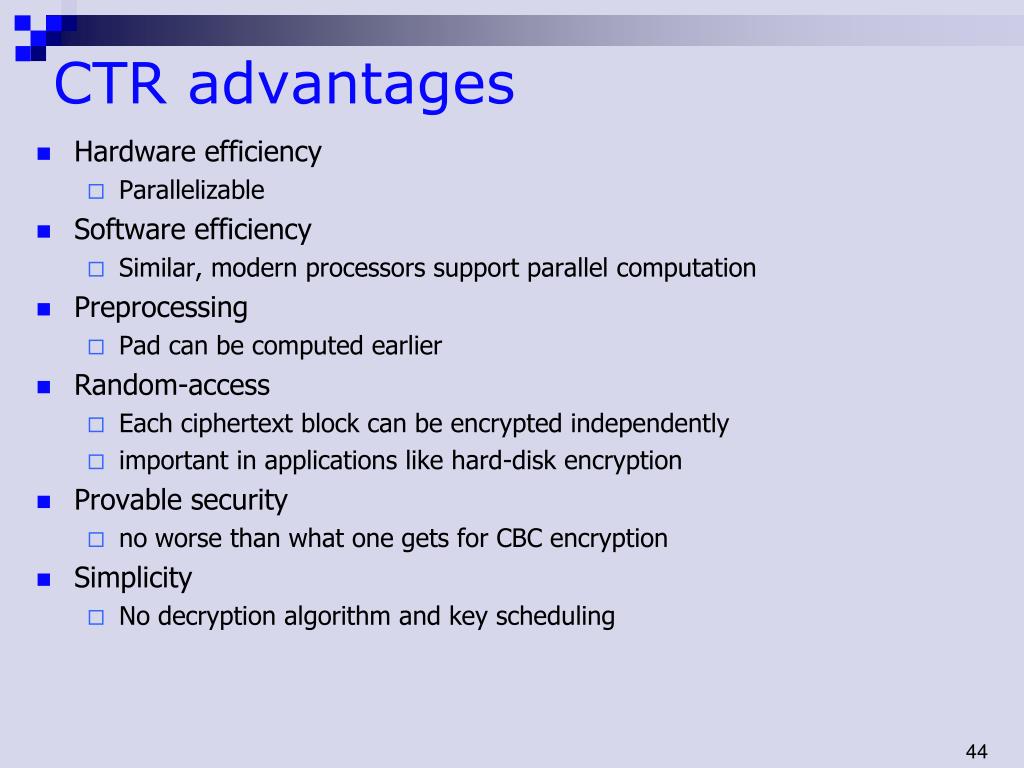

  44. CTR advantages • Hardware efficiency • Parallelizable • Software efficiency • Similar, modern processors support parallel computation • Preprocessing • Pad can be computed earlier • Random-access • Each ciphertext block can be encrypted independently • important in applications like hard-disk encryption • Provable security • no worse than what one gets for CBC encryption • Simplicity • No decryption algorithm and key scheduling

  45. Double DES • C = EK2[EK1 [P]] • P = DK1[DK2[C]] • Reduction to single stage? • EK2[EK1 [P]] =? EK3[P] • It was proven that it does not hold

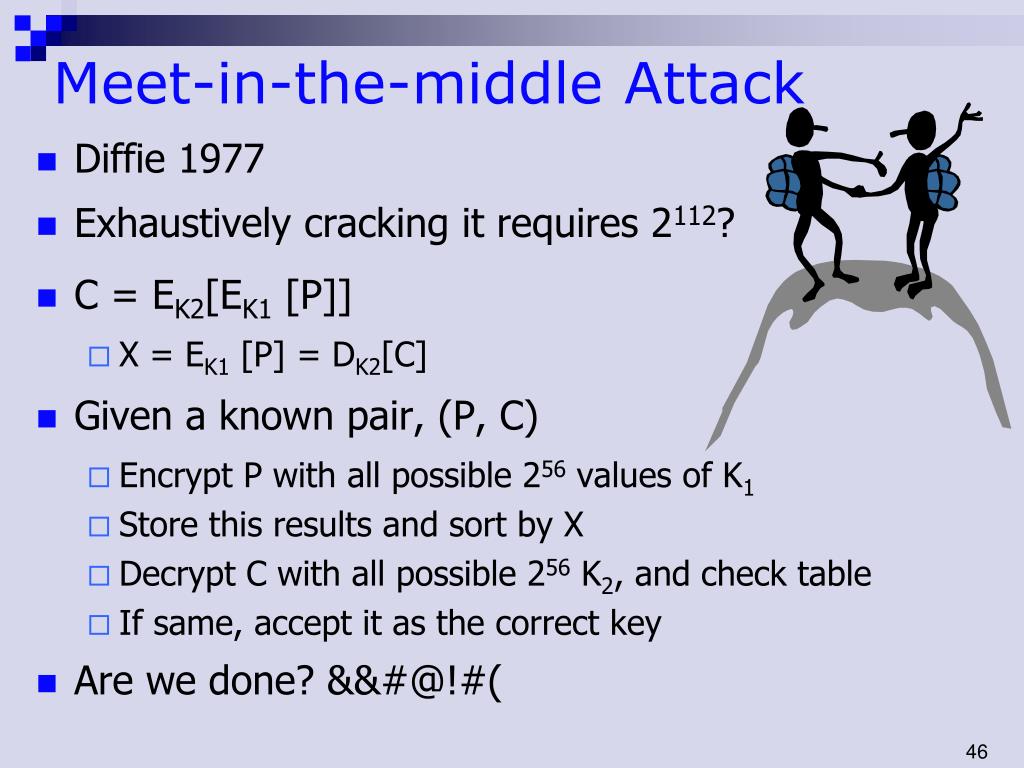

  46. Meet-in-the-middle Attack • Diffie 1977 • Exhaustively cracking it requires 2112? • C = EK2[EK1 [P]] • X = EK1 [P] = DK2[C] • Given a known pair, (P, C) • Encrypt P with all possible 256 values of K1 • Store this results and sort by X • Decrypt C with all possible 256 K2, and check table • If same, accept it as the correct key • Are we done? &&#@!#(

  47. Meet-in-the-middle Attack, cnt • Little statistics • For any P, there are 264 possible C • DDES uses 112 bit key, so 2112 keys • Given C, there are 2112/264 = 248 possible P • So there are 248 false alarms • If one more (P’, C’) pair, we can reduce it to 2-16 • So using two (plaintext, ciphertext) pairs, we can break DDES c * 256 encryption/decryption • C = EK2[DK1 [P]] different?

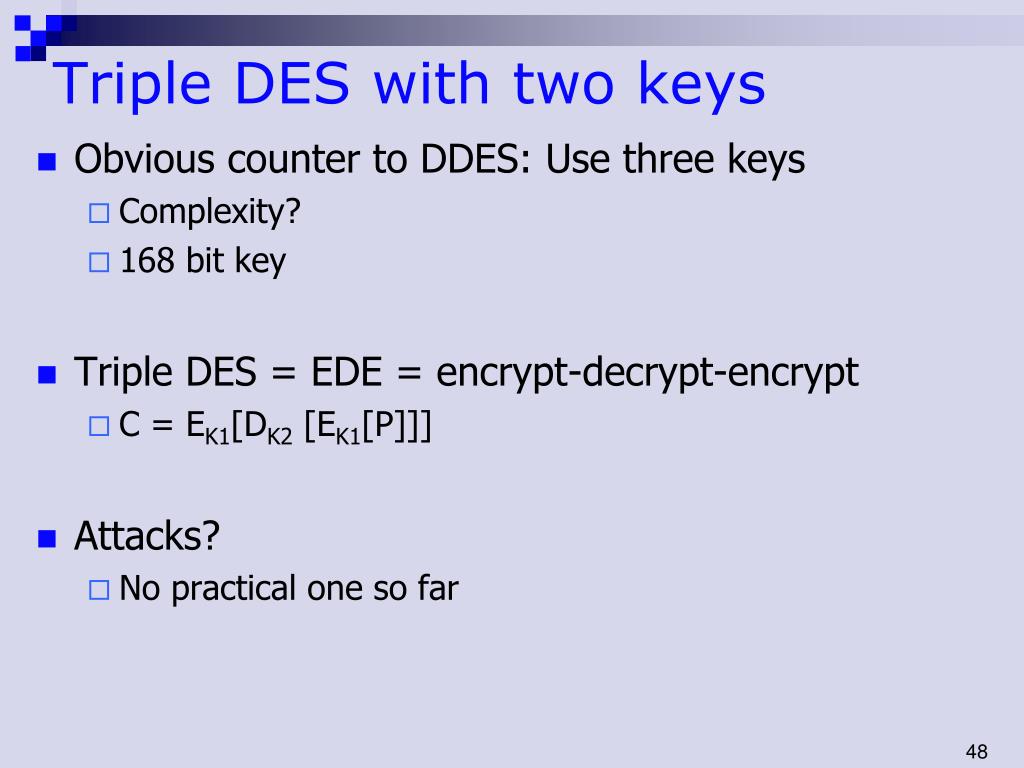

  48. Triple DES with two keys • Obvious counter to DDES: Use three keys • Complexity? • 168 bit key • Triple DES = EDE = encrypt-decrypt-encrypt • C = EK1[DK2 [EK1[P]]] • Attacks? • No practical one so far

  49. … … … … … S … S S S S S S … … … … … … P … … … … … … … … ... … … … … … S … P Product Cipher • To build complex function to compose several simple operation offer complementary, but individually insufficient protection • Basic operation: transposition, translation (XOR) and linear transformation, arithmetic operation, mod mult, simple substitution • Substitution-permutation (SP) network is product cipher composed of a number of stages each involving substitution and permutation

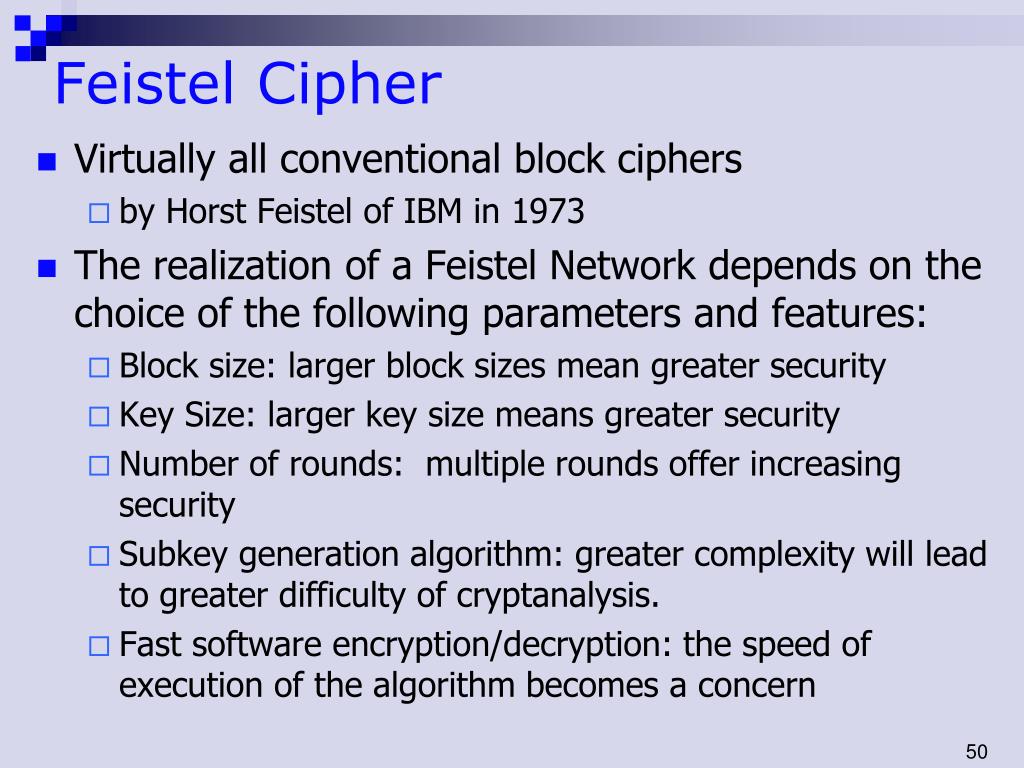

  50. Feistel Cipher • Virtually all conventional block ciphers • by Horst Feistel of IBM in 1973 • The realization of a Feistel Network depends on the choice of the following parameters and features: • Block size: larger block sizes mean greater security • Key Size: larger key size means greater security • Number of rounds: multiple rounds offer increasing security • Subkey generation algorithm: greater complexity will lead to greater difficulty of cryptanalysis. • Fast software encryption/decryption: the speed of execution of the algorithm becomes a concern
