StreaminCloud Corporation is a Houston-based company specializing in animations, web hosting, and free video hosting. The sponsor aims to launch a paid subscriber-based video management system through a newly developed website. The system will be robust, scalable, and affordable for any file size upload. It will feature secured user login, payment processing, video libraries, analytical reports, and user administration. Key features include user information management, account details, file uploads, and location data. The system will provide inputs such as sales reports, customer receipts, and analytical reports, producing various outputs like context diagrams and system components. The logical design encompasses user data, video details, account information, payment records, forms, and reports.

tilden
Télécharger la présentation

Sky Net Corporation

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Group members: Vinod Raj Mylapore SupriyaSuryadevara NaveenThinavakarasu NavinNegi Houston Texas SkyNet Corporation

  2. Specializing in animations. Web hosting. Free Video hosting. Streamincloud.com – free video hosting site. similar to youtube, Viddler, Veoh. sponsor Company’s background

  3. Replacing the current website www.streamincloud.com • Creating a paid subscriber-based video management system. • Develop a website • Robust • Scalable • Affordable for any size files to be uploaded. Sponsor’s plan

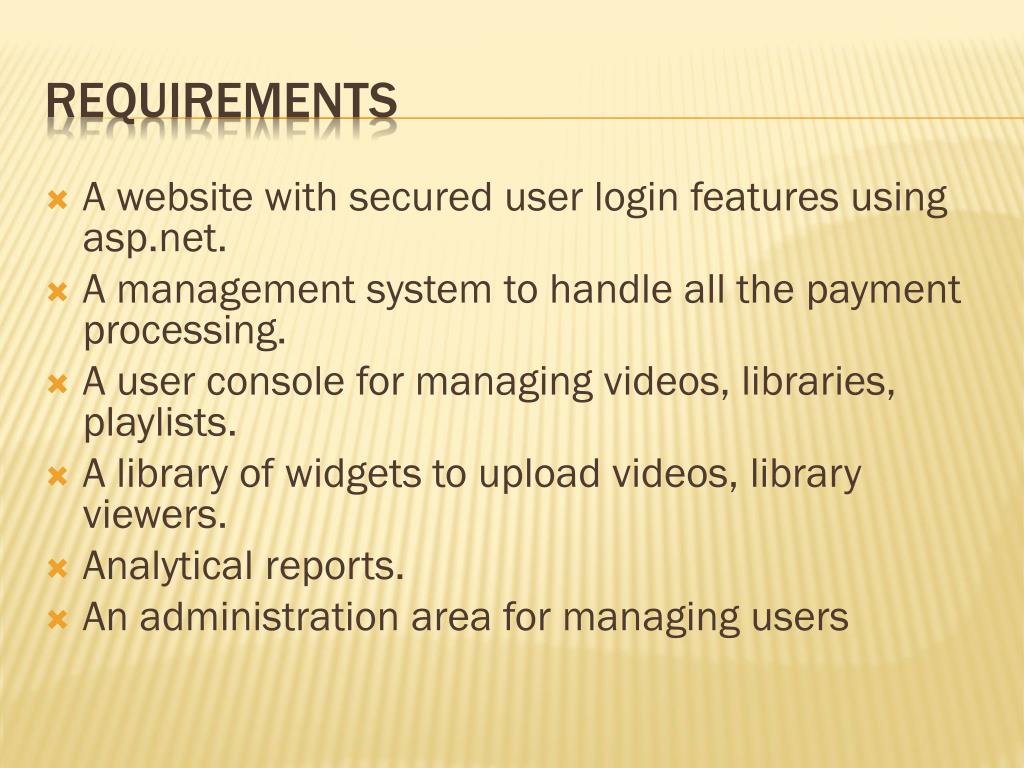

  4. A website with secured user login features using asp.net. A management system to handle all the payment processing. A user console for managing videos, libraries, playlists. A library of widgets to upload videos, library viewers. Analytical reports. An administration area for managing users requirements

  5. User information(lname,fname,DOB,e-mail,gender etc.,) User account info(name,upload and download). Location(user address info). File(name,size,upload date). INPUTS

  6. Sales Reports Customer Receipts Analytical reports OUTPUTS

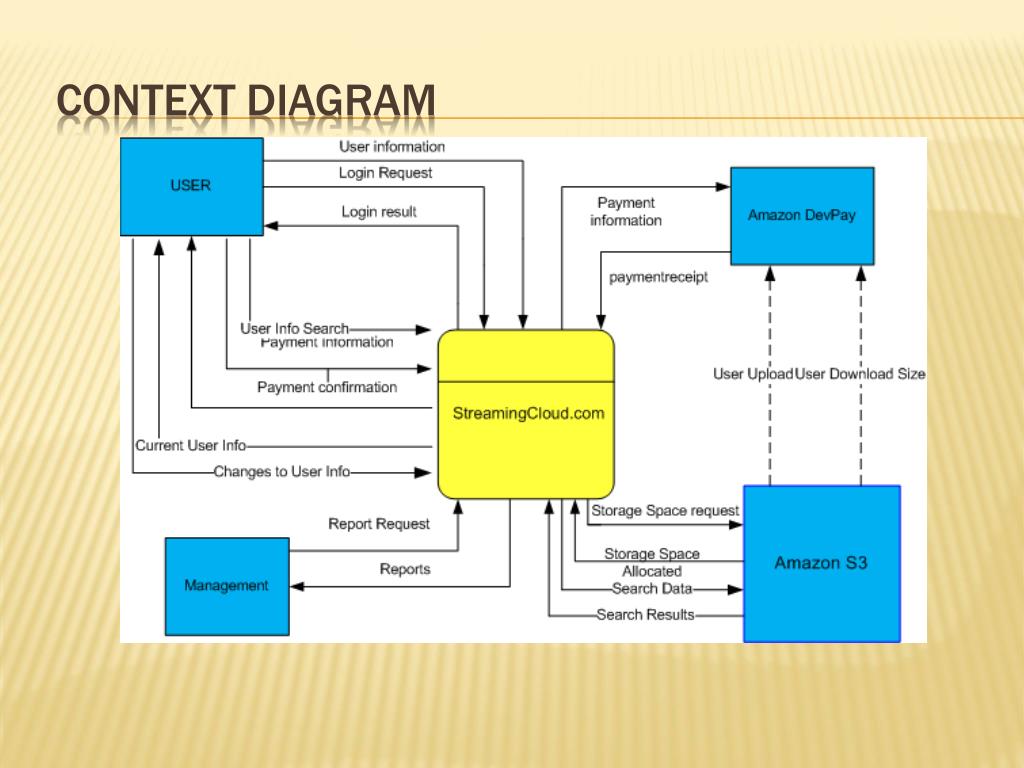

  7. CONTEXT DIAGRAM

  8. LEVEL 0 DIAGRAM

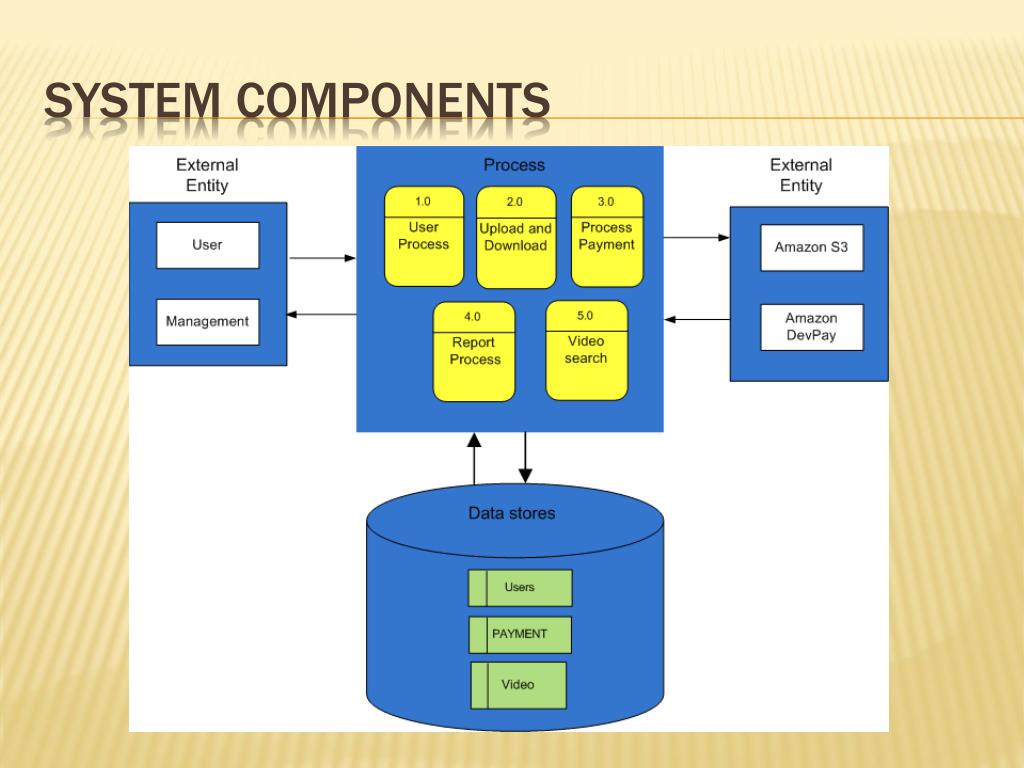

  9. SYSTEM COMPONENTS

  10. STRUCTURED CHART

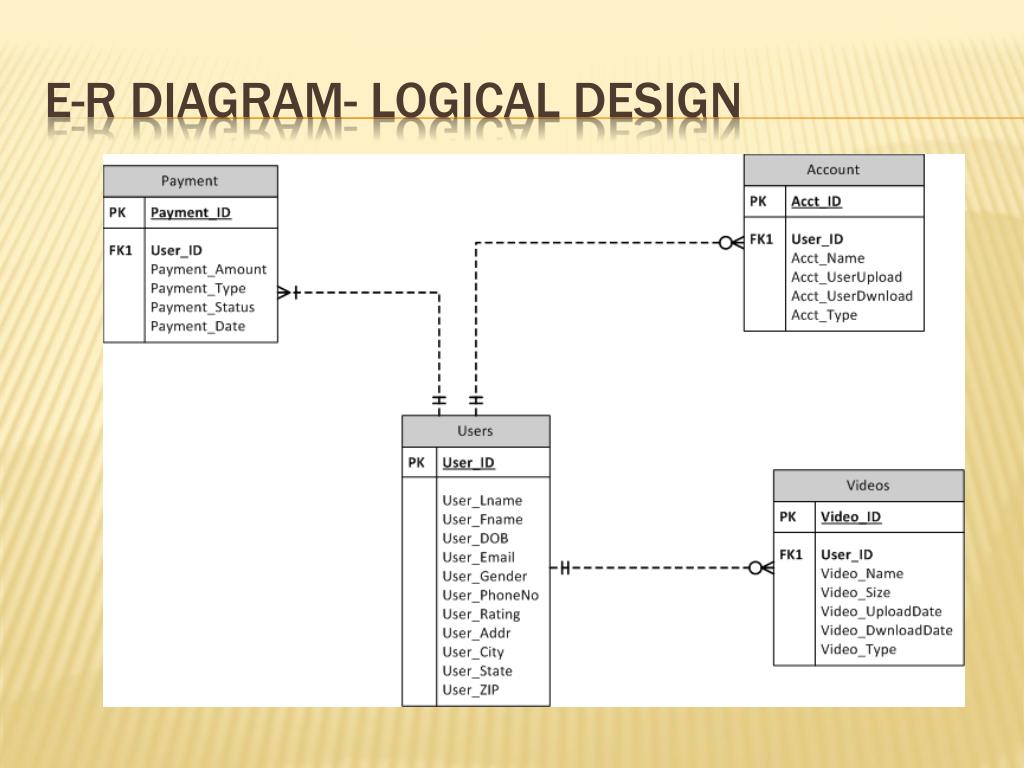

  11. E-R DIAGRAM- logical design

  12. Users (User_ID, User_Lname, User_Fname, User_DOB, User_Email, User_Gender, User_PhoneNo, User_Rating, User_Addr, User_City, User_State, User_ZIP) Videos (Video_ID, User_ID, Video_Name, Video_Size, Video_UploadDate, Video_DwnloadDate, Video_Type) Account (Acct_ID, User_ID, Acct_Name, Acct_UserUpload, Acct_UserDwnload, Acct_Type) Payment (Payment_ID, User_ID, Payment_Amount, Payment_Type, Payment_Status, Payment_Date) Physical DESIGN

  13. FORMS

  14. FORMS

  15. REPORTS

  16. REPORTS
