  1. Managing Rollback Segments

  2. Objectives • Planning the number and size of rollback segments • Creating rollback segments using appropriate storage settings • Maintaining rollback segments • Obtaining rollback segment information from the data dictionary • Troubleshooting rollback segment problems

  3. Rollback Segment (Introduction) • Used for delete and update operations only • Used to ‘undo’ a transaction • Used to save the old value when a process • changes data. • Stores location and value of data before • modification • A transaction can use only one rollback segment

  4. Rollback Segment Old image New image Table Rollback segment Update transaction

  5. Rollback Segment (Steps) • Data block brought into DB buffer • Rollback segment brought into DB buffer • Old data written to the rollback segment • Update made to data block

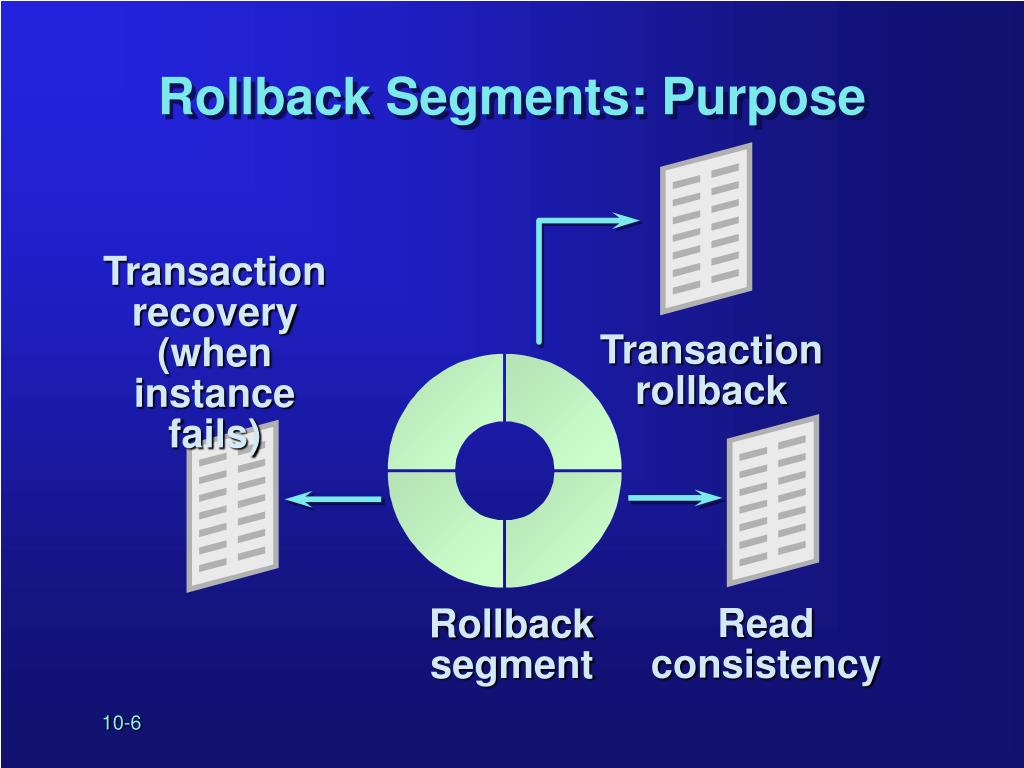

  6. Rollback Segments: Purpose Transaction recovery (when instance fails) Transaction rollback Read consistency Rollback segment

  7. Read-Consistency SELECT * FROM table Table New image Image at statement commencement

  8. Read-Consistency • When Oracle begins execution of a SELECT statement, it determines the current SCN • Ensures that changes not committed before the SCN are not processed by the statement • In the case of a long running transaction, Oracle constructs a read-consistent image of the block by retrieving the before-image and applying changes to it in memory

  9. Read-Consistency • Read consistency is always provided for a SQL statement • Request read consistency for a transaction: • SET TRANSACTION READ ONLY; • Or • SET TRANSACTION SERIALIZABLE;

  10. Types of Rollback Segments • SYSTEM: used for objects in the SYSTEM tablespace; created in the SYSTEM ts • Non-SYSTEM: objects in other tablespaces • At least one needed • Private: acquire by a single instance • Public: acquired by any instance (used with parallel server)

  11. Transactions and Rollback Segments • Transactions need rollback segments to be assigned: • SET TRANSACTION Use Rollback Segment rbs1 • If no request is made, Oracle uses segment with fewest transactions • Transactions use extents in a circular fashion • More than one transaction can write to the same extent of a segment; however each block contains information from only one transaction

  12. Transactions and Rollback Segments Example Begin at extent 3 When full, move to extent 4 (called a wrap) When that fills, can use the 1st extent if it is free or inactive 1 2 Transaction 1 Transaction 2 4 3 Active extent Inactive extent

  13. Growth of Rollback Segments Cannot skip an extent; if next extent is being used, an additional extent is allocated . This is called an extend. Can grow this way until it reaches the maximum number of extents specified in the MAXEXTENTS parameter 2 1 1 2 5 3 4 3 4 Active extent New extent Inactive extent

  14. Shrinkage of Rollback Segments 6 1 1 2 2 5 6 3 3 4 Active extent Optimal Inactive extent

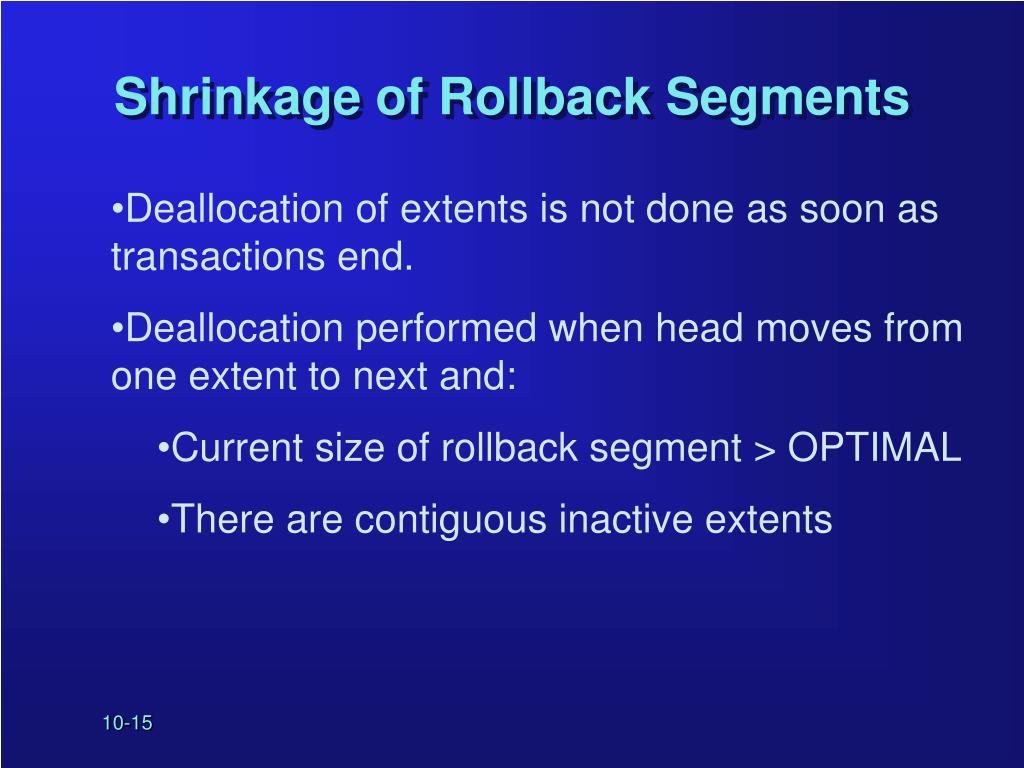

  15. Shrinkage of Rollback Segments • Deallocation of extents is not done as soon as transactions end. • Deallocation performed when head moves from one extent to next and: • Current size of rollback segment > OPTIMAL • There are contiguous inactive extents

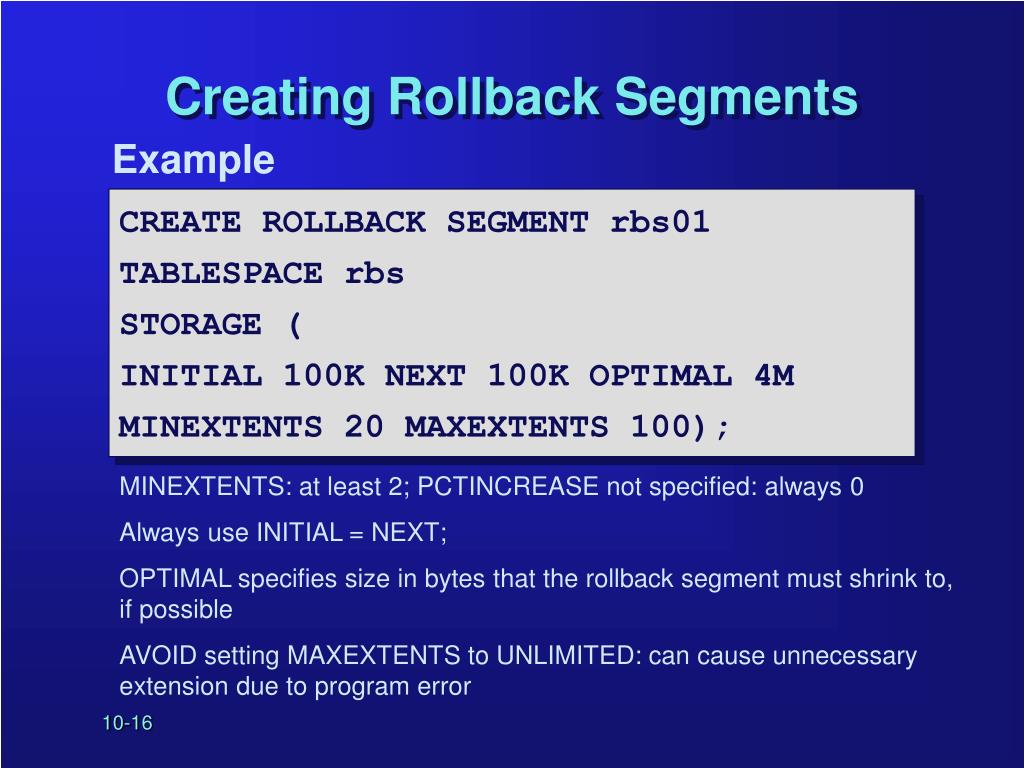

  16. Creating Rollback Segments Example • CREATE ROLLBACK SEGMENT rbs01 • TABLESPACE rbs • STORAGE ( • INITIAL 100K NEXT 100K OPTIMAL 4M MINEXTENTS 20 MAXEXTENTS 100); MINEXTENTS: at least 2; PCTINCREASE not specified: always 0 Always use INITIAL = NEXT; OPTIMAL specifies size in bytes that the rollback segment must shrink to, if possible AVOID setting MAXEXTENTS to UNLIMITED: can cause unnecessary extension due to program error

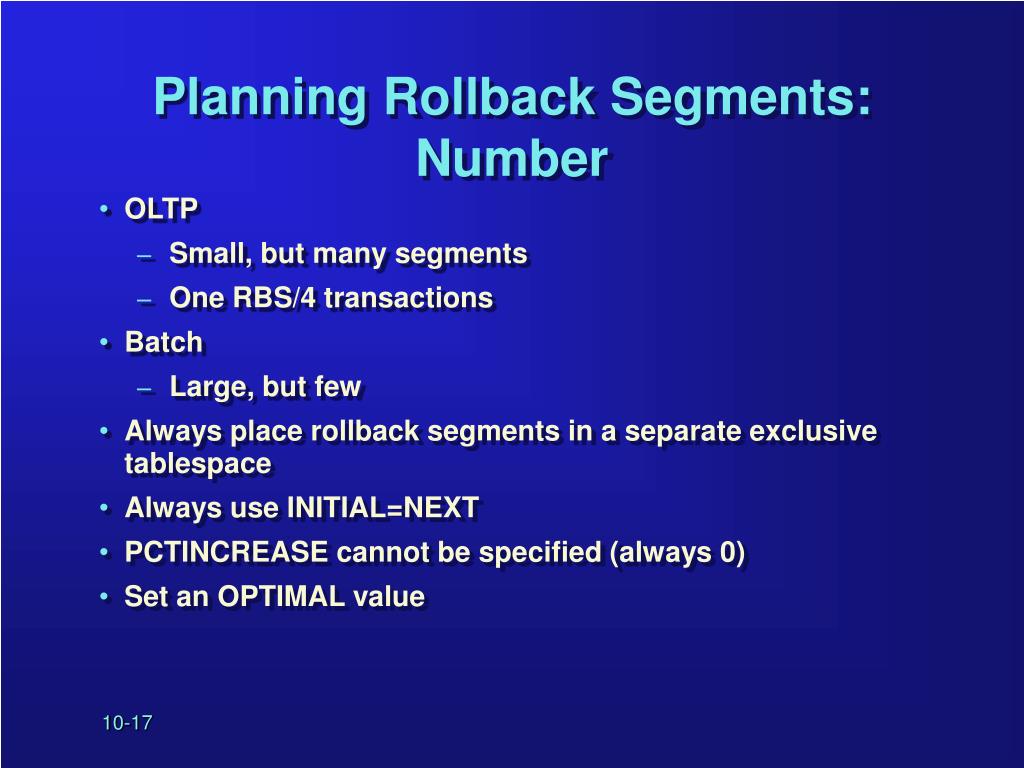

  17. Planning Rollback Segments: Number • OLTP • Small, but many segments • One RBS/4 transactions • Batch • Large, but few • Always place rollback segments in a separate exclusive tablespace • Always use INITIAL=NEXT • PCTINCREASE cannot be specified (always 0) • Set an OPTIMAL value

  18. Planning Rollback Segments: Number of Extents 0.50 0.40 Probabilityof extending 0.30 0.20 0.10 0.00 0 10 20 30 40 Number of extents

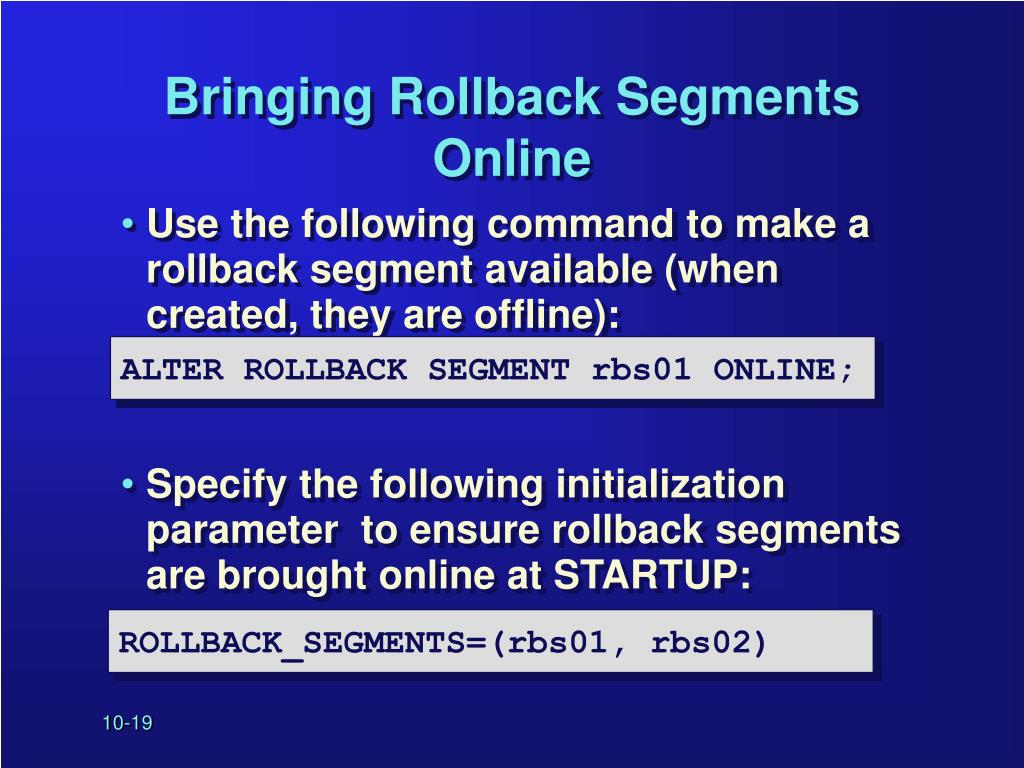

  19. Bringing Rollback Segments Online • Use the following command to make a rollback segment available (when created, they are offline): • Specify the following initialization parameter to ensure rollback segments are brought online at STARTUP: • ALTER ROLLBACK SEGMENT rbs01 ONLINE; ROLLBACK_SEGMENTS=(rbs01, rbs02)

  20. Are there enoughRBS ? How Instances Acquire Rollback Segments when DB is opened Acquire named privateRBS Computerequired numberof RBS No Yes Acquire publicRBS Bring all acquired RBSs ONLINE

  21. Changing Rollback Segment Storage Settings • ALTER ROLLBACK SEGMENT rbs01 • STORAGE( MAXEXTENTS 200 ); • Use ALTER ROLLBACK SEGMENT

  22. Manually Deallocating Space from Rollback Segments • ALTER ROLLBACK SEGMENT rbs01 • SHRINK TO 4M; • If OPTIMAL is specified, Oracle will attempt to deallocate • Use ALTER ROLLBACK SEGMENT • (if extents are active, may not shrink to the requested size)

  23. Taking Rollback Segment Offline • ALTER ROLLBACK SEGMENT rbs01 OFFLINE; Take a rollback segment offline to makeit unavailable.

  24. Dropping Rollback Segments • DROP ROLLBACK SEGMENT rbs01; A rollback segment must be offline before it can be dropped.

  25. Rollback Segments in the Database • DBA_ROLLBACK_SEGS • Identification • SEGMENT_ID • SEGMENT_NAME • Location, type, and status • TABLESPACE_NAME • OWNER (PUBLIC or SYS) • STATUS (ONLINE or OFFLINE)

  26. Rollback Segments in the Database • Select segment_name, tablespace_name, • owner, status • From dba_rollback_segs;

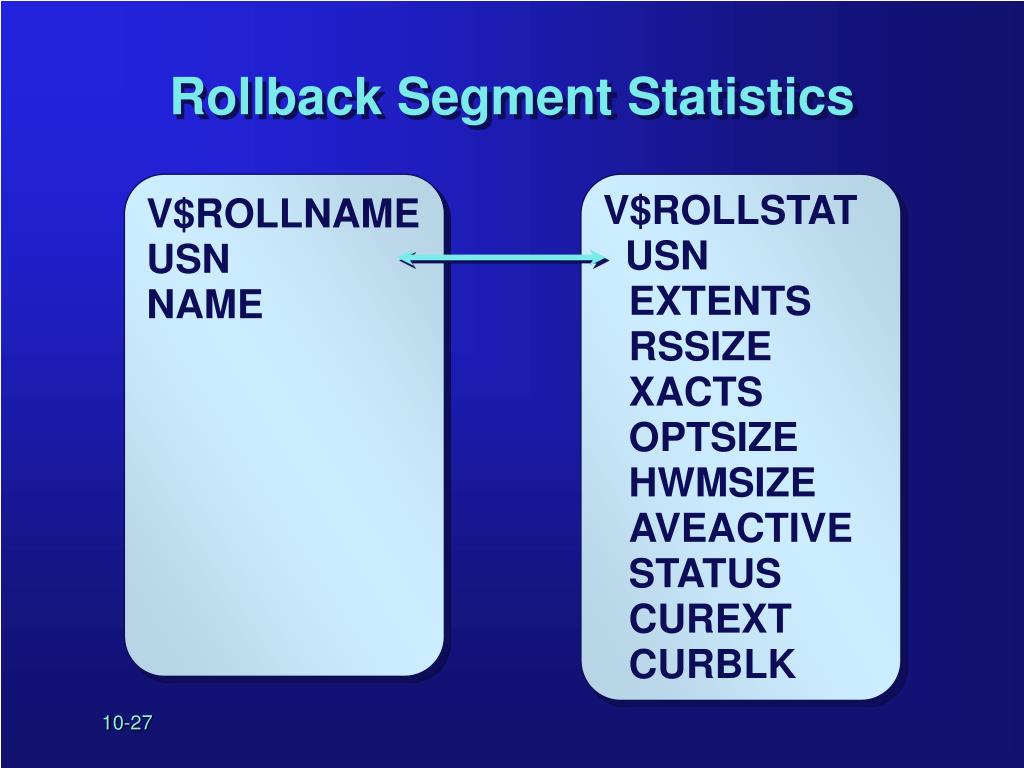

  27. Rollback Segment Statistics V$ROLLNAMEUSNNAME V$ROLLSTAT USN EXTENTS RSSIZE XACTS OPTSIZE HWMSIZE AVEACTIVE STATUS CUREXT CURBLK

  28. Rollback Segment: Current Activity V$SESSION SADDR USERNAME SID SERIAL# V$TRANSACTION SES_ADDR XIDUSN UBAFIL UBABLK UBASQN UBAREC STATUS USED_UBLK USED_UREC

  29. Rollback Segment Problems • Insufficient space for transactions • Read-consistency error • Blocking transaction • Error in taking tablespace offline

  30. Insufficient Space for Transactions • No space in tablespace to extend • Extend data files • Allow automatic extension of data files • Add data files • MAXEXTENTS reached for segment • Increase MAXEXTENTS • Recreate segments with larger extent sizes

  31. Read-Consistency Error(snapshot too old) SELECT * FROM table A long running Trans Another transaction commits Rollback segment is reused Soln: Higher MINEXTENTS; larger extents; higher OPTIMAL value Reused block Table New image Image at statement commencement

  32. Blocking Session A long running trans keeps an extent occupied and blocks other trans from writing to it; segment keeps extending Soln: DBA intervention Blocking session 2 1 4 1 Extent 3 5 3 3 2 4 Existing extent New extent

  33. Error in Taking a Tablespace Offline • Cannot take tablespace containing active RBS offline • Check rollback segments in the tablespace • Find active transactions using these rollback segments • Find session ID and serial number • Terminate the session, if necessary

  34. Summary • Creating adequate rollback segments • Troubleshooting rollback segment problems
