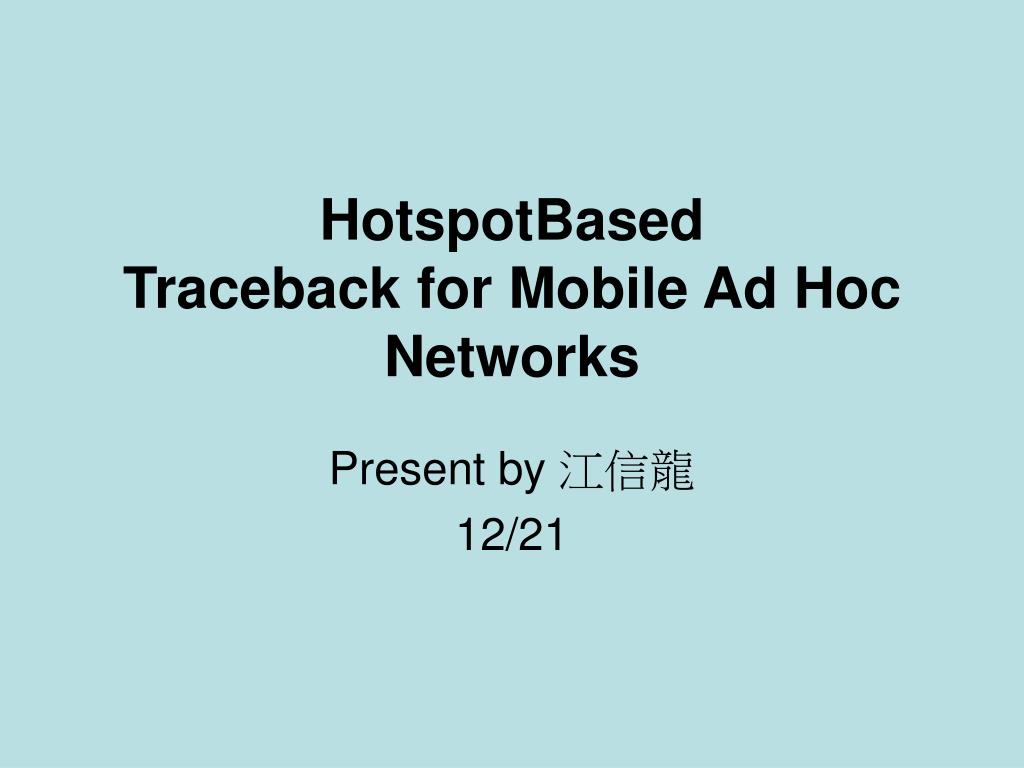

  1. HotspotBasedTraceback for Mobile Ad Hoc Networks Present by 江信龍 12/21

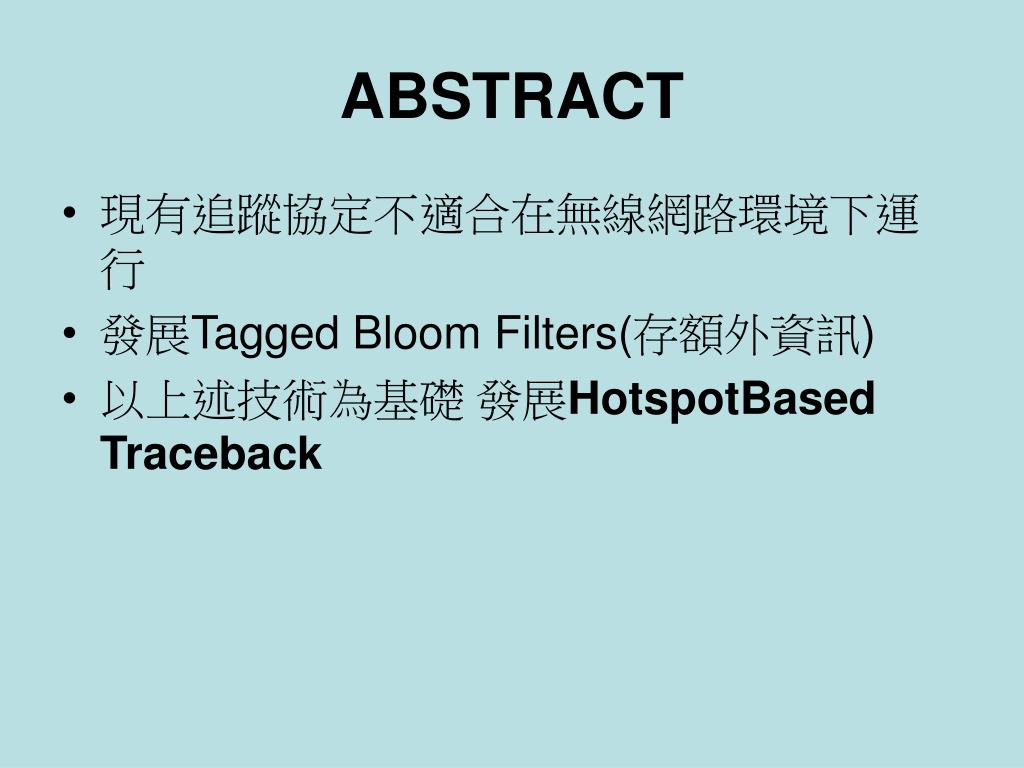

  2. ABSTRACT • 現有追蹤協定不適合在無線網路環境下運行 • 發展Tagged Bloom Filters(存額外資訊) • 以上述技術為基礎 發展HotspotBasedTraceback

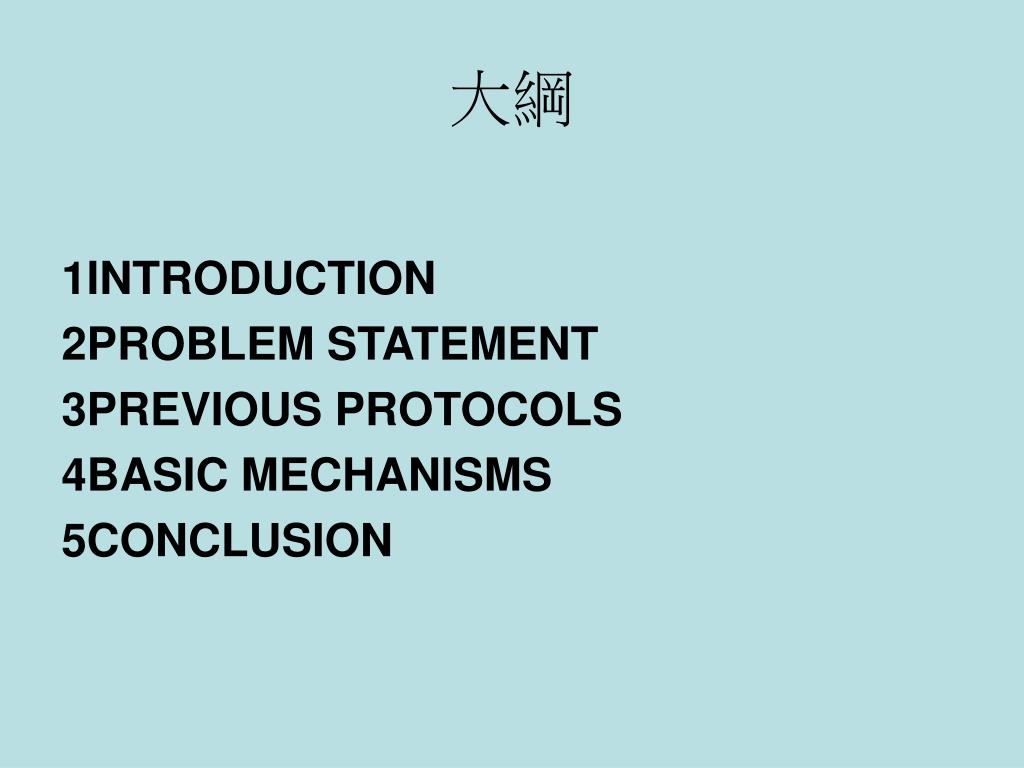

  3. 大綱 1INTRODUCTION 2PROBLEM STATEMENT 3PREVIOUS PROTOCOLS 4BASIC MECHANISMS 5CONCLUSION

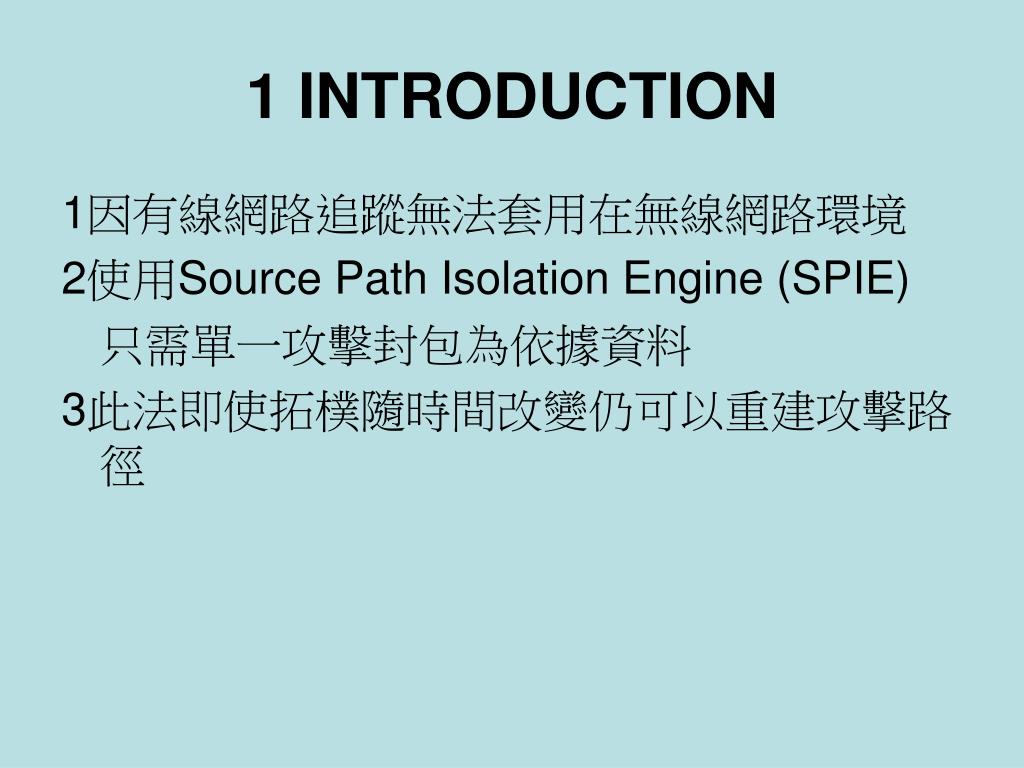

  4. 1 INTRODUCTION 1因有線網路追蹤無法套用在無線網路環境 2使用Source Path Isolation Engine (SPIE) 只需單一攻擊封包為依據資料 3此法即使拓樸隨時間改變仍可以重建攻擊路徑

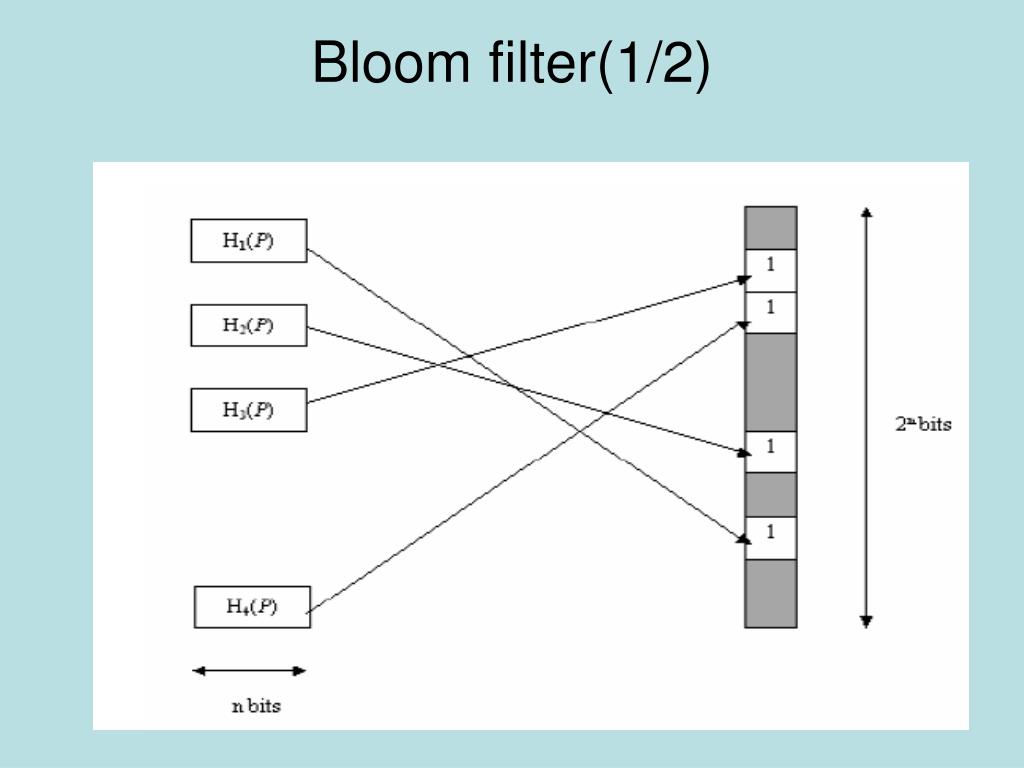

  5. Bloom filter(1/2)

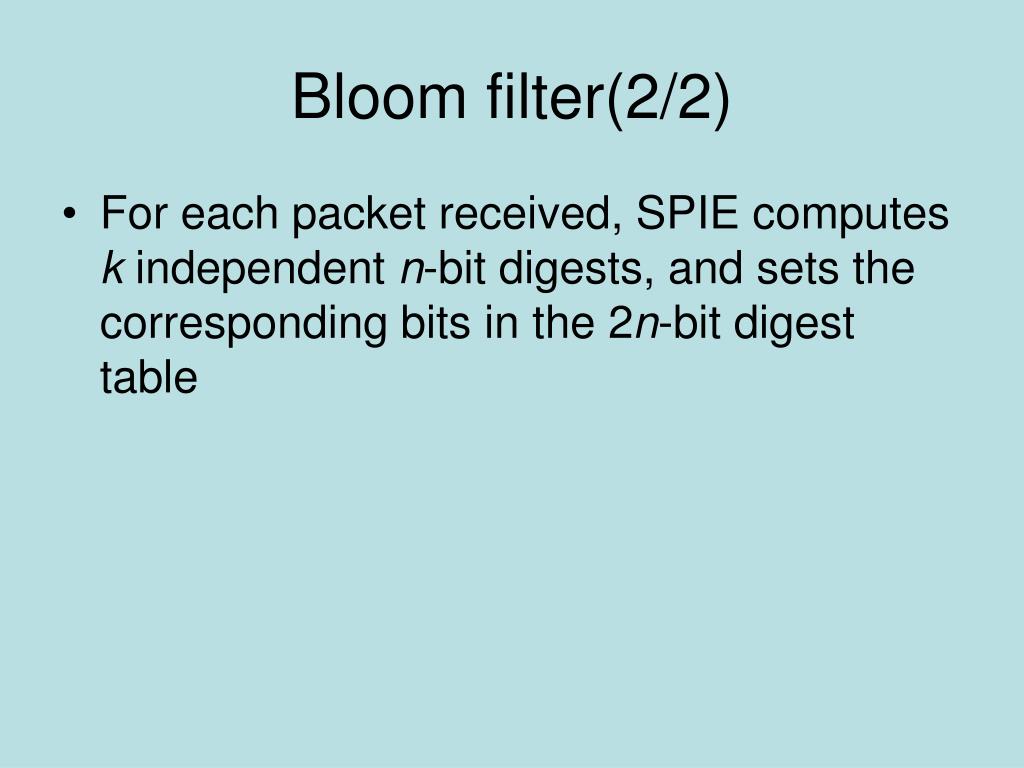

  6. Bloom filter(2/2) • For each packet received, SPIE computes k independent n-bit digests, and sets the corresponding bits in the 2n-bit digest table

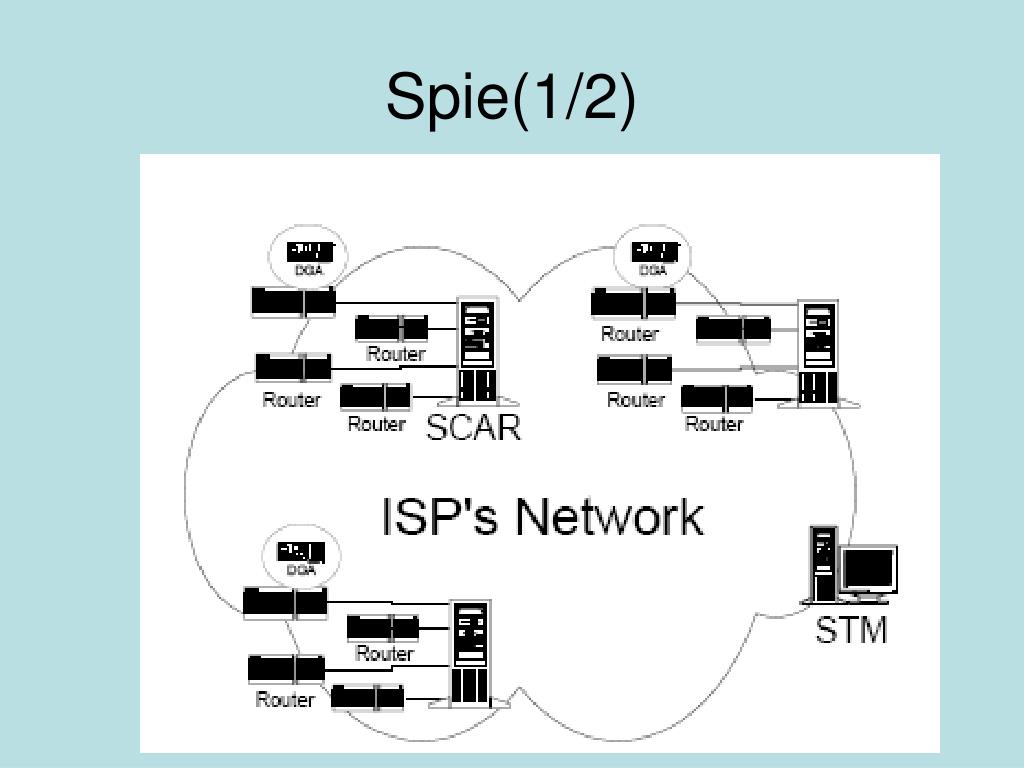

  7. Spie(1/2)

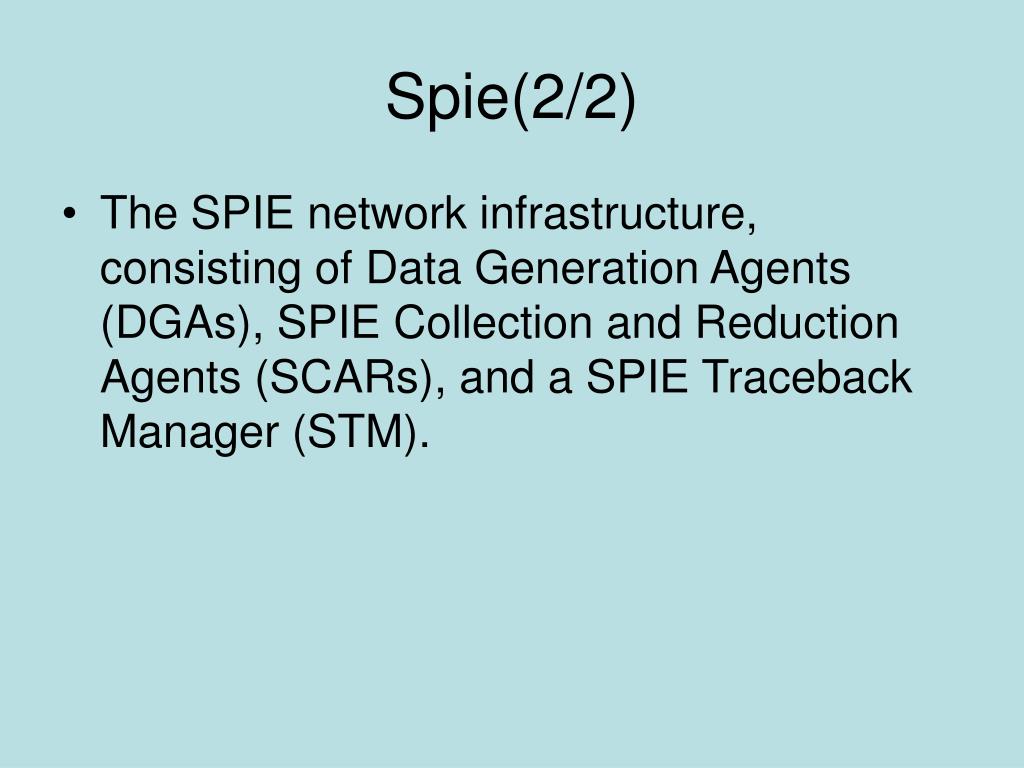

  8. Spie(2/2) • The SPIE network infrastructure, consisting of Data Generation Agents (DGAs), SPIE Collection and Reduction Agents (SCARs), and a SPIE Traceback Manager (STM).

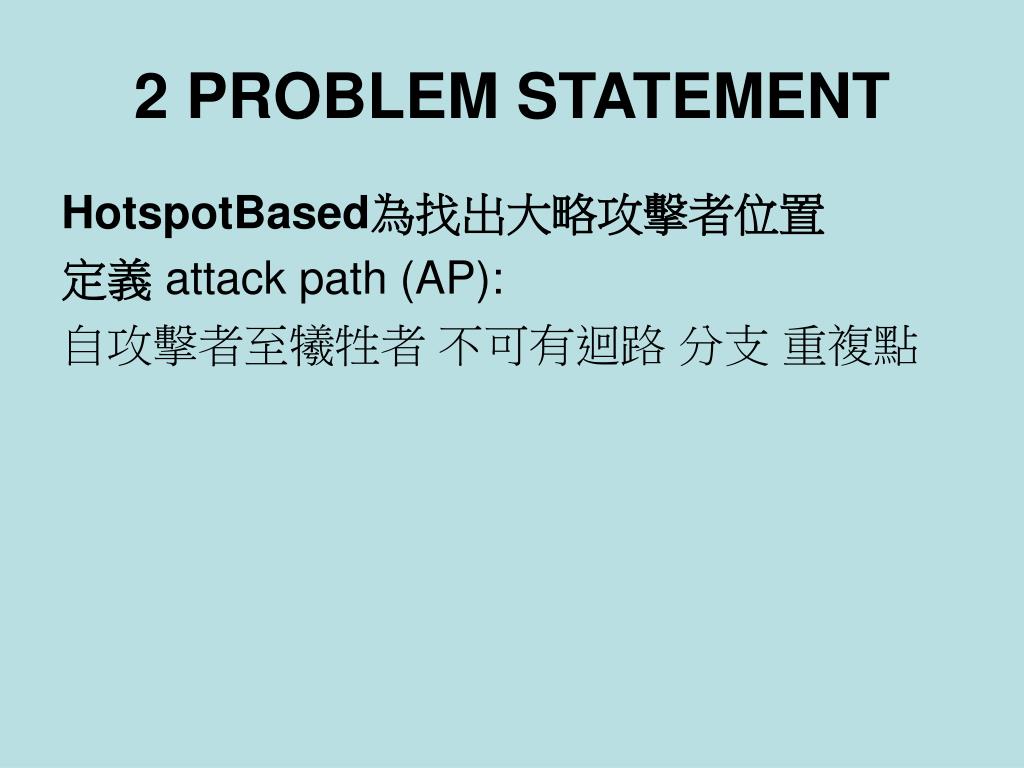

  9. 2 PROBLEM STATEMENT HotspotBased為找出大略攻擊者位置 定義 attack path (AP): 自攻擊者至犧牲者 不可有迴路 分支 重複點

  10. 定義名詞 AP fragment(AP) : a consecutive sequence of well-behaving routers within the attack path observable AP fragment(OAP): an AP fragment where all routers compute the same digest1 of packet Pas the victim does EAP :last OAF which ends at the victim must be observable based on the definition of an OAF

  11. Figure 1: Attack Path

  12. 3. PREVIOUS PROTOCOLS 兩大問題 1動態拓樸 2可靠中介路由器推送攻 擊封包 The Source Path Isolation Engine (SPIE) Infrastructure:內嵌SPIE路由器運行一DGA來 扮演BLOOM FILTER檢查封包 STM控制SCAM Digest Input:使用雜湊函數 TTL TOS 檢查和 來產生摘要資訊

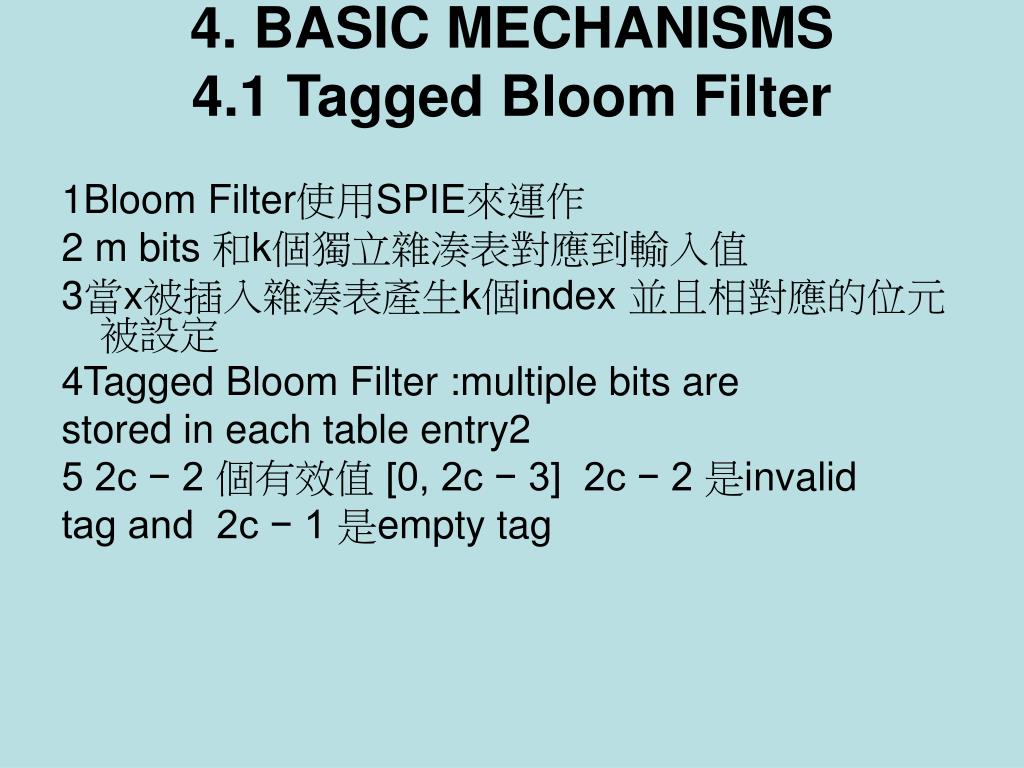

  13. 4. BASIC MECHANISMS 4.1 Tagged Bloom Filter 1Bloom Filter使用SPIE來運作 2 m bits 和k個獨立雜湊表對應到輸入值 3當x被插入雜湊表產生k個index 並且相對應的位元被設定 4Tagged Bloom Filter :multiple bits are stored in each table entry2 5 2c − 2 個有效值 [0, 2c − 3] 2c − 2 是invalid tag and 2c − 1 是empty tag

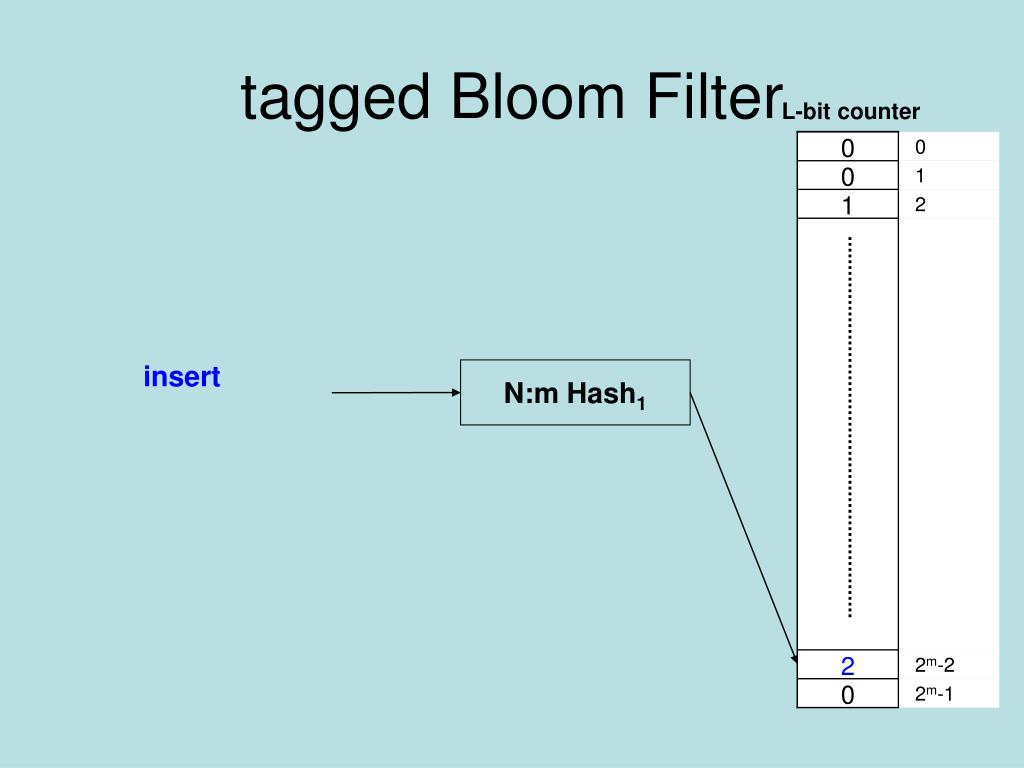

  14. Tagged Bloom Filter OPERATION(Figure 2)

  15. 0 0 0 0 0 0 1 1 0 0 2 2 0 1 2m-2 2m-2 0 0 2m-1 2m-1 tagged Bloom Filter L-bit counter insert N:m Hash1

  16. 0 0 0 0 0 0 1 1 1 0 2 2 1 1 2m-2 2m-2 0 0 2m-1 2m-1 tagged Bloom Filter L-bit counter insert N:m Hash1

  17. 0 0 0 0 0 0 1 1 1 1 2 2 1 2 2m-2 2m-2 0 0 2m-1 2m-1 tagged Bloom Filter L-bit counter insert N:m Hash1

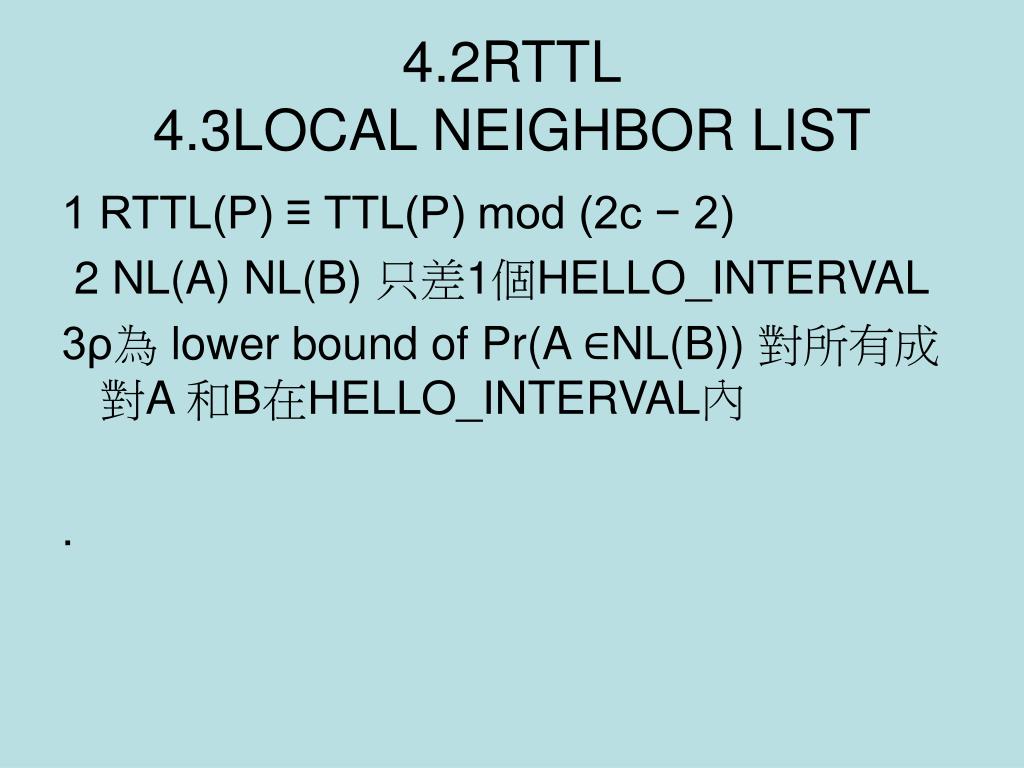

  18. 4.2RTTL4.3LOCAL NEIGHBOR LIST 1 RTTL(P) ≡ TTL(P) mod (2c − 2) 2 NL(A) NL(B) 只差1個HELLO_INTERVAL 3ρ為 lower bound of Pr(A ∈NL(B)) 對所有成對A 和B在HELLO_INTERVAL內 .

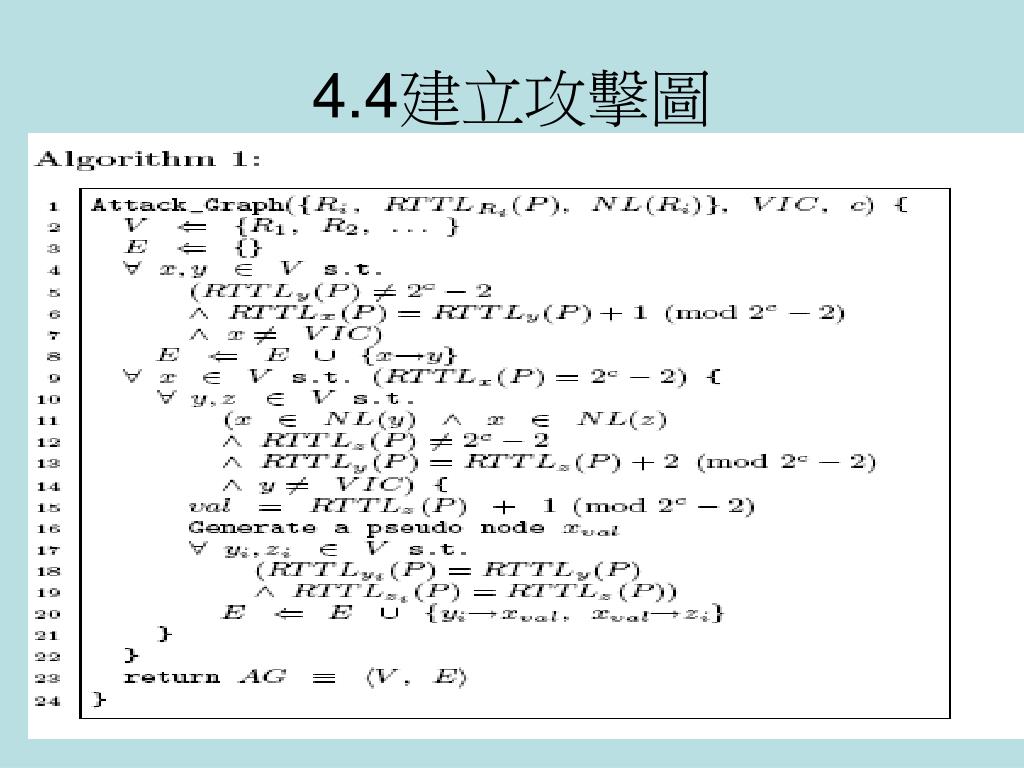

  19. 4.4建立攻擊圖

  20. Figure 3: Attack Graph Example

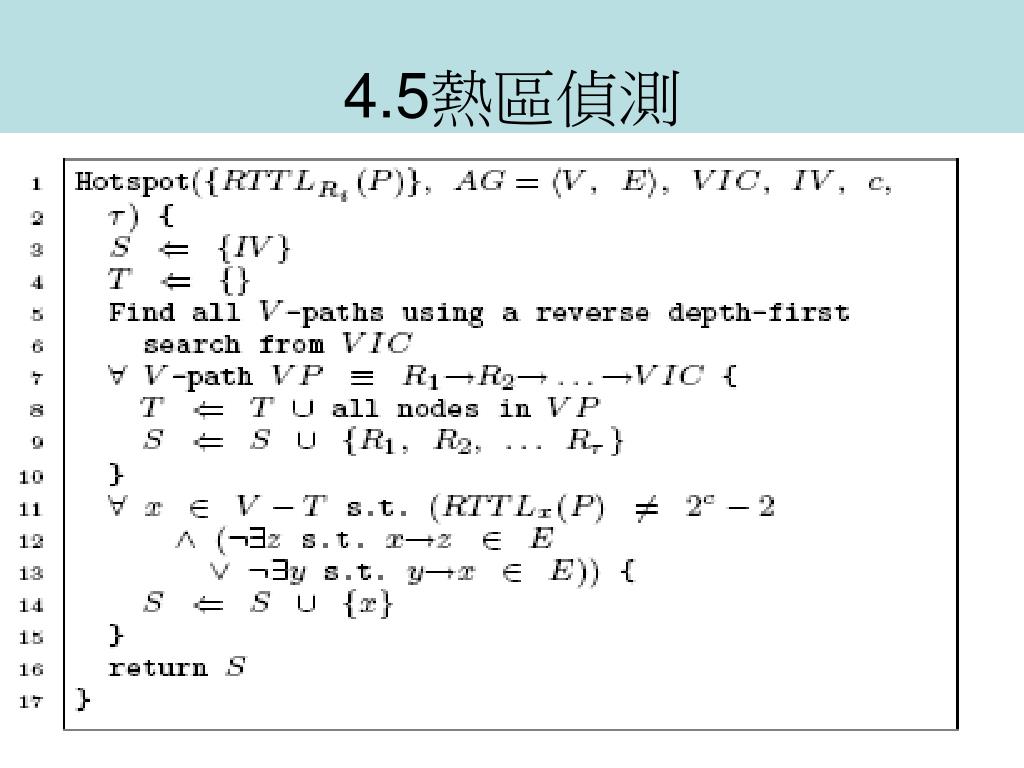

  21. 4.5熱區偵測

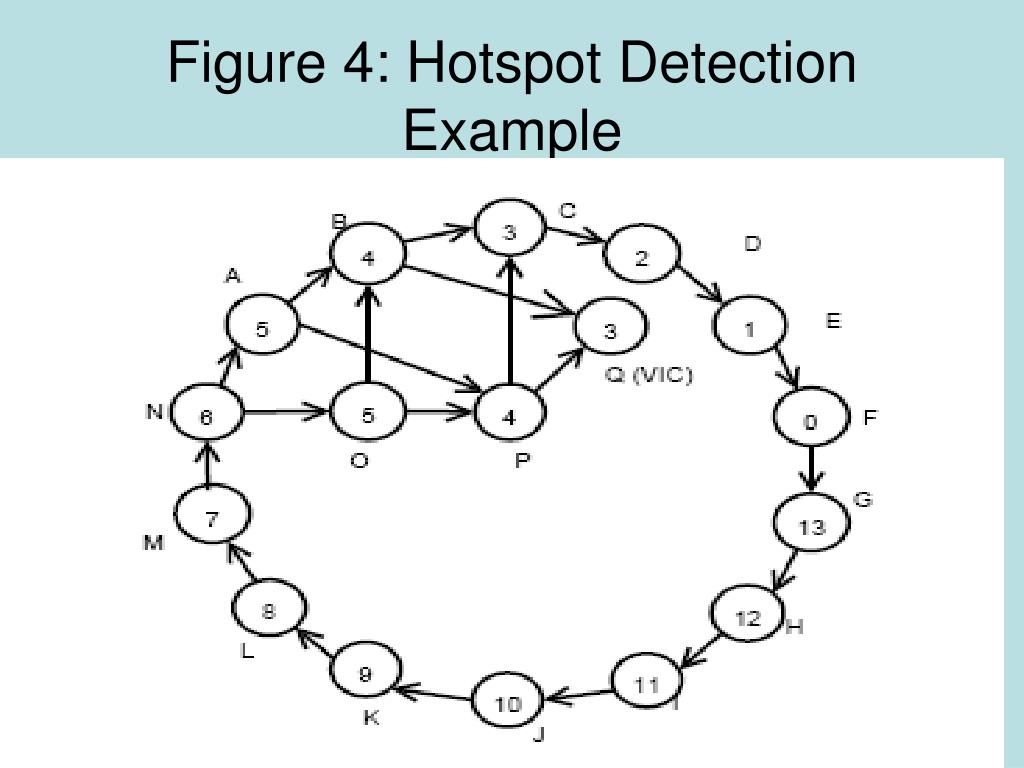

  22. Figure 4: Hotspot Detection Example

  23. 5 CONCLUSION • we presented a distributed traceback approach where no trustworthy infrastructure is needed • Our scheme is very suitable for MANET that consists of mobile nodes
