  1. Discrete Mathematics CS 2610 February 19, 2009

  2. X X+Y Y Logic Gates: the basic elements of circuits • Electronic circuits consist of so-called gates connected by wires x x Inverter (NOT gate) OR gate x xy AND gate y

  3. Multiway Logical Gates • Multiple Input AND, OR Gates x1 x1+x2+… + xn x2 xn x1 x1x2…  xn x2 xn

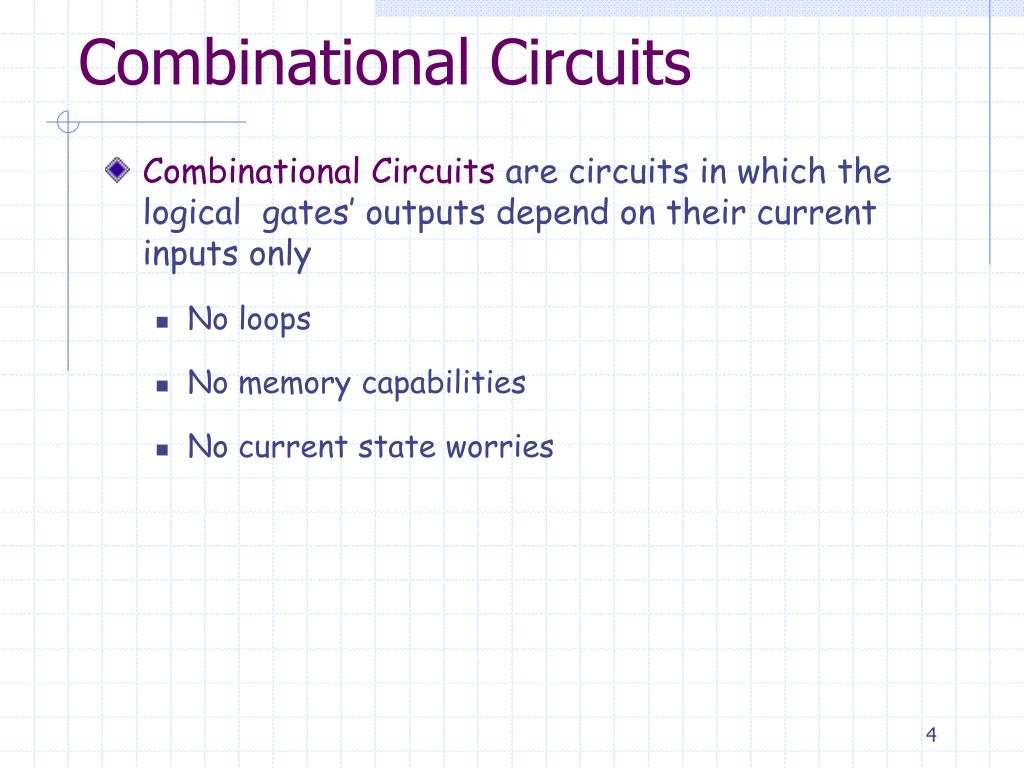

  4. Combinational Circuits • Combinational Circuits are circuits in which the logical gates’ outputs depend on their current inputs only • No loops • No memory capabilities • No current state worries

  5. Circuit Design • Design a circuit for xy + xy x y xy + xy

  6. F x y 0 0 1 0 1 0 1 0 0 1 1 1 Circuit Design • Design a circuit for xy + xy x y xy + xy

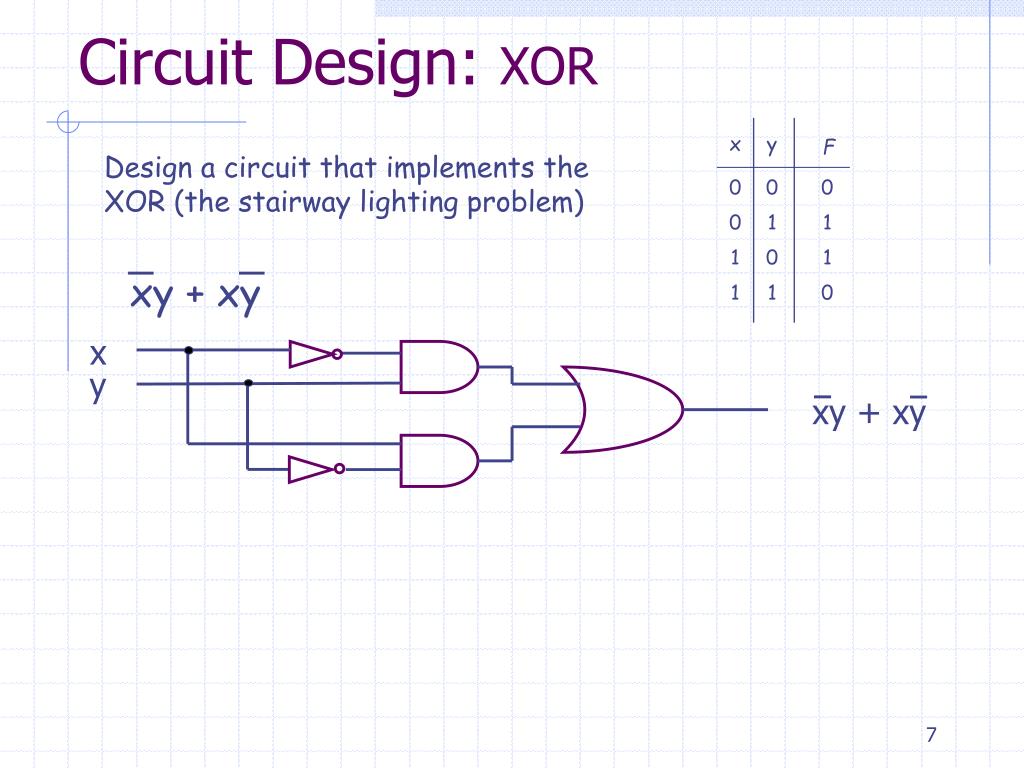

  7. F x y 0 0 0 0 1 1 1 0 1 1 1 0 Circuit Design: XOR Design a circuit that implements the XOR (the stairway lighting problem) xy + xy x y xy + xy

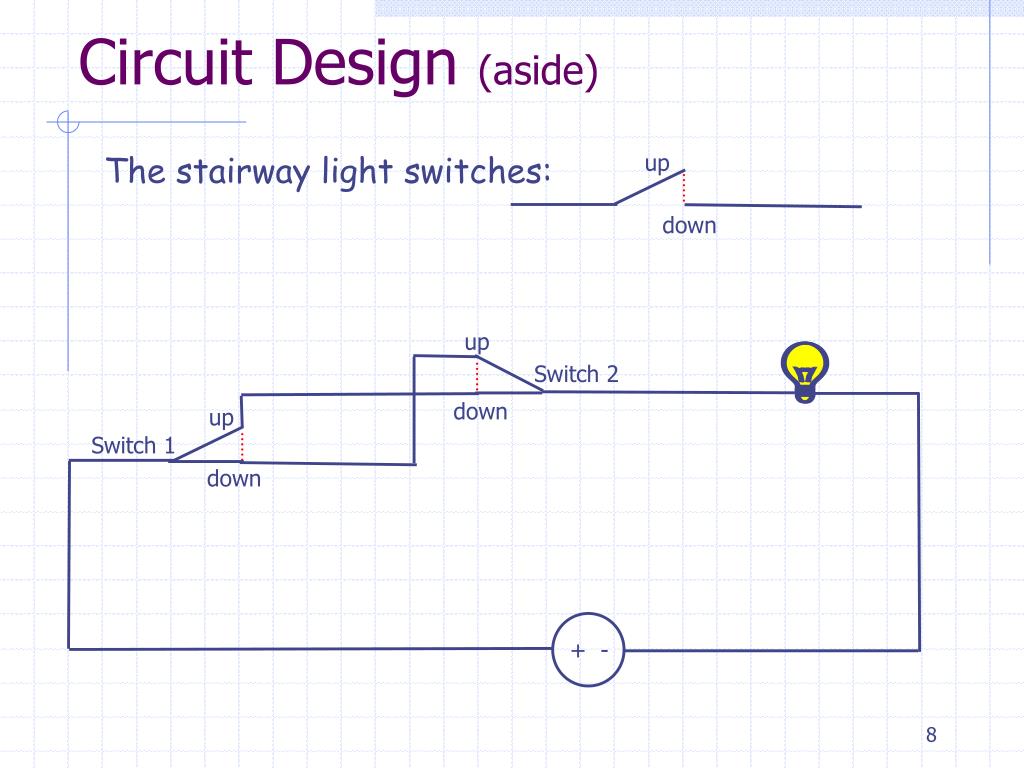

  8. Circuit Design (aside) up The stairway light switches: down up Switch 2 down up Switch 1 down + -

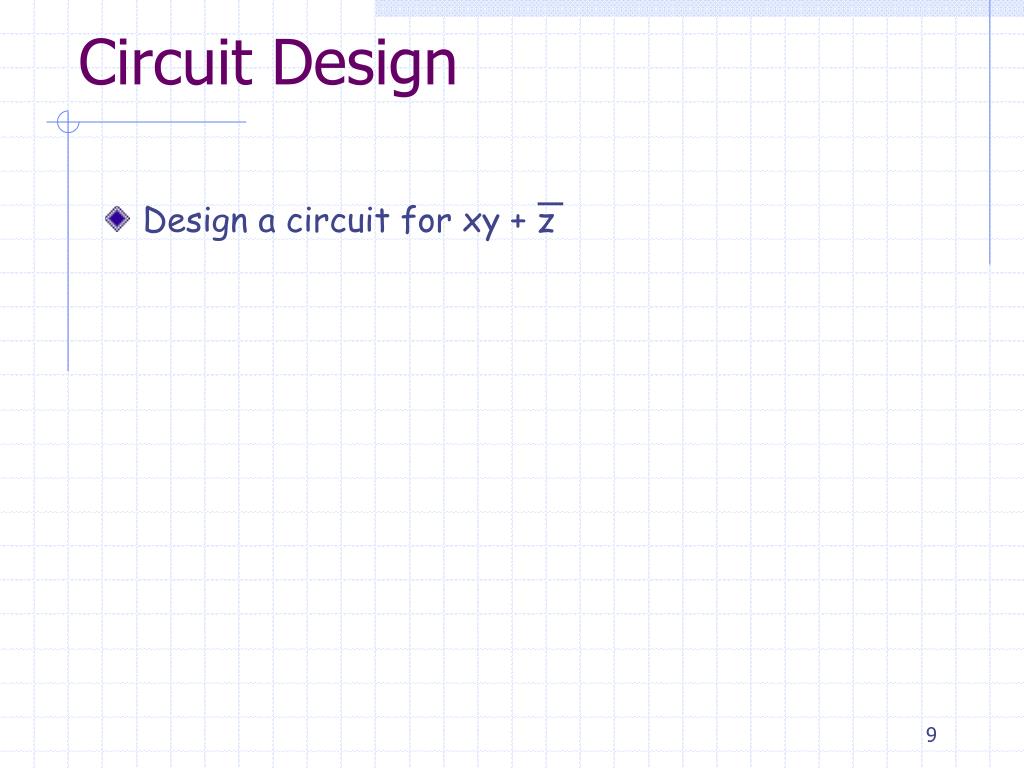

  9. Circuit Design • Design a circuit for xy + z
