Design of an industrial process for a compact catamaran concept

C3 Project. Design of an industrial process for a compact catamaran concept. Client : Pierre JAGOURD Expert : Christophe MERLO Supervisor: Stéphanie MINEL. Team: Emmanuel BANDON Bertrand JOLY Yoann LE FUR Matthieu LEVENEUR. 1/12. BANDON, JOLY, LE FUR, LEVENEUR.

tino
Télécharger la présentation

Design of an industrial process for a compact catamaran concept

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. C3 Project Design of an industrial processfor a compact catamaran concept Client: Pierre JAGOURD Expert:Christophe MERLO Supervisor:Stéphanie MINEL Team: Emmanuel BANDON Bertrand JOLY Yoann LE FUR Matthieu LEVENEUR 1/12 BANDON, JOLY, LE FUR, LEVENEUR

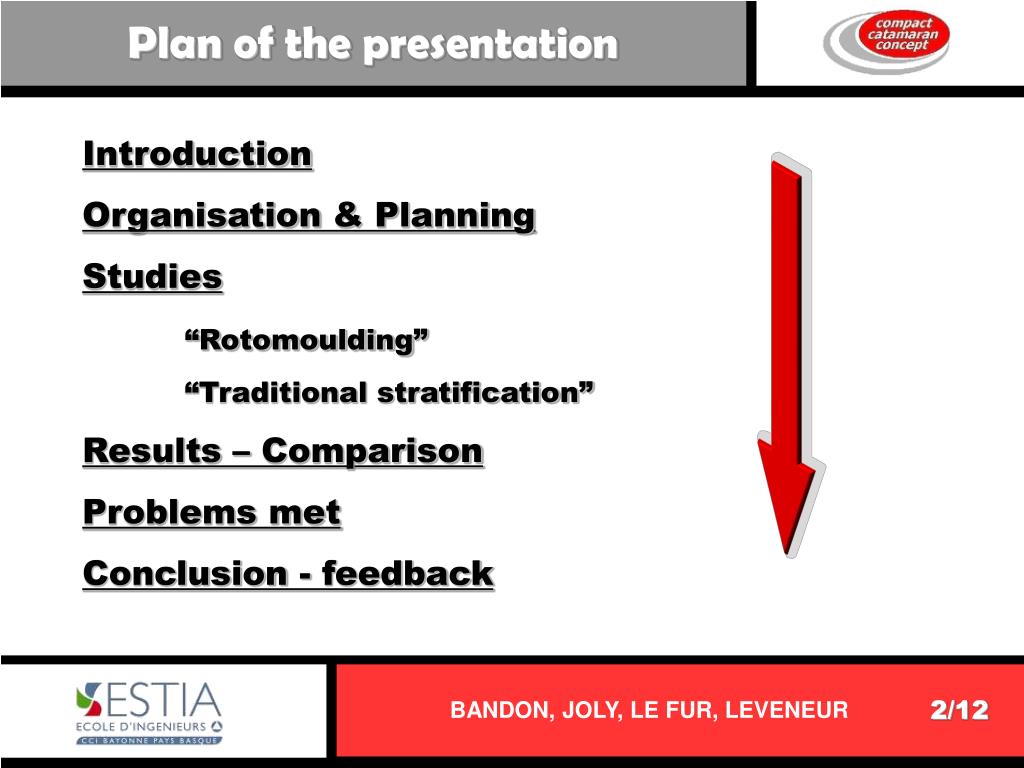

  2. Plan of thepresentation Introduction Organisation & Planning Studies “Rotomoulding” “Traditional stratification” Results – Comparison Problems met Conclusion - feedback 2/12 BANDON, JOLY, LE FUR, LEVENEUR

  3. Introduction • Background • Client: Pierre Jagourd • Want to create his company: Business Plan • Presentation of the product: C3 • New concept, composite materials, traditional manufacture • Goals and objectives • Study of new processes • Main parameter: 5000 units/year • Propose a more industrial solution with automatic elements • Confirm our client knowledge 3/12 BANDON, JOLY, LE FUR, LEVENEUR

  4. Organisation - Planning • Planning • Creation of a Gantt • Organisation • Together on Specification and Preliminary Design • 2 people on QP, Stratification • 2 people on DP, Rotomoulding • Common steps: information, contact companies, results analysis, feedbacks 4/12 BANDON, JOLY, LE FUR, LEVENEUR

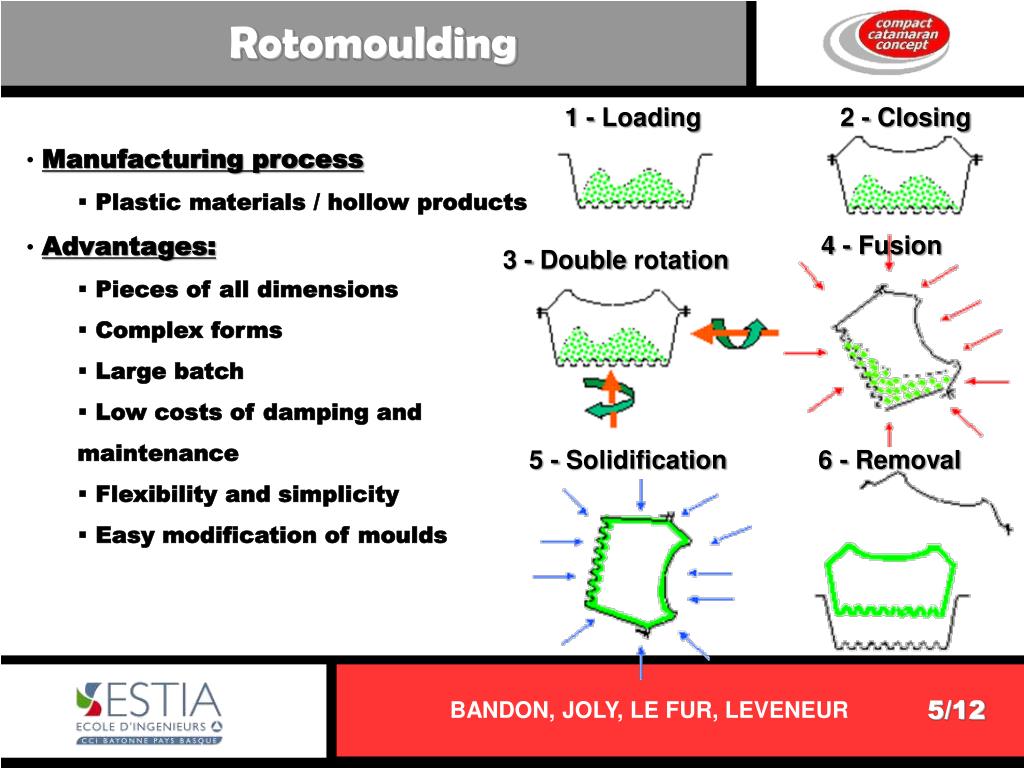

  5. Rotomoulding 1 - Loading 2 - Closing • Manufacturing process • Plastic materials / hollow products • Advantages: • Pieces of all dimensions • Complex forms • Large batch • Low costs of damping and maintenance • Flexibility and simplicity • Easy modification of moulds 4 - Fusion 3 - Double rotation 5 - Solidification 6 - Removal 5/12 BANDON, JOLY, LE FUR, LEVENEUR

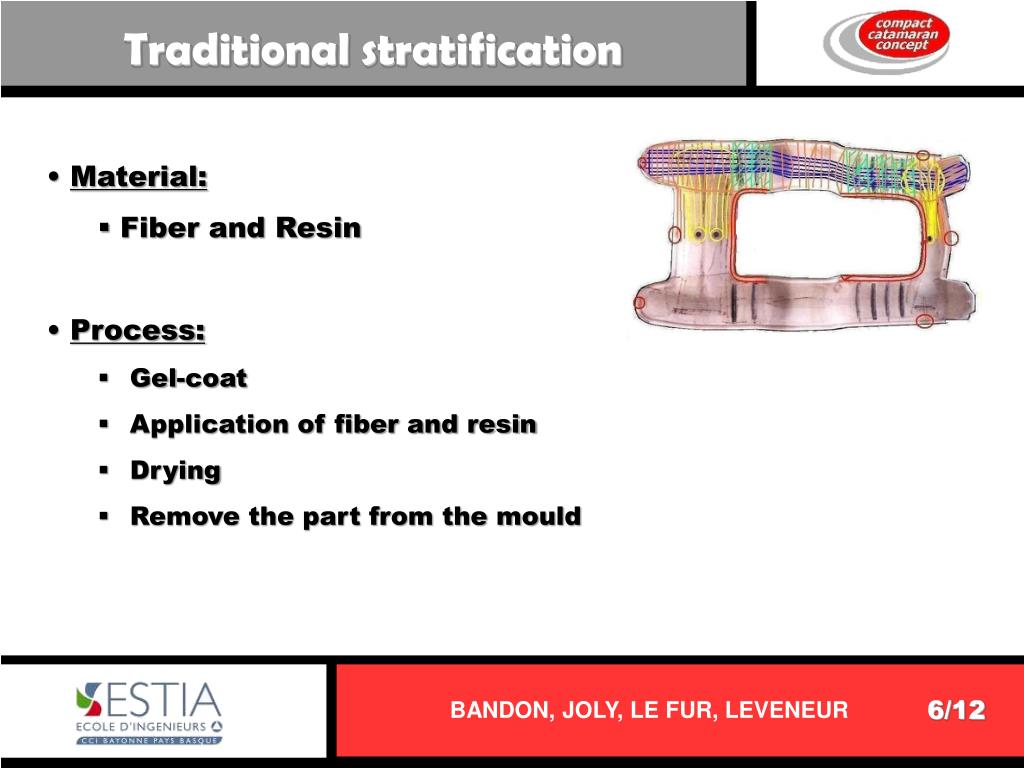

  6. Traditional stratification • Material: • Fiber and Resin • Process: • Gel-coat • Application of fiber and resin • Drying • Remove the part from the mould 6/12 BANDON, JOLY, LE FUR, LEVENEUR

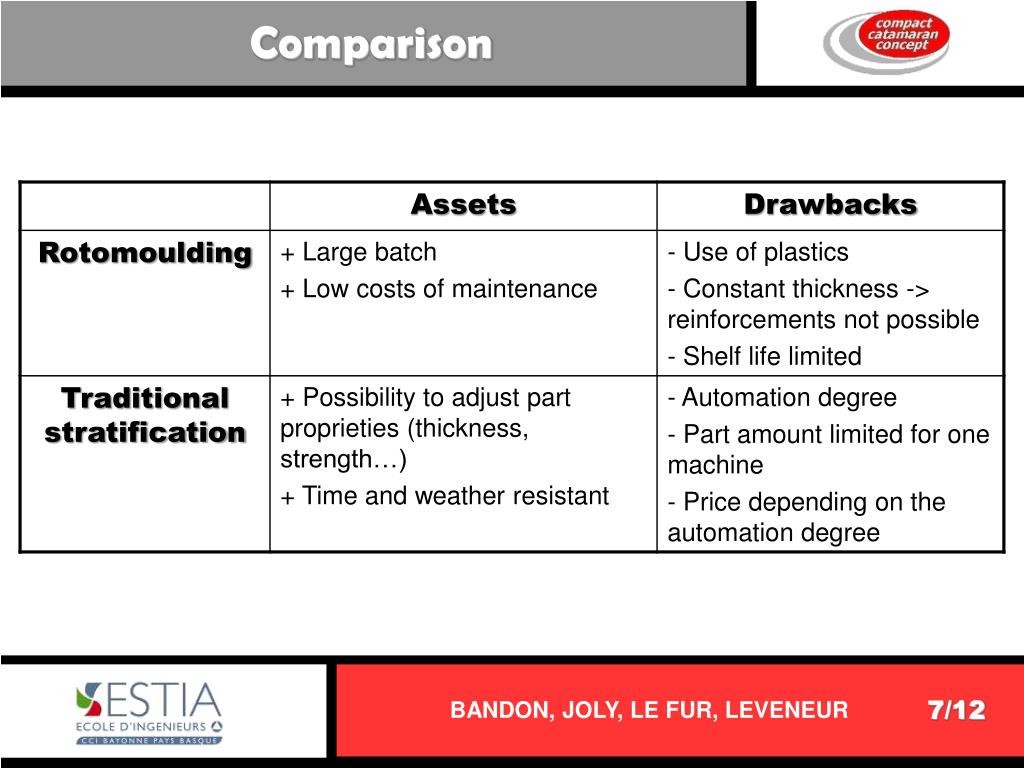

  7. Comparison 7/12 BANDON, JOLY, LE FUR, LEVENEUR

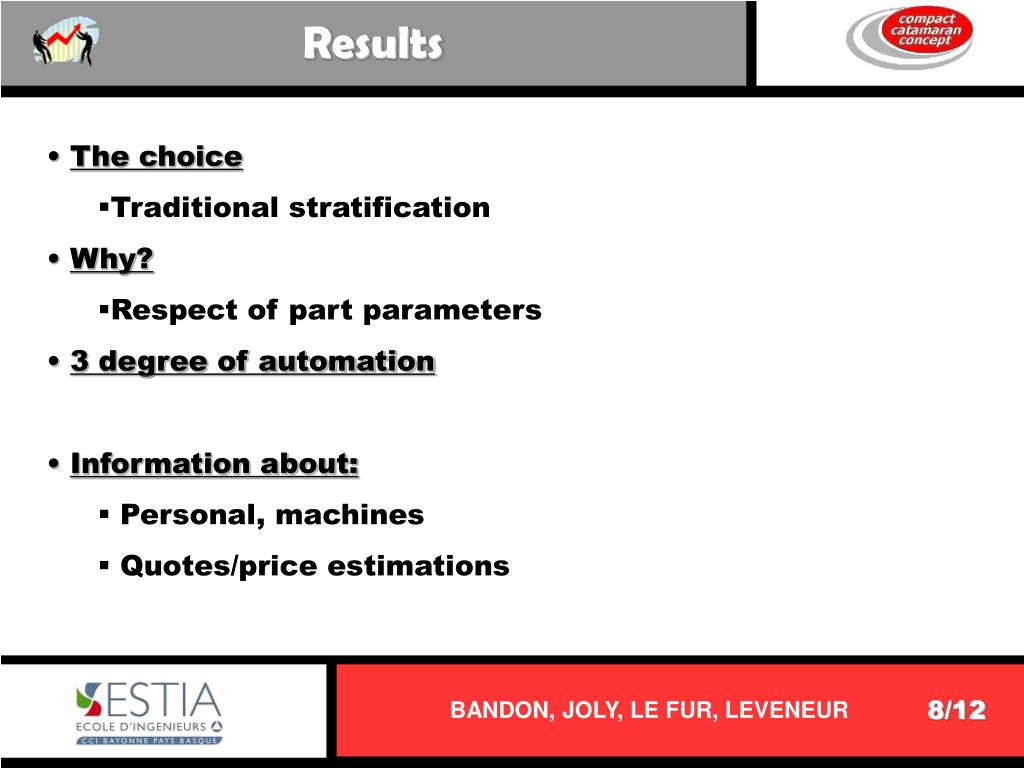

  8. Results • The choice • Traditional stratification • Why? • Respect of part parameters • 3 degree of automation • Information about: • Personal, machines • Quotes/price estimations 8/12 BANDON, JOLY, LE FUR, LEVENEUR

  9. Problems met • Definition of the subject at the beginning • Difficulties to find the information • We are students and not engineer from a company • Bit companies in this field and do not want to give information • Difficulties of having estimates and quote • No plan for the mould • Difficulties to find suppliers 9/12 BANDON, JOLY, LE FUR, LEVENEUR

  10. Conclusion - Feedbacks • Choice of the manufacturing process with different methods • Traditional with machines • RTM • Automation • Quote of the process • Lots of difficulties • Understand well the work in industry • Contact with suppliers 10/12 BANDON, JOLY, LE FUR, LEVENEUR

  11. C3 Project • QUESTIONS 11/12 BANDON, JOLY, LE FUR, LEVENEUR

  12. Pages • 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11 12/12 BANDON, JOLY, LE FUR, LEVENEUR

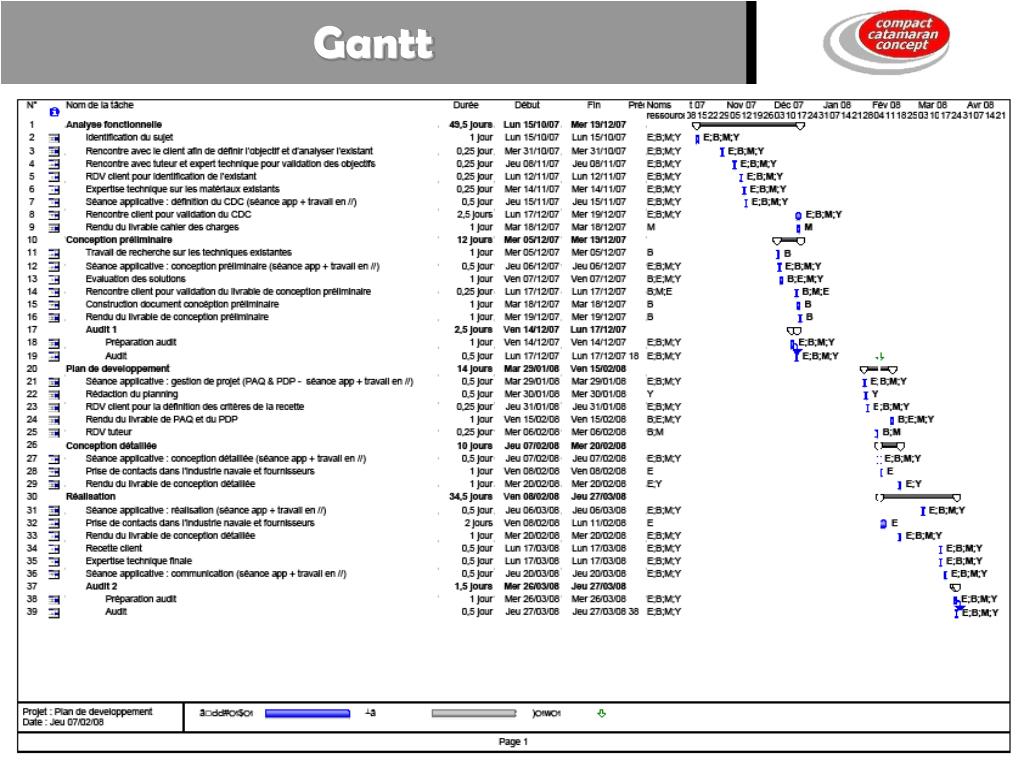

  13. Gantt 12/12 BANDON, JOLY, LE FUR, LEVENEUR
