Parallel and Perpendicular Lines

tirzah avatar
tirzah
15 diapositives · 616 Views · Jul 30, 2014

Parallel and Perpendicular Lines. Using parallelism and perpendicularity to solve problems. In the graph below, the two lines are parallel. Parallel lines - are lines in the same plane that never intersect. The equation of line 1 is y = 2x + 1 . the equation of line 2 is y = 2x -2 .

Parallel and Perpendicular Lines - slide 1
01 / 15Parallel and Perpendicular Lines
1 / 17

Télécharger la présentation

Parallel and Perpendicular Lines
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

  1. Parallel and Perpendicular Lines Using parallelism and perpendicularity to solve problems

  2. In the graph below, the two lines are parallel. Parallel lines - are lines in the same plane that never intersect. The equation of line 1 is y = 2x + 1. the equation of line 2 is y = 2x -2 Slopes of Parallel Lines Nonvertical lines are parallel if they have the same slope and different y-intercepts. Any two vertical lines are parallel. Any two horizontal lines are parallel

  3. You can use slope-intercept form of an equation to determine whether lines are parallel.Are the graphs of y = -1/3x + 5 and 2x + 6y = 12 parallel? Explain. Write 2x + 6y = 12 in slope-intercept form, then compare with y = -1/3x + 5 2x + 6y = 12 6y = -2x + 12 6y = - 2x + 12 • 6 y = - 1/3x + 2 Compare to y = -1/3x + 5 The lines are parallel. The equations have the same slope, -1/3, and different y-intercepts.

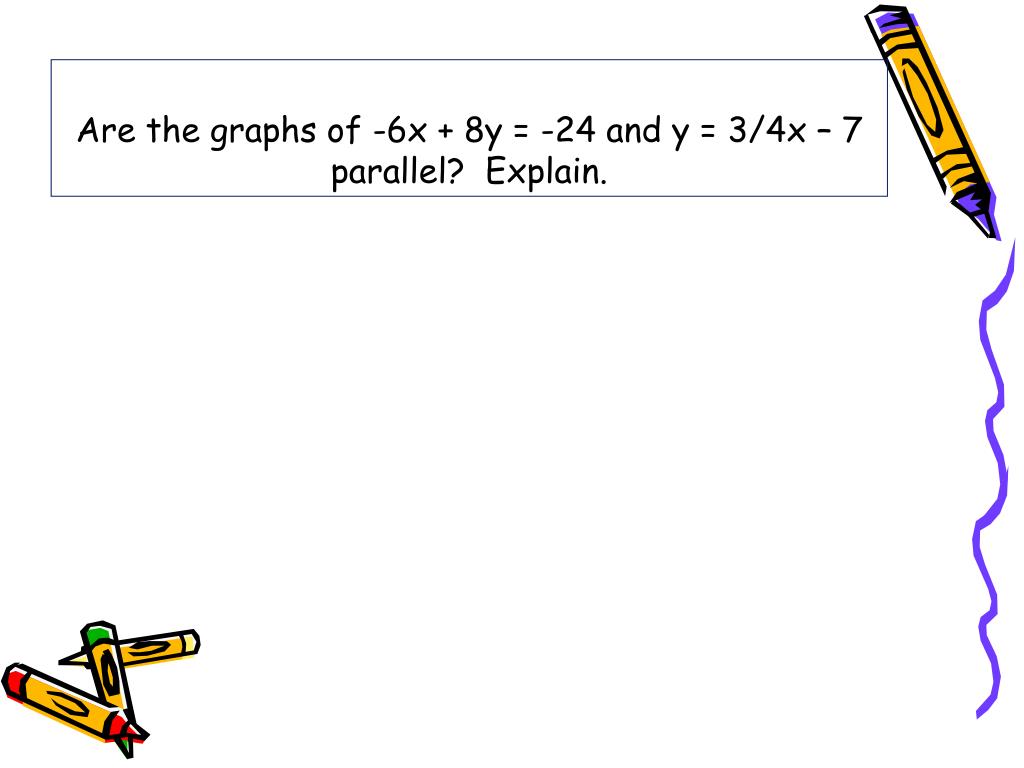

  4. Are the graphs of -6x + 8y = -24 and y = 3/4x – 7 parallel? Explain.

  5. You can use the fact that the slopes of parallel lines are the same to write the equation of a line parallel to a given line. To write the equation, you use the slope of the given line and the point-slope form of a linear equation. Step 1 Identify the slope of the given line. y = 3/5x – 4 Step 2 Write the equation of the line through (5, 1) using point-slope form. y – y1 = m(x – x1) point-slope form. y – 1 = 3/5(x – 5) Substitute (5, 1) for (x1,Y1) and 3/5 for m. y – 1 = 3/5x – 3/5(5) Use the distributive property. y – 1 = 3/5x – 3 Simplify. y = 3/5x – 2 Add 1 to each side. TRY ONE

  6. Write an equation for the line that contains (2, -6) and is parallel to y = 3x + 9 Step 1 Identify the slope of the given line. Step 2 Write the equation of the line through (2, -6) using point-slope form of a linear equation. y – y1 = m(x – x1)

  7. Write an equation for the line that is parallel to the given line and that passes through the given point. • Y = 6x - 2; (0, 0) • Y = -3x; (3, 0) • Y =-2x + 3; (-3, 5) • Y = -7/2x + 6; (-4, -6)

  8. The two lines in the graph below are perpendicular. Perpendicular lines – are lines that intersect to form right angles. The line y = 2x + 1 is perpendicular to the line y = -1/2x + 1. Slopes of perpendicular lines Two lines are perpendicular if the product of their slopes is -1. A vertical and a horizontal line are also perpendicular.

  9. The product of two numbers is -1 if one number is the negative reciprocal of the other. Here is how to find the negative reciprocal of a number. Start with a fraction: -1/2 Find its reciprocal: -2/1 Write the negative reciprocal: 2/1 or 2 Since -1/2 • 2/1 = -1, 2/1 is the negative reciprocal of -1/2 TRY THESE

  10. Find the negative reciprocal of each:1) 42) 3/43) -1/24) -25) -4/3

  11. You can use the negative reciprocal of the slope of a given line to write an equation of a line perpendicular to that line. To write the equation, you use the negative reciprocal of the slope of the given line and the point-slope form of a linear equation. Step 1 Identify the slope of the given line. y = 5x + 3 Step 2 Find the negative reciprocal of the slope. 5 • -1/5 = -1 Step 3 Use the point-slope form to write an equation that contains (0, -2) and is perpendicular to y = 5x + 3 y – y1 = m(x – x1) Point-slope form. y – (-2) = -1/5(x – 0) Substitute (0, -2) for (x1,y1) and -1/5 for m. y + 2 = -1/5x – 0 Use the distributive property. y = -1/5x – 2 Subtract 2 from each side. Simplify. TRY ONE

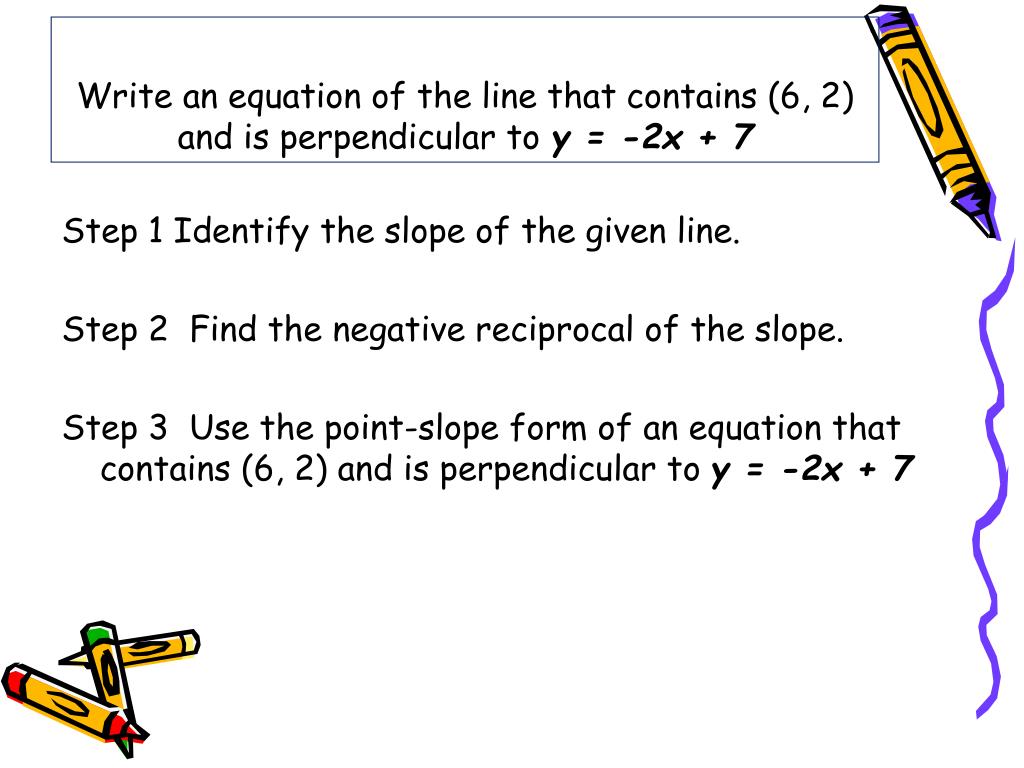

  12. Write an equation of the line that contains (6, 2) and is perpendicular to y = -2x + 7 Step 1 Identify the slope of the given line. Step 2 Find the negative reciprocal of the slope. Step 3 Use the point-slope form of an equation that contains (6, 2) and is perpendicular to y = -2x + 7

  13. Write an equation for the line that is perpendicular to the given line and that passes through the given point. • Y = 2x + 7; (0, 0) • Y = -1/3x + 2; (4, 2) • Y = x – 3; (4, 6) • 4x – 2y = 9; (8, 2)

  14. Write the equation of each line. Determine if the lines are parallel or perpendicular. Explain why or why not. Problem Solving

  15. A city’s civil engineer is planning a new parking garage and a new street. The new street will go from the entrance of the parking garage to Handel St. It will be perpendicular to Handel St. What is the equation of the line representing the new street? Problem Solving Entrance Handel St.
