  1. Smart parking system with NFC Universitat Rovira i Virgili Universitat de les Illes Balears

  2. Introduction (1/3) • What we present • Demonstrator prototype of a smart parking system through NFC communication • Industrial example of the different smartphone+NFC features • Concrete demonstrator but extrapolable to different services

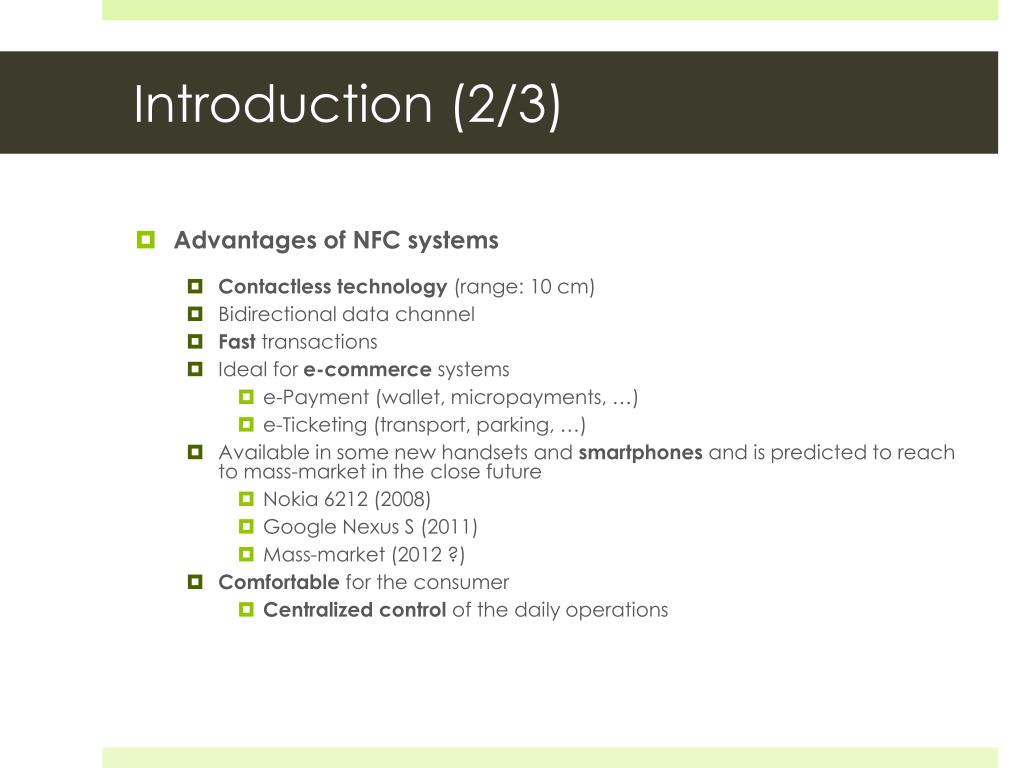

  3. Introduction (2/3) • Advantages of NFC systems • Contactless technology (range: 10 cm) • Bidirectional data channel • Fast transactions • Ideal for e-commerce systems • e-Payment (wallet, micropayments, …) • e-Ticketing (transport, parking, …) • Available in some new handsets and smartphones and is predicted to reach to mass-market in the close future • Nokia 6212 (2008) • Google Nexus S (2011) • Mass-market (2012 ?) • Comfortable for the consumer • Centralized control of the daily operations

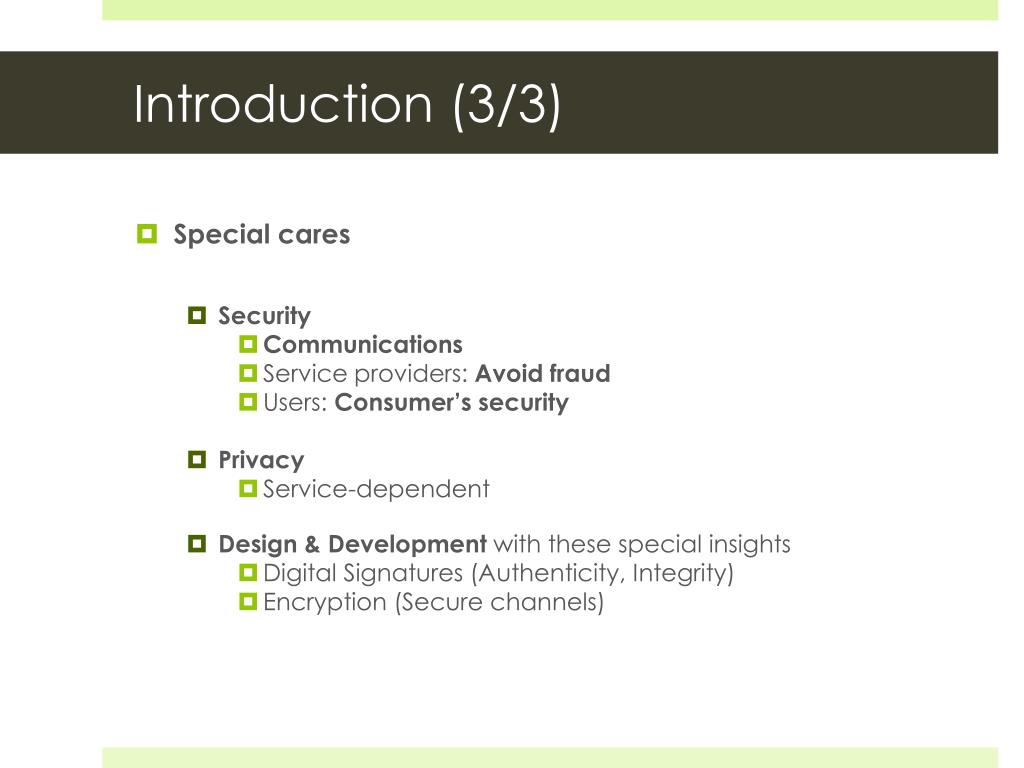

  4. Introduction (3/3) • Special cares • Security • Communications • Service providers: Avoid fraud • Users: Consumer’s security • Privacy • Service-dependent • Design & Development with these special insights • Digital Signatures (Authenticity, Integrity) • Encryption (Secure channels)

  5. Scheme of the System (1/3) • Participants • User • Entrance barrier • Payment machine • Exit barrier • Protocols • Entrance • Payment • Exit Entrance Entrance Ticket received Exit Receipt received Payment Payment Receipt received Exit

  6. Scheme of the System (2/3)

  7. Scheme of the System (3/3)

  8. Open Payment Scenario Cash / Card Micropayment with phone Through Secure Element of Smartphone Possible use of different payment modules (Visa, PayPal, ...) Proposals Account in the cloud

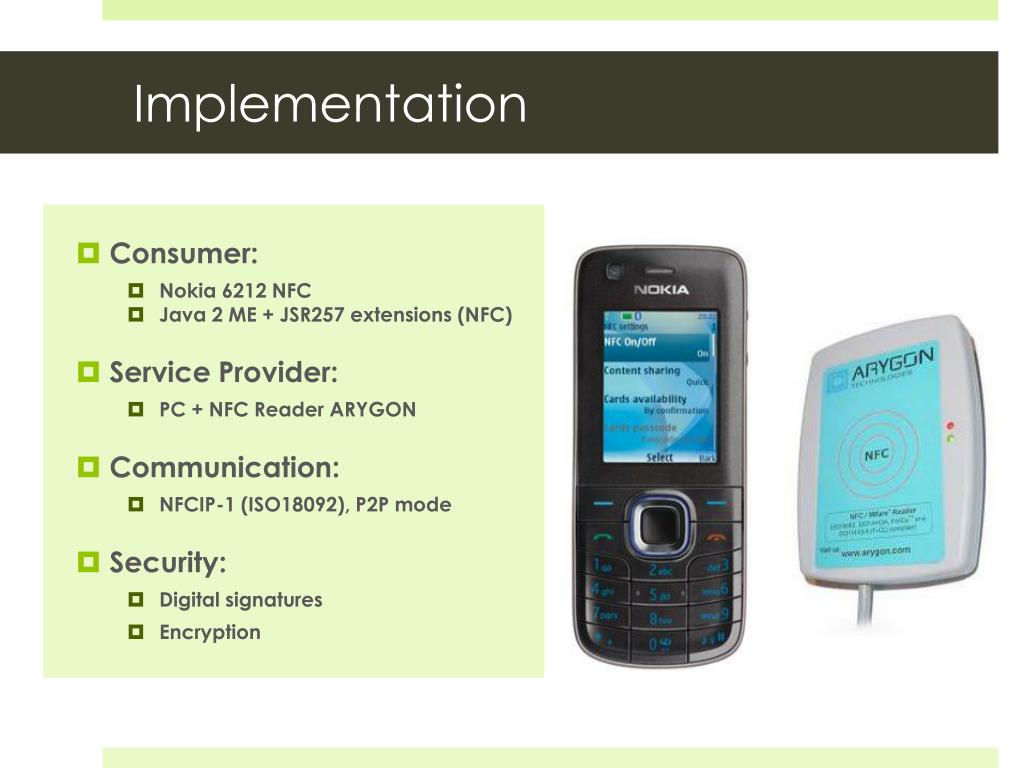

  9. Implementation Consumer: Nokia 6212 NFC Java 2 ME + JSR257 extensions (NFC) Service Provider: PC + NFC Reader ARYGON Communication: NFCIP-1 (ISO18092), P2P mode Security: Digital signatures Encryption

  10. Implementation: Consumer

  11. Implementation: Service provider

  12. Future work Simulations & Tests performed in order to analyze its technical feasibility Transfer: Industrial partners & collaborations Scale the solution to realsystems Technical: Porting to Smartphones (Android).
