  1. Using TSM Backup Archive Client with Microsoft Cluster Services Presented by Chris Garro and Benjamin Lane August 28st, 2008

  2. Agenda • Tsm B/A Client Supported Environments • Overview of Microsoft clustering services • Overview of TSM With MSCS • Installing and configuring a TSM backup/archive client with MSCS • Creating a Generic Resource • Journaling in a Cluster • Best Practices • Common Configuration Problems • References • Questions

  3. Tsm B/A Client Supported Environments • Windows 2003 Server, all editions (32 bit or 64 bit as appropriate, all SPs supported) • Windows 2008 Server and Windows 2008 Server Core, all editions . Support requires client level 5.5.0.4 or higher. • http://www-1.ibm.com/support/docview.wss?rs=663&context=SSGSG7&uid=swg21197133&loc=en_US&cs=utf-8&lang=en

  4. Benefits of TSM in a MSCS Environment • Benefits of cluster service: • High availability/Failover – TSM services, disk drives, IP addresses can be automatically transferred to surviving server—users experience only a momentary pause in service. • Failback – Service can re-balance the workload in a cluster if a previously failed server comes back on-line • Manageability – Applications can be moved to different servers within the cluster by dragging and dropping the cluster objects. This can be used to manually balance server workloads and to unload servers for planned maintenance • Scalability – Nodes can easily be added to the cluster to meet workload demands

  5. The Cluster Administrator Offline Resources Cluster Name Resource Groups Resource Location Physical Nodes

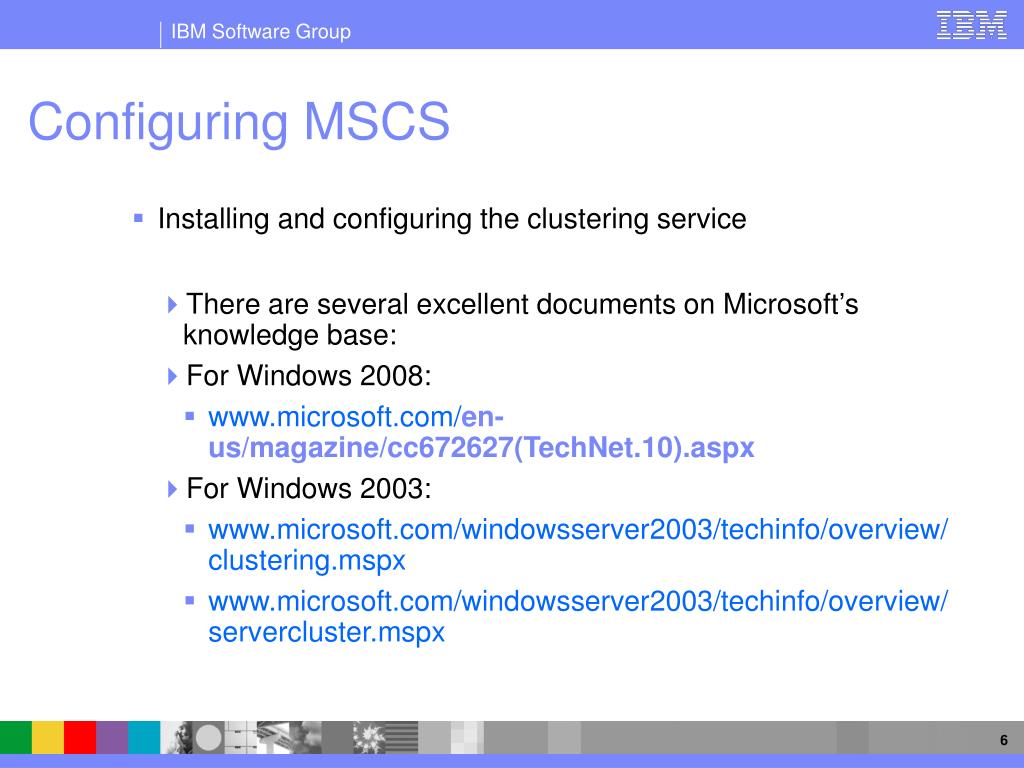

  6. Configuring MSCS • Installing and configuring the clustering service • There are several excellent documents on Microsoft’s knowledge base: • For Windows 2008: • www.microsoft.com/en-us/magazine/cc672627(TechNet.10).aspx • For Windows 2003: • www.microsoft.com/windowsserver2003/techinfo/overview/clustering.mspx • www.microsoft.com/windowsserver2003/techinfo/overview/servercluster.mspx

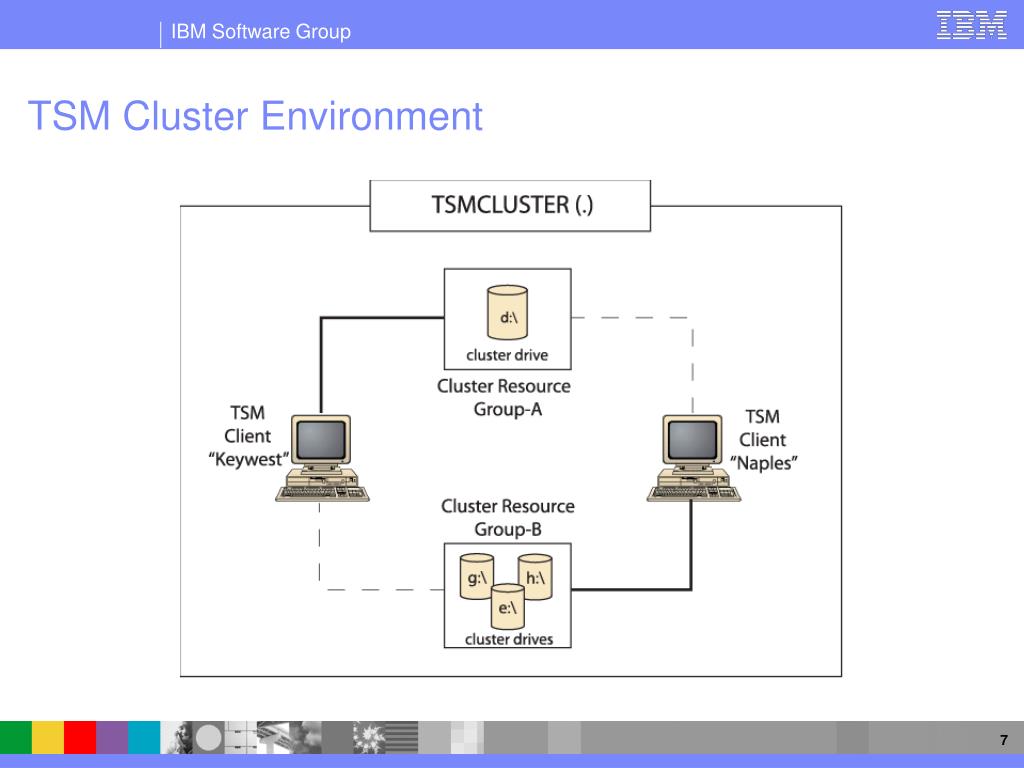

  7. TSM Cluster Environment

  8. Overview of TSM With MSCS • Client is cluster aware • User option CLUSTERNODE YES in the cluster dsm.Opt • Scheduler is managed as cluster resource • Failover will move scheduler to other node in cluster • Failover during backup may restart scheduled backup • Data protection modules (MS exchange, MS SQL-server, domino, oracle, mySap) will function properly in a clustered environment • TSM includes support for journal based backups in a clustered environment

  9. What Happens When a Failover Occurs? During a failover all resource groups move from failing cluster node to the receiving cluster node and any necessary services will start/restart. • If no TSM scheduled backup is running • The TSM scheduler service is started and ready to perform the next scheduled backup • If a TSM scheduled backup is running • The TSM scheduler service is started • If the backup is within the schedule’s start-up window, the scheduler service will attempt to restart the backup from the beginning • If the backup is outside of the schedule’s start-up window, no further action is taken—the schedule fails • If a non-TSM scheduled backup is running, it will not be restarted by TSM on receiving node

  10. Installing the TSM Client on Cluster Nodes • Use the cluster administrator to figure out which cluster groups contain physical disk resources to backup • Register a TSM node for each resource group • Configure the client options file (dsm.opt) for each resource group • Nodename – you must specify a unique name for each cluster resource group (ex. TSM_ClustergroupA) • Tcpserveraddress – the name of the TSM server which the backups will go to • Domain – specify the drive letters for the physical disk managed by the resource group • Clusternode – specify “yes” • Clusterdriveonly – specify “yes” for mount points or “no” for non-mount points? "No" will help increase the startup performance of the TSM client • Passwordaccess – must use “generate” • Errorlogname, Schedlogname – specify a unique name for each cluster resource group and place on a resource (shared disk) owned by the resource group

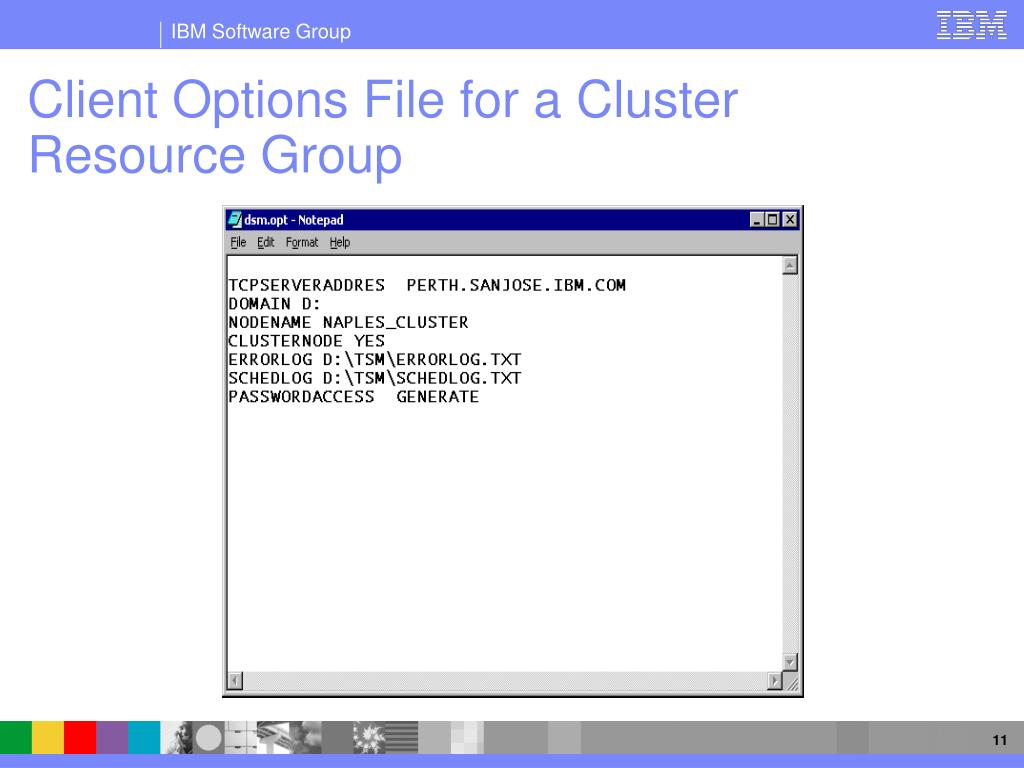

  11. Client Options File for a Cluster Resource Group

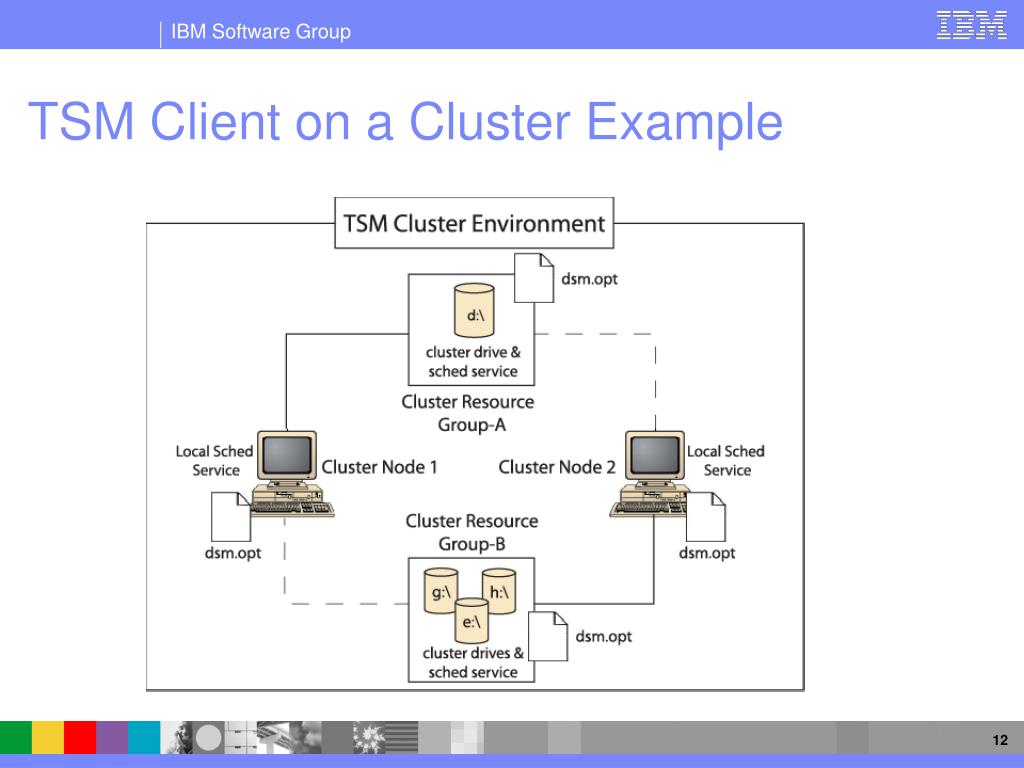

  12. TSM Client on a Cluster Example

  13. Manual Setup of Scheduler • Configure the scheduler service for each resource group • Each cluster resource group must have a uniquely named scheduler service installed • Ensure that local node owns the resource group then issue this command:dsmcutil install scheduler /name:“TSM Sched:cluster group“ /clientdir:“c:\program files\tivoli\tsm\baclient” /optfile:“d:\tsm\dsm.opt” /node:naples_cluster /password:nodepassword /validate:yes /autostart:yes /startnow:yes /clusternode:yes /clustername:tsmcluster • The setup wizard may also be used to configure the scheduler service for a cluster node • Authentication: dsmc –optfile=<optfile_on_driveOfResourceGroup>

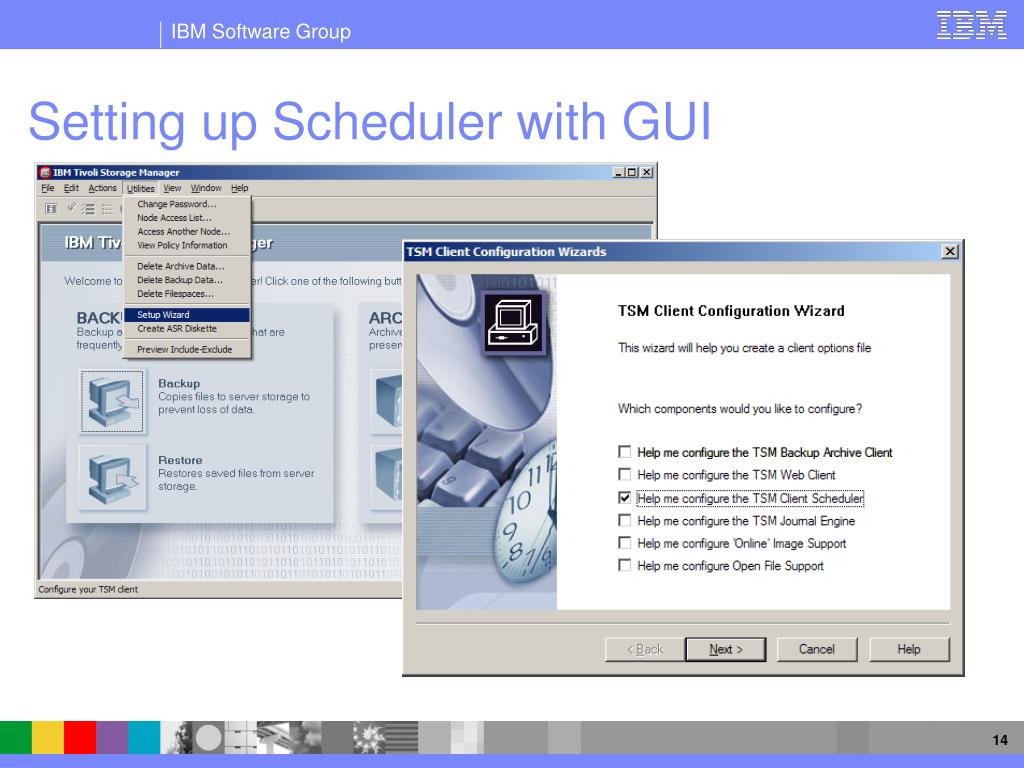

  14. Setting up Scheduler with GUI

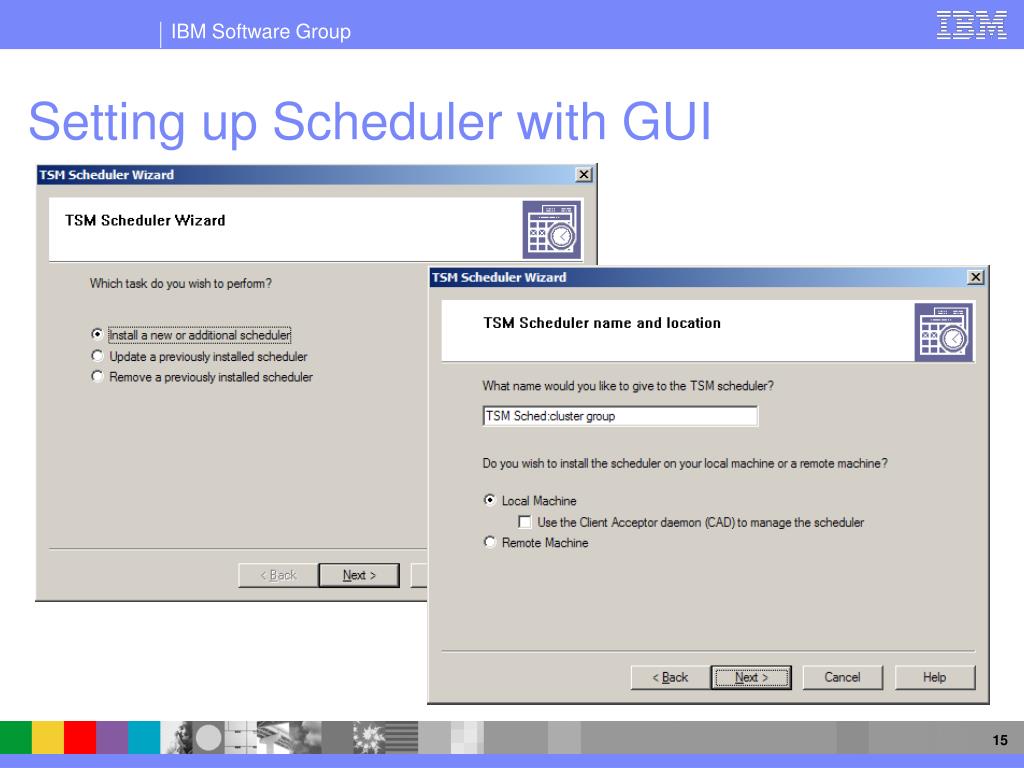

  15. Setting up Scheduler with GUI

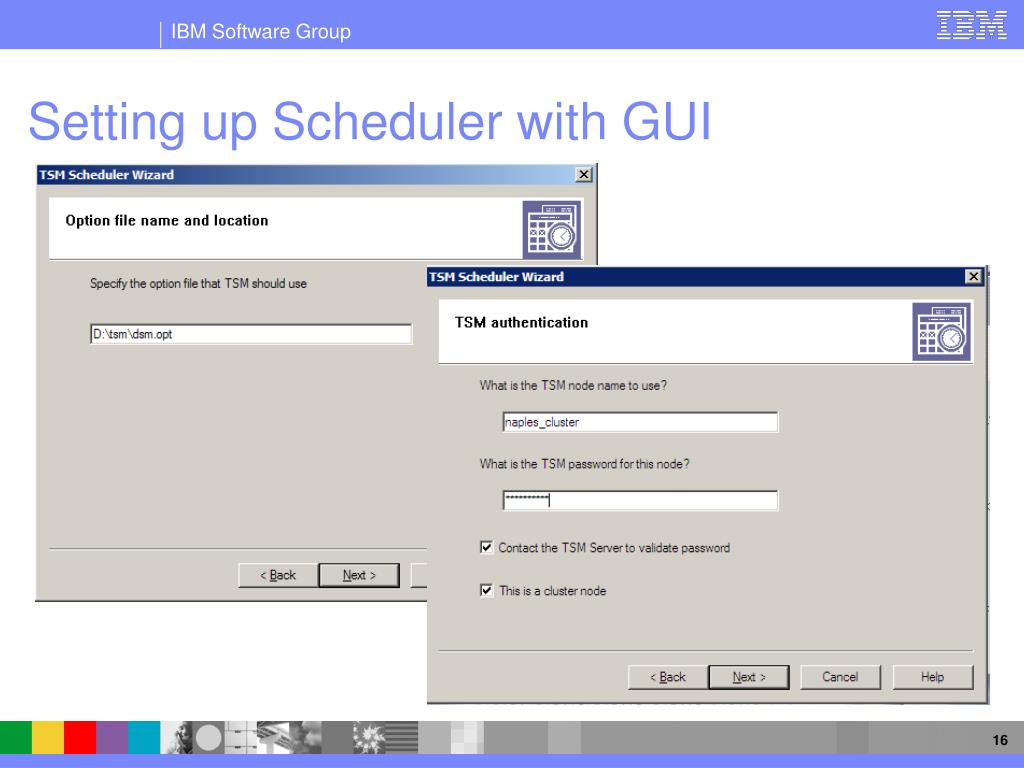

  16. Setting up Scheduler with GUI

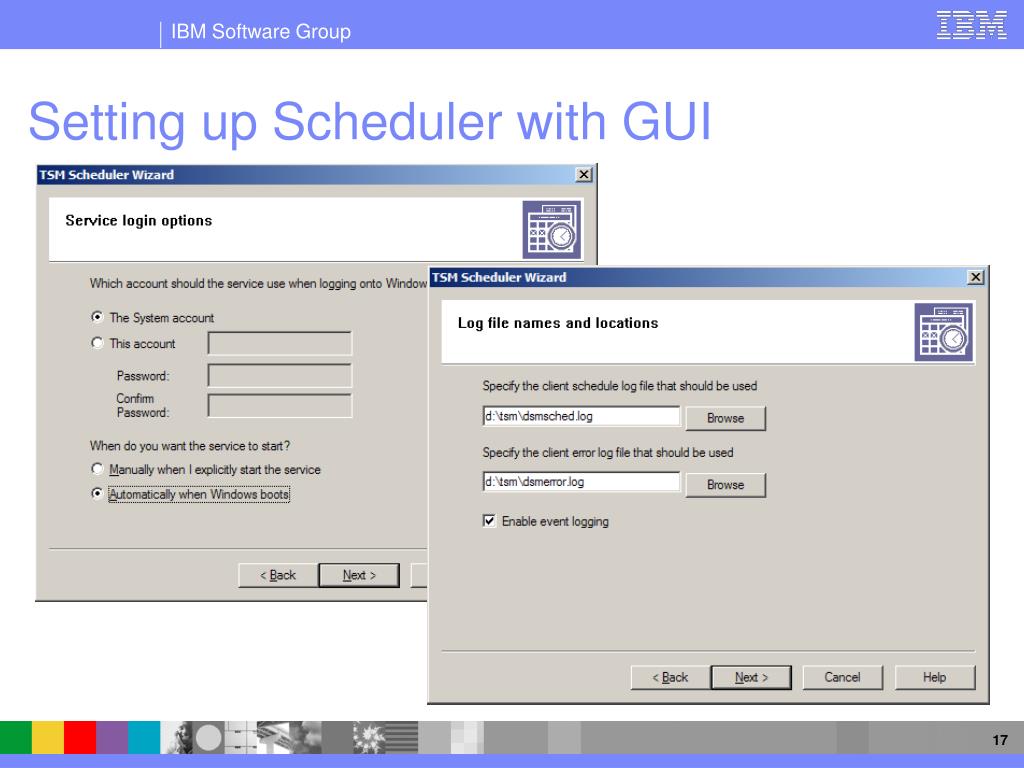

  17. Setting up Scheduler with GUI

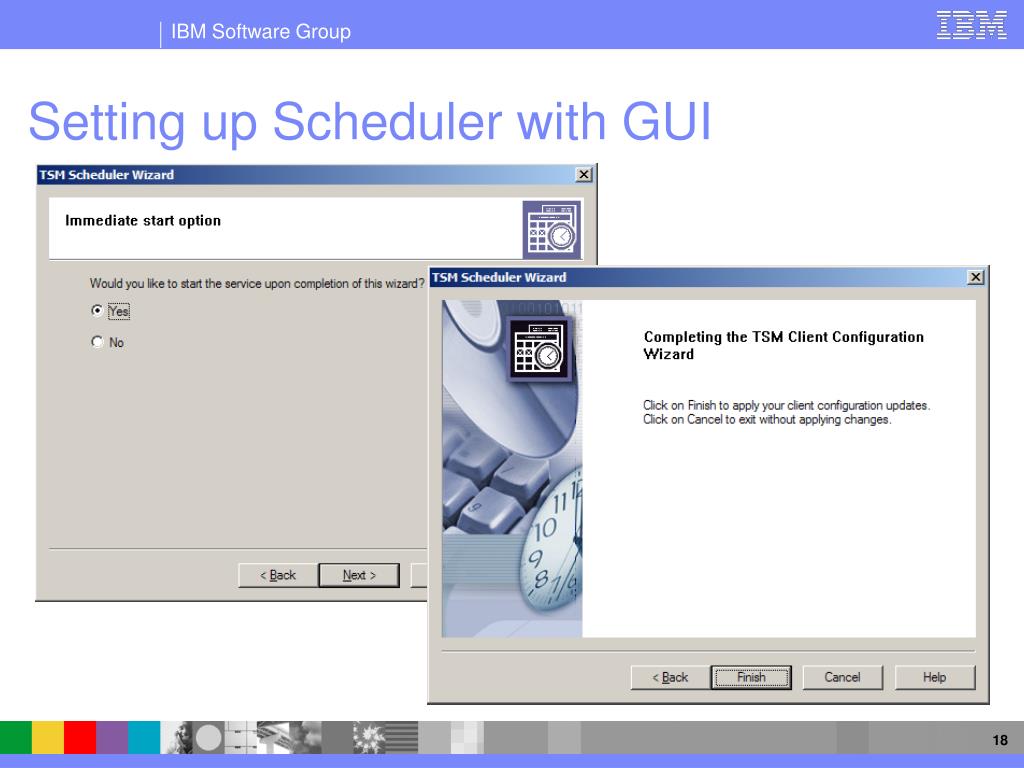

  18. Setting up Scheduler with GUI

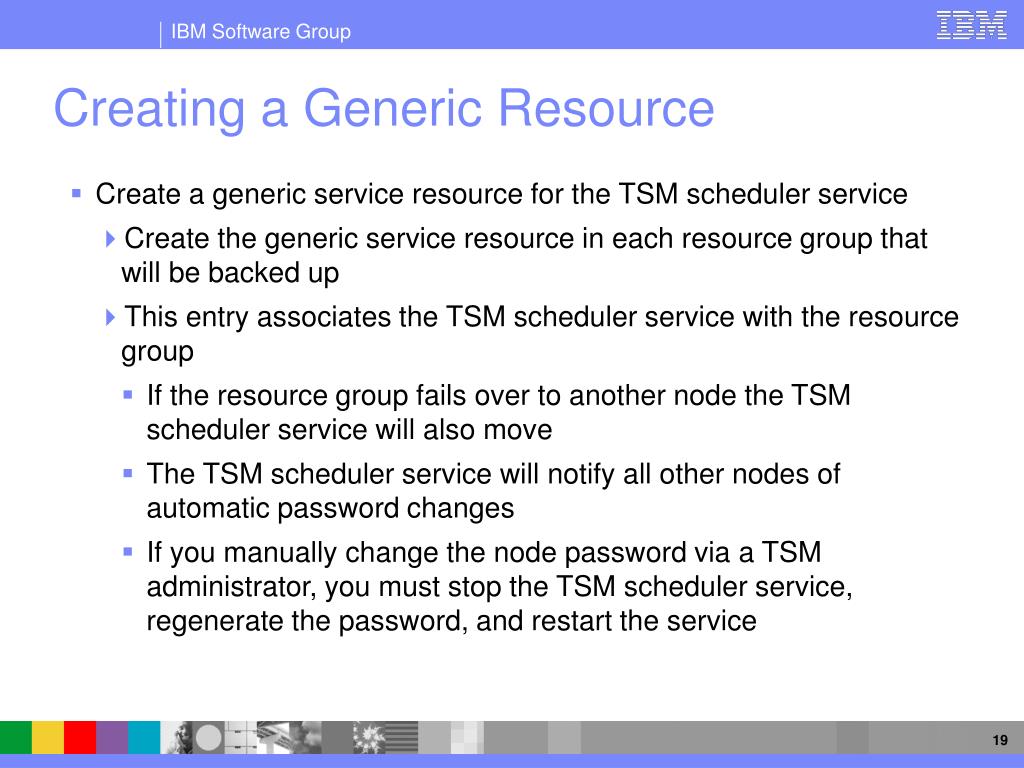

  19. Creating a Generic Resource • Create a generic service resource for the TSM scheduler service • Create the generic service resource in each resource group that will be backed up • This entry associates the TSM scheduler service with the resource group • If the resource group fails over to another node the TSM scheduler service will also move • The TSM scheduler service will notify all other nodes of automatic password changes • If you manually change the node password via a TSM administrator, you must stop the TSM scheduler service, regenerate the password, and restart the service

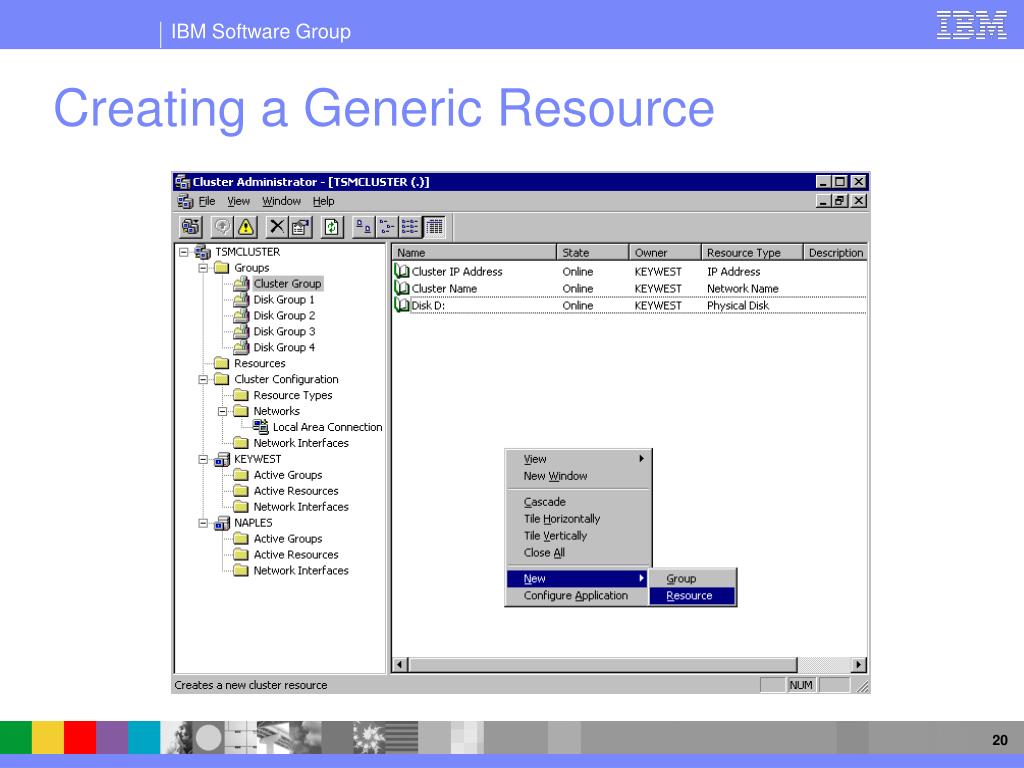

  20. Creating a Generic Resource

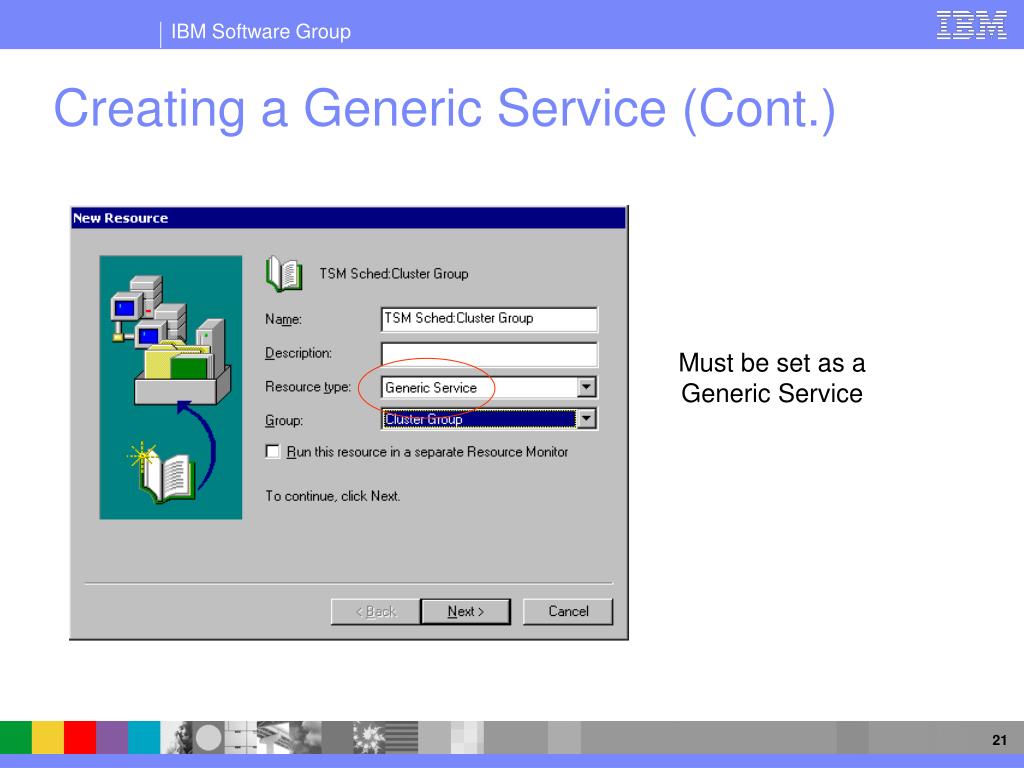

  21. Creating a Generic Service (Cont.) Must be set as a Generic Service

  22. Creating a Generic Service (Cont.) Possible Owners should show all nodes that can own the Resource Group

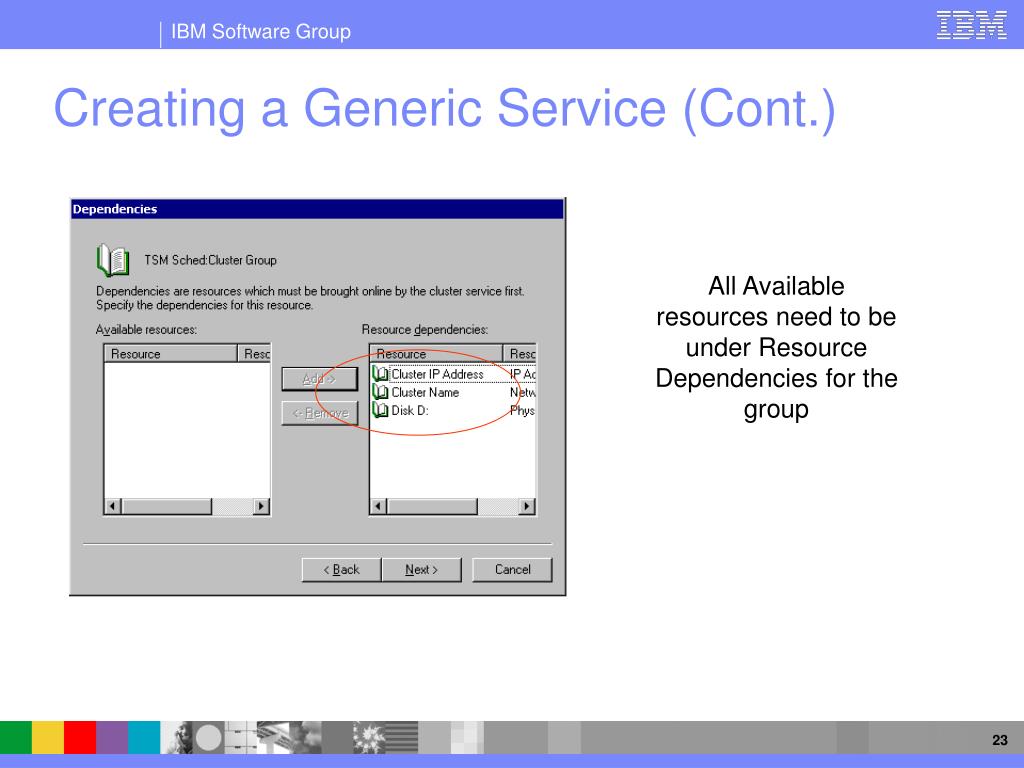

  23. Creating a Generic Service (Cont.) All Available resources need to be under Resource Dependencies for the group

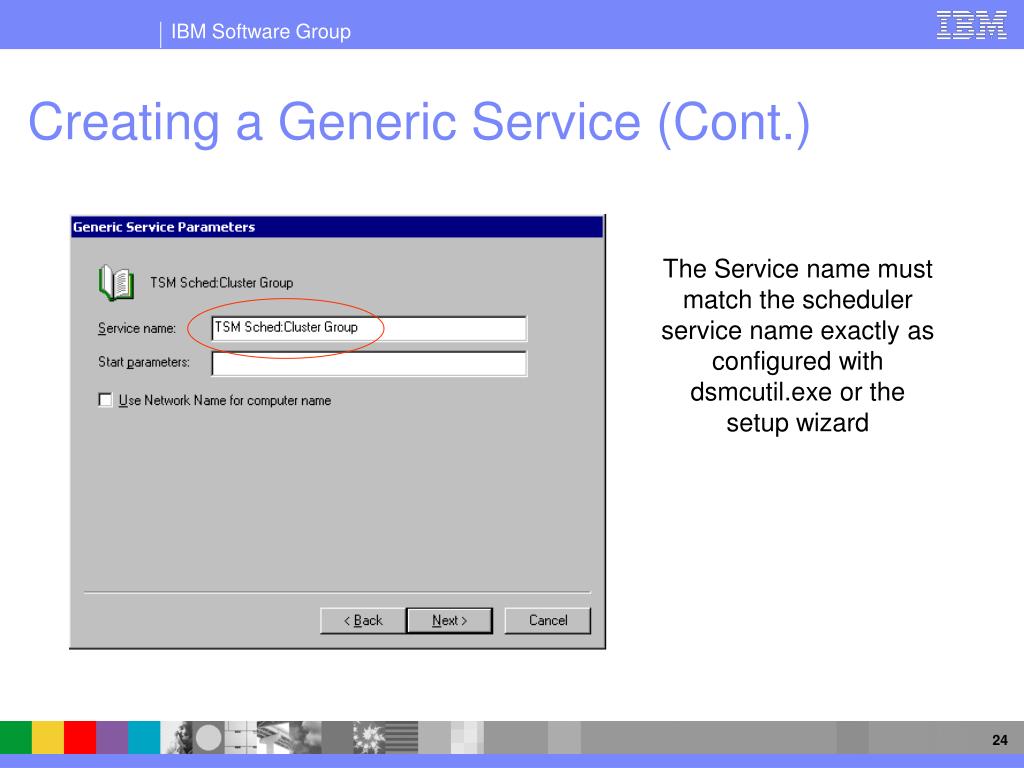

  24. Creating a Generic Service (Cont.) The Service name must match the scheduler service name exactly as configured with dsmcutil.exe or the setup wizard

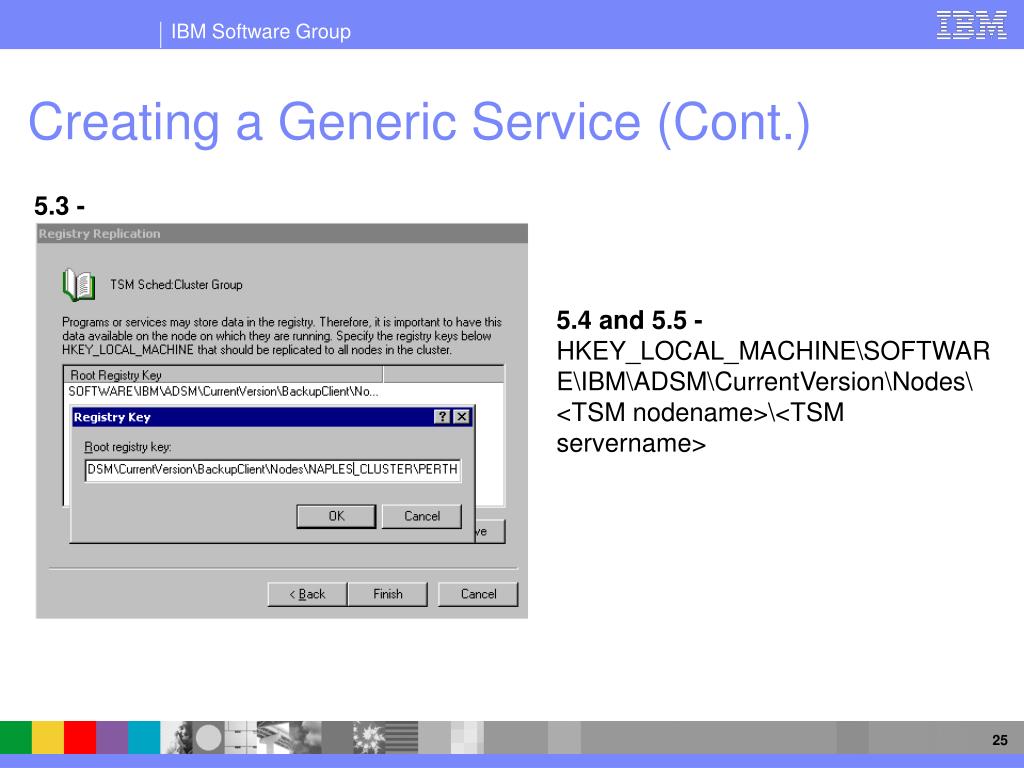

  25. Creating a Generic Service (Cont.) 5.3 - 5.4 and 5.5 - HKEY_LOCAL_MACHINE\SOFTWARE\IBM\ADSM\CurrentVersion\Nodes\ <TSM nodename>\<TSM servername>

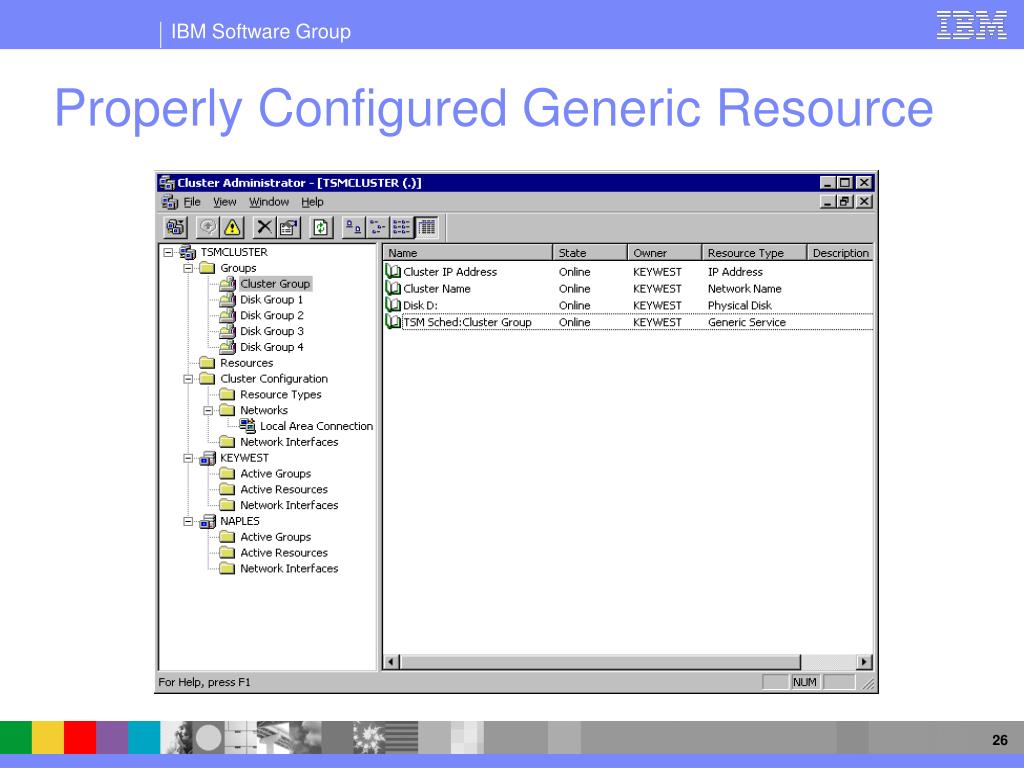

  26. Properly Configured Generic Resource

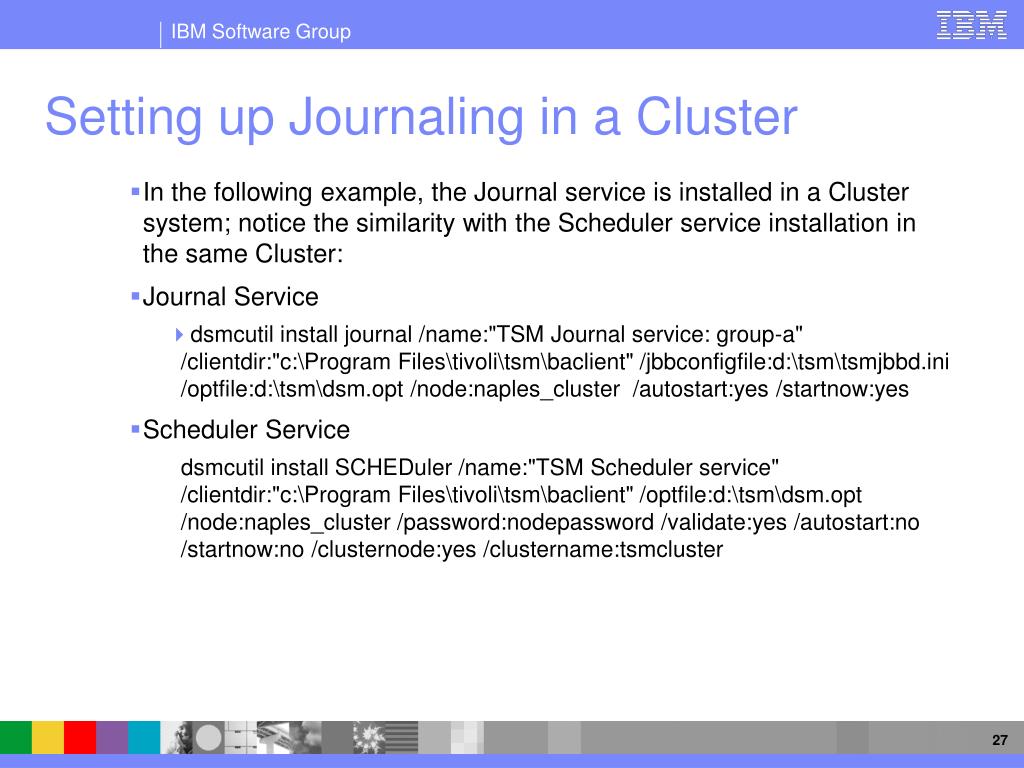

  27. Setting up Journaling in a Cluster • In the following example, the Journal service is installed in a Cluster system; notice the similarity with the Scheduler service installation in the same Cluster: • Journal Service • dsmcutil install journal /name:"TSM Journal service: group-a" /clientdir:"c:\Program Files\tivoli\tsm\baclient" /jbbconfigfile:d:\tsm\tsmjbbd.ini /optfile:d:\tsm\dsm.opt /node:naples_cluster /autostart:yes /startnow:yes • Scheduler Service dsmcutil install SCHEDuler /name:"TSM Scheduler service" /clientdir:"c:\Program Files\tivoli\tsm\baclient" /optfile:d:\tsm\dsm.opt /node:naples_cluster /password:nodepassword /validate:yes /autostart:no /startnow:no /clusternode:yes /clustername:tsmcluster

  28. Setting up Journaling in a Cluster • The DSMCUTIL program should be used to install multiple JBB services on the same machine. Currently, the GUI does not have this feature. • Each file system or clustered group is backed up to a specific node, each filesystem uses a specific dsm.opt file. Note: Journaling the same file system with multiple journal services may produce unpredictable results, each journal service should be configured to journal different file systems.

  29. Setting up Journaling in a Cluster • In the following slides, we are assuming that the option files for the local disks and clustered disks (shared resources) already exist: C:\Program Files\Tivoli\TSM\Baclient\dsm.opt (Local) D:\TSM\dsm.opt (CG1) E:\TSM\dsm.opt (CG2) • Install the first Journal service to journal the local disks. Use the GUI and the dsm.opt file locate in the default baclient directory. • The default JournalPipe value will be used with that file: JournalPipe \\.\pipe\jnlServer1

  30. Setting up Journaling in a Cluster • Add the appropriate JournalPipe option to the options files: JournalPipe \\.\pipe\jnlServiceCG1 (in the D:\TSM\dsm.opt file where D: is a disk owned by Cluster Group 1) JournalPipe \\.\pipe\jnlServiceCG2 (in the E:\TSM\dsm.opt file where E: is a disk owned by Cluster Group 2) • Create and setup a seperate tsmjbbd.ini for each Cluster Group, example: • D:\TSM\tsmjbbdCG1.ini • E:\TSM\tsmjbbdCG2.ini

  31. Setting up Journaling in a Cluster • Edit the .ini files to add the JournalPipe to the [JournalSettings] stanza: JournalPipe=\\.\pipe\jnlServiceCG1 (in the D:\TSM\tsmjbbdCG1.ini) JournalPipe=\\.\pipe\jnlServiceCG2 (in the E:\TSM\tsmjbbdCG2.ini)

  32. Setting up Journaling in a Cluster • Adjust the tsmjbbd.ini definitions on each file (journaled file system, notify buffer size, notify filter, etc.). Locate the journal data bases on the shared resources (e.g. D:\TSM, E:\TSM directories). • Install the second journal service: dsmcutil install journal /name:"TSM Journal Service CG1“ /optfile:D:\TSM\dsm.opt /node:Naples_cluster /autostart:yes /startnow:yes /jbbconfigfile:D:\TSM\tsmjbbdCG1.ini • Install the third journal service: dsmcutil install journal /name:"TSM Journal Service CG2“ /optfile:E:\TSM\dsm.opt /node:Keywest_cluster /autostart:yes /startnow:yes /jbbconfigfile:E:\TSM\tsmjbbdCG2.ini

  33. Setting up Journaling in a Cluster • Once the TSM Journal has been configured on the first cluster node, the Cluster Groups will need to be moved over to the next owner and repeat the previous configuration steps • Repeat for all other cluster nodes in the cluster

  34. Setting up Journaling in a Cluster • Finally, each journal service needs to be added as a Resource of type Generic for it’s respective cluster group in Cluster Administrator” • After clicking Next, select update the “Possible Owners” as necessary then Next • Use a drive in the group as a dependency, click on Next

  35. Setting up Journaling in a Cluster • Then enter the service name as it was entered when creating the service with dsmcutil. • Then click on Next followed by finish.

  36. Setting up Journaling in a Cluster • For further information on journal configuration: • STE - Link • FAQ - Link • B/A Client Manual - Link

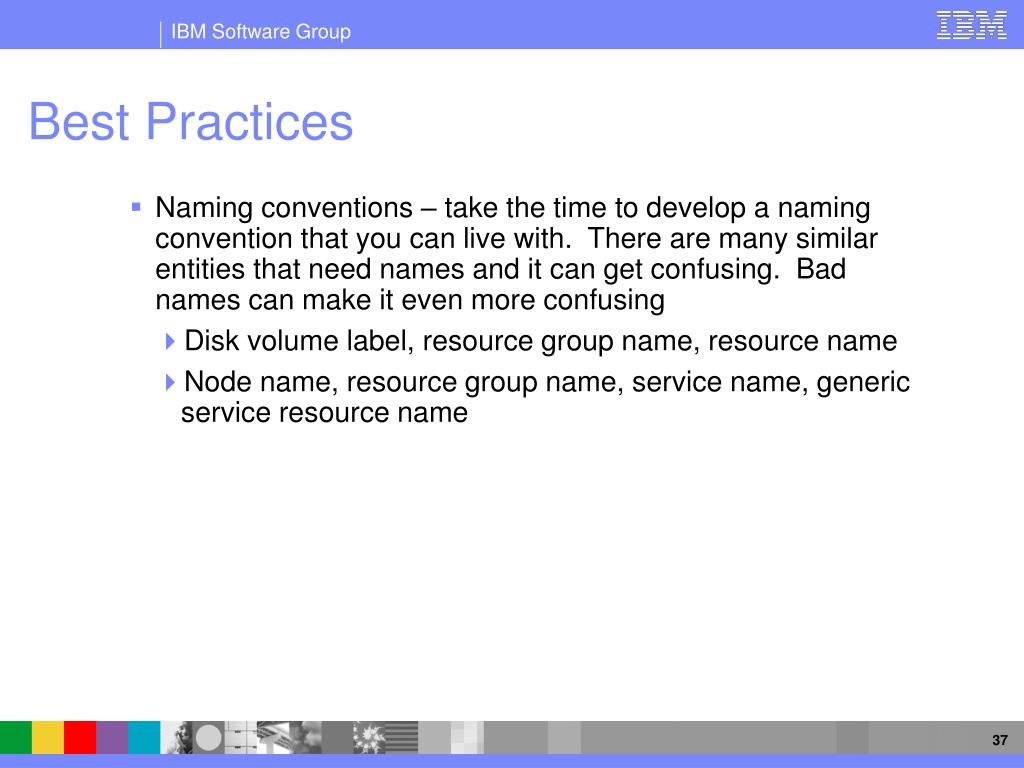

  37. Best Practices • Naming conventions – take the time to develop a naming convention that you can live with. There are many similar entities that need names and it can get confusing. Bad names can make it even more confusing • Disk volume label, resource group name, resource name • Node name, resource group name, service name, generic service resource name

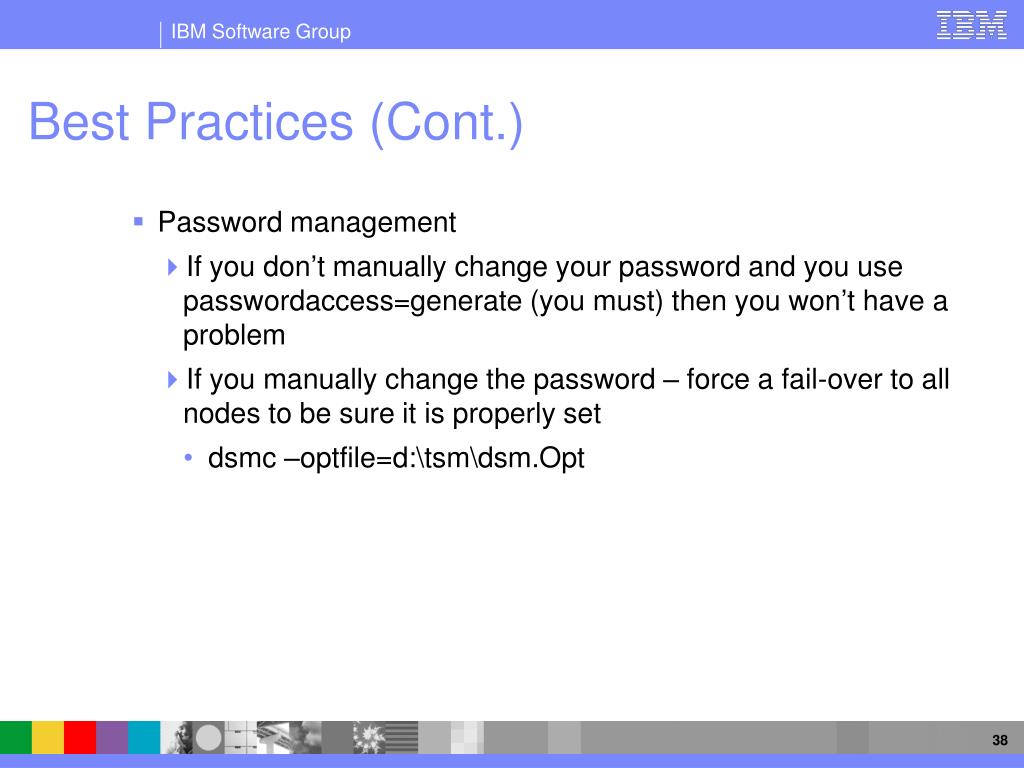

  38. Best Practices (Cont.) • Password management • If you don’t manually change your password and you use passwordaccess=generate (you must) then you won’t have a problem • If you manually change the password – force a fail-over to all nodes to be sure it is properly set • dsmc –optfile=d:\tsm\dsm.Opt

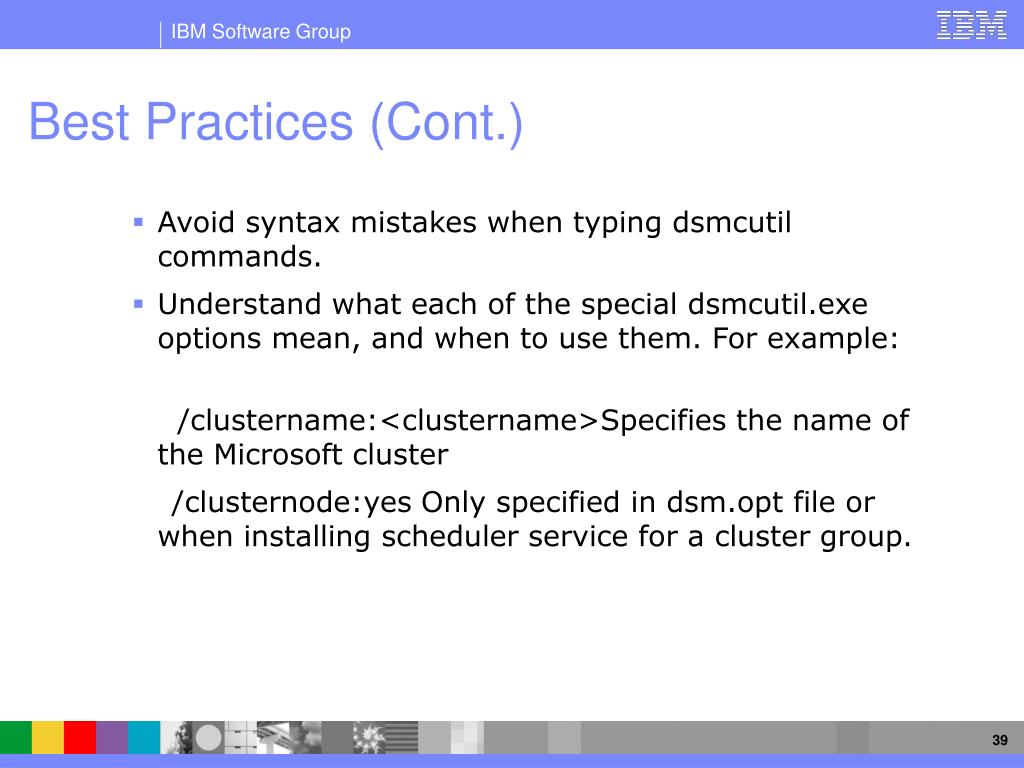

  39. Best Practices (Cont.) • Avoid syntax mistakes when typing dsmcutil commands. • Understand what each of the special dsmcutil.exe options mean, and when to use them. For example: /clustername:<clustername>Specifies the name of the Microsoft cluster /clusternode:yes Only specified in dsm.opt file or when installing scheduler service for a cluster group.

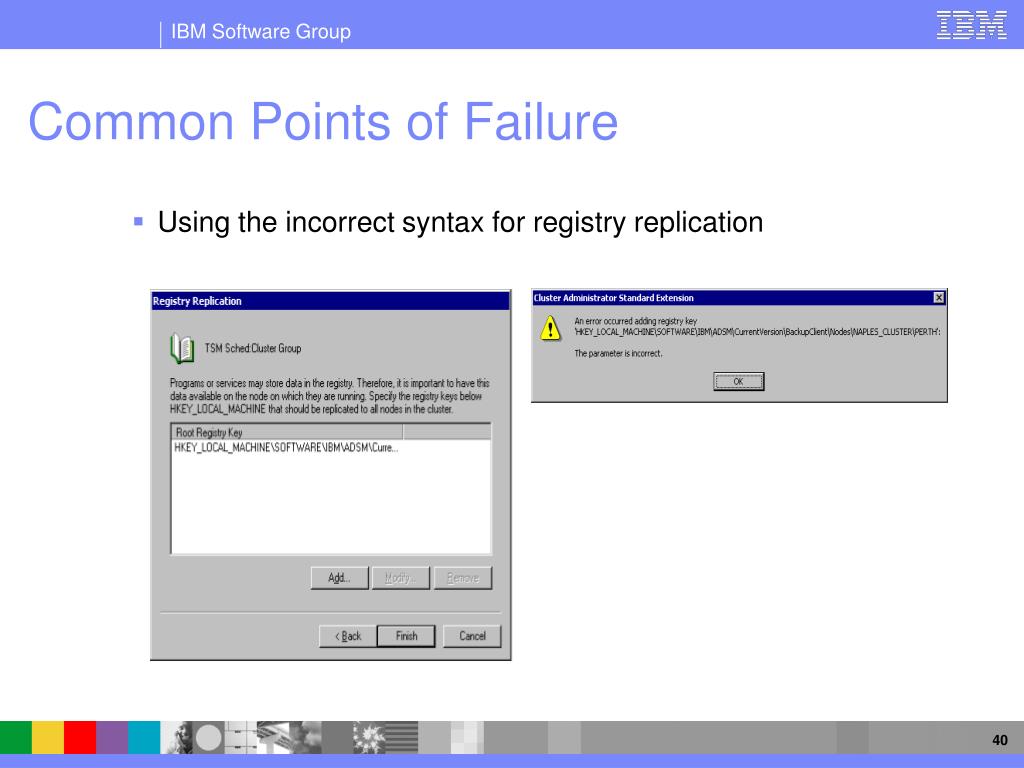

  40. Common Points of Failure • Using the incorrect syntax for registry replication

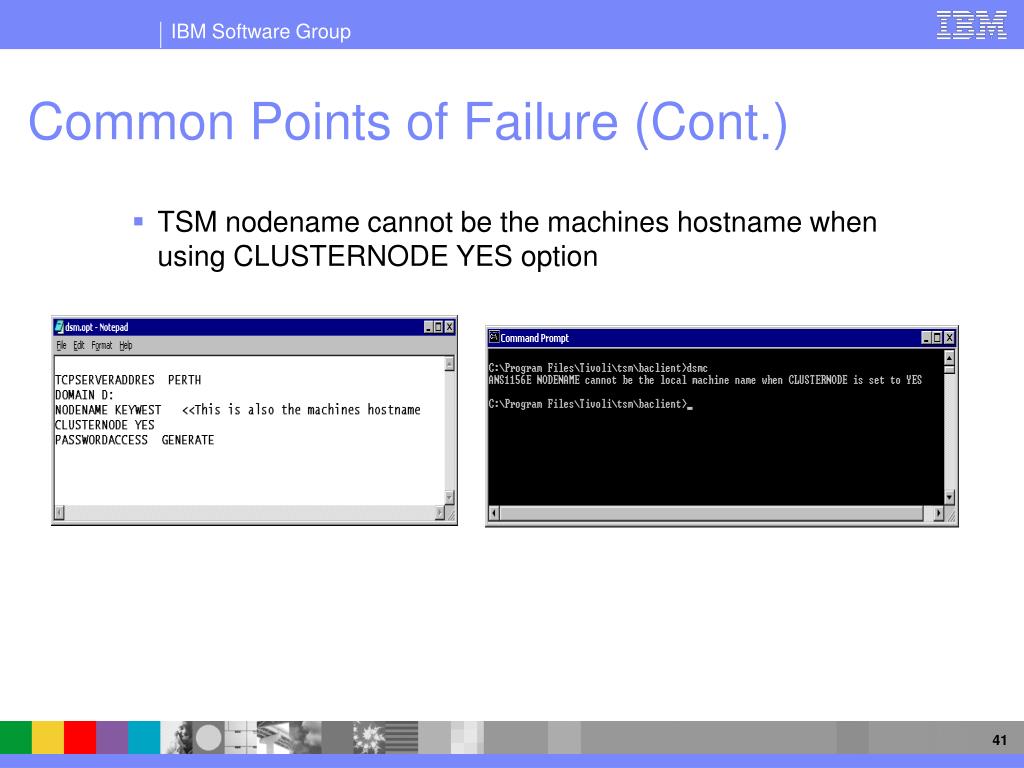

  41. Common Points of Failure (Cont.) • TSM nodename cannot be the machines hostname when using CLUSTERNODE YES option

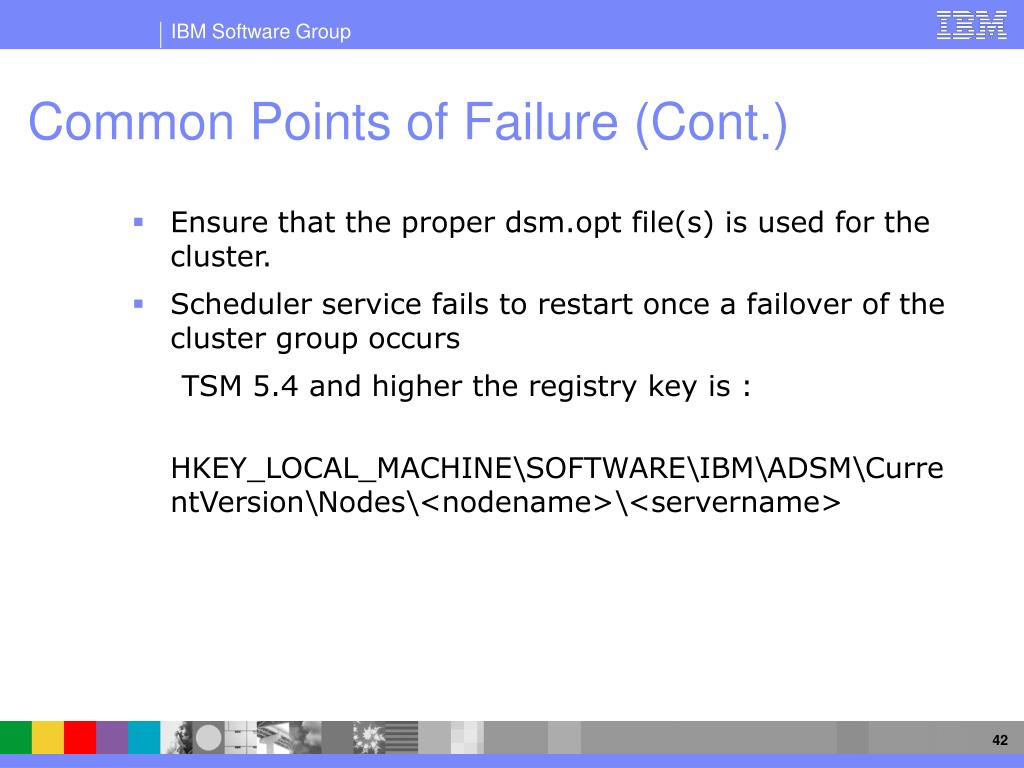

  42. Common Points of Failure (Cont.) • Ensure that the proper dsm.opt file(s) is used for the cluster. • Scheduler service fails to restart once a failover of the cluster group occurs TSM 5.4 and higher the registry key is : HKEY_LOCAL_MACHINE\SOFTWARE\IBM\ADSM\CurrentVersion\Nodes\<nodename>\<servername>

  43. References • TSM windows client: installation and users guide - GC32-0788 • IBM knowledge base – http://www-306.ibm.com/software/sysmgmt/products/support/IBMTivoliStorageManager.html • “What steps are needed to setup the TSM journaling service in a MSCS environment?” • “TSM client scheduler setup using MANAGEDSERVICES and windows cluster” • “Setup wizard: usage of client GUI setup wizard in an MSCS environment

  44. References • TSM Support Page • http://www306.ibm.com/software/sysmgmt/products/support/IBMTivoliStorageManager.html • IBM Tivoli Storage Manager Information Center • http://publib.boulder.ibm.com/infocenter/tivihelp/v1r1/index.jsp?toc=/com.ibm.itstorage.doc/toc.xml • FTP Site – Product Readmes • ftp://ftp.software.ibm.com/storage/tivoli-storage-management/

  45. References Continued • Customer support handbook • http://techsupport.services.ibm.com/guides/handbook.html • Other useful Web sites (these forums are not maintained by IBM) • http://www.adsm.org

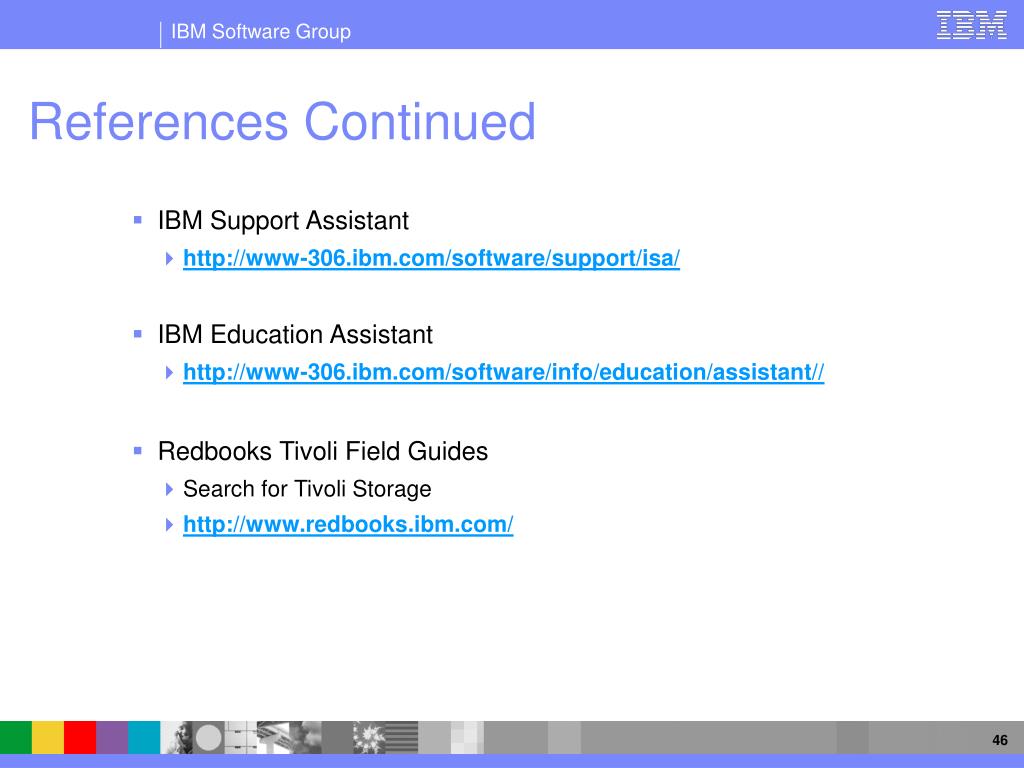

  46. References Continued • IBM Support Assistant • http://www-306.ibm.com/software/support/isa/ • IBM Education Assistant • http://www-306.ibm.com/software/info/education/assistant// • Redbooks Tivoli Field Guides • Search for Tivoli Storage • http://www.redbooks.ibm.com/

  47. Q&A: The operator will instruct you on how to ask your questions of the presenters.
