  1. Database AdministrationLecture No 1 Muhammad Abrar muhammadabrar78@yahoo.com

  2. Muhammad Abrar???? • MS (Computer Science) Gold Medal • Specialization in Database Systems • Research Publication • M. Abrar, Z. Jan, Dr A.M. Mirza S. Bashir “Seasonal to Interannual Climate Prediction Using Data Mining technique KNN” Springer Verlag Communications in Computer and Information Science Series Book. 2008 • Research Areas: Data Mining , Data Ware Housing, Distributed Database • Areas of expertise : Programming (.NET (Visual Basic, Visual C++ etc), C++, JAVA) OOP Analysis, Structure Analysis and Designing

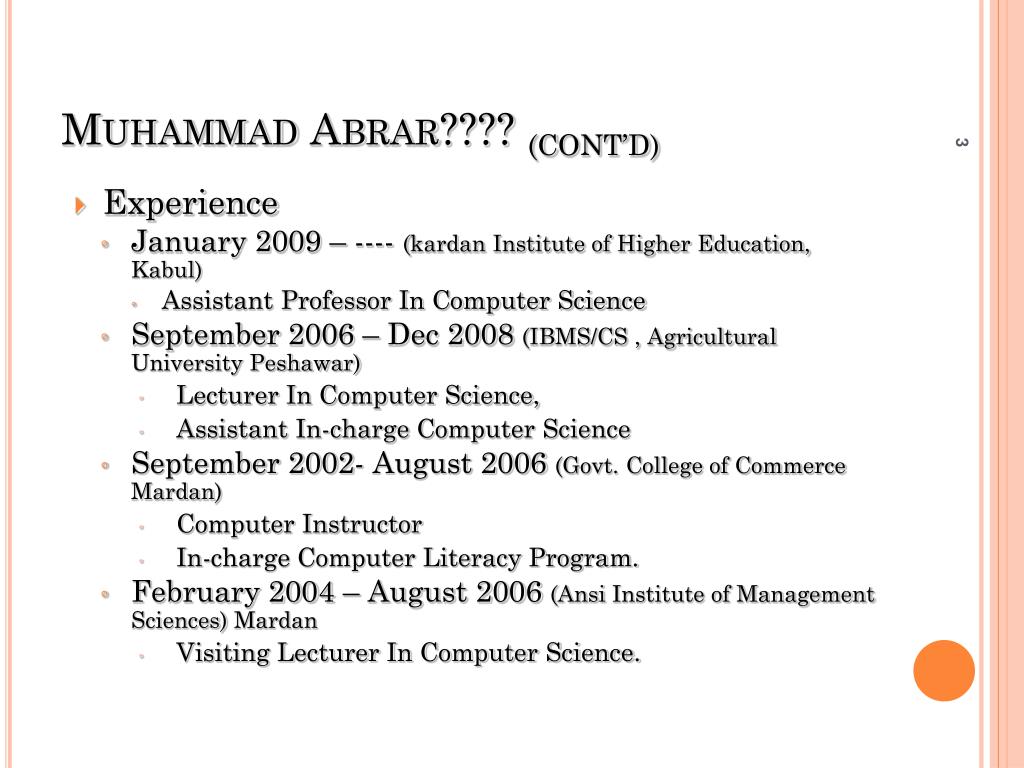

  3. Muhammad Abrar???? (Cont’d) • Experience • January 2009 – ---- (kardan Institute of Higher Education, Kabul) • Assistant Professor In Computer Science • September 2006 – Dec 2008 (IBMS/CS , Agricultural University Peshawar) • Lecturer In Computer Science, • Assistant In-charge Computer Science • September 2002- August 2006 (Govt. College of Commerce Mardan) • Computer Instructor • In-charge Computer Literacy Program. • February 2004 – August 2006 (Ansi Institute of Management Sciences) Mardan • Visiting Lecturer In Computer Science.

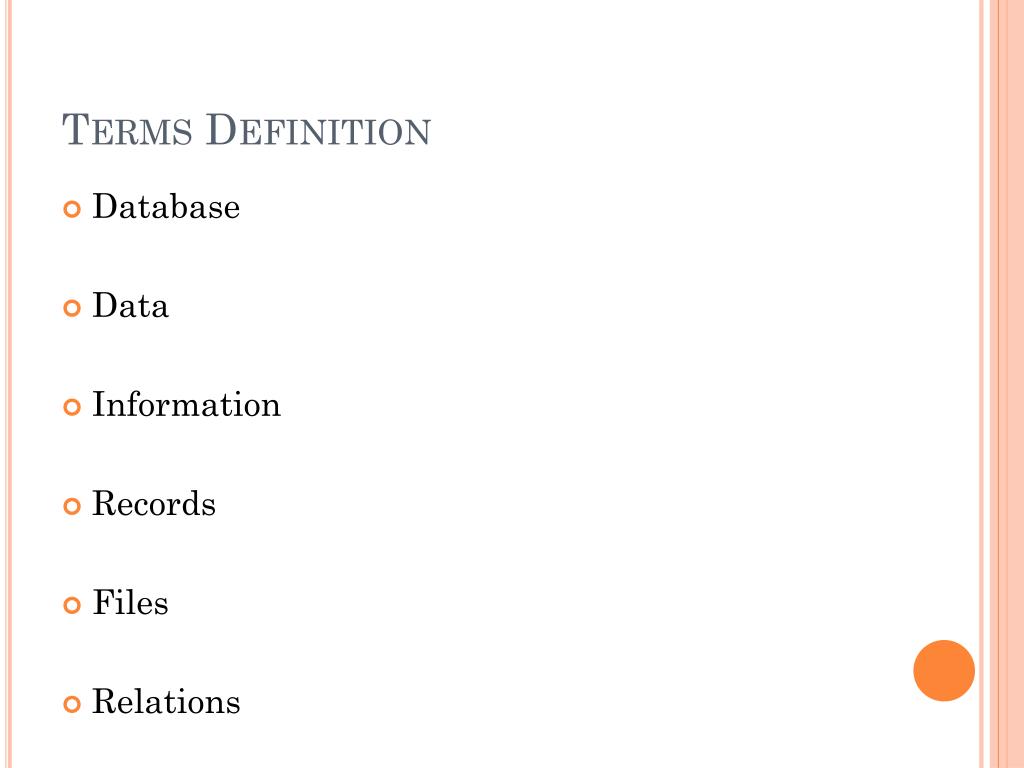

  4. Terms Definition • Database • Data • Information • Records • Files • Relations

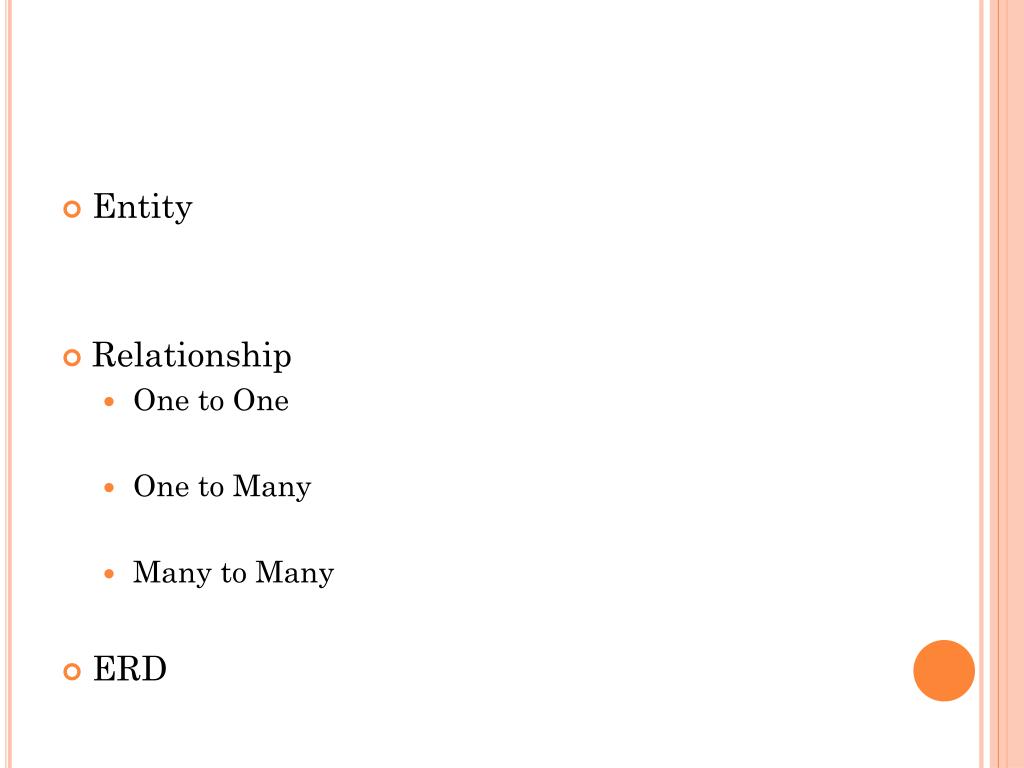

  5. Entity • Relationship • One to One • One to Many • Many to Many • ERD

  6. How to implement many to many relationship is database?

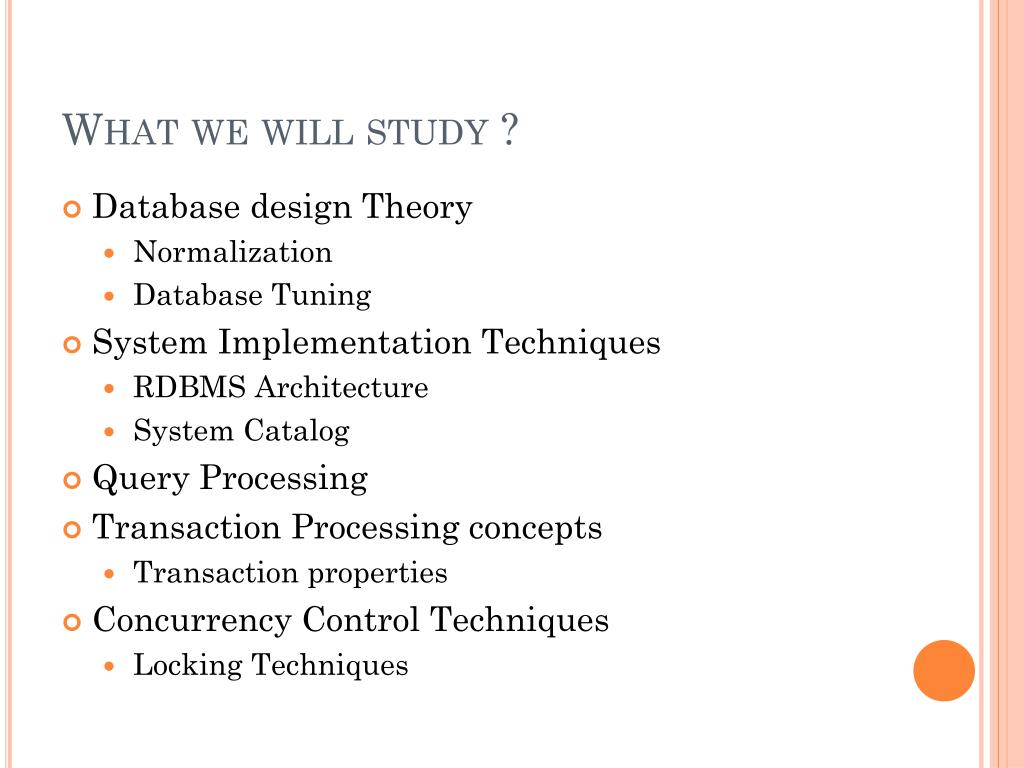

  7. What we will study ? • Database design Theory • Normalization • Database Tuning • System Implementation Techniques • RDBMS Architecture • System Catalog • Query Processing • Transaction Processing concepts • Transaction properties • Concurrency Control Techniques • Locking Techniques

  8. What we will study ? (cont’d) • Database Recovery Techniques • Recovery based on differed update • Recovery based on immediate update • Backup and recovery • Database Security • Security Issues • Granting/revoking privileges • Statistical database Security • Introduction to Object Oriented Databases • Introduction to Data Warehousing • Introduction to Data Mining

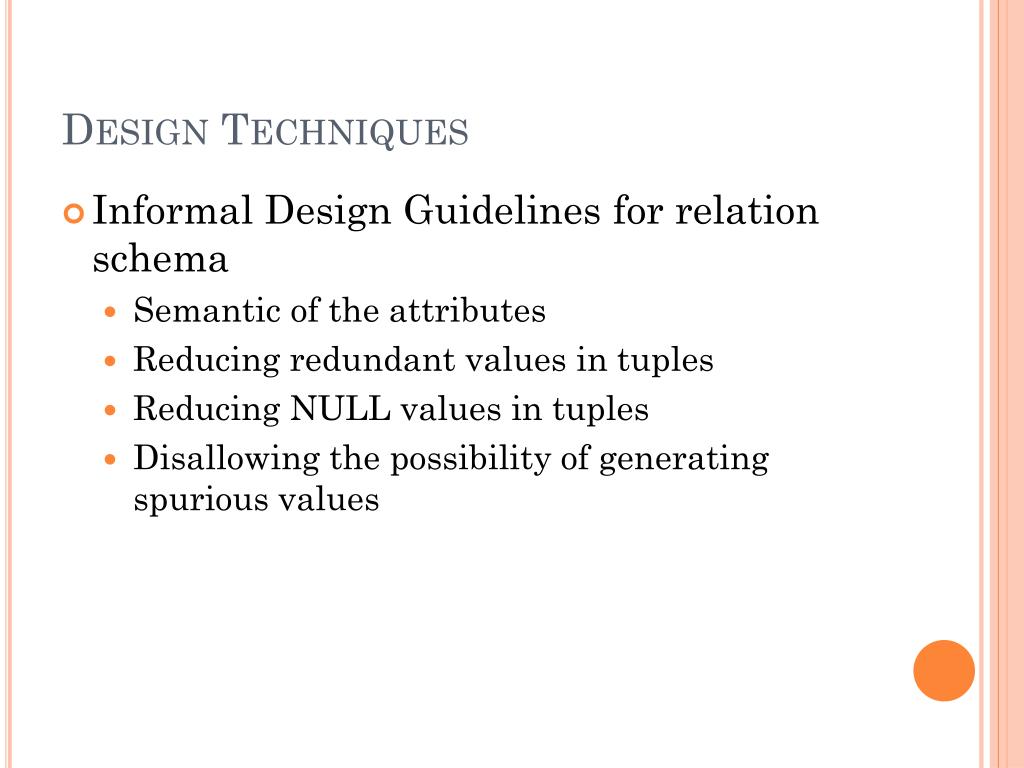

  9. Design Techniques • Informal Design Guidelines for relation schema • Semantic of the attributes • Reducing redundant values in tuples • Reducing NULL values in tuples • Disallowing the possibility of generating spurious values

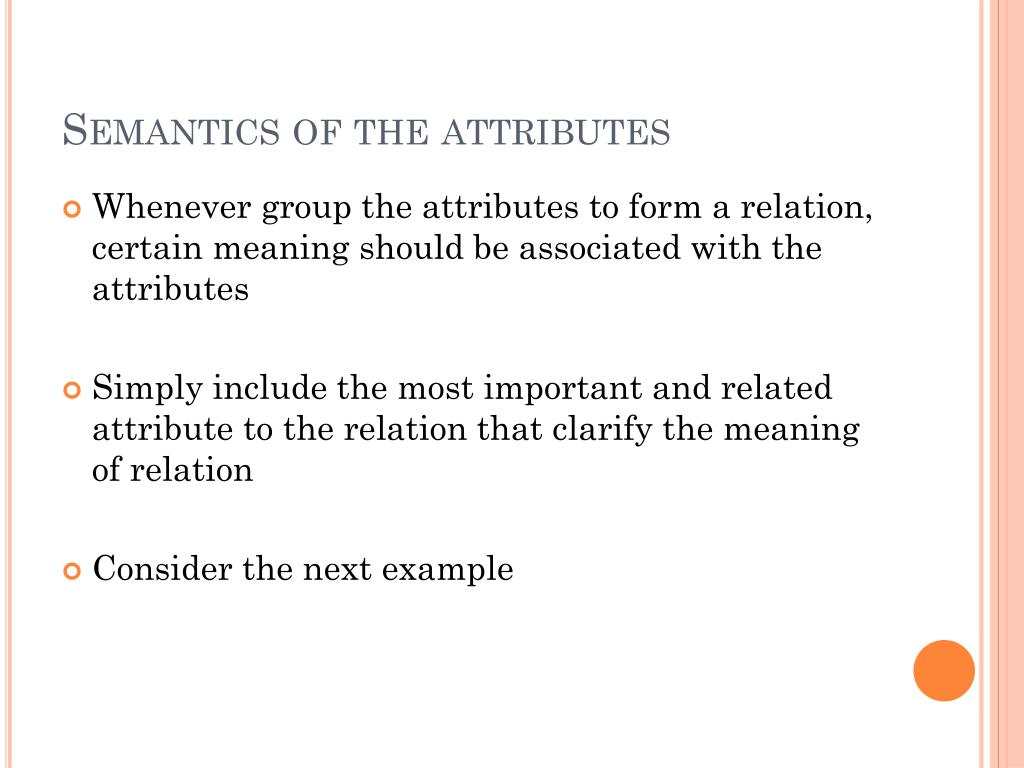

  10. Semantics of the attributes • Whenever group the attributes to form a relation, certain meaning should be associated with the attributes • Simply include the most important and related attribute to the relation that clarify the meaning of relation • Consider the next example

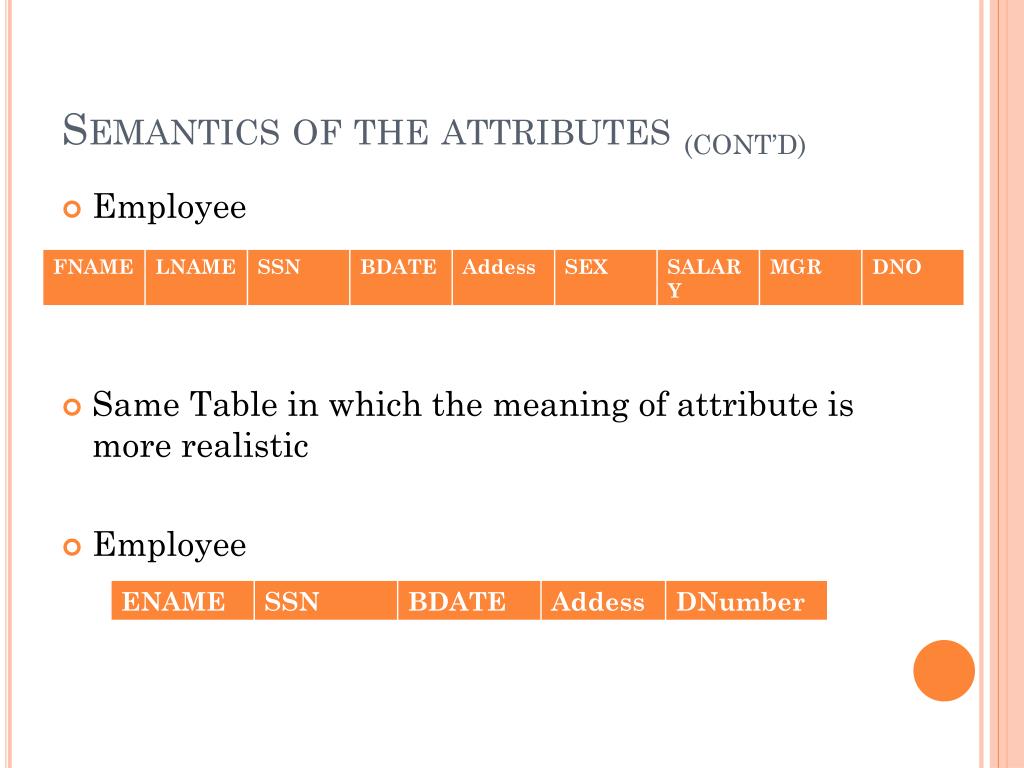

  11. Semantics of the attributes (cont’d) • Employee • Same Table in which the meaning of attribute is more realistic • Employee

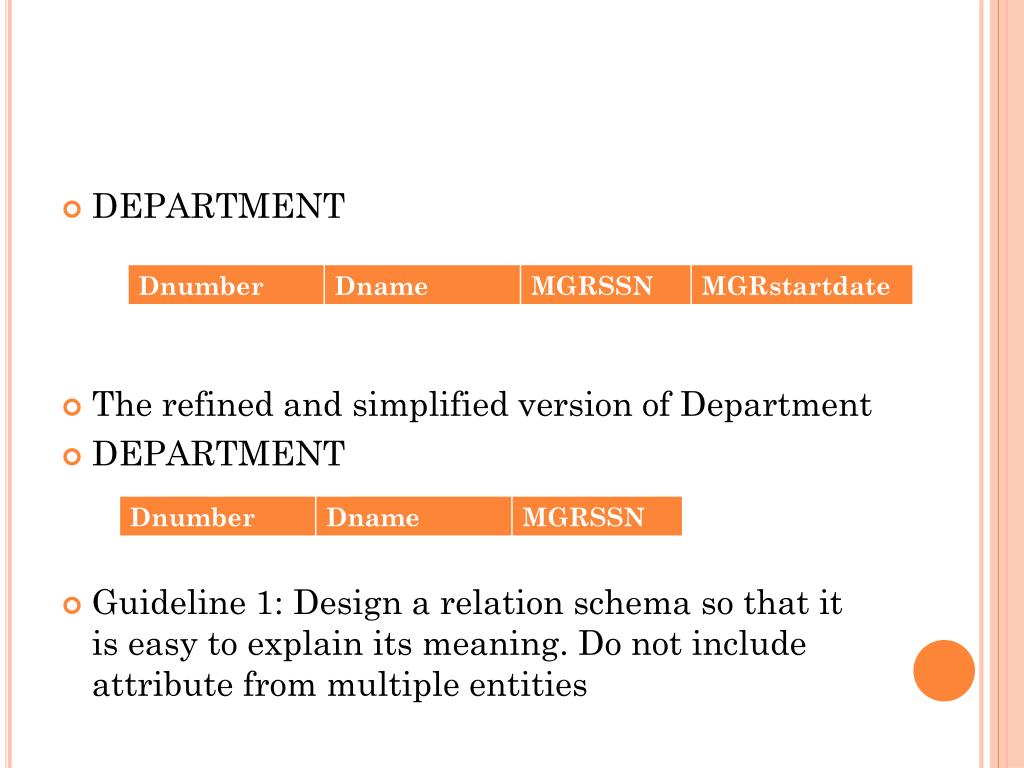

  12. DEPARTMENT • The refined and simplified version of Department • DEPARTMENT • Guideline 1: Design a relation schema so that it is easy to explain its meaning. Do not include attribute from multiple entities

  13. Redundant Information What are problems in this relation?

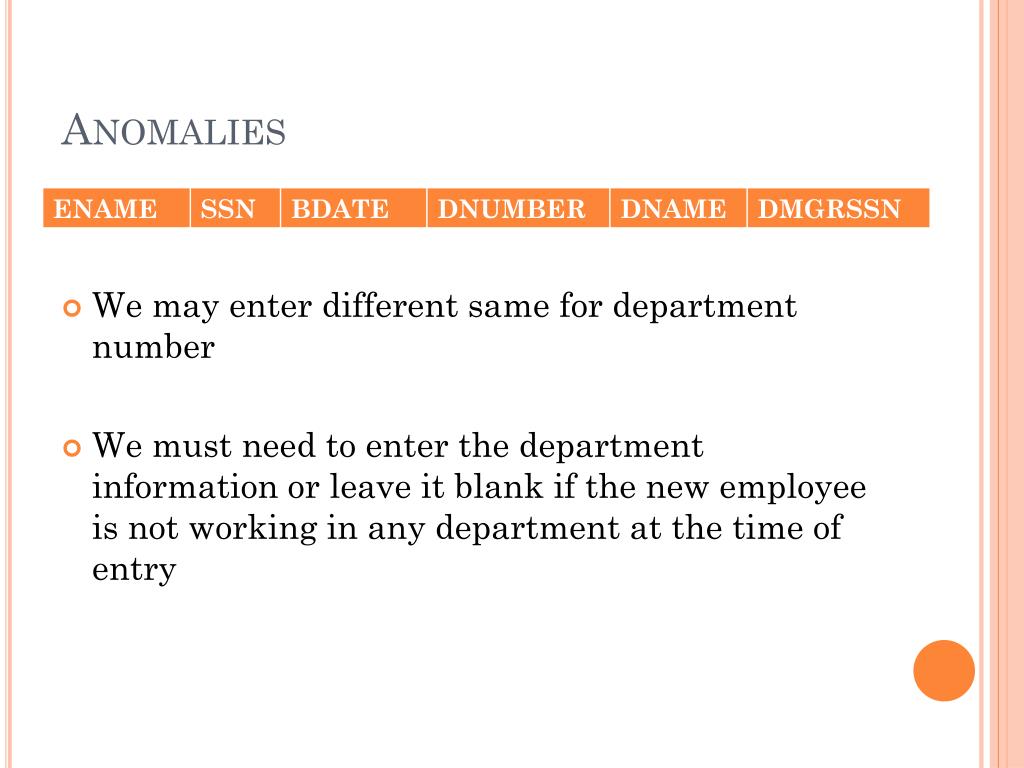

  14. Anomalies • We may enter different same for department number • We must need to enter the department information or leave it blank if the new employee is not working in any department at the time of entry

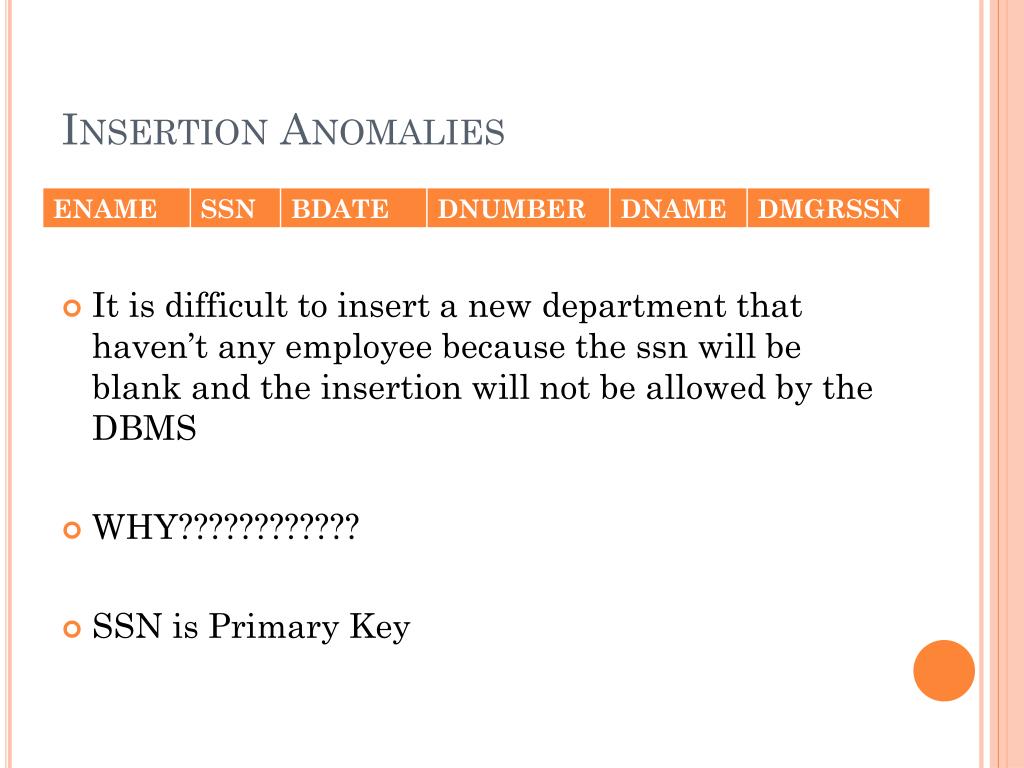

  15. Insertion Anomalies • It is difficult to insert a new department that haven’t any employee because the ssn will be blank and the insertion will not be allowed by the DBMS • WHY???????????? • SSN is Primary Key

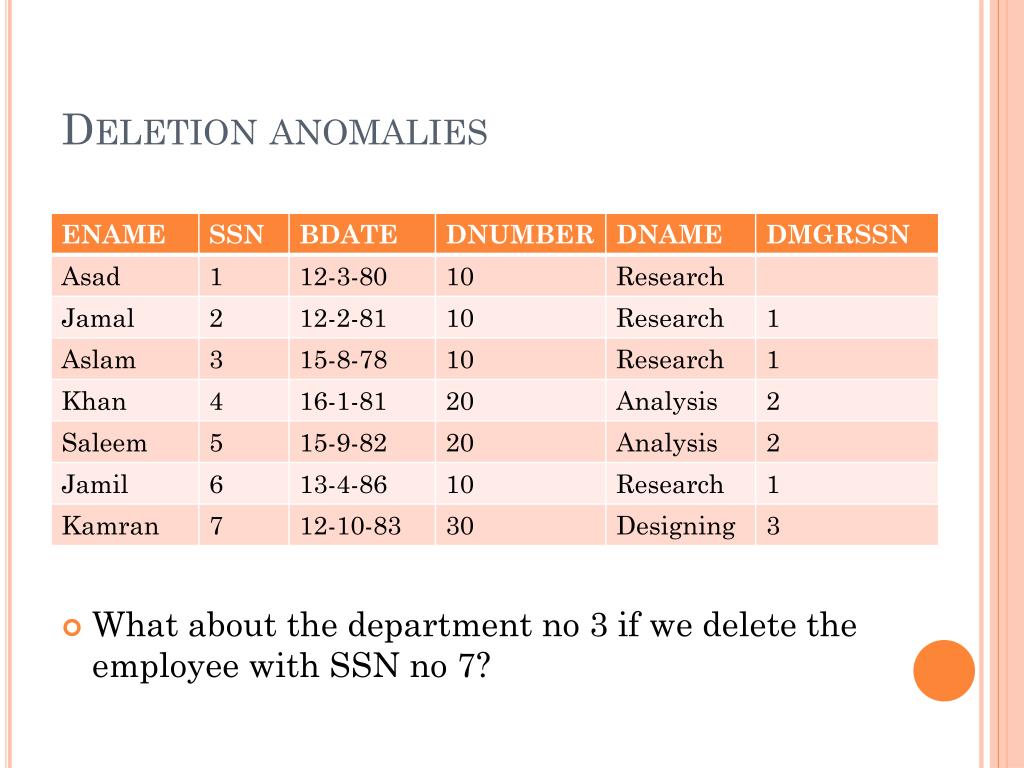

  16. Deletion anomalies • What about the department no 3 if we delete the employee with SSN no 7?

  17. UPDATE Anomalies • In case of updating the department information, we must update multiple records • Department no 10 will require to update 3 records

  18. Guideline No 2 • Design the relation so that no insertion , deletion and modification anomalies are present in the relation • This guideline is consistent with the first one

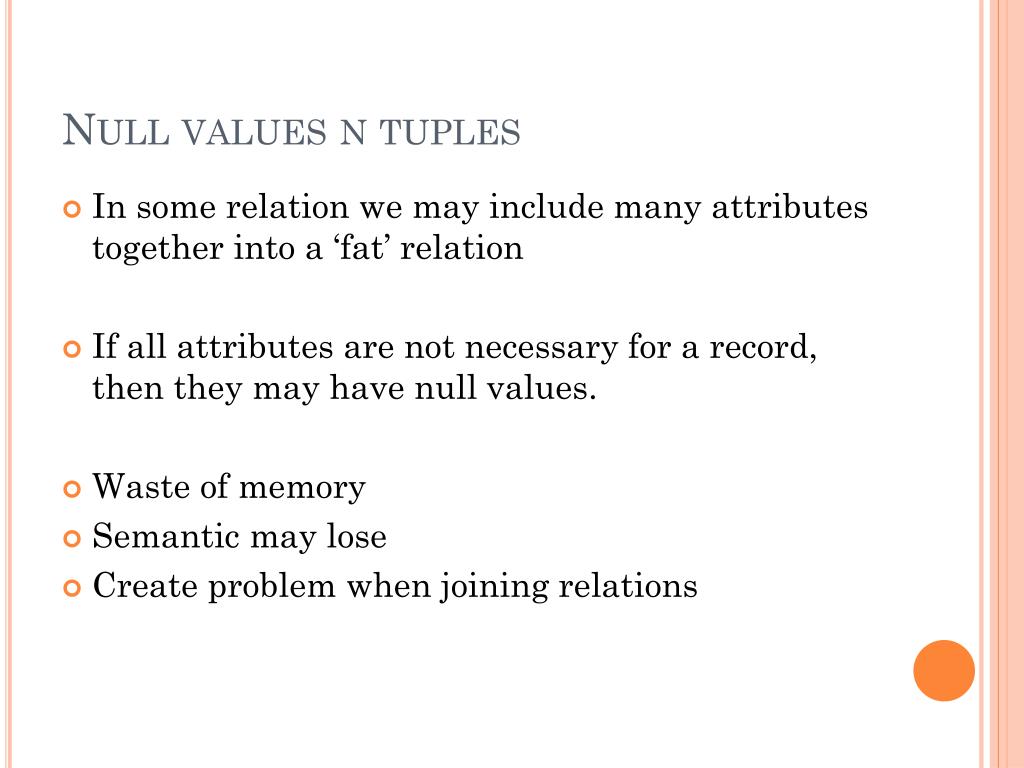

  19. Null values n tuples • In some relation we may include many attributes together into a ‘fat’ relation • If all attributes are not necessary for a record, then they may have null values. • Waste of memory • Semantic may lose • Create problem when joining relations

  20. Guideline No 3 • As far as possible avoid to include the attributes whose have may frequently be null. If nulls are unavoidable, make sure that they apply in exceptional case only • Example • If there are only 10% employees who has their offices then there is little justification for including ‘off-no’ in the employee relation • You can use a separate relation • EMPOFF(ESSN, Off_no)

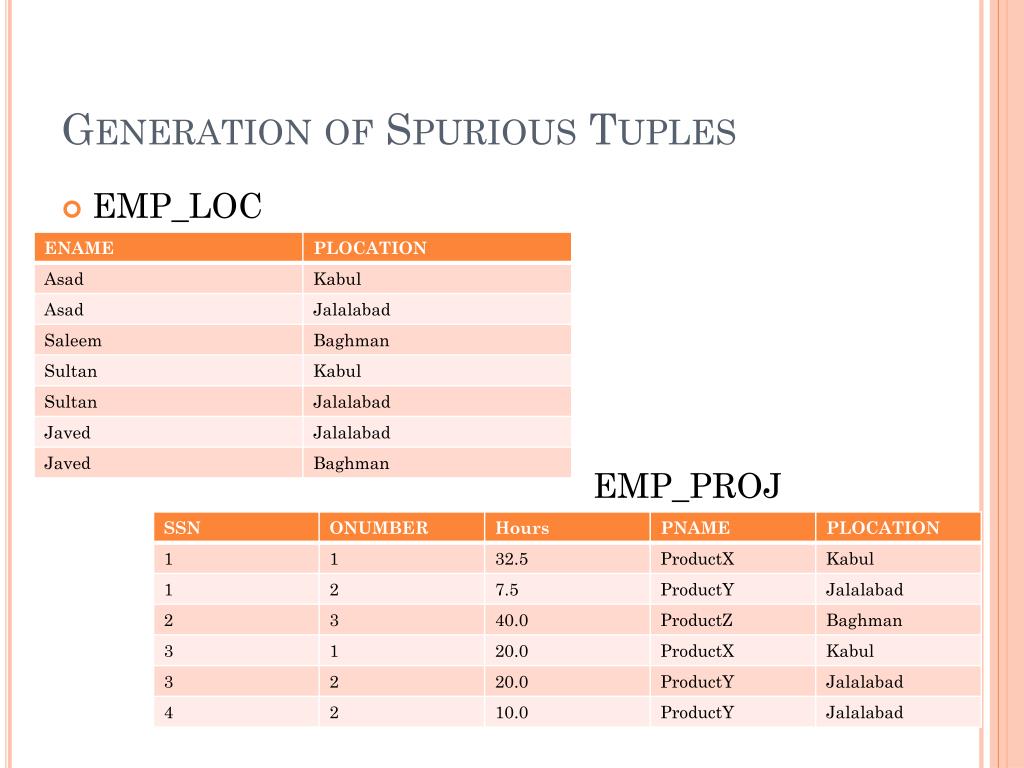

  21. Generation of Spurious Tuples • EMP_LOC EMP_PROJ

  22. Guideline No 4 • Design the relation so that equality join is applied on the attributes that are either primary key or foreign keys
