  1. ODS: Advanced Topics

  2. ODS is constantly improving support.sas.com/base/rnd

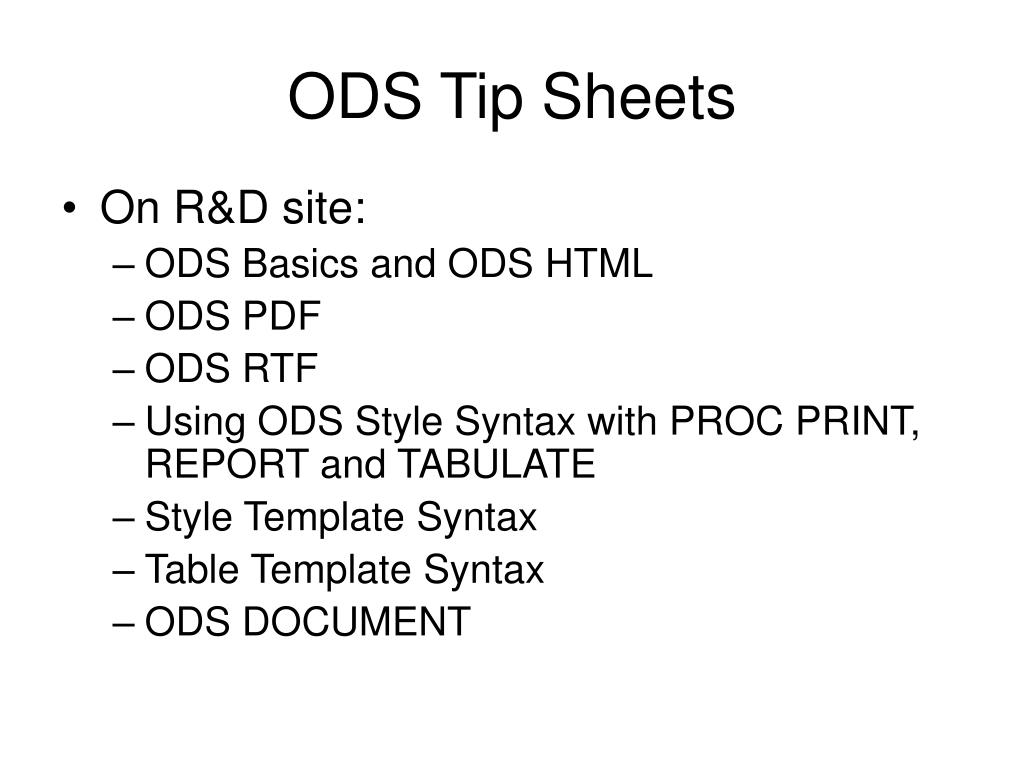

  3. ODS Tip Sheets • On R&D site: • ODS Basics and ODS HTML • ODS PDF • ODS RTF • Using ODS Style Syntax with PROC PRINT, REPORT and TABULATE • Style Template Syntax • Table Template Syntax • ODS DOCUMENT

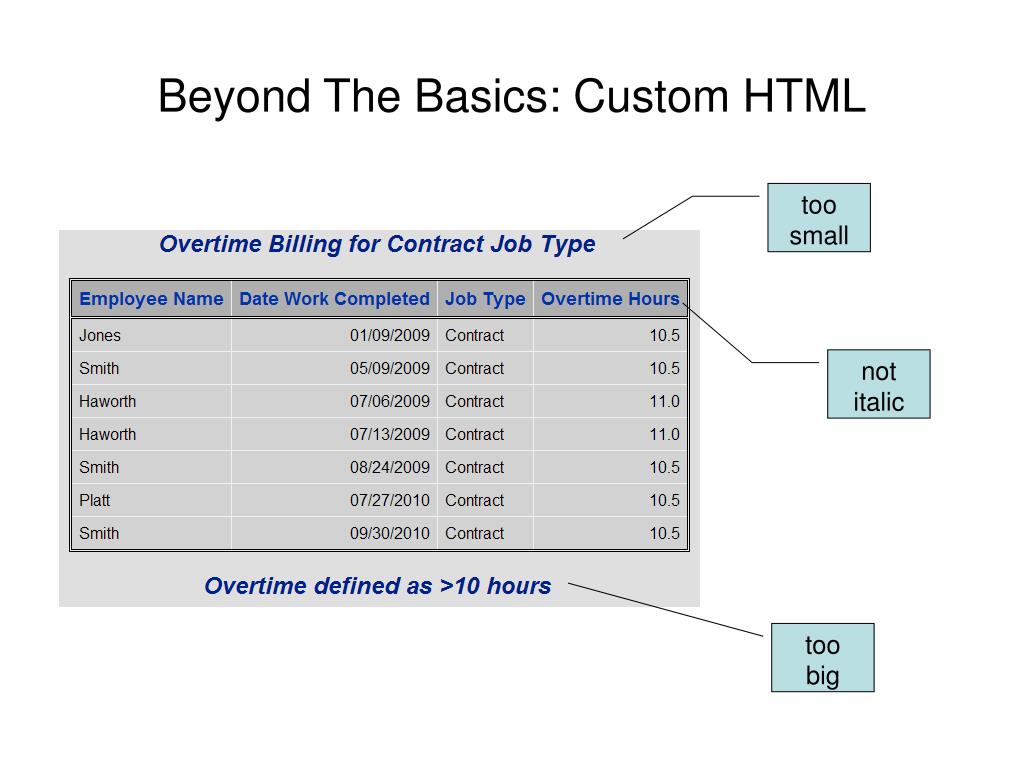

  4. Beyond The Basics: Custom HTML toosmall notitalic too big

  5. Beyond The Basics: Custom HTML ODS HTML BODY='overtime.html'; title '<H1>Overtime Billing for Contract Job Type</H1>'; footnote '<FONT SIZE=2>Overtime defined as >10 hours</FONT>'; proc print data=Billings noobs label where Hours>8; label Hours='<I>Overtime Hours</I>'; var WorkDate JobType Hours; run; ODS HTML CLOSE;

  6. Beyond The Basics: Custom HTML bigger italic smaller

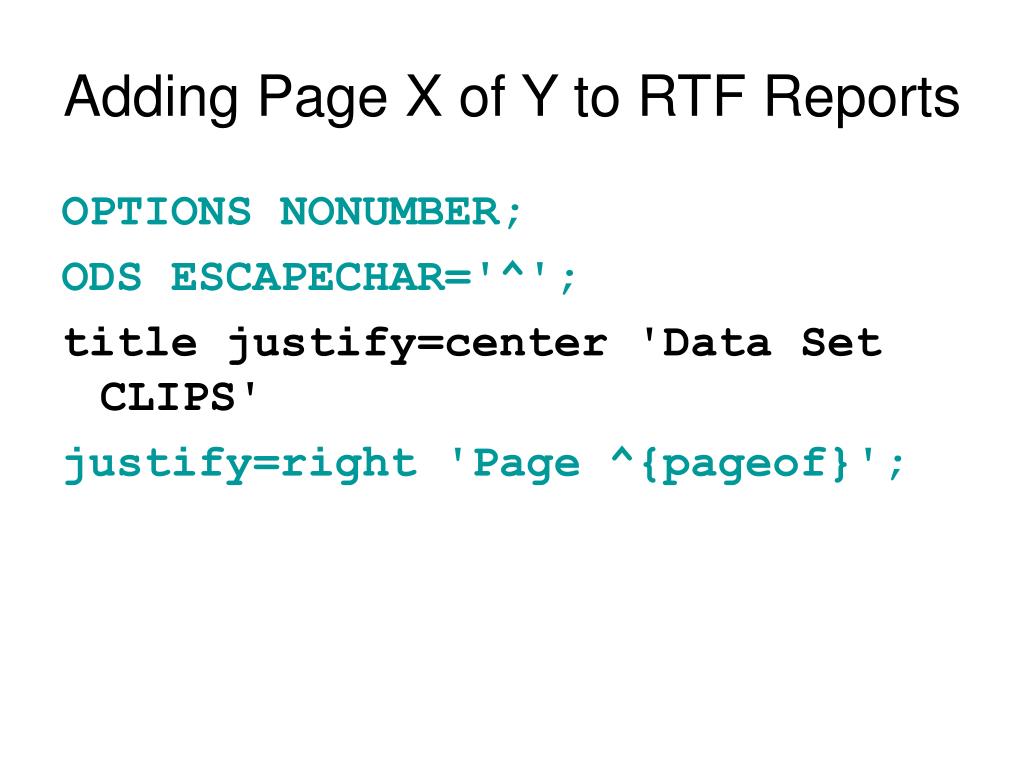

  7. Adding Page X of Y to RTF Reports OPTIONS NONUMBER; ODS ESCAPECHAR='^'; title justify=center 'Data Set CLIPS' justify=right 'Page ^{pageof}';

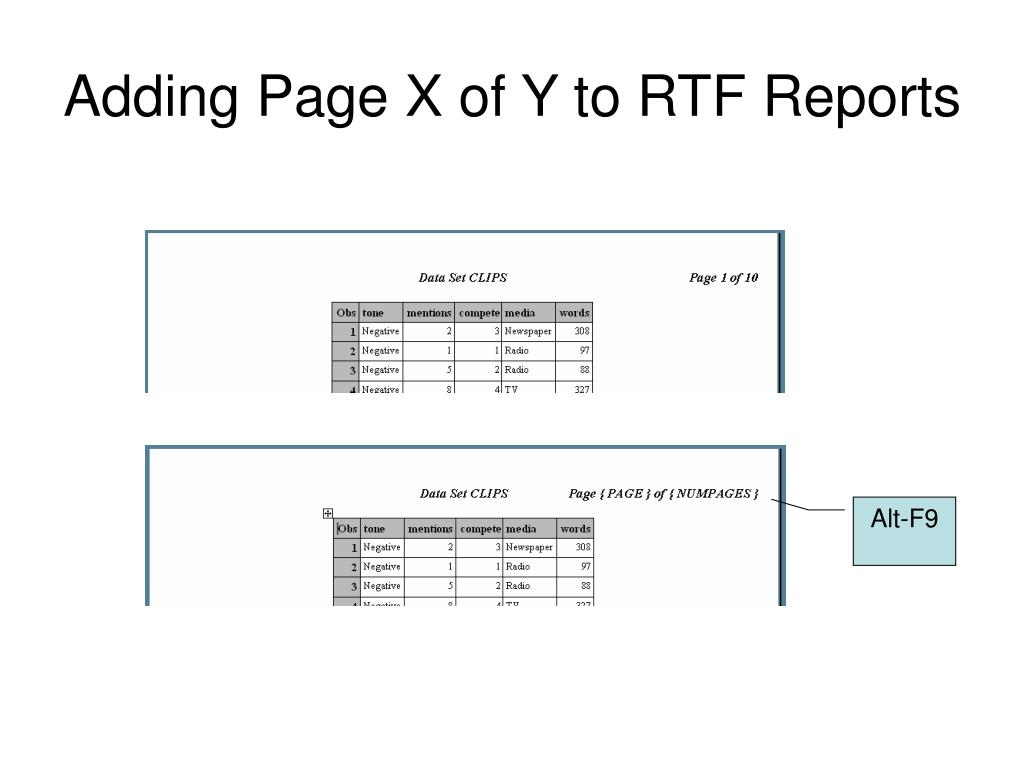

  8. Adding Page X of Y to RTF Reports Alt-F9

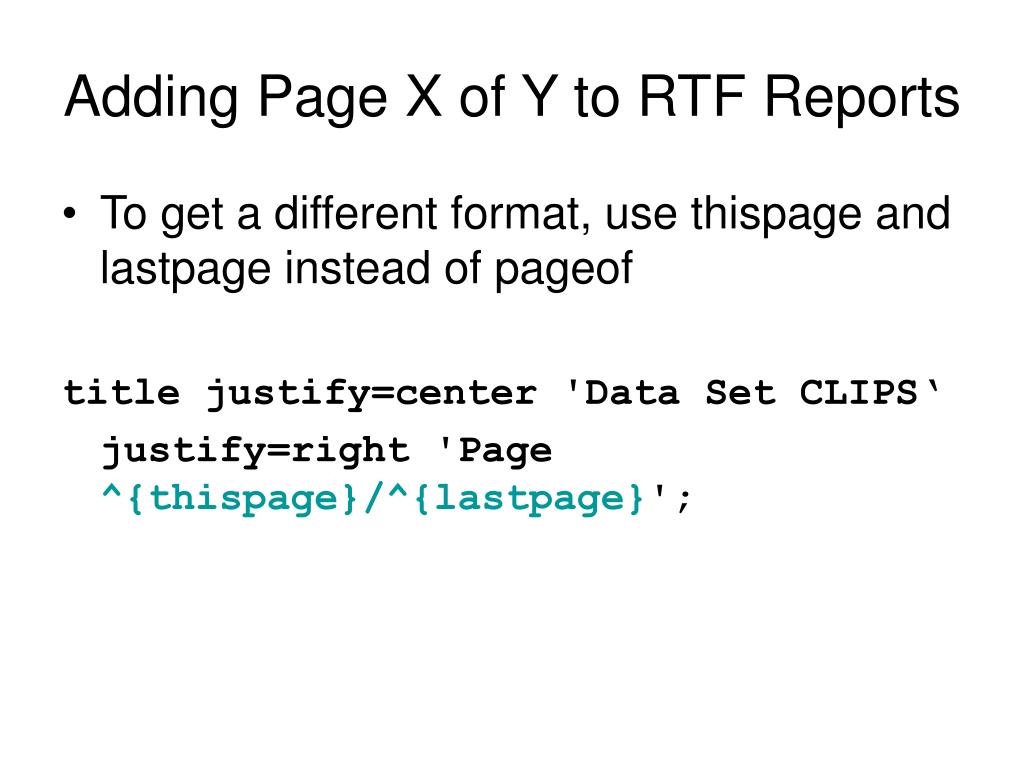

  9. Adding Page X of Y to RTF Reports • To get a different format, use thispage and lastpage instead of pageof title justify=center 'Data Set CLIPS‘ justify=right 'Page ^{thispage}/^{lastpage}';

  10. Adding a Static Dates • To insert the date the program was run ODS RTF FILE='StaticDate.rtf' SASDATE;

  11. Adding Text ODS TEXT ‘Insert your text’;

  12. Adding Text ODS ESCAPECHAR='^'; ODS RTF FILE='AddText.rtf' STARTPAGE=OFF; * procedure goes here; ODS TEXT='^S={LEFTMARGIN=1in RIGHTMARGIN=1in}This text was inserted with the TEXT= option. It can be used to add a detailed explanatory caption below a table or figure. This example uses an inline formatting escape sequence to apply different styles here. This text can also be formatted by using PROC TEMPLATE and the usertext style element'; ODS RTF CLOSE;

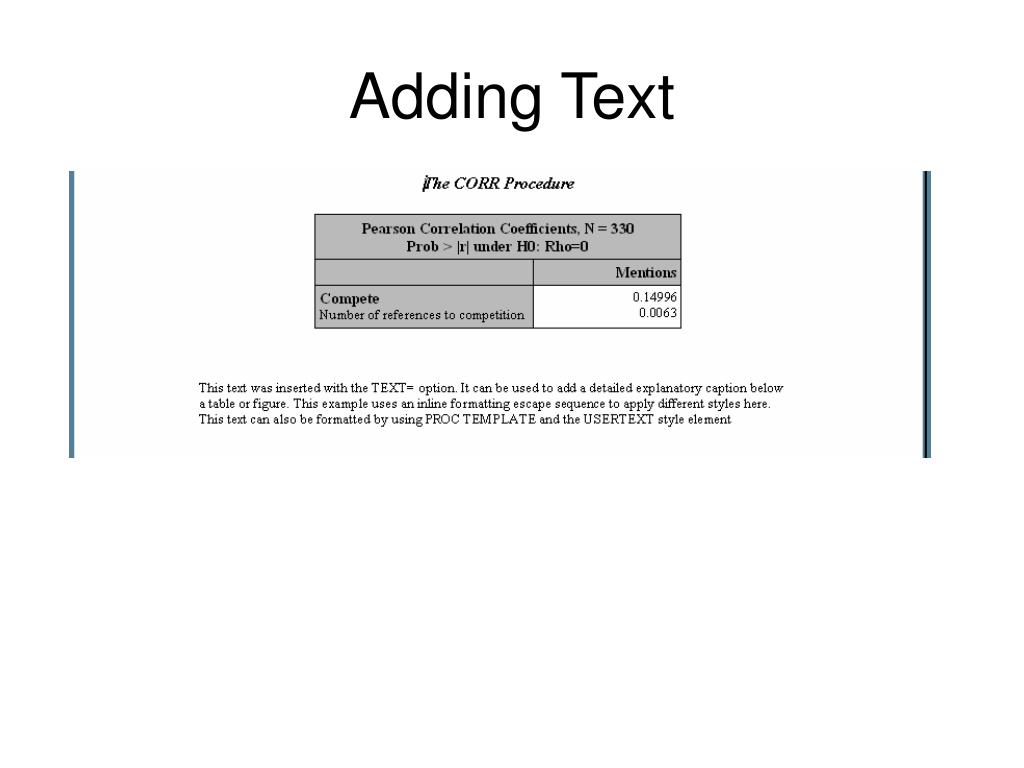

  13. Adding Text

  14. Beyond the Basics: Adding More Complex Text ODS ESCAPECHAR='^'; ODS RTF FILE='ReportWithText.rtf' STARTPAGE=OFF; ODS RTF TEXT='^{style[font_style=italic fontweight=bold fontsize=14pt] This bold, italicized text in 14pt introduces the table. Use ^n^n to insert blank lines to start a new paragraph}'; * proc corr goes here; ODS RTF TEXT='^n^n^n^n^S={font=(Arial)} This sentence in Arial says that four lines were inserted before this sentence and that a bar chart follows:'; * proc gchart goes here; ODS RTF TEXT='^S={fontweight=bold textdecoration=underline}This bold, underlined sentence concludes the report.'; ODS RTF CLOSE;

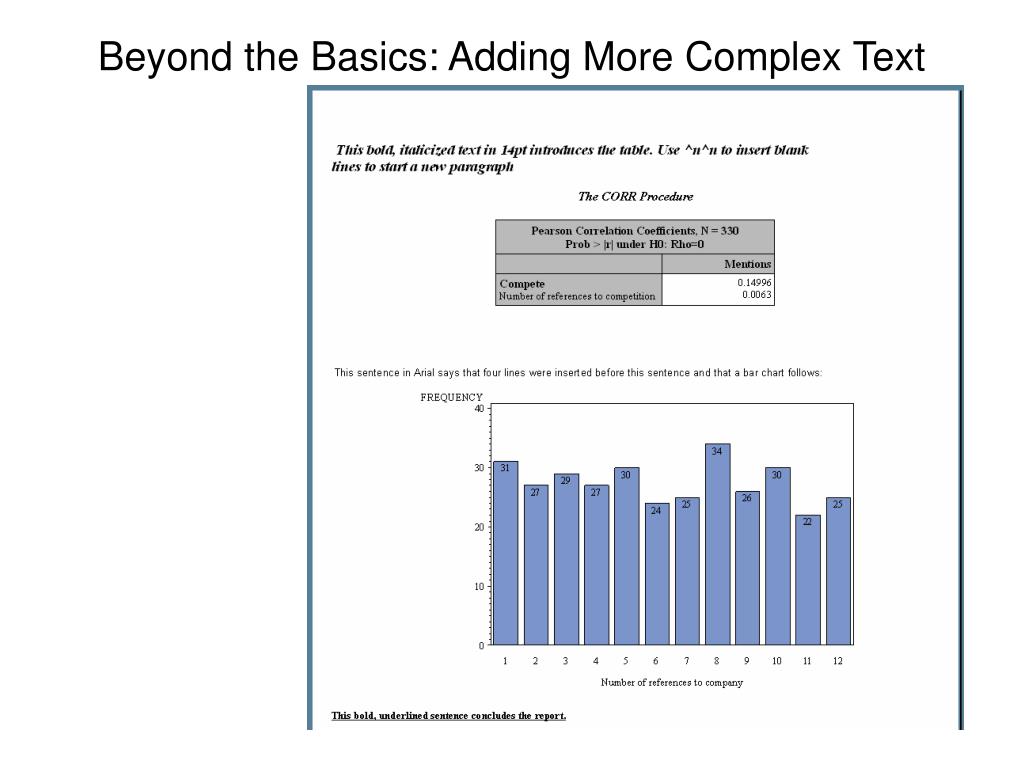

  15. Beyond the Basics: Adding More Complex Text

  16. Beyond the Basics: Adding Hyperlinks to RTF Output ODS ESCAPECHAR=’^’; ODS RTF FILE='Hyperlink.rtf'; proc freq data=clips; table compete; run; ODS RTF TEXT='^S={URL="http://www.myweb.com"}Source: ^S={FOREGROUND=blue}www.myweb.com'; ODS RTF CLOSE;

  17. Beyond the Basics: Adding Hyperlinks to RTF Output

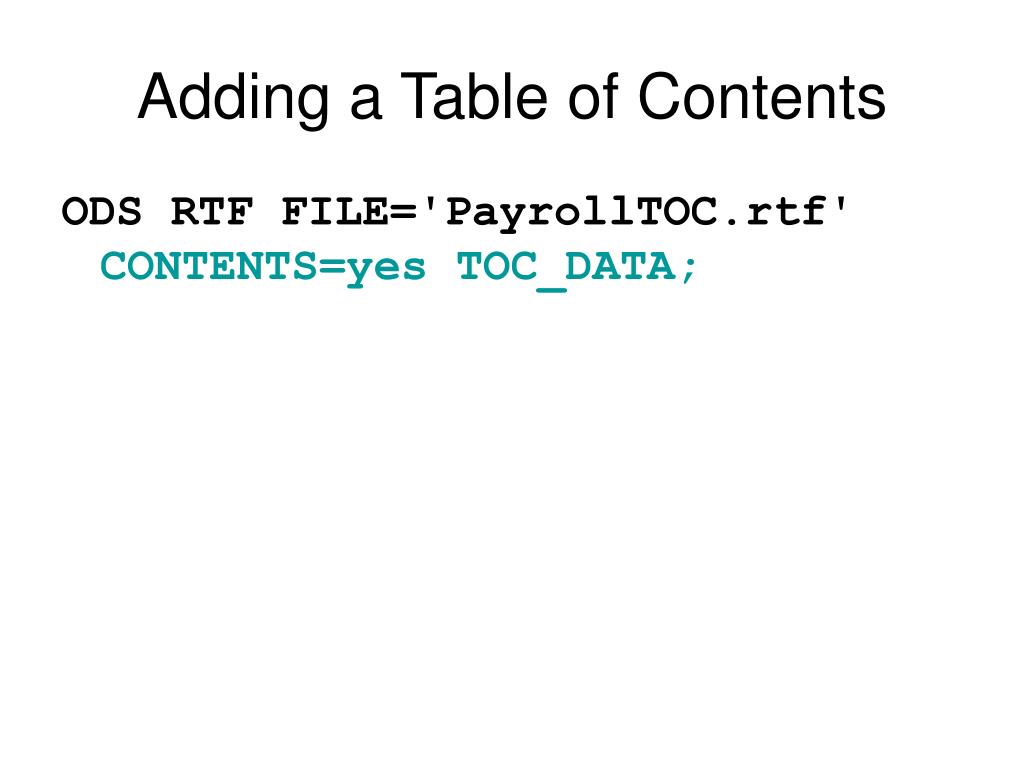

  18. Adding a Table of Contents ODS RTF FILE='PayrollTOC.rtf' CONTENTS=yes TOC_DATA;

  19. Adding a Table of Contents ODS RTF FILE='PayrollTOC.rtf' CONTENTS=yes TOC_DATA; ODS PROCLABEL 'Human Resources Report on Salary and Hours'; proc tabulate data=hr; class department category; var annualsalary hoursweek; tables department='Annual Salary Statistics for ' all='Annual Salary Statistics in All Departments and Categories', (category all='All Categories in Department'), annualsalary*( (n mean min median max)*f=dollar8.); tables department='Hours per Week Statistics for ' all= 'Hours per Week Statistics for All Departments and Categories', (category all='All Categories in Department'), hoursweek*( (n mean min median max)*f=3.); run; ODS RTF CLOSE;

  20. Adding a Table of Contents To generate the TOC: right click on TOC and select “update field”. If TOC not showing, click View and then “Show Paragraph Marks”.

  21. Adding a Table of Contents • How it works:

  22. Beyond the Basics: Enhancing RTF using RTF Control Words and Field Codes title "^{raw <string>}";

  23. Beyond the Basics: Enhancing RTF using RTF Control Words and Field Codes

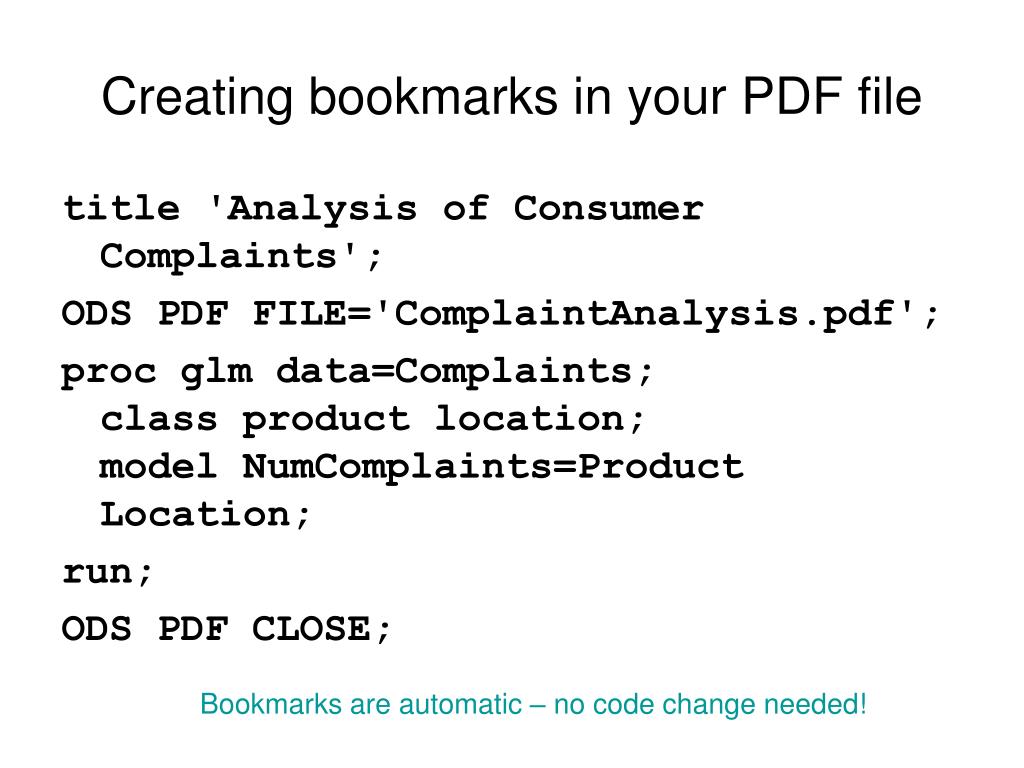

  24. Creating bookmarks in your PDF file title 'Analysis of Consumer Complaints'; ODS PDF FILE='ComplaintAnalysis.pdf'; proc glm data=Complaints;class product location;model NumComplaints=Product Location; run; ODS PDF CLOSE; Bookmarks are automatic – no code change needed!

  25. Creating bookmarks in your PDF file

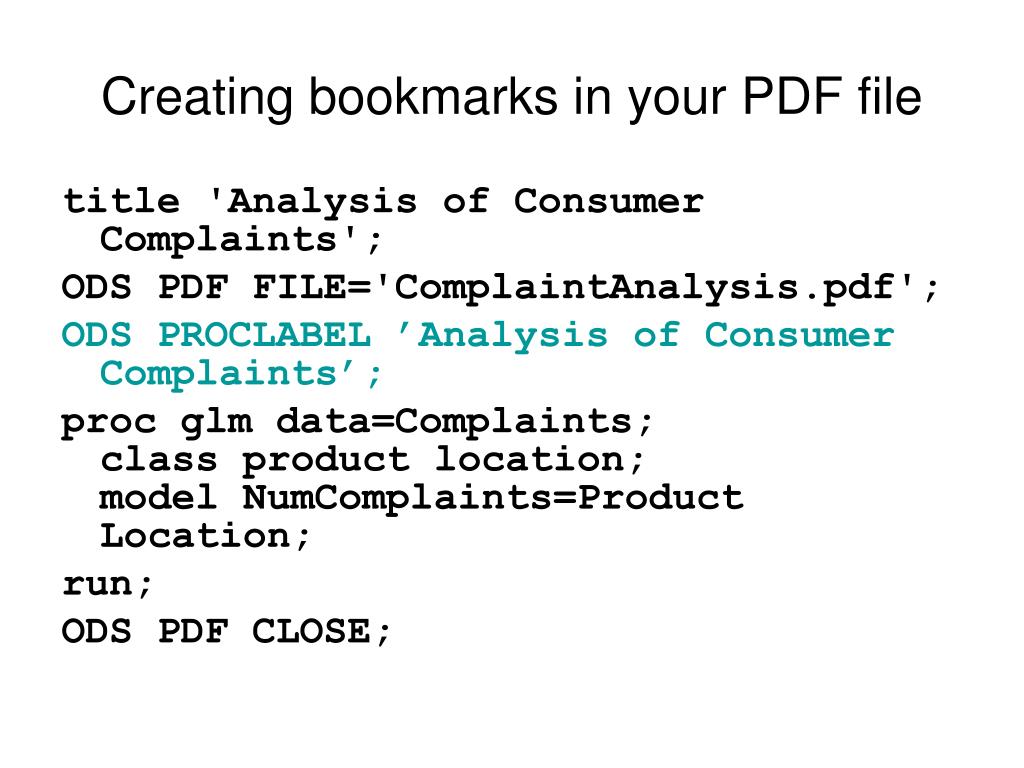

  26. Creating bookmarks in your PDF file title 'Analysis of Consumer Complaints'; ODS PDF FILE='ComplaintAnalysis.pdf'; ODS PROCLABEL ’Analysis of Consumer Complaints’; proc glm data=Complaints;class product location;model NumComplaints=Product Location; run; ODS PDF CLOSE;

  27. Creating bookmarks in your PDF file Bookmark options: check out CONTENTS, PDFTOC, BOOKMARKGEN and BOOKMARKLIST

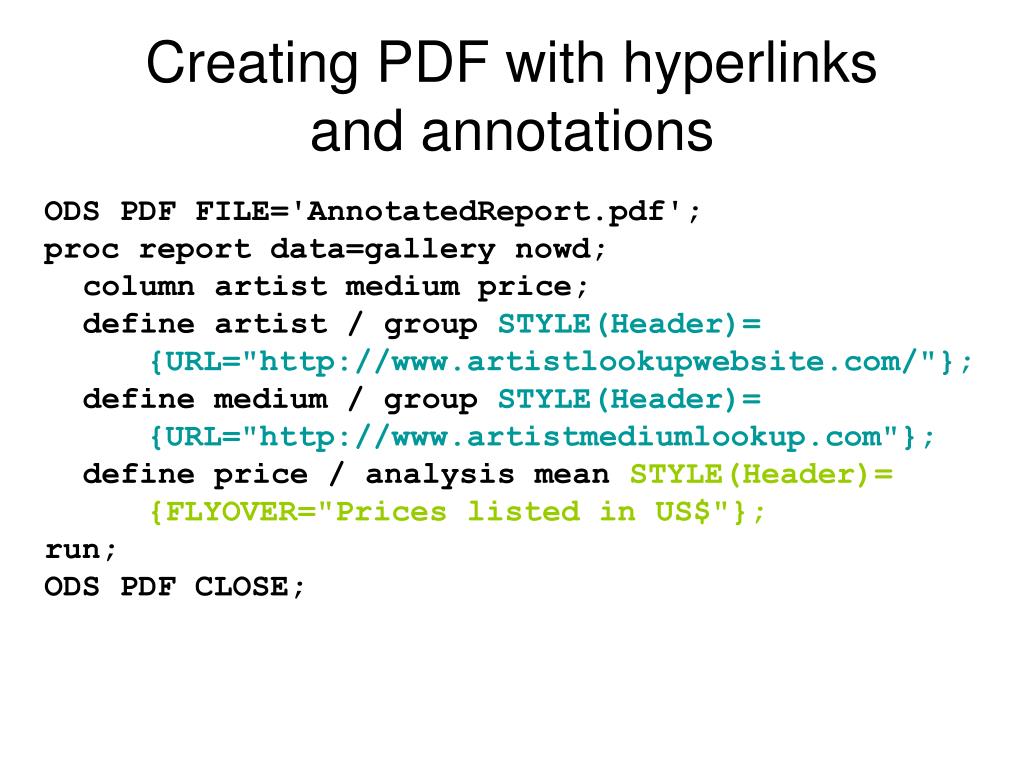

  28. Creating PDF with hyperlinks and annotations ODS PDF FILE='AnnotatedReport.pdf'; proc report data=gallery nowd; column artist medium price; define artist / group STYLE(Header)= {URL="http://www.artistlookupwebsite.com/"}; define medium / group STYLE(Header)= {URL="http://www.artistmediumlookup.com"}; define price / analysis mean STYLE(Header)= {FLYOVER="Prices listed in US$"}; run; ODS PDF CLOSE;

  29. Creating PDF with hyperlinks and annotations

  30. Creating PDF with hyperlinks and annotations

  31. Another means of creating hyperlinks and annotations ODS ESCAPECHAR='^'; ODS PDF FILE='HyperlinkedReport.pdf'; footnote '^{style[URL="http://threeartgalleries.info"]Click for more gallery info}'; proc tabulate data=gallery; class gallery; var price; tables gallery,price* (n*f=5. (mean min max)*f=dollar8.); run; ODS PDF CLOSE;

  32. Another means of creating hyperlinks and annotations

  33. Another means of creating hyperlinks and annotations ODS ESCAPECHAR='^'; proc format; value $galft 'East Side'='^{style[FLYOVER= "130 East 23rd"]East side}‘ 'Downtown'='^{style[FLYOVER= "10 Elm Street"]Downtown}‘ 'Mall'='^{style[FLYOVER= "Southside Mall Blvd"]Mall}'; run;

  34. Another means of creating hyperlinks and annotations

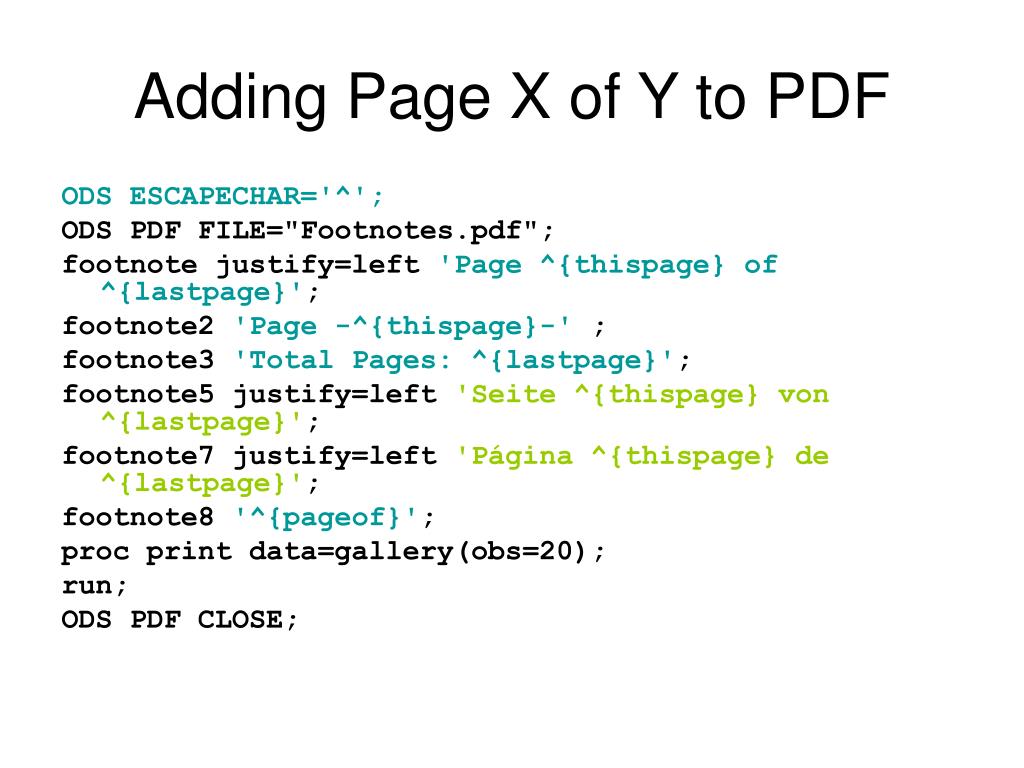

  35. Adding Page X of Y to PDF ODS ESCAPECHAR='^'; ODS PDF FILE="Footnotes.pdf"; footnote justify=left 'Page ^{thispage} of ^{lastpage}'; footnote2 'Page -^{thispage}-' ; footnote3 'Total Pages: ^{lastpage}'; footnote5 justify=left 'Seite ^{thispage} von ^{lastpage}'; footnote7 justify=left 'Página ^{thispage} de ^{lastpage}'; footnote8 '^{pageof}'; proc print data=gallery(obs=20); run; ODS PDF CLOSE;

  36. Adding Page X of Y to PDF Doesn’t work for PDF, only RTF

  37. Tagsets and Reporting

  38. Tagsets and Reporting

  39. Tagsets and Reporting

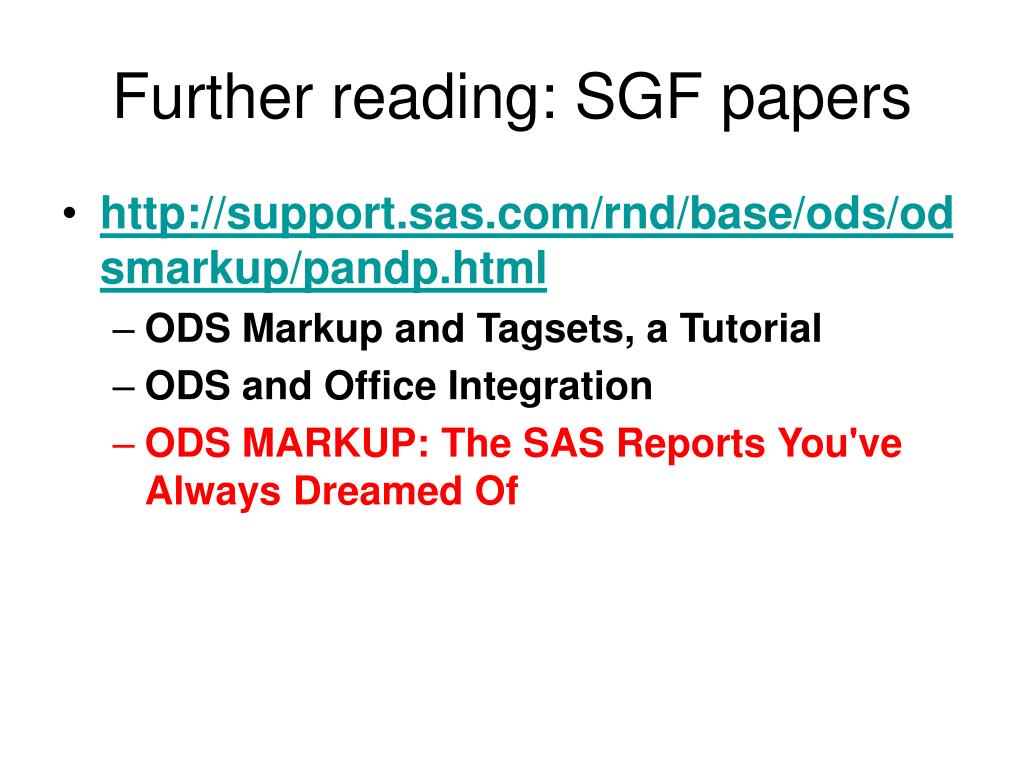

  40. Further reading: SGF papers • http://support.sas.com/rnd/base/ods/odsmarkup/pandp.html • ODS Markup and Tagsets, a Tutorial • ODS and Office Integration • ODS MARKUP: The SAS Reports You've Always Dreamed Of

  41. Summary • This was a whirlwind tour of some useful advanced topics • There are many more • Questions: • info@laurenhaworth.com • Or buy the book! 
