Professional Informatics & Quality Assurance

1. Professional Informatics & Quality Assurance Software Lifecycle Manager „Tools that are more a help than a hindrance”

2. The Software Lifecycle Manager • The Software Lifecycle • Your Situation • Our Offering • Use at Deutsche Telekom • Overview • The Test Workbench • The Report Manager • The SLM as a Smart Toolkit

3. The Software Lifecycle

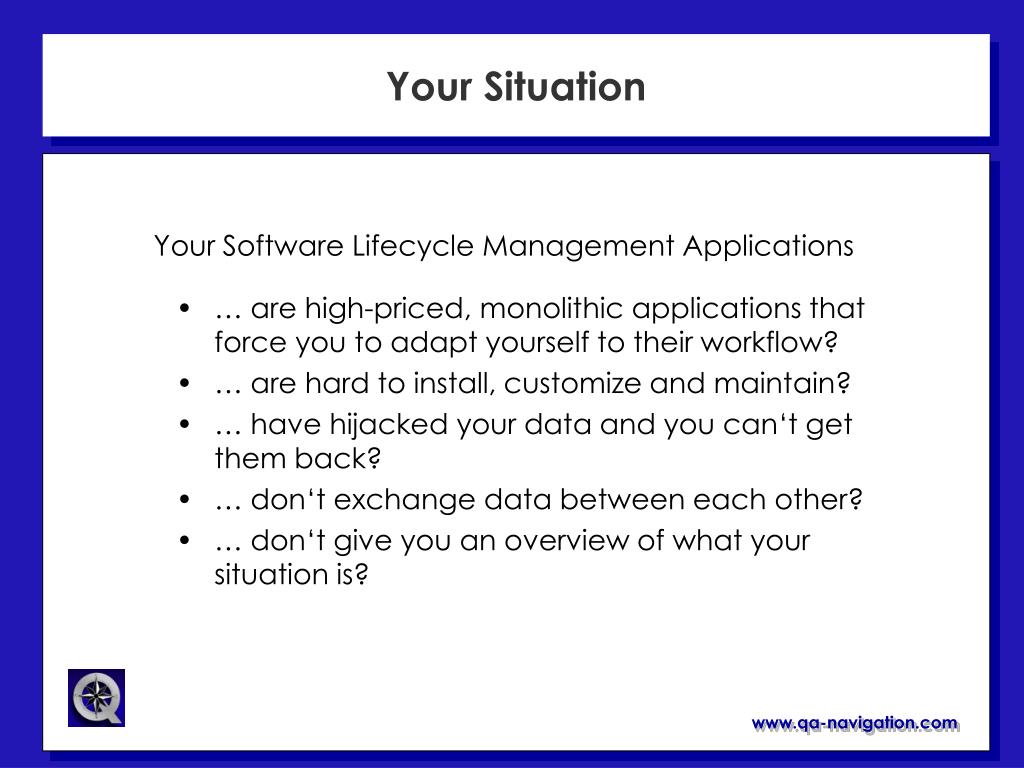

4. Your Situation • … are high-priced, monolithic applications that force you to adapt yourself to their workflow? • … are hard to install, customize and maintain? • … have hijacked your data and you can‘t get them back? • … don‘t exchange data between each other? • … don‘t give you an overview of what your situation is? Your Software Lifecycle Management Applications

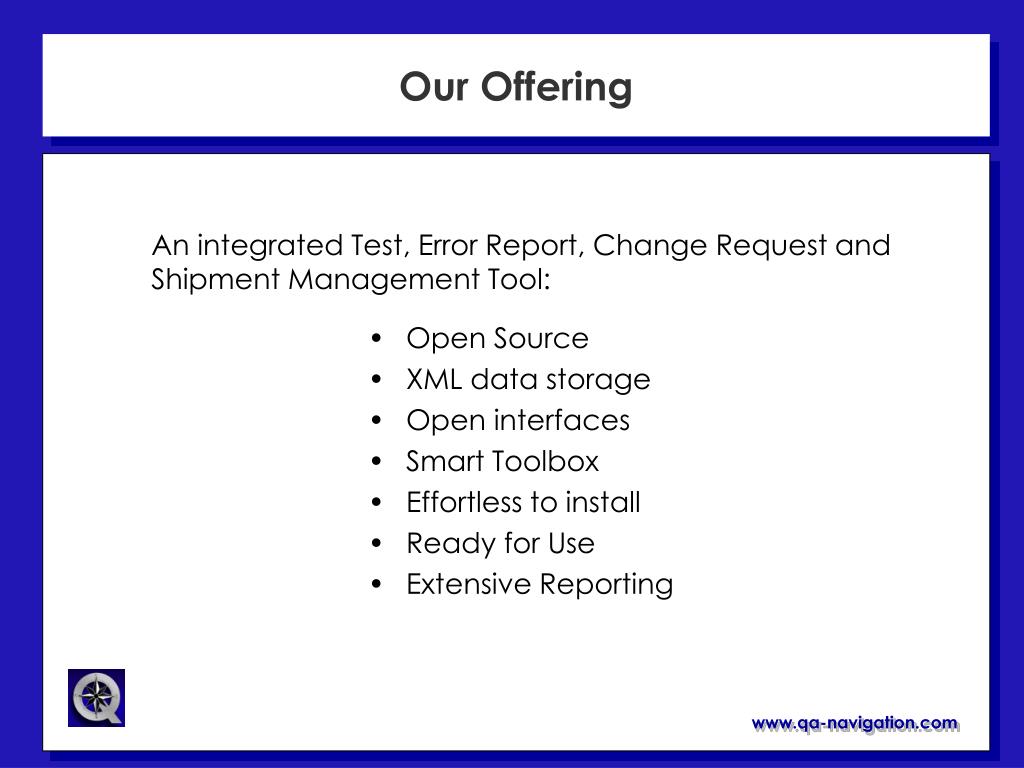

5. Our Offering • Open Source • XML data storage • Open interfaces • Smart Toolbox • Effortless to install • Ready for Use • Extensive Reporting An integrated Test, Error Report, Change Request and Shipment Management Tool:

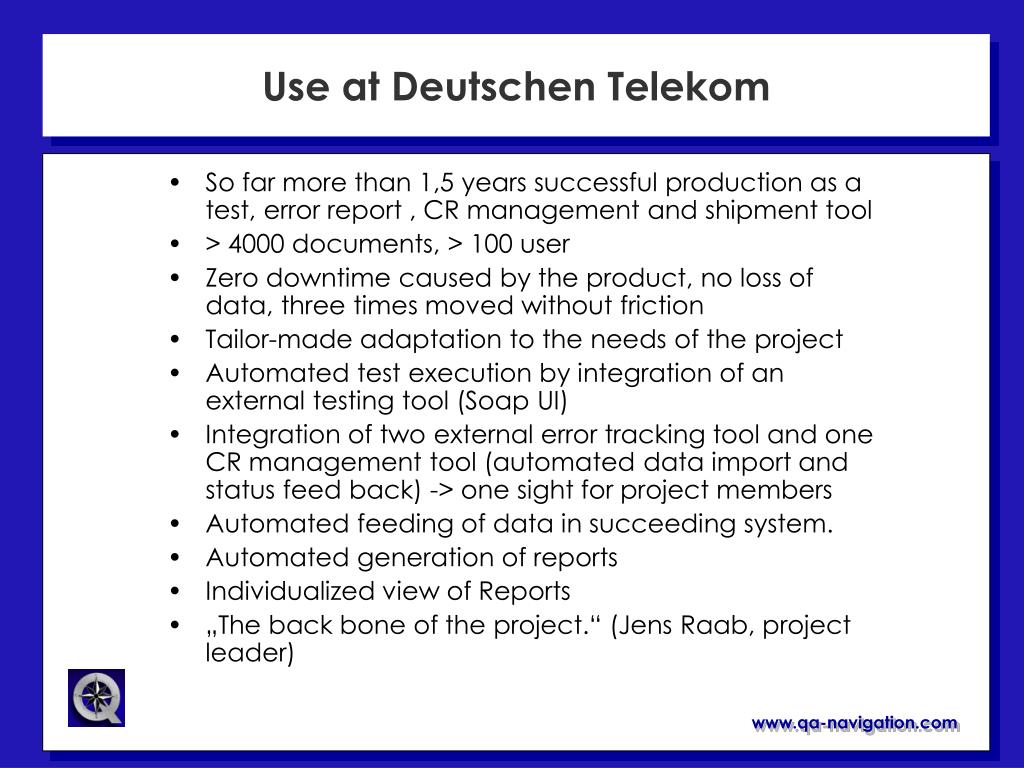

6. Use at Deutschen Telekom • So far more than 1,5 years successful production as a test, error report , CR management and shipment tool • > 4000 documents, > 100 user • Zero downtime caused by the product, no loss of data, three times moved without friction • Tailor-made adaptation to the needs of the project • Automated test execution by integration of an external testing tool (Soap UI) • Integration of two external error tracking tool and one CR management tool (automated data import and status feed back) -> one sight for project members • Automated feeding of data in succeeding system. • Automated generation of reports • Individualized view of Reports • „The back bone of the project.“ (Jens Raab, project leader)

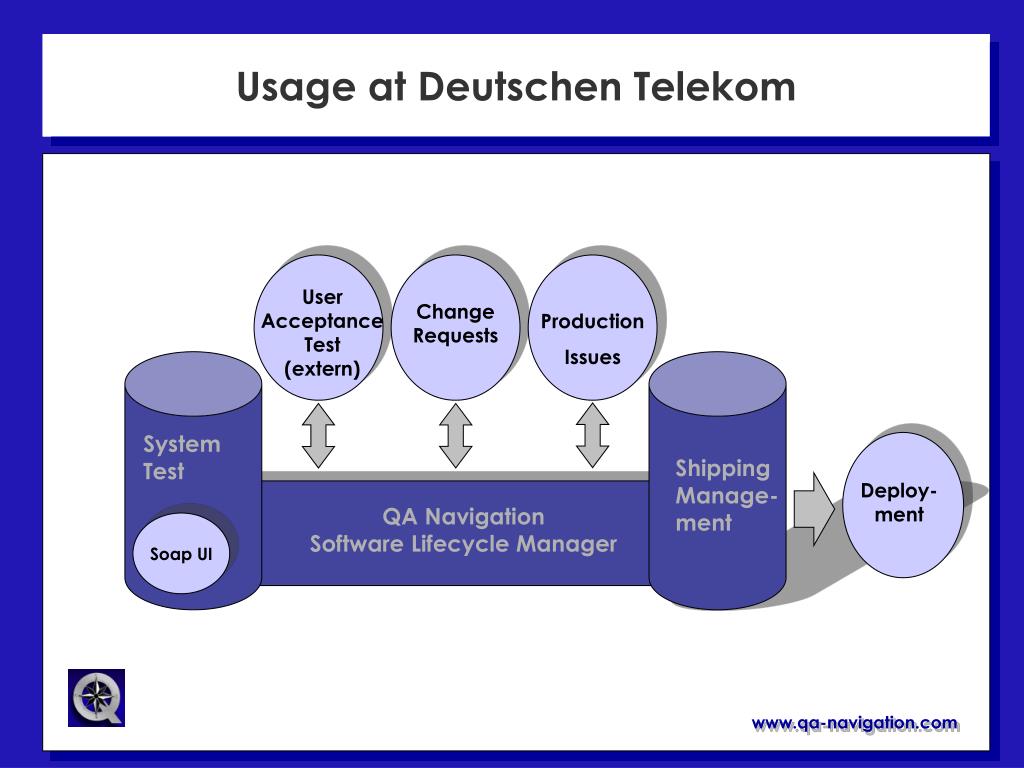

7. Usage at Deutschen Telekom User AcceptanceTest (extern) Change Requests Production Issues System Test Shipping Manage-ment Deploy-ment QA Navigation Software Lifecycle Manager Soap UI

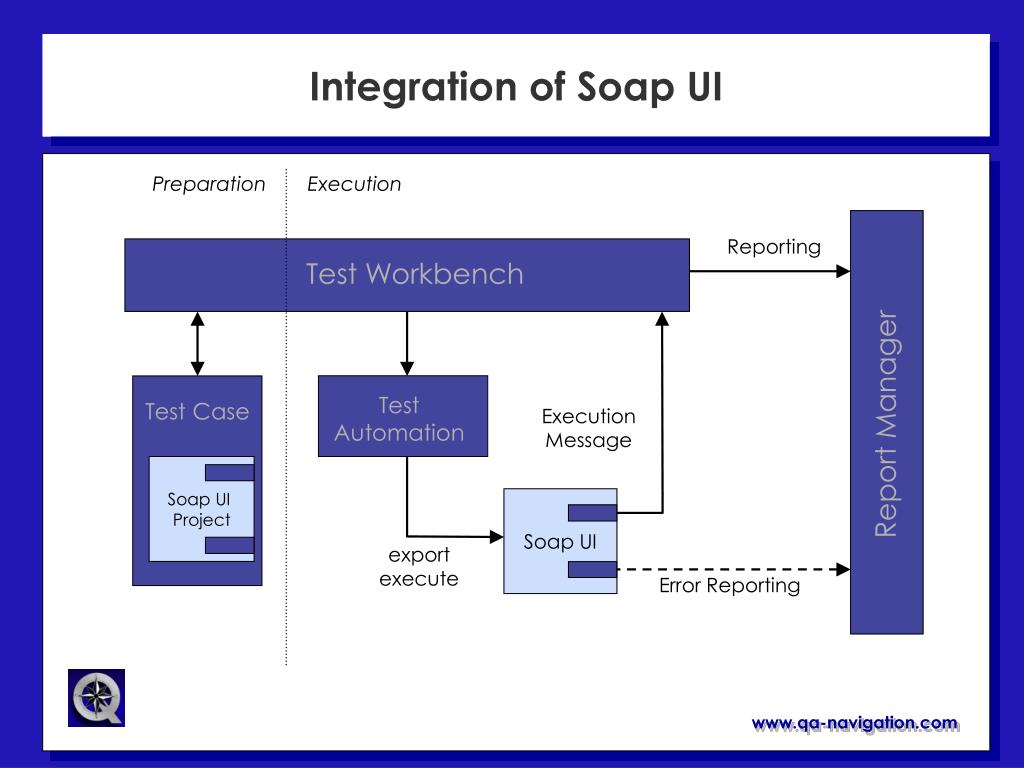

8. Integration of Soap UI Preparation Execution Reporting Test Workbench Test Automation Test Case Execution Message Report Manager Soap UI Project Soap UI export execute Error Reporting

9. Overview (Test Workbench) Request Test Case TC Set Export/Import Statistics Campaign TC Execution Report Manager

10. Overview (Report Manager) CR Report Test Workbench Statistics Technical Report Interfaces Source Ship Doc Fix

11. The Software Lifecycle Manager The TestWorkbench

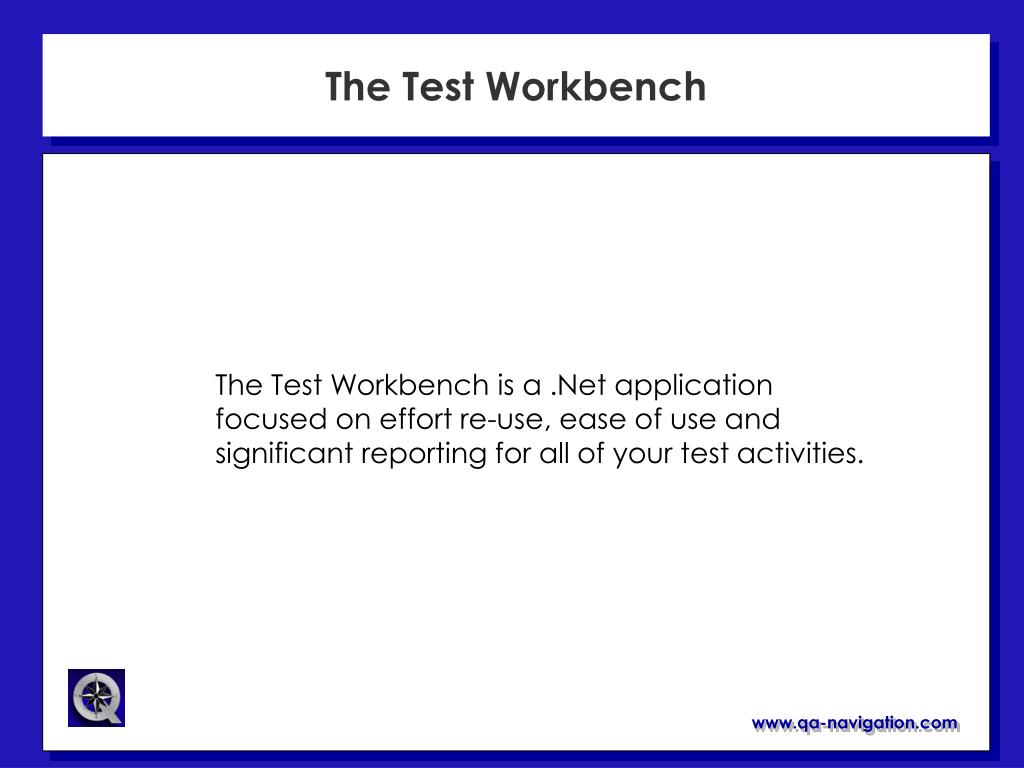

12. The Test Workbench The Test Workbench is a .Net application focused on effort re-use, ease of use and significant reporting for all of your test activities.

13. TC Editor

14. TC Editor Editor to create or alter Test Cases. Features: • Link to Requirement • Chain TCs • ‘Save as New’ • ‘Save & New’ • Export/import • Attachment of external Files (e.g. for test-automation)

15. TC Set Compiler

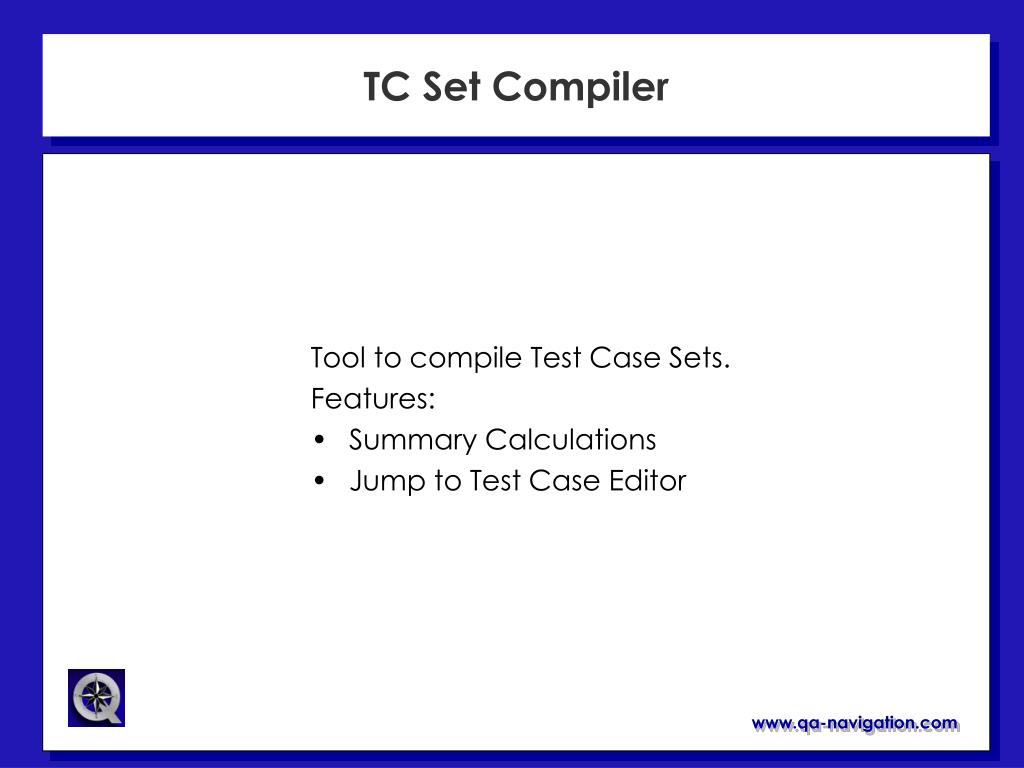

16. TC Set Compiler Tool to compile Test Case Sets. Features: • Summary Calculations • Jump to Test Case Editor

17. Campaign Manager

18. Campaign Manager

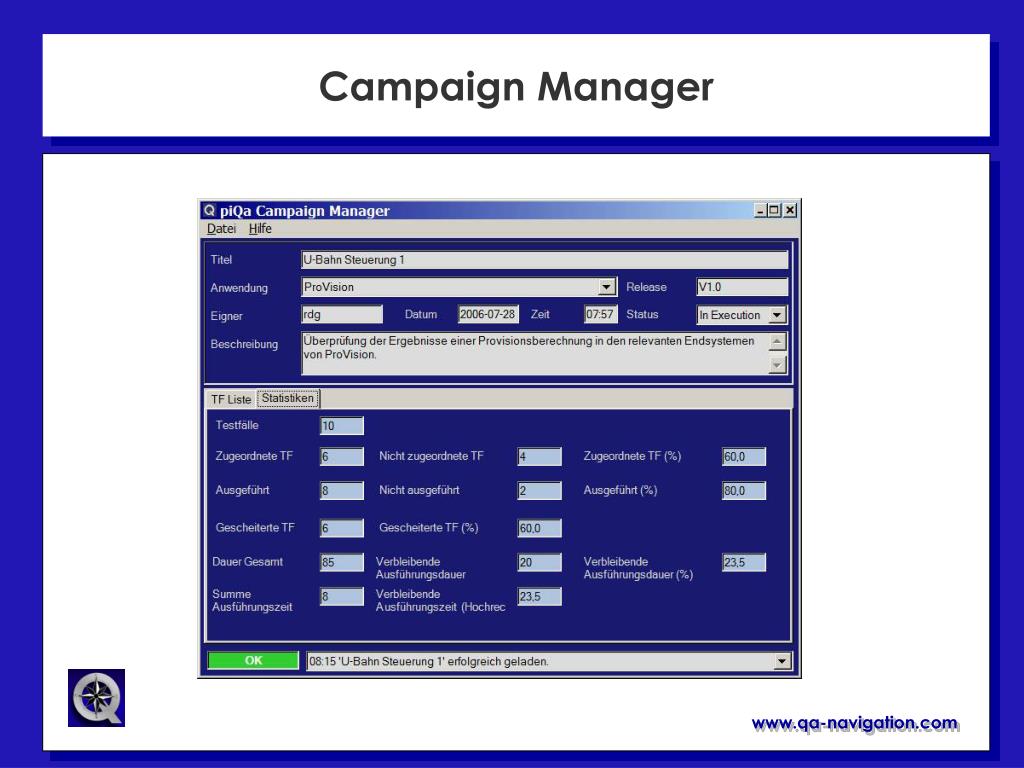

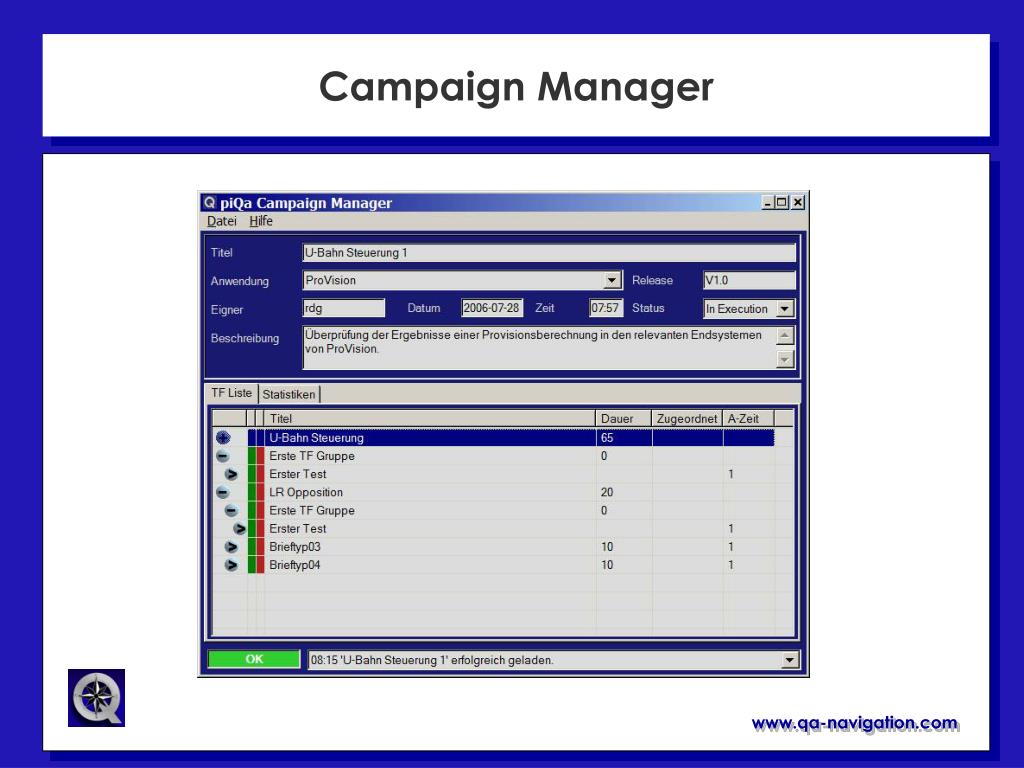

19. Campaign Manager Testing Campaign compile and tracking tool. Features: • TC sets customizable • Assign tests • Execution Overview (Status, Statistics) • Navigate to TC set, TC, TC execution, PR

20. TC Executer

21. TC Executer Test Execution facility. Features: • Automatic time taking • Edit TC • ‘Error’ button launches Problem Tracker, presets data and links the documents • ‘Next’ for executing test chains • Tests executable within or outside a campaign

22. The Software Lifecycle Manager The Report Manager

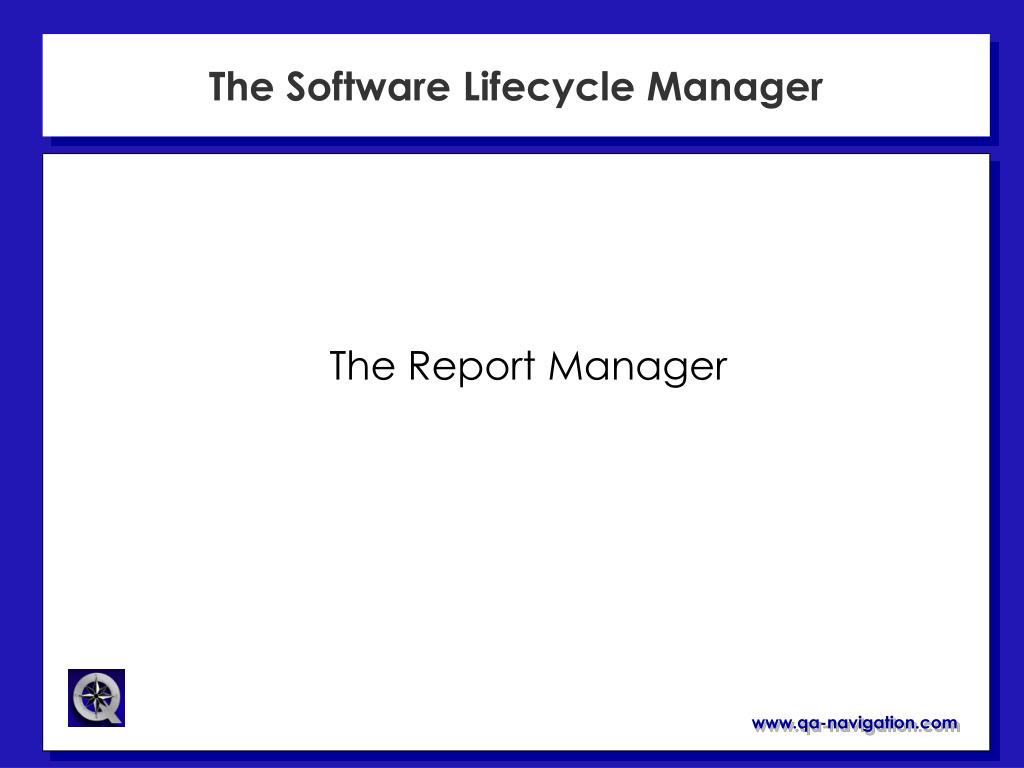

23. Report Manager A Report Tracking Tool: • For Error Reports, Fixes, Change Requests, Shipments • 100% Web Application (no installation required for users) • Full Report Administration (assigning, status tracking, forwarding etc.) • Navigation to all documents (including Test documents) • 100% Customizable (Open Source) • Supports connections to external reports

24. Technical Report

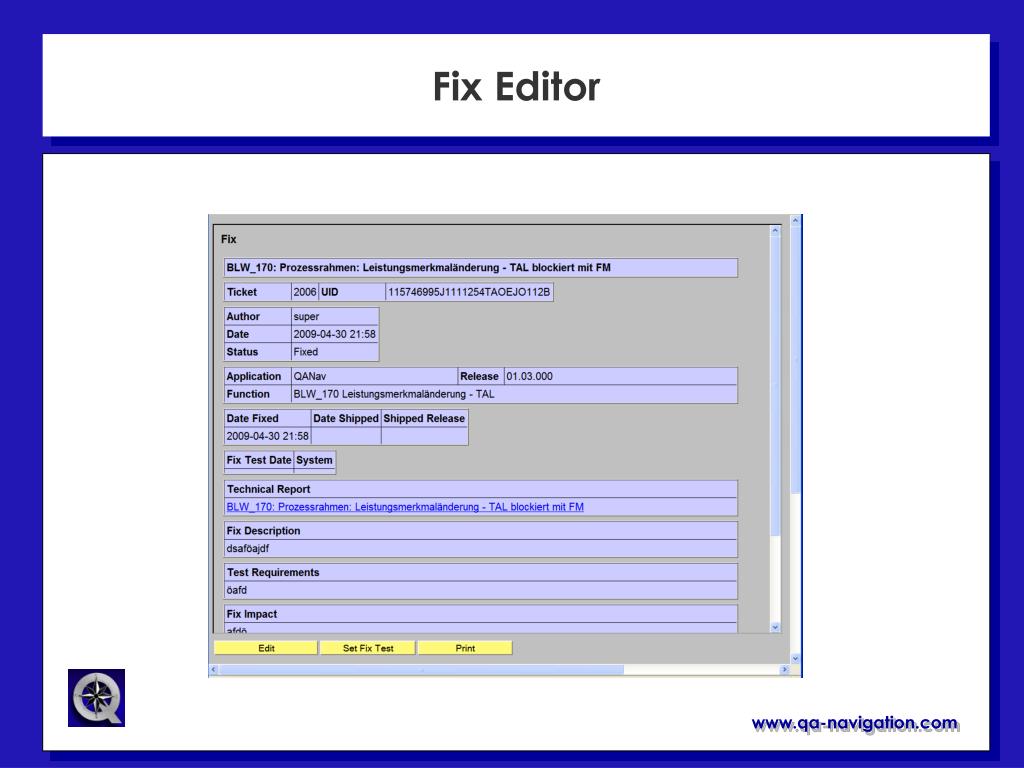

25. Fix Editor

26. CR Editor

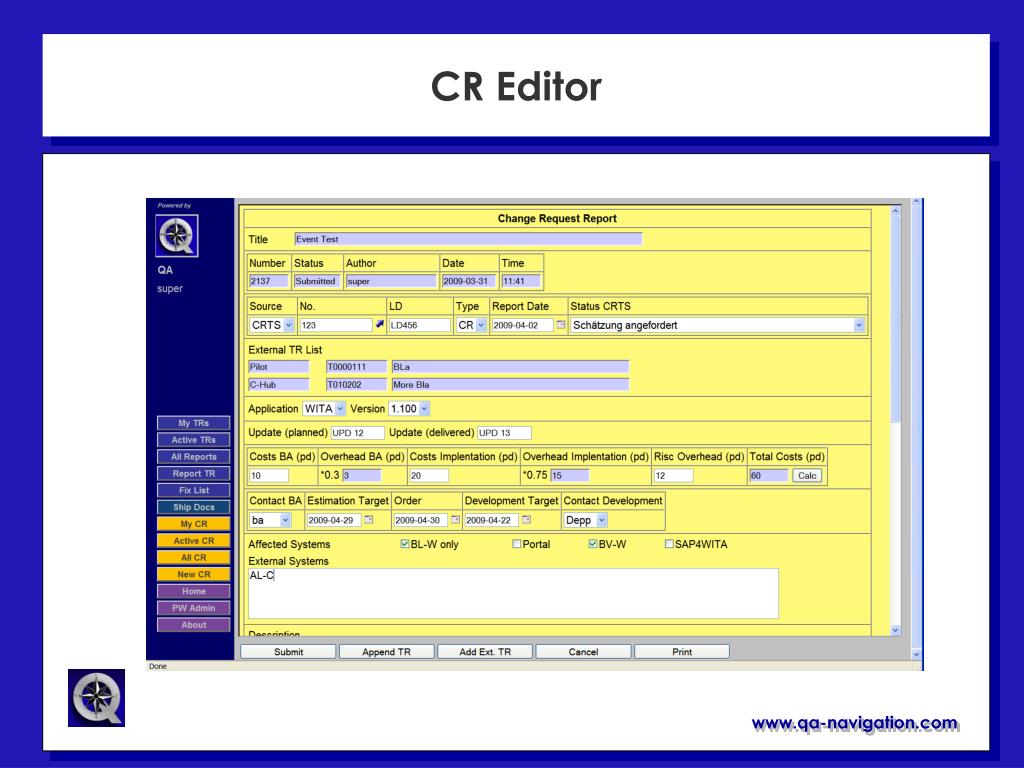

27. Report Overview

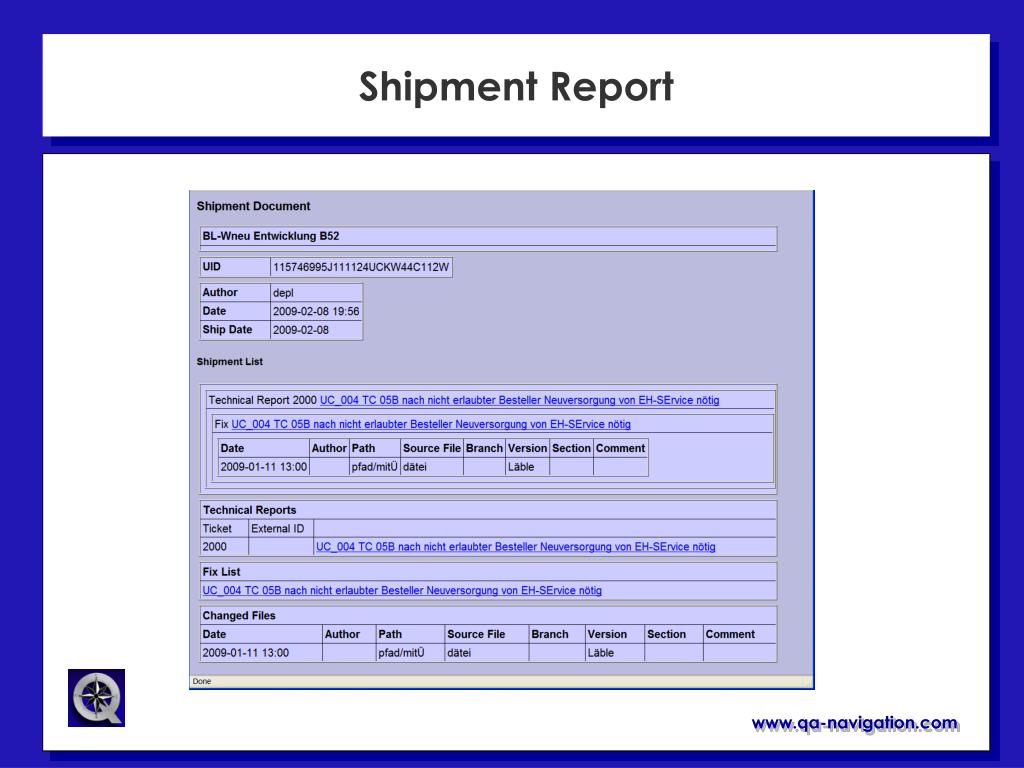

28. Shipment Report

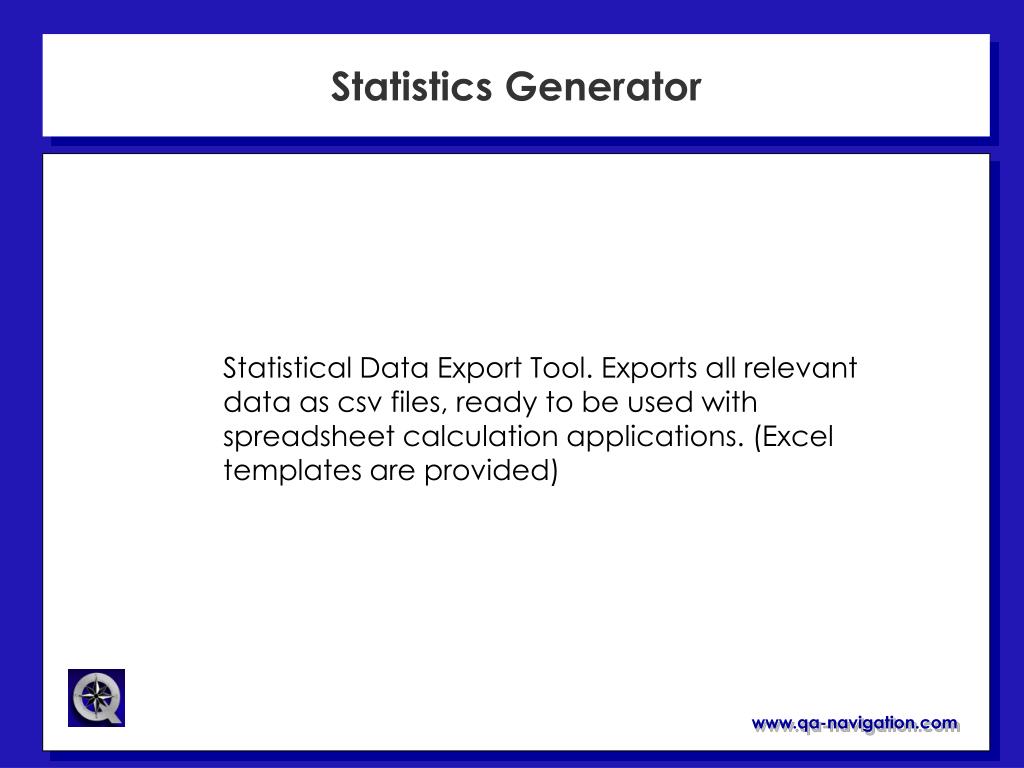

29. Statistics Generator Statistical Data Export Tool. Exports all relevant data as csv files, ready to be used with spreadsheet calculation applications. (Excel templates are provided)

30. Statistics Generator

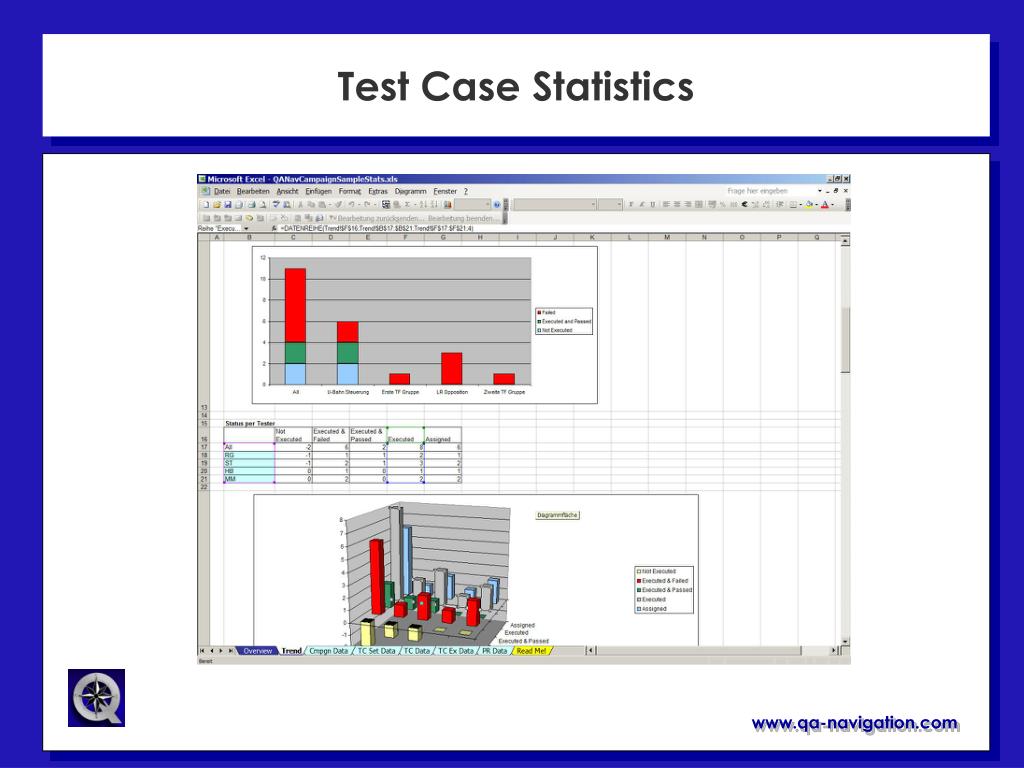

31. Test Case Statistics

32. Test Case Statistics

33. Report Statistics

34. Report Statistics

35. Collaboration Manager

36. Collaboration Manager • Merges documents of a campaign, i.e. • Adds new tests to the campaign • Adds execution data to the campaign • Adds Problem Reports to the campaign • Export attaches locks • Import minds locks Tool to export and import all relevant data of a test campaign. Features:

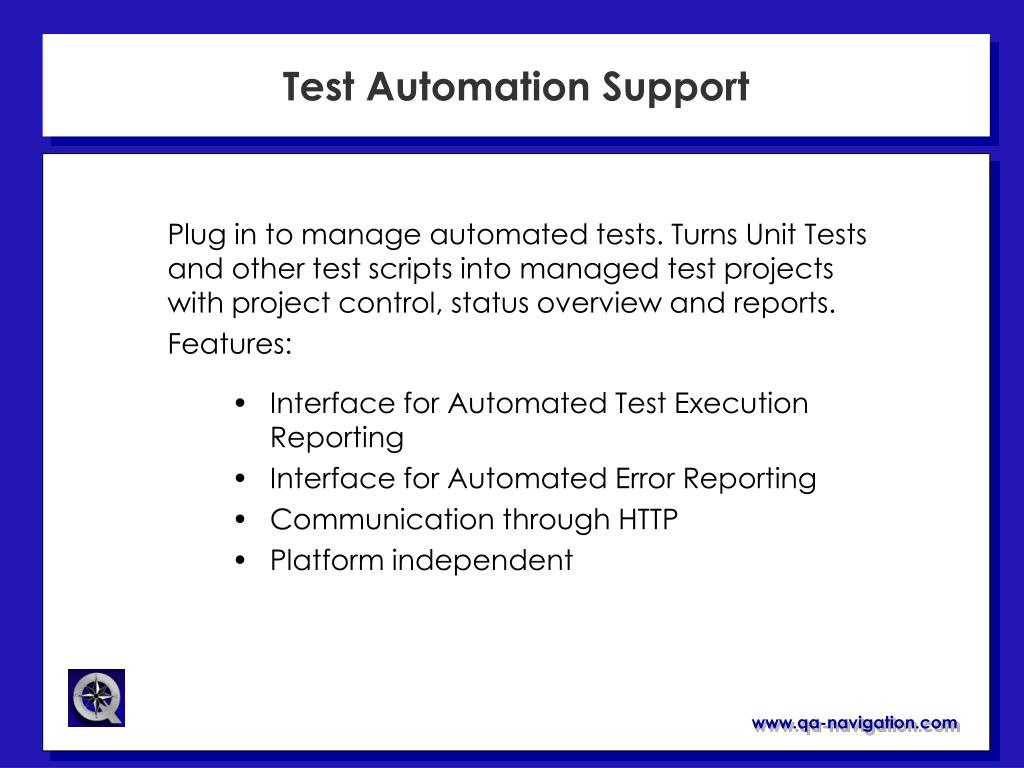

37. Test Automation Support • Interface for Automated Test Execution Reporting • Interface for Automated Error Reporting • Communication through HTTP • Platform independent Plug in to manage automated tests. Turns Unit Tests and other test scripts into managed test projects with project control, status overview and reports. Features:

38. The Software Lifecycle Manager The SLM as a Smart Toolkit

39. Technical Features The SLM products are implemented in a fashion, that makes them easy to configure, ready for adaption to customer request, independently useable, open for integration and extraordinarily robust.

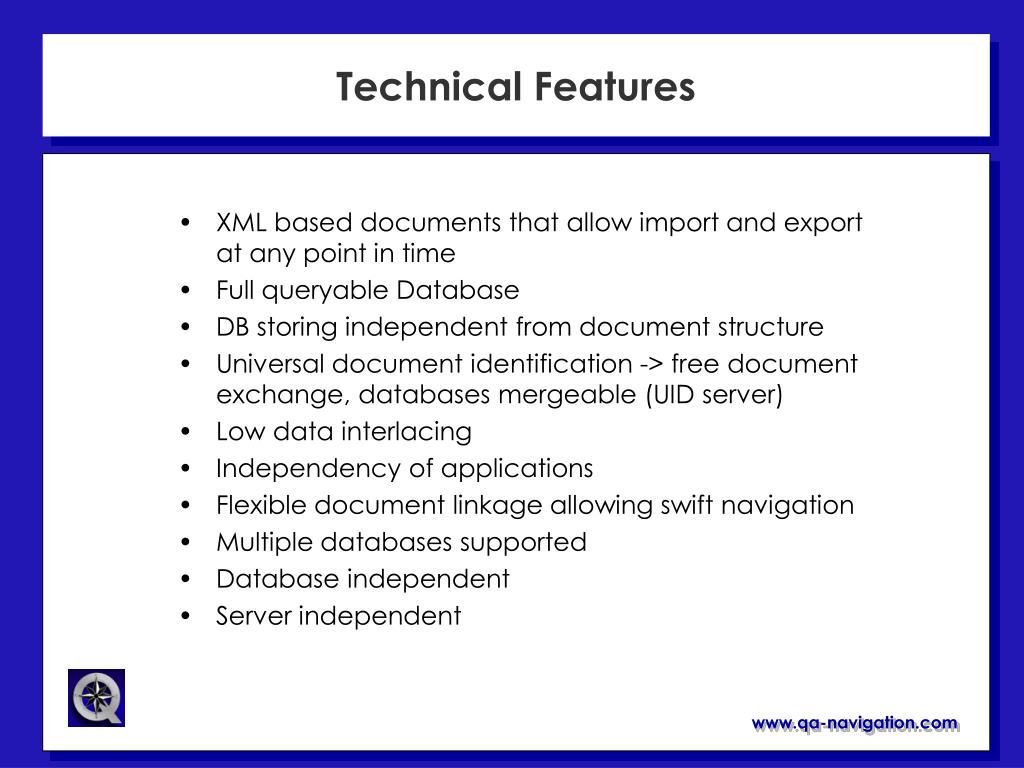

40. Technical Features • XML based documents that allow import and export at any point in time • Full queryable Database • DB storing independent from document structure • Universal document identification -> free document exchange, databases mergeable (UID server) • Low data interlacing • Independency of applications • Flexible document linkage allowing swift navigation • Multiple databases supported • Database independent • Server independent

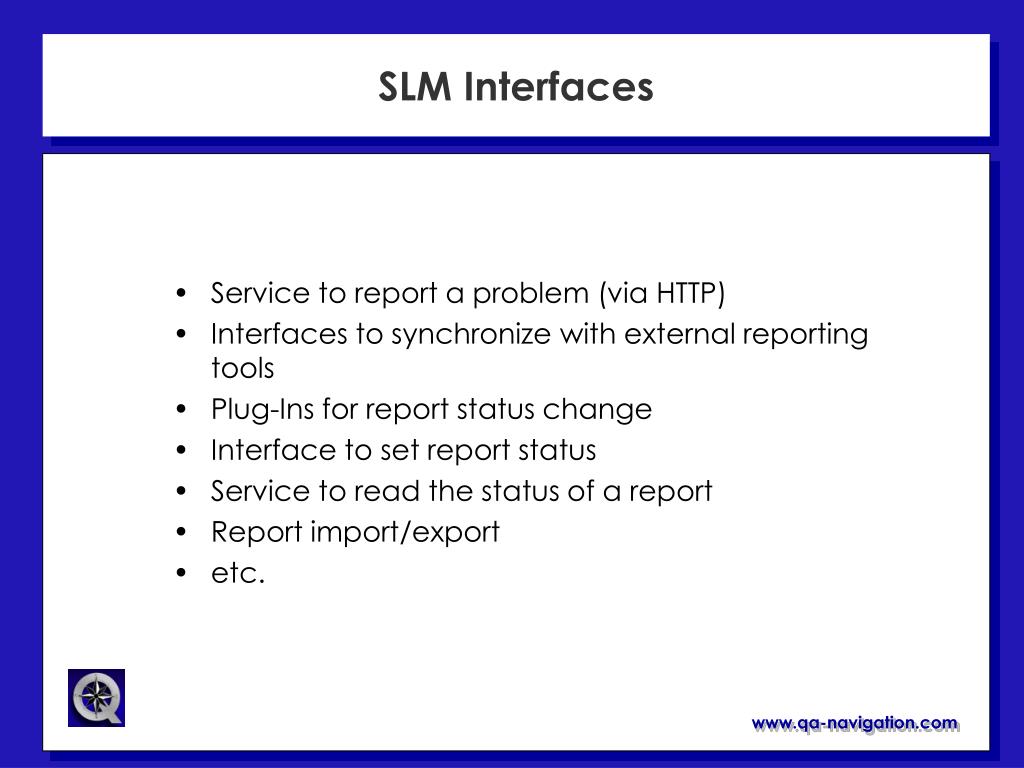

41. SLM Interfaces • Service to report a problem (via HTTP) • Interfaces to synchronize with external reporting tools • Plug-Ins for report status change • Interface to set report status • Service to read the status of a report • Report import/export • etc.

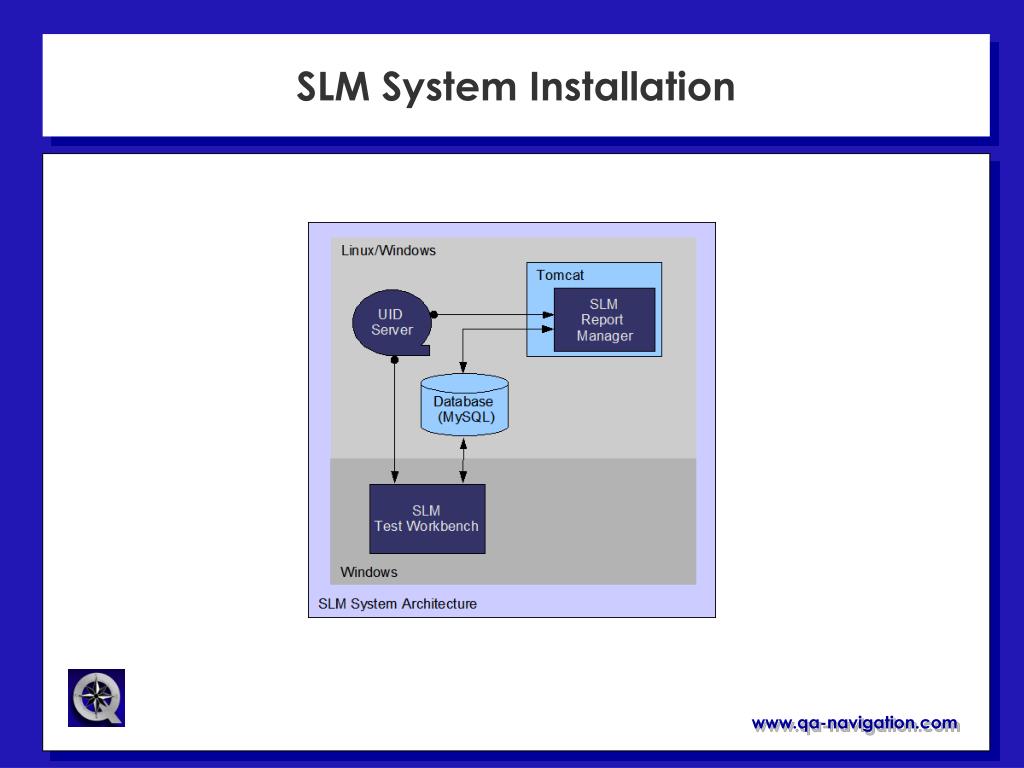

42. SLM System Installation

43. SLM Configuration • Configuration fully customizable • Customizable data: • Status flags • Error codes • Report types • External Sources • Project data (applications, sections, releases) etc. • Fully localized (National Language Support)

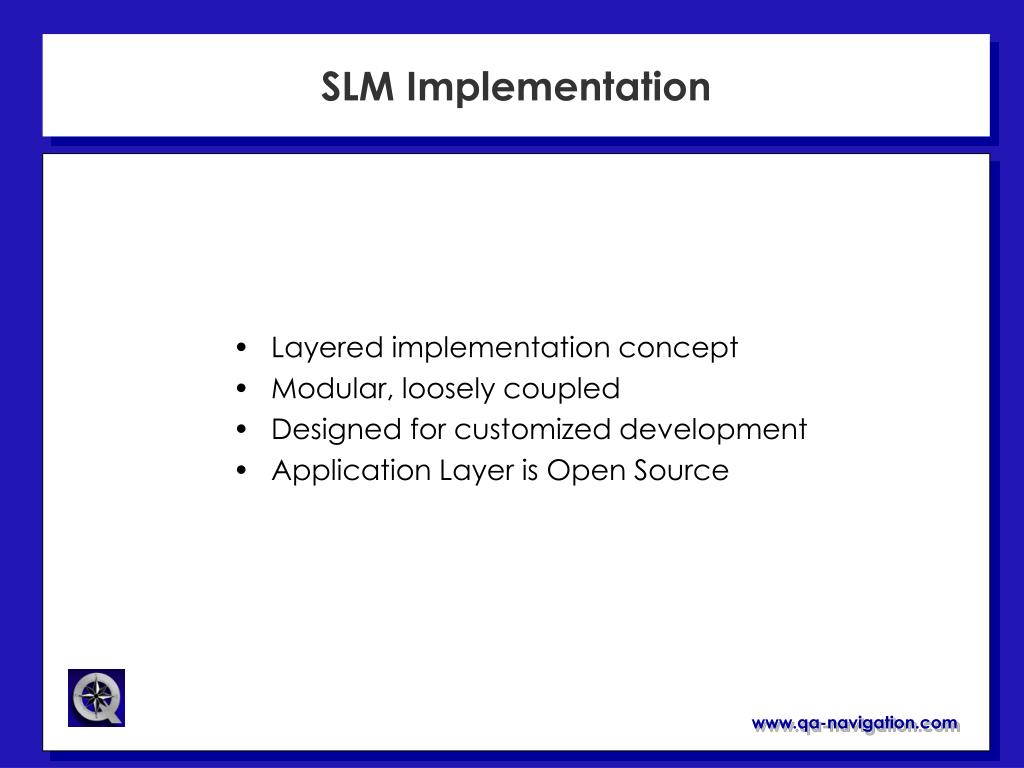

44. SLM Implementation • Layered implementation concept • Modular, loosely coupled • Designed for customized development • Application Layer is Open Source

45. Report Manager Architecture

46. Test Workbench Architecture

47. SLM Application Robustness • Formal check through DTDs • Full document reload after saving • Extended error handling (error base class) with • Sophisticated error log (location of 90% of all errors identified by just interpreting the log)

48. QA Navigation SLM Summary

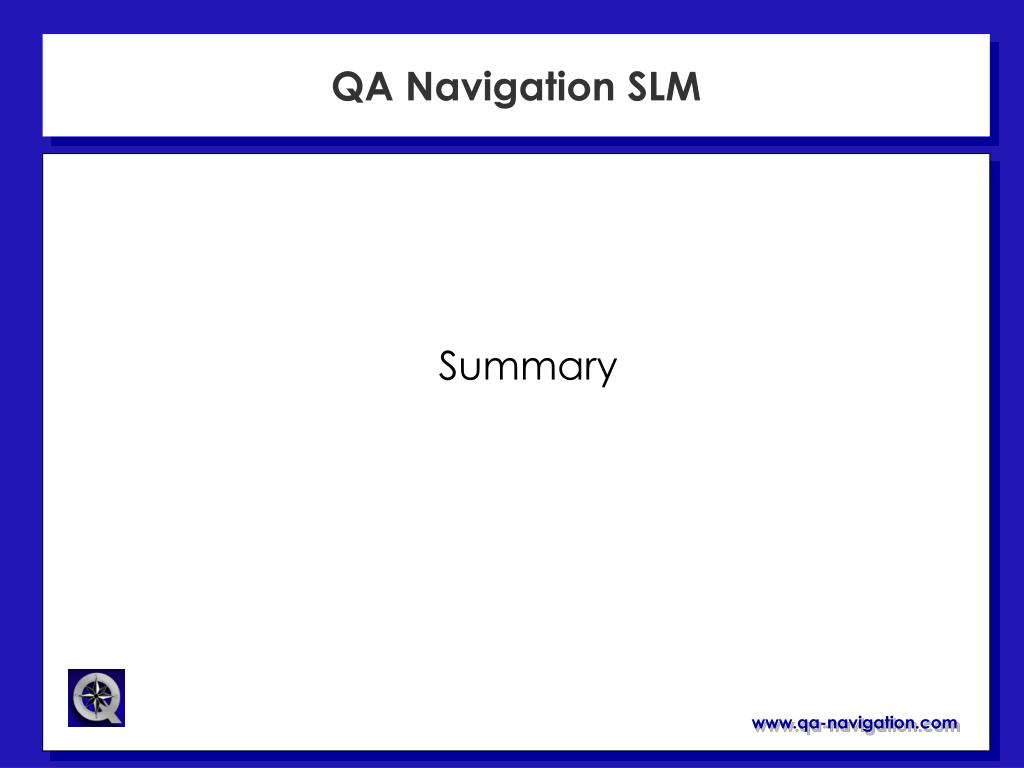

49. Summary • … offers you all facilities required to handle all activities that accompanies software development. • … enables you to manage your testing activities while offering re-use capabilities of your test effort. • … is a tool that allows effortless customization. • … provides easy integration into your legacy infrastructure through its open document format and its modularity. • ... is ready to be customized to meet your specific requirements. The QA Navigation SLM…
