Page 11

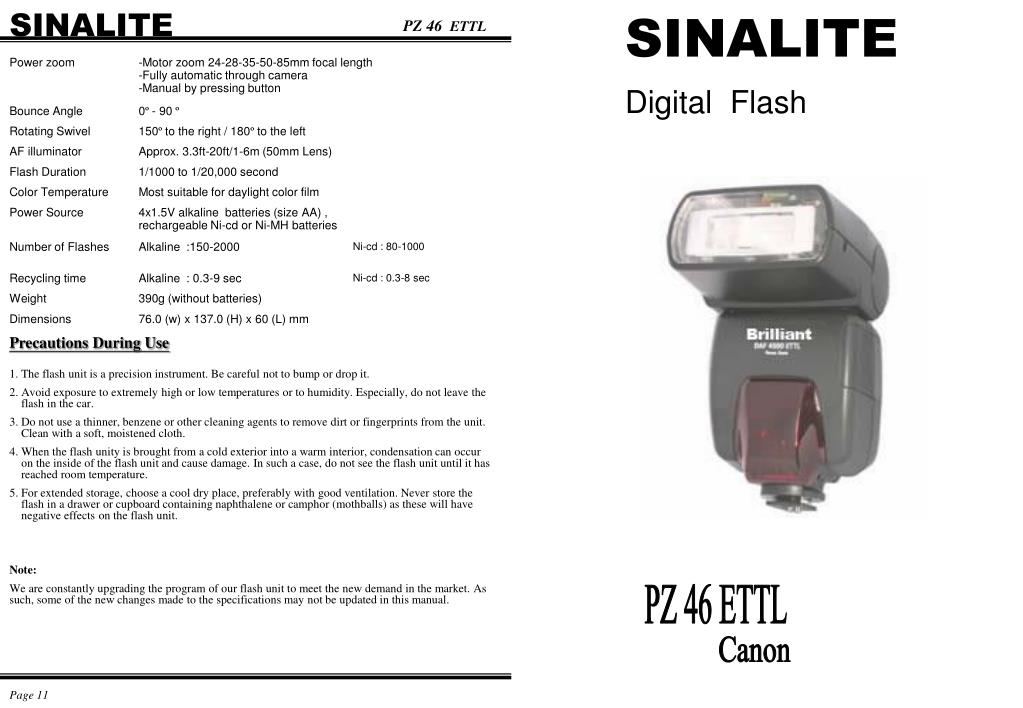

1. Precautions During Use • The flash unit is a precision instrument. Be careful not to bump or drop it. • Avoid exposure to extremely high or low temperatures or to humidity. Especially, do not leave the flash in the car. • Do not use a thinner, benzene or other cleaning agents to remove dirt or fingerprints from the unit. Clean with a soft, moistened cloth. • When the flash unity is brought from a cold exterior into a warm interior, condensation can occur on the inside of the flash unit and cause damage. In such a case, do not see the flash unit until it has reached room temperature. • For extended storage, choose a cool dry place, preferably with good ventilation. Never store the flash in a drawer or cupboard containing naphthalene or camphor (mothballs) as these will have negative effects on the flash unit. Note: We are constantly upgrading the program of our flash unit to meet the new demand in the market. As such, some of the new changes made to the specifications may not be updated in this manual. PZ 46 ETTL PZ 46 ETTL Canon Page 11

2. PZ 46 ETTL PZ 46 ETTL Specifications Guide Number Working range for apertures at ISO 100 Full Power:- Page 1 Page 10

3. When set at 0º, a sign (23)will show on LCD panel. When bounce up, the sign changes to (23) and the ft/m distance scale will disappear. • Please note that the effectiveness of the bounce flash feature is dependent upon distance and the condition of the reflecting surface used. The angle of the flash must also be set properly to achieve the best possible lighting effect. Normally, when the flash in bounced against a surface, it will usually lose 2-3 apertures of light (f-stops), even when the surface is white. • As exposure is bounce lighting is a factor based upon distance, first from the flash to the reflected surface, then to the subject and finally back to the camera, the relationship between the aperture setting used and the adjustable distance range changes accordingly, depending upon the distances involved and quality of the reflective surface selected. • The use of a white surface as much as possible for bounce lighting effects, will result in the best overall reflective light level. Take note that in color photography, when a colored surface is used for bounce lighting, it will reflect its color on the subject. PZ 46 ETTL PZ 46 ETTL Daylight Synchronization Even when you take a picture in a bright place, and the subject is strongly backlit, or if a strong shadow appears in an unsuitable position, use the flash to obtain correct exposure for both the subject and the background. When you can use any camera fill flash mode, you can easily obtain Daylight Synchronization. Slow Synchronization When you use a flash to photograph a person in a dark place, the background will become very dark, because the flashlight will not reach. By using a slow shutter speed to take a flash photography, you can obtain the appropriate exposure for the person and the background. Description of Parts • Zoom Head • Flash Window • AF Illuminator • Camera Release Button (Dynax) • Tilting Angle Scale • Battery Cover • Locking Ring • Mounting Foot • LCD Display • Evaluative TTL/Power Level/ • Multi Indicator • Coverage Distance Indicator • Auto/Manual Zoom Position 13. Manual Zoom Indicator 14. ZOOM Button 15. LCD Back Light Button 16. TEST Button 17. Ready Light 18. Power Switch 19. REP Button 20. Flash Mode Button 21. M/FREQ Button 22. F/Stop Indicator 23. Straight/Bounce Head Indicator 24. Auto Check (OK) Indicator 25. Multi Flash Setting Bounce Flash When you take a flash photograph in a room, sometimes a strong shadow will appear behind the subject. If you point the flash head upward to reflect the light off the ceiling, wall, etc., the subject will illuminated softly. When you use the Eval TTL AUTO mode, the camera will calculate the appropriate flash lighting. The Flash head is adjustable from 0º to 90º vertically. There is a click stop at the 45º, 60º,75° and 90° positions. It also rotates 150° to the right and 180° to the left horizontally. Caution – Read this section before use This flash unit can be used on Canon EOS cameras only. . Depending on the camera, the operation and usable features may differ. • This flash unit contains high voltage circuitry. To avoid electric shock or burns, do not attempt to disassemble the flash. If the outside shell of the unit is broken or cracked, do not touch the mechanism inside. Page 9 Page 2

4. Zoom M Zoom M Zoom M Zoom (Auto Zoom) Zoom M Zoom M Zoom 35mm 24mm 28mm 35mm (Auto Zoom) 85mm 85mm 50mm PZ 46 ETTL PZ 46 ETTL • Do not use this flash unit flash on any camera other than the EOS Canon models, which have special contact pins in the hot shoe for this dedicated flash unit. The flash unit may damage the circuitry of other cameras or may not function properly. • This flash unit is not waterproof. When using the flash and camera in the rain or near water, keep it from getting wet. It is often impractical to repair internal electrical components damaged by water. • When flash mount onto the camera with the power turn on. The AF illuminate will light for about 2~4 sec. This is due to the CPU in the flash resetting itself. If the AF illuminate light for more than 8 sec, it means battery is running low and replacement is needed. Continuous Flashing This unit has a recycle time fast enough to synchronize with a motor drive camera firing continuously. Operation of Zoom Head Coverage angles are available for local length ranging from 24mm to 85mm. Every time when turn on power switch , the flash will automatic set the head position to the 35mm. Rest of sequence will flow as shown below. Flash Function Available with Canon AF SLR Still/Digital Cameras O=Function available X = Function not available Auto Zoom Operation • The flash unit automatically adjusts the zoom head position to provide angle of coverage that matches the focal length of the lens in use and the setting is displayed in the LCD panel . The coverage angle automatically changes when the lens is zoomed and the camera’s shutter button is half-pressed. • The guide number changes when the flash coverage angle is changed. • If the focal length of the lens in use is less than 24mm, only “Zoom 24mm” will be displayed. If the focal length of the lens is use is larger than 85mm, only “Zoom 85mm” will be displayed. • If M Zoom is displayed in the LCD panel, press the ZOOM button (14) until “Zoom” is displayed. Power Sources This flash unit uses 4AA type alkaline dry cell batteries or NiCad rechargeable batteries. Manganese batteries are not recommended, because of shorter life. Replace the batteries if Ready Light takes more than 30 seconds to light up. Manual Zoom Operation Press the ZOOM Buttom (14) once to change from auto zoom to manual zoom mode. Each press of the ZOOM buttom changes the coverage angle in the above cycle. Press ZOOM button until your desired zoom-head position appears in the LCD panel . Battery Precautions • To assure proper electrical contact, clean the battery terminals before use. • To prevent battery explosion, leakage or overheating, use 4 new AA batteries of the same type and brand. Do not mix different types or new and used batteries. Page 3 Page 8

5. 1/1 1/2 1/4 1/8 M M M M M M M 1/64 1/32 1/16 2  3  4  5  7  10 1  2 3 5 10 30 50 PZ 46 ETTL PZ 46 ETTL Manual Flash Operation • Do not disassermble or short-circuit batteries, or expose them to fire or water, or they may explode. Also, do not recharge batteries other then NiCad rechargeable batteries. • To prevent Battery Leakage, remove Batteries if storing for long periods. • Battery performance decreases at low temperatures. Keep batteries insulated when the flash in cold weather. • As with any flash, it is recommended you carry spare batteries when on a long trip, or when photographing outdoors in cold weather. • Let the camera’s shooting mode to manual mode and set the flash unit’s mode to ‘M’ by Flash ‘Mode’ button (20). • Press the ‘M/FREQ’ (21) button to select a desired output level (From 1/1~1/64).Each press of the ‘M/FREQ’ button changes the flash output level in the following cycle: Battery Installation • Be sure to turn the Power Switch (18) to the off position, then slide and open the Battery Cover (6 ) . • Insert 4AA size batteries into the battery compartment. Be sure the polarity (+,-) of the batteries are aligned according to the diagram in the chamber. • Close the Battery Cover (6). • Slide the Power Switch to the on position. The Ready Light (17) will light up after a few seconds. Press the Test Button (16) to ensure that the flash is working properly. • Manually set the camera’s shutter speed to X-sync speed or shower and set the desired aperture and then take the picture after confirming that the subject is within the flash range displayed in the LCD panel with a distance indicator bar (11). Auto Power Off System A battery-saving automatic power-off circuitry is incorporated in this flash unit. If you do not operate any of the flash or camera controls for about five minutes, the flash-ready lamp will automatically extinguished and the LCD data panel (9) will be switched off. The flash unit will be in stand-by mode. To re-activate the flash, simply press lightly the camera’s shutter button or switch the flash unit to OFF and then ON again. IMPORTANT NOTE:Even though the flash unit is automatically cut off, it will still use up some of the batteries energy. Therefore, when the flash will not be used for a long period, it is recommended to set the Power switch to off position. Multi Flash Operation With multiple flash modes, the flash unit can be fired several times in succession during a single exposure to record the following motion of a subject. • Set the flash’s MODE button (20) to ‘MULTI’. • Press the ‘REP’ button (19) to select the number of times the flash will fire. • Each press of button changes the number of flashes in the following cycle. Attaching and Removing the Flash Be sure to turn off the Power Switch .Then insert the Mounting Foot (8) into the hot shoe on the camera and turn the Locking Ring (7) until it is tight. • When you attach or remove the flash, grasp the bottom of the flash to prevent damage to the Mounting Foot and the camera’s hot shoe. • If the camera’s buit-in flash is in the pop-up position, close it before you attach the flash unit. 3. Press the ‘M/FREQ’ button to select the firing frequency in HZ (flashes per sec.) Each press of button changes the firing frequency in the following cycle. LCD Display The LCD panel provides information on the following:- • Automatic or Manual zoom reflector setting • Focal Length setting (85/50/35/28/24mm) • Straight/Bounce Indicator • F/stop setting • Multi Flash Setting • Auto Check (OK) indicator • Flash range in feet and meter • Eval. TTL/Power Level (1/1,1/2,1/4,1/8,1/16,1/32,1/64) Multi • 4. Set the camera to Manual mode and set the desired aperture and the shutter speed calculated from the formula: • No. of bursts  Firing frequency • For example: 10-5HZ the shutter speed should be 2 (10  5) sec or longer • When using the Multi flash mode, the flash power level is automatically set to 1/16 M and cannot be changed. • A distance indicator bar appears in the flash range display. This is the distance at which one bursts from the entire sequence will provide a correct exposure. Page 7 Page 4

6. MULTI Eval. TTL M PZ 46 ETTL PZ 46 ETTL Distance Display Eval. TTL Auto Flash Operation The built-in micro-controller calculates and displays the distance coverage range at ‘Eval.TTL’, ‘M’ or ‘MULTI’ mode setting. The guide number is dependent on the zoom setting (85/50/35/28/24mm), different apertures setting and the film speed (from ISO 25-1000) that is automatically set from the DX code or manually set the camera. Example:- The flash unit provides automatic Evaluative (TTL) control of the flash exposure when used with the mating cameras which have E-TTL auto flash metering feature. The Eval. TTL autoflash mode balances the exposure between the main subject illuminated by the flash and the background in ambient light, whenever possible. Thus, this Eval. TTL mode can be used under conditions ranging from darkness to fill-in flash. • Set the ISO 100 on the camera (through DX or manually) and zoom lens at 50mm position. • From the distance F/Stop setting (LCD panel), it will indicate the different range distance in ft & meter. • Example :- • F5.6 max. range is approx. 7.0m, 22ft. • F8 max. range is approx. 5.0m, 16ft • F11 max. range is approx. 3.0m, 11ft. • Remark: An arrow in the LCD Coverage Range (11) indicates that the max flash range (18m/60ft) has been exceeded. a. Program Eval. TTL Autoflash Mode • Set the camera’s shooting mode to full auto program mode and the flash unit’s mode to ‘Eval. TTL’ • Press the shutter button halfway to focus the subject. • When the flash-ready indicator (17) lights, the camera will automatically set the aperture and shutter speed values, the aperture value will also show on the flash unit. b. Shutter-Priority Eval. TTL Autoflash Mode • Set the camera’s shooting mode to shutter-priority mode and the flash unit’s mode to ‘Eval. TTL’ • Set a desired shutter speed. If a shutter speed faster than X-sync time is selected, the camera will automatically switch to the X-sync time when the flash is ready. You can select slower shutter speeds. • Press the shutter button halfway to focus the subject and confirm that the distance from the camera to the subject is within the autoflash range displayed in the LCD panel. AF Illuminator for Autofocusing • When subject contrast is low or in low light, the AF illuminator (3) is automatically activated when the camera’s shutter release button is pressed halfway. This illuminator enables the camera’s autofocus system to focus correctly. • The AF illuminator (3) enables autofocusing with subjects up to about 6m away. • This working range of the AF illuminator is based on standard testing method with a 50mm lens. • The AF illuminator will not be effective if your subject has very low reflectance. c. Aperture-Priority Eval. TTL Autoflash Mode • Set the camera’s shooting mode to Aperture-Priority mode and the flash unit’s mode to ‘Eval. TTL’ • Set a desired aperture value. This enables you to have greater control over depth of field. • Press the shutter button, halfway to focus the subject and confirm that the distance from the camera to the subject is within the autoflash range displayed in the LCD panel. • When the flash-ready indicator lights, the camera will automatically sets the shutter speed. Auto Check (OK) Indicator When using the flash unit in Eval.TTL Autoflash mode, if exposure was sufficient, the auto check indicator ‘OK’ (24) will appear in the LCD panel at the same moment when the camera’s shutter button is pressed. Flash Mode d. Manual Eval. TTL Autoflash Mode This unit has three firing modes: Eval.TTL, M, MULTI. You can select the desired mode by pressing the ‘MODE’ button (20). Each press of the Mode button changes the flash mode in the following cycle: For back-lit subjects. Or in low light situations, slower speed can be set to increase the background exposure while maintaining normal exposure of the main subject. This is helpful for filling in shadows and balancing out the lighting situation. • Set the camera’s mode to manual mode and set the flash unit’s mode to ‘Eval.TTL’. • Set the camera’s shutter speed and the desired aperture manually. • If a shutter speed faster than X-sync time is selected, the camera will automatically switch to the X-sync time when the flash is ready. You can select slower shutter speeds. • 3. Press the shutter button halfway to focus the subject and confirm that the distance from the camera to the subject is within the autoflash range displayed in the LCD panel. • As different models of camera operate differently for flash photography, you should read the Instruction Manual of your camera for details of flash operation. Page 5 Page 6
