Presentation Transcript

  1. Windows Vista Installation Level 300

  2. What Will We Cover? • Managed Deployment Advantages • Windows Imaging • Windows Preinstallation Environment • Deployment Management Systems

  3. Helpful Experience • Familiarity with deployment concepts • Familiarity with Windows administration Level 300 Level 300

  4. Agenda • Exploring Deployment Considerations • Using Vista Deployment Tools • Deploying Windows Vista

  5. Deployment Challenges • System Diversity • Hardware • Software • Roles • Admin Costs • Configuration • Testing • Management • Data Migration • Applications • User data • System settings

  6. Managed Deployment Advantages • Manageability • Centralized • Automated • Consistency • Limit configurations • Standardize systems • Reliability • System testing • System Restore

  7. Deployment Server New System Side-by-Side System Upgrade Deployment Scenarios

  8. Agenda • Exploring Deployment Considerations • Using Vista Deployment Tools • Deploying Windows Vista

  9. Vista Deployment Enhancements • Windows Imaging • Powerful tools • Configurable files • Flexible application • Modularization • Component separation • Independent definition • Building blocks Microsoft Deployment Solutions www.microsoft.com/technet/windowsvista/deploy

  10. Windows Imaging • WIM file format • Capture system state • Multiple images per WIM file • Hardware-independent

  11. ImageX • Command-line tool • Mount WIM files • Modify WIM files • Capture WIM files • Apply files changes • Export WIM files

  12. WIMGAPI Basic Functions Imaging Extensibility

  13. Install or Troubleshoot Windows Vista Windows Preinstallation Environment Deployment Server Deployment Target Removable Media Pre-Boot Execution Environment (PXE) Windows PE 2.0

  14. Windows Setup • Single .xml file • Simplified customization • System Image Manager • Detects packages • Handles install paths • Simple interface Unattend.xml Windows System Image Manager

  15. demonstration • Using System Image Manager • Mount a Windows Image • Customize Windows Explorer • Customize Disk Partitions

  16. Agenda • Exploring Deployment Considerations • Using Vista Deployment Tools • Deploying Windows Vista

  17. Image-Based Deployment • Offline • Test • Build Image • Online • Settings • Unattend.xml • Windows PE • Disk Prep • Apply Image • OOBE • Register • User Config • First Boot • SysPrep • Unique ID

  18. Offline Windows PE Online First Boot OOBE Image-Based Upgrade • Apply New System • Restore user data • Delete old system • Hardware Specialization • Install non-standard drivers • Test hardware

  19. Clean Install Model Upgrade Report Automatic Rollback Vista Upgrade Enhancements

  20. Microsoft BDD www.microsoft.com/technet/desktopdeployment

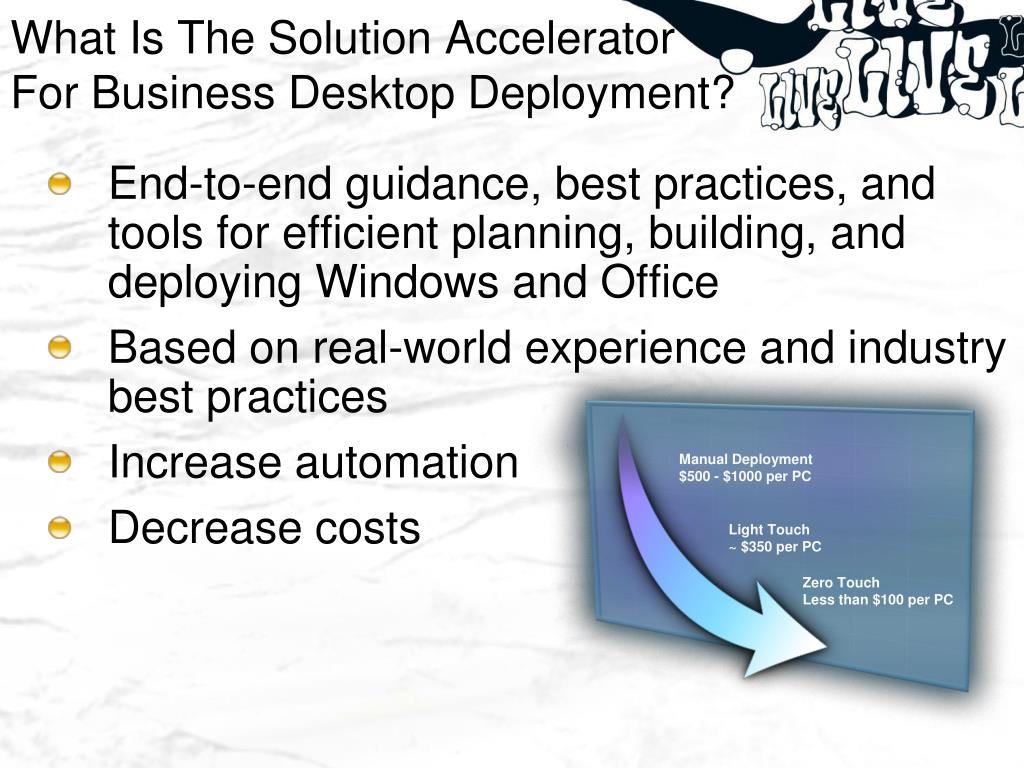

  21. What Is The Solution Accelerator For Business Desktop Deployment? • End-to-end guidance, best practices, and tools for efficient planning, building, and deploying Windows and Office • Based on real-world experience and industry best practices • Increase automation • Decrease costs Manual Deployment $500 - $1000 per PC Light Touch ~ $350 per PC Zero Touch Less than $100 per PC

  22. BDD 2007 Roadmap Q3 2006 Q2 2006 Q4 2006 2007 BDD 2007 beta release Windows Vista Beta 2 SCCM 2007 Task Sequencer integration Windows Vista only Includes Office 2007 support and guidance BDD 2007 beta release Windows Vista RC1 Complete guidance for Office 2007 Windows XP support added Zero Touch added (OSD Update) Full Windows DS support BDD 2007 updated Support for SMSv4 BDD 2007 release Windows Vista RTM Office 2007 RTM OSD Update RTM Windows DS RTM

  23. BDD 2007 Deployment Scenarios • Lite Touch • Deployment without management infrastructure • Manually initiated • Uses network share, Windows Deployment Services, CD/DVD, or USB • Refresh, upgrade, replace, new computer • Complete rewrite from BDD 2.5 • Zero Touch • Uses SMS 2003 OS Deployment Feature Pack • Scheduled via SMS and completely automated • Centrally monitored with MOM 2005 management pack • Refresh, replace, new computer

  24. BDD 2007 New Features • MMC 3.0-based management infrastructure • Replaced HTA application from BDD 2.5 • Improved driver management • For Windows PE, Windows Vista, and Windows XP • Manage a driver store • Inject drivers based on PnP ID (copy only needed drivers) • Multi-language support • Installation of MUI language packs • Configuring locale settings

  25. BDD 2007 New Features • Task sequence-based • Uses technology from System Center Configuration Manager (SCCM) 2007, but does not require SCCM • Allows for greater configuration flexibility • Computer imaging processes uses Lite Touch deployment process • Deploy into a lab • Automate the installation, Sysprep, and capture • Backup capability

  26. BDD and Vista • Lite Touch Scenarios • Refresh (Windows 2000+) • Upgrade (Windows 2000+) • New Computer (bare metal) • Computer Replacement (Windows 2000+) • Lite Touch Deployment Methods • Network share (UNC path) • Windows Deployment Services (all scenarios) • CD/DVD (disconnected)

  27. BDD VistaComputer Imaging Process Gather source files • Windows Vista ApplicationsDrivers BDD Server Configure build • BDD Workbench MMC • Windows System Image Manager Build Lab CD (Windows PE) • BDD Workbench MMC • PEIMG (behind the scenes) • Windows PE 2.0 • SETUP.EXE • IMAGEX (WIMGAPI.DLL) Install Windows Vista LabCD Reference computer • SMSv4 task sequencer • Applications (maybe), settings • Sysprep Execute task sequence Windows Vista • Windows PE 2.0 • IMAGEX (WIMGAPI.DLL) Capture image LabCD

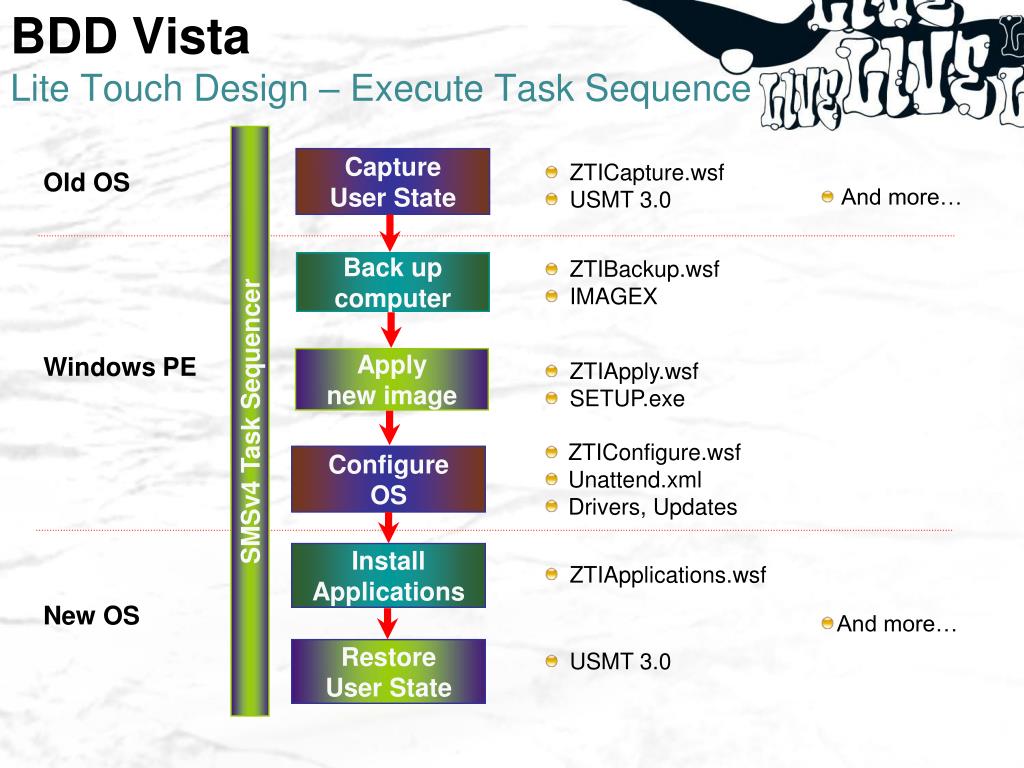

  28. BDD VistaLite Touch Design – Execute Task Sequence Capture User State • ZTICapture.wsf • USMT 3.0 Old OS • And more… • ZTIBackup.wsf • IMAGEX Back up computer Windows PE Apply new image • ZTIApply.wsf • SETUP.exe SMSv4 Task Sequencer • ZTIConfigure.wsf • Unattend.xml • Drivers, Updates Configure OS Install Applications • ZTIApplications.wsf New OS • And more… Restore User State • USMT 3.0

  29. Demo demonstration • Exploring “BDD Workbench” • Adding a OS Image • Adding an application • Adding additional drivers • Creating a Build Sequence

  30. Deploying Vista with SMS

  31. Session Summary • Using managed deployment lowers TCO • Windows Imaging increases reliability • Management tools automate deployment

  32. For More Information Visit TechNet athttp://www.microsoft.com/technet Visit the following site for additional information http://www.microsoft.com/technet/desktopdeployment/default.mspx

  33. Til slutt… • Hjelp oss å bli bedre • Fyll ut evalueringen som kommer på e-post • Gi direkte råd til Microsoft-representanter • Hold deg oppdatert • www.microsoft.no/informasjon • Besøk oss på www.microsoft.no/msdn eller www.microsoft.no/technet
