  1. Lecture 15 Huffman Codes and Asssociation Rules (II) Prof. Sin-Min Lee Department of Computer Science

  2. Huffman Code Example • Given: A B C D E 3 1 2 4 6 By using an increasing algorithm (changing from smallest to largest), it changes to: B C A D E 1 2 3 4 6

  3. Huffman Code Example – Step 1 • Because B and C are the lowest values, they can be appended. The new value is 3

  4. Huffman Code Example – Step 2 • Reorder the problem using the increasing algorithm again. This gives us: BC A D E 3 3 4 6

  5. Huffman Code Example – Step 3 • Doing another append will give:

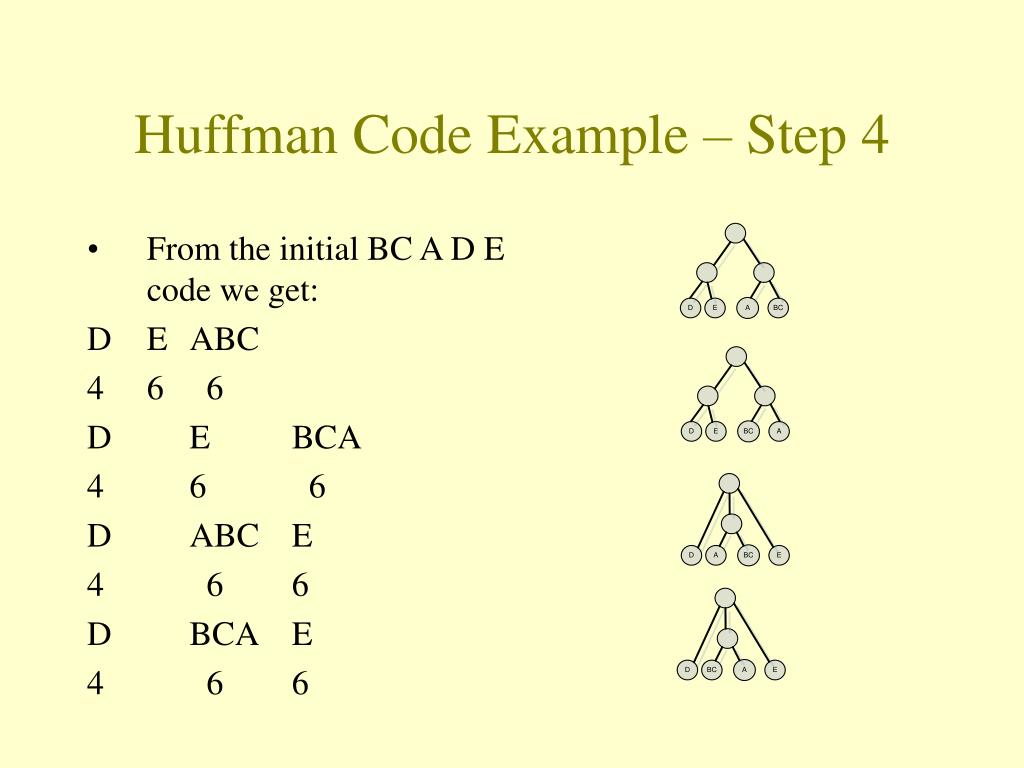

  6. Huffman Code Example – Step 4 • From the initial BC A D E code we get: D E ABC • 6 6 D E BCA 4 6 6 D ABC E 4 6 6 D BCA E 4 6 6

  7. Huffman Code Example – Step 5 • Taking derivates from the previous step, we get: D E BCA 4 6 6 E DBCA 6 10 DABC E 10 6 D E ABC 4 6 6

  8. Huffman Code Example – Step 6 • Taking derivates from the previous step, we get: BCA D E 6 4 6 E DBCA 6 10 E DABC 40 10 ABC D E 6 4 6

  9. Huffman Code Example – Step 7 • After the previous step, we’re supposed to map a 1 to each right branch and a 0 to each left branch. The results of the codes are:

  10. Example • Items={milk, coke, pepsi, beer, juice}. • Support = 3 baskets. B1 = {m, c, b} B2 = {m, p, j} B3 = {m, b} B4 = {c, j} B5 = {m, p, b} B6 = {m, c, b, j} B7 = {c, b, j} B8 = {b, c} • Frequent itemsets: {m}, {c}, {b}, {j}, {m, b}, {c, b}, {j, c}.

  11. Association Rules • Association rule R : Itemset1 => Itemset2 • Itemset1, 2 are disjoint and Itemset2 is non-empty • meaning: if transaction includes Itemset1 then it also has Itemset2 • Examples • A,B => E,C • A => B,C

  12. Example + _ _ + B1 = {m, c, b} B2 = {m, p, j} B3 = {m, b} B4 = {c, j} B5 = {m, p, b} B6 = {m, c, b, j} B7 = {c, b, j} B8 = {b, c} • An association rule: {m, b} →c. • Confidence = 2/4 = 50%.

  13. From Frequent Itemsets to Association Rules • Q: Given frequent set {A,B,E}, what are possible association rules? • A => B, E • A, B => E • A, E => B • B => A, E • B, E => A • E => A, B • __ => A,B,E (empty rule), or true => A,B,E

  14. Classification Rules Focus on one target field Specify class in all cases Measures: Accuracy Association Rules Many target fields Applicable in some cases Measures: Support, Confidence, Lift Classification vs Association Rules

  15. Rule Support and Confidence • Suppose R: I => J is an association rule • sup (R) = sup (I  J) is the support count • support of itemset I  J (I or J) • conf (R) = sup(J) / sup(R) is the confidence of R • fraction of transactions with I  J that have J • Association rules with minimum support and count are sometimes called “strong” rules

  16. Association Rules Example: • Q: Given frequent set {A,B,E}, what association rules have minsup = 2 and minconf= 50% ? A, B => E : conf=2/4 = 50% A, E => B : conf=2/2 = 100% B, E => A : conf=2/2 = 100% E => A, B : conf=2/2 = 100% Don’t qualify A =>B, E : conf=2/6 =33%< 50% B => A, E : conf=2/7 = 28% < 50% __ => A,B,E : conf: 2/9 = 22% < 50%

  17. Find Strong Association Rules • A rule has the parameters minsup and minconf: • sup(R) >= minsup and conf (R) >= minconf • Problem: • Find all association rules with given minsup and minconf • First, find all frequent itemsets

  18. Finding Frequent Itemsets • Start by finding one-item sets (easy) • Q: How? • A: Simply count the frequencies of all items

  19. Finding itemsets: next level • Apriori algorithm (Agrawal & Srikant) • Idea: use one-item sets to generate two-item sets, two-item sets to generate three-item sets, … • If (A B) is a frequent item set, then (A) and (B) have to be frequent item sets as well! • In general: if X is frequent k-item set, then all (k-1)-item subsets of X are also frequent • Compute k-item set by merging (k-1)-item sets

  20. Finding Association Rules • A typical question: “find all association rules with support ≥s and confidence ≥c.” • Note: “support” of an association rule is the support of the set of items it mentions. • Hard part: finding the high-support (frequent ) itemsets. • Checking the confidence of association rules involving those sets is relatively easy.

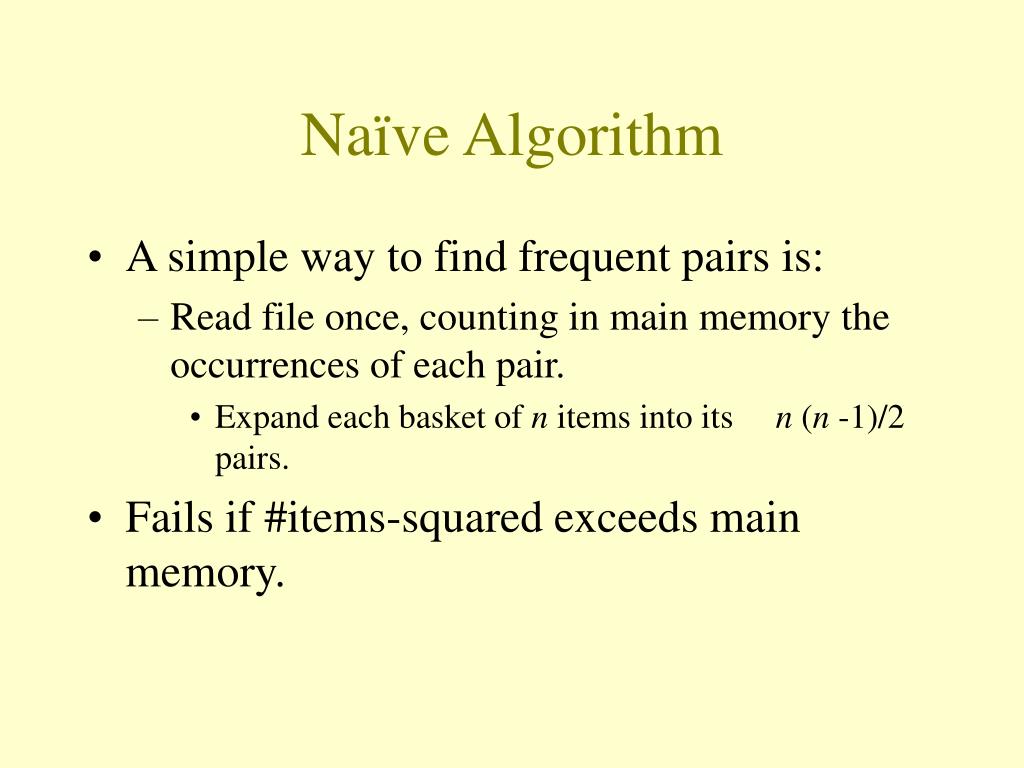

  21. Naïve Algorithm • A simple way to find frequent pairs is: • Read file once, counting in main memory the occurrences of each pair. • Expand each basket of n items into its n (n -1)/2 pairs. • Fails if #items-squared exceeds main memory.

  22. Filter Filter Construct Construct C1 L1 C2 L2 C3 First pass Second pass

  23. [Agrawal, Srikant 94] Fast Algorithms for Mining Association Rules, by Rakesh Agrawal and Ramakrishan Sikant, IBM Almaden Research Center

  24. C^1 L1 Database C2 C^2 L2 C^3 L3 C3

  25. Dynamic ProgrammingApproach • Want proof of principle of optimality and overlapping subproblems • Principle of Optimality • The optimal solution to Lk includes the optimal solution of Lk-1 • Proof by contradiction • Overlapping Subproblems • Lemma of every subset of a frequent item set is a frequent item set • Proof by contradiction
