CSC2110 Discrete Mathematics Tutorial 5 GCD and Modular Arithmetic

CSC2110 Discrete Mathematics Tutorial 5 GCD and Modular Arithmetic. Hackson Leung. Agenda. Greatest Common Divisor Euclid’s Algorithm Extended Euclid’s Algorithm Modular Arithmetic Basic Manipulations Multiplicative Inverse Fermat’s Little Theorem Wilson’s Theorem. Number Theory.

tory
Télécharger la présentation

CSC2110 Discrete Mathematics Tutorial 5 GCD and Modular Arithmetic

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. CSC2110 Discrete MathematicsTutorial 5GCD and Modular Arithmetic Hackson Leung

  2. Agenda • Greatest Common Divisor • Euclid’s Algorithm • Extended Euclid’s Algorithm • Modular Arithmetic • Basic Manipulations • Multiplicative Inverse • Fermat’s Little Theorem • Wilson’s Theorem

  3. Number Theory • Throughout the whole tutorial, we assume, unless otherwise specified, that all variables are integers

  4. Euclid’s Algorithm • Main idea: • So we iteratively do divisions • And is gcd of and

  5. Euclid’s Algorithm • Example 1 • Find gcd(2110, 1130)

  6. Euclid’s Algorithm • Example 2 • Given two sticks • By elongating the sticks with same length, find the smallest positive difference in length between the two stick piles Length = 2020 Length = 2100

  7. Euclid’s Algorithm • Example 2 • Observation: We want to minimize positive z such that • Hint: spc(a, b) = gcd(a, b) • Extension 1: If we allow z to be non-negative, • Can z be even smaller? • Shortest length of stick piles, respectively?

  8. Extended Euclid’s Algorithm • Example 2 (Extension 2) • I want to know how many sticks of each of two lengths so that z > 0 is minimized • Things on hand: • Want to know:

  9. Extended Euclid’s Algorithm • Key: Trace from the steps of Euclid’s algorithm • gcd(2100, 2020) = 20

  10. Extended Euclid’s Algorithm • Key: Trace from the steps of Euclid’s algorithm

  11. Modular Arithmetic • Know what it means, first! • Which means • Which means • a and b have same remainder when divided by n

  12. Basic Manipulations • Given

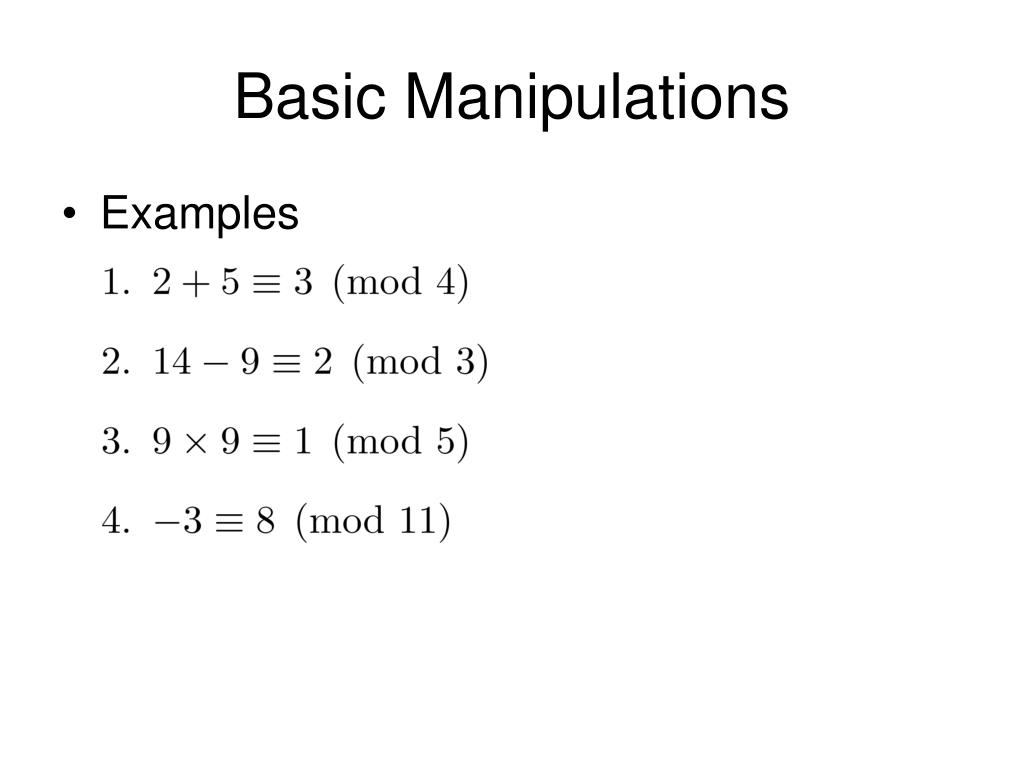

  13. Basic Manipulations • Examples

  14. Basic Manipulations • Example • Using modular arithmetic, prove that a positive integer N is divisible by 3 if and only if sum of digits is divisible by 3

  15. Basic Manipulations • We can express N in the following way • We can say • Since , hence • Conclusion:

  16. Multiplicative Inverse • Definition: • We say A’ is the multiplicative inverse of A modulo N • Theorem: • A’ exists if and only if • We also say that A and N are co-prime • Note: N is NOT necessarily prime

  17. Multiplicative Inverse • Example • Find the multiplicative inverse of 211 modulo 101

  18. Fermat’s Little Theorem • If p is prime and a is not multiple of p, then • Example 1: Calculate • Are 2110 and 1009 co-prime? • If so, by the theorem, • By multiplication rule, • Same as finding • Ans:

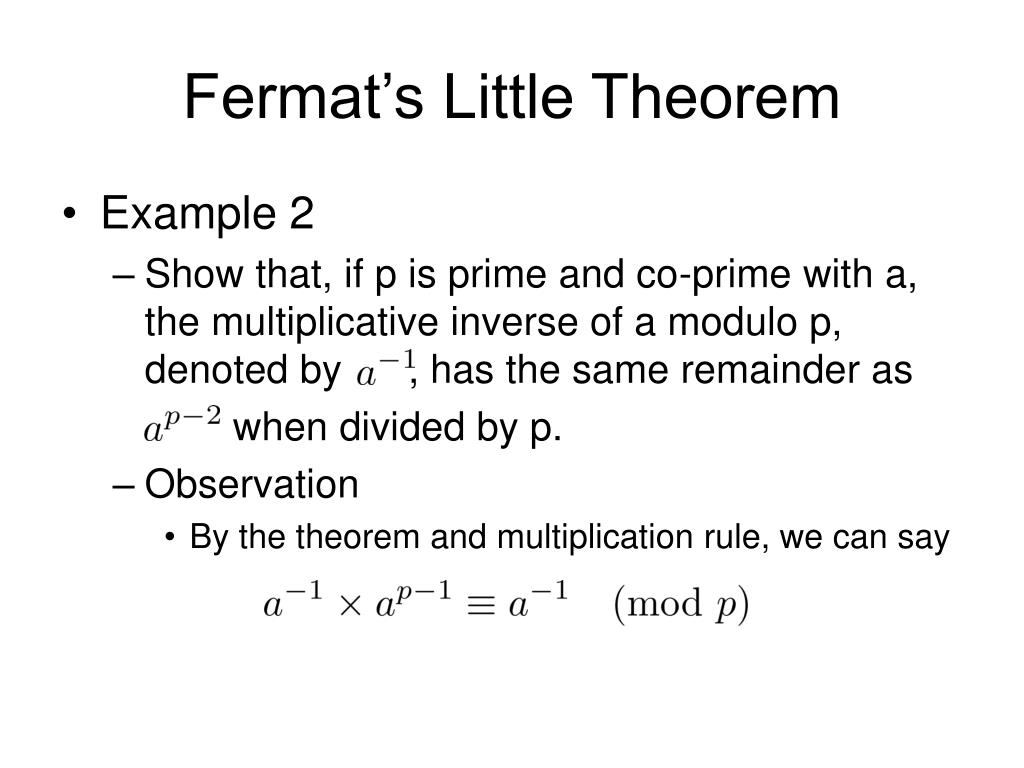

  19. Fermat’s Little Theorem • Example 2 • Show that, if p is prime and co-prime with a, the multiplicative inverse of a modulo p, denoted by , has the same remainder as when divided by p. • Observation • By the theorem and multiplication rule, we can say

  20. Fermat’s Little Theorem • Example 2 (Cont’d) • Observation • By the theorem and multiplication rule, we can say • Then,

  21. Wilson’s Theorem • It states that • What if p is not prime? • p = 4, trivial • p > 5,

  22. Wilson’s Theorem • What if p is prime? • Remember the proof of Fermat’s Little Theorem? • shows a permutation of • Write them down in the yth column of a table • Each row and column has exactly a single 1 • Pair up and it becomes • Only for y = 1 and y = p-1, • So,

  23. The End
