  1. CS179: GPU Programming Lecture 1: Introduction

  2. Today • Course summary • Administrative details • Brief history of GPU computing • Introduction to CUDA

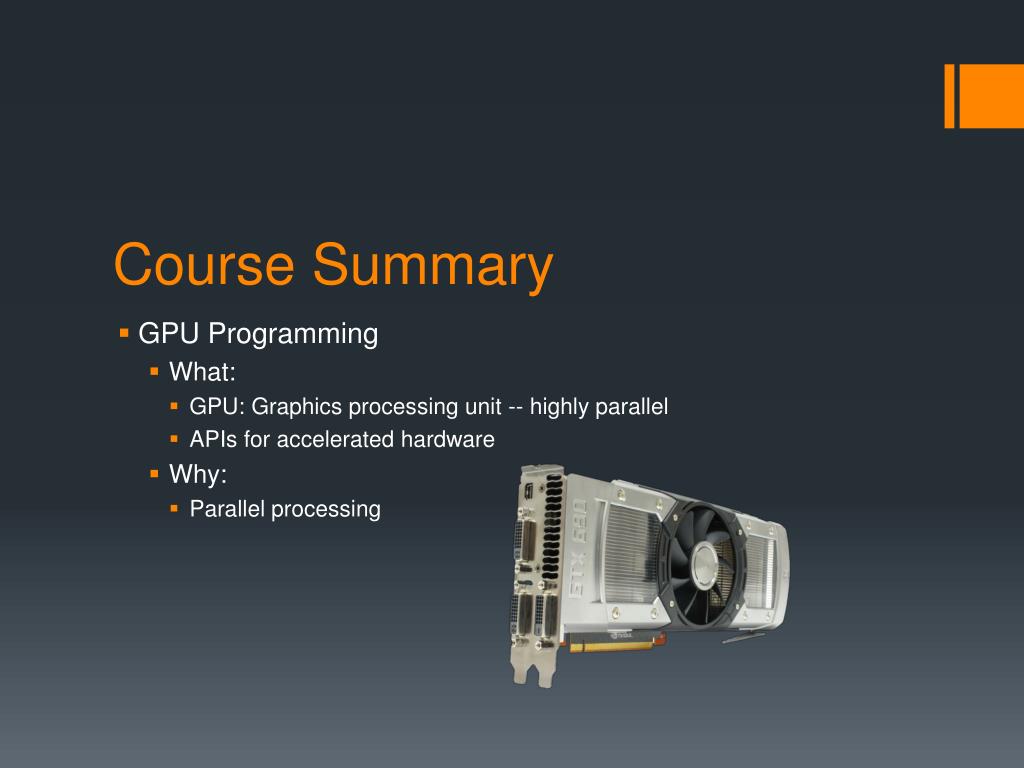

  3. Course Summary • GPU Programming • What: • GPU: Graphics processing unit -- highly parallel • APIs for accelerated hardware • Why: • Parallel processing

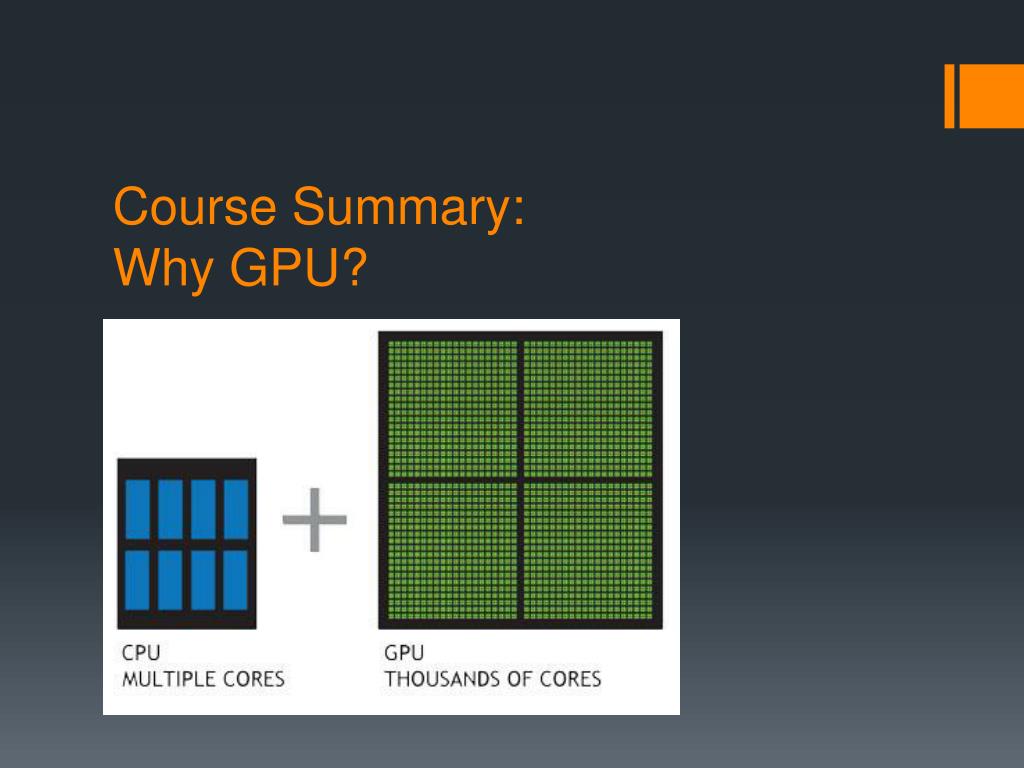

  4. Course Summary:Why GPU?

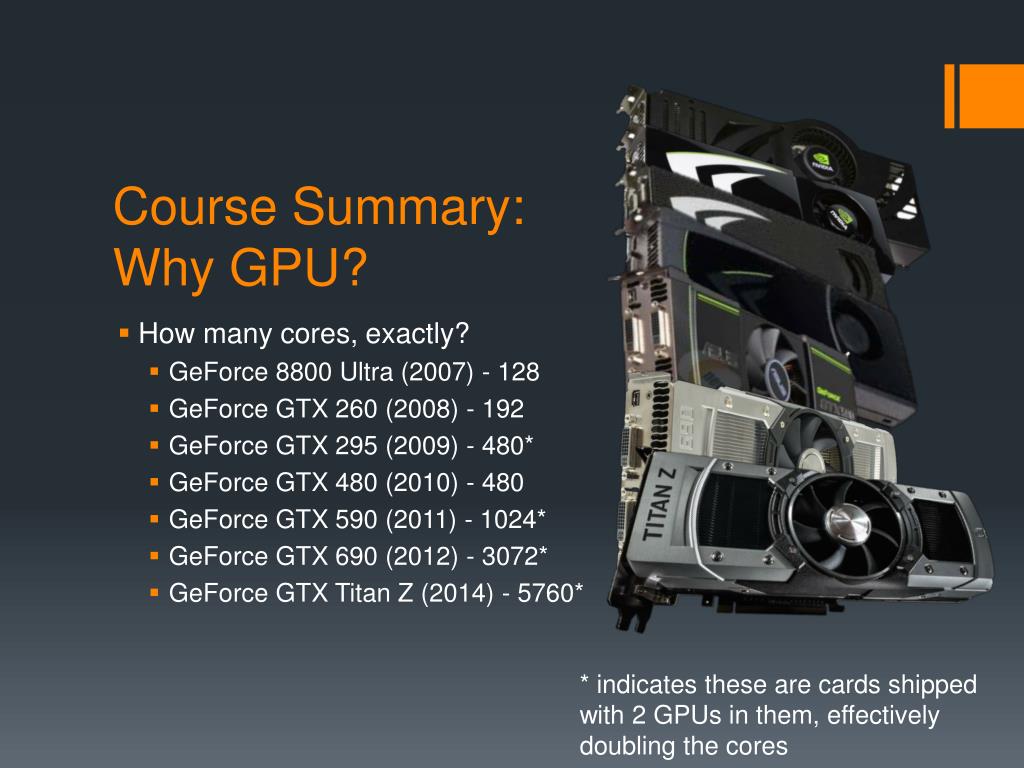

  5. Course Summary:Why GPU? • How many cores, exactly? • GeForce 8800 Ultra (2007) - 128 • GeForce GTX 260 (2008) - 192 • GeForce GTX 295 (2009) - 480* • GeForce GTX 480 (2010) - 480 • GeForce GTX 590 (2011) - 1024* • GeForce GTX 690 (2012) - 3072* • GeForce GTX Titan Z (2014) - 5760* * indicates these are cards shipped with 2 GPUs in them, effectively doubling the cores

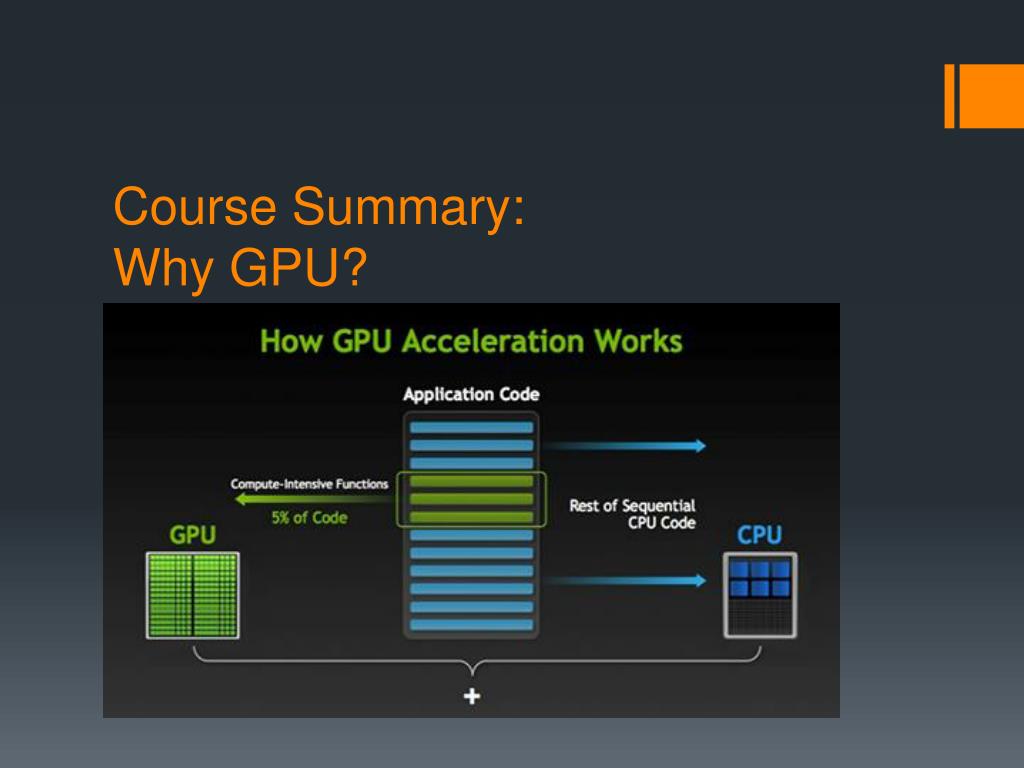

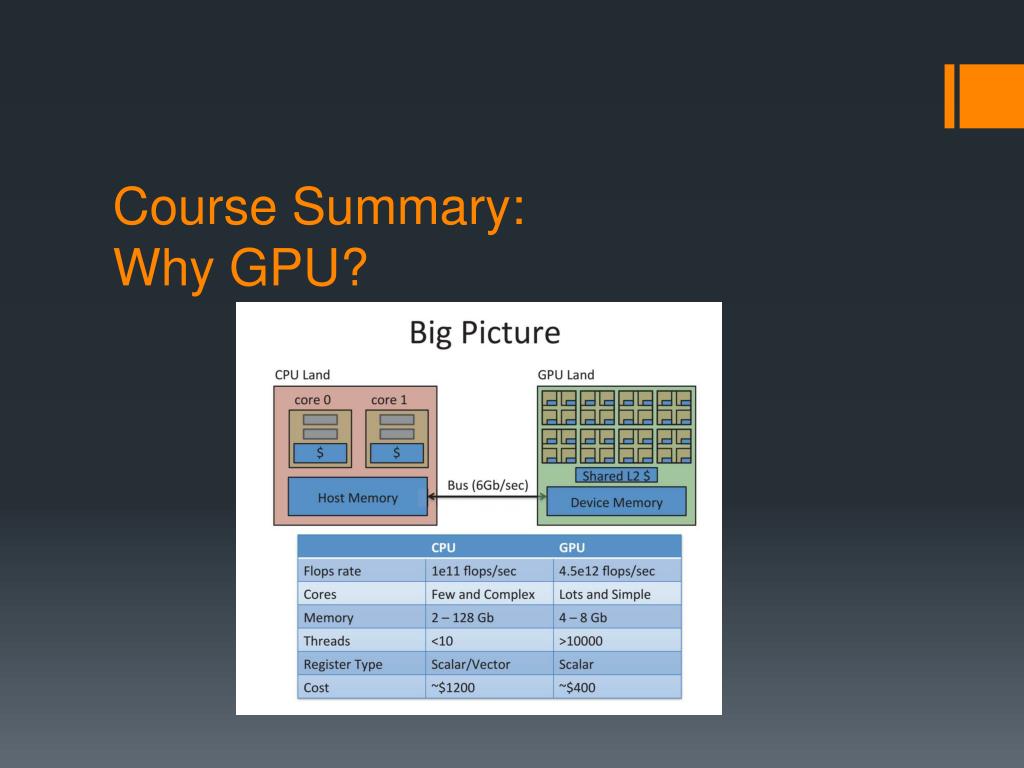

  6. Course Summary:Why GPU?

  7. Course Summary:Why GPU?

  8. Course Summary:Why GPU?

  9. Course Summary:Why GPU? • What kinds of speedups do we get?

  10. Course Summary:Overview • What will you learn? • CUDA • Parallelizing problems • Optimizing GPU code • CUDA libraries • What will we not cover? • OpenGL • C/C++

  11. Administrative:Course Details • CS179: GPU Programming • Website: http://courses.cms.caltech.edu/cs179/ • Course Instructors/TA’s: • Connor DeFanti (cdefanti@caltech.edu) • Kevin Yuh (kyuh@caltech.edu) • Overseeing Instructor: • Al Barr (barr@cs.caltech.edu) • Class time: • MWF 5:00-5:55PM

  12. Administrative:Assignments • Homework: • 8 assignments • Each worth 10% of your grade (100 pts. each) • Final Project: • 2 weeks for a custom final project • Details are up to you! • 20% of your grade (200 pts.)

  13. Administrative:Assignments • Assignments will be due Wednesday, 5PM • Extensions may be granted… • Talk to TA’s beforehand! • Office Hours: located in 104 ANB • Connor: Tuesday, 8-10PM • Kevin: Monday, 8-10PM

  14. Administrative:Assignments • Doing the assignments: • CUDA-capable machine required! • Must have NVIDIA GPU • Setting up environment can be tricky • Three options: • DIY with your own setup • Use provided instructions with given environment • Use lab machines

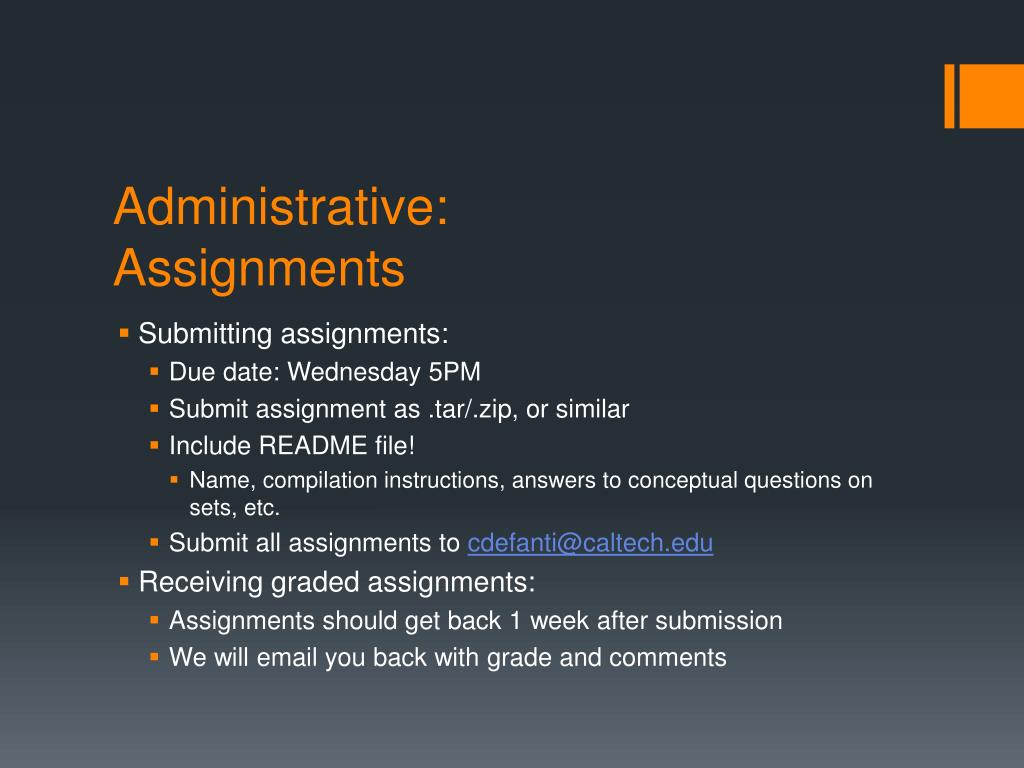

  15. Administrative:Assignments • Submitting assignments: • Due date: Wednesday 5PM • Submit assignment as .tar/.zip, or similar • Include README file! • Name, compilation instructions, answers to conceptual questions on sets, etc. • Submit all assignments to cdefanti@caltech.edu • Receiving graded assignments: • Assignments should get back 1 week after submission • We will email you back with grade and comments

  16. GPU History:Early Days • Before GPUs: • All graphics run on the CPU • Each pixel drawn in series • Super slow! (CS171, anyone?) • Early GPUs: • 1980s: Blitters (fixed image sprites) allowed fast image memory transfer • 1990s: Introduction of DirectX and OpenGL • Brought fixed function pipeline for rendering

  17. GPU History:Early Days • Fixed Function Pipeline: • “Fixed” OpenGL states • Phong or Gouraud shading? • Render as wireframe or solid? • Very limiting, made early games look similar

  18. GPU History:Shaders • Early 2000’s: shaders introduced • Allow for much more interesting shading models

  19. GPU History:Shaders • Shaders: expanded world of rendering greatly • Vertex shaders: apply operations per-vertex • Fragment shaders: apply operations per-pixel • Geometry shaders: apply operations to add new geometry

  20. GPU History:Shaders • These are great when dealing with graphics data… • Vertices, faces, pixels, etc. • What about general purpose? • Can trick GPU • DirectX “compute” shader may be an option • Anything slicker?

  21. GPU History:CUDA • 2007: NVIDIA introduces CUDA • C-style programming API for GPU • Easier to do GPGPU • Easier memory handling • Better tools, libraries, etc.

  22. GPU History:CUDA • New advantages on the table: • Scattered reads • Shared memory • Faster memory transfer to/from the GPU

  23. GPU History:Other APIs • Plenty of other API’s exist for GPGPU • OpenCL/WebCL • DirectX Compute Shader • Other

  24. Using the GPU • Highly parallelizable parts of computational problems

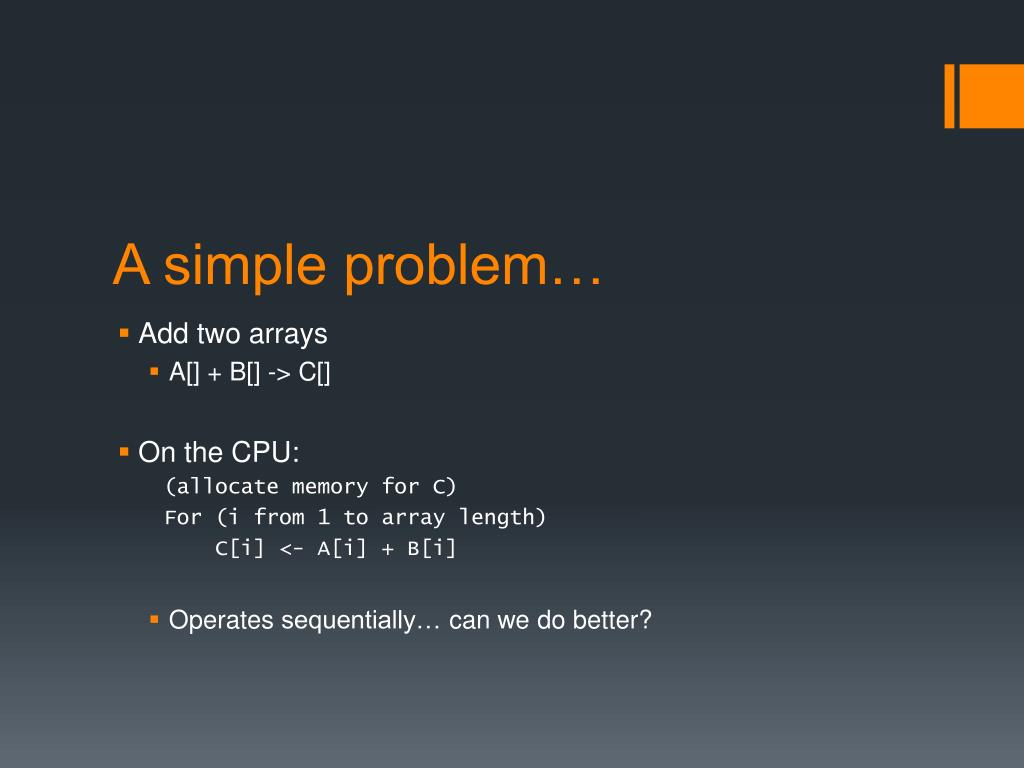

  25. A simple problem… • Add two arrays • A[] + B[] -> C[] • On the CPU: (allocate memory for C) For (i from 1 to array length) C[i] <- A[i] + B[i] • Operates sequentially… can we do better?

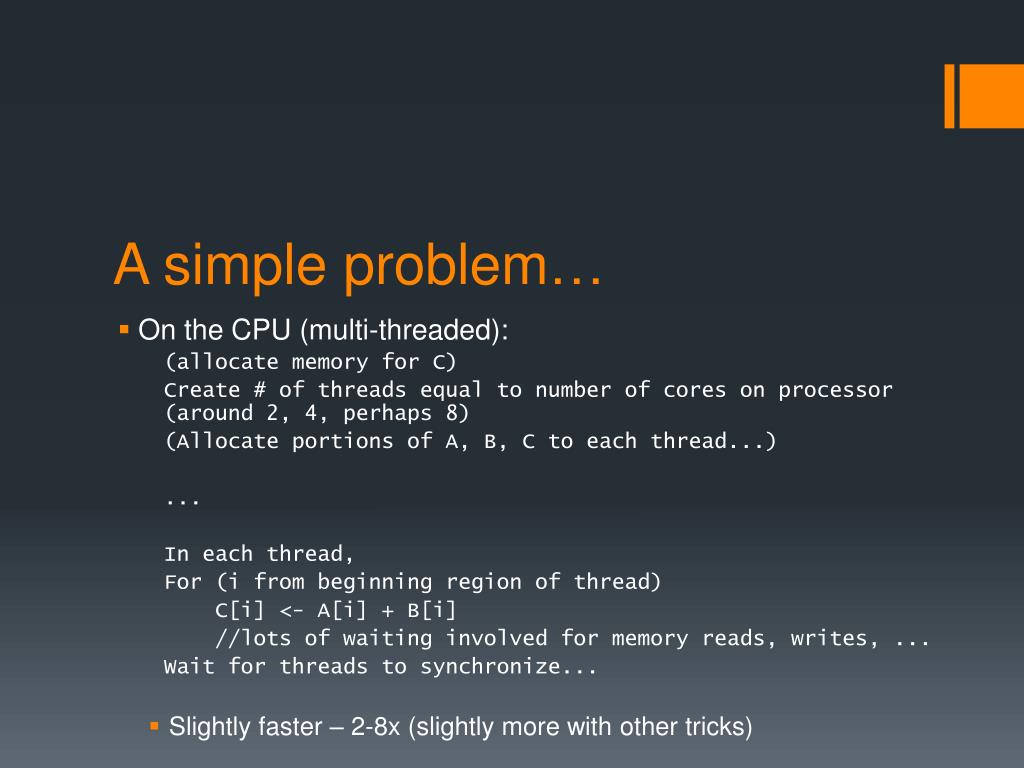

  26. A simple problem… • On the CPU (multi-threaded): (allocate memory for C) Create # of threads equal to number of cores on processor (around 2, 4, perhaps 8) (Allocate portions of A, B, C to each thread...) ... In each thread, For (i from beginning region of thread) C[i] <- A[i] + B[i] //lots of waiting involved for memory reads, writes, ... Wait for threads to synchronize... • Slightly faster – 2-8x (slightly more with other tricks)

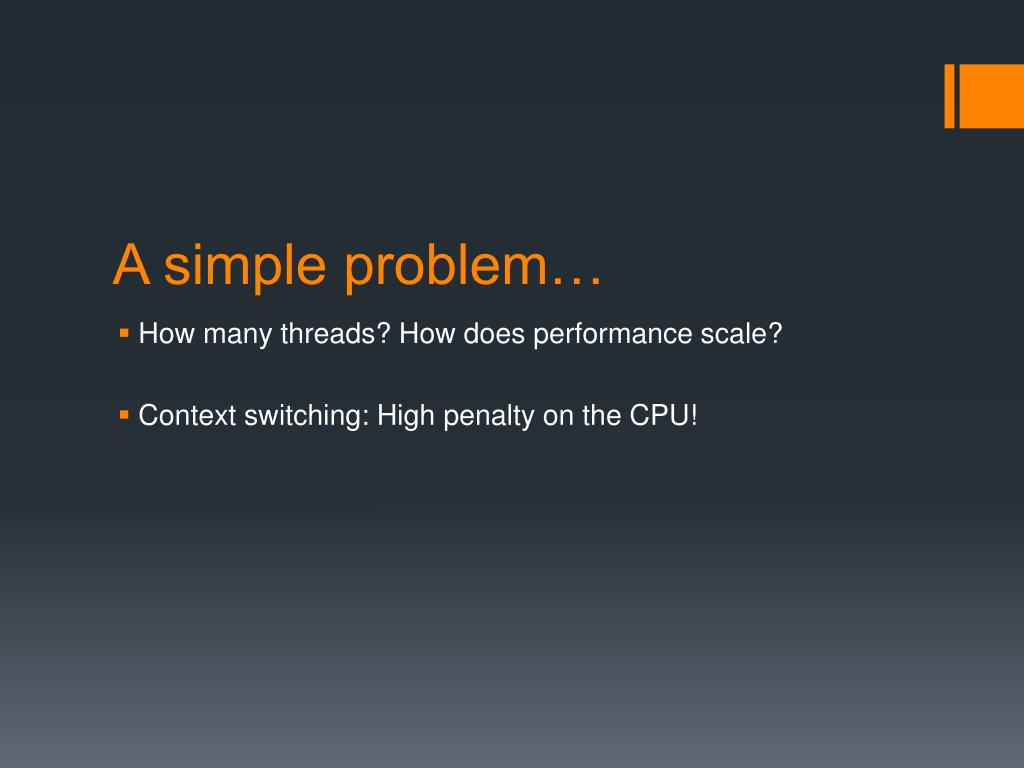

  27. A simple problem… • How many threads? How does performance scale? • Context switching: High penalty on the CPU!

  28. A simple problem… • On the GPU: (allocate memory for A, B, C on GPU) Create the “kernel” – each thread will perform one (or a few) additions Specify the following kernel operation: For (all i‘s assigned to this thread) C[i] <- A[i] + B[i] Start ~20000 (!) threads Wait for threads to synchronize... • Speedup: Very high! (e.g. 10x, 100x)

  29. GPU: Strengths Revealed • Parallelism • Low context switch penalty! • We can “cover up” performance loss by creating more threads!

  30. GPU Computing: Step by Step • Setup inputs on the host (CPU-accessible memory) • Allocate memory for inputs on the GPU • Copy inputs from host to GPU • Allocate memory for outputs on the host • Allocate memory for outputs on the GPU • Start GPU kernel • Copy output from GPU to host • (Copying can be asynchronous)

  31. GPU: Internals • Blocks: Groups of threads • Can cooperate via shared memory • Can synchronize with each other • Max size: 512, 1024 threads (hardware-dependent) • Warps: Subgroups of threads within block • Execute “in-step” • Size: 32 threads

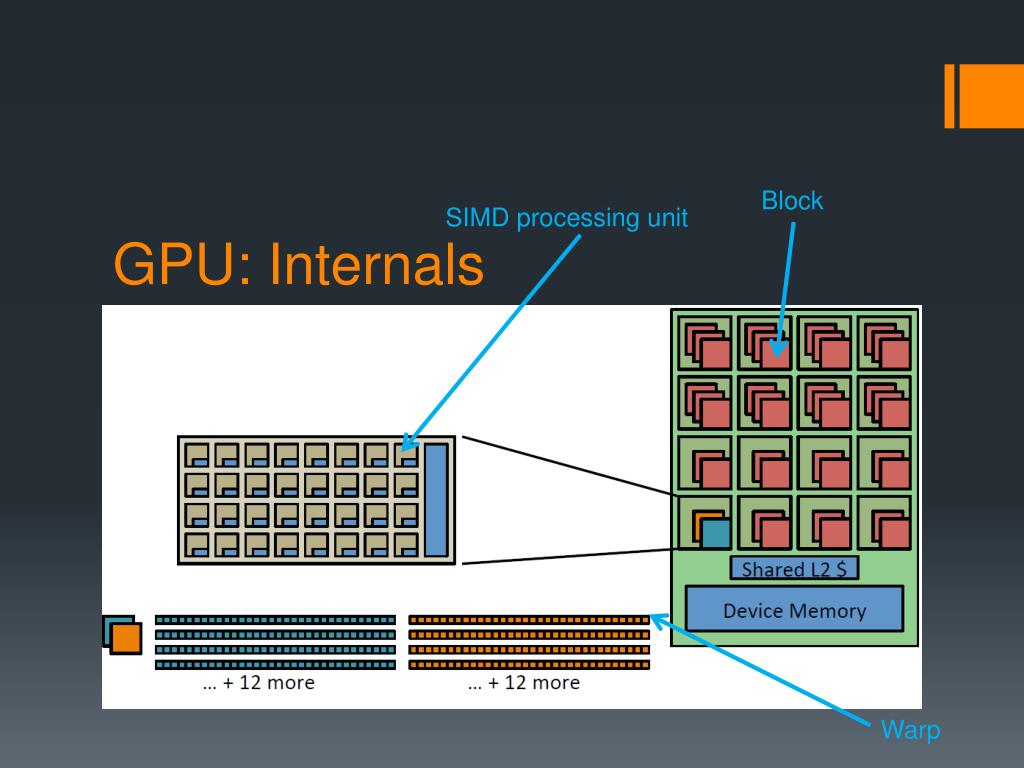

  32. GPU: Internals Block SIMD processing unit Warp

  33. The Kernel • Our “parallel” function • Simple implementation (won’t work for lots of values)

  34. Indexing • Can get a block ID and thread ID within the block: • Unique thread ID!

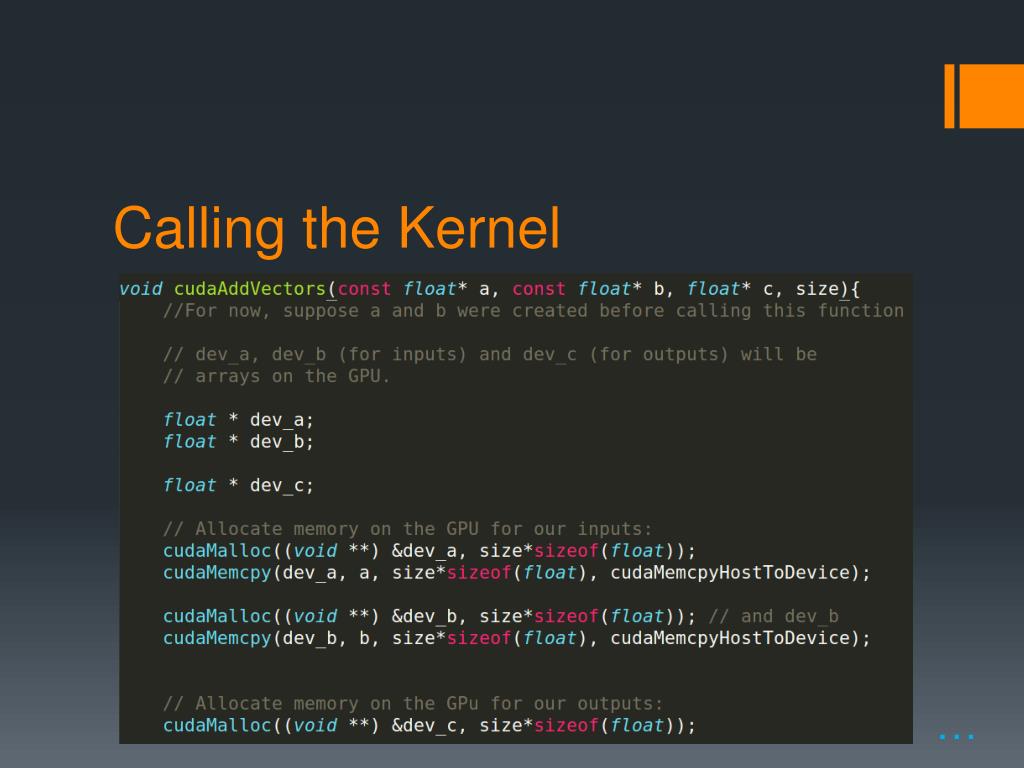

  35. Calling the Kernel

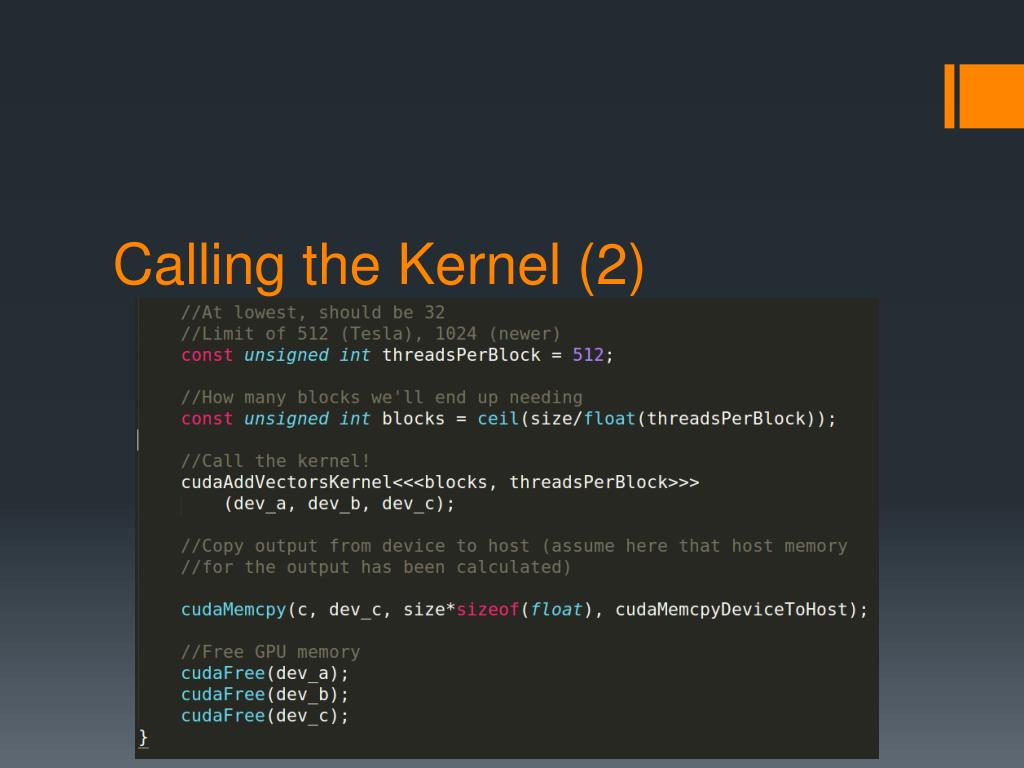

  36. Calling the Kernel (2)
