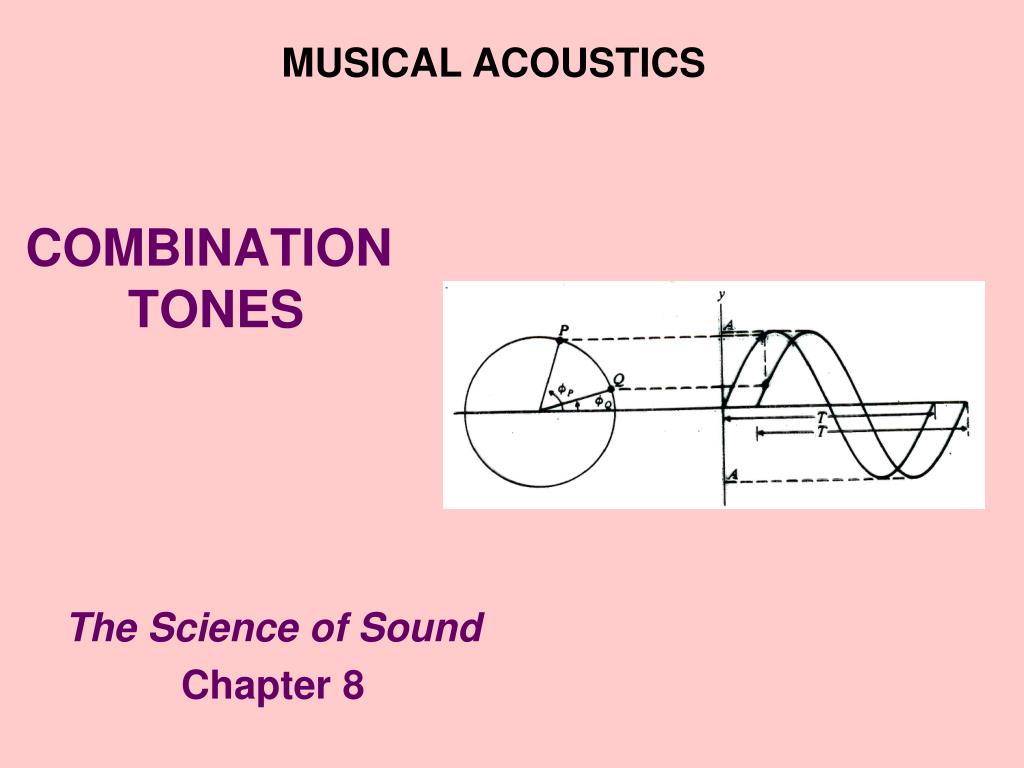

  1. MUSICAL ACOUSTICS COMBINATION TONES The Science of Sound Chapter 8

  2. LINEAR SUPERPOSITION OF TWO SIMPLE HARMONIC MOTIONS AT THE SAME FREQUENCY SAME PHASE OPPOSITE PHASE

  3. SIMPLE HARMONIC MOTION AS THEPROJECTION OF POINT P (MOVING IN A CIRCLE)

  4. TWO POINTS P AND Q MOVE WITH THE SAME PERIOD T AND AMPLITUDE A AND MAINTAIN A PHASE DIFFERENCE ΦP – ΦQ

  5. LINEAR SUPERPOSITION OF TWO SHMs WITH THE SAME FREQUENCY BUT WITH A PHASE DIFFERENCE ΦB – ΦA = 90º

  6. Practice problems: ESTIMATE THE RESULTANT AMPLITUDE OF TWO SINE WAVES HAVING AMPLITUDES OF 4 AND 3 IF THEIR PHASE DIFFERENCE IS 45O 90O 135O

  7. ESTIMATE THE RESULTANT AMPLITUDE OF TWO SINE WAVES HAVING AMPLITUDES OF 4 AND 3 IF THEIR PHASE DIFFERENCE IS 45O 90O 135O √ [16 + 9 + (1.4)(4)(3)] = 6.47

  8. ESTIMATE THE RESULTANT AMPLITUDE OF TWO SINE WAVES HAVING AMPLITUDES OF 4 AND 3 IF THEIR PHASE DIFFERENCE IS 45O 90O 135O √ [16 + 9 + (1.4)(4)(3)] = 6.47 √ [16 + 9] = 5

  9. ESTIMATE THE RESULTANT AMPLITUDE OF TWO SINE WAVES HAVING AMPLITUDES OF 4 AND 3 IF THEIR PHASE DIFFERENCE IS 45O 90O 135O √ [16 + 9 + (1.4)(4)(3)] = 6.47 √ [16 + 9] = 5 √ [16 + 9 - (1.4)(4)(3)] = 2.86

  10. TWO TONES WITH FREQUENCIES ƒ1 AND ƒ2 : BEATS If f1 is fixed and f2 is variable, beats result for small differences between f1 and f2. 32 Primary beats. Track 62

  11. THE MUSICAL STAFF: MUSICIAN’S GRAPH PAPER

  12. PROPOSAL FOR THREE NEW CLEFFS(See Appendix A.6)

  13. COMBINATION TONES 34 Aural combination Tones, Tr 68-69 COMBINATION TONES ON A MUSICAL STAFF

  14. DIFFERENCE TONES MOST CLEARLY HEARD: DIFFERENCE TONE (f2 – f1) [TARTINI TONES] CUBIC DIFFERENCE TONE (2f1 – f2) OTHER DIFFERENCE TONES: (3f1– 2f2), 4f1—3f2), etc,

  15. DIFFERENCE TONE MELODY

  16. MODULATION OF ONE TONE (ƒ2) BY ANOTHER (ƒ1) Amplitude modulation results in “sidebands” as shown

  17. AMPLITUDE MODULATION (AM) AND FREQUENCY MODULATION (FM) BOTH AM AND FM ARE USED IN RADIO BROADCASTING FREQUENCY MODULATION PRODUCES MANY SIDEBANDS AND THESE ARE USEFUL IN FM SYNTHESIS OF MUSIC

  18. ORIGIN OF DIFFERENCE TONES The simple difference tone with frequency f2-f1 (properly called the quadratic difference tone) can be easily heard up to about 1500 Hz. The cubic difference tone with frequency 2f1-f2can be easily heard as well. The quartic difference tone (3f1-2f2) and higher order difference tones are generally more difficult to hear.

  19. OTHER NONLINEAR EFFECTS AURAL HARMONICS FLETCHER SUGGESTED A SIMPLE POWER LAW FOR EAR RESPONSE x = a0 + a1 p + a2 p2 + a3 p3 + , , , THIS PREDICTS THAT FOR A 1 dB INCREASE IN SIGNAL LEVEL, THE SECOND HARMONIC WILL INCREASE BY 2 dB, THE THIRD BY 3 dB, etc. SUMMATION TONES IF THE EAR HAS A NONLINEAR RESPONSE, ONE MIGHT EXPECT TO HEAR SUMMATION TONES (f1 + f2) AS WELL AS DIFFERENCE TONES. NO ONE HAS PRESENTED CONVINCING EVIDENCE FOR THEIR EXISTENCE

  20. CONSONANCE AND DISSONANCE: MUSICAL INTERVALS PLOMP AND LEVELT: IF THE FREQUENCY DIFFERENCE IS GREATER THAN A CRITICAL BAND, THEY SOUND CONSONANT MAXIMUM DISSONANCE OCCURS WHEN THE DIFFERENCE IS ABOUT ¼ OF A CRITICAL BAND

  21. INTERACTIONS BETWEEN HARMONICS OF TWO TONES SEPARATED BY DIFFERENT INTERVALS

  22. CONSONANCEEXPECTED BY COMBINING A TONE OF 250 Hz WITH ANOTHER TONE

  23. STATISTICAL ANALYSIS OF CHORDS Bach “Trio Sonata for Organ” Dvorak “String Quartet op. 51” (Plomp and Levelt, 2965)

  24. EFFECT OF PHASE ON TIMBRE BUILDING UP COMPLEX TONES WITH THE SAME SPECTRUM OF PARTIALS BUT WITH DIFFERENT PHASES RESULTS IN TOTALLY DIFFERENT WAVEFORMS. DO THEY SOUND DIFFERENT? THE ANSWER IS “SOMETIMES” PLOMP (1970): THE MAXIMUM EFFECT OF PHASE ON TIMBRE IS BETWEEN A COMPLEX TONE IN WHICH THE HARMONICS ARE IN PHASE AND ONE IN WHICH ALTERNATE HARMONICS DIFFER IN PHASE BY 90O 33 Distortion, Tracks 64-67

  25. BEATS OF MISTUNED CONSONANCES A SENSATION OF BEATS OCCUR WHEN THE FREQUENCIES OF TWO TONES f1 AND f2 ARE NEARLY, BUT NOT QUITE, IN A SIMPLE RATIO IF f2 = 2f1 + δ, BEATS ARE HEARD AT A FREQUENCY δ. WHEN f2 = n/m f1 + δ, mδ BEATS OCCUR. THESE ARE CALLED SECOND ORDER BEATS OR BEATS OF MISTUNED CONSONANCE, AND THEY RESULT IN PERIODIC CHANGES IN PHASE THE EAR, WHICH IS A POOR DETECTOR OF STATIONARY PHASE, APPEARS TO BE SENSITIVE TO CYCLICAL VARIATIONS IN PHASE BEATS OF MISTUNED CONSONANCES HAVE LONG BEEN USED BY PIANO TUNERS TO TUNE FIFTHS, FOURTHS, AND OCTAVES. VIOLINISTS USE THEM TO TUNE THEIR STRINGS 32 Secondary beats, Track 63 Tone pairs having intervals slightly greater than an octave, fifth, and fourth

  26. PRACTICE PROBLEMS: IF TONES WITH FREQUENCIES OF 440 Hz AND 443 Hz ARE SOUNDED TOGETHER, HOW MANY BEATS ARE HEARD EACH SECOND? IF TONES WITH FREQUENCIES OF 442 Hz AND 330 Hz ARE HEARD TOGETHER, HOW MANY BEATS ARE HEARD EACH SECOND?

  27. PRACTICE PROBLEMS: IF TONES WITH FREQUENCIES OF 440 Hz AND 443 Hz ARE SOUNDED TOGETHER, HOW MANY BEATS ARE HEARD EACH SECOND? SOLUTION: 443 – 440 = 3 Hz IF TONES WITH FREQUENCIES OF 442 Hz AND 330 Hz ARE HEARD TOGETHER, HOW MANY BEATS ARE HEARD EACH SECOND? SOLUTION: 442 = 4/3(330) + 2, SO mδ = (3)(2) = 6 Hz (THESE ARE BEATS OF A MISTUNED FOURTH)

  28. PRACTICE PROBLEMS: IF TONES WITH FREQUENCIES OF 440 Hz AND 443 Hz ARE SOUNDED TOGETHER, HOW MANY BEATS ARE HEARD EACH SECOND? SOLUTION: 443 – 440 = 3 Hz IF TONES WITH FREQUENCIES OF 442 Hz AND 330 Hz ARE HEARD TOGETHER, HOW MANY BEATS ARE HEARD EACH SECOND? SOLUTION: 442 = 4/3(330) + 2, SO mδ = (3)(2) = 6 Hz (THESE ARE BEATS OF A MISTUNED FOURTH) Alternate solution: 3rd harmonic of 442 is 1326 Hz; 4th harmonic of 330 is 1320; if sounded together, beats would be heard at 1326-1320 = 6 Hz

  29. CENTRAL NERVOUS SYSTEM AUTOCORRELATION AND CROSS-CORRELATION AUTOCORRELATION IS A COMPARISON OF A PULSE TRAIN WITH PREVIOUS PULSE TRAINS IN ORDER TO PICK OUT REPETITIVE FEATURES (e.g., repetition pitch) CROSS-CORRELATION IS A COMPARISON BETWEEN SIGNALS ON TWO DIFFERENT NERVE FIBERS (e.g., localization of sound) CEREBRAL DOMINANCE THE LEFT SIDE OF THE BRAIN (IN 97% OF THE POPULATION) IS SPECIALIZED FOR SPEECH PROCESSING, AND THE RIGHT SIDE FOR NON-LINGUISTIC FUNCTIONS SUCH AS MUSIC SPEECH PROCESSING REQUIRES ANALYTIC AND SERIAL PROCESSING, MUSICAL PERCEPTION REQUIRES HOLISTIC PROCESSING

  30. BINARUAL EFFECTS AUDITORY DEMONSTRATIONS 36-39 ILLLUSTRATE BINAURAL EFFECTS THAT CAN BE HEARD THROUGH STEREO HEADPHONES

  31. A BINAURAL AUDITORY ILLUSION 36 TONES OF 400 AND 800 Hz ALTERNATE IN BOTH EARS IN OPPOSITE PHASE (i.e., when right ears hears 400 Hz, left ear hears 800 Hz). MOST RIGHT-HANDED LISTENERS HEAR THE HIGH TONE IN THEIR RIGHT EAR AND THE LOW TONE IN THEIR LEFT EAR, REGARDLESS OF HOW THE HEADPHONES ARE ORIENTED (even when they are exchanged). LEFT-HANDED LISTENERS, ON THE OTHER HAND, ARE JUST AS APT TO HEAR THE HIGH TONE IN THE RIGHT EAR AS IN THE LEFT. THAT IS BECAUSE IN RIGHT-HANDED PEOPLE, THE LEFT HEMISPHERE IS DOMINANT (AND ITS PRIMARY AUDITORY INPUT IS FROM THE RIGHT EAR), WHEREAS IN LEFT-HANDED PEOPLE EITHER HEMISPHERE MAY BE DOMINANT. HIGH TONES ARE PERCEIVED AS BEING HEARD AT THE EAR THAT FEEDS THE DOMINANT HEMISPHERE (Deutsch, “Musical Illusions,” Scientific American, 1975).

  32. ASSIGNMENT FOR MONDAY MIDTERM EXAM ON CHAPTERS 1-8 OPTIONAL REVIEW ON FRIDAY AT 1000 EXERCISES 2,4,5,7,8,9 (p.172) Hand them in Thursday if you want them back to study for the exam ASSIGNMENT FOR WEDNESDAY: READ CHAPTER 10 OPTIONAL SESSION ON FRIDAY, FEB. 14 TO DISCUSS THE EXAM NO CLASS ON MONDAY, FEB. 17 (PRESIDENTS’ DAY)
