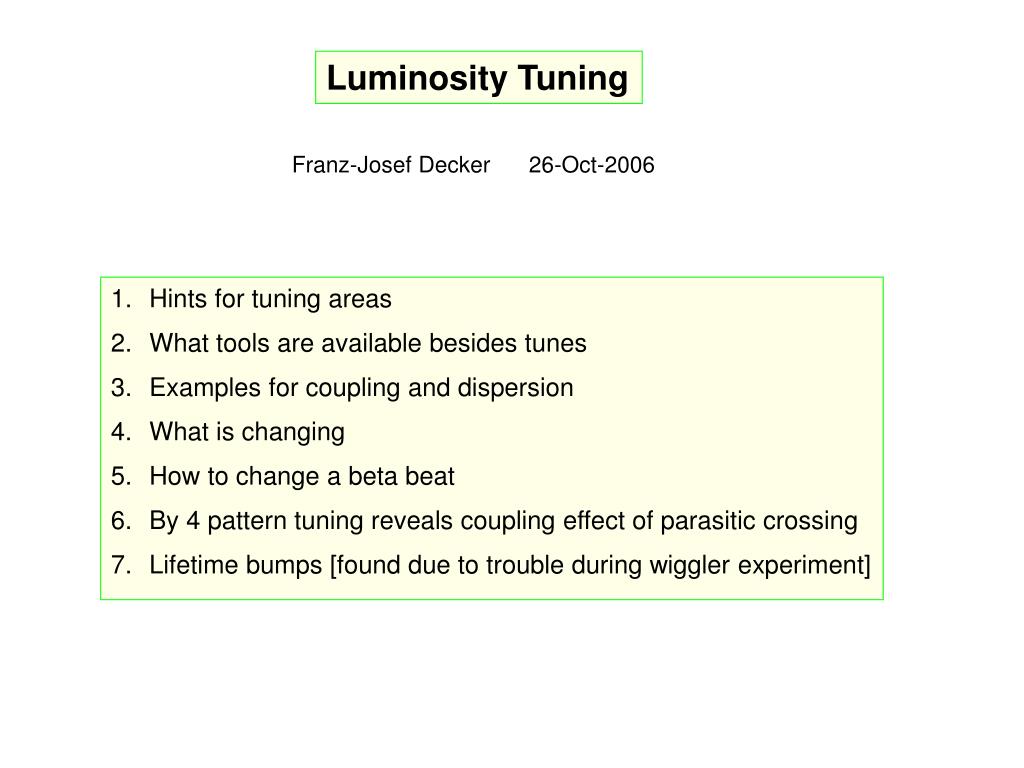

Luminosity Tuning. Franz-Josef Decker 26-Oct-2006. Hints for tuning areas What tools are available besides tunes Examples for coupling and dispersion What is changing How to change a beta beat By 4 pattern tuning reveals coupling effect of parasitic crossing

totie
Télécharger la présentation

Luminosity Tuning

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Luminosity Tuning Franz-Josef Decker 26-Oct-2006 • Hints for tuning areas • What tools are available besides tunes • Examples for coupling and dispersion • What is changing • How to change a beta beat • By 4 pattern tuning reveals coupling effect of parasitic crossing • Lifetime bumps [found due to trouble during wiggler experiment]

  2. We get hints from our “regular” characterization, where improvements might be helpful Fit with kick here

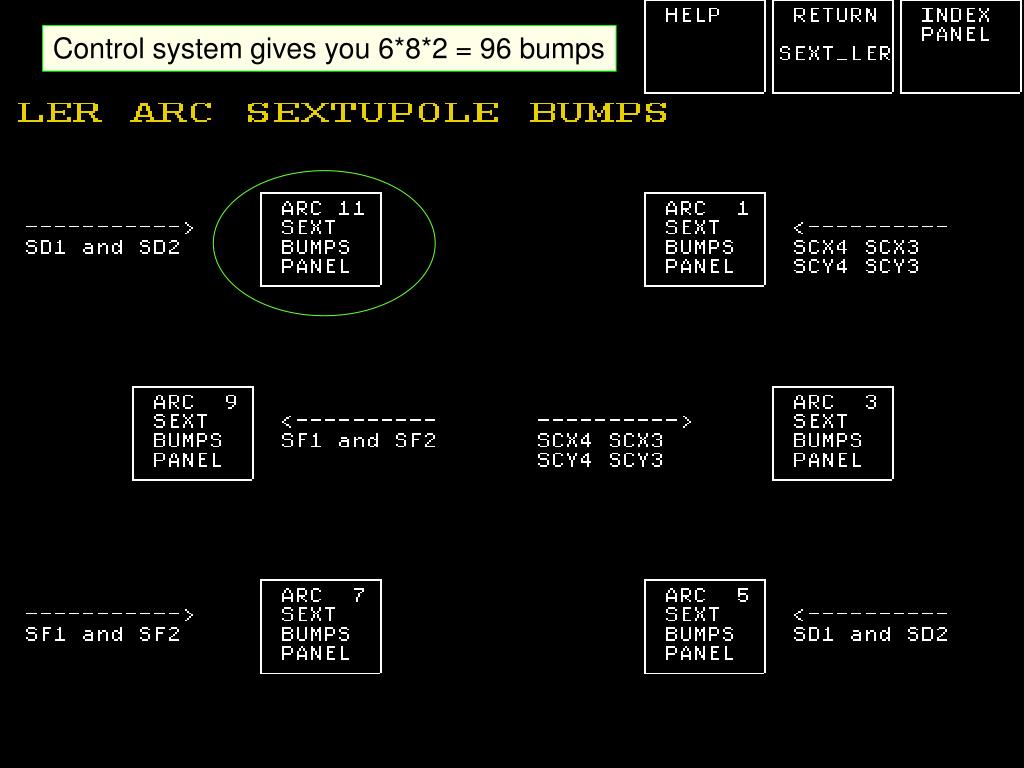

  3. Control system gives you 6*8*2 = 96 bumps

  4. Effects and uses of sextupole bumps [picture from SLC Final Focus paper] Anti-symmetric: (2 phases: ,’) In y: y-dispersion, fixes eta_y due to orbit variations In x: x-dispersion, used for LER x-emittance control Symmetric: (4 phases: xy, yx) In y: Coupling, SD: xy, SF: yx In x: Beta beat and (tune shift) SD for y, SF for x (only ONE phase per arc!) [two “canceling” sym x in SDs increases lifetime!]

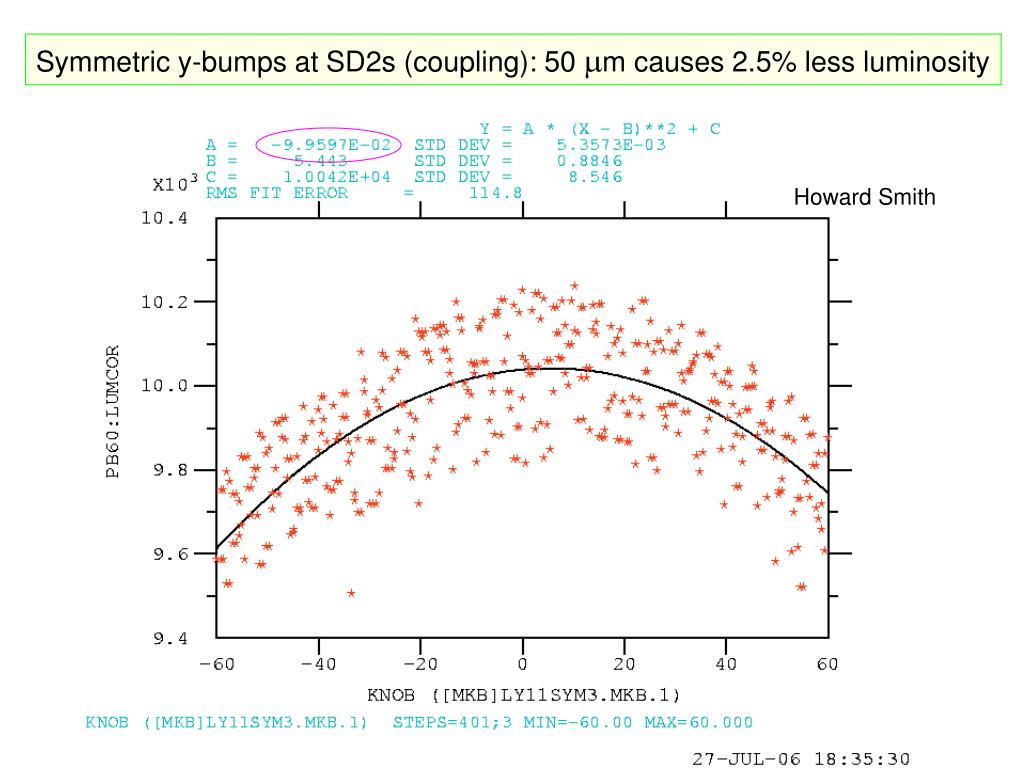

  5. Symmetric y-bumps at SD2s (coupling): 50 m causes 2.5% less luminosity Howard Smith

  6. Anti-symmetric y-bumps (dispersion): 210 m causes 2.5% less luminosity Howard Smith

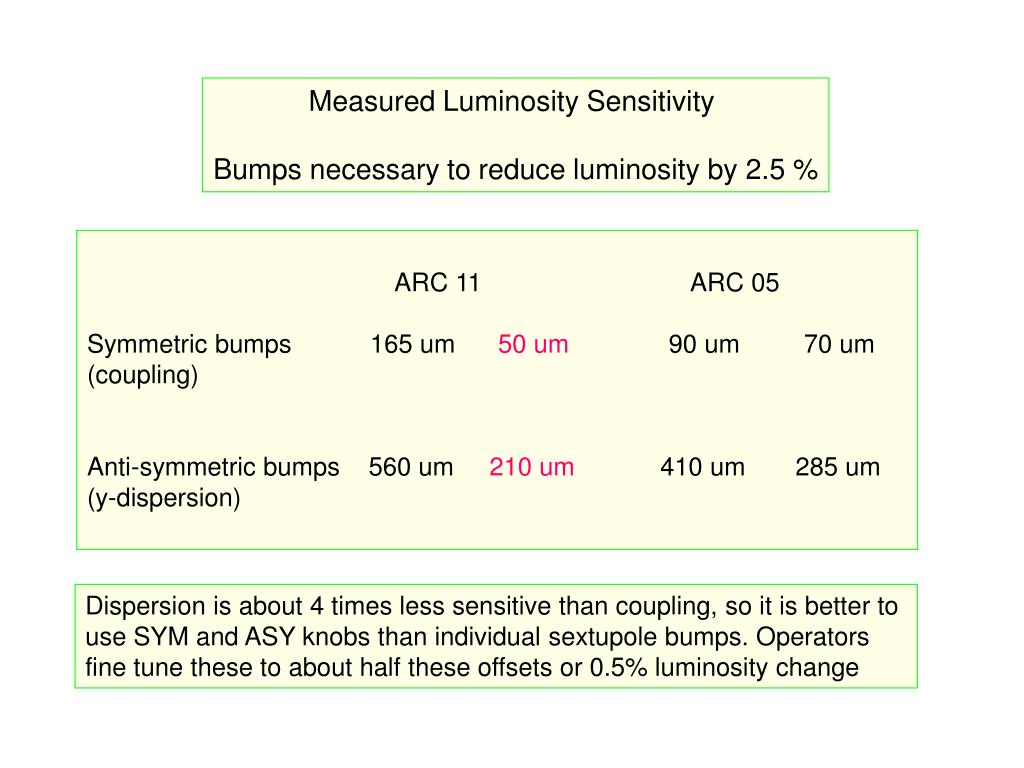

  7. Measured Luminosity Sensitivity Bumps necessary to reduce luminosity by 2.5 % ARC 11 ARC 05 Symmetric bumps 165 um 50 um 90 um 70 um (coupling) Anti-symmetric bumps 560 um 210 um 410 um 285 um (y-dispersion) Dispersion is about 4 times less sensitive than coupling, so it is better to use SYM and ASY knobs than individual sextupole bumps. Operators fine tune these to about half these offsets or 0.5% luminosity change

  8. Q2 chamber seen as Q4 raft motion causes luminosity dips up to half an hour after filling from scratch Q4R raft motions 25% Luminosity dips

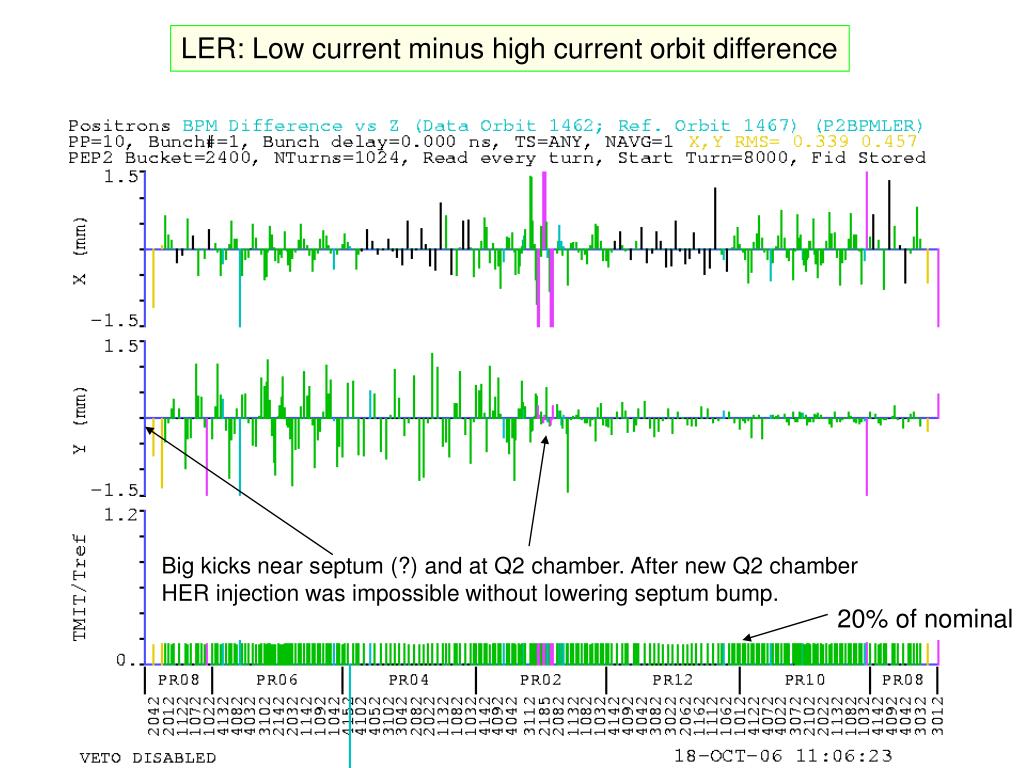

  9. LER: Low current minus high current orbit difference Big kicks near septum (?) and at Q2 chamber. After new Q2 chamber HER injection was impossible without lowering septum bump. 20% of nominal

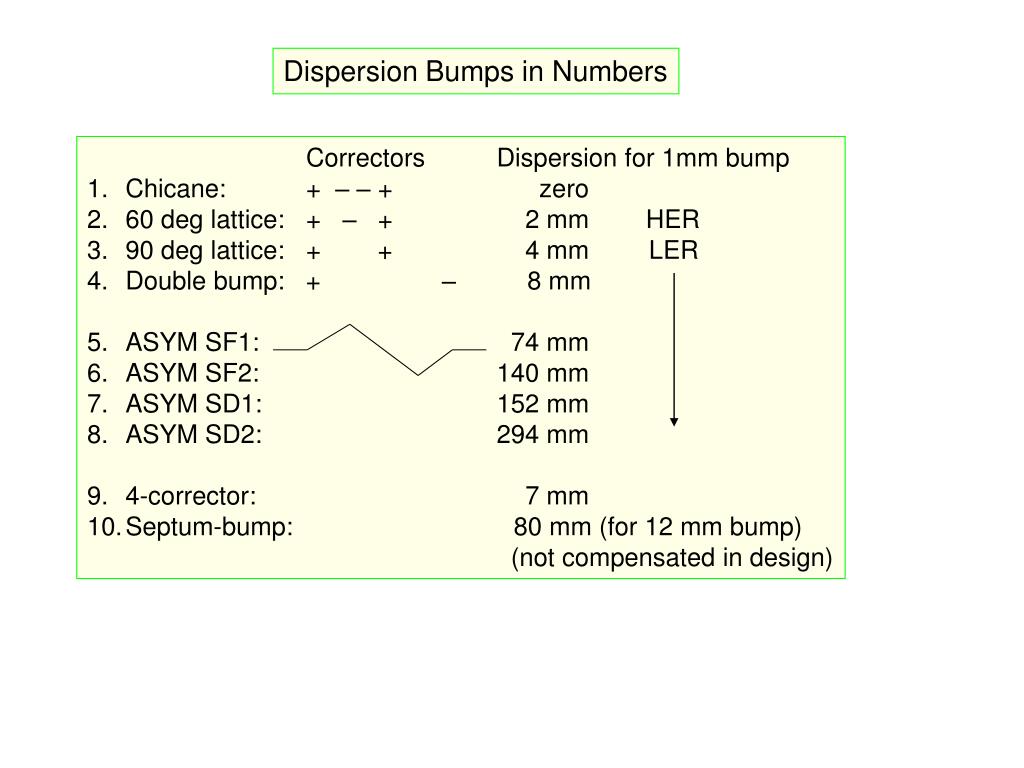

  10. Dispersion Bumps in Numbers • Correctors Dispersion for 1mm bump • Chicane: + –– + zero • 60 deg lattice: + – + 2 mm HER • 90 deg lattice: + + 4 mm LER • Double bump: + – 8 mm • ASYM SF1: 74 mm • ASYM SF2: 140 mm • ASYM SD1: 152 mm • ASYM SD2: 294 mm • 4-corrector: 7 mm • Septum-bump: 80 mm (for 12 mm bump) • (not compensated in design)

  11. How to change a beta beat Design • Find location with • clear max or min • at sextupole pair • (SF for x, SD for y) • 2. Sym. +x bump will • will make quad • stronger • Like IP with • dynamic beta • more focusing • reduces beta • Therefore move • to –x in this case • Depending on tune • amount is about • 1-2 mm for a beat • of 4 • 6. Fix tune change

  12. Luminosity Tuning for By 4 Pattern (no parasitic crossing) Parasitic crossing has HUGE coupling effect,: 550 um sym. y-bump necessary [(550/50)^2 * -2.5% = -300% ?] By 2 By 4 1 hr tuning

  13. Heating due to wiggler Here we have 2000 mA in LER and we need about a limit of 175 deg F to be able to go all the way to 3000 mA. Synchrotron light is linear.

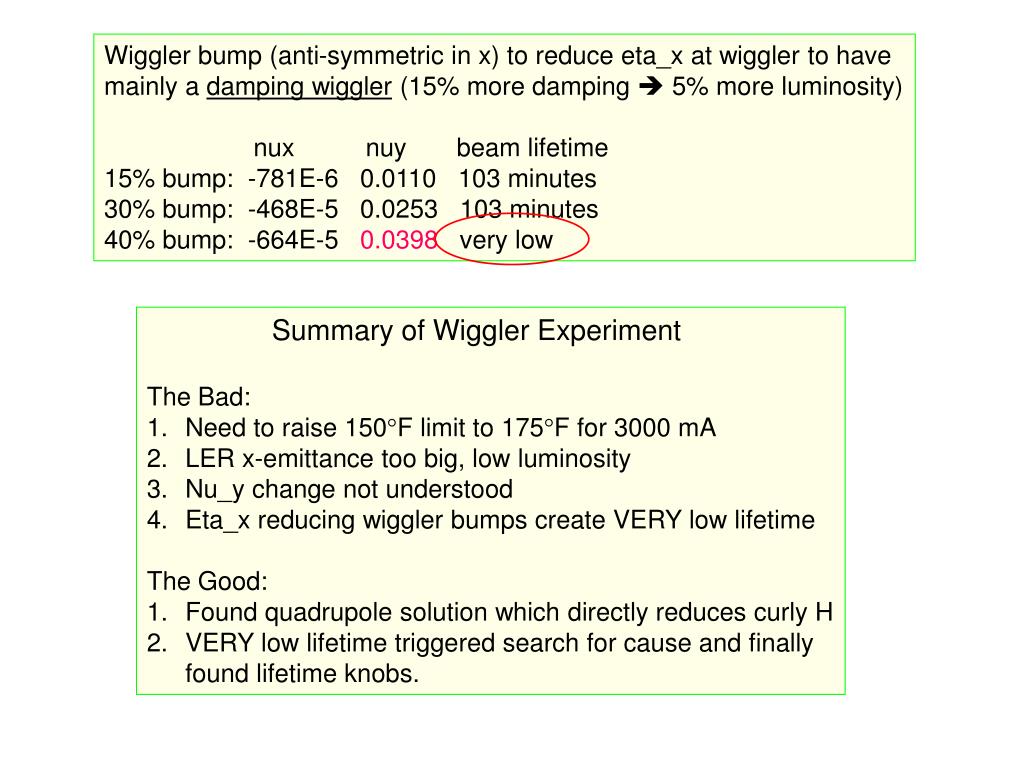

  14. Wiggler bump (anti-symmetric in x) to reduce eta_x at wiggler to have mainly a damping wiggler (15% more damping  5% more luminosity) nux nuy beam lifetime 15% bump: -781E-6 0.0110 103 minutes 30% bump: -468E-5 0.0253 103 minutes 40% bump: -664E-5 0.0398 very low • Summary of Wiggler Experiment • The Bad: • Need to raise 150F limit to 175F for 3000 mA • LER x-emittance too big, low luminosity • Nu_y change not understood • Eta_x reducing wiggler bumps create VERY low lifetime • The Good: • Found quadrupole solution which directly reduces curly H • VERY low lifetime triggered search for cause and finally • found lifetime knobs.

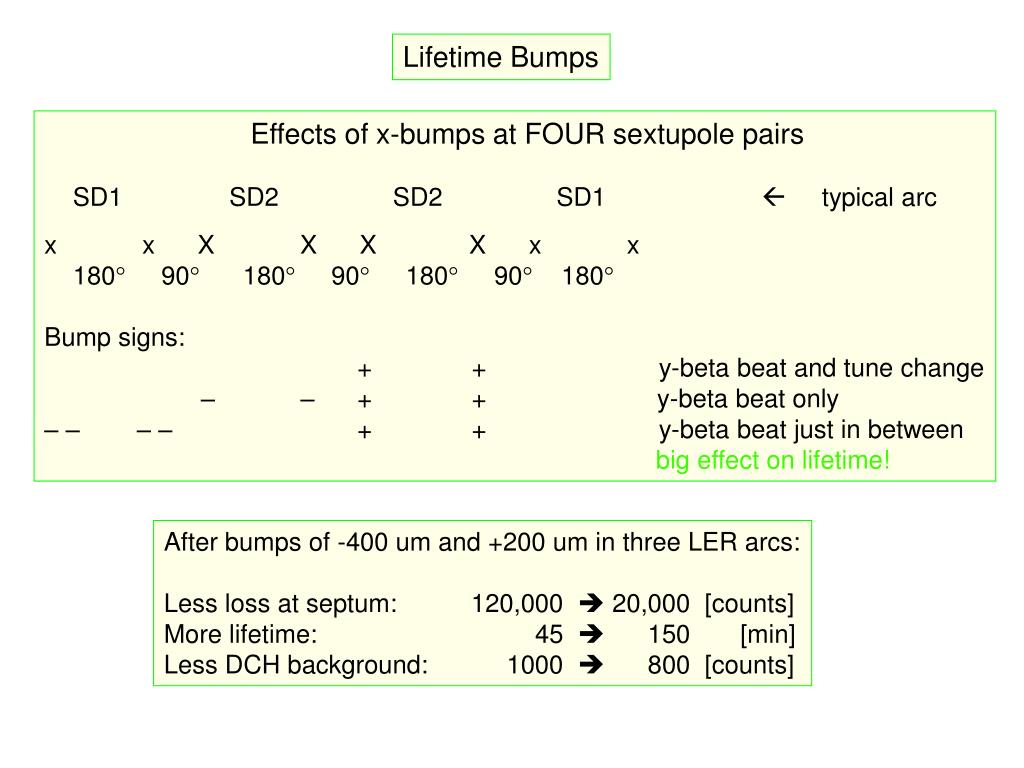

  15. Lifetime Bumps Effects of x-bumps at FOUR sextupole pairs SD1 SD2 SD2 SD1  typical arc x x X X X X x x 180 90 180 90 180 90 180 Bump signs: + + y-beta beat and tune change – – + + y-beta beat only – – – – + + y-beta beat just in between big effect on lifetime! After bumps of -400 um and +200 um in three LER arcs: Less loss at septum: 120,000  20,000 [counts] More lifetime: 45  150 [min] Less DCH background: 1000  800 [counts]

  16. Wrong way LER beam loss monitor at septum reduced from 120,000 to 40,000 after first arc bumps. Reduced Drift Chamber background -12% and -8%

  17. Yuri Nosochkov showed, that the beta beat has a small effect while the created phase shift can cancel the third order chromaticity. Before (design) after bumps

  18. Summary • Tuning is still very necessary • We have knobs which control: • a) dispersion x and y • b) coupling xy, yx • c) beta beat in x and y • d) new: lifetime • e) Wx, Wy [G. Yocky’s talk] • 3. Often machine changes, like By4, MIA solutions, wiggler, etc • require big tuning efforts • 4. Many thanks especially to the newest operators, which push the • machine to higher luminosity peaks!

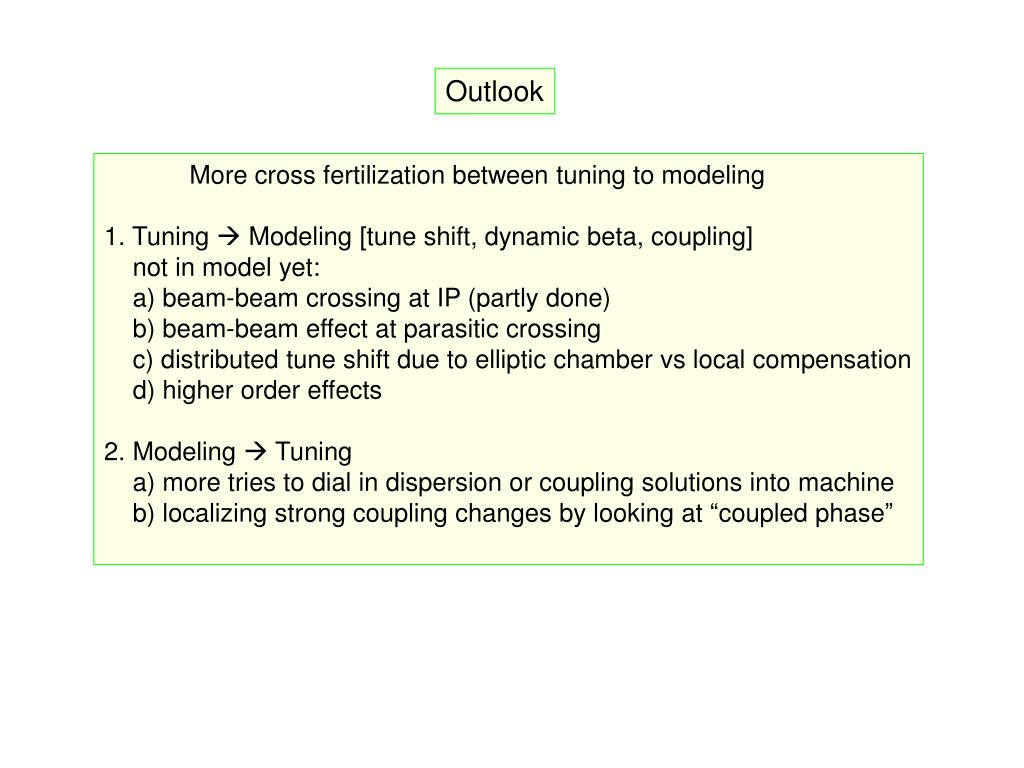

  19. Outlook More cross fertilization between tuning to modeling 1. Tuning  Modeling [tune shift, dynamic beta, coupling] not in model yet: a) beam-beam crossing at IP (partly done) b) beam-beam effect at parasitic crossing c) distributed tune shift due to elliptic chambervs local compensation d) higher order effects 2. Modeling  Tuning a) more tries to dial in dispersion or coupling solutions into machine b) localizing strong coupling changes by looking at “coupled phase”

  20. 69: PR06 1072 SD2 -2.1 mm+1.8kG 126: PR04 1022 SCX3 ? 133: PR02 4112 SCY3/SK6 ? 147: PR02 3149 SK4 +1.4 kG more 210: PR12 3092 SKG2 -1.6 kG
