  1. Digital Voice Evacuation System for Airport Solution VA-P4120 4 Channel Class-D Amp LAN Network VA-2000MS 8 Channel Amplifier Changeover VA-2000ST Software Speaker Zone 1-8 VA-P4120 4 Channel Class-D Amp VA-2000RM Remote Microphone Up to 9 Mics VA-2000FC Fireman Control Panel Speaker Zone 1-8 VA-P2120 2Channel Class-D Amp VA-P4120 4 Channel Class-D Amp VA-2000BC Battery Charger DC power LAN Cat 5 Cable Cat 5 Control Cable Aux Cable Speaker Cable Battery VA-P4120 4 Channel Class-D Amp Page 1 of 5 www.itc-pa.com.cn, info@itc-pa.com.cn

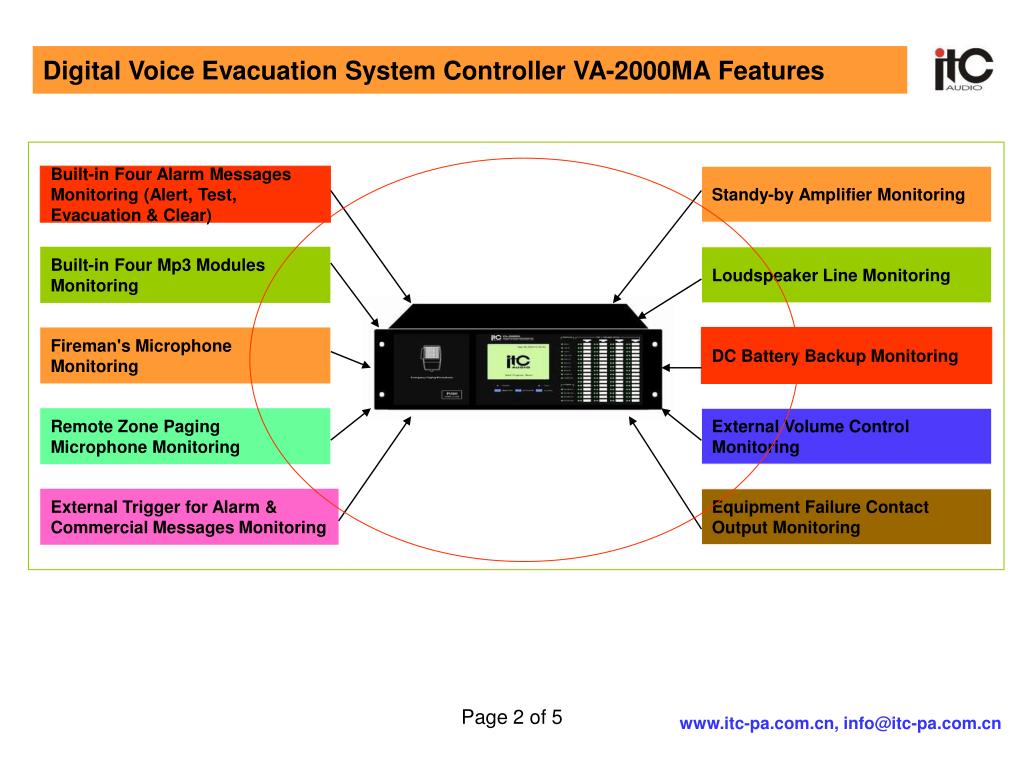

  2. Digital Voice Evacuation System Controller VA-2000MA Features Built-in Four Alarm Messages Monitoring (Alert, Test, Evacuation & Clear) Standy-by Amplifier Monitoring Built-in Four Mp3 Modules Monitoring Loudspeaker Line Monitoring Fireman's Microphone Monitoring DC Battery Backup Monitoring Remote Zone Paging Microphone Monitoring External Volume Control Monitoring External Trigger for Alarm & Commercial Messages Monitoring Equipment Failure Contact Output Monitoring www.itc-pa.com.cn, info@itc-pa.com.cn Page 2 of 5

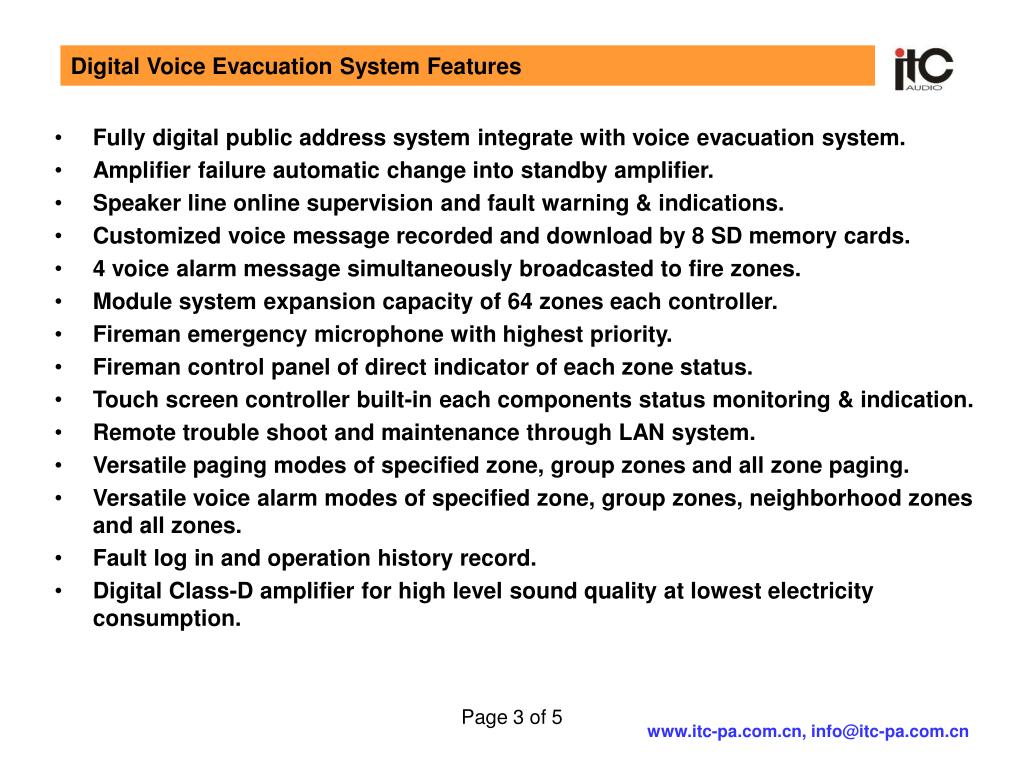

  3. Digital Voice Evacuation System Features • Fully digital public address system integrate with voice evacuation system. • Amplifier failure automatic change into standby amplifier. • Speaker line online supervision and fault warning & indications. • Customized voice message recorded and download by 8 SD memory cards. • 4 voice alarm message simultaneously broadcasted to fire zones. • Module system expansion capacity of 64 zones each controller. • Fireman emergency microphone with highest priority. • Fireman control panel of direct indicator of each zone status. • Touch screen controller built-in each components status monitoring & indication. • Remote trouble shoot and maintenance through LAN system. • Versatile paging modes of specified zone, group zones and all zone paging. • Versatile voice alarm modes of specified zone, group zones, neighborhood zones and all zones. • Fault log in and operation history record. • Digital Class-D amplifier for high level sound quality at lowest electricity consumption. Page 3 of 5 www.itc-pa.com.cn, info@itc-pa.com.cn

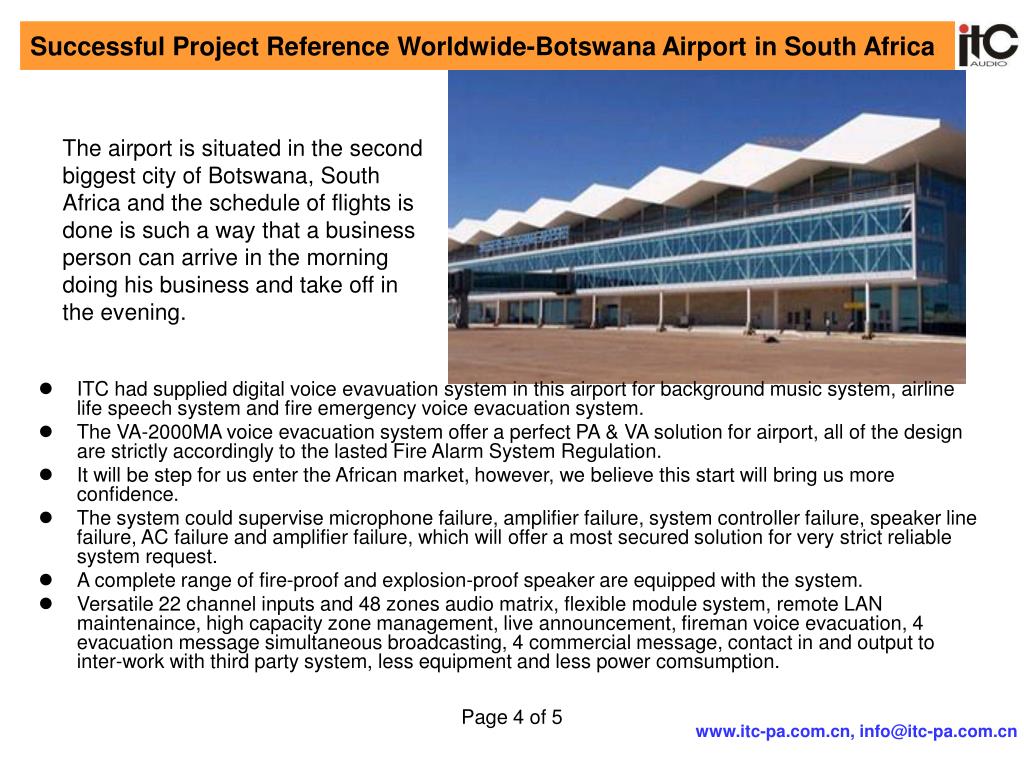

  4. Successful Project Reference Worldwide-Botswana Airport in South Africa The airport is situated in the second biggest city of Botswana, South Africa and the schedule of flights is done is such a way that a business person can arrive in the morning doing his business and take off in the evening. • ITC had supplied digital voice evavuation system in this airport for background music system, airline life speech system and fire emergency voice evacuation system. • The VA-2000MA voice evacuation system offer a perfect PA & VA solution for airport, all of the design are strictly accordingly to the lasted Fire Alarm System Regulation. • It will be step for us enter the African market, however, we believe this start will bring us more confidence. • The system could supervise microphone failure, amplifier failure, system controller failure, speaker line failure, AC failure and amplifier failure, which will offer a most secured solution for very strict reliable system request. • A complete range of fire-proof and explosion-proof speaker are equipped with the system. • Versatile 22 channel inputs and 48 zones audio matrix, flexible module system, remote LAN maintenaince, high capacity zone management, live announcement, fireman voice evacuation, 4 evacuation message simultaneous broadcasting, 4 commercial message, contact in and output to inter-work with third party system, less equipment and less power comsumption. Page 4 of 5 www.itc-pa.com.cn, info@itc-pa.com.cn

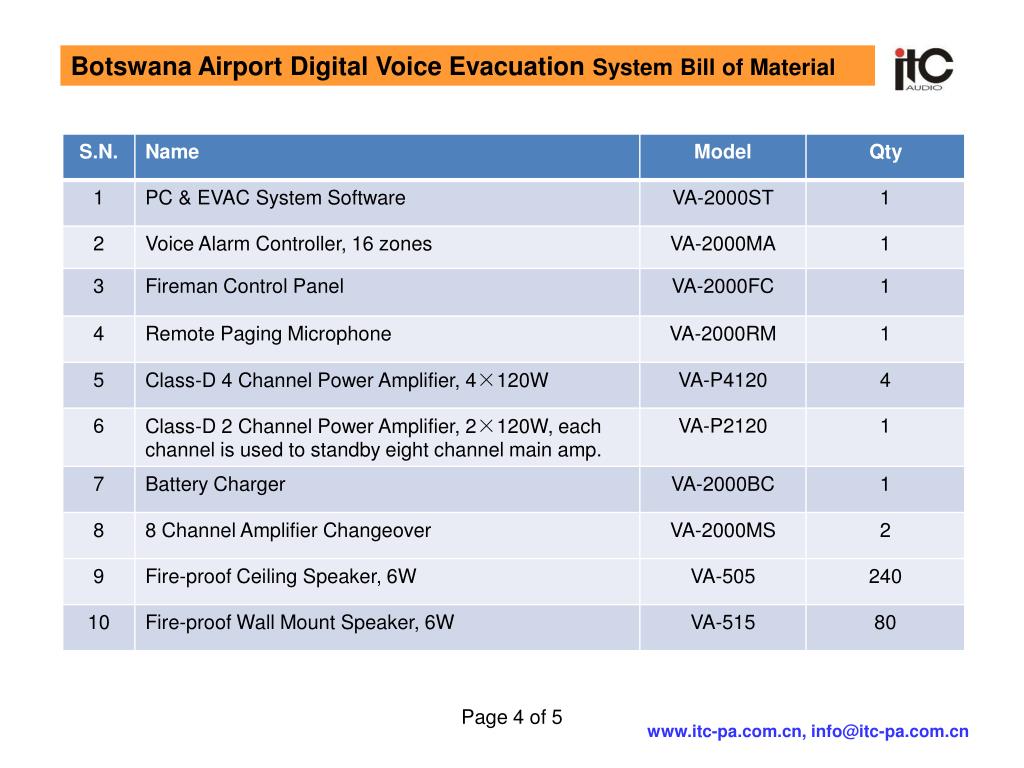

  5. Botswana Airport Digital Voice Evacuation System Bill of Material Page 4 of 5 www.itc-pa.com.cn, info@itc-pa.com.cn
