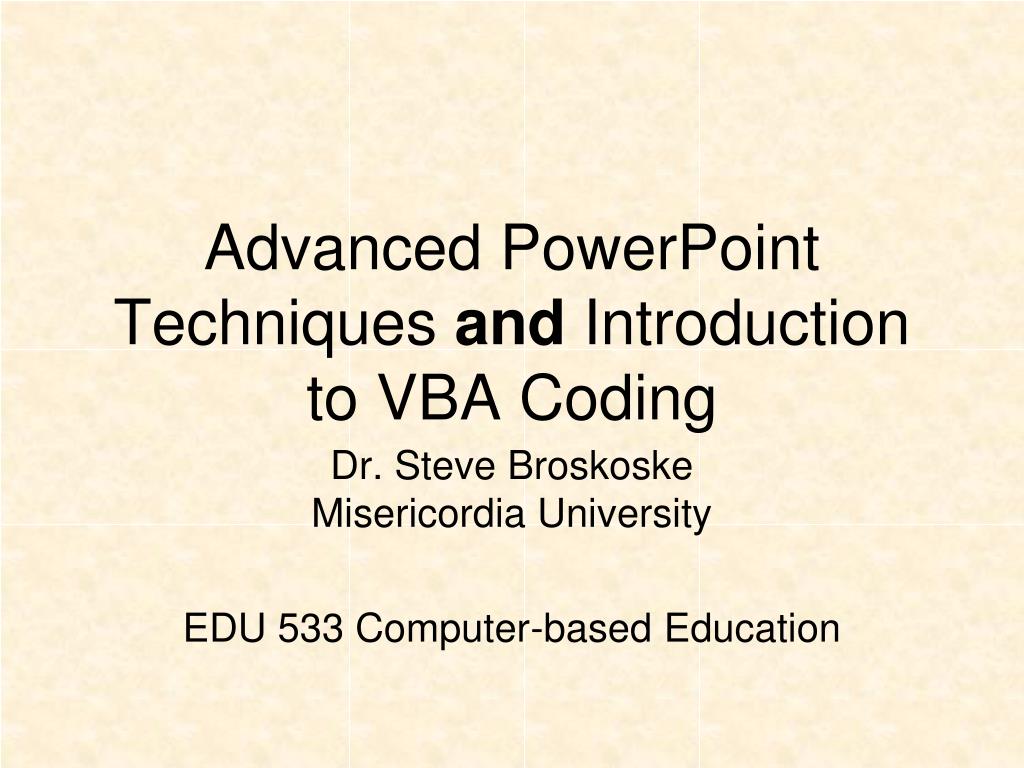

  1. Advanced PowerPoint Techniques and Introduction to VBA Coding Dr. Steve BroskoskeMisericordia University EDU 533 Computer-based Education

  2. Outline • Advanced PowerPoint Techniques to Deliver CBT • Using triggered animation to provide feedback and interactivity. • Introduction to VBA Coding • Set up. • How VBA works: The basics. • Variables. • Concatenation with strings.

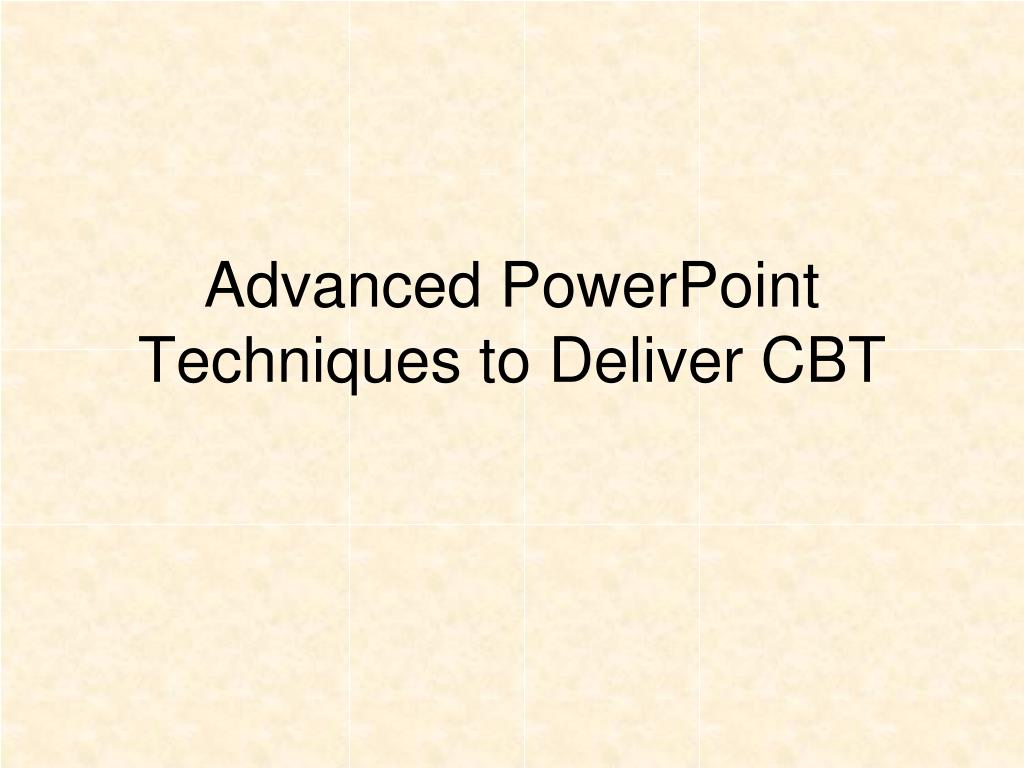

  3. Advanced PowerPoint Techniques to Deliver CBT

  4. Introduction • Not all CBT tasks will require VBA. • If PP can accomplish something without VBA, don’t reinvent the wheel. • Examples: • Triggering animations. • Providing basic interactivity on a slide (vs. just reading slides passively). • Navigating to various slides.

  5. How to Trigger Animations How to Do It • Animate an object as usual. • Specify a trigger object. • Select the drop-down arrow from the play-listed item. Select timing. • Select trigger--start on click of an object. • Select trigger object. (Realize that clipart will be named as a number.)

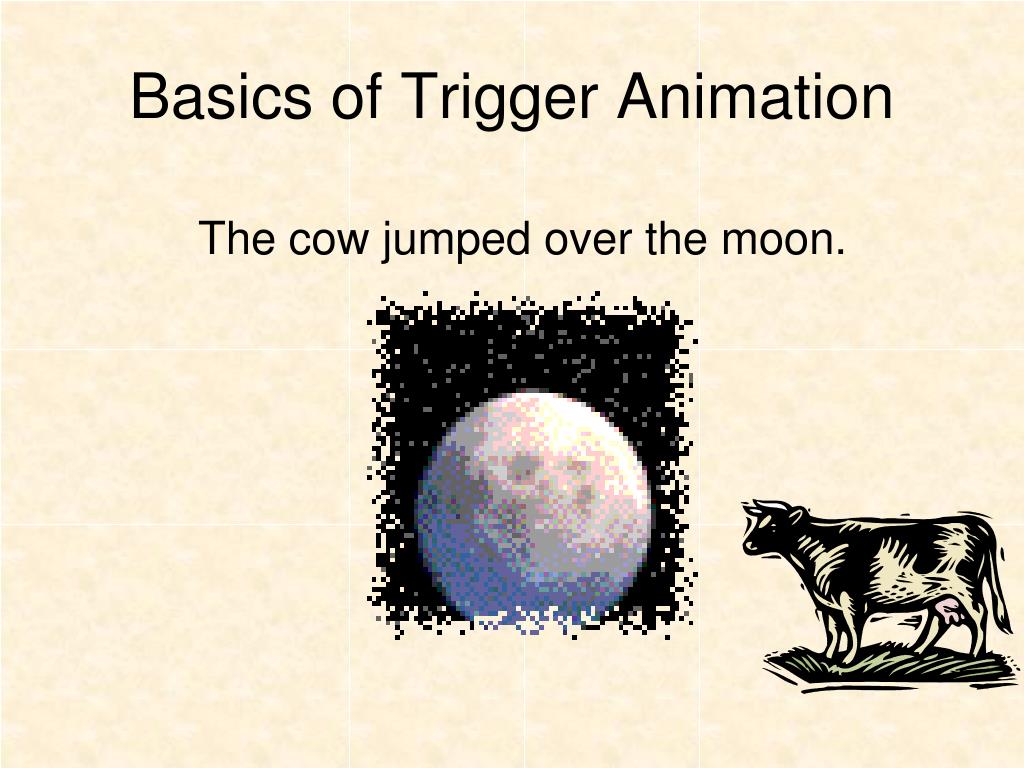

  6. Basics of Trigger Animation The cow jumped over the moon.

  7. Play on Trigger See the bee fly to the flower.

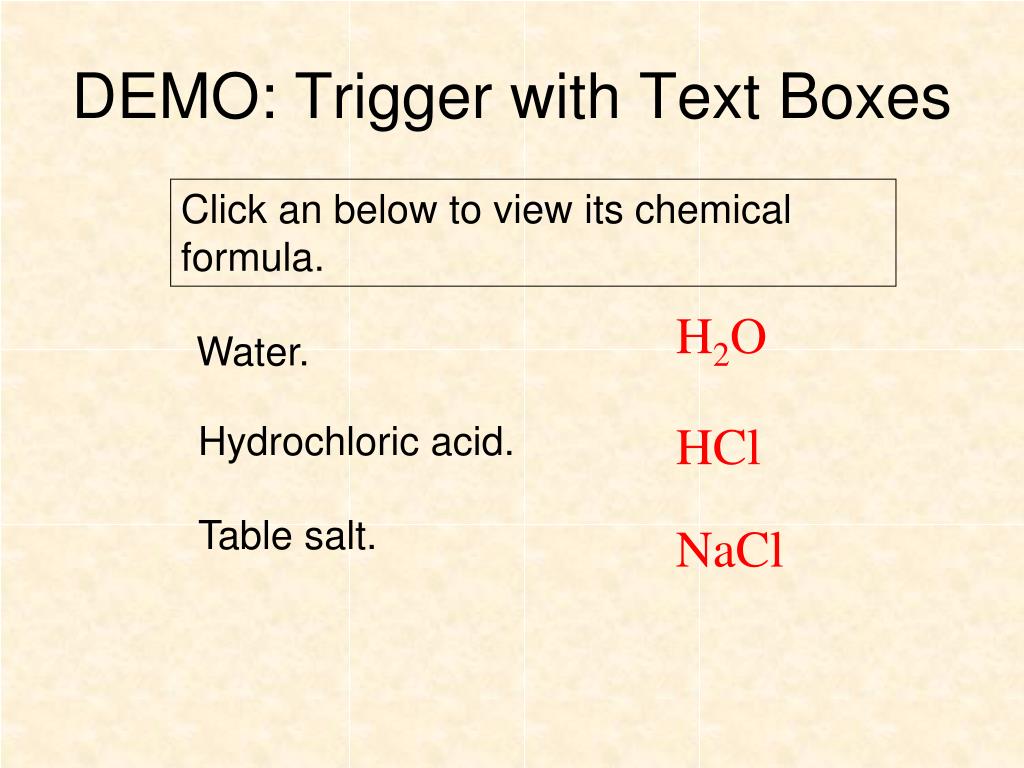

  8. DEMO: Trigger with Text Boxes Click an below to view its chemical formula. H2O Water. HCl Hydrochloric acid. Table salt. NaCl

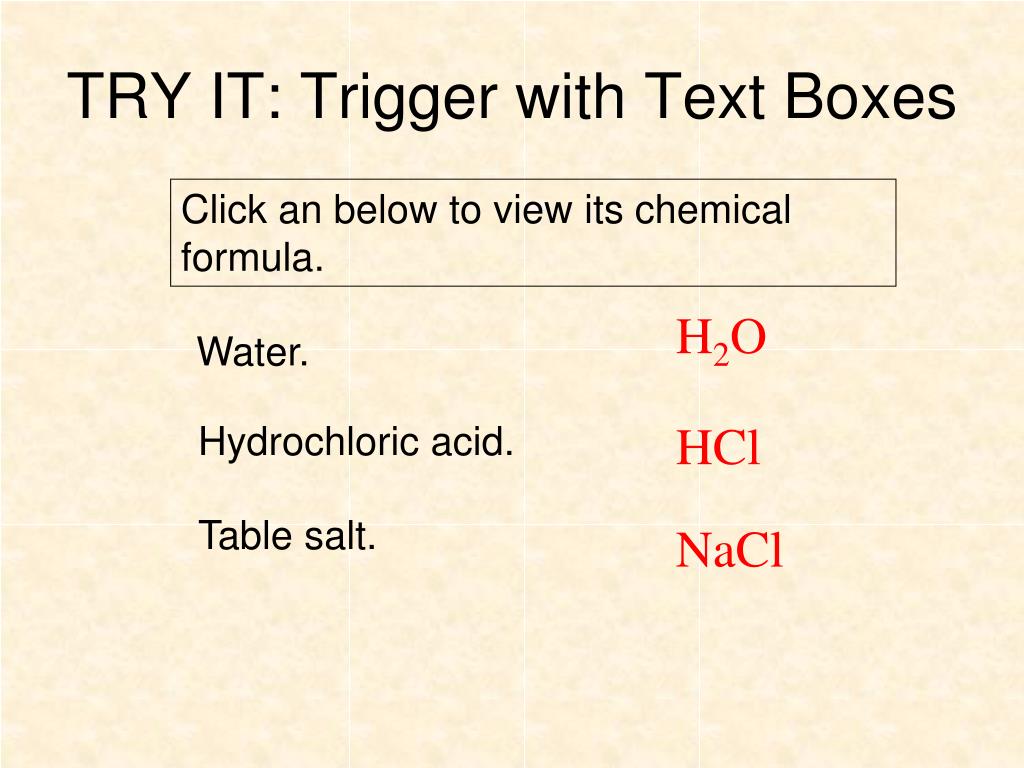

  9. TRY IT: Trigger with Text Boxes Click an below to view its chemical formula. H2O Water. HCl Hydrochloric acid. Table salt. NaCl

  10. DEMO: Trigger with Buttons(Provide Options to Learner) See the definition. Text number 1. If a learner presses the first button, this text box will appear. Read more about it. See a picture. Answer a question.

  11. TRY IT: Trigger with Buttons(Provide Options to Learner) See the definition. Text number 1. If a learner presses the first button, this text box will appear. Read more about it. See a picture. Answer a question.

  12. DEMO: Provide Feedbackwith Triggered Animation Which of the following is the correct chemical formula for water? HO H2O H2O2 Try again! Correct! Try again!

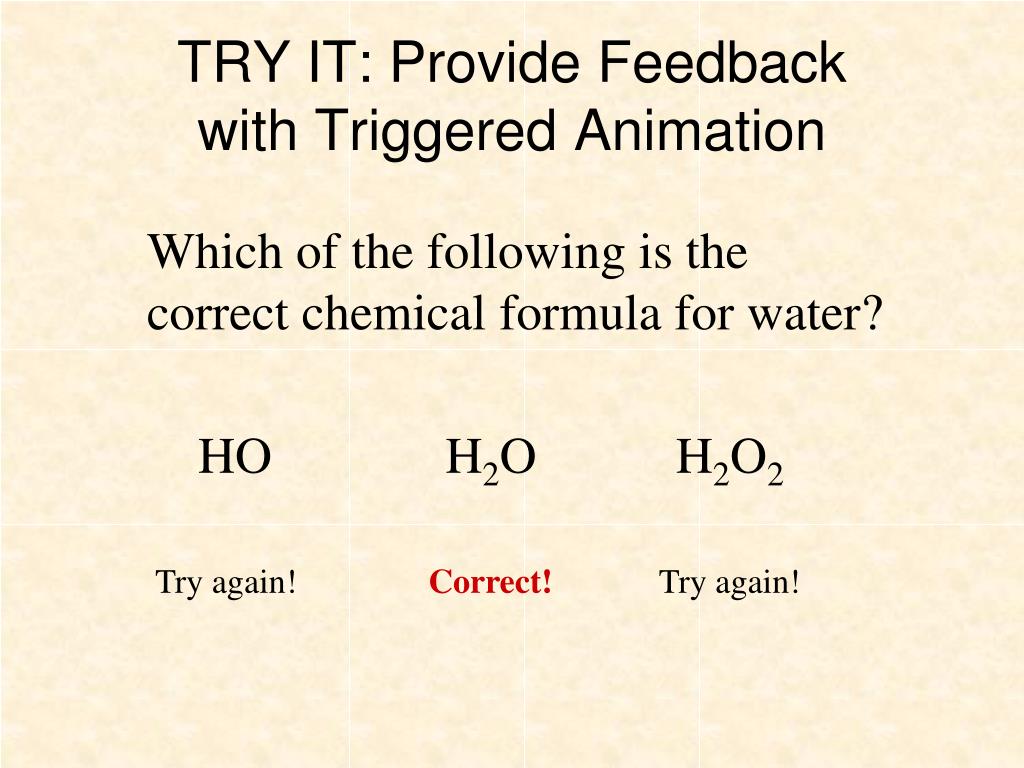

  13. TRY IT: Provide Feedbackwith Triggered Animation Which of the following is the correct chemical formula for water? HO H2O H2O2 Try again! Correct! Try again!

  14. Introduction to VBA Coding

  15. Set-up: Enabling Macros • To get VBA to work in PP, you must enable macros. • 2007: Office button – options – trust center – trust center settings: • enable all macros • trust access to VBA project module • 2003: Tools – options – security tab (or general tab in old versions of PP)Enable macros here.

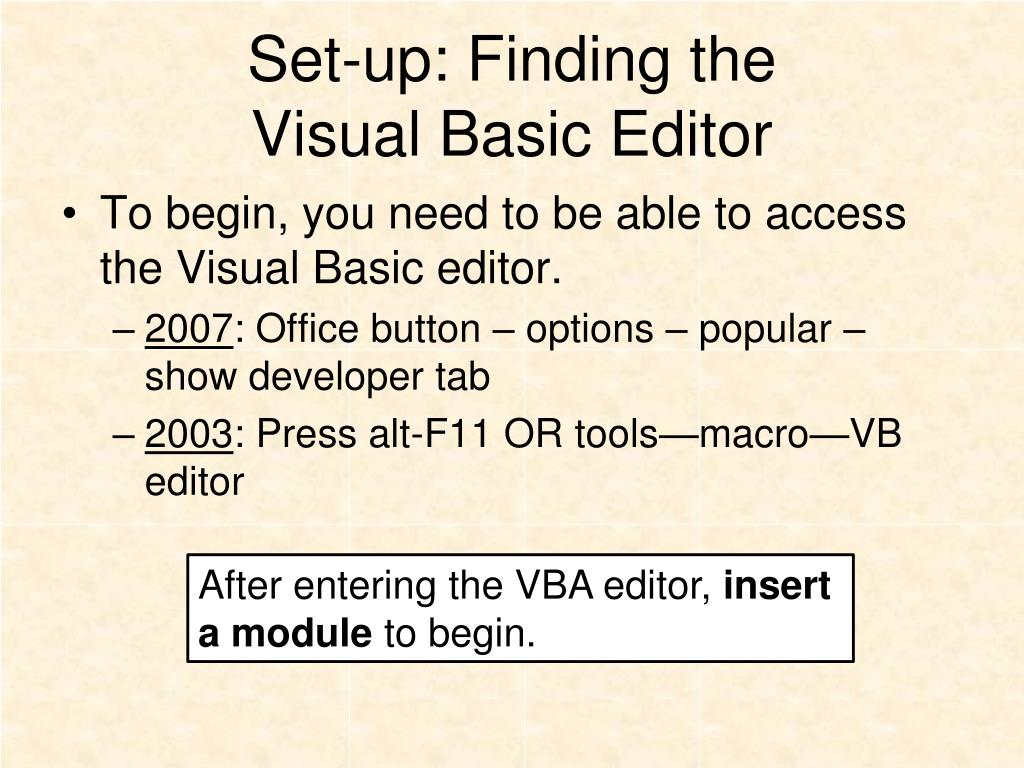

  16. Set-up: Finding theVisual Basic Editor • To begin, you need to be able to access the Visual Basic editor. • 2007: Office button – options – popular – show developer tab • 2003: Press alt-F11 OR tools—macro—VB editor After entering the VBA editor, insert a module to begin.

  17. How VBA Works: The Basics • Step 1: Type VBA code in the VBA editor. “Sub” starts every VBA subroutine. “DisplayMsgBox()” is the name of this subroutine. Sub DisplayMsgBox()MsgBox (“Text in a message box.")End Sub “End Sub” finishes every VBA subroutine. Place coding between “subs.” Indent lines.

  18. How VBA Works: The Basics • Step 2: Enter “action settings” in a button. • Leave the VBA editor. • Locate a button. • Select its action settings. • Under “run macro,” select a VBA subroutine.

  19. How VBA Works: The Basics • Step 3: Save a PP file that contains macros (VBA). • Select the following save type: macro-enabled presentation. • This saves as: filename.pptm • After the initial save, just hit the save button to save again.

  20. Coding Tips • Indent code. • Hit tab to indent coding. VBA coders indent coding to make it easier to read. • Take VBA editor suggestions. • As you type, the VBA editor will suggest words. To take a suggestion, press space bar. • Make comments. • The single quote character at the end of a line allows you to make comments that are disregarded by the editor.

  21. TRY IT • Let’s type our first VBA coding, and make it work with a button. Output some textin a message box. Try it again.

  22. What is a Variable? • variable: Named location in program code for storing data. Analogous to the memory function on a calculator. A variable in VBA is like saying in Algebra: x = 5 OR x = “Dr. Steve”

  23. Declare a Variable • To use a variable, start by declaring it with a dim statement. • Dim variableName As data_type Make up a name for a variable. Use capital letters or underscore (_) for compound names. Type of variable determines what kind of info. the variable will hold.

  24. Variable Data Types

  25. Examples of Variable Declarations • How to declare a variable: Dim n As Integer Dim n As Single Dim myName As String Dim flag As Boolean • How to assign a value to a variable: n = 15 n = 2.146 myName = “Dr. Steve” flag = true Most commonly used variable types.

  26. Examples of Variable Declarations • You can also declare several variables in the same statement: Dim n As Integer, myName As String Dim a, b, c, n As Integer, total As LongDim n As Integer

  27. TRY IT Declare a variable to hold a whole number. Assign a value. Output in a message box. Declare a variable to hold text. Assign a value. Output in a message box. Declare a variable to hold a decimal number. Assign a value. Output in a message box. Declare a variable to hold a true/false value. Assign a value. Output in a message box.

  28. Local vs. Public Variables • Where a variable is declared affects how it functions. • public variable: A variable that is declared as public is “alive” and available to all subroutines throughout the project. Declare a public variable at the top of the form. • private variable: A variable that is declared within one subroutine is “alive” only as long as the subroutine is running. Declare a private variable within one subroutine.

  29. Local vs. Public Variables • Declare a variable according to when you need to use it: • Local: Declare a local variable if you only need to use this variable within this one procedure only (e.g., to count something while this procedure runs, or to temporarily store something). • Public: Declare a public variable if you want to assign or recall its contents out side of one procedure (i.e., on more than one slide). It’s like a calculator memory.

  30. TRY IT Declare a public variable. Assign a value. Output in a message box. Declare a local variable. Assign a value. Output in a message box. Output a variablein a message box.

  31. Concatenation with Strings • If you want to add 2 strings together, use concatenation (the & character). • Add a string and a string variable.Dim userName As StringuserName = “Dr. Steve”MsgBox ("Your user name is " & userName) Notice blank space.

  32. TRY IT • ConcatLocal() • ConcatPublic() Declare a LOCAL string variable. Assign a value. In msgbox, concatenate text and variable for output. Declare a PUBLIC string variable. Assign a value. In msgbox, concatenate text and variable for output.

  33. Concatenation with Strings • You can add additional strings of text to a string variable. • Dim sentence As StringSub addStrings() sentence = “Hi.” sentence = sentence & “How are you?” sentence = sentence & “Take care.”End Sub

  34. TRY IT • Declare sentence a public variable to hold text. • initializeSentence() • addToSentence() • printSentence() Assign an initial value to sentence. Output the value of sentence in a message box. Add a value to whatever is already contained in sentence.

  35. TRY IT • Declare public variables: • age and maxcount to hold whole numbers • longSentence to hold text • initializeVariables() • Assign values to age and maxcount. • makeLongSentence() • Print out child age and how high they can count in a sentence. Initialize variables. Print out sentence.

  36. Reminder: Saving • Remember that you once you add VBA to PP, you must save the PP file as one that contains macros (VBA). • Select the following save type: macro-enabled presentation. • This saves as: filename.pptm • After the initial save, just hit the save button to save again.

  37. Assignments

  38. Assignments • Set up PowerPoint so that you can access the VBA editor and access macros within PowerPoint.

  39. Assignments • Download the homework assignment from our Web page. It asks you to do the following: • Non-VBA activities: • Trigger animations. • VBA activities: • Declare and output in a MsgBox the following types of variables: string, integer, short, and Boolean. • Concatenate a string variable. • Save the application appropriately.

  40. Next Week • Creating embedded formative assessment. • Working with variables. • Working with conditional statements. • Working with object properties.
