Colloids

Colloids. Mesoscopic particles (10nm-10 m m) suspended in solvent Exhibit Brownian motion Phase behavior analogous to atoms and molecules But, easier to study Longer time and larger length scales Real-space and real time observations using confocal microscopy Perfect model system. Colloids.

tress
Télécharger la présentation

Colloids

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

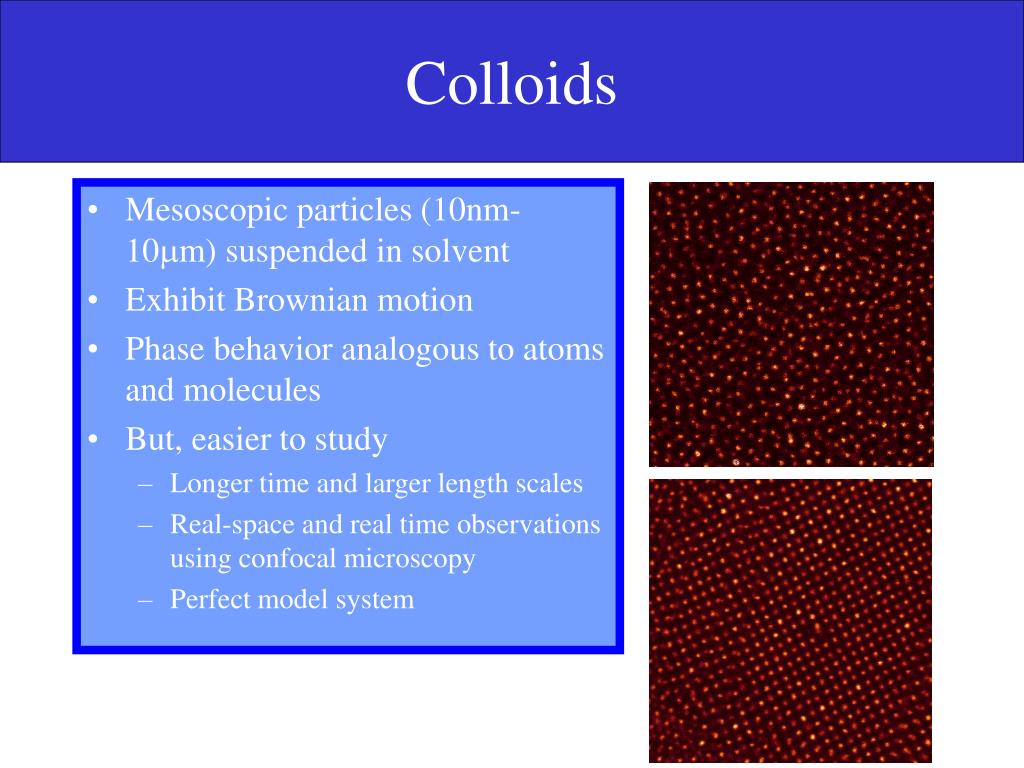

  1. Colloids • Mesoscopic particles (10nm-10mm) suspended in solvent • Exhibit Brownian motion • Phase behavior analogous to atoms and molecules • But, easier to study • Longer time and larger length scales • Real-space and real time observations using confocal microscopy • Perfect model system

  2. Colloids • Shape • Spherical (silica, PMMA) • Colloidal molecules (dumbbells, beadchains) • Rodlike and flexible (TMV and fd virus, silica rods) • Platelike (clays) • Tunable effective interactions • Hard-sphere like • Long-range repulsive (Coulombic) • Short-range attractive (depletion) • Dipolar • Long-range attractive (Oppositely charged colloids) • Patchy interactions

  3. 0

  4. Round table discussion New Jersey (1957): Uhlenbeck: Recently, there has been some indication, numerically, that a gas of hard spheres has a transition point. Kirkwood: We are now speaking of the classical case for hard spheres, and the question comes up as to whether, for sufficiently high densities, the fluid of hard spheres will crystallize. Uhlenbeck: Last fall, there was something similar and there I finished the discussion on hard spheres with a vote. The vote was simply on the matter of your belief in what you have heard, whether a gas of hard spheres has a transition point or not; at Seattle, the vote was even. May I ask first of the panel to put up their hands if they believe there is a transition in the classical case ….. Now those who believe there is not a transition …. Even again! Kirkwood: I think it is quite unnecessary to have an attractive force to achieve a crystalline phase, and one can produce simple intuitive arguments for that. …… Uhlenbeck: I would like to close this discussion, for I am quite sure that the transition goes a little bit against intuition; that is why so many people have difficulty with it, and surely I am one of those. But this transition – it still might be true, you know – and I don’t think one can decide by general arguments. Kirkwood: Well, I think we are all aware that we have to take numerical calculations relating to transitions with a grain of salt.

  5. Simulation of freezing of hard spheres Fluid solid Glass F + S 0.494 0.545 0.58

  6. Glass Solid F+S Fluid

  7. Computer simulations: Alder and Wainwright, JCP 27, 1208 (1957) Wood and Jacobson, JCP 27, 1207 (1957). F=E-TS E=0 Fase overgang kan alleen plaatsvinden als dit overeenkomt met een toename in de entropie! Entropie maat voor wanorde: vloeistof meer wanordelijk!, vaste fase meer geordend----------spontane kristallisatie/ordening????

  8. Definities van Entropie: Clausius (1850) De entropie is altijd maximaal voor een gesloten systeem Boltzmann De entropie is gerelateerd aan het aantal microtoestanden of configuraties dat een systeem kan hebben. S = kB log  Aantal configuraties groot : entropie hoog Hoe groter dit aantal, hoe minder we van het systeem weten: Wanorde is groot

  9. 1 4 1 3 2 5

  10. 4 21 31 23 13 25 27 2 17 30 7 11 19 1 15 28 5 32 9 22 3 18 26 14 10 8 29 33 12 24 16 20 6 7 16 19 22 25 28 31 1 4 10 13 8 20 2 5 23 26 29 14 17 32 11 3 6 18 21 27 30 33 9 12 15 24

  11. (Vrij)-Asakura-Oosawa model for colloid-polymer mixtures Colloid-colloid r Colloid-polymer r Polymer-polymer

  12. c A A P = zp 0 0 p Rij

  13. Phase separation in colloid-polymer mixtures Observed in experiments (Illet, Poon et al.) and computer simulations (Meijer, Frenkel) E. de Hoog et al., J. Phys. Chem. B 103, 10657 (1999) Depletion

  14. Colloid-Polymer mixture PMMA (=60 nm) + Polystyrene (Rg~30 nm) in Decalin Dirk Aarts and Henk Lekkerkerker

  15. Direct visual observation of thermal capillary waves • D. G. A. L. Aarts, M. Schmidt, H. N. W. Lekkerkerker, Science304, 847-850 (2004).

  16. Depletion Mechanism Entropic picture The volume accesible for the polymer increases: more entropy Kinetic picture Unbalanced osmotic pressure

  17. Colloid-polymer mixture • (1954) Asakura-Oosawa: attractive interaction between colloids due • to presence of polymer. • However, phenomenon already know in other areas: • Stack formation/ clustering of red bloodcells due to plasma proteins (1777). • proteins: albumin 15 nm • fibrinogen 50 nm • concentration increases when patient is ill • rouleaux/stacks aggregation stronger with fibrinogen • sedimentation rate increases 1mm/hr ---- 100 mm/hr • blood sedimentation test 7.8 m

  18. cream solution 2) Creaming of rubber latex (1923) Concentration of rubber latex from an aqueous solution Addition of plant extracts 0.2 % cheap: lots of research in this area (best molecule, minimum concentration?) 3) Purification/isolation of plant viruses 1942 Agricultural purposes: addition of polymer to TMV solution --- TMV precipitates 4) Aggregation of oil droplets add surfactant to O/W emulsion --- stabilisation add too much surfactant ---- attraction between oil droplets 50-60 % rubber
