Discover the innovative 3RT and 2RT automation systems designed for enhanced molding processes. The 3RT system features a runner plate that slides forward via a hydraulic cylinder, allowing the middle and bottom plates to slide out together with a demolding table. The middle plate can also split horizontally, providing flexibility. The 2RT system uses a central ejector for efficient parts removal, with options for lateral cylinder locking. These systems streamline operations and ensure efficient part ejection, enhancing productivity in manufacturing.

trilby
Télécharger la présentation

Advanced 3RT and 2RT Process Automation Systems for Efficient Molding Operations

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

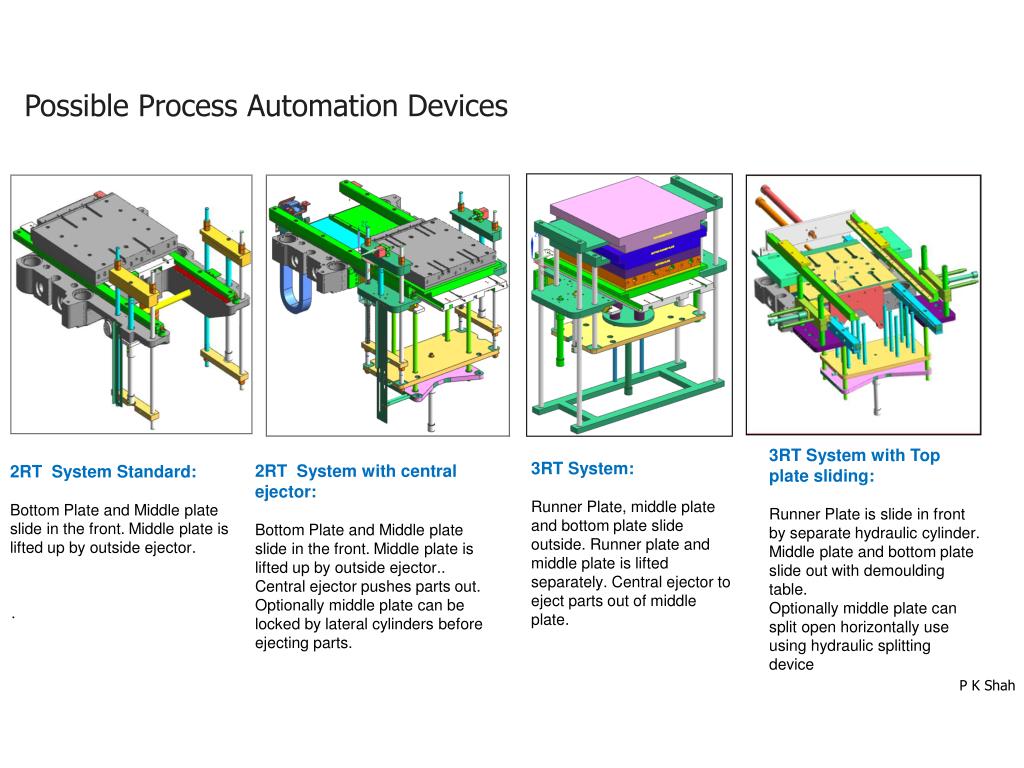

  1. Possible Process Automation Devices 3RT System with Top plate sliding: Runner Plate is slide in front by separate hydraulic cylinder. Middle plate and bottom plate slide out with demoulding table. Optionally middle plate can split open horizontally use using hydraulic splitting device 3RT System: Runner Plate, middle plate and bottom plate slide outside. Runner plate and middle plate is lifted separately. Central ejector to eject parts out of middle plate. 2RT System with central ejector: Bottom Plate and Middle plate slide in the front. Middle plate is lifted up by outside ejector.. Central ejector pushes parts out. Optionally middle plate can be locked by lateral cylinders before ejecting parts. 2RT System Standard: Bottom Plate and Middle plate slide in the front. Middle plate is lifted up by outside ejector. . P K Shah
