  1. Oracle Applications 11.5.10 -Architecture and Tools Overview Sandra Vucinic VLAD Group, Inc.

  2. Speaker Background • Sandra Vucinic • Over 11 years of experience with Oracle database, applications, development and administration tools • Project roles: Architect, Oracle Apps DBA, Project Lead • Director, OAUG Database SIG Board • Director, OAUG SysAdmin SIG and Committee Chair, Oracle Tools and Utilities • Director, SROAUG Board • Presented at OAUG, NCOAUG, CSOAUG, SROAUG, Apps World and Open World conferences (30+ sessions) • Founded VLAD Group, Inc. in March, 2001

  3. Agenda • 11.5.10 Technology Stack Components • New Features in: • OAM (Oracle Applications Manager) • AD mini-pack I.1 • Oracle Applications Framework • Workflow • AOL (Application Object Library) • 9i database • 10gdatabase

  4. 9.2.0.5 Database 11i Architecture – Components Release 11.5.10 CD Release Client Tier Web HTTP Servers Application Technology Stack Middle Tier 9iAS ORACLE_HOME 8.0.6.3 ORACLE_HOME (1.0.2.2.2) Database Tier9.2.0.5 ORACLE_HOME JInitiator Admin Server Concurrent Processing Server Apache Discoverer Server Forms Server Reports Server

  5. 11.5.10 Technology Stack Components • Database Tier • Oracle 9i Enterprise Edition 9.2.0.5 • Middle Tier • Oracle 9i AS version 1.0.2.2.2 • Oracle HTTP Server – Rollup patch 4 (bug 3072811) • Forms and Reports – Developer 6i with Patch 15 - version 6.0.8.24 • JDK version 1.4.2 (both concurrent processing and web tier) • Oracle JSP Container version 1.1.3.4 • Client Tier • Oracle JInitiator version 1.3.1.16 on the PC

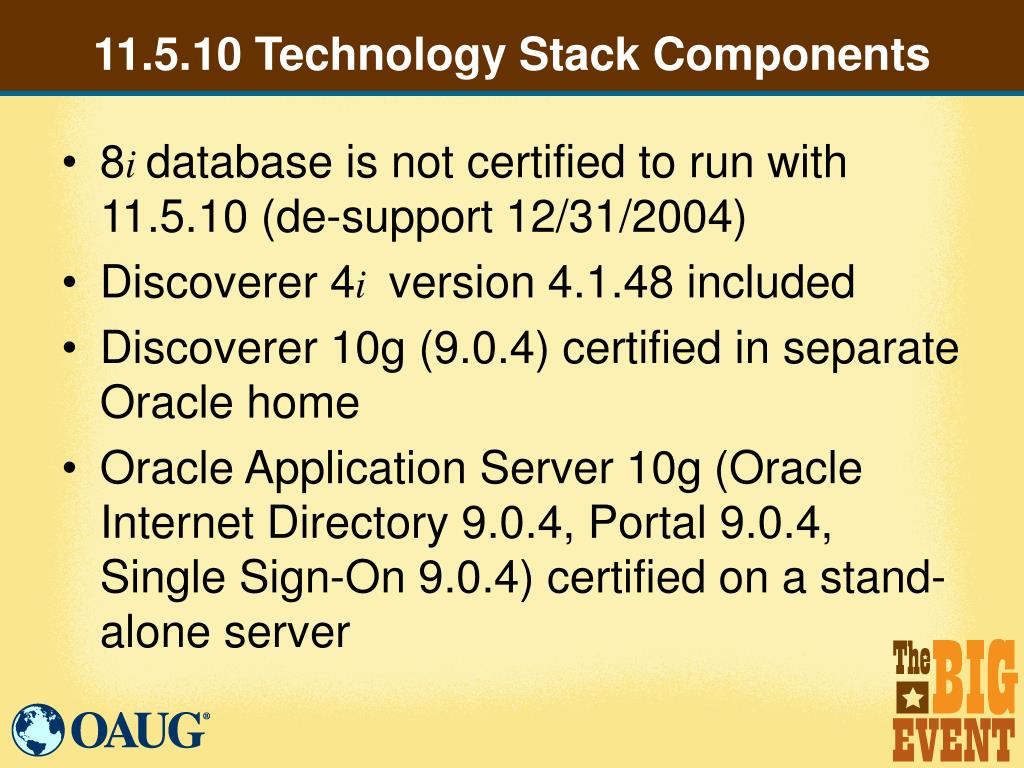

  6. 11.5.10 Technology Stack Components • 8i database is not certified to run with 11.5.10 (de-support 12/31/2004) • Discoverer 4i version 4.1.48 included • Discoverer 10g (9.0.4) certified in separate Oracle home • Oracle Application Server 10g(Oracle Internet Directory 9.0.4, Portal 9.0.4, Single Sign-On 9.0.4) certified on a stand-alone server

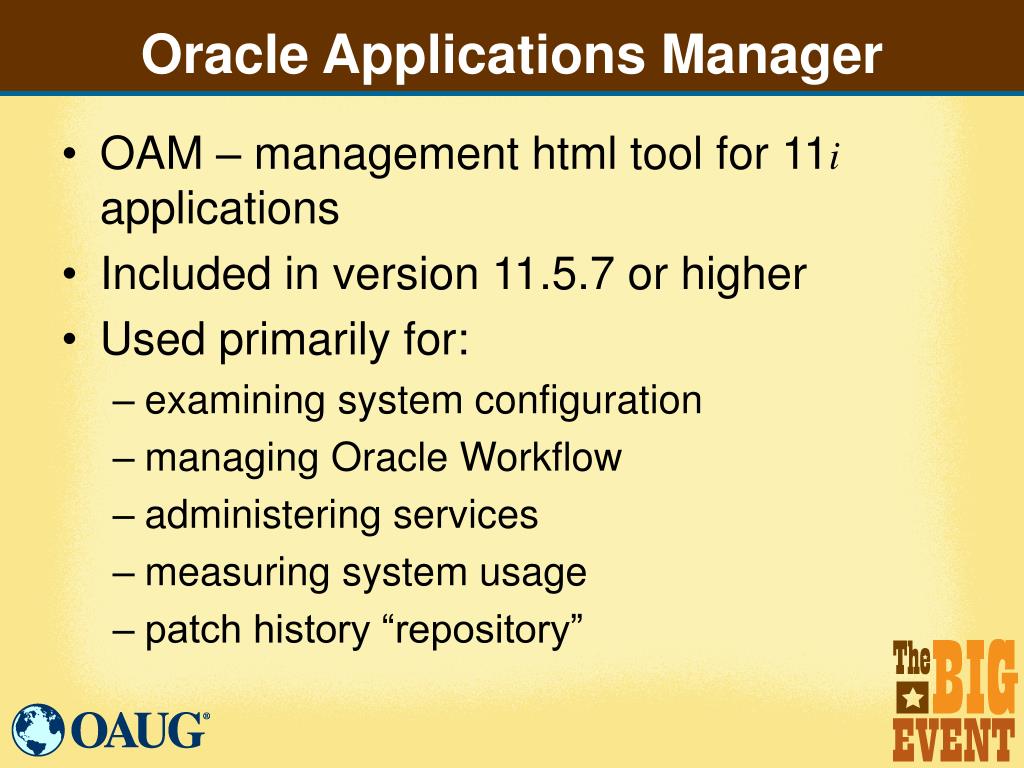

  7. Oracle Applications Manager • OAM – management html tool for 11iapplications • Included in version 11.5.7 or higher • Used primarily for: • examining system configuration • managing Oracle Workflow • administering services • measuring system usage • patch history “repository”

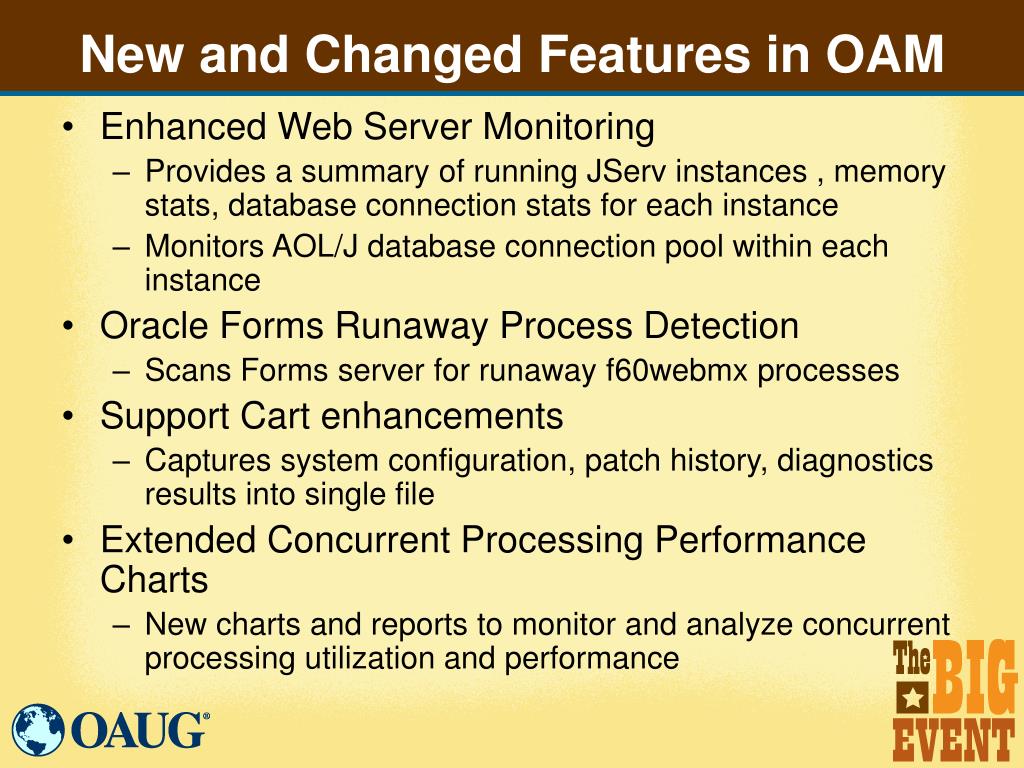

  8. New and Changed Features in OAM • Enhanced Web Server Monitoring • Provides a summary of running JServ instances , memory stats, database connection stats for each instance • Monitors AOL/J database connection pool within each instance • Oracle Forms Runaway Process Detection • Scans Forms server for runaway f60webmx processes • Support Cart enhancements • Captures system configuration, patch history, diagnostics results into single file • Extended Concurrent Processing Performance Charts • New charts and reports to monitor and analyze concurrent processing utilization and performance

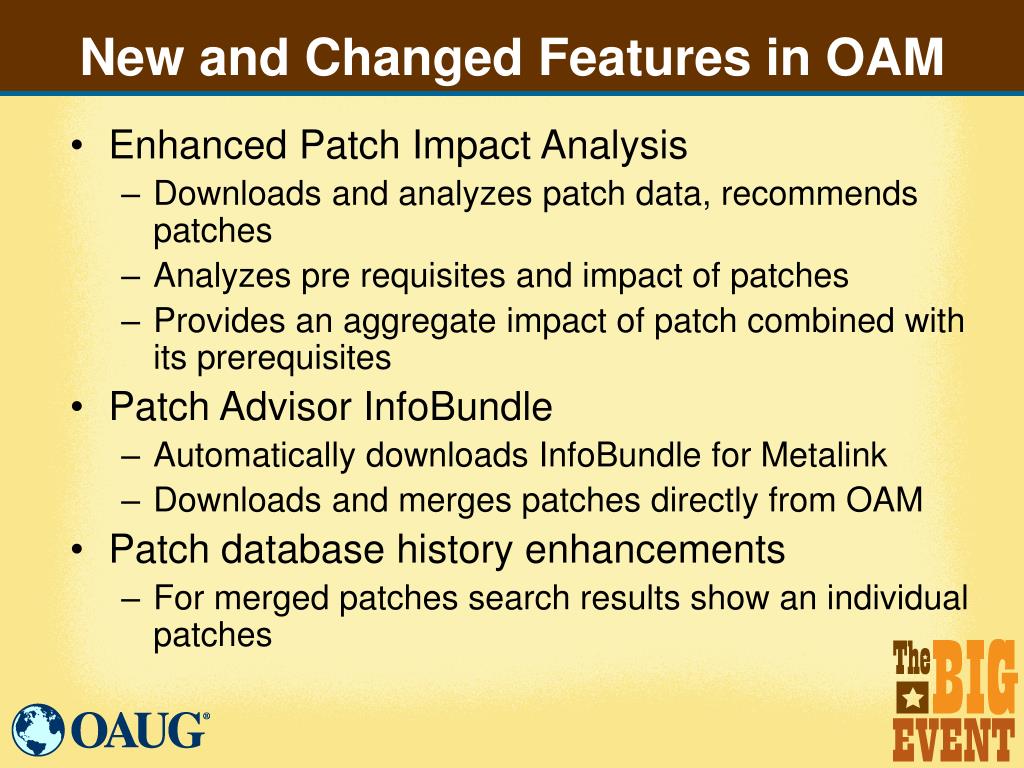

  9. New and Changed Features in OAM • Enhanced Patch Impact Analysis • Downloads and analyzes patch data, recommends patches • Analyzes pre requisites and impact of patches • Provides an aggregate impact of patch combined with its prerequisites • Patch Advisor InfoBundle • Automatically downloads InfoBundle for Metalink • Downloads and merges patches directly from OAM • Patch database history enhancements • For merged patches search results show an individual patches

  10. New and Changed Features in OAM • Context Editor Enhancements • Supports variables that depend on the values of other variables • Allows to add custom variables • Database tier context can be edited from OAM • Monitoring Applications DBA Utilities from OAM • Allows you to monitor in-progress “adadmin” and “adpatch” • System Cloning • Manage overall cloning process directly from OAM • Pre-clone “interview” starts cloning process • OAM automates most steps and guides you through remaining steps • Cloning types supported: “single node to single node ”, “single node to multi node”, “multi node to multi node”

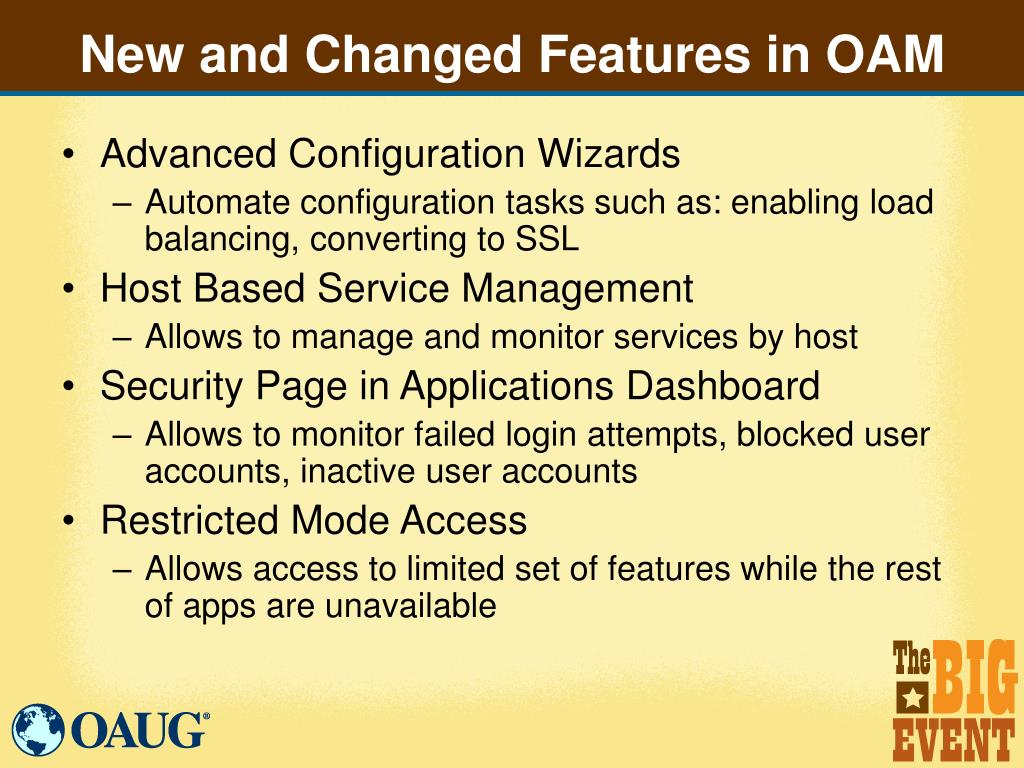

  11. New and Changed Features in OAM • Advanced Configuration Wizards • Automate configuration tasks such as: enabling load balancing, converting to SSL • Host Based Service Management • Allows to manage and monitor services by host • Security Page in Applications Dashboard • Allows to monitor failed login attempts, blocked user accounts, inactive user accounts • Restricted Mode Access • Allows access to limited set of features while the rest of apps are unavailable

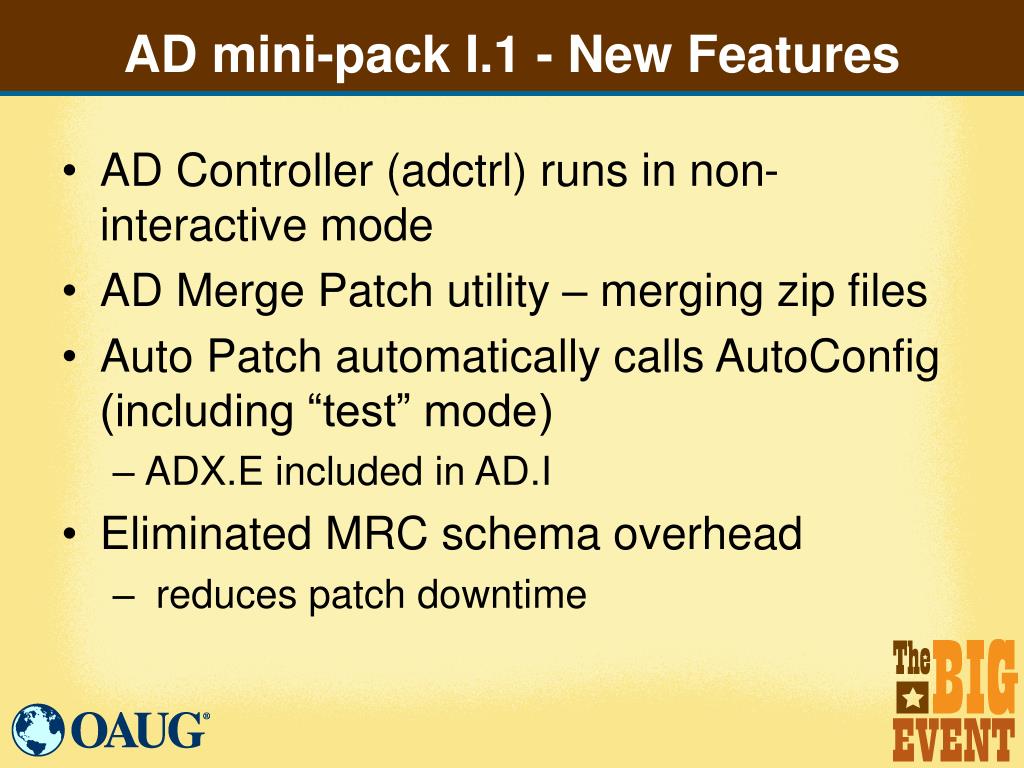

  12. AD mini-pack I.1 - New Features • AD Controller (adctrl) runs in non-interactive mode • AD Merge Patch utility – merging zip files • Auto Patch automatically calls AutoConfig (including “test” mode) • ADX.E included in AD.I • Eliminated MRC schema overhead • reduces patch downtime

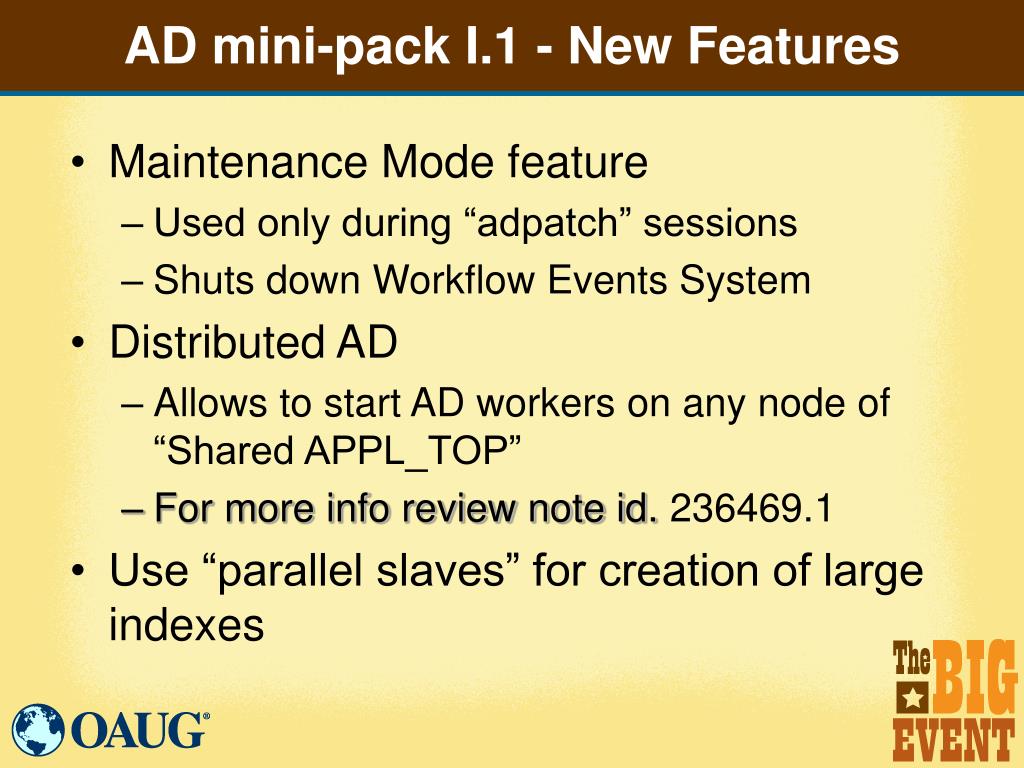

  13. AD mini-pack I.1 - New Features • Maintenance Mode feature • Used only during “adpatch” sessions • Shuts down Workflow Events System • Distributed AD • Allows to start AD workers on any node of “Shared APPL_TOP” • For more info review note id. 236469.1 • Use “parallel slaves” for creation of large indexes

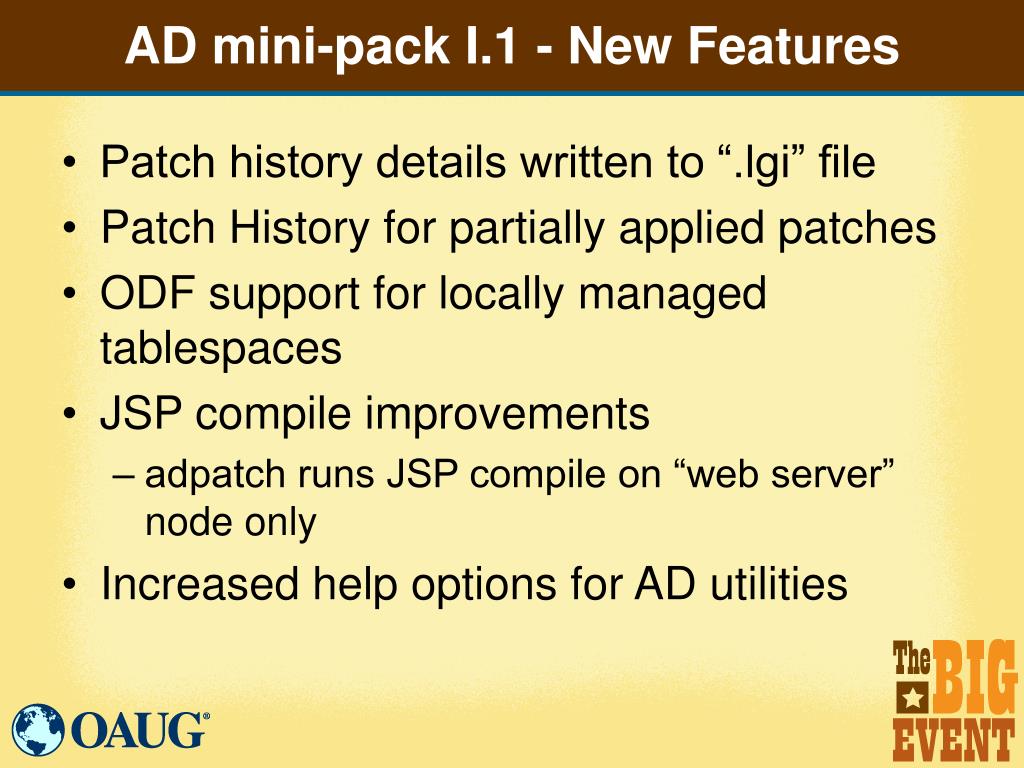

  14. AD mini-pack I.1 - New Features • Patch history details written to “.lgi” file • Patch History for partially applied patches • ODF support for locally managed tablespaces • JSP compile improvements • adpatch runs JSP compile on “web server” node only • Increased help options for AD utilities

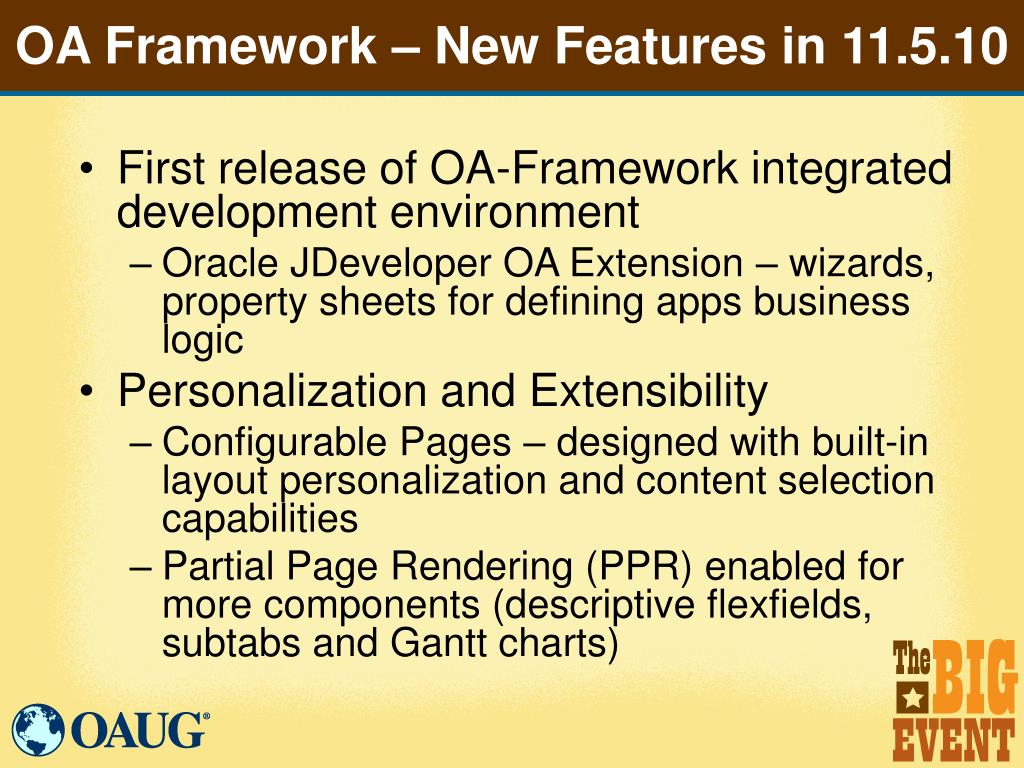

  15. OA Framework – New Features in 11.5.10 • First release of OA-Framework integrated development environment • Oracle JDeveloper OA Extension – wizards, property sheets for defining apps business logic • Personalization and Extensibility • Configurable Pages – designed with built-in layout personalization and content selection capabilities • Partial Page Rendering (PPR) enabled for more components (descriptive flexfields, subtabs and Gantt charts)

  16. Workflow • OWF mini-pack H (3258819) included in 11.5.10 release • New Features of OWF.H: • Self-Service Diagnostic Scripts • Workflow Purge Includes Messaging Content • E-mail Security Policy • Digital Signature for Notifications • Notification Mailer Enhancements • Stops mailer when a defined number of errors have been detected • Sends notifications in a summary form or in individual e-mails • Flags notification content as “secure”

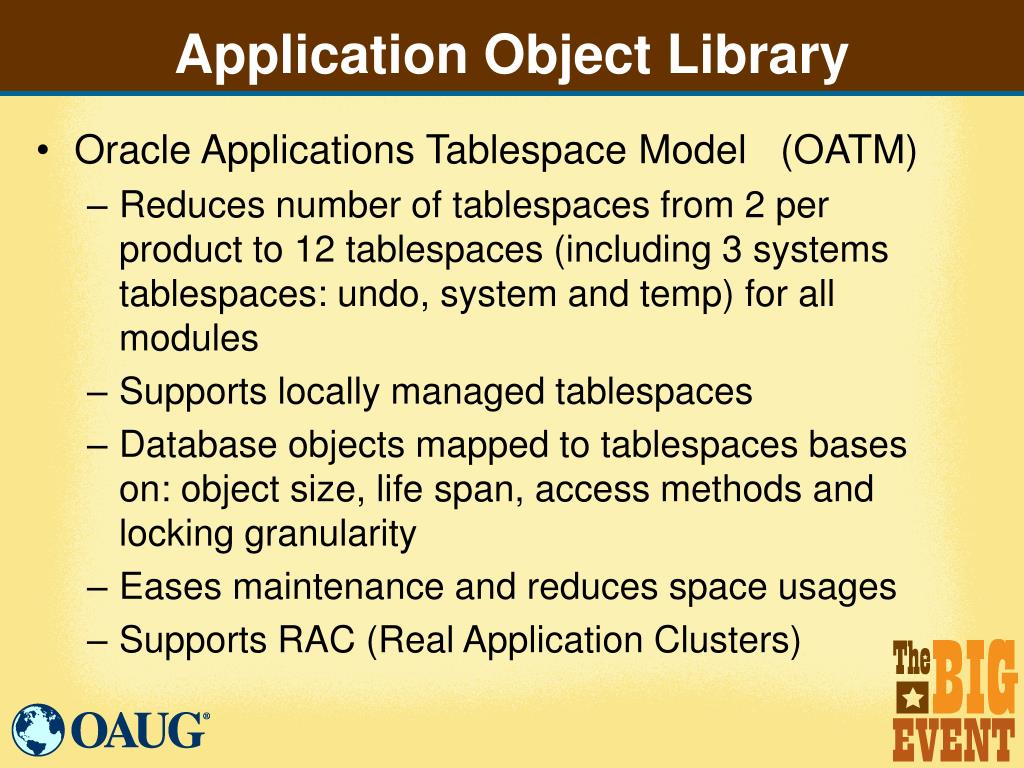

  17. Application Object Library • Oracle Applications Tablespace Model (OATM) • Reduces number of tablespaces from 2 per product to 12 tablespaces (including 3 systems tablespaces: undo, system and temp) for all modules • Supports locally managed tablespaces • Database objects mapped to tablespaces bases on: object size, life span, access methods and locking granularity • Eases maintenance and reduces space usages • Supports RAC (Real Application Clusters)

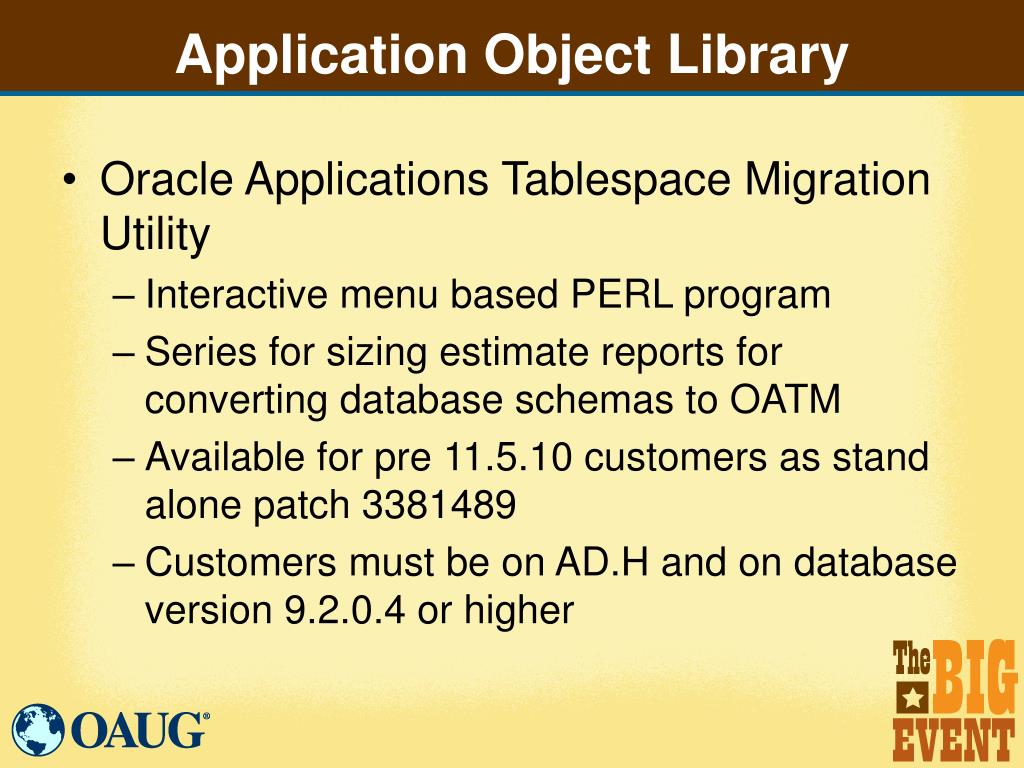

  18. Application Object Library • Oracle Applications Tablespace Migration Utility • Interactive menu based PERL program • Series for sizing estimate reports for converting database schemas to OATM • Available for pre 11.5.10 customers as stand alone patch 3381489 • Customers must be on AD.H and on database version 9.2.0.4 or higher

  19. 9i database • 9.2 – terminal release of Oracle 9i • Recommended version – 9.2.0.5 – This version is only certified with apps 11.5.7 or higher • Release 9.0.1.x (9i ) de-supported as of 12/31/2003 • 8i support for 11i apps customers extended until July 31, 2005 • To upgrade to version 9.2.x use: "Interoperability Notes : Oracle Applications Release 11i with Oracle9i Release 2 (9.2.0)", (Doc ID: 216550.1)

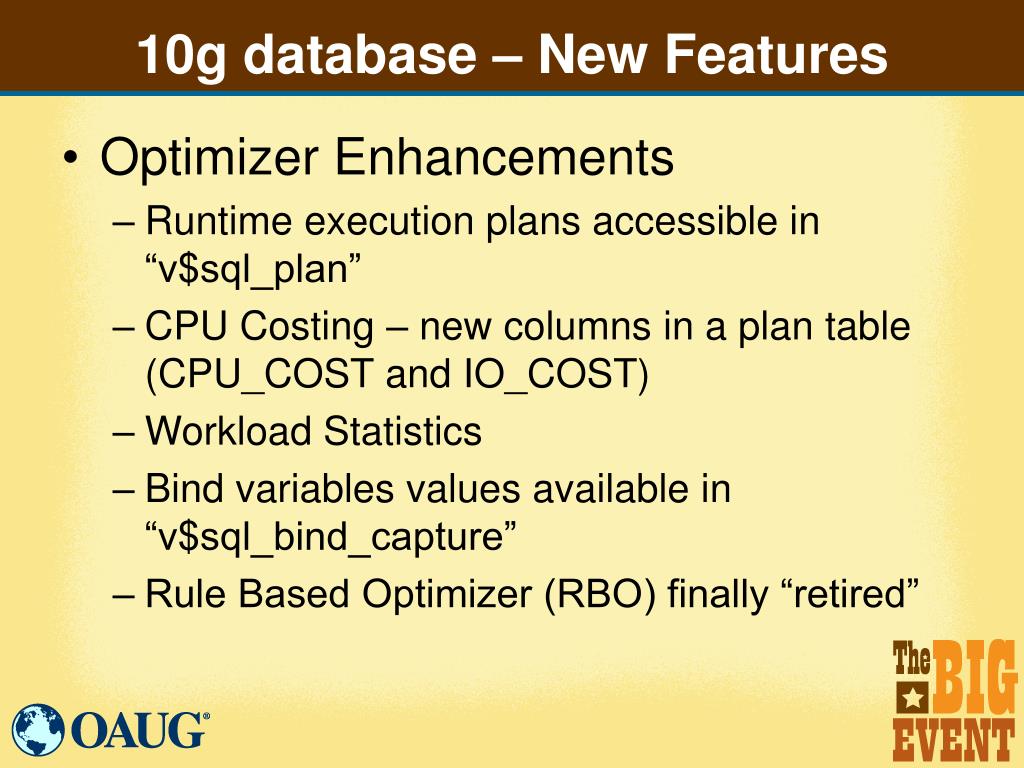

  20. 10g database – New Features • Optimizer Enhancements • Runtime execution plans accessible in “v$sql_plan” • CPU Costing – new columns in a plan table (CPU_COST and IO_COST) • Workload Statistics • Bind variables values available in “v$sql_bind_capture” • Rule Based Optimizer (RBO) finally “retired”

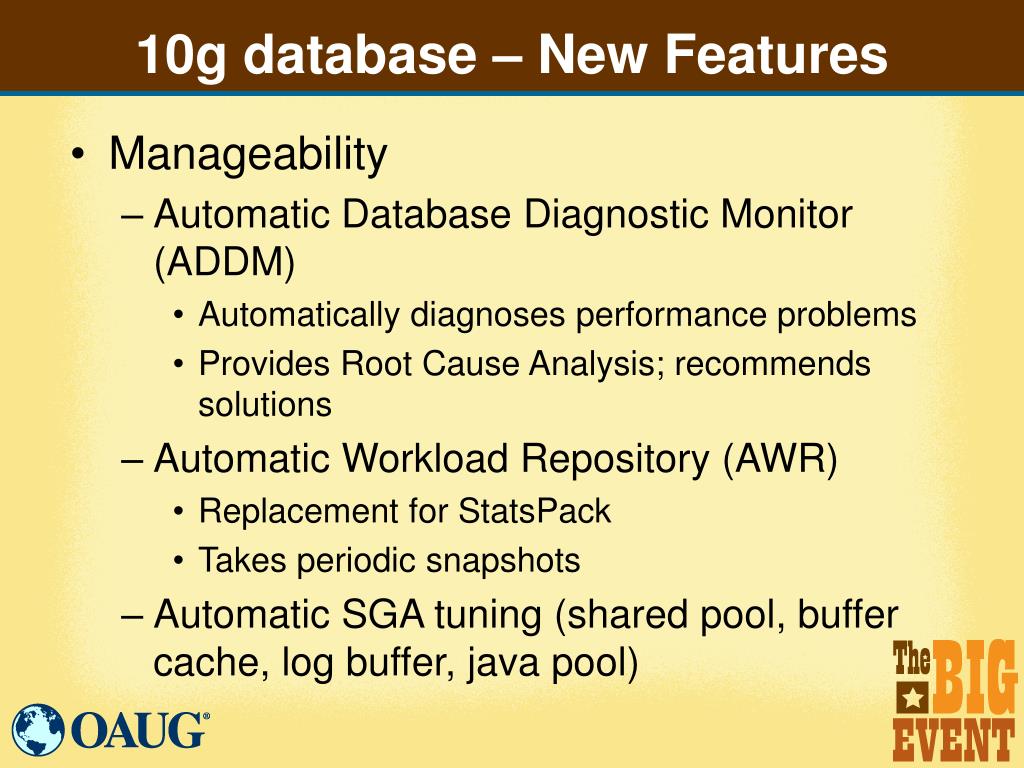

  21. 10g database – New Features • Manageability • Automatic Database Diagnostic Monitor (ADDM) • Automatically diagnoses performance problems • Provides Root Cause Analysis; recommends solutions • Automatic Workload Repository (AWR) • Replacement for StatsPack • Takes periodic snapshots • Automatic SGA tuning (shared pool, buffer cache, log buffer, java pool)

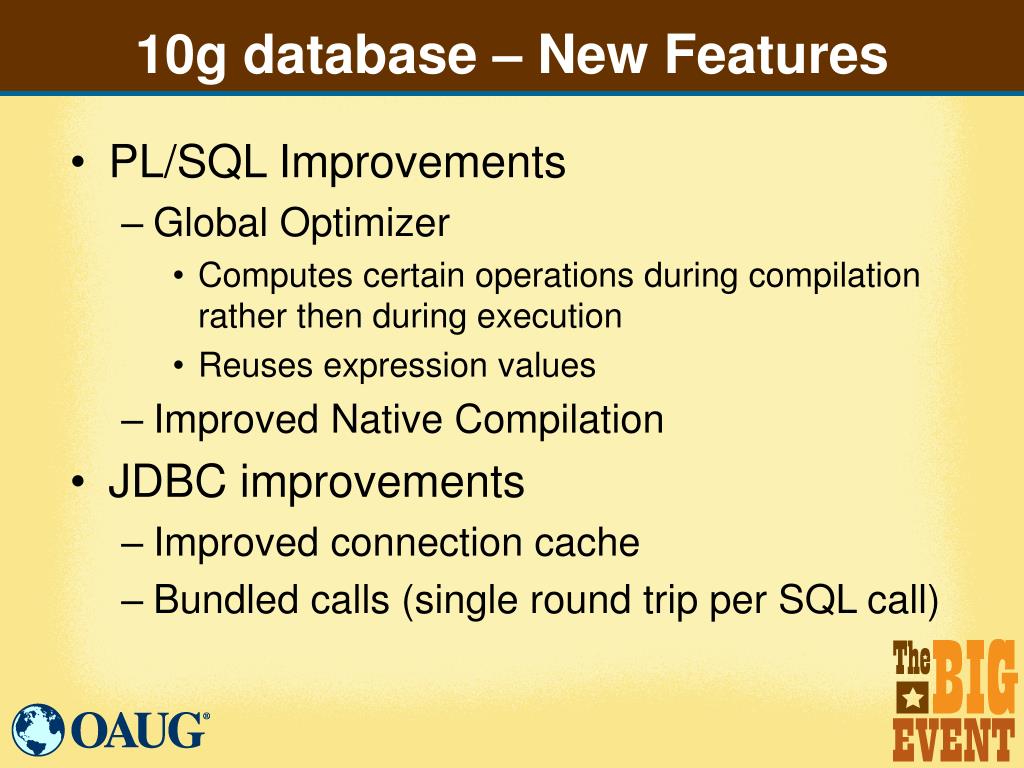

  22. 10g database – New Features • PL/SQL Improvements • Global Optimizer • Computes certain operations during compilation rather then during execution • Reuses expression values • Improved Native Compilation • JDBC improvements • Improved connection cache • Bundled calls (single round trip per SQL call)

  23. Q & A

  24. Thank YouSandra Vucinicsandrav@vladgroup.com (630) 202-1248 www.vladgroup.com
