  1. Drill • Write your homework in your planner. • Take out your homework. • Solve for all angle measures:

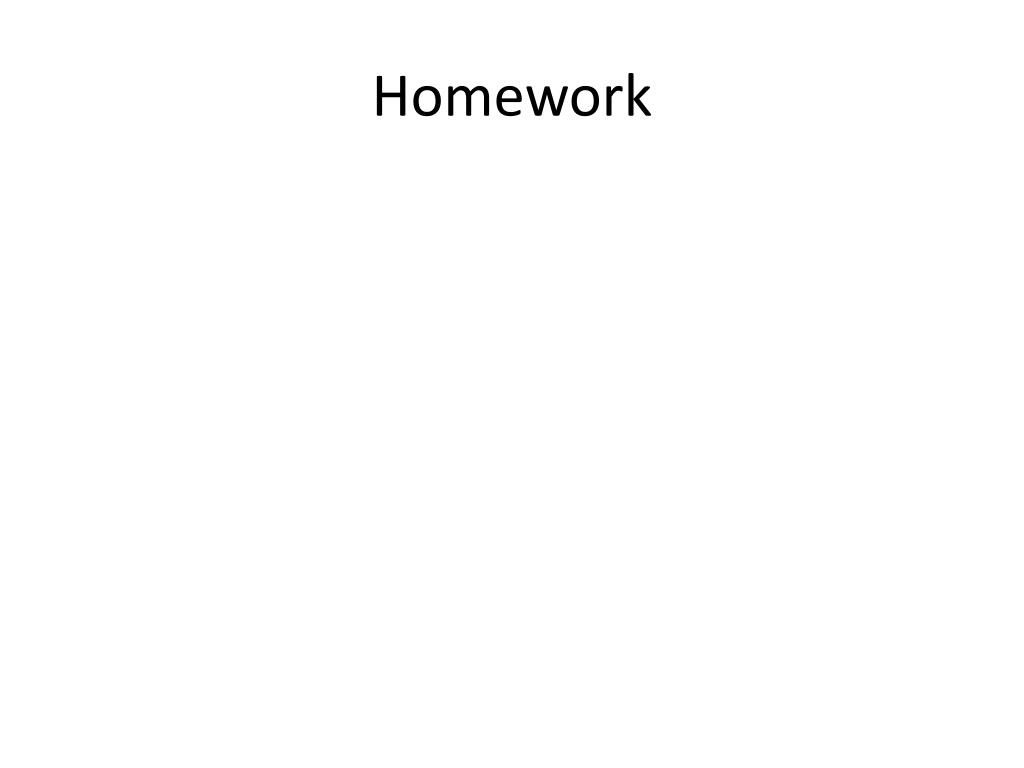

  2. Homework

  3. Quiz Next Class • polygon interior and exterior angles • perimeter and area of polygons • circumference, arc length, area of circles and sectors • central and inscribed angles • inscribed polygons

  4. Tangent • A line that only touches the edge of a circle one time. • A circle can have multiple tangents.

  5. Review: Polygon Angles • Formula for the sum of the interior angles of a polygon: 180(n-2) where n=number of sides. • In a regular polygon each angle has a measure of 180(n-2)÷n. • The exterior angles of any polygon will always add to 360°.

  6. Review: Perimeter and Area • Perimeter: add the side lengths together • Area of a regular polygon: • Apothem: line from center perpendicular to a side • Find the area of triangles (½bh) where the apothem is the height and the side length is the base • Multiply by the number of triangles (number of sides)

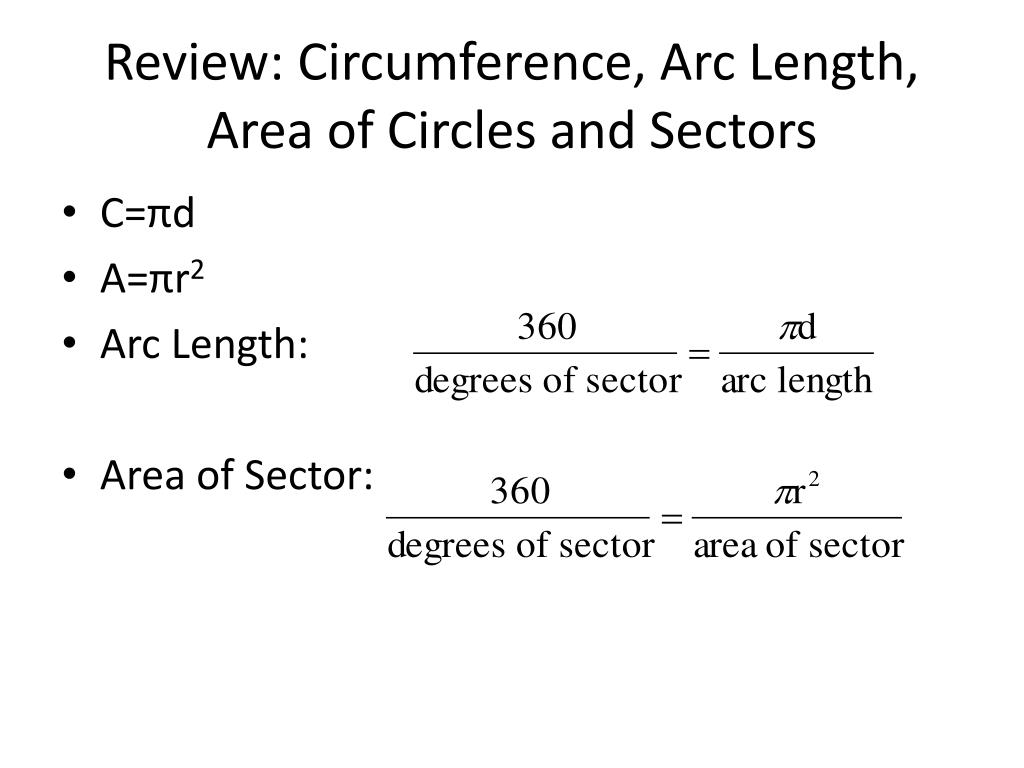

  7. Review: Circumference, Arc Length, Area of Circles and Sectors • C=πd • A=πr2 • Arc Length: • Area of Sector:

  8. Review: Central and Inscribed Angles • The measure of an arc=the measure if the central angle • The measure of an inscribed angle is ½ of the intercepted arc

  9. Review: Inscribed Polygons • The hypotenuse of a right triangle inscribed in a circle is the diameter of the circle. • When a quadrilateral is inscribed in a circle the opposite angles are supplementary.
