Installation Guide for GTLAB and OGCE: Steps to Initialize Your Grid Portal

This guide provides a comprehensive overview of installing and building GTLAB and OGCE, which include multiple sub-projects like a portlet-based grid portal using Gridsphere and Tomcat, workflow suite, information web services, gadget container, and JavaScript libraries. The installation process is streamlined using Maven for packing and requires basic modifications to the configuration files. You'll learn how to check out the source code, build the project, configure properties, start Tomcat, and develop custom tags and applications.

truda
Télécharger la présentation

Installation Guide for GTLAB and OGCE: Steps to Initialize Your Grid Portal

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

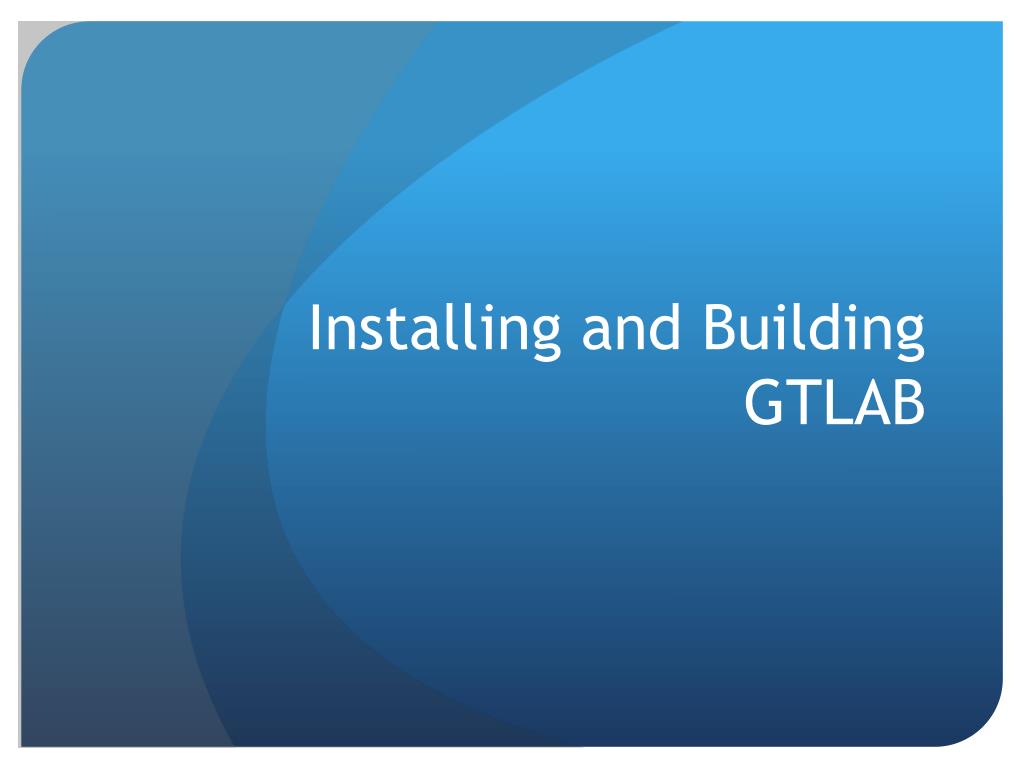

  1. Installing and Building GTLAB

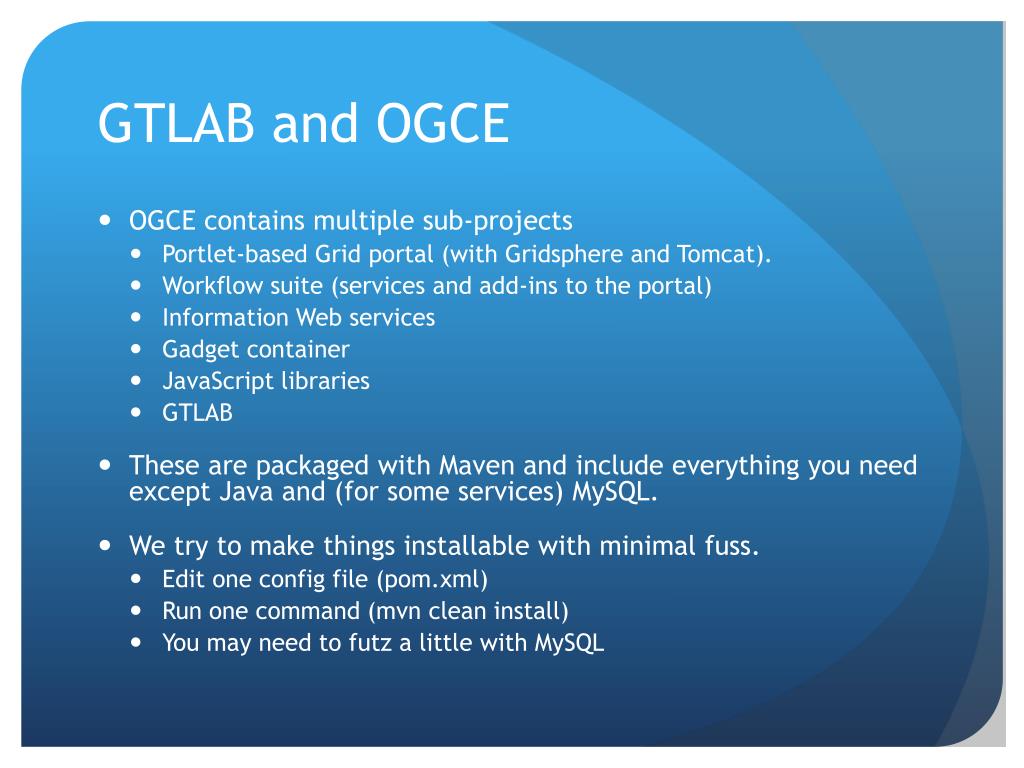

  2. GTLAB and OGCE • OGCE contains multiple sub-projects • Portlet-based Grid portal (with Gridsphere and Tomcat). • Workflow suite (services and add-ins to the portal) • Information Web services • Gadget container • JavaScript libraries • GTLAB • These are packaged with Maven and include everything you need except Java and (for some services) MySQL. • We try to make things installable with minimal fuss. • Edit one config file (pom.xml) • Run one command (mvn clean install) • You may need to futz a little with MySQL

  3. Getting GTLAB • See http://www.collab-ogce.org/ogce/index.php/GTLAB • You can use your favorite SVN client to check out. • svn co https://ogce.svn.sourceforge.net/svnroot/ogce/GTLAB (latest) • svn co https://ogce.svn.sourceforge.net/svnroot/ogce/tags/GTLAB-release-SC08-1.1 (tagged) • The tagged represents a stable preview release. The latest is whatever was checked in last. • “Latest” will also give you easy access to any updates • “svn update” • Best option if you want to actively develop and get fixes right away.

  4. No SVN? Get the TAR • SourceForge’s SVN/CVS viewer now provides a “Download GNU Tar” option. • http://ogce.svn.sourceforge.net/viewvc/ogce/GTLAB/ for latest. • http://ogce.svn.sourceforge.net/viewvc/ogce/tags/GTLAB-release-SC08-1.1/ for tag

  5. What’s in GTLAB?

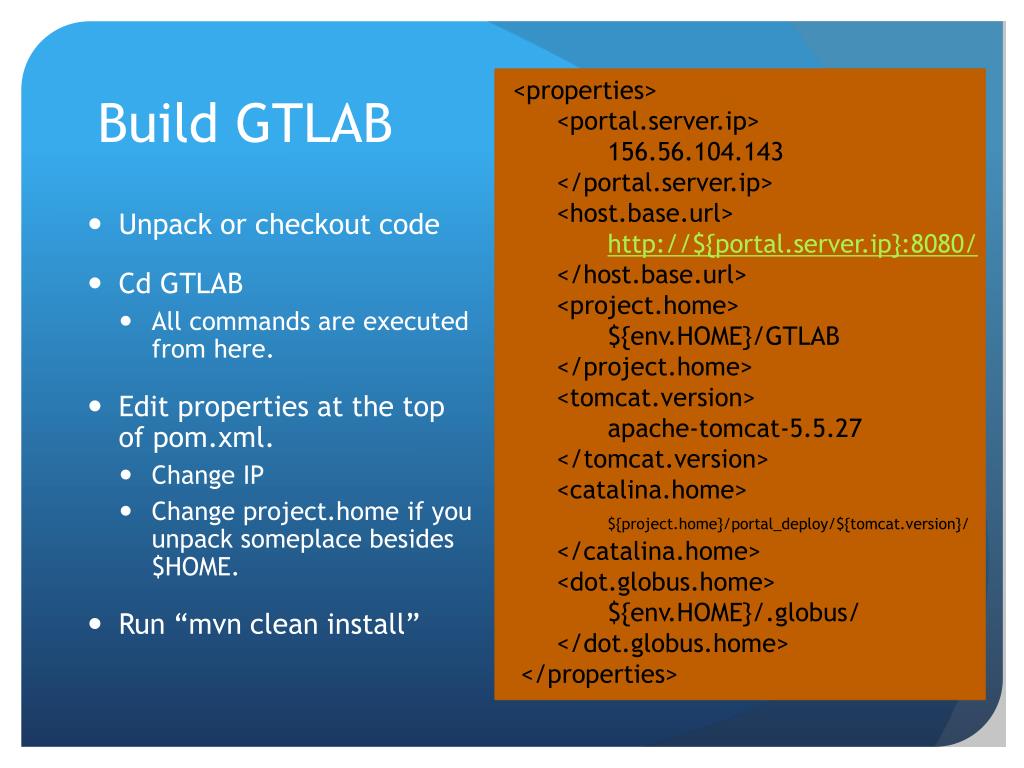

  6. Build GTLAB <properties> <portal.server.ip> 156.56.104.143 </portal.server.ip> <host.base.url> http://${portal.server.ip}:8080/ </host.base.url> <project.home> ${env.HOME}/GTLAB </project.home> <tomcat.version> apache-tomcat-5.5.27 </tomcat.version> <catalina.home> ${project.home}/portal_deploy/${tomcat.version}/ </catalina.home> <dot.globus.home> ${env.HOME}/.globus/ </dot.globus.home> </properties> • Unpack or checkout code • Cd GTLAB • All commands are executed from here. • Edit properties at the top of pom.xml. • Change IP • Change project.home if you unpack someplace besides $HOME. • Run “mvn clean install”

  7. Run Examples • From GTLAB, start tomcat with ./startup.sh. • From GTLAB, stop Tomcat with ./shutdown.sh • Point browser to http://localhost:8080/GTLAB • Start with MyProxy Example

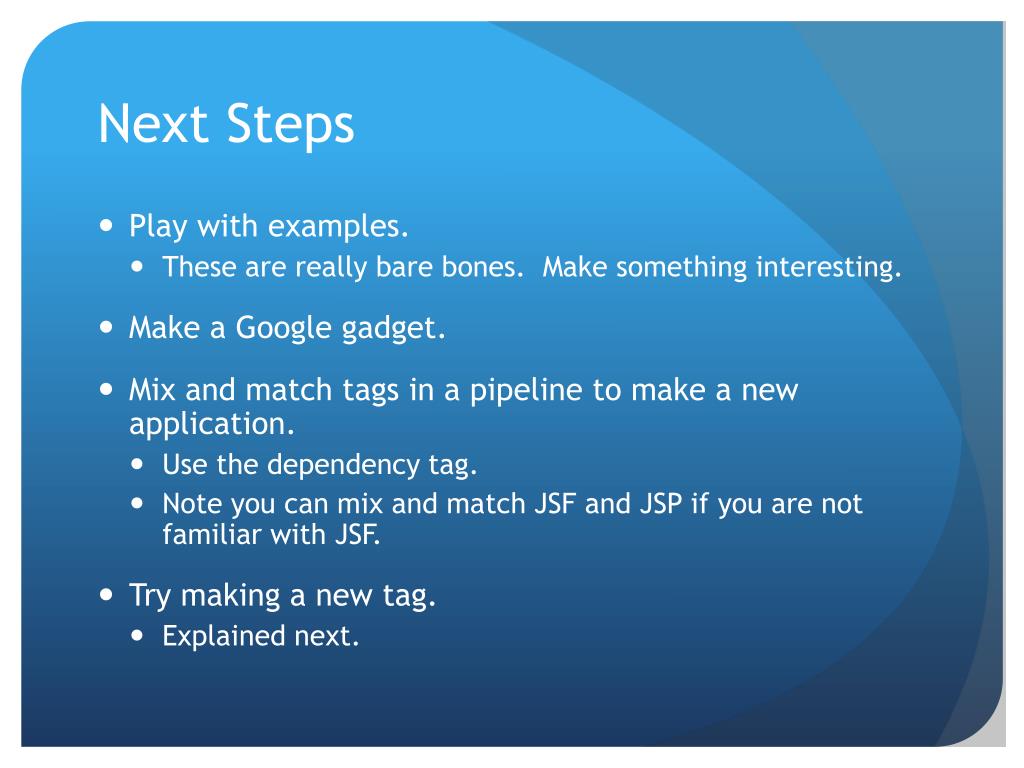

  8. Next Steps • Play with examples. • These are really bare bones. Make something interesting. • Make a Google gadget. • Mix and match tags in a pipeline to make a new application. • Use the dependency tag. • Note you can mix and match JSF and JSP if you are not familiar with JSF. • Try making a new tag. • Explained next.

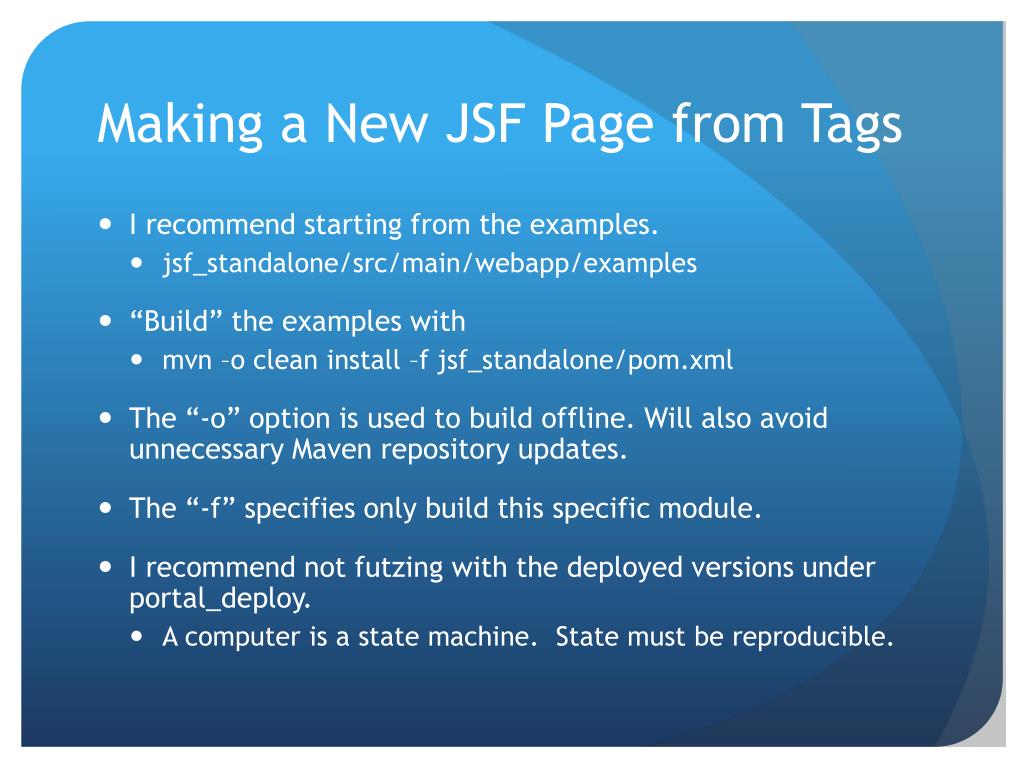

  9. Making a New JSF Page from Tags • I recommend starting from the examples. • jsf_standalone/src/main/webapp/examples • “Build” the examples with • mvn –o clean install –f jsf_standalone/pom.xml • The “-o” option is used to build offline. Will also avoid unnecessary Maven repository updates. • The “-f” specifies only build this specific module. • I recommend not futzing with the deployed versions under portal_deploy. • A computer is a state machine. State must be reproducible.

  10. Making a New Tag • Run the following command from GTLAB: • mvn clean process-resources -Dtag.name=test -Dprojectname=Test -f templateTag/pom.xml • Add -Ddest.dir=/tmp for a dry run. • Replace “test” with the name of your tag. • Replace “Test” with the name for your Bean. • This will make 4 files • TestBean.java, TestTag.java, TestBeanFactory.java, UITest.java • Edits also 3 config files • gtlab-factory.xml, managed-beans.xml, components.xml • This will compile but to implement something useful, you will need to edit the highlighted files.

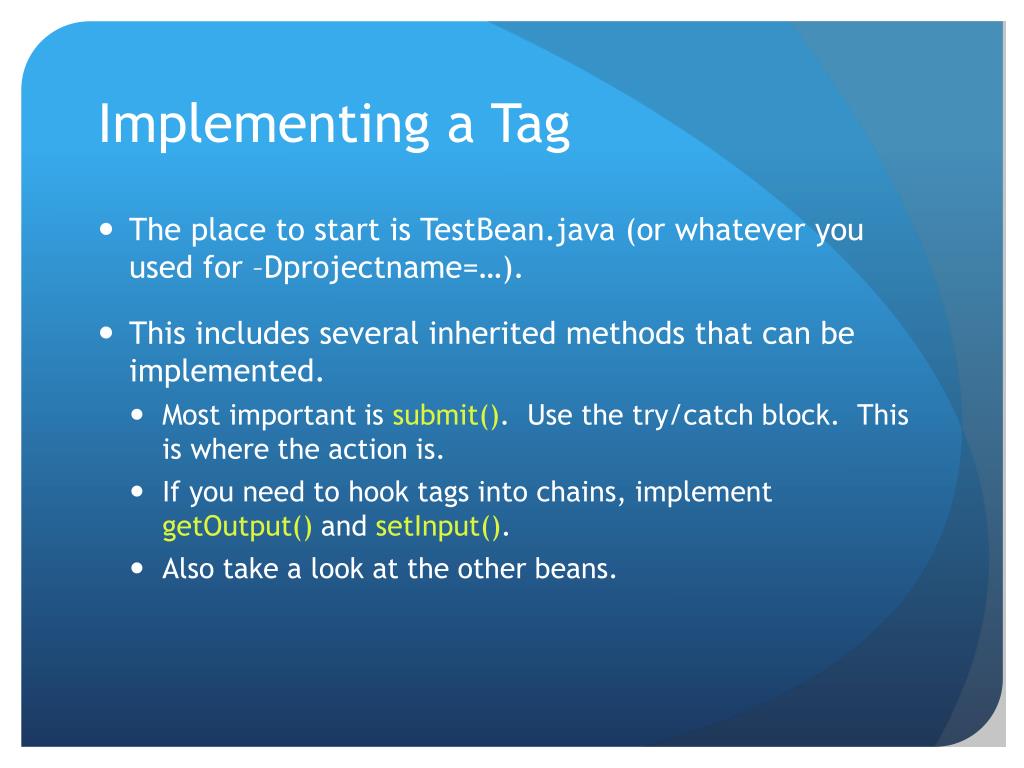

  11. Implementing a Tag • The place to start is TestBean.java (or whatever you used for –Dprojectname=…). • This includes several inherited methods that can be implemented. • Most important is submit(). Use the try/catch block. This is where the action is. • If you need to hook tags into chains, implement getOutput() and setInput(). • Also take a look at the other beans.

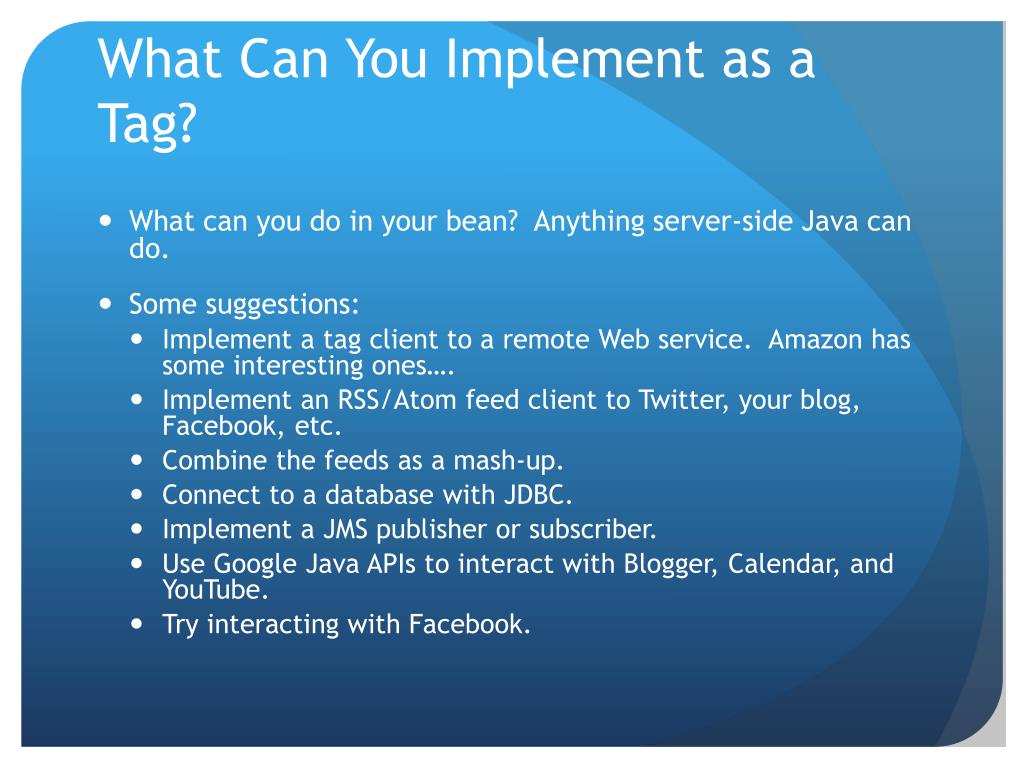

  12. What Can You Implement as a Tag? • What can you do in your bean? Anything server-side Java can do. • Some suggestions: • Implement a tag client to a remote Web service. Amazon has some interesting ones…. • Implement an RSS/Atom feed client to Twitter, your blog, Facebook, etc. • Combine the feeds as a mash-up. • Connect to a database with JDBC. • Implement a JMS publisher or subscriber. • Use Google Java APIs to interact with Blogger, Calendar, and YouTube. • Try interacting with Facebook.
