Innovative Low-Cost Model Aircraft Design for Sustained Flight Under $250

Our project focuses on designing a lightweight model aircraft that adheres to specific restrictions, such as a cost of under $250 and a maximum weight of 450 grams. Initially aimed at building a helicopter, we pivoted to a plane design due to part availability. Our aircraft, inspired by a bird, utilizes a re-skinned GWS Slow Stick model with enhancements for functionality and a longer flight time. The design includes a camera mount for enhanced features. We aim for sustained flight of five minutes. Stay tuned for our upcoming video!

trudy
Télécharger la présentation

Innovative Low-Cost Model Aircraft Design for Sustained Flight Under $250

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Group 3 Plane Design:Names: Noble Wu, Bobby Walsh, ArdaSelekler, Khanh Nguyen, Mulu, Weird Dave.

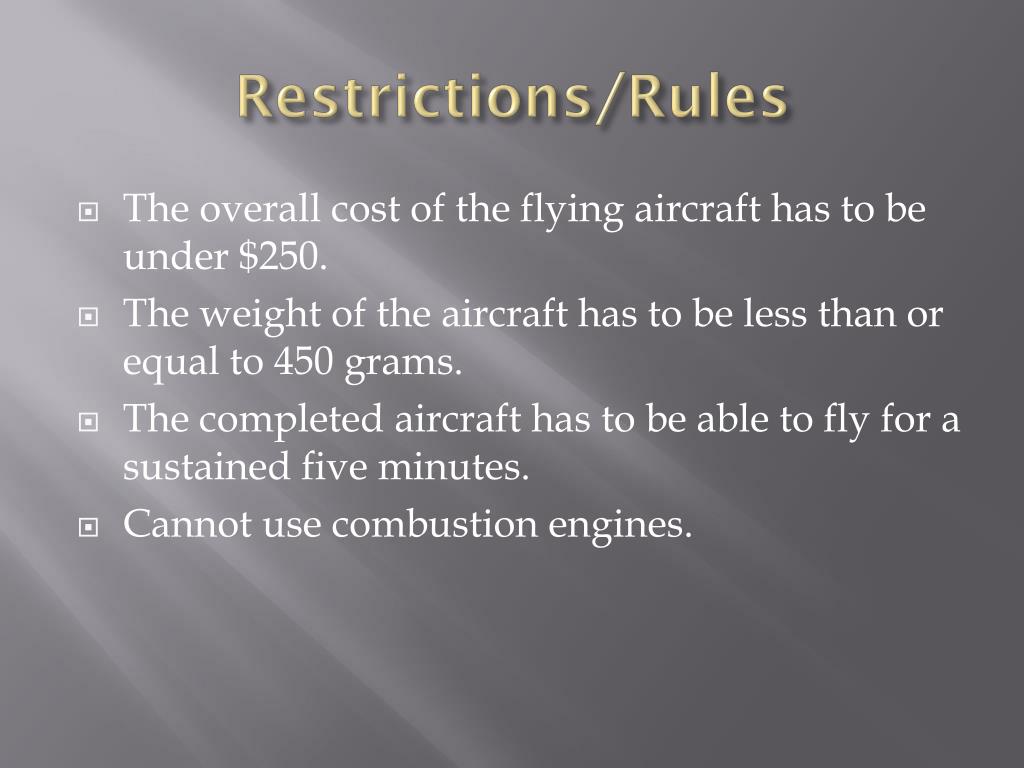

  2. Restrictions/Rules • The overall cost of the flying aircraft has to be under $250. • The weight of the aircraft has to be less than or equal to 450 grams. • The completed aircraft has to be able to fly for a sustained five minutes. • Cannot use combustion engines.

  3. Planning At first we wanted to build a helicopter but we weren’t able to find the parts needed to build one ourselves that meets the requirements, so we switched to a plane design.

  4. Design Our plane is going to be a re-skinned GWS Slow stick model to look like a bird(Dave’s idea) along with some slight technical changes to the model’s body in terms of functionality.

  5. Plane Sketch

  6. Part cost/list • SymaRC Helicopter – Yellow - 20.25 • 2.4G Fly-Sky 6 Channel - 32.70 usd • DynamBrushless - 24.66 usd • Sky Lipo 1300mAh(battery) - 13.20 usd • Slow Stick Airplane - 30.56 usd • Total – 121.37 usd

  7. Gantt

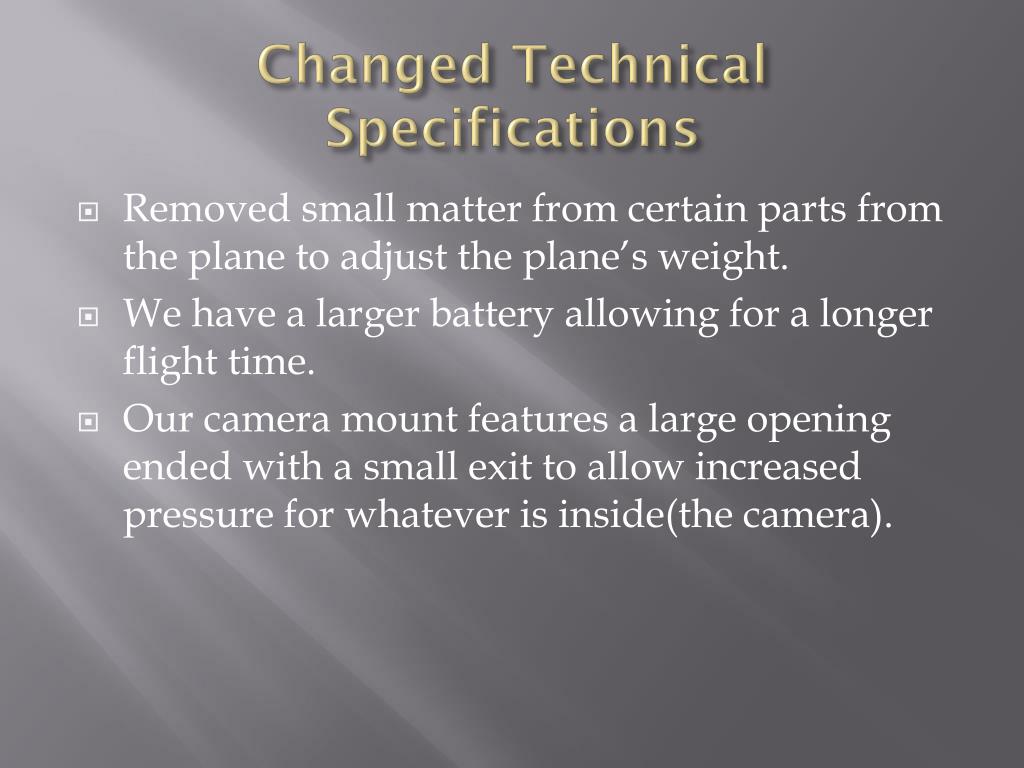

  8. Changed Technical Specifications • Removed small matter from certain parts from the plane to adjust the plane’s weight. • We have a larger battery allowing for a longer flight time. • Our camera mount features a large opening ended with a small exit to allow increased pressure for whatever is inside(the camera).

  9. Video of Plane • Coming soon!

  10. Conclusion Going from the Helicopter to a Plane insured a lesser difficulty due to the ease at finding parts, the design, the flight, and cost of parts. Building a plane and designing it as well as allowing it to fly is the real task of this project. Thank you for your time.
