AMQP and RabbitMQ with CloudStack

DESCRIPTION

AMQP and RabbitMQ with CloudStack. May 2014 Sonal Ojha. In next 45 minutes …. Why MOM architecture? Messaging broker like RabbitMQ in brief RabbitMQ and CloudStack AMQP – What is it ? A small demo. Message Oriented Middleware Architecture.

1 / 17

Télécharger la présentation

AMQP and RabbitMQ with CloudStack

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. AMQP and RabbitMQ with CloudStack May 2014 SonalOjha

  2. In next 45 minutes … • Why MOM architecture? • Messaging broker like RabbitMQ in brief • RabbitMQ and CloudStack • AMQP – What is it ? • A small demo

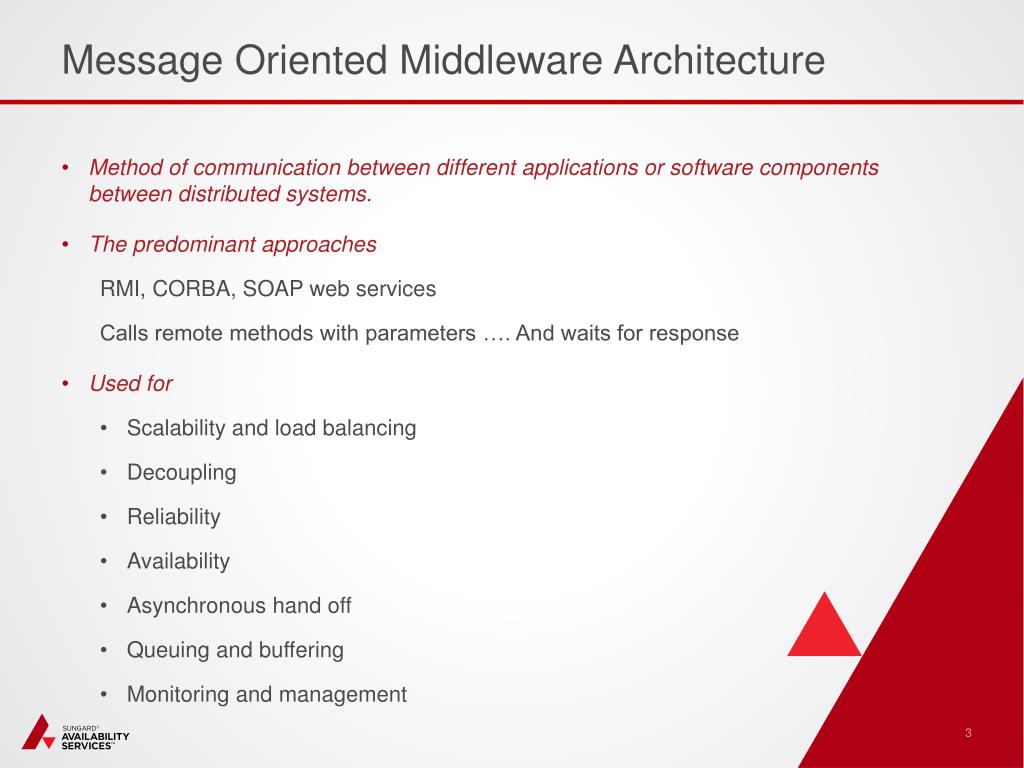

  3. Message Oriented Middleware Architecture • Method of communication between different applications or software components between distributed systems. • The predominant approaches RMI, CORBA, SOAP web services Calls remote methods with parameters …. And waits for response • Used for • Scalability and load balancing • Decoupling • Reliability • Availability • Asynchronous hand off • Queuing and buffering • Monitoring and management

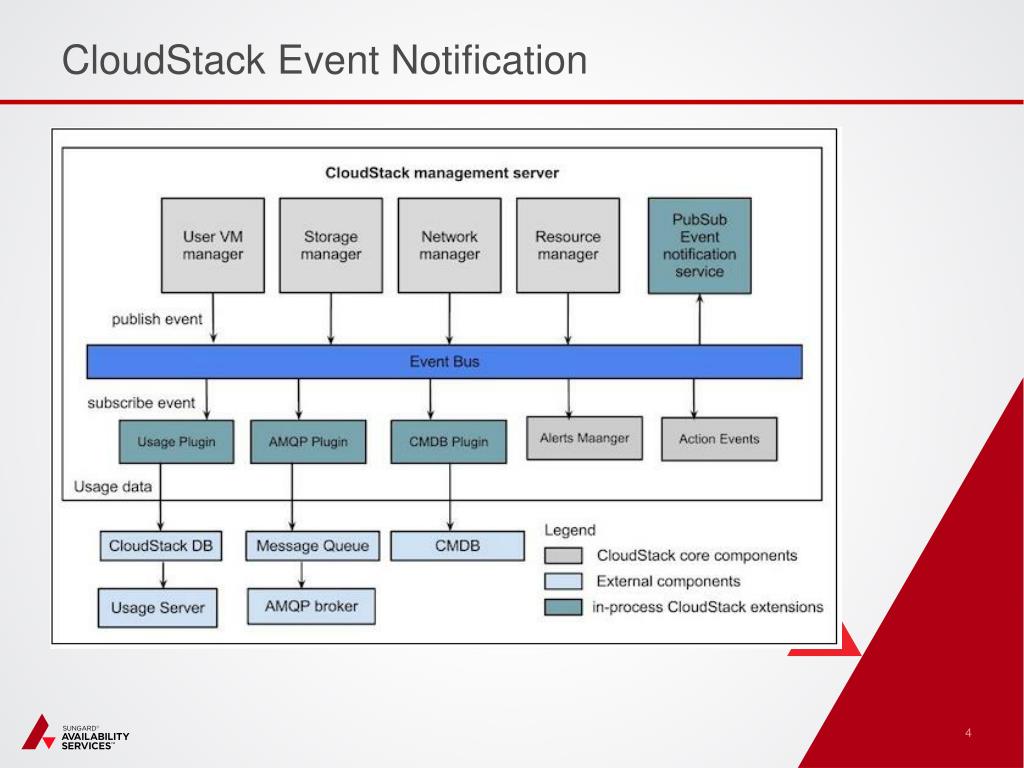

  4. CloudStack Event Notification

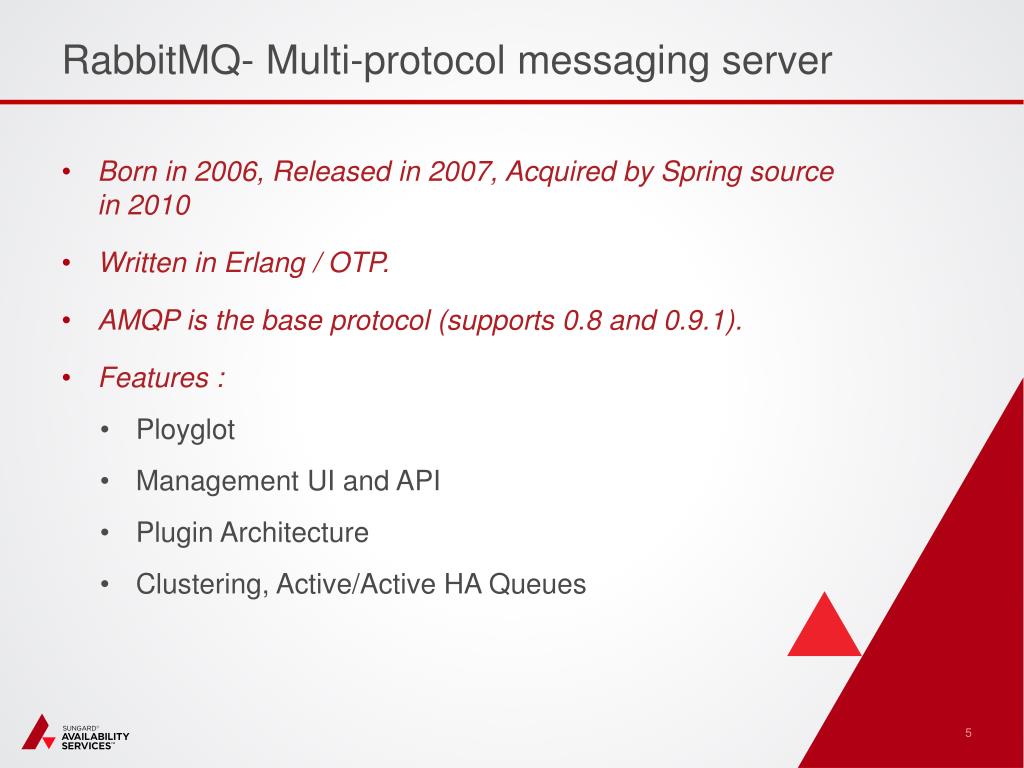

  5. RabbitMQ- Multi-protocol messaging server • Born in 2006, Released in 2007, Acquired by Spring source in 2010 • Written in Erlang / OTP. • AMQP is the base protocol (supports 0.8 and 0.9.1). • Features : • Ployglot • Management UI and API • Plugin Architecture • Clustering, Active/Active HA Queues

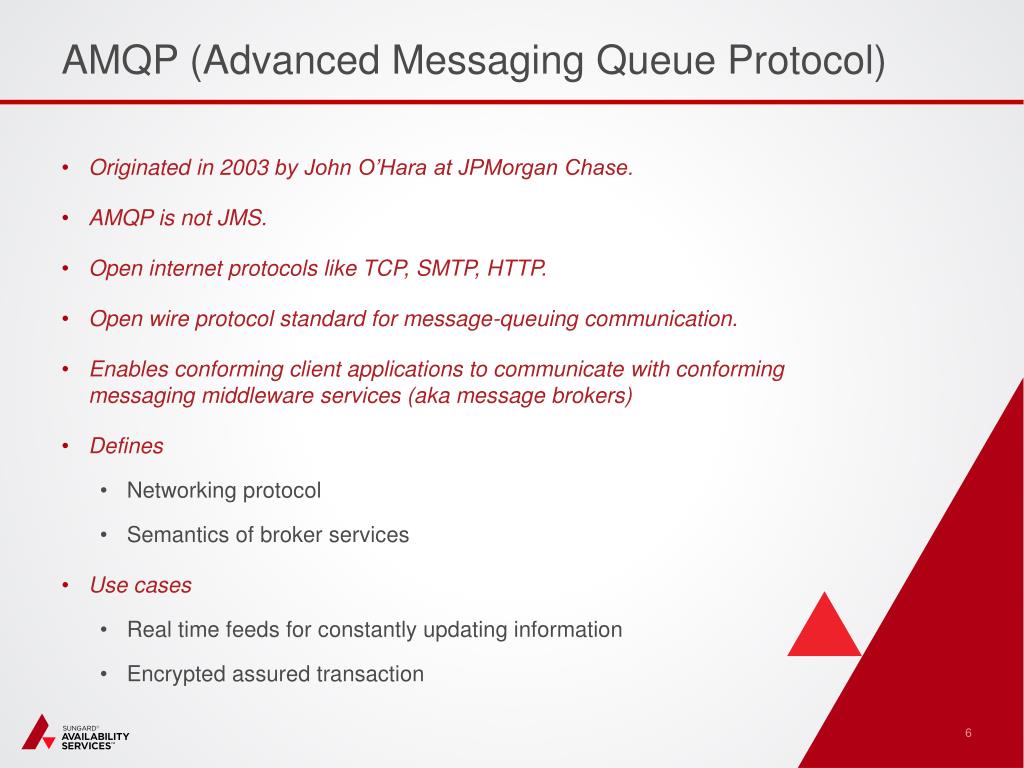

  6. AMQP (Advanced Messaging Queue Protocol) • Originated in 2003by John O’Hara at JPMorgan Chase. • AMQP is not JMS. • Open internet protocols like TCP, SMTP, HTTP. • Open wire protocol standard for message-queuing communication. • Enables conforming client applications to communicate with conforming messaging middleware services (aka message brokers) • Defines • Networking protocol • Semantics of broker services • Use cases • Real time feeds for constantly updating information • Encrypted assured transaction

  7. AMQP conti .. Functional layer defines sets of commands Transport layer carries these methods from application to server, handles channel multiplexing, framing, content encoding, heart-beating, data representation and error handling

  8. To get there … Binding key Routing key • Queues • Messages are consumed from queues • Stores messages in memory or disk • Deliver in sequence • Exchanges • Messages are routed to queues through exchanges through pre-arranged criteria • Matching and routing engines, rather can do more than routing messages. • How is the message routed ?? Messages are routed to queues by matching routing keys against binding pattern.

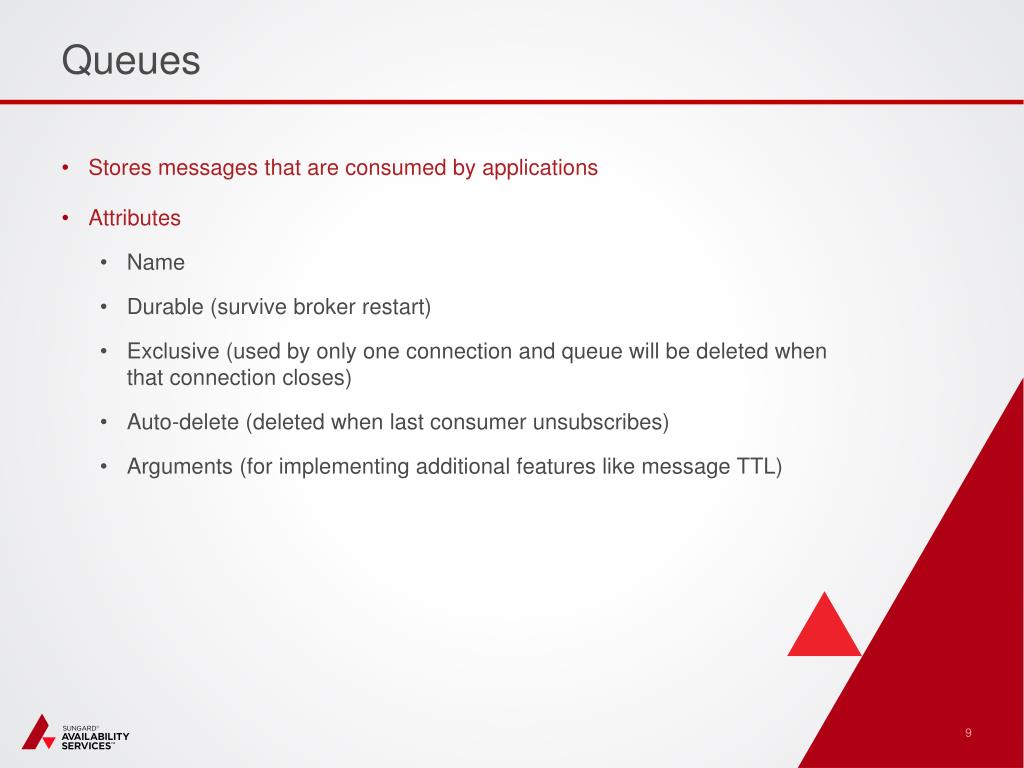

  9. Queues • Stores messages that are consumed by applications • Attributes • Name • Durable (survive broker restart) • Exclusive (used by only one connection and queue will be deleted when that connection closes) • Auto-delete (deleted when last consumer unsubscribes) • Arguments (for implementing additional features like message TTL)

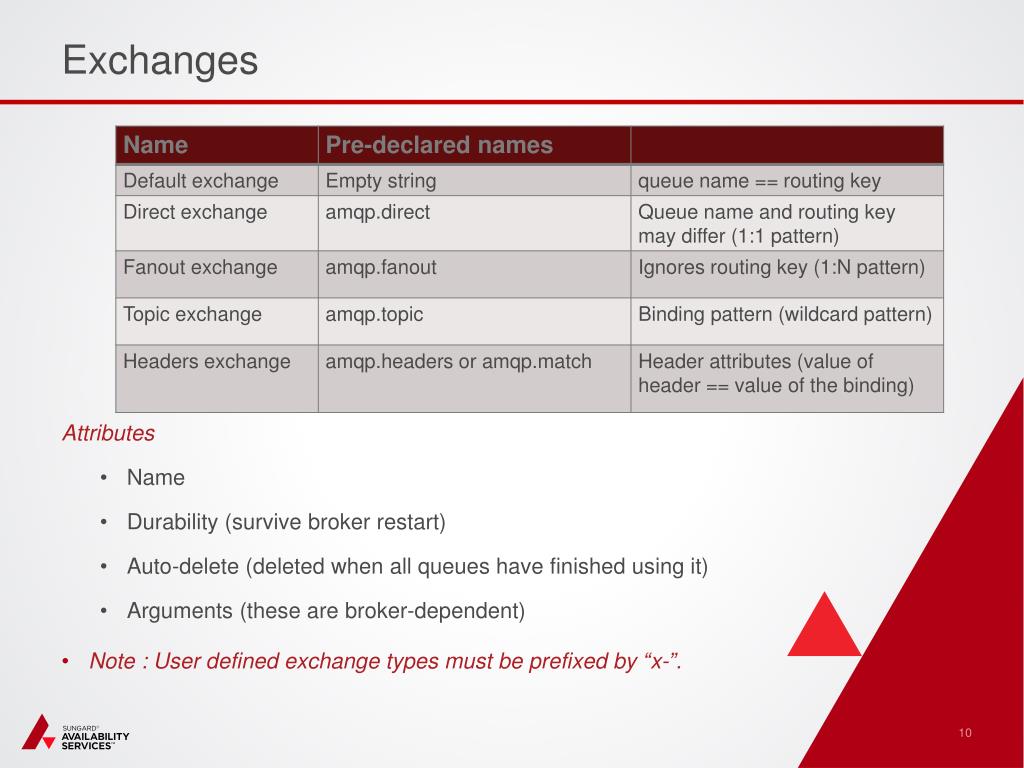

  10. Exchanges • Attributes • Name • Durability (survive broker restart) • Auto-delete (deleted when all queues have finished using it) • Arguments (these are broker-dependent) • Note : User defined exchange types must be prefixed by “x-”.

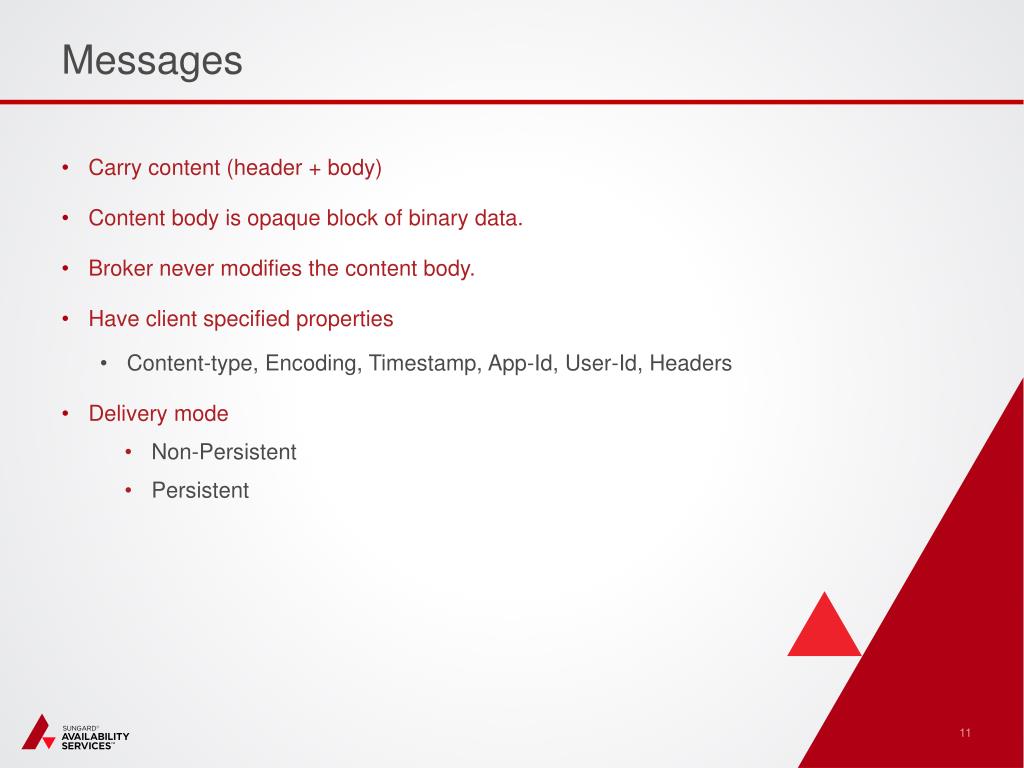

  11. Messages • Carry content (header + body) • Content body is opaque block of binary data. • Broker never modifies the content body. • Have client specified properties • Content-type, Encoding, Timestamp, App-Id, User-Id, Headers • Delivery mode • Non-Persistent • Persistent

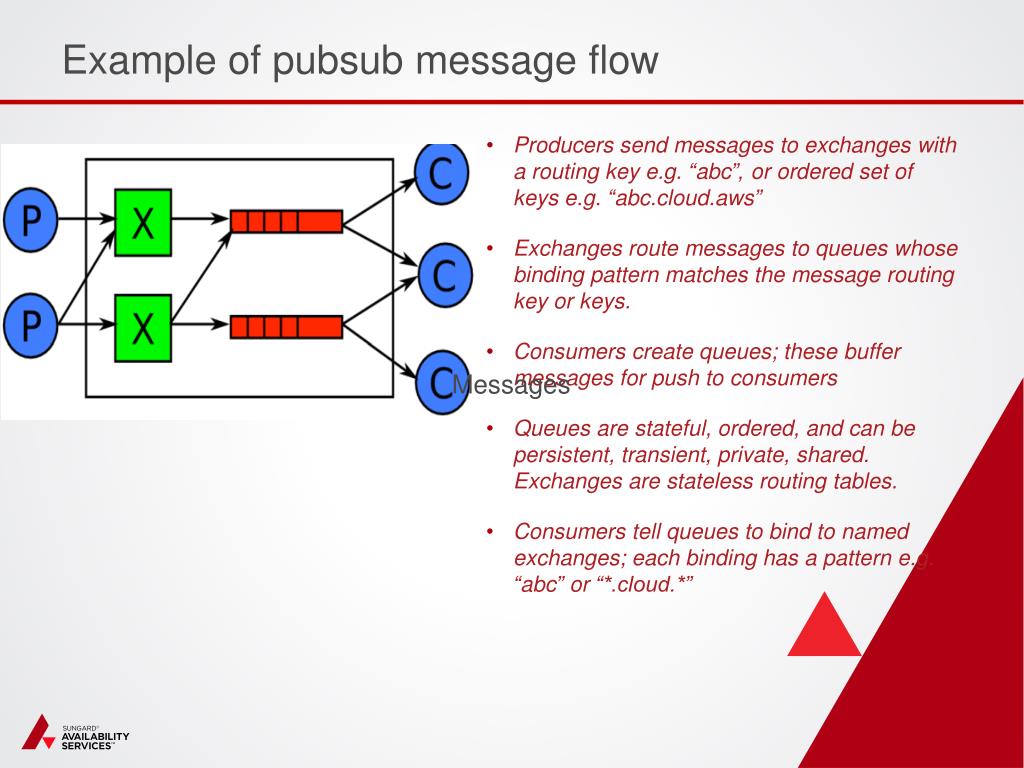

  12. Example of pubsub message flow Messages • Producers send messages to exchanges with a routing key e.g. “abc”, or ordered set of keys e.g. “abc.cloud.aws” • Exchanges route messages to queues whose binding pattern matches the message routing key or keys. • Consumers create queues; these buffer messages for push to consumers • Queues are stateful, ordered, and can be persistent, transient, private, shared. Exchanges are stateless routing tables. • Consumers tell queues to bind to named exchanges; each binding has a pattern e.g. “abc” or “*.cloud.*”

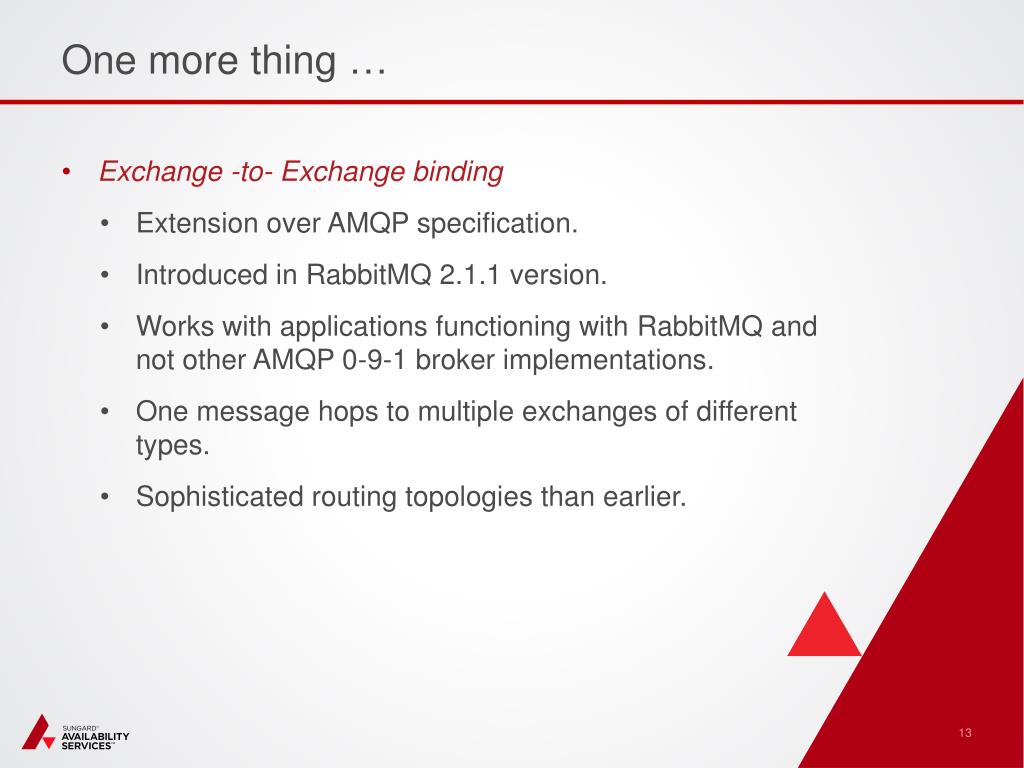

  13. One more thing … • Exchange -to- Exchange binding • Extension over AMQP specification. • Introduced in RabbitMQ 2.1.1 version. • Works with applications functioning with RabbitMQ and not other AMQP 0-9-1 broker implementations. • One message hops to multiple exchanges of different types. • Sophisticated routing topologies than earlier.

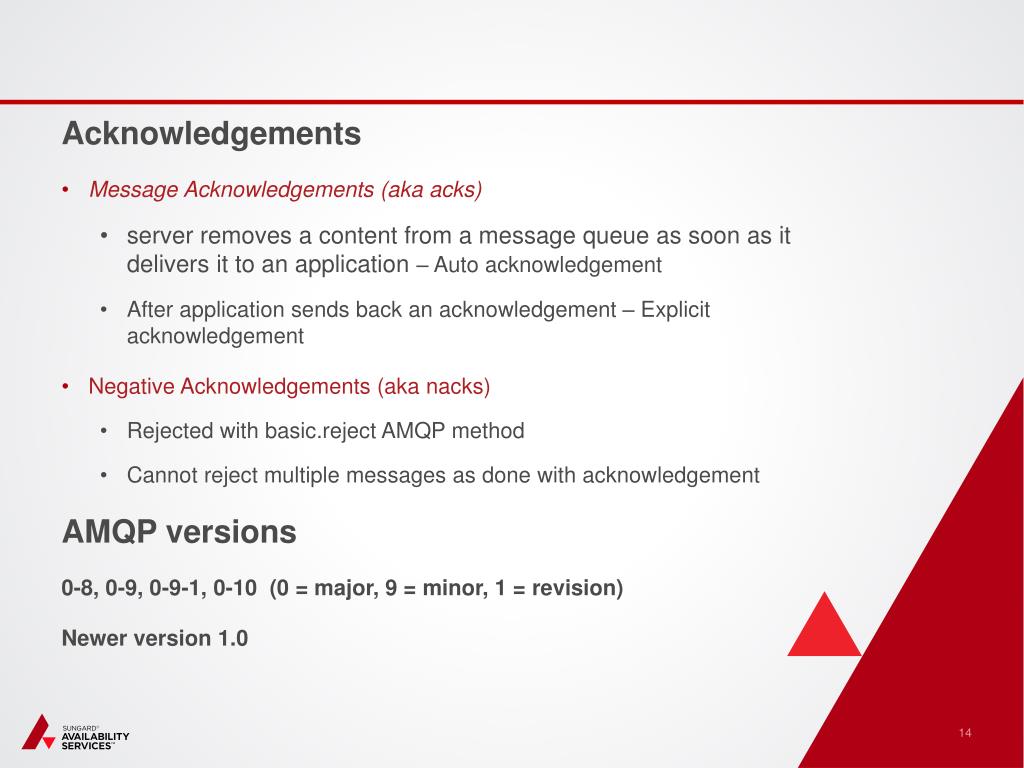

  14. Acknowledgements • Message Acknowledgements (aka acks) • server removes a content from a message queue as soon as it delivers it to an application – Auto acknowledgement • After application sends back an acknowledgement – Explicit acknowledgement • Negative Acknowledgements (aka nacks) • Rejected with basic.rejectAMQP method • Cannot reject multiple messages as done with acknowledgement • AMQP versions • 0-8, 0-9, 0-9-1, 0-10 (0 = major, 9 = minor, 1 = revision) • Newer version 1.0

  15. DEMO & Code Walk through

  16. References https://www.rabbitmq.com/tutorials/amqp-concepts.html http://www.rabbitmq.com/documentation.html http://tryrabbitmq.com/ http://www.amqp.org/

  17. Thank You!
