Ultra-Light Fanless Thin Client with VIA NanoBGA2 400MHz, USB, LAN, and DVI-I Support

The U710 Ultra-light thin client features a fanless design powered by the VIA Eden NanoBGA2 at 400MHz. With four USB 2.0 ports, a DVI-I video output, and an optional WLAN module, it provides versatile connectivity while maintaining an ultra-compact form factor. The changeable side plate allows for ODM options, and additional features include a Kensington lock for security and VESA mounting support for flexible installation. The client is designed for performance and efficiency in modern workspace environments.

tuan
Télécharger la présentation

Ultra-Light Fanless Thin Client with VIA NanoBGA2 400MHz, USB, LAN, and DVI-I Support

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

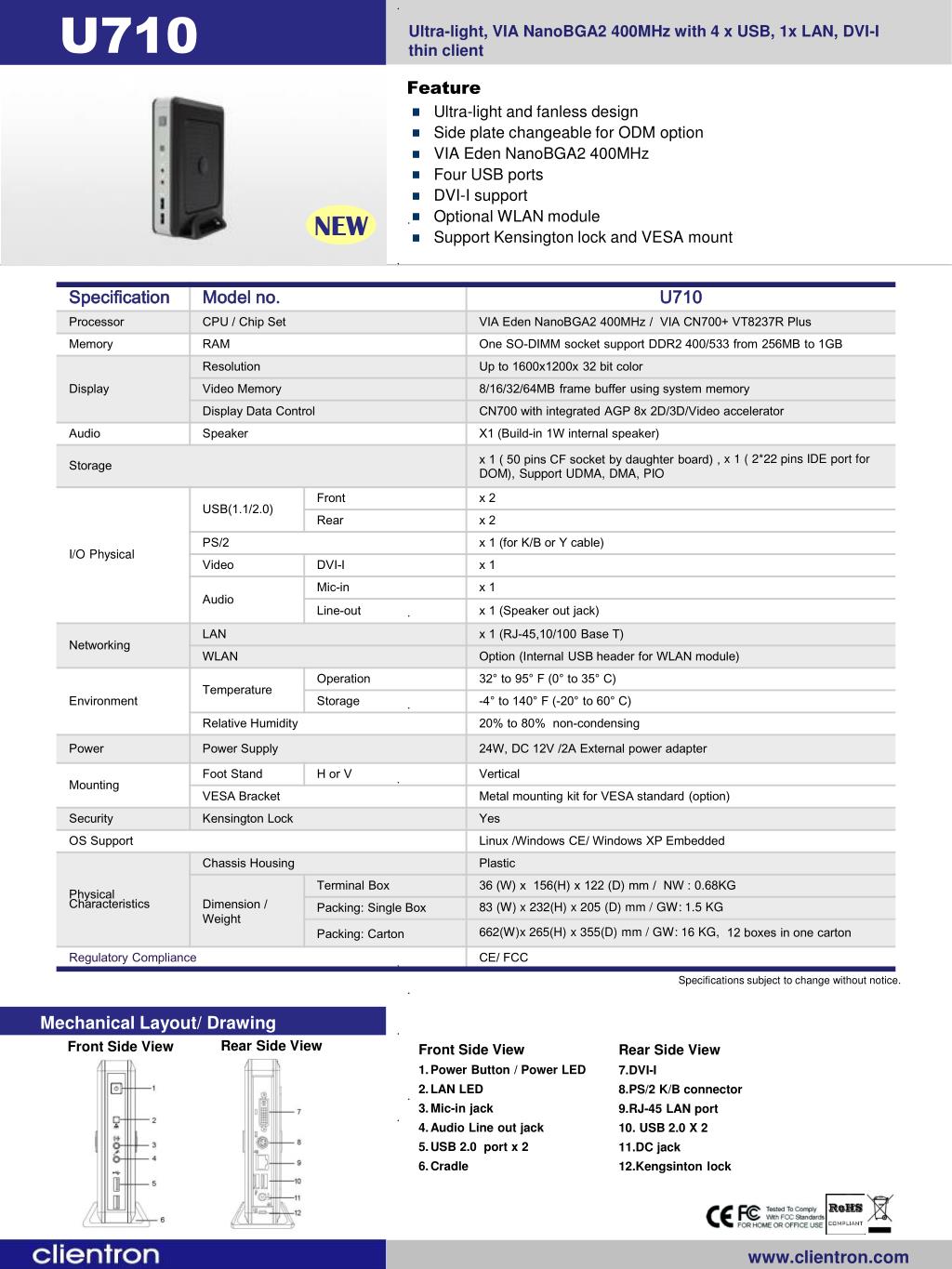

  1. U710 Ultra-light, VIA NanoBGA2 400MHz with 4 x USB, 1x LAN, DVI-I thin client • Ultra-light and fanless design • Side plate changeable for ODM option • VIA Eden NanoBGA2 400MHz • Four USB ports • DVI-I support • Optional WLAN module • Support Kensington lock and VESA mount NEW Specifications subject to change without notice. Rear Side View Front Side View • Front Side View • Power Button / Power LED • LAN LED • Mic-in jack • Audio Line out jack • USB 2.0 port x 2 • Cradle Rear Side View 7.DVI-I 8.PS/2 K/B connector 9.RJ-45 LAN port 10. USB 2.0 X 2 11.DC jack 12.Kengsinton lock
