CB200 Conventional Control Panels

The CB200 Conventional Control Panels offer versatile fire alarm solutions, supporting 1 to 8 zones with 4 alarm circuits (for 4-8 zone models). Designed for user-friendliness, they include built-in detector removal indication, Earth Fault Monitoring, and a non-latching zone feature. With compliance to EN 54-2 standards, these panels provide ample wiring space, flame-resistant polycarbonate enclosures, and user controls for easy zone identification. The panels also accommodate two 12V batteries for 24-hour standby, and fully-functional repeaters are available for larger systems.

tucker-wiley
Télécharger la présentation

CB200 Conventional Control Panels

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

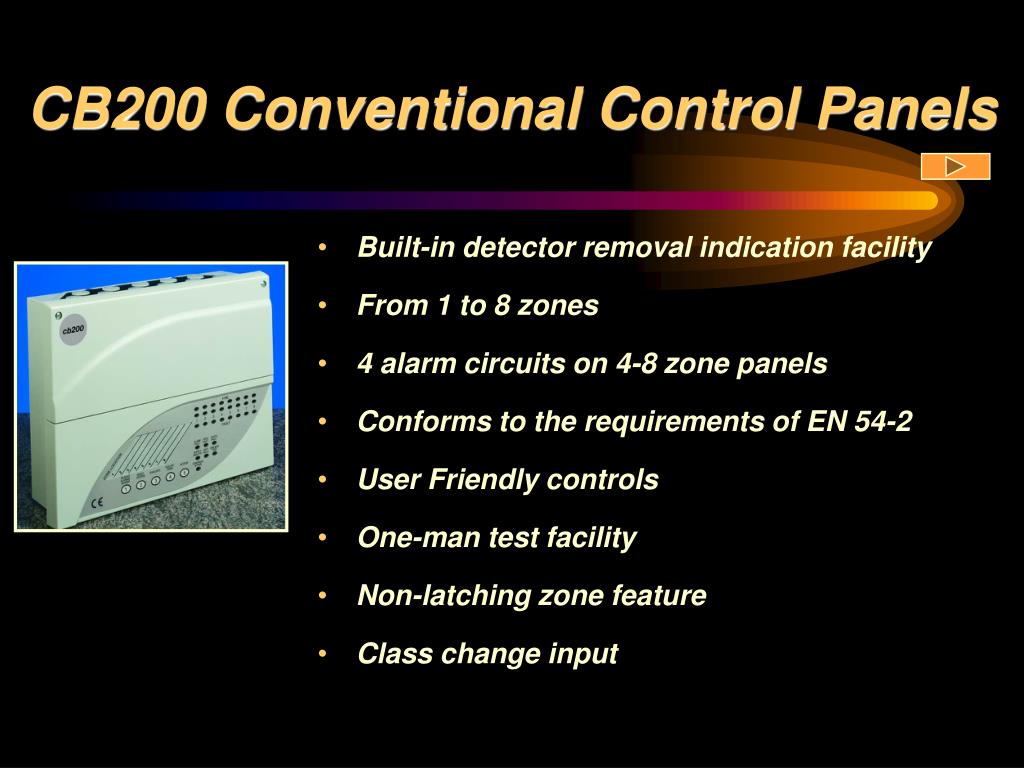

  1. CB200 Conventional Control Panels • Built-in detector removal indication facility  • From 1 to 8 zones  • 4 alarm circuits on 4-8 zone panels • Conforms to the requirements of EN 54-2   • User Friendly controls   • One-man test facility  • Non-latching zone feature  • Class change input

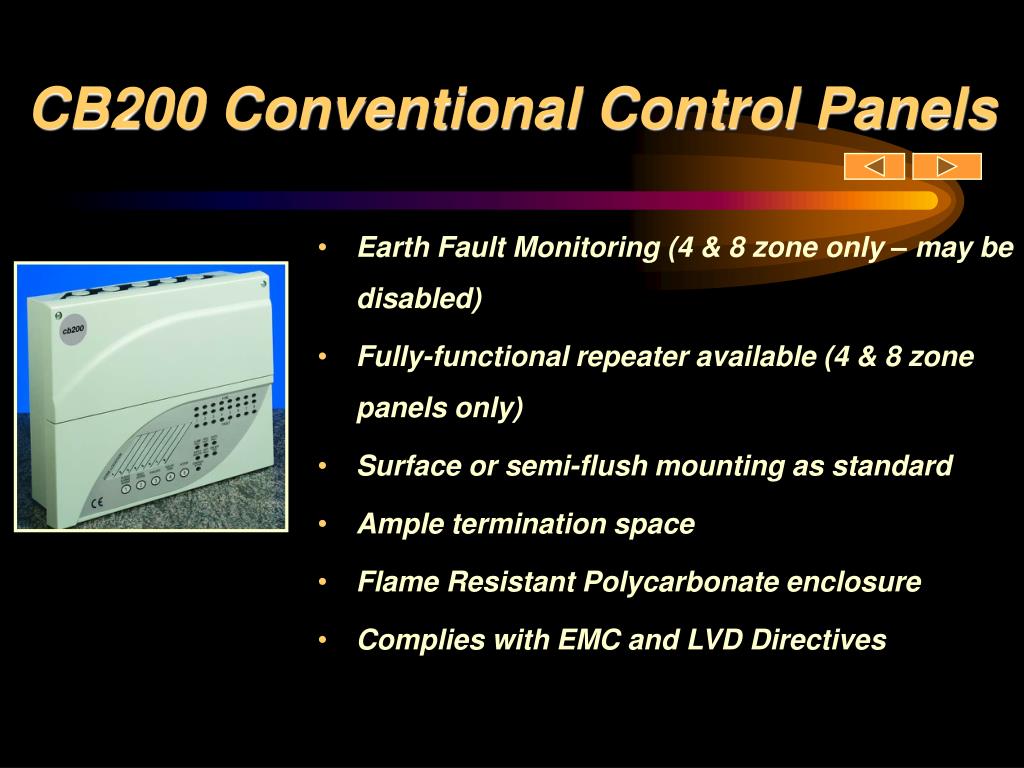

  2. CB200 Conventional Control Panels • Earth Fault Monitoring (4 & 8 zone only – may be disabled)  • Fully-functional repeater available (4 & 8 zone panels only)  • Surface or semi-flush mounting as standard  • Ample termination space  • Flame Resistant Polycarbonate enclosure  • Complies with EMC and LVD Directives

  3. Cabinet Specifications Semi-flush is available as standard because of the construction of the CB200 enclosure. The removable gland plate and cable entry grommets obviate the need to drill wiring holes in the panel on site. Panel dimensions are detailed in the Application Guide.

  4. Mechanical Assembly Installer’s logo or brand image may be added. This drawing shows the ample wiring space incorporated into the CB200 panel design. PCB terminal support for mechanical reliability. Electronics are completely removable for convenience on site during fitting of the back box. There is space for two 12V 2.1AH batteries - suitable for the 24hr standby requirements on an 8 zone system.

  5. User Controls This is a slide-in card to add text zone identification. Zone fire and fault LEDs. Press 5 to access user controls and then press 14. Controls are then enabled. Repeat to disable controls. General system LED indications.

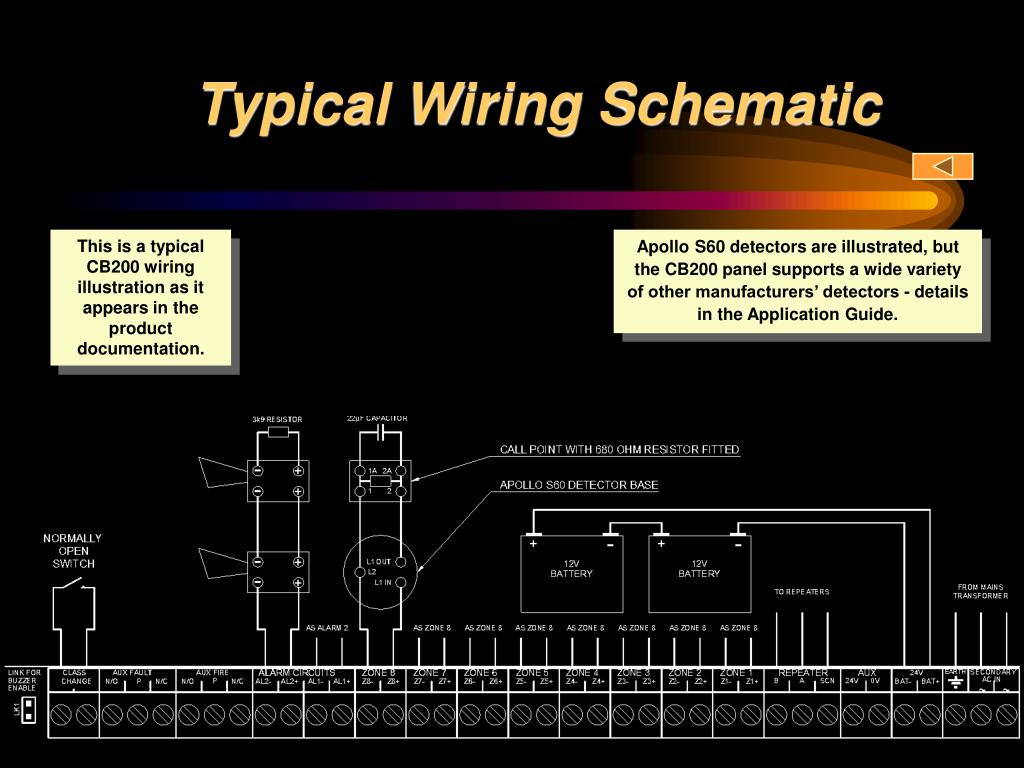

  6. Typical Wiring Schematic This is a typical CB200 wiring illustration as it appears in the product documentation. Apollo S60 detectors are illustrated, but the CB200 panel supports a wide variety of other manufacturers’ detectors - details in the Application Guide.
