  1. A method for IP multicast performance monitoring draft-cociglio-mboned-multicast-pm-01 Alessandro Capello Luca Castaldelli Mauro Cociglio Alberto Tempia Bonda IETF 79 – Beijing, China

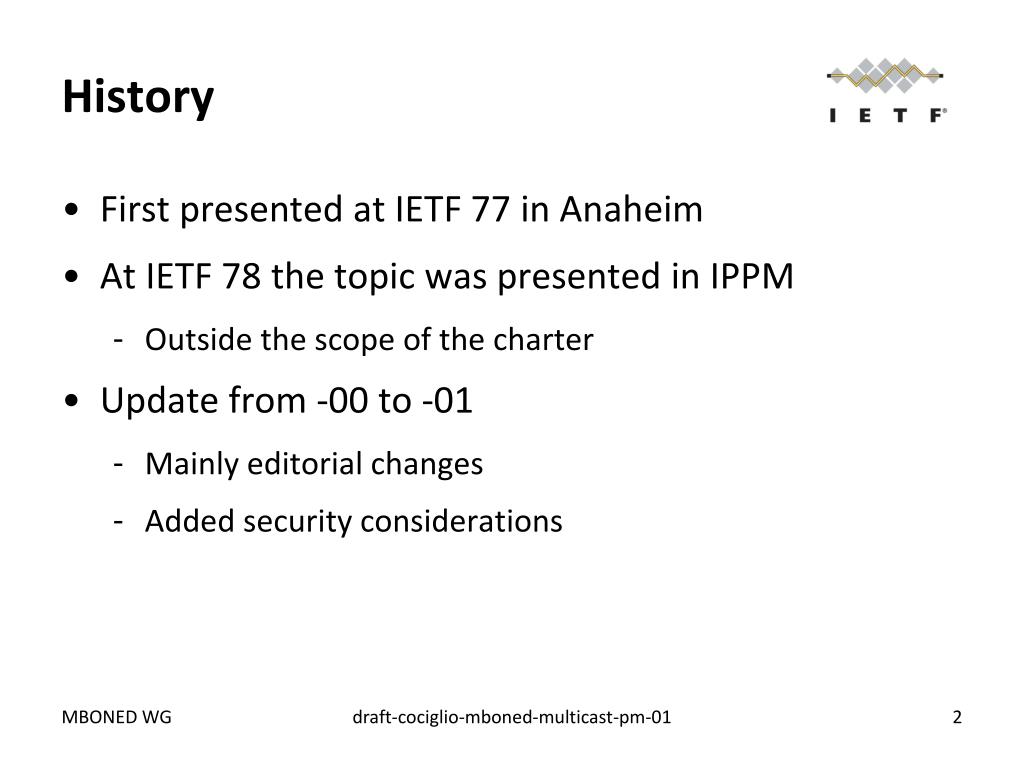

  2. History • First presented at IETF 77 in Anaheim • At IETF 78 the topic was presented in IPPM • Outside the scope of the charter • Update from -00 to -01 • Mainly editorial changes • Added security considerations draft-cociglio-mboned-multicast-pm-01

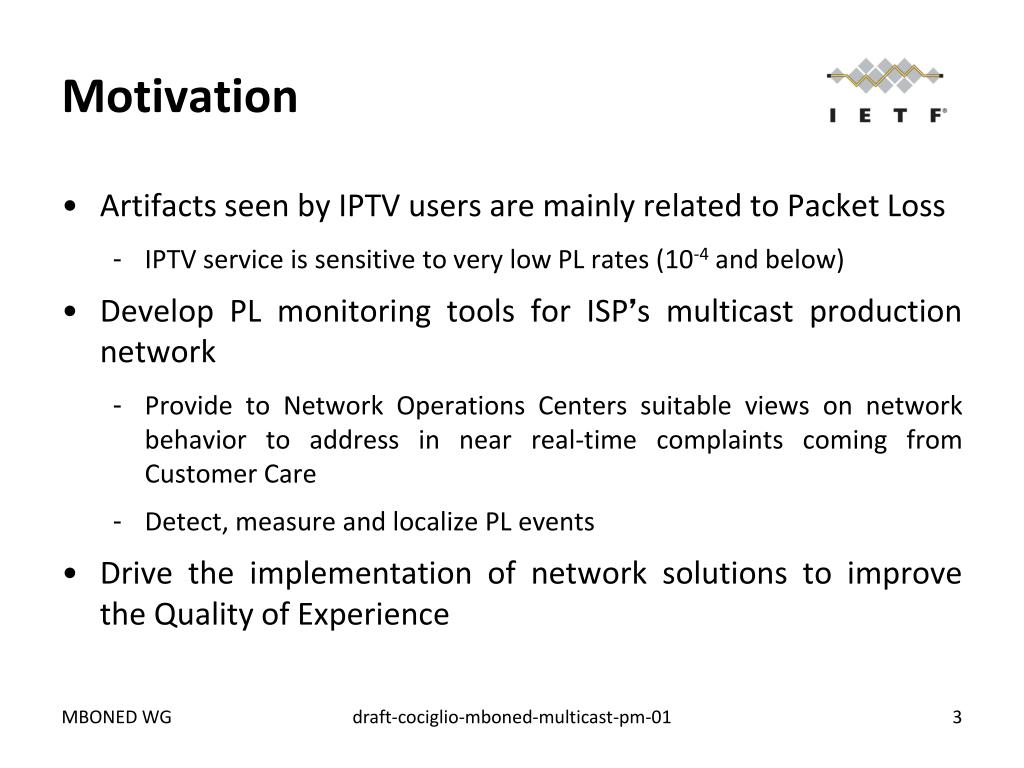

  3. Motivation Artifacts seen by IPTV users are mainly related to Packet Loss IPTV service is sensitive to very low PL rates (10-4 and below) Develop PL monitoring tools for ISP’s multicast production network Provide to Network Operations Centers suitable views on network behavior to address in near real-time complaints coming from Customer Care Detect, measure and localize PL events Drive the implementation of network solutions to improve the Quality of Experience MBONED WG draft-cociglio-mboned-multicast-pm-01

  4. Service Providers requirements* • SLA monitoring and verification • Not only reachability test • Fault localization • Not only end-to-end measurement • Inline data-plane measurement • Performance measurements based on real user traffic • Scalable solution • Self-contained • Not dependent on other protocols (RTP, IGMP, SNMP MIB, etc…) * Requirements for IP multicast performance monitoring (draft-bipi-mboned-ip-multicast-pm-requirement-02) draft-cociglio-mboned-multicast-pm-01

  5. Characteristics • The draft describes a monitoring methodology which fulfills the requirements of the previous slide • In addition it is: • vendor/technology independent • with minimum impact on routers draft-cociglio-mboned-multicast-pm-01

  6. Performance measurement methodology • Performance Monitoring Methodology steps: • Marking of IPTV traffic • Enabling packet counting / timestamp on router interfaces • NMS data retrieval • NMS Performance Measurement and Fault Detection draft-cociglio-mboned-multicast-pm-01

  7. MARKING Block = sequence of consecutive packets with the same marking Blocks Multicast Stream COUNTING COUNTING COUNTING Principle of the method • Mark multicast traffic being monitored so as to create a sequence of “blocks” and … • … count the number of packets of each “block” to measure packet loss • … or take the timestamp of a particular packet within a block (f.i. the first packet of each block) to measure delay / jitter draft-cociglio-mboned-multicast-pm-01

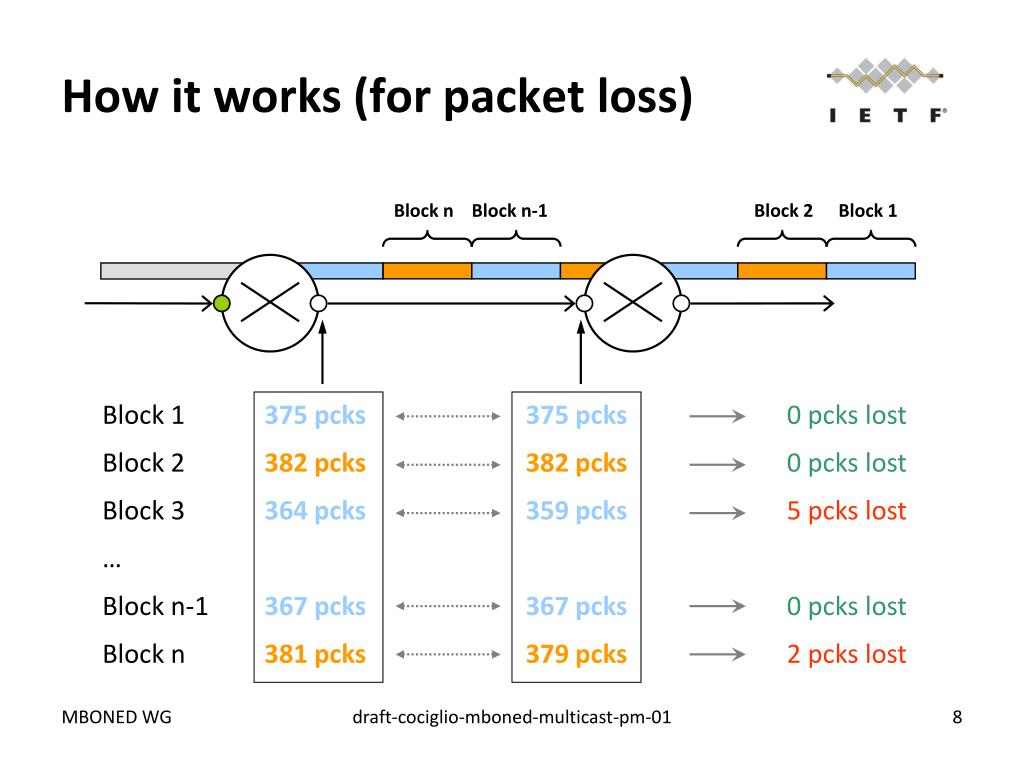

  8. Block n Block n-1 Block 2 Block 1 How it works (for packet loss) Block 1 375 pcks 375 pcks0 pcks lost Block 2 382 pcks 382 pcks0 pcks lost Block 3 364 pcks 359 pcks5 pcks lost … Block n-1367 pcks 367 pcks0 pcks lost Block n 381 pcks 379 pcks2 pcks lost draft-cociglio-mboned-multicast-pm-01

  9. What is needed • A bit of the IP header to mark the traffic • 2 counters on each interface on each router • 1 counter for blue blocks • 1 counter for orange blocks • Note - Only one counter increases at a time: • during blue blocks only the blue counter increases • during orange blocks only the orange counter increases • when a counter is still it can be read (block has terminated) draft-cociglio-mboned-multicast-pm-01

  10. Packet nTimestamp Packet n-1Timestamp Packet 2Timestamp Packet 1Timestamp And for delay and jitter? Timestamp Timestamp Delay Packet 1 11:21:07.483 11:21:07.4874 msec Packet 2 11:22:08.621 11:22:08.6265 msec … Packet n-1 11:35:09.226 11:21:09.2326 msec Packet n 11:36:08.790 11:22:08.7933 msec draft-cociglio-mboned-multicast-pm-01

  11. Segment by Segment Measurement LinkMeasurement NodeMeasurement E2E Measurement What it can measure draft-cociglio-mboned-multicast-pm-01

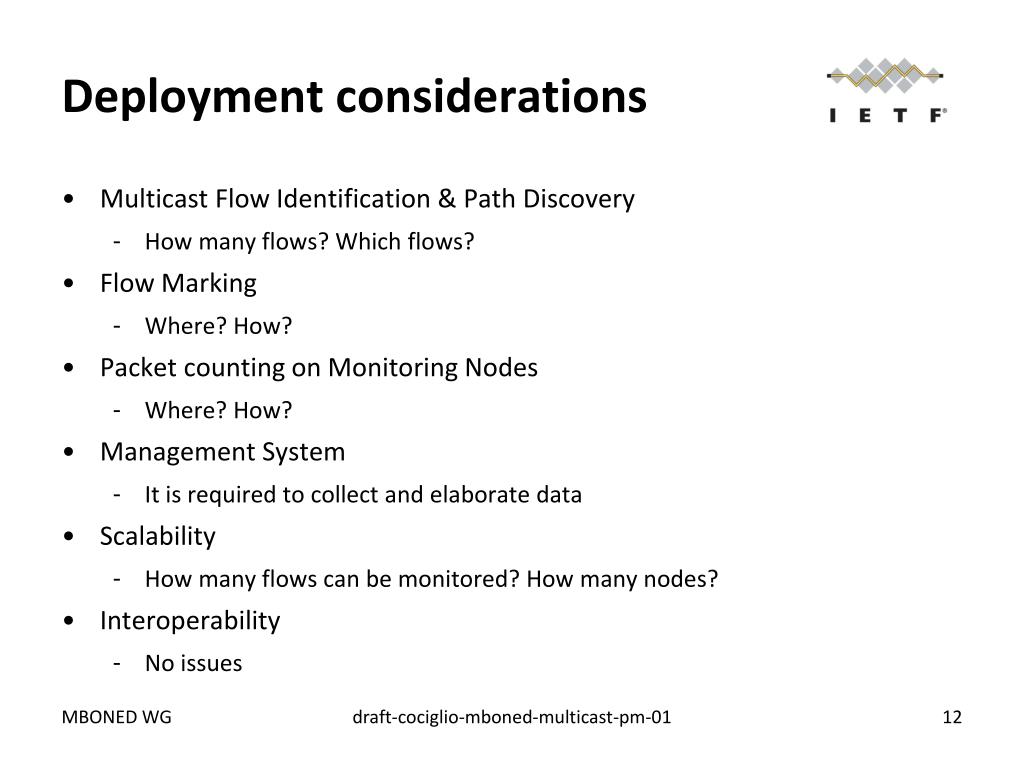

  12. Deployment considerations • Multicast Flow Identification & Path Discovery • How many flows? Which flows? • Flow Marking • Where? How? • Packet counting on Monitoring Nodes • Where? How? • Management System • It is required to collect and elaborate data • Scalability • How many flows can be monitored? How many nodes? • Interoperability • No issues draft-cociglio-mboned-multicast-pm-01

  13. Field deployment • Field Trial started end 2009 in TI network: • 2 real IPTV streams monitored • 2 Metro Area Networks (MAN) involved: Turin and Naples • 30 nodes and 100 interfaces involved • Rome MAN activation by end 2010 • NMS prototype to collect, elaborate and visualize data • Only packet loss measurement • Preliminary results are very promising • Positive feedback from TI Operations draft-cociglio-mboned-multicast-pm-01

  14. Summary • Easy implementation • Vendor/technology independent • Global or per-flow measurements • Highly precise packet loss measurement (single packet loss) • Applicable to any kind of traffic (unicast and multicast) draft-cociglio-mboned-multicast-pm-01

  15. Next steps • Feedback and comments from the WG • Deployment extension to all 30 TI MANs • Extension to other kind of traffic (VoIP) draft-cociglio-mboned-multicast-pm-01
