Project Need
The City of Sugar Land, Texas, has successfully implemented a Triple Left Turn Lane System at the intersection of US 59 and SH 6. This project addresses heavy left turn movements, enhances signal spacing, and improves freeway ramp operations. The total project cost was $325,000, significantly less than modifying the US 59 overpass. The installation, which includes a dynamic message sign system, has been well received by the public with no complaints. The project was approved under MUTCD for crosswalks and features innovative lane delineation technology.
Project Need
E N D
Presentation Transcript

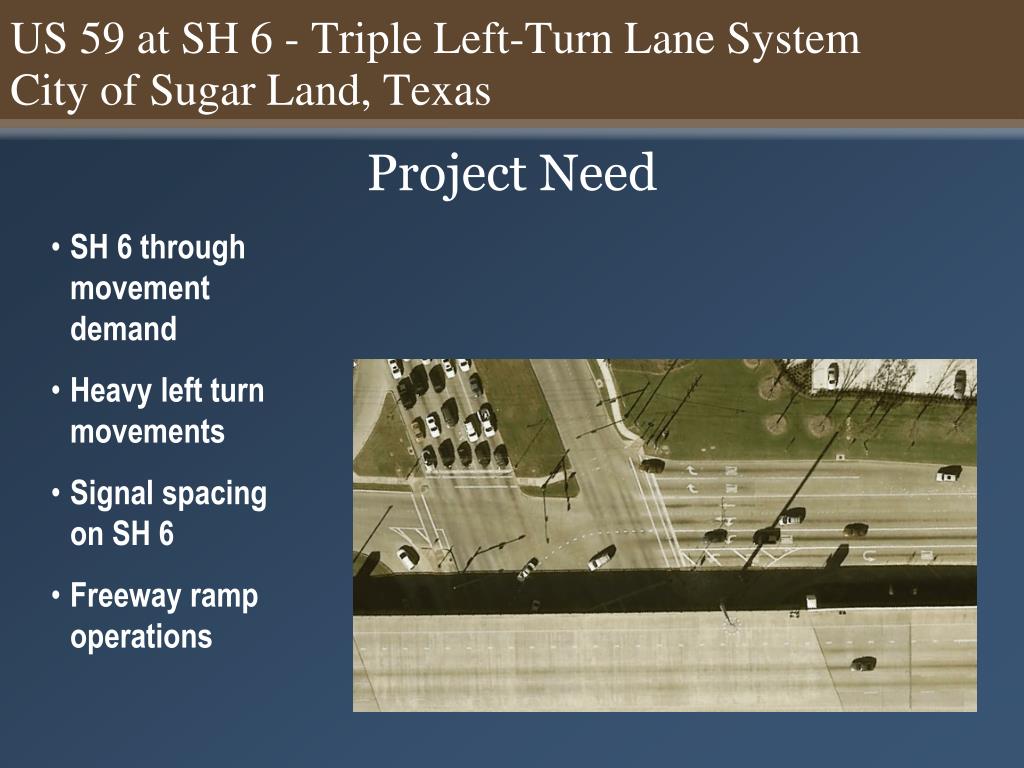

Project Need US 59 at SH 6 - Triple Left-Turn Lane SystemCity of Sugar Land, Texas • SH 6 through movement demand • Heavy left turn movements • Signal spacing on SH 6 • Freeway ramp operations
Dynamic Message Sign System US 59 at SH 6 - Triple Left-Turn Lane SystemCity of Sugar Land, Texas • Architectural Structure - $120,000 • TxDOT Steel Truss - $45,000 • TxDOT Steel Tube - $50,000 • COSL Provided the Forms • Sign • Addco BRICK • Modular Sign System • $60,000 • TxDOT Standard DMS - $125,000 • Total Project Cost - $325,000 • Much less than modifying US 59 overpass • Very well received by the public • No complaints!
Project Approach US 59 at SH 6 - Triple Left-Turn Lane SystemCity of Sugar Land, Texas • MUTCD Approved for Crosswalks Only • TTI Research Project for Lane Delineation • Vendor - Spot Devices • Proven on METRO LRT • $2,300 per IPL • System Cost = $120,000 • Parallel Connection • Operation • Constant On During Green & Yellow • Off During Red
