  1. Gaurav & Manhoe BTRS Reactor

  2. Components of the system • Feed inlets • Vaporizer and preheating assembly • Reactor • Gas liquid separator • Controller unit • Back pressure regulator

  3. Operating Parameters • Maximum operating pressure 1450 psi • Minimum 20 psi • Maximum operating temperature of reactor 650oC • Minimum 50oC • Maximum flowrate 12lits/min • Catalyst volume of reactor 5 cc • Sampling volume 1 ml • Oven temperature 250oC

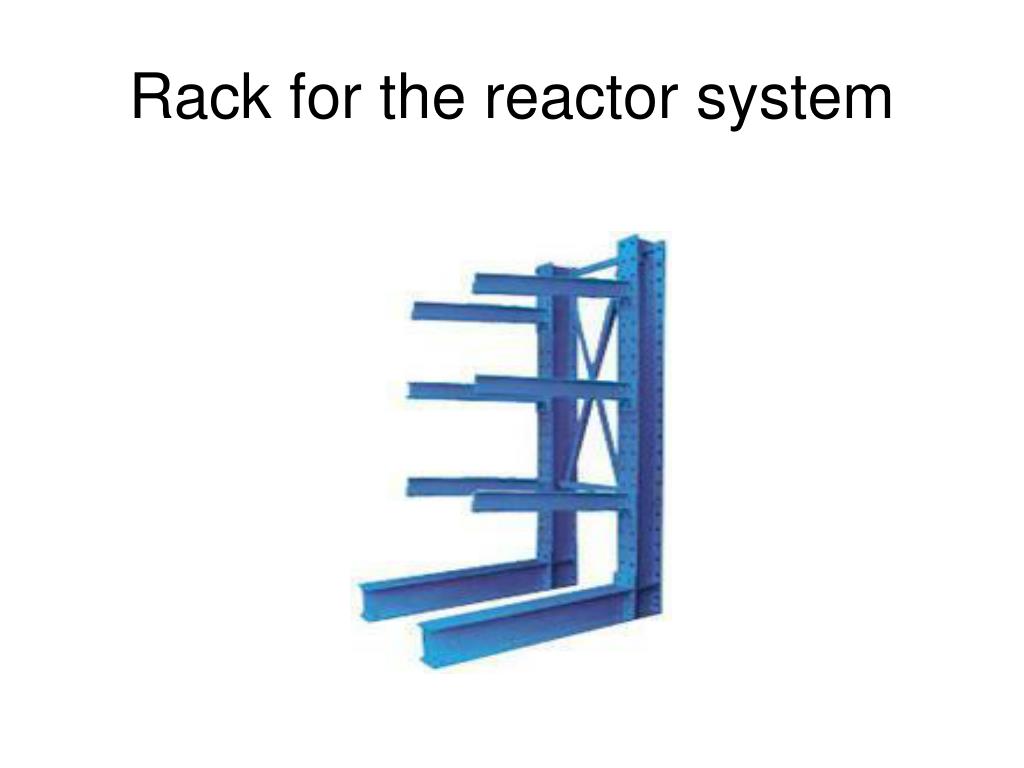

  4. Rack for the reactor system

  5. Height 3 feet • Width 3 feet • Length 4 feet • The distance between two shelf's will be one foot • GC-first shelf • Pump and mass flow controllers on second • Reactor on third shelf
