  1. Serving PI in a Geospatial World Amie Evans Seattle Regional Seminar November 10, 2009

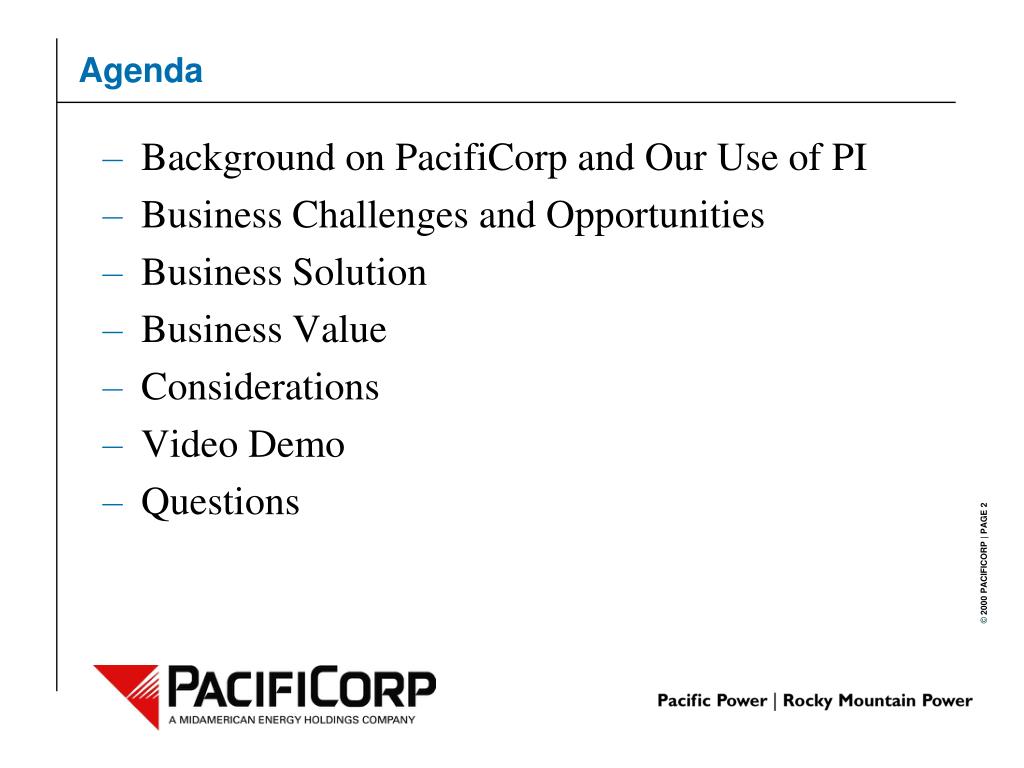

  2. Agenda • Background on PacifiCorp and Our Use of PI • Business Challenges and Opportunities • Business Solution • Business Value • Considerations • Video Demo • Questions

  3. Key Facts about PacifiCorp • Headquarters in Portland, Oregon • 1.7 million customers in six states • 15,800 miles of transmission line • 61,535 miles of distribution line (including underground) • 910 substations • Three divisions: • Pacific Power – Oregon, Washington and California • Rocky Mountain Power – Utah, Wyoming and Idaho • PacifiCorp Energy – generation and mining • 85 generating plants across West; net capability of 10,400 MW • Owned by MidAmerican Energy Holdings Company (MEHC)

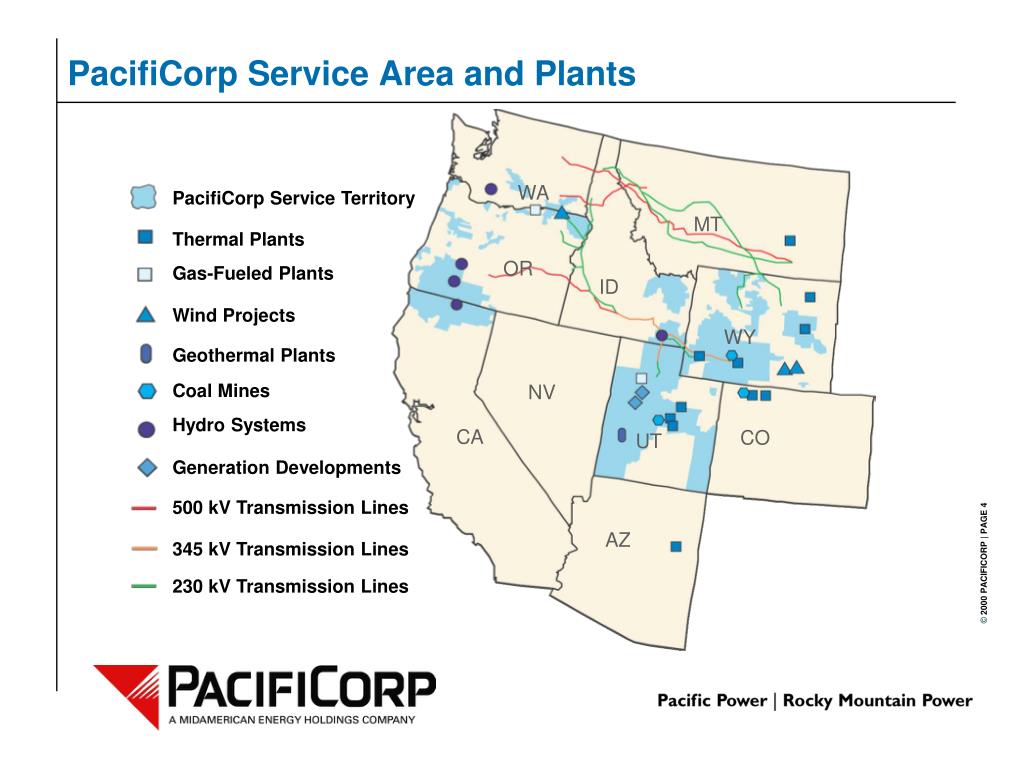

  4. PacifiCorp Service Area and Plants WA PacifiCorp Service Territory MT Thermal Plants OR Gas-Fueled Plants ID Wind Projects WY Geothermal Plants Coal Mines NV Hydro Systems CA CO UT Generation Developments 500 kV Transmission Lines AZ 345 kV Transmission Lines 230 kV Transmission Lines

  5. OSIsoft PI Usage at PacifiCorp Pacific Power Headquarters andGrid Control Center Portland OR Rocky Mountain Power Headquarters andControl Center Salt Lake City UT • DMZ PI: • ~ 341,133 tags. • ~230 Users • SCHOOL PI: • ~200 Users • ~56,172 tags

  6. Business Challenges and Opportunities • Connectivity Model • No connectivity model available, only one-line diagrams in AutoCAD • No Transmission connectivity tool available to analyze SCADA data and outage data • Multiple copies of transmission line database throughout company • No real-time weather data or warning reports over our assets • Area load by state and company needs updates • No area load available for operating areas • No standard tag naming convention for most PI tags • Transmission reliability statistic calculation done in Excel • Alive T.V news for operation dispatchers • Calculation on Weather Data • Manual download from weather underground and NOAA • Manual weather calculation, weather variables, and load correlations

  7. Business Solution • PI Archived Data-ACE • Developed VB.Net application to access free NOAA weather data and archive in PI server. • Create calculation tags; CDD, HDD, daily average Temp, daily peak Temp, etc. • Total area load calculation by operating area, state, and by operating companies. • Connectivity Model • Real-time SCADA data over PAC transmission model-Process Book • Merged multiple transmission line databases into one. • Link to relational database to add non-SCADA data over model. • PI tags are mapped to each appropriate asset. • Convert AutoCAD drawing to display in Process Book. • Real-time warning and reports over transmission model-Google Earth Pro • Existing ESRI GIS shape files was converted to Google Earth KMZ files. • Free Java Script to convert asset connectivity data to KML file. • Free web services for lightning, weather, fire, warnings, etc. • Reliability Statistic tool. • User resources • Department MS Sharepoint site to provide platform for training videos, users manual, document library, WIKI, and technical support.

  8. Business Values • Quality Data Analysis • Aggregation of loading data that is consistent with area planning facilities • Engineers and planners now can normalize weather variation into load history analysis and load forecasts • Simplified assembly of transmission line performance for benchmarking and outage calculations • Easy verification of outage time stamps and unknown causes. • Updated PI total load information • Transmission reliability performance • Utilization of resource and time. • Easy to identify PacifiCorp topology and asset location • No need to go back to schematic (one-line diagram) drawings • One master database for transmission line ratings • No calls to PI administrator to translate tag names • WIKI site for technical support and trainings • Quality real-time monitoring for operation dispatcher • Visual topology presents simplified status of transmission facilities • From T.V news to real-time weather reports and warnings over Google Earth model, as well as fire, lightning, earthquake, etc. • Real-time PI data over transmission model

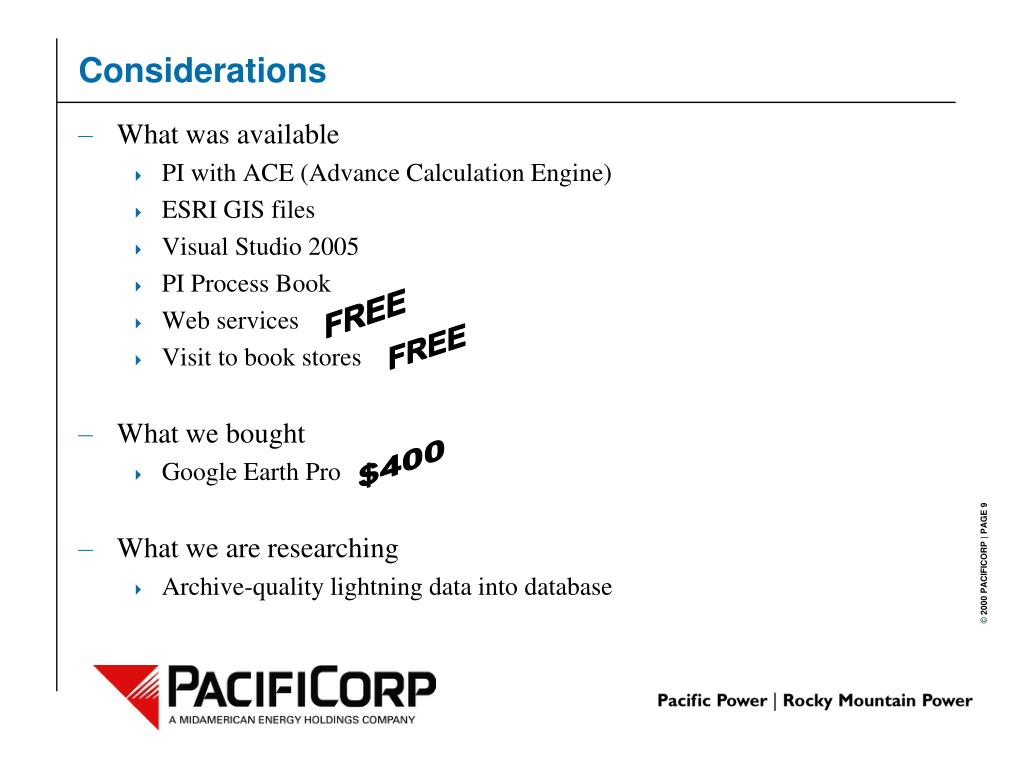

  9. Considerations • What was available • PI with ACE (Advance Calculation Engine) • ESRI GIS files • Visual Studio 2005 • PI Process Book • Web services • Visit to book stores • What we bought • Google Earth Pro • What we are researching • Archive-quality lightning data into database FREE FREE $400

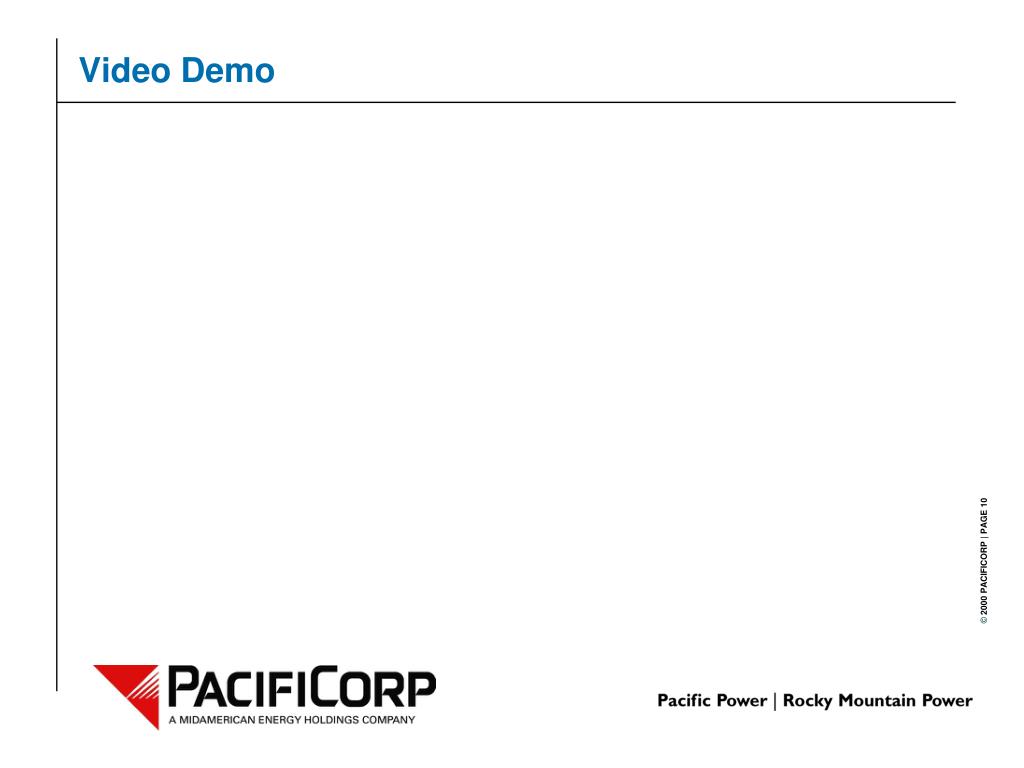

  10. Video Demo

  11. Questions?
