  1. Intelligent Transportation System (ITS) Elements for the St. Anthony Falls Bridge May 4th, 2010

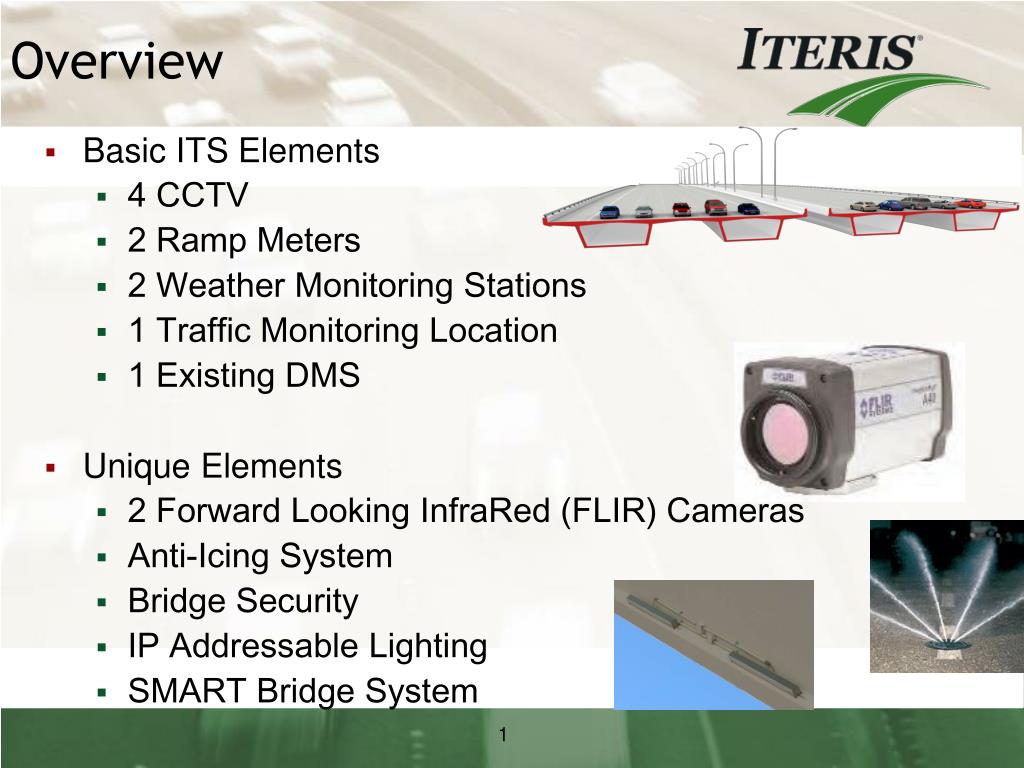

  2. Overview • Basic ITS Elements • 4 CCTV • 2 Ramp Meters • 2 Weather Monitoring Stations • 1 Traffic Monitoring Location • 1 Existing DMS • Unique Elements • 2 Forward Looking InfraRed (FLIR) Cameras • Anti-Icing System • Bridge Security • IP Addressable Lighting • SMART Bridge System

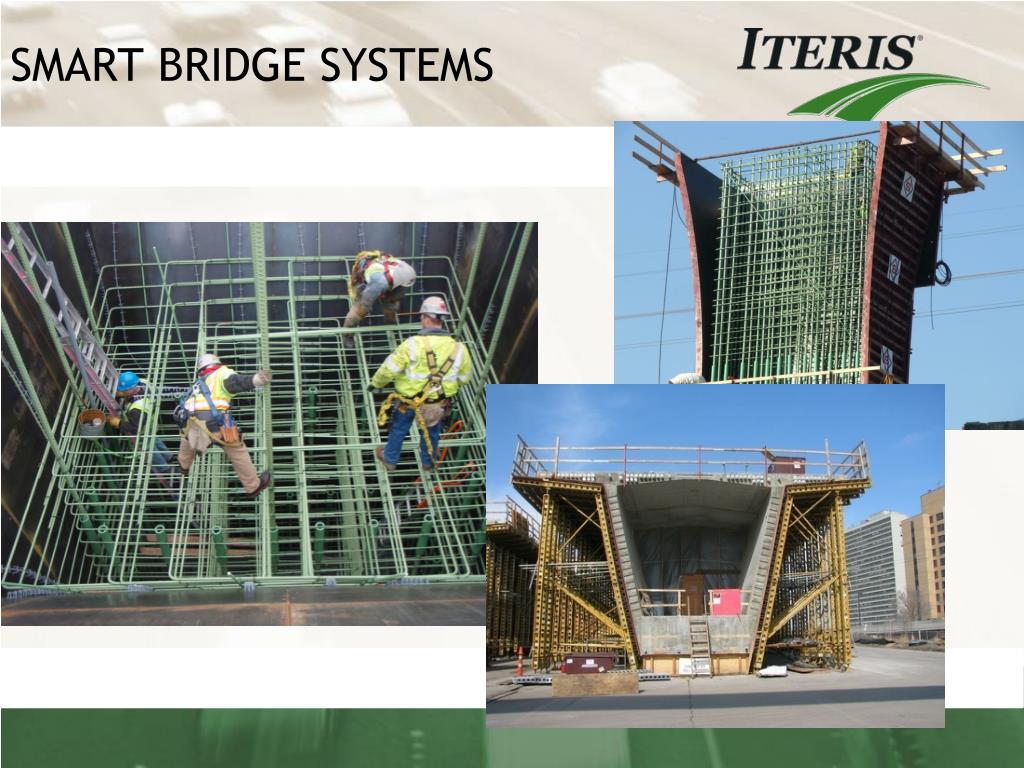

  3. SMART BRIDGE SYSTEMS

  4. Sensors for Structural Behavior SMART BRIDGE SYSTEMS 323 TOTAL SENSORS FROM DIFFERENT SYSTEMS

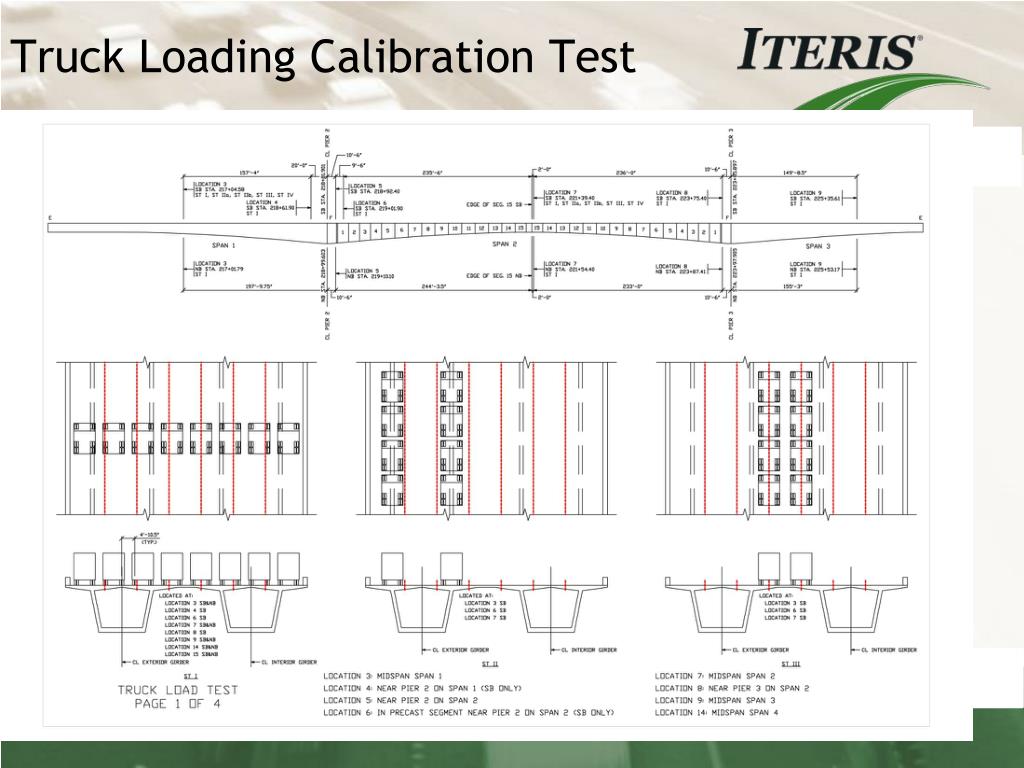

  5. Truck Loading Calibration Test

  6. MnDOT Project “FIRSTS” • “First” Smart Bridge of this size and complexity in the Nation • “First” MnDOT Bridge with LED IP- Addressable Aesthetic Lighting • “First MnDOT Bridge with LED Roadway Lighting • “First” MnDOT Bridge utilizing FLIR Camera Surviellance Technology • “First” MnDOT Bridge with Network Connection bringing all systems data back to Central Location

  7. Thanks! Stop by… for More Information! spg2@iteris.com 402.476.5101
