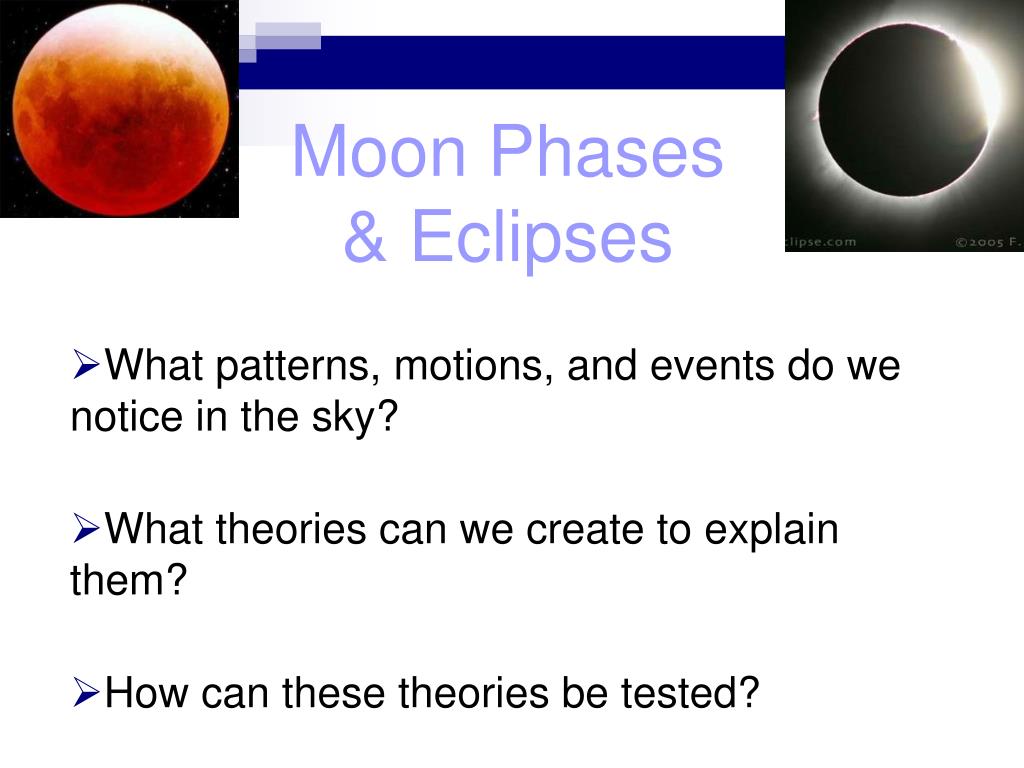

Moon Phases& Eclipses What patterns, motions, and events do we notice in the sky? What theories can we create to explain them? How can these theories be tested?

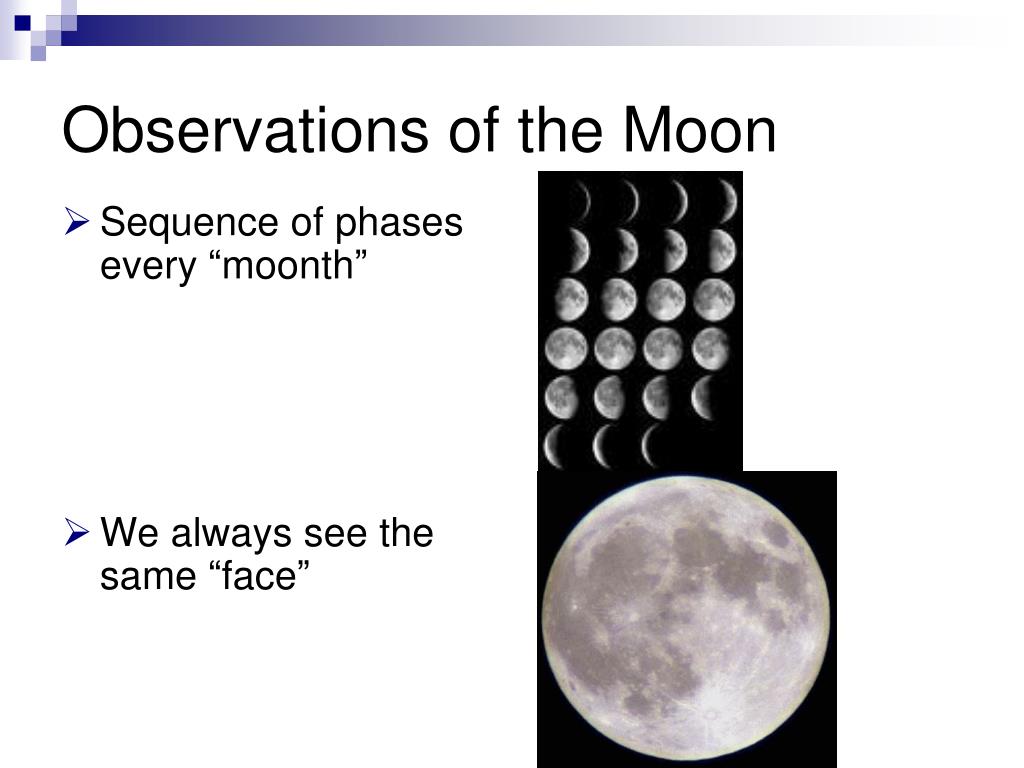

Observations of the Moon • Sequence of phases every “moonth” • We always see the same “face”

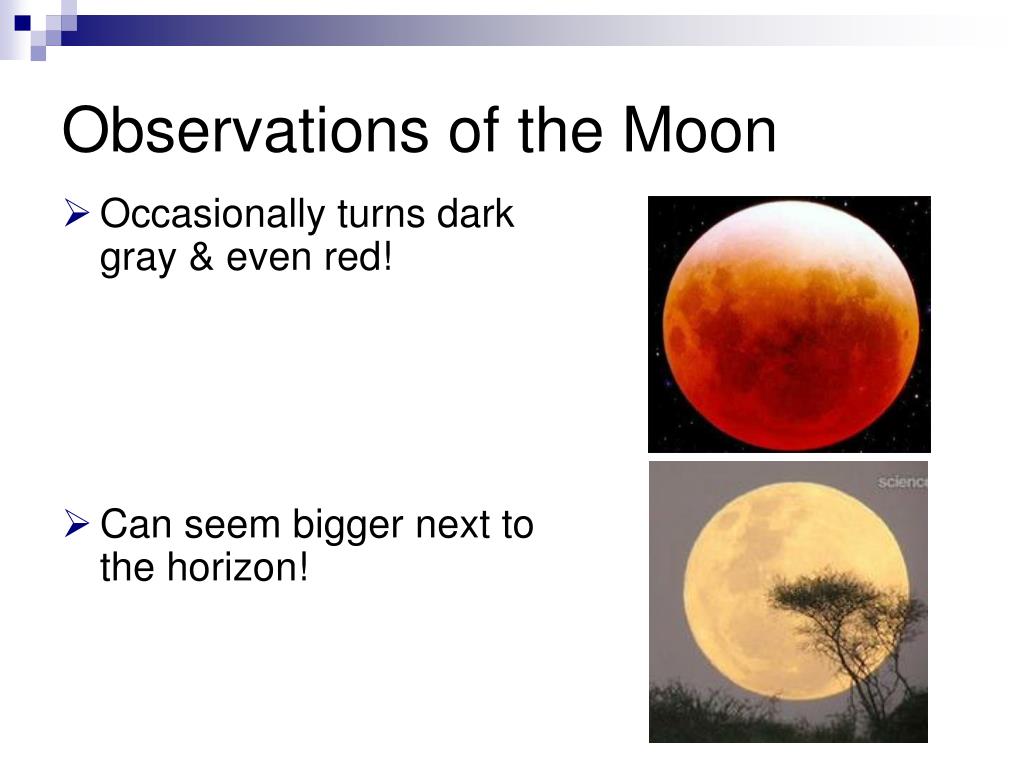

Observations of the Moon • Occasionally turns dark gray & even red! • Can seem bigger next to the horizon!

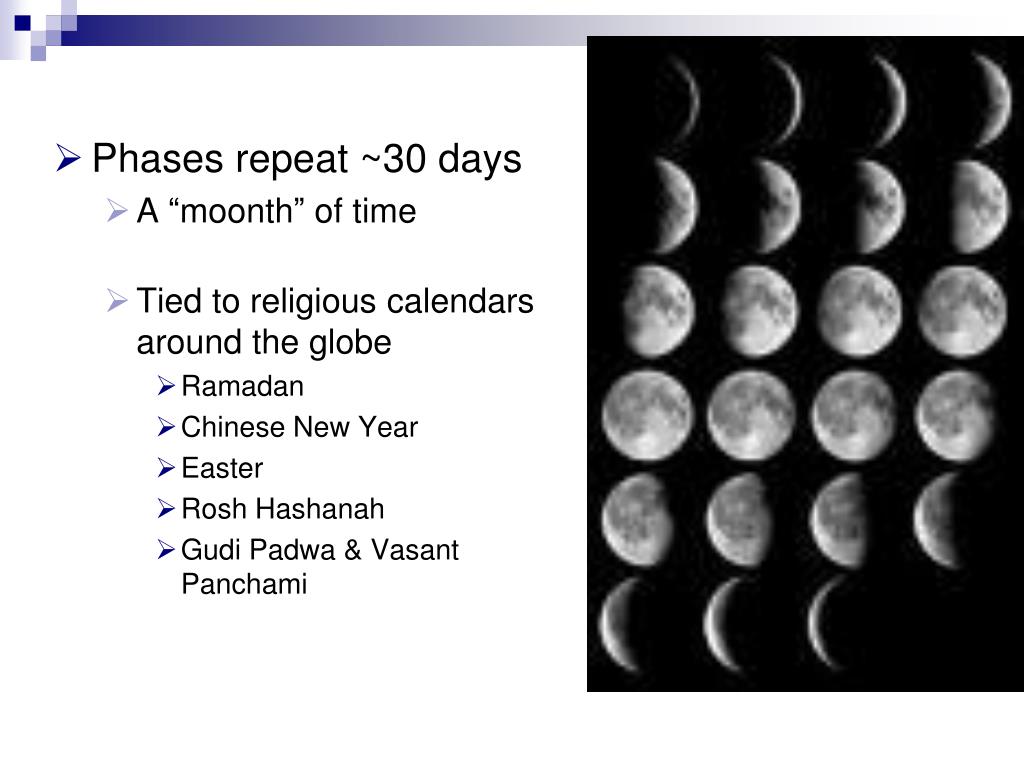

Phases repeat ~30 days • A “moonth” of time • Tied to religious calendars around the globe • Ramadan • Chinese New Year • Easter • Rosh Hashanah • Gudi Padwa & Vasant Panchami

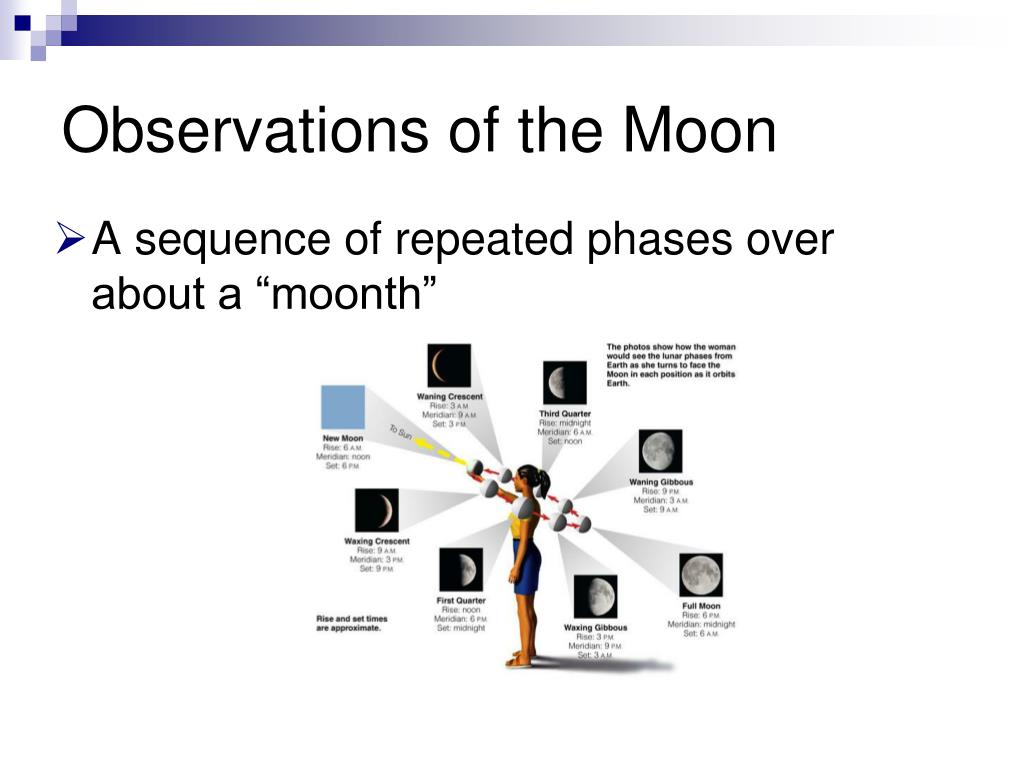

Observations of the Moon • A sequence of repeated phases over about a “moonth”
Observations of the Moon • IS the phase the same on the same day around the world? • Do people in London see the same phase as we do in Hayward?

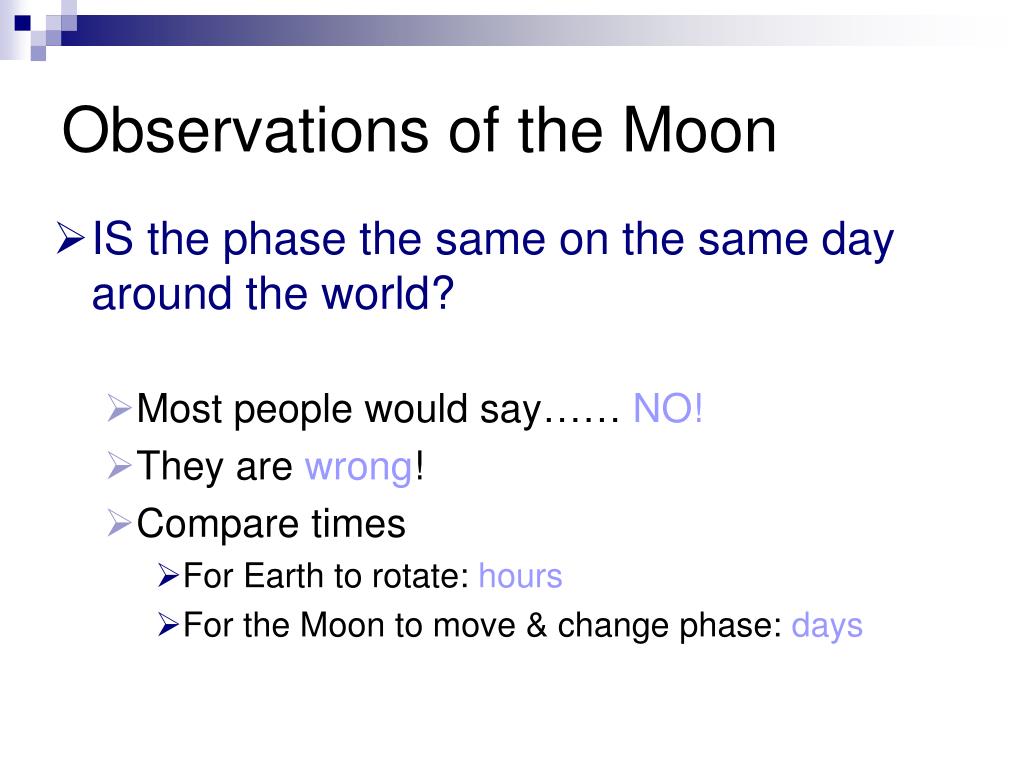

Observations of the Moon • IS the phase the same on the same day around the world? • Most people would say…… NO! • They are wrong! • Compare times • For Earth to rotate: hours • For the Moon to move & change phase: days
Observations of the Moon • Do people in both hemispheres see the same view? • Does an observer at Chabot see the same thing as someone in Santiago, Chile? • Most people would say…… er…YES? • They are wrong!

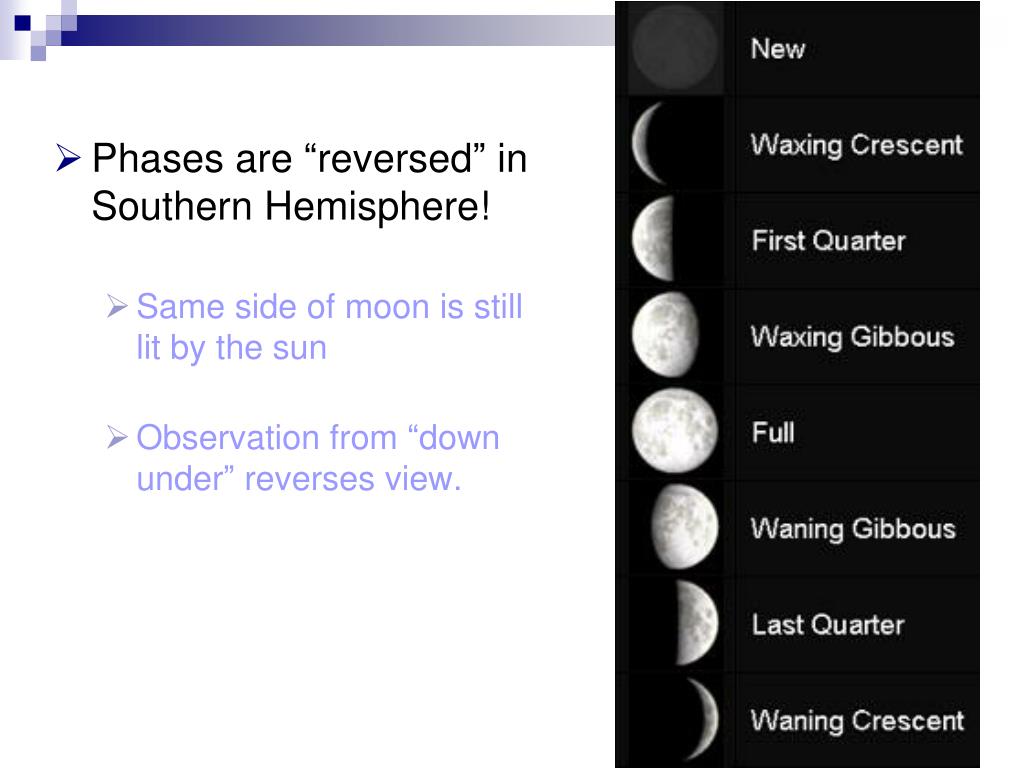

Phases are “reversed” in Southern Hemisphere! • Same side of moon is still lit by the sun • Observation from “down under” reverses view.
Seeing the moon from different places on Earth! Northern Hemisphere Southern Hemisphere
What theories can we develop? • WHY does the moon seem larger? • Because it IS larger? • Because it is an illusion • We see horizon different than zenith? • We don’t have a “reference” for Moon when it’s higher in the sky? • How can you TEST these hypotheses?

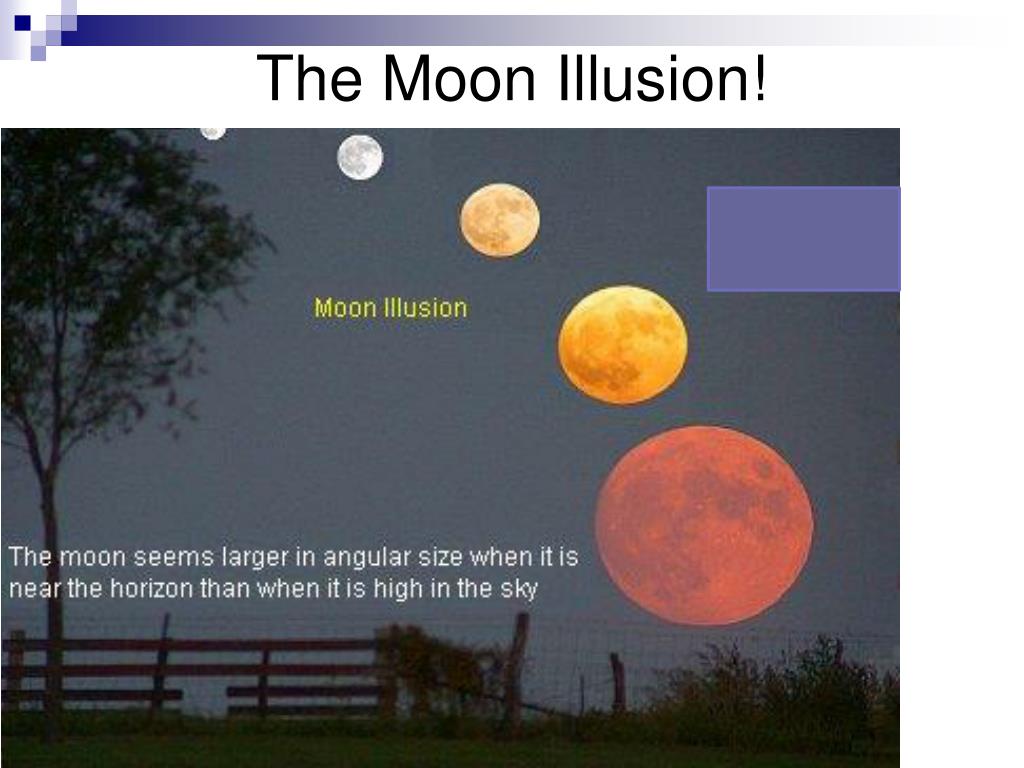

The Moon Illusion! The Moon DOES vary in distance….
The Moon Illusion! ….but not over a few hours!
The Moon Illusion! Perhaps… we don’t see the sky as symmetric – the horizon is farther away than the sky above us?

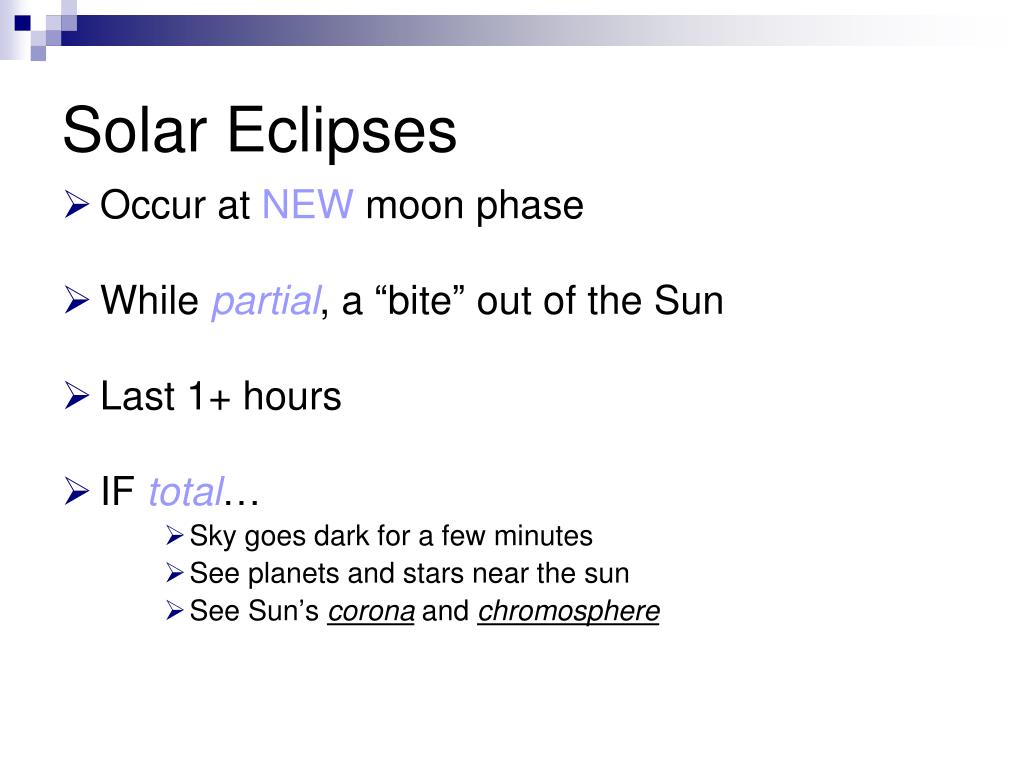

Solar Eclipses • Occur at NEW moon phase • While partial, a “bite” out of the Sun • Last 1+ hours • IF total… • Sky goes dark for a few minutes • See planets and stars near the sun • See Sun’s corona and chromosphere
Shadow of the moon covers small oval on Earth
Corona Chromosphere

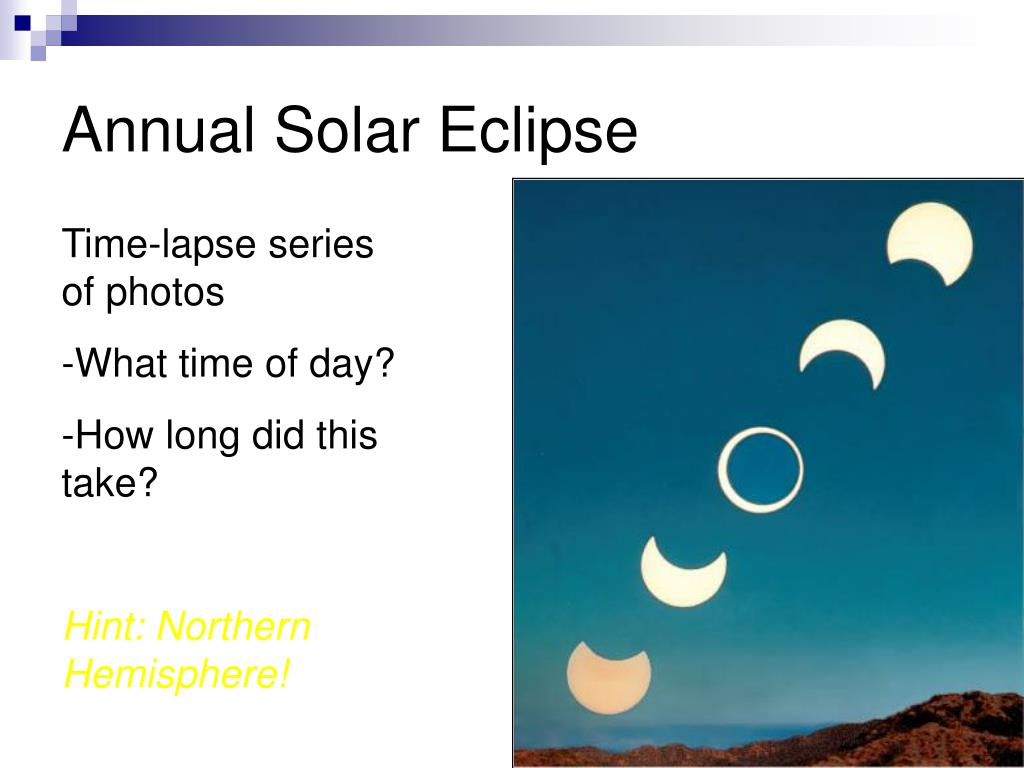

Annual Solar Eclipse • Time-lapse series of photos • What time of day? • How long did this take? • Hint: Northern Hemisphere!

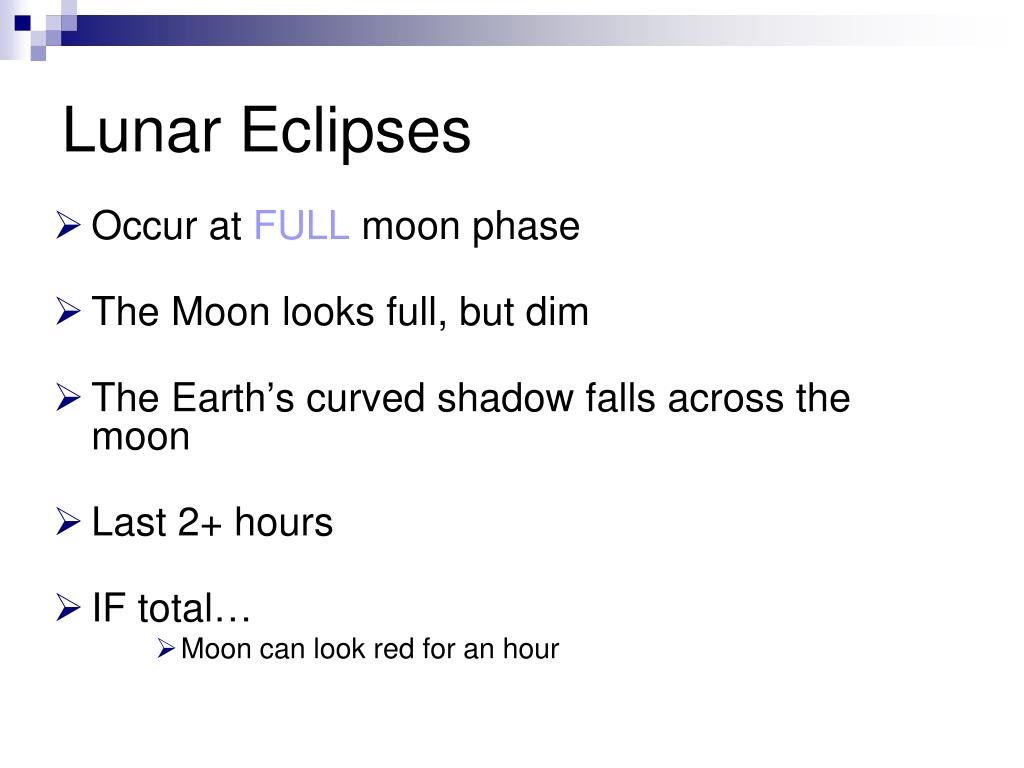

Lunar Eclipses • Occur at FULL moon phase • The Moon looks full, but dim • The Earth’s curved shadow falls across the moon • Last 2+ hours • IF total… • Moon can look red for an hour
At the start of a lunar eclipse, you can see the Earth’s Shape through its shadow…

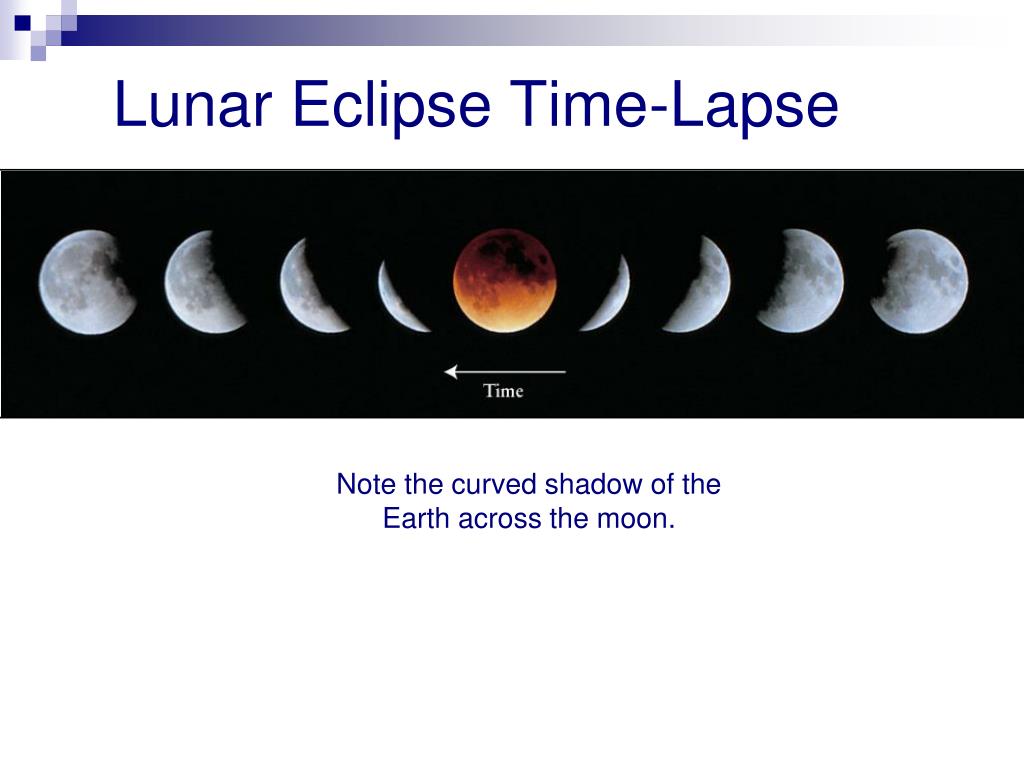

Lunar Eclipse Time-Lapse Note the curved shadow of the Earth across the moon.

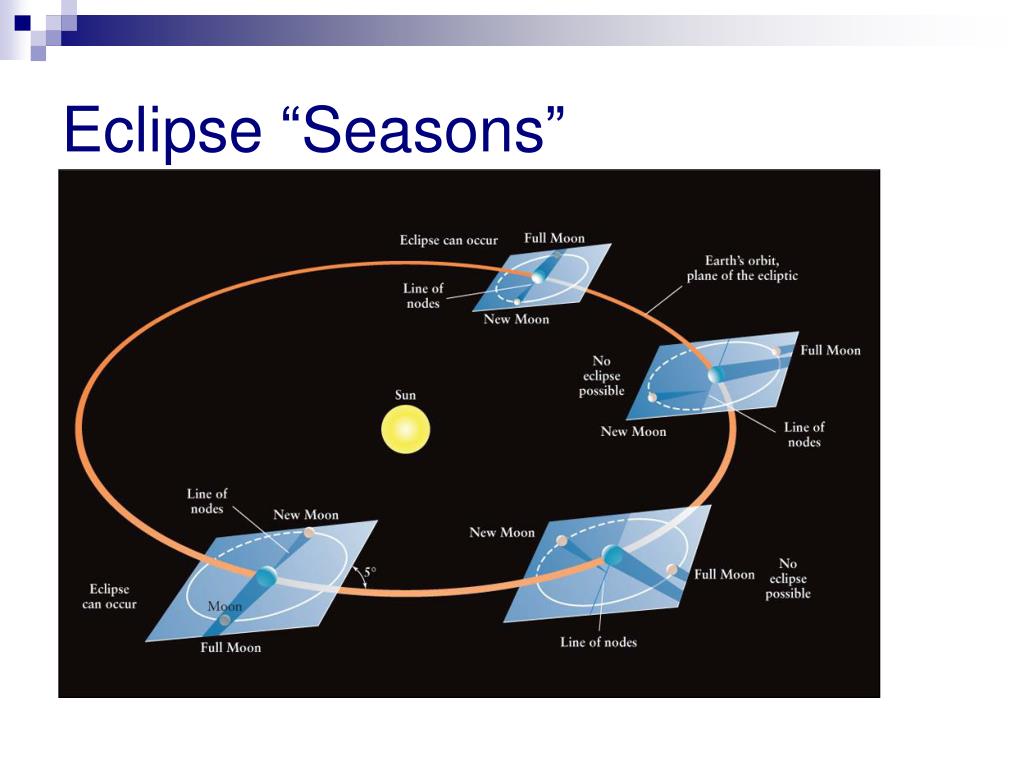

Predicting Eclipses • Eclipse “seasons” • About twice a year • Always at least (2) eclipses • One of each (lunar + solar) • About 2 weeks apart • Pattern repeats about 18 years for location and type
