Memory Management in Linked Lists with Linux Kernel: Overview and Allocator Types

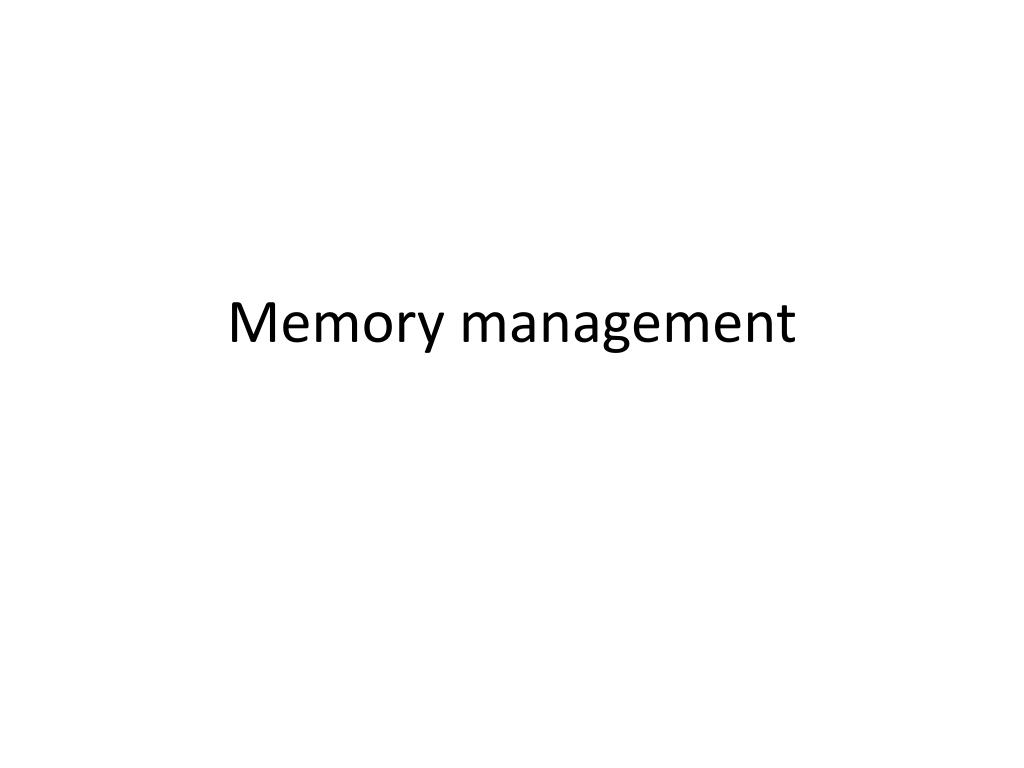

1. Memory management

2. Linked Lists

3. structs and memory layout fox fox fox list.next list.next list.next list.prev list.prev list.prev

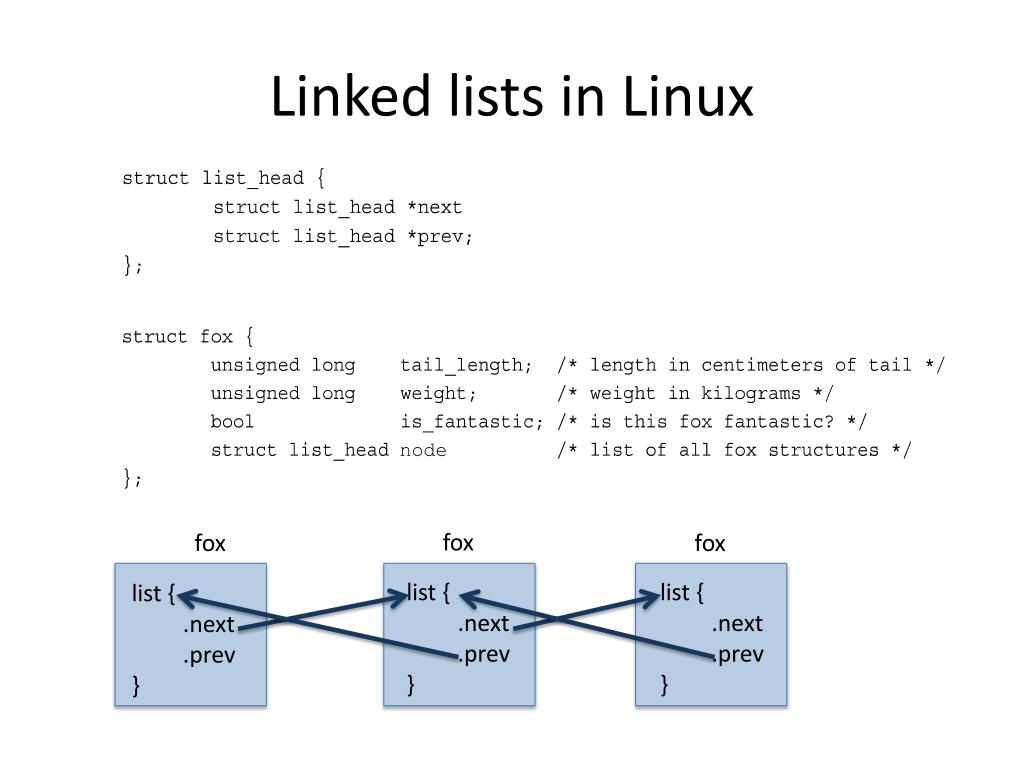

4. Linked lists in Linux node fox fox fox list { .next .prev } list { .next .prev } list { .next .prev }

5. What about types? • Calculates a pointer to the containing struct structlist_headfox_list; struct fox * fox_ptr = list_entry(fox_list->next, struct fox, node);

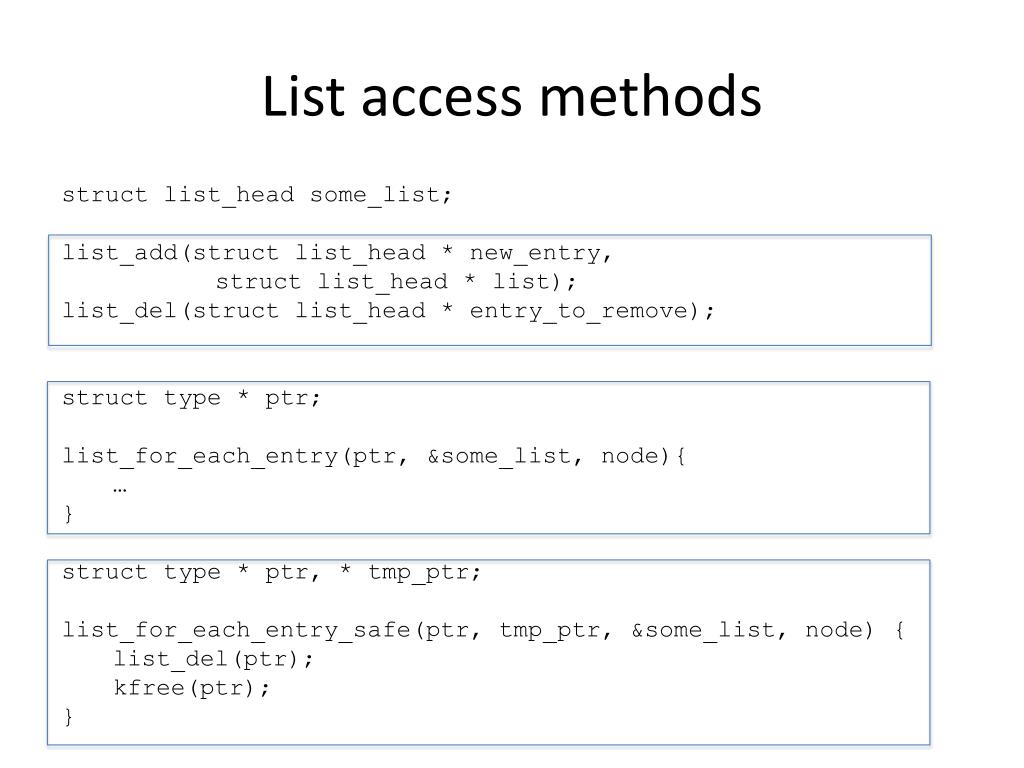

6. List access methods structlist_headsome_list; list_add(structlist_head * new_entry, structlist_head * list); list_del(structlist_head * entry_to_remove); struct type * ptr; list_for_each_entry(ptr, &some_list, node){ … } struct type * ptr, * tmp_ptr; list_for_each_entry_safe(ptr, tmp_ptr, &some_list, node) { list_del(ptr); kfree(ptr); }

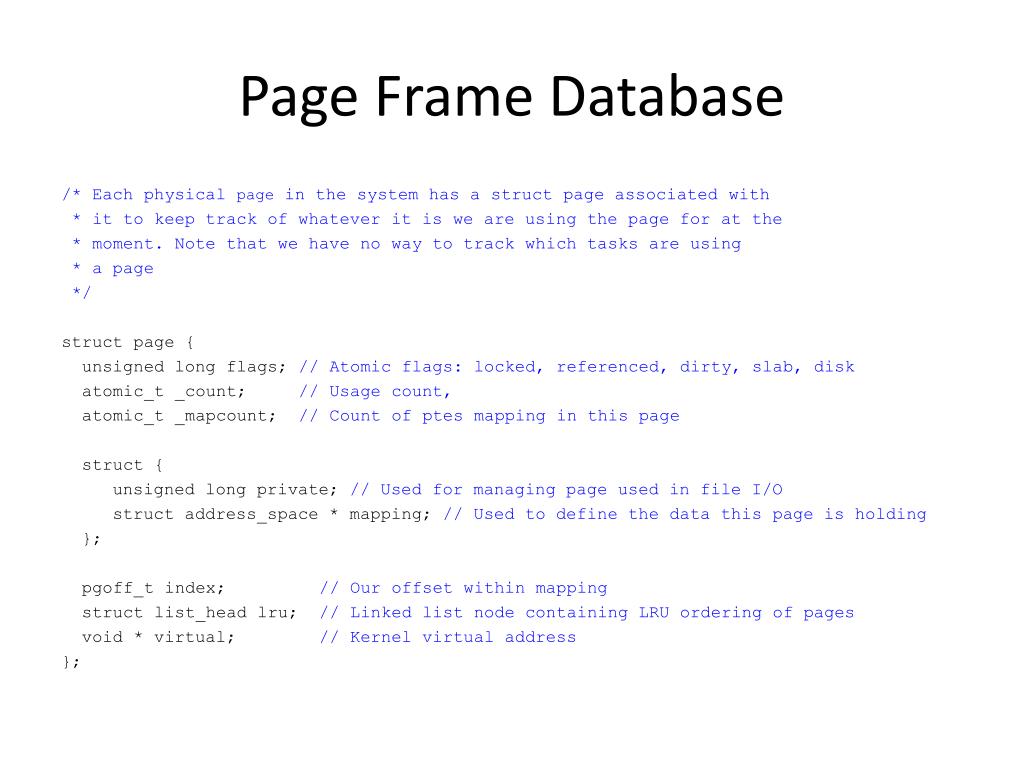

7. Page Frame Database /* Each physical page in the system has a struct page associated with * it to keep track of whatever it is we are using the page for at the * moment. Note that we have no way to track which tasks are using * a page */ struct page { unsigned long flags; // Atomic flags: locked, referenced, dirty, slab, disk atomic_t _count; // Usage count, atomic_t _mapcount; // Count of ptes mapping in this page struct { unsigned long private; // Used for managing page used in file I/O structaddress_space * mapping; // Used to define the data this page is holding }; pgoff_t index; // Our offset within mapping structlist_headlru; // Linked list node containing LRU ordering of pages void * virtual; // Kernel virtual address };

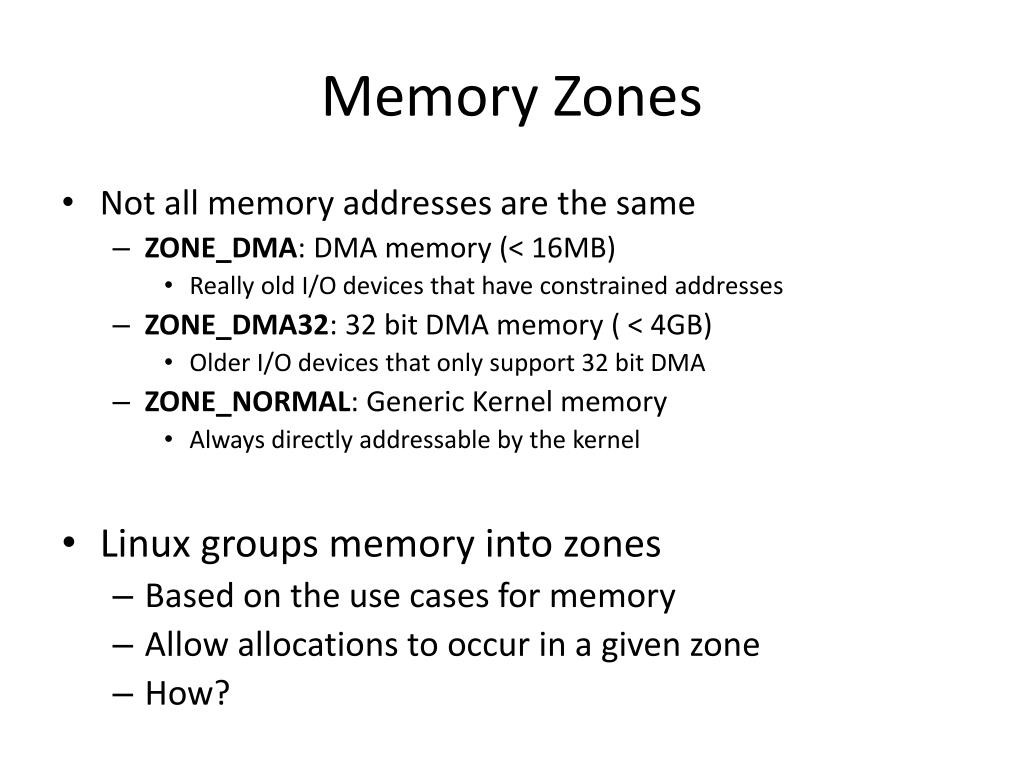

8. Memory Zones • Not all memory addresses are the same • ZONE_DMA: DMA memory (< 16MB) • Really old I/O devices that have constrained addresses • ZONE_DMA32: 32 bit DMA memory ( < 4GB) • Older I/O devices that only support 32 bit DMA • ZONE_NORMAL: Generic Kernel memory • Always directly addressable by the kernel • Linux groups memory into zones • Based on the use cases for memory • Allow allocations to occur in a given zone • How?

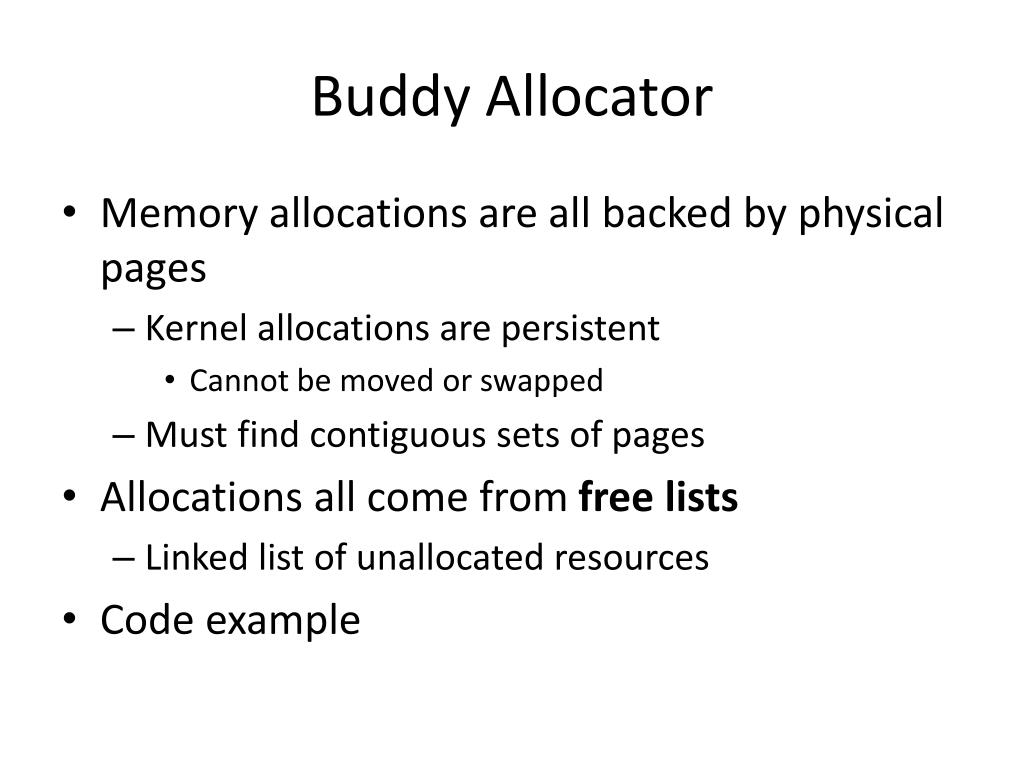

9. Buddy Allocator • Memory allocations are all backed by physical pages • Kernel allocations are persistent • Cannot be movedor swapped • Must find contiguous sets of pages • Allocations all come from free lists • Linked list of unallocated resources • Code example

10. Allocating pages • Return entry/entries from page list • Scans various lists for page(s) to allocate • struct page * alloc_pages(gfp_t flags, int order); • void * page_address(struct page * page) • unsigned long page_to_pfn(struct page * pg);

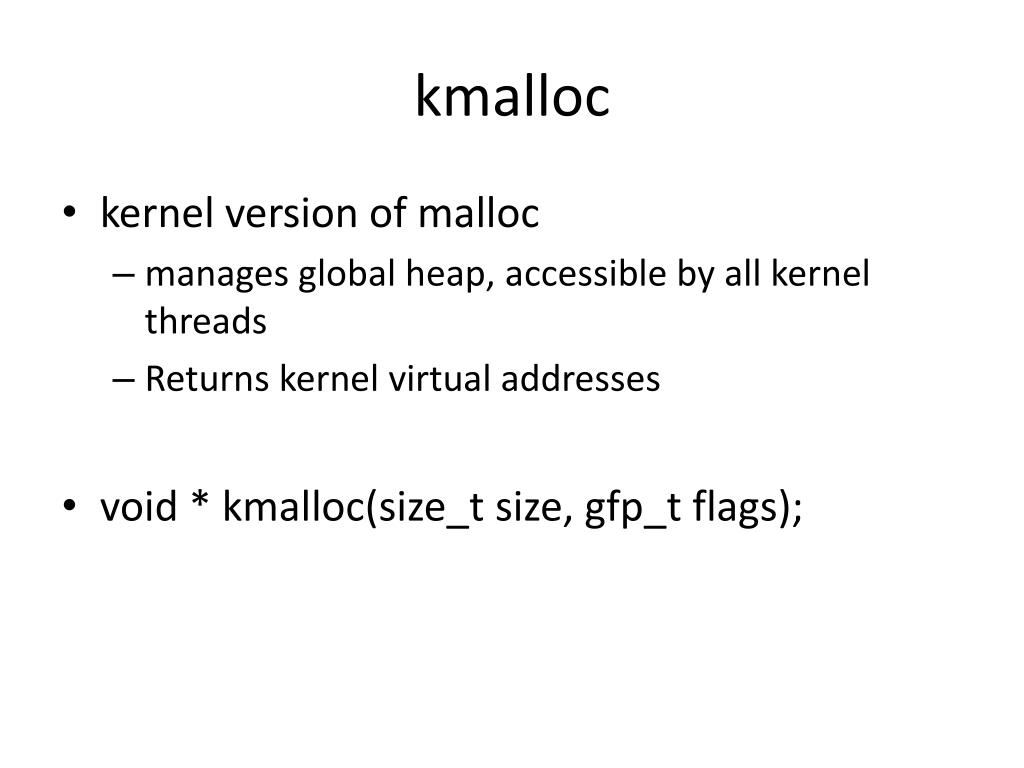

11. kmalloc • kernel version of malloc • manages global heap, accessible by all kernel threads • Returns kernel virtual addresses • void * kmalloc(size_t size, gfp_t flags);

12. gfp_t • What are these gfp_t flags? • Directions to allocator • Where to get the memory from • What steps allocator can take to find memory • Some Examples: • Zone • GFP_DMA, GFP_DMA32, GFP_NORMAL • Behavior • GFP_ATOMIC, GFP_KERNEL

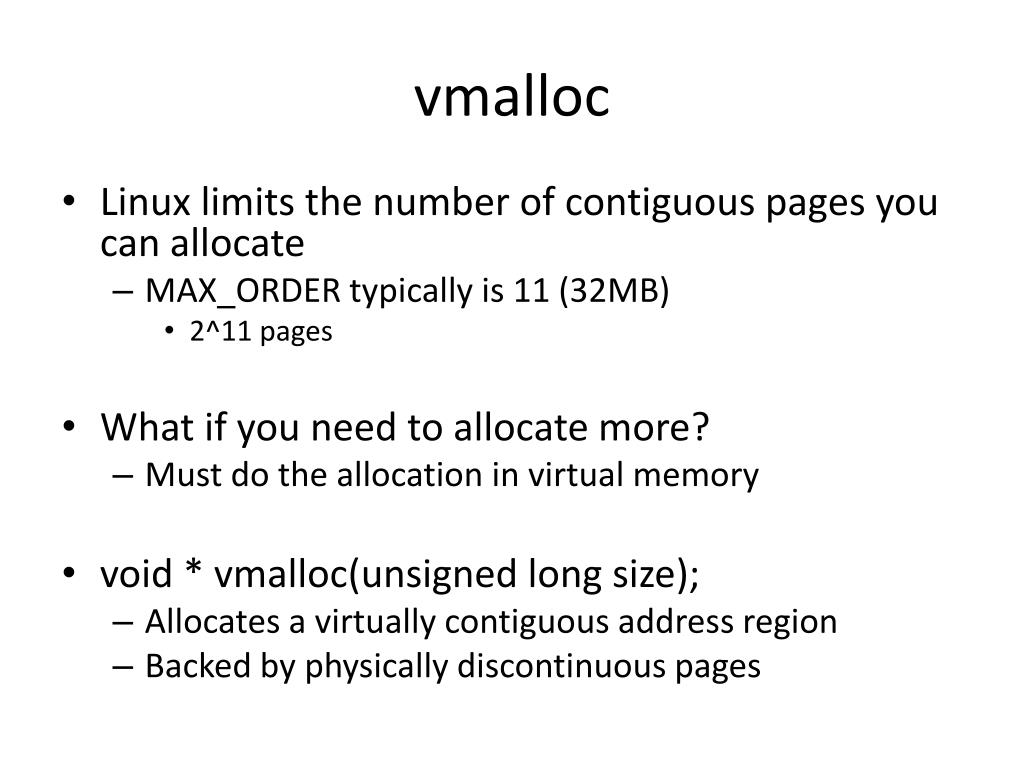

13. vmalloc • Linux limits the number of contiguous pages you can allocate • MAX_ORDER typically is 11 (32MB) • 2^11 pages • What if you need to allocate more? • Must do the allocation in virtual memory • void * vmalloc(unsigned long size); • Allocates a virtually contiguous address region • Backed by physically discontinuous pages

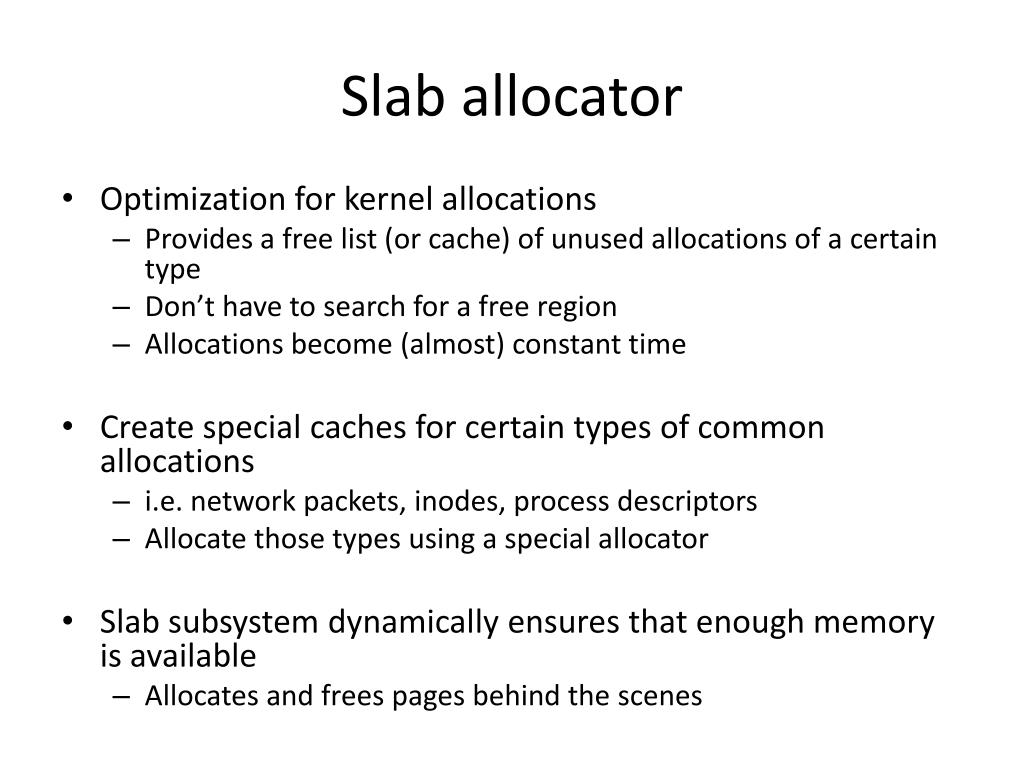

14. Slab allocator • Optimization for kernel allocations • Provides a free list (or cache) of unused allocations of a certain type • Don’t have to search for a free region • Allocations become (almost) constant time • Create special caches for certain types of common allocations • i.e. network packets, inodes, process descriptors • Allocate those types using a special allocator • Slab subsystem dynamically ensures that enough memory is available • Allocates and frees pages behind the scenes
