  1. Windows systems and artifacts John P. Abraham Professor UTPA

  2. Windows file systems • FAT (file allocation table) and NTFS (new technology file system) • NTFS has the ability to set access control lists on file objects, journaling, and compression. • MFT (master file table) – every file and directory has an MFT entry. The location of the starting sector of MFT can be found in the boot sector of the disk. • More info: http://msdn.microsoft.com/en-us/library/windows/desktop/aa365230(v=vs.85).aspx

  3. NTFS Alternate data streams • This was included to support Macintosh hierarchical file system. • Intruders can hide files using this without you detecting it with dir commands. Use dir /r • Tutorial: http://www.irongeek.com/i.php?page=security/altds

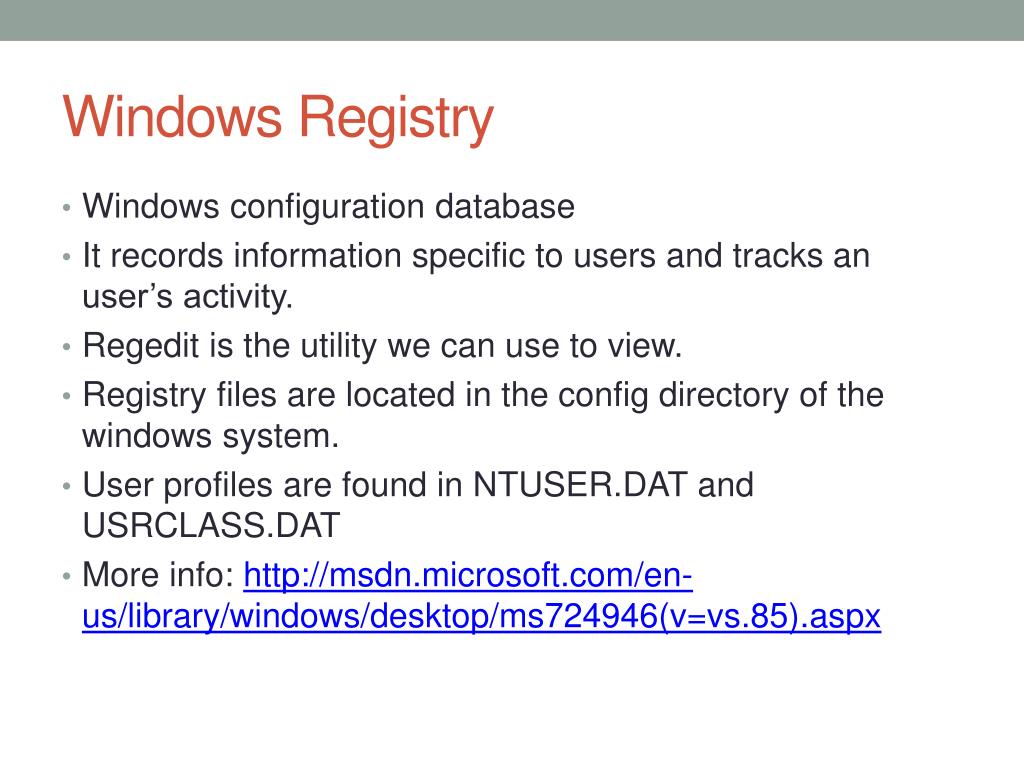

  4. Windows Registry • Windows configuration database • It records information specific to users and tracks an user’s activity. • Regedit is the utility we can use to view. • Registry files are located in the config directory of the windows system. • User profiles are found in NTUSER.DAT and USRCLASS.DAT • More info: http://msdn.microsoft.com/en-us/library/windows/desktop/ms724946(v=vs.85).aspx

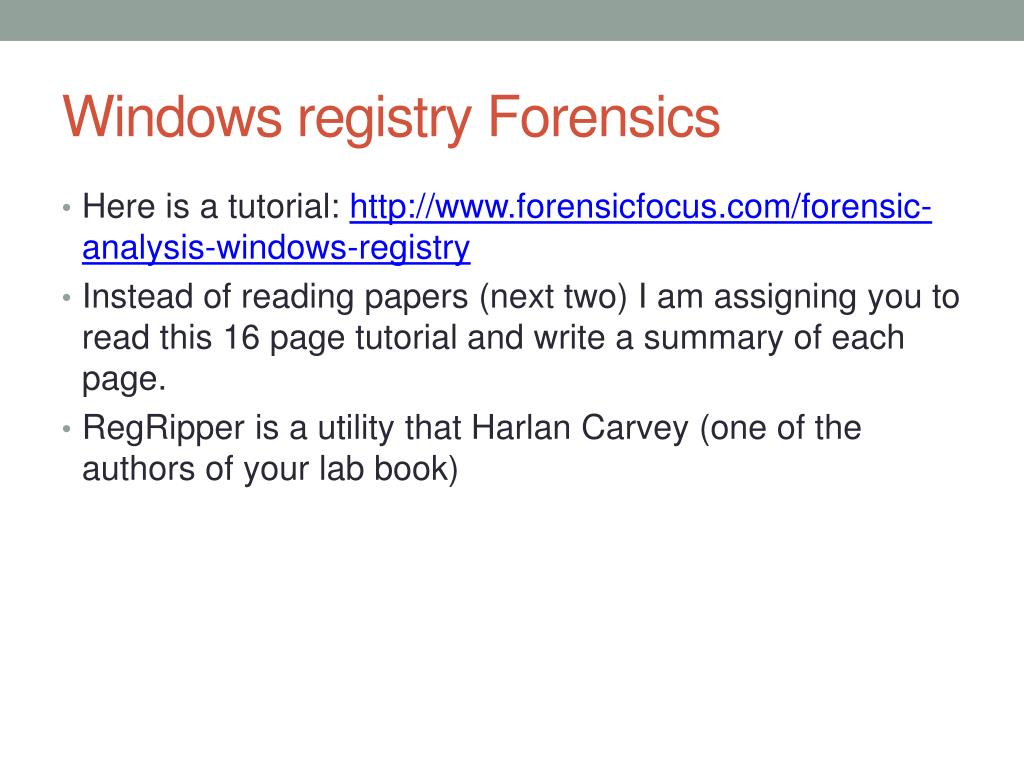

  5. Windows registry Forensics • Here is a tutorial: http://www.forensicfocus.com/forensic-analysis-windows-registry • Instead of reading papers (next two) I am assigning you to read this 16 page tutorial and write a summary of each page. • RegRipper is a utility that Harlan Carvey (one of the authors of your lab book)

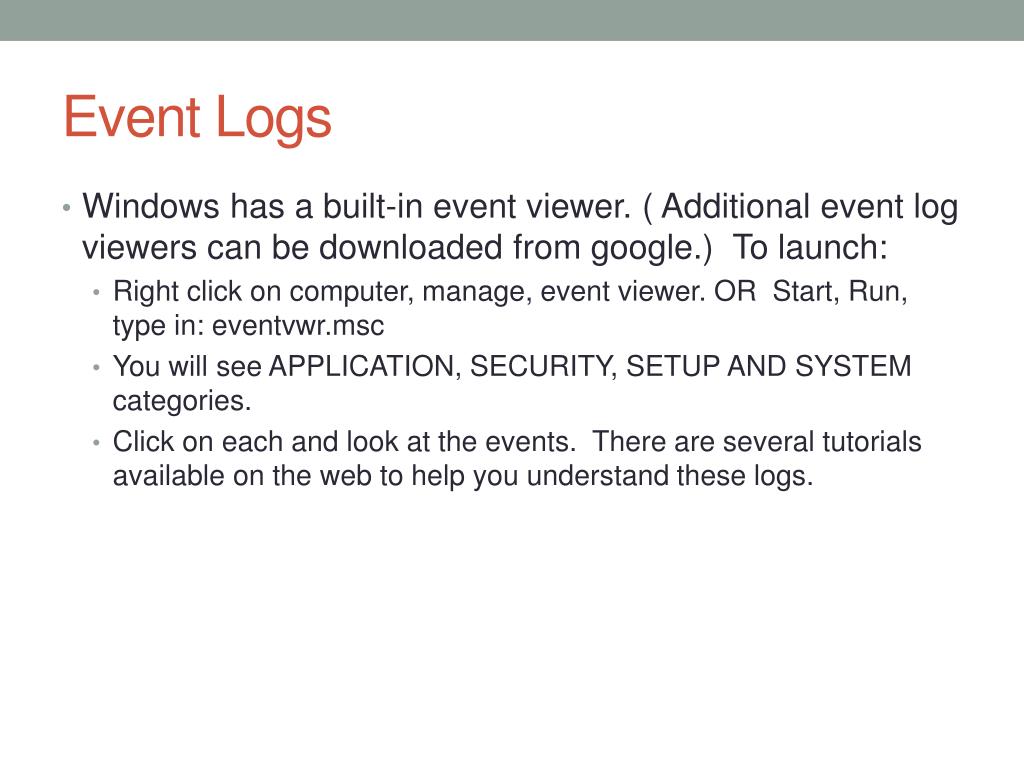

  6. Event Logs • Windows has a built-in event viewer. ( Additional event log viewers can be downloaded from google.) To launch: • Right click on computer, manage, event viewer. OR Start, Run, type in: eventvwr.msc • You will see APPLICATION, SECURITY, SETUP AND SYSTEM categories. • Click on each and look at the events. There are several tutorials available on the web to help you understand these logs.

  7. Prefetch files • Windows keeps tracks of programs used during the session and saves it to a prefetch file located in the windows\prefetch directory. It allows to load regularly used programs faster. • When an application is launched a prefetch file for that application is created. The name of the appliation along with a hashed path where the program is actually located is stored in the name of the file. • For forensic examination, when a prefetch file is found, it means that program was run on that computer and can provide last run date and time.

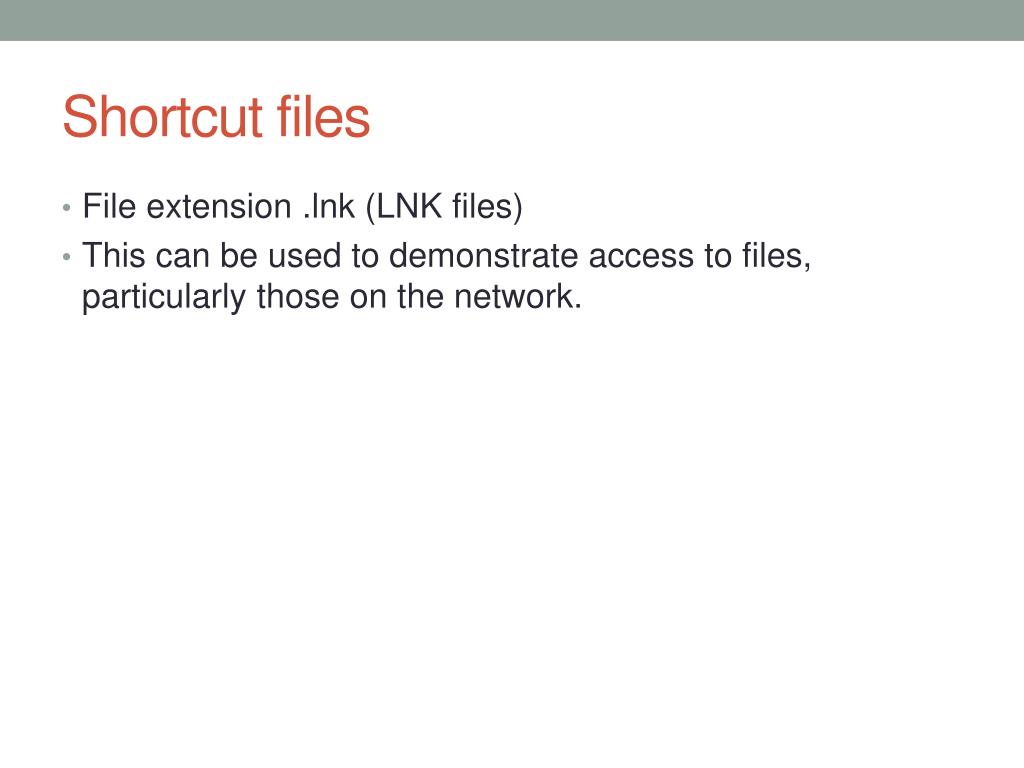

  8. Shortcut files • File extension .lnk (LNK files) • This can be used to demonstrate access to files, particularly those on the network.
