Ethernet

Ethernet. “dominant” LAN technology: cheap $20 for 100Mbs! first widely used LAN technology Simpler, cheaper than token LANs and ATM Kept up with speed race: 10, 100, 1000 Mbps Uses Manchester encoding or 4B/5B Encoding Exports a connectionless , unreliable service interface.

tyrell
Télécharger la présentation

Ethernet

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

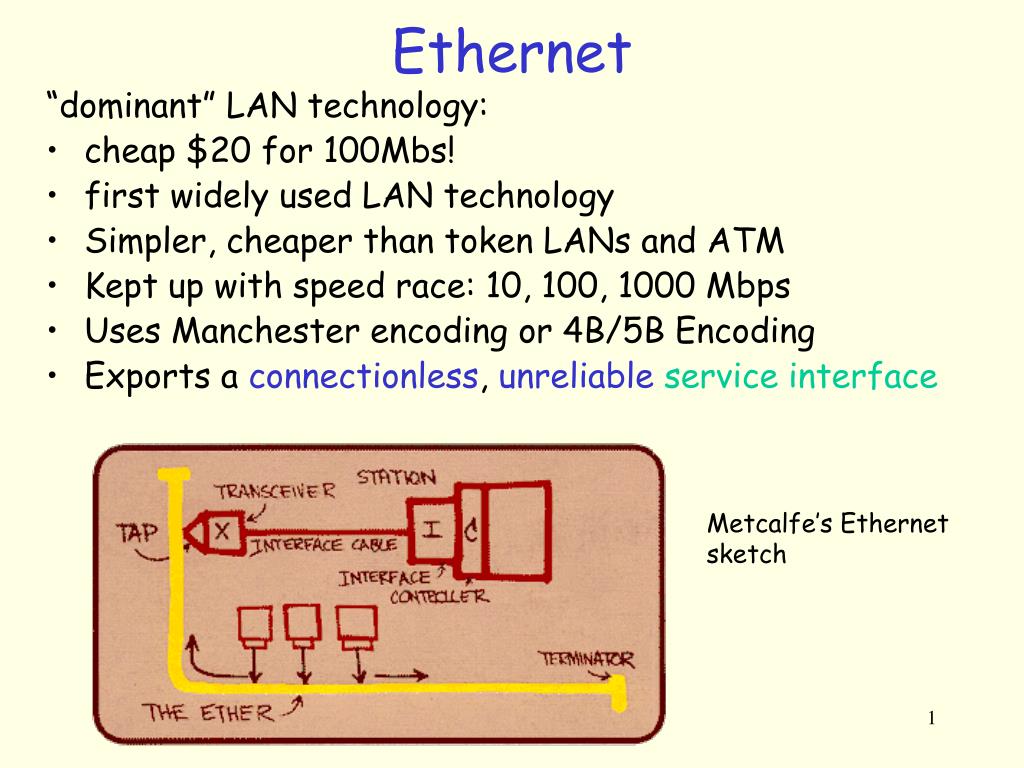

  1. Ethernet “dominant” LAN technology: • cheap $20 for 100Mbs! • first widely used LAN technology • Simpler, cheaper than token LANs and ATM • Kept up with speed race: 10, 100, 1000 Mbps • Uses Manchester encoding or 4B/5B Encoding • Exports a connectionless, unreliableservice interface Metcalfe’s Ethernet sketch

  2. Ethernet Service Interface • Connectionless: No handshaking between sending and receiving adapter. • Unreliable: Does not implement any reliable delivery protocol: Receiving adapter doesn’t send acks or nacks to sending adapter • stream of datagrams passed to network layer can have gaps. • reliability must be implemented by upper layer protocols if desired • otherwise, application will see the gaps

  3. 16 64 48 48 32 Ethernet Frame Structure • Preamble: • 7 bytes with pattern 10101010 followed by one byte with pattern 10101011 (start of frame flag) • used to synchronize receiver, sender clock rates & to have the receiver detect the beginning of the frame • Addresses: 6 bytes • Type: Mux/Demux key • indicates the higher layer protocol • CRC: Uses CRC-32 as EDC • No Length Field! • End of frame is detected by the lack of current on the link – LL & PL are strictly tied to each other 46-1500 bytes

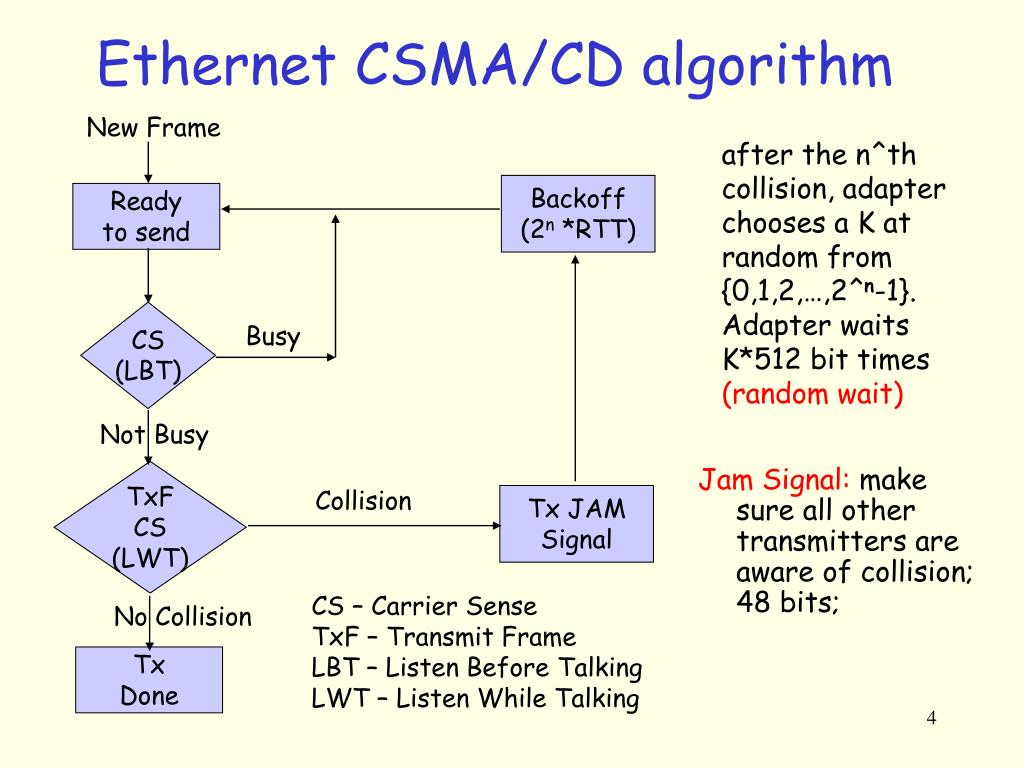

  4. Jam Signal: make sure all other transmitters are aware of collision; 48 bits; Ethernet CSMA/CD algorithm New Frame after the n^th collision, adapter chooses a K at random from {0,1,2,…,2^n-1}. Adapter waits K*512 bit times (random wait) Backoff (2n *RTT) Ready to send CS (LBT) Busy Not Busy TxF CS (LWT) Collision Tx JAM Signal CS – Carrier Sense TxF – Transmit Frame LBT – Listen Before Talking LWT – Listen While Talking No Collision Tx Done

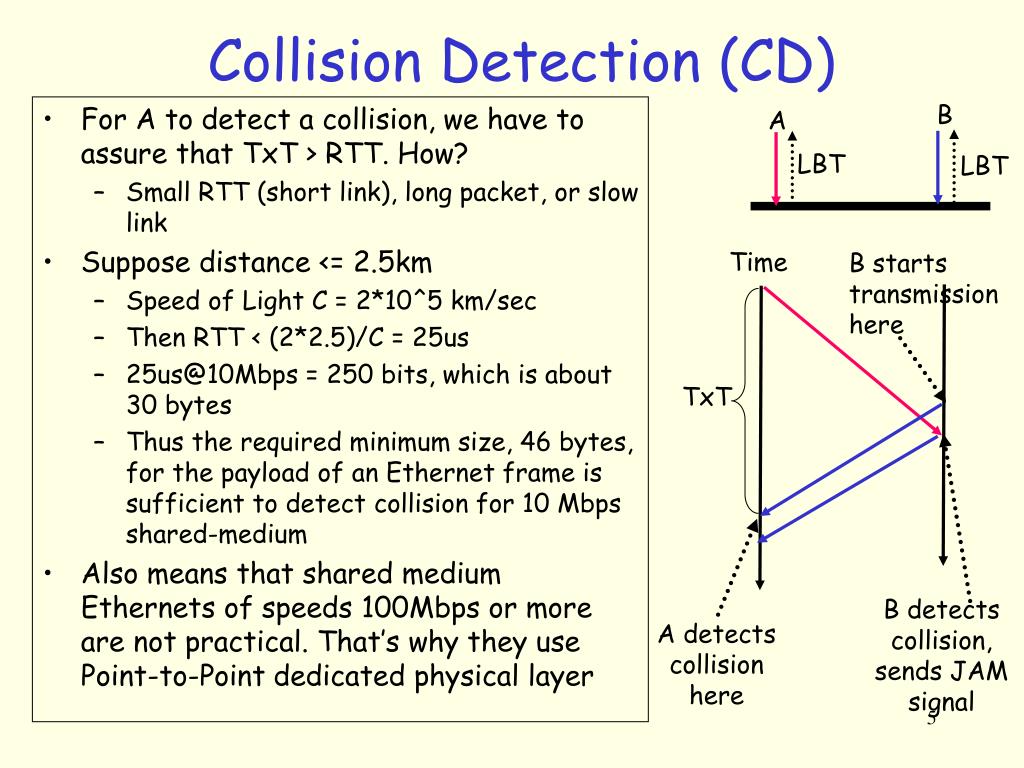

  5. Collision Detection (CD) B A • For A to detect a collision, we have to assure that TxT > RTT. How? • Small RTT (short link), long packet, or slow link • Suppose distance <= 2.5km • Speed of Light C = 2*10^5 km/sec • Then RTT < (2*2.5)/C = 25us • 25us@10Mbps = 250 bits, which is about 30 bytes • Thus the required minimum size, 46 bytes, for the payload of an Ethernet frame is sufficient to detect collision for 10 Mbps shared-medium • Also means that shared medium Ethernets of speeds 100Mbps or more are not practical. That’s why they use Point-to-Point dedicated physical layer LBT LBT Time B starts transmission here TxT B detects collision, sends JAM signal A detects collision here
