  1. Filterfresh Fault-tolerant Java Servers Through Active Replication Arash Baratloo www.cs.nyu.edu/phd_students/baratloo

  2. Filterfresh • Investigation of failure models in distributed Java applications • Provide transparent fault-masking (to users and to programmers) • Support highly available services in presence of failures • Remove single-points of failure

  3. Motivating Factors Remote Method Invocation (RMI) 100% Java, hot, new, easy-to-use and Reliable Object Services (ROS) Interest in Providing: • support active-active replication • support Java objects exciting

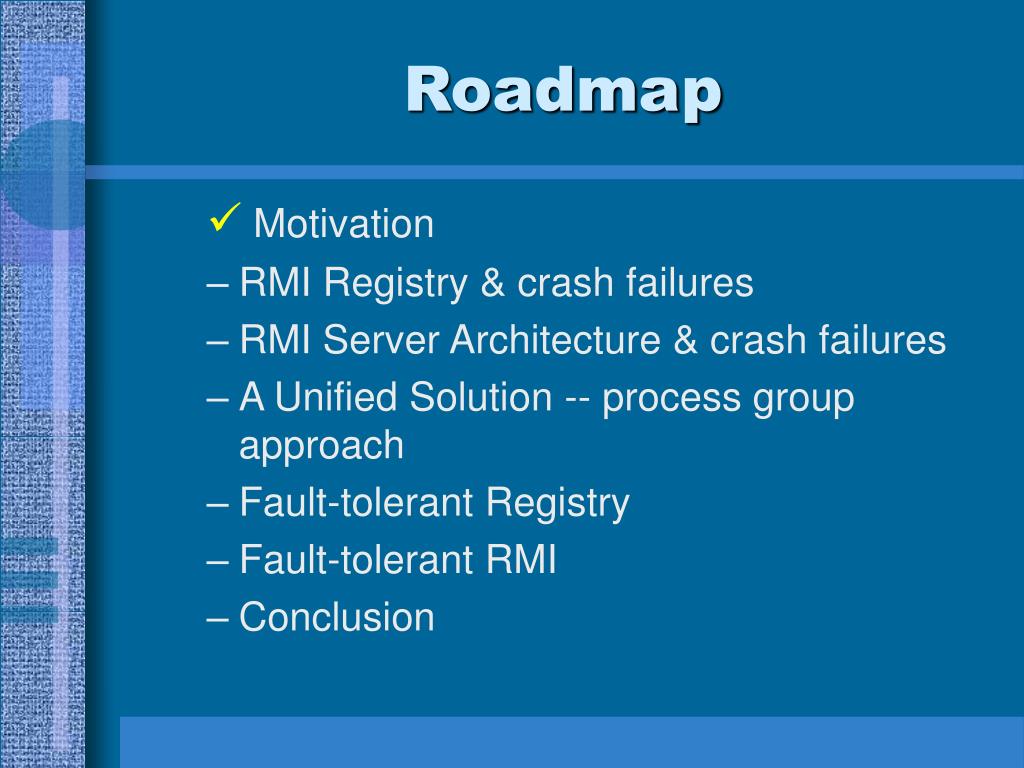

  4. Roadmap  Motivation • RMI Registry & crash failures • RMI Server Architecture & crash failures • A Unified Solution -- process group approach • Fault-tolerant Registry • Fault-tolerant RMI • Conclusion

  5. RMI in a Nutshell • Servers register with the local registry • Clients looks up a server at a well known registry • Given a remote reference, client performs a remote method invocation

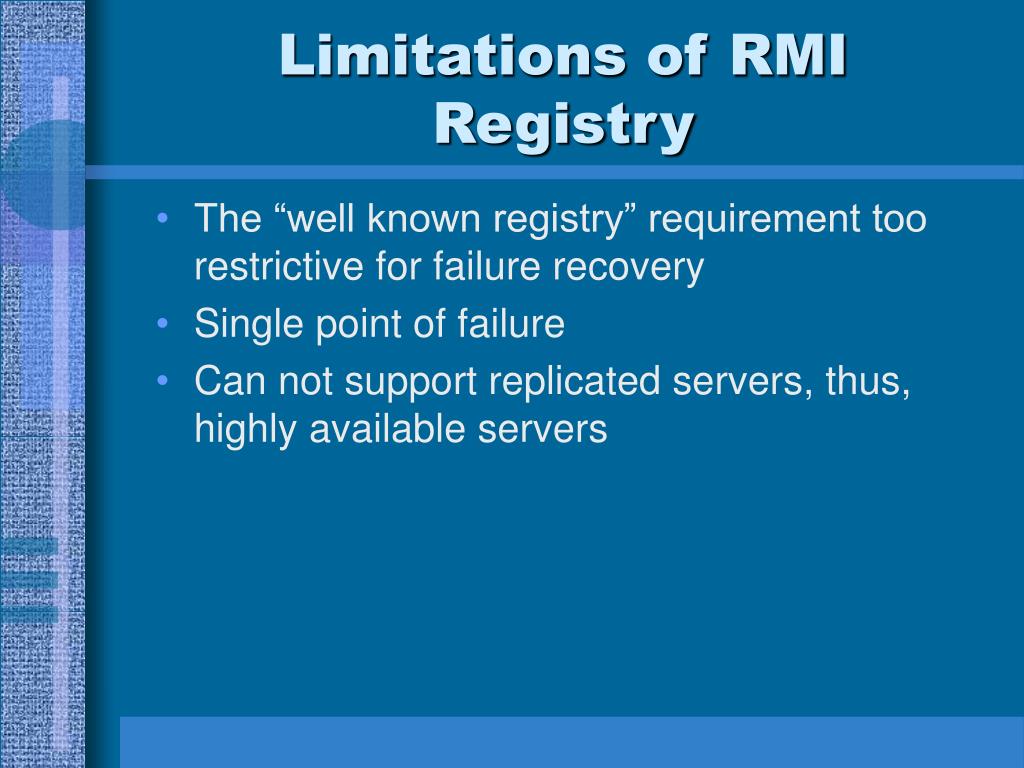

  6. Limitations of RMI Registry • The “well known registry” requirement too restrictive for failure recovery • Single point of failure • Can not support replicated servers, thus, highly available servers

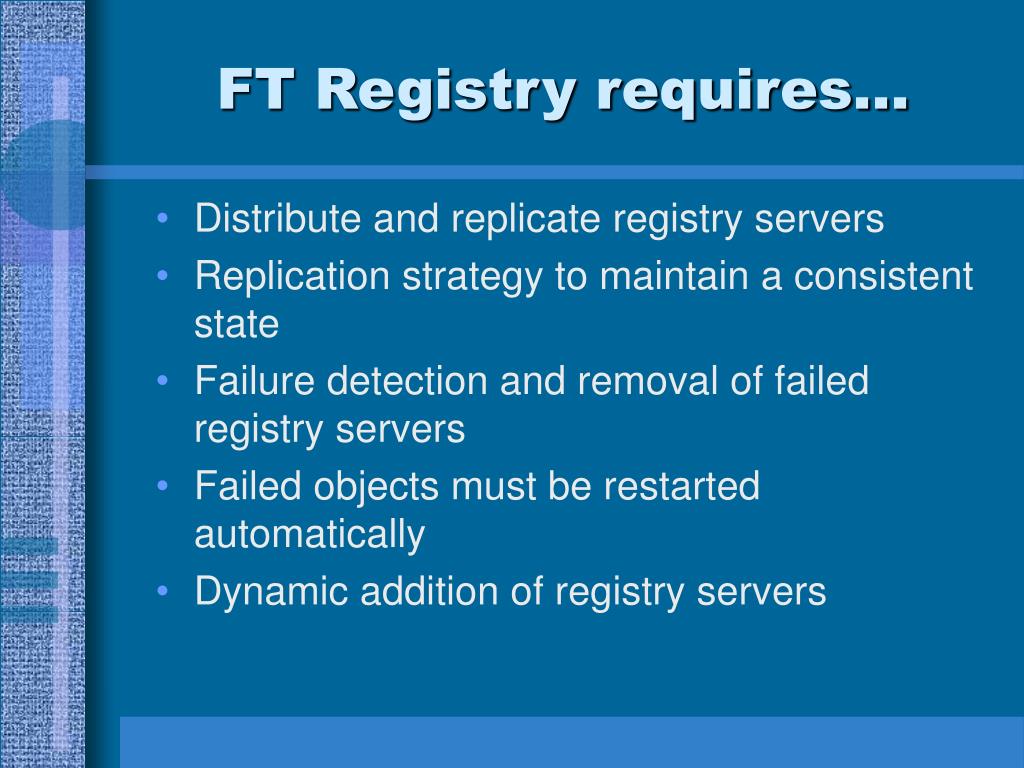

  7. FT Registry requires... • Distribute and replicate registry servers • Replication strategy to maintain a consistent state • Failure detection and removal of failed registry servers • Failed objects must be restarted automatically • Dynamic addition of registry servers

  8. RMI Architecture • RRL assumes a stream-oriented transport • Transport layer implemented on TCP/IP

  9. Architecture (cont…)

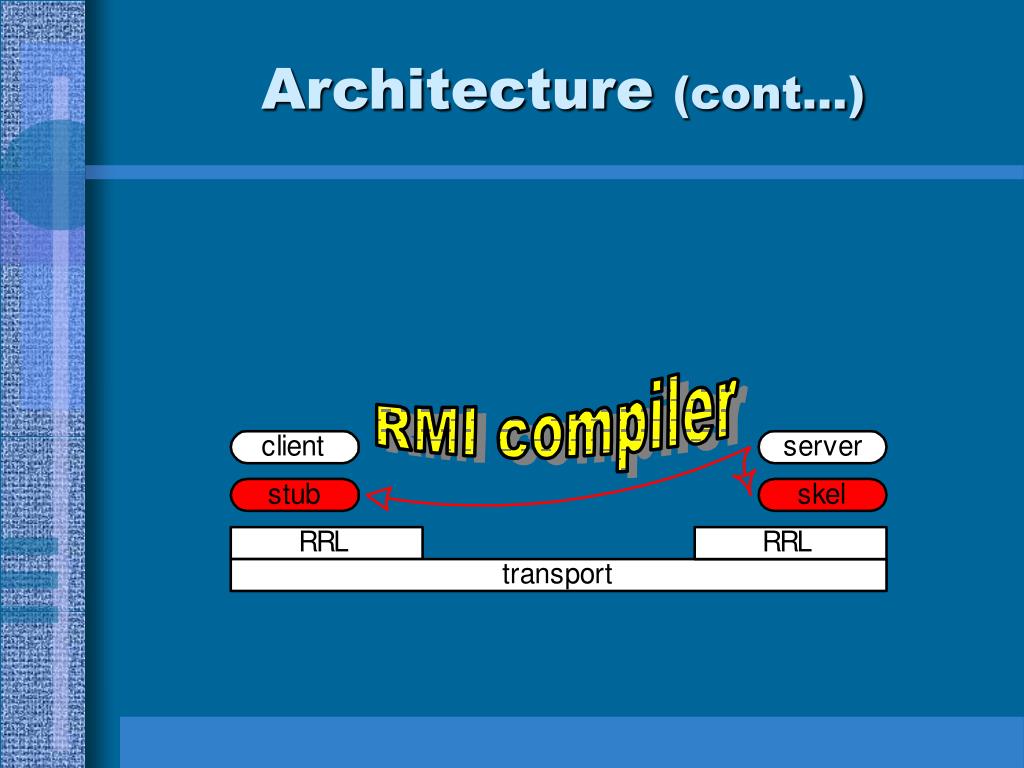

  10. Architecture (cont…)

  11. Architecture (cont…)

  12. Architecture (cont…) Transparent FT system implies RRL or below

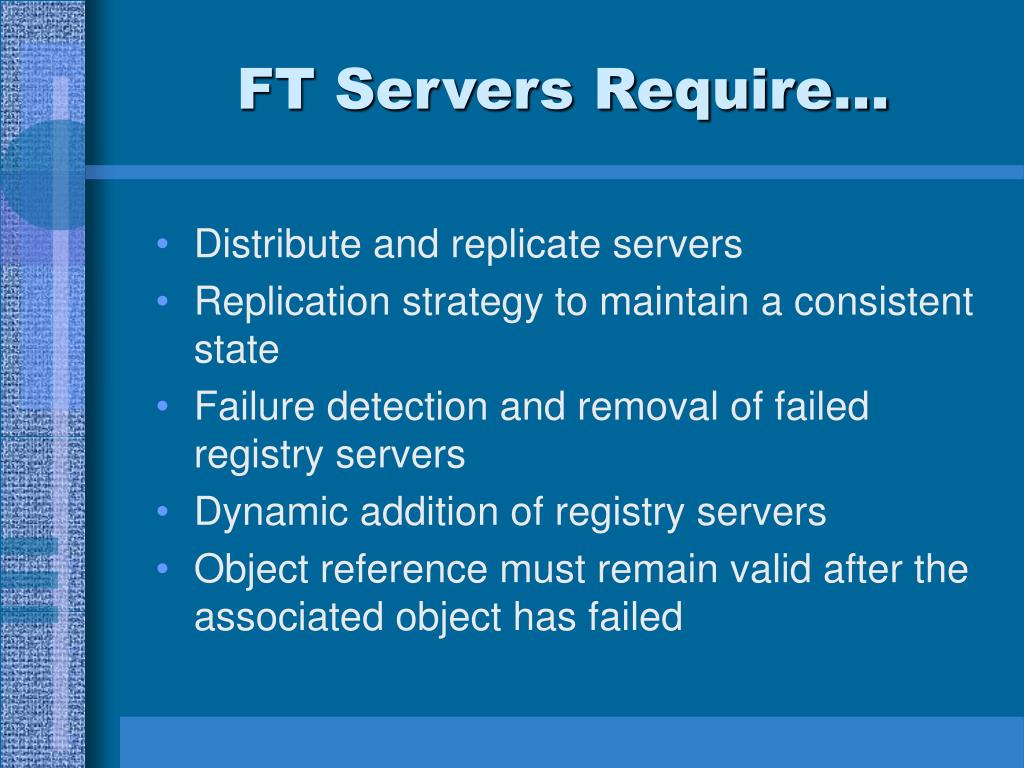

  13. FT Servers Require... • Distribute and replicate servers • Replication strategy to maintain a consistent state • Failure detection and removal of failed registry servers • Dynamic addition of registry servers • Object reference must remain valid after the associated object has failed

  14. A Unified Solution... Process Group Approach where all non-faulty objects • form a group • consistent view of the group • interact through reliable group primitives -- all or nothing • total order on group primitives

  15. Fortunately Process Group Membership is • well understood problem and protocols • well tested (ISIS, Transis, Amoeba, etc.) • basis for virtual synchrony Equivalent Problems* (implement one, get all) • Group Membership • Reliable Failure Detectors • Reliable and ordered multicast * Chandra and Toueg. Unreliable failure detectors for Reliable Distributed Systems. JACM, March 96.

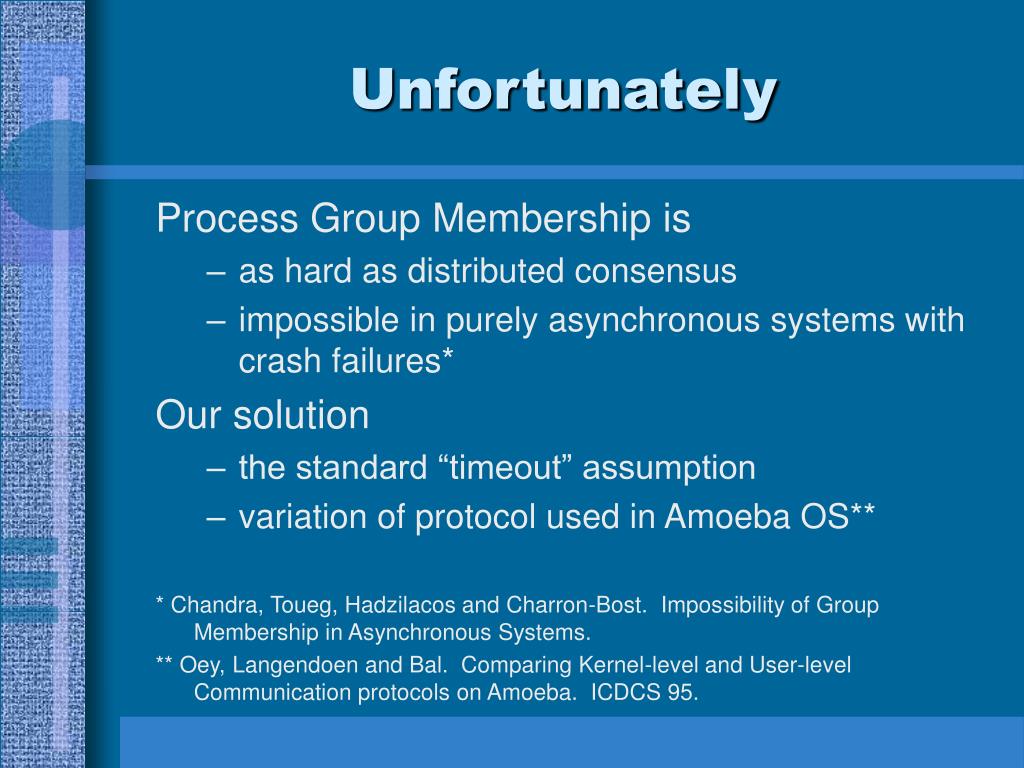

  16. Unfortunately Process Group Membership is • as hard as distributed consensus • impossible in purely asynchronous systems with crash failures* Our solution • the standard “timeout” assumption • variation of protocol used in Amoeba OS** * Chandra, Toueg, Hadzilacos and Charron-Bost. Impossibility of Group Membership in Asynchronous Systems. ** Oey, Langendoen and Bal. Comparing Kernel-level and User-level Communication protocols on Amoeba. ICDCS 95.

  17. What We Provide... A Group Manager Class • 100% Java • build on top of UDP/IP Implements • group creation • join operation (with state transfer) • leave operation • failure detection and recovery • reliable multicast All events are atomic and totally ordered

  18. Multicast Performance • Pentium Pro 200, Linux RedHat 4.0, Fast Ethernet hub

  19. FT Registry Architecture • registry on each host/domain • group managers ensure reliable ordered events • support dynamic joins w/state transfer

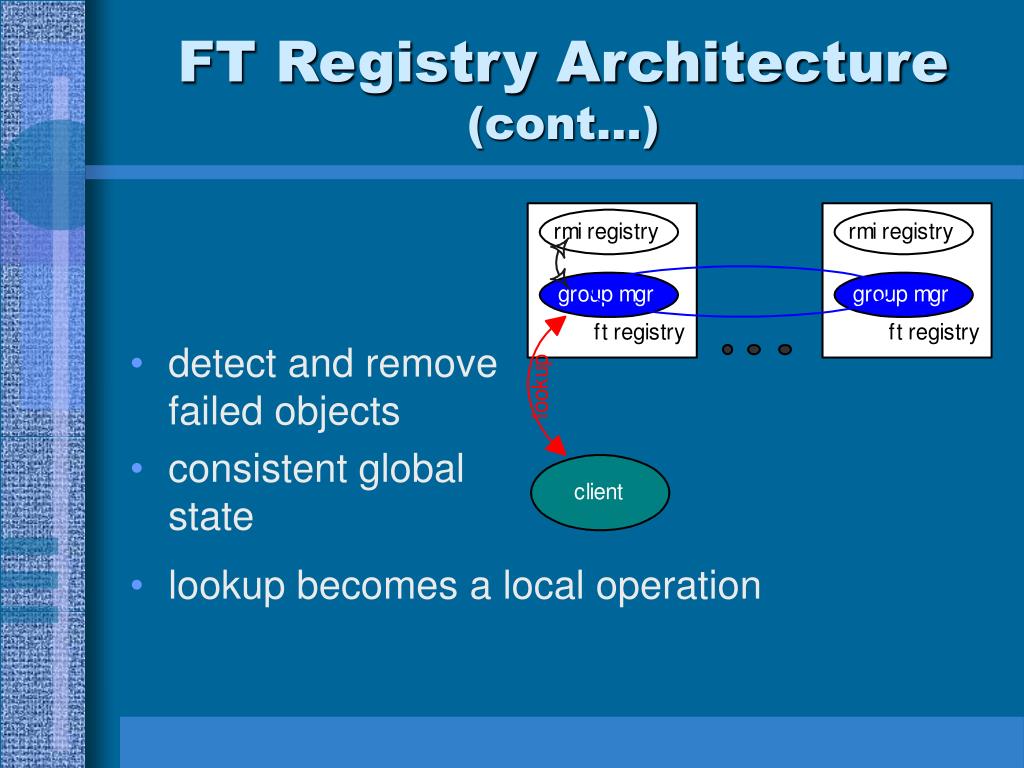

  20. FT Registry Architecture (cont…) • detect and remove failed objects • consistent global state • lookup becomes a local operation

  21. FT Registry Performance • Pentium Pro 200, Linux RedHat 4.0, Fast Ethernet, Ethernet hub

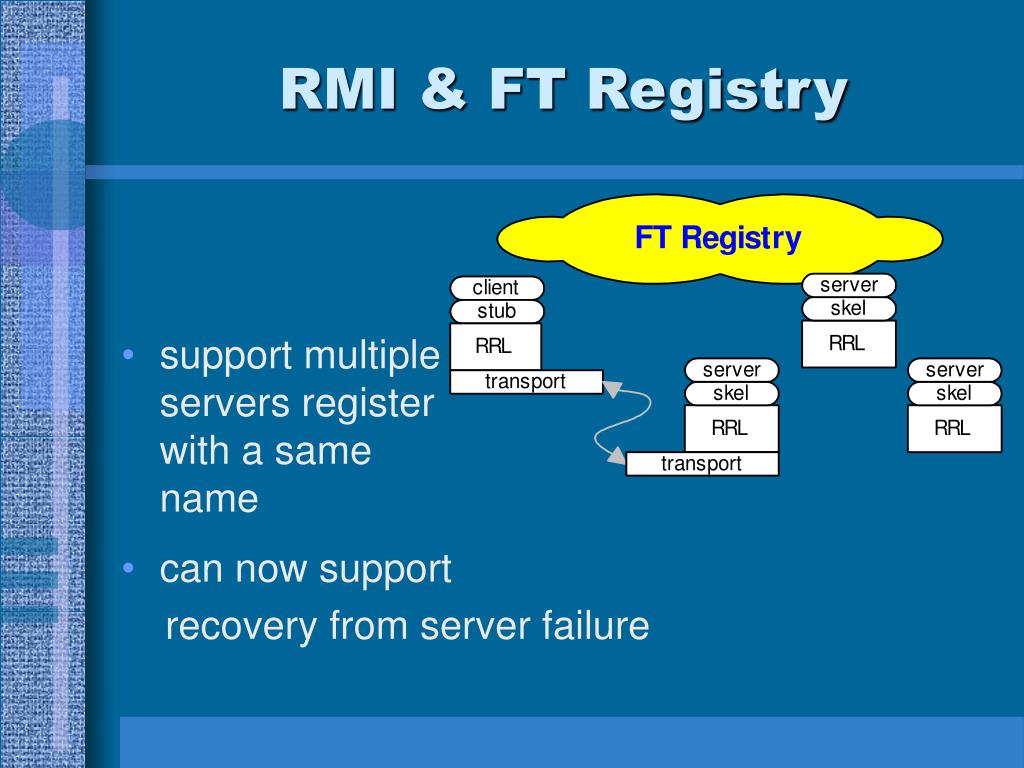

  22. RMI & FT Registry • support multiple servers register with a same name • can now support recovery from server failure

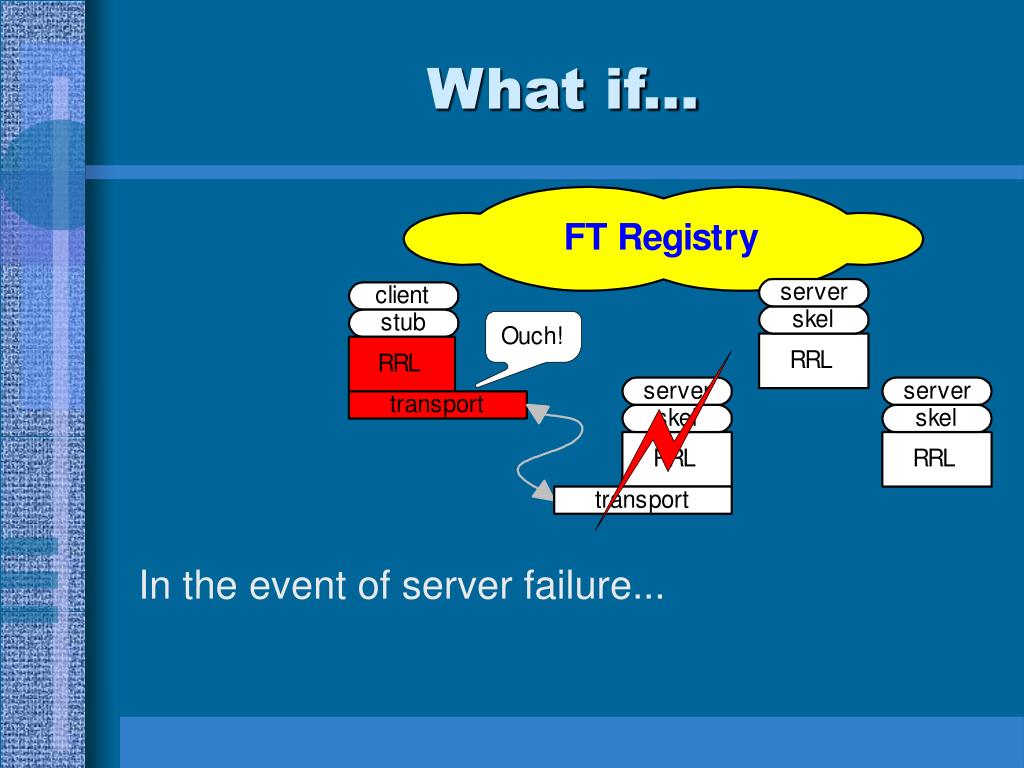

  23. What if... In the event of server failure...

  24. Failure Recovery • The old connection is patched with a connection to a non-faulty server • Illusion of a valid object reference • Transparent! • A “reverse” lookup returns a name given a wire connection

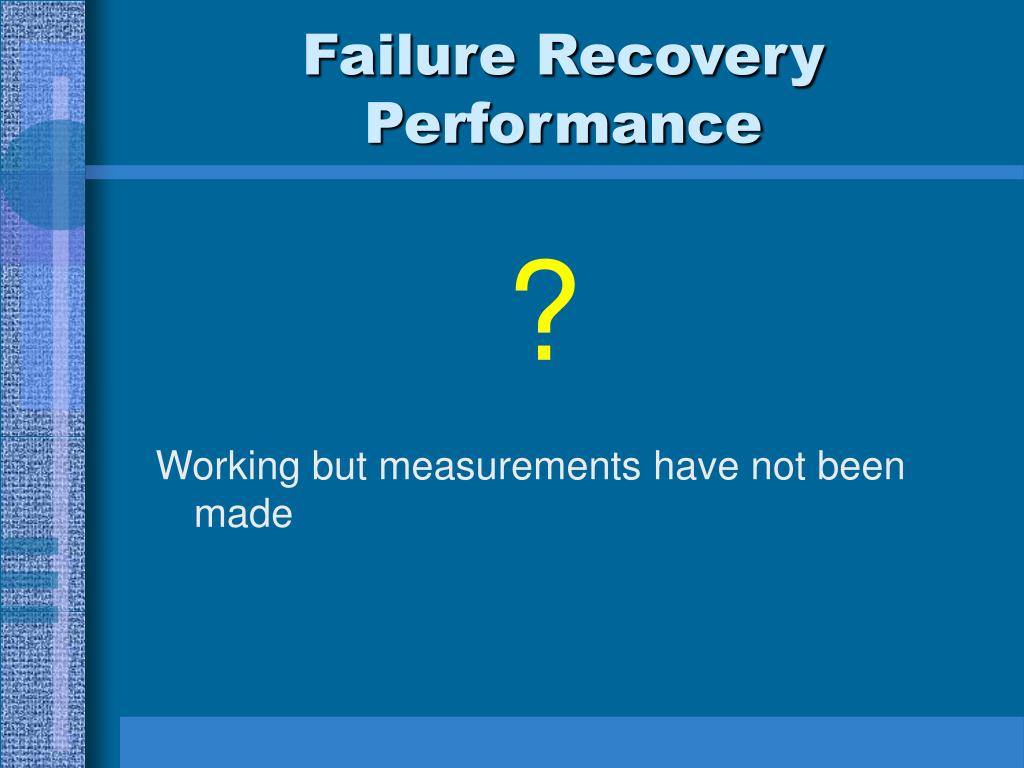

  25. Failure Recovery Performance ? Working but measurements have not been made

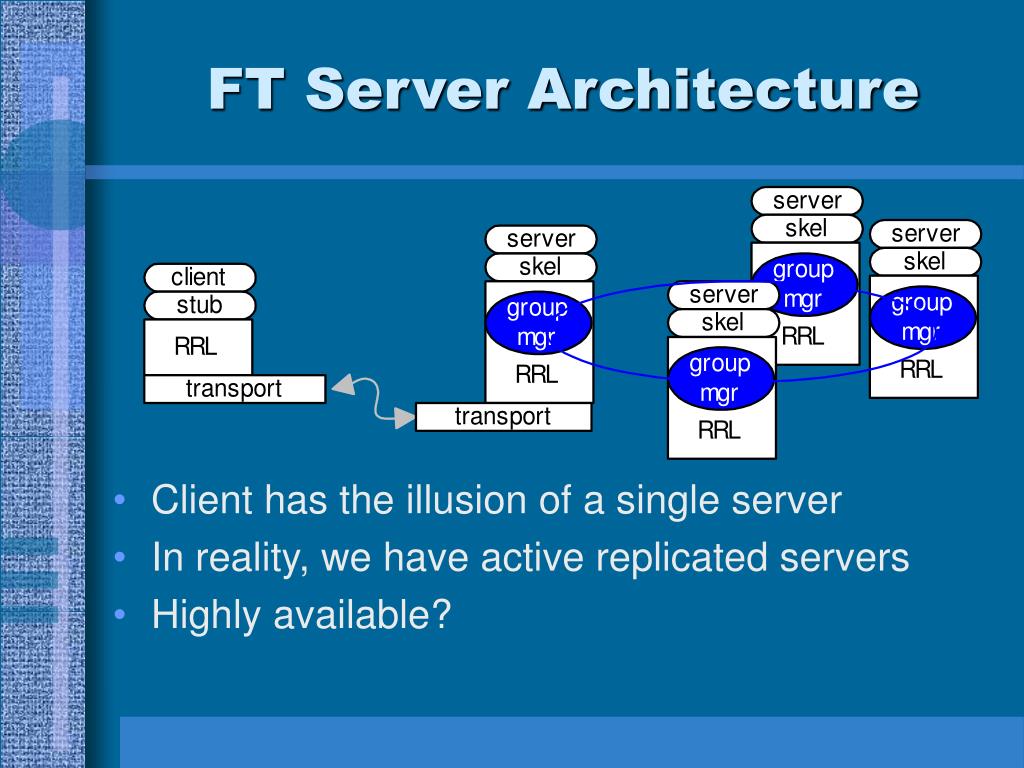

  26. FT Server Architecture • Client has the illusion of a single server • In reality, we have active replicated servers • Highly available?

  27. Highly Available Servers • Group managers ensure reliable ordering of events across all servers • Guarantees servers have a consistent state • Failure detection and removal of failed servers • Dynamic addition of servers w/state transfer • Illusion of a valid server reference even after the associated object has failed

  28. Conclusions
