Understanding the Standard Model: Fundamental Particles and Their Interactions

ulf avatar
ulf
8 diapositives · 239 Views · Aug 10, 2014

The Standard Model of particle physics explains the fundamental building blocks of matter and their interactions. It includes protons, neutrons, and electrons that compose atoms, as well as force carriers like photons. The model outlines leptons as stable and unstable particles, distinguishing between charged leptons (such as electrons) and neutrinos. Baryons, composed of three quarks, and mesons, formed from quark-antiquark pairs, reflect the diverse landscape of particles in the universe. Unstable particles, quantum numbers, and properties like strangeness illustrate the complexity of particle physics.

#understanding the standard model: fundamental particles and their interactions #understanding the standard model: fundamental particles and their interactions ppt #powerpoint #presentation
Understanding the Standard Model: Fundamental Particles and Their Interactions - slide 1
01 / 8Understanding the Standard Model: Fundamental Particles and Their Interactions
1 / 17

Télécharger la présentation

Understanding the Standard Model: Fundamental Particles and Their Interactions
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

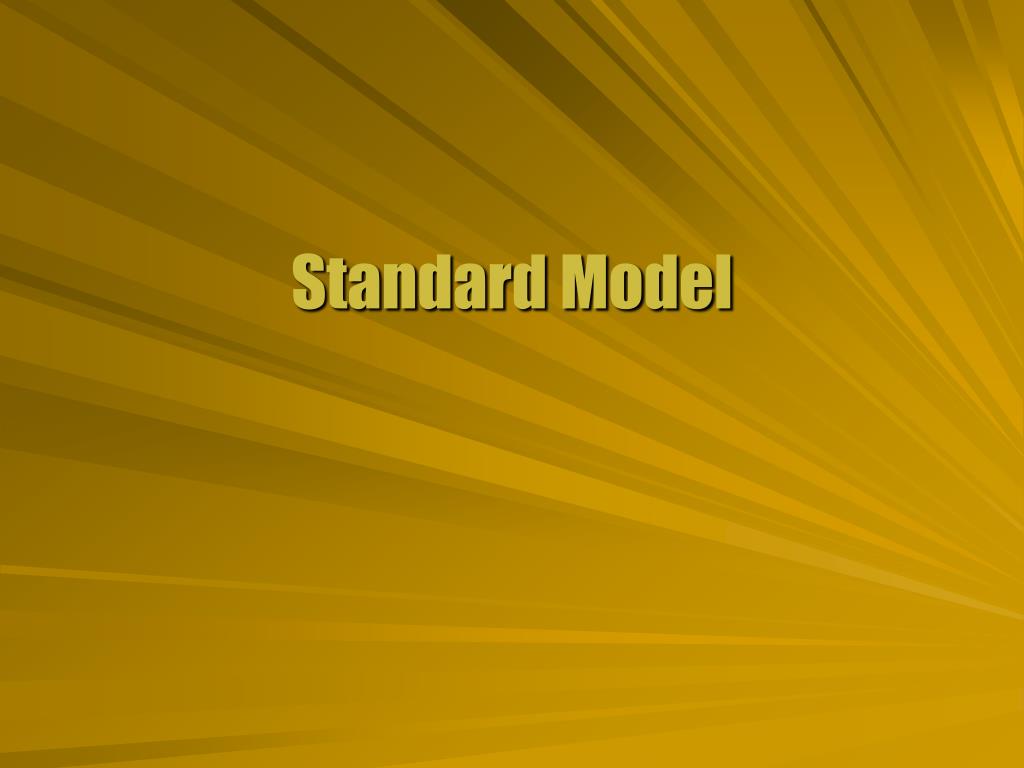

  1. Standard Model

  2. Subatomic World • Protons, neutrons, and electrons make up atoms. • Photons are particles that convey electromagnetic energy. • Force carrier • These make up most of the material universe.

  3. Unstable particles can be produced. Unique mass energy Characteristic lifetime The lifetime t is related to the probability that a particle will survive a given period of time. The survival time is affected by relativity. Artificial Particles

  4. Leptons are fundamental particles. Interact weakly – no nuclear interaction Able to exist in isolation Electrons are stable. Muons and taus are unstable. Neutrinos are stable and very low mass. Partner with charged leptons Charged leptons: electron, e-: 0.511 MeV/c2 = 1/1836 mp muon, m-: 0.1057 GeV/c2 = 1/9 mp tau, t- : 1.776 GeV/c2 = 1.9 mp Leptons

  5. Baryons have atomic mass comparable to protons and neutrons. Conserved quantity First artificial ones were given a property of strangeness. Quantum number Later ones were given new properties. Charm, beauty, truth Baryons n p S- S0 S+ L X- X0

  6. Some artificial particles were lower mass than baryons. No atomic mass conservation Mesons are also had same quantum properties as baryons. Strangeness conserved Mesons

  7. Quarks are fundamental building blocks, but are not detected directly. Binding force too great Stable quarks bind to others Quarks exist in hadrons. Baryons are three quarks Mesons are a quark-anti quark pair. Some baryons proton, p: uud neutron, n: udd lambda, L0: uds lambda-b, Lb0 : udb Some mesons pi-minus, p-: ud k-plus, K+: us J/psi, Y: cc Quarks

  8. The fundamental particles can be placed into a compact table. Standard Model Separate matter from force carriers The leptons and quarks fall into three related generations. Normal mater in first generation Standard Model next
