Machine Overview

The HP Scitex XL1500 is the successor to the successful XL1200, boasting enhancements for superior large-format printing. With system sizes of 2, 3, and 5 meters, it delivers a remarkable productivity of 124 sqm/hr (1,333 sqft/hr) while offering flexible switchable color options (4, 6, and 8 colors). The printer also features double-sided and backlit printing, enhanced drying systems, and advanced software capabilities such as real-time file importing during printing. Ideal for diverse applications from signage to textiles, the XL1500 elevates quality and throughput.

ulfah
Télécharger la présentation

Machine Overview

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Machine Overview

  2. HP Scitex XL1500 Confidential

  3. Introduction • The HP Scitex XL1500 is the second generation to the successful HP XL products line. • The HP Scitex XL product line installed base, world wide, covers over 1000 systems. • All XL1500 new features and capabilities are offered as an upgrade option, to all our loyal XL1200 customers. Confidential

  4. Main Features • 2, 3, 5m (7.2, 10.5, 16.4 ft) system sizes • RTR, RTS (free fall), Multi-roll • 124 sqm (1,333 sqft) per hour • Switch between 4,6 and 8 color and back (Y,M,C,K,LC,LM,LY,LK) • “Sample mode” - sharp 8 point text (marketing using) • “Import file while printing” ability

  5. Main Features (Cont.) • Resolution (max) 370 x 740 dpi • Backlit and double-sided printing • Wide media versatility • Onyx I-Rip for HP Scitex • IR drying unit • Auto maintenance • HP Scitex XL300 Supreme inks Confidential

  6. XL1500 Advanced S/W • Switchable 4, 6 and 8 colors • Import files to the system Q while printing • Tiling to columns or rows • Crop files • Flip files for backlit jobs • Color correction tools • Queue and archive • File info (also in multi-roll) • Printing time remaining bar • Ink level screen • Media Tracking • Auto maintenance

  7. Import File While Printing • The operator is able to Import files from the RIP station to the system, while printing is in progress. To review the table Confidential

  8. XL1500 4, 6, and 8 Colors Switchable HP IID has ISO 9001 certificate. XL1500 has CE, and UL stamps.

  9. XL1500 Multi-Roll Includes file info on each media roll

  10. XL1500 Backlit & Double-sided Dedicated S/W and H/W

  11. XL1500 Advanced Drying System Controlled temperature unit

  12. XL1500 Applications • Building coverings • Flex-face billboards • Backlit indoor and outdoor signage • POP/POS, including double-sided • Popup displays • Exhibition and event banners • Truck side curtains • Backdrops for theater, TV • Textiles, including carpets • Floor and window graphics • Vehicle wraps

  13. XL1500 Applications • High quality – POP, exhibitions, backlit and D/S signs, textile • Sharp 8 point text – “Sample” mode • 8 colors – CMYK, LC, LM, LY, LK • Backlit and D/S abilities • High Production – paper & SAV billboards, bus stops, fleet graphics, truck side curtains, floor and window graphics • 124 sqm/hr (1,333 sqft/hr) • “Load file while printing” • Multi roll, freefall

  14. XL1500 Main Advantages • 4, 6 and 8 Switchable color system (CMYK, LC, LM, LY, LK) • “Import File While Printing” ability – maximize the productivity • “Sample” mode – sharp 8 point size text • Double-sided and backlit printing abilities • Multi-roll printing • Roll-to-roll or Roll-to-sheet (free fall) Confidential

  15. XL1500 Main Advantages (Cont.) • Skip White feature • Resolution 370X740 dpi • Strong controlled drying mechanism • RIP: Onyx I-Rip for HP Scitex • Speed of HP Scitex XL1500, 5m: • High speed: ~124sqm/hr / 1,333 sqft/hr • High quality: ~60 sqm/hr / 646 sqft/hr Confidential

  16. XL1500 Overview

  17. XL1500 Benefits • Higher Quality: • Solids colors • Sharp texts • Higher Throughput: • Up to +30% (Draft mode 124 m2/hr) • Ink dries Faster: • No wetting, new formula (XL300) • Enhanced smoothness option • More friendly workflow and GUI Confidential

  18. XL1500 Components • PH are working in High Frequency: • Higher fire frequency reaches higher quality & throughput for most of the modes • New PH order of D/L: • Better quality in graininess and wetting (6/8 color) • HP Scitex XL300 Supreme • Drying of heavy loaded block outs • Quality of 8 color modes (wetting, sharpness) • Additional heating elements in the printing table: • Supports bigger variety of SAV’s and Fabrics Confidential

  19. XL1500 Components (Cont.) • New Software: • New better modes • New easy & friendly workflow and features: • Zero Gap in Y advance, for wall paper application • Center image on media, automatic margins • New screening and TBR: • More quality and smoother printing • Sharper Text Confidential

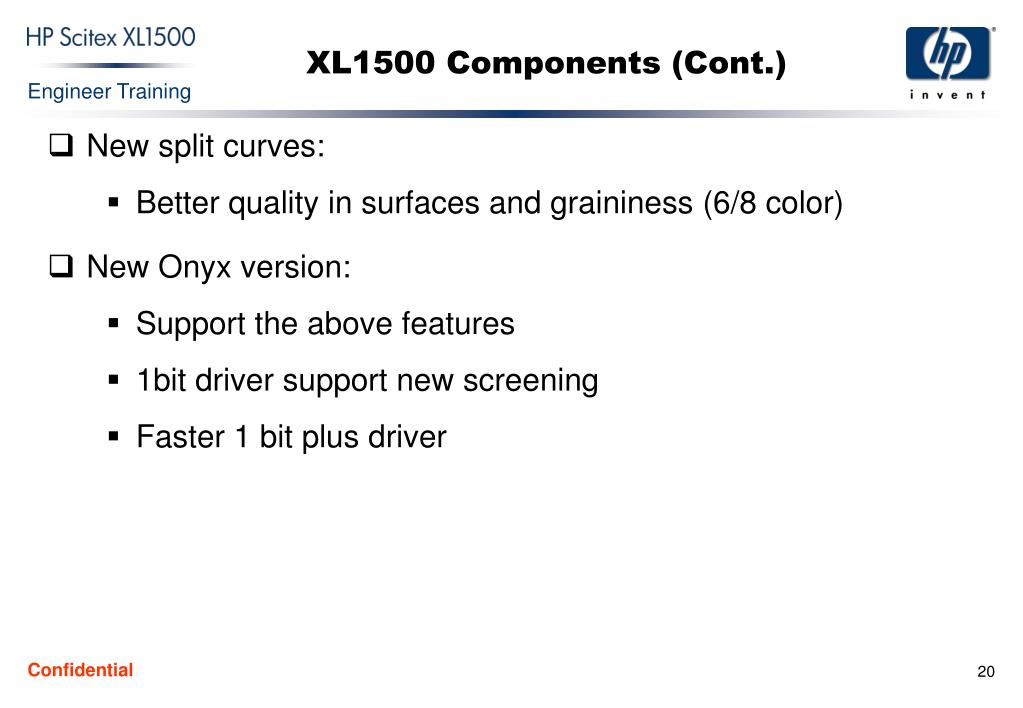

  20. XL1500 Components (Cont.) • New split curves: • Better quality in surfaces and graininess (6/8 color) • New Onyx version: • Support the above features • 1bit driver support new screening • Faster 1 bit plus driver Confidential

  21. Thank You! Confidential
