  1. JSP – Java Server Pages Representation and Management of Data on the Internet

  2. Introduction

  3. What is JSP Good For? • Servlets allow us to write dynamic Web pages • Easy access to request, session and context data • Easy manipulation of the response (cookies, etc.) • And lots more... • It is not convenient to write and maintain long static HTML using Servlets out.println("<h1>Bla Bla</h1>" + "bla bla bla bla" + "lots more here...")

  4. JSP Idea • Use HTML for most of the page • Write Servlet code directly in the HTML page, marked with special tags • The server automatically translates a JSP page to a Servlet class and the latter is actually invoked • In Tomcat 5.0 you can find the generated Servlet code under $CATALINA_BASE/work/

  5. Relationships • Servlets: HTML code is printed from Java code • JSP: Java code is embedded in HTML code Java HTML Java HTML

  6. Example <HTML> <HEAD> <TITLE>Hello World</TITLE> </HEAD> <BODY> <H2><I><%=new java.util.Date()%></I></H2> <H1>Hello World</H1> </BODY> </HTML> Tomcat 5.0 Generated Servlet

  7. JSP Limitations and Advantages • JSP can only do what a Servlet can do • Easier to write and maintain HTML • Easier to separate HTML from code • Can use a "reverse engineering technique": create static HTML and then replace static data with Java code

  8. Basic JSP Elements

  9. Elements in a JSP file • HTML code: <html-tag>content</html-tag> • HTML comment: <!-- comment --> • JSP Comment: <%-- comment --%> • Expressions: <%= expression %> • Scriptlets: <% code %> • Declarations: <%! code %> • Directives: <%@ directive attribute="value" %> • Actions: discussed later

  10. JSP Expressions • A JSP expression is used to insert Java values directly into the output • It has the form: <%= expression %>, where expression can be a Java object, a numerical expression, a method call that returns a value, etc... • For example: <%= new java.util.Date() %> <%= "Hello"+" World" %> <%= (int)(100*Math.random()) %>

  11. JSP Expressions • A JSP Expression is evaluated • The result is converted to a string • The string is inserted into the page • This evaluation is performed at runtime (when the page is requested), and thus has full access to information about the request, the session, etc...

  12. public void _jspService(HttpServletRequest request, HttpServletResponse response) throws java.io.IOException, ServletException { ... response.setContentType("text/html"); ... out.write("<H1>A Random Number</H1>\r\n"); out.print( Math.random() ); out.write("\r\n"); ... } Expression Translation <H1>A Random Number</H1> <%= Math.random() %>

  13. Predefined Variables (Implicit Objects) • The following predefined variables can be used: • request: the HttpServletRequest • response: the HttpServletResponse • session: the HttpSession associated with the request • out: the PrintWriter (a buffered version of type JspWriter) used to fill the response content • application: The ServletContext • These variables and more will be discussed in details

  14. <HTML> <HEAD> <TITLE>JSP Expressions</TITLE></HEAD> <BODY> <H2>JSP Expressions</H2> <UL> <LI>Current time: <%=new java.util.Date()%> <LI>Your hostname: <%= request.getRemoteHost() %> <LI>Your session ID: <%=session.getId() %> <LI>The <CODE>testParam</CODE> form parameter: <%=request.getParameter("testParam") %> </UL> </BODY> </HTML>

  15. JSP Scriplets • JSP scriptletslet you insert arbitrary code into the Servlet service method ( _jspService ) • Scriptlets have the form: <% Java Code%> • The code is inserted verbatim into the service method, according to the location of the scriplet • Scriptlets have access to the same automatically defined variables as expressions

  16. Scriptlet Translation <%= foo() %> <% bar(); %> public void _jspService(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException { ... response.setContentType("text/html"); ... out.print(foo()); bar(); ... }

  17. An Interesting Example Scriptlets don't have to be complete code blocks: <%if (Math.random() < 0.5) { %> You <B>won</B> the game! <%} else { %> You <B>lost</B> the game! <% } %> if (Math.random() < 0.5) { out.write("You <B>won</B> the game!"); } else { out.write("You <B>lost</B> the game!"); }

  18. JSP Declarations • A JSP declaration lets you define methods or members that get inserted into the Servlet class (outside of all methods) • It has the following form: <%! Java Code %> • For example: <%! private int someField = 5; %> <%! private void someMethod(...) {...} %> • It is usually of better design to define methods in a separate Java class...

  19. Declaration Example • Print the number of times the current page has been requested since the server booted (or the Servlet class was changed and reloaded): <%! private int accessCount = 0; %> <%! private synchronized int incAccess() { return ++accessCount; } %> <H1>Accesses to page since server reboot: <%= incAccess() %> </H1>

  20. public class serviceCount_jsp extends... implements... throws... { private int accessCount = 0; private synchronized int incAccess() { return ++accessCount;} public void _jspService(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException { ... ... out.write("<H1>Accesses to page since server reboot: "); out.print(incAccess()); ... } ... }

  21. jspInit and jspDestroy • In JSP pages, like regular Servlets, sometimes want to use init and destroy • It is illegal to use JSP declarations to override init or destroy, since they (usually) are already implemented by the generated Servlet • Instead, override the methods jspInit and jspDestroy • The generated servlet is guaranteed to call these methods from init and destroy respectively • The standard versions of jspInit and jspDestroy are empty (placeholders for you to override)

  22. JSP Directives • A JSP directive affects the structure of the Servlet class that is generated from the JSP page • It usually has the following form: <%@ directive attribute="value" %> • Multiple attribute settings for a single directive can be combined: <%@ directive attribute1="value1" ... attributeN="valueN" %> • Two types discussed in this section: page and include

  23. page-Directive Attributes • importattribute: A comma separated list of classes/packages to import <%@ page import="java.util.*, java.io.*" %> • contentTypeattribute:Sets the MIME-Type of the resulting document (default is text/html) <%@ page contentType="text/plain" %> • Note that instead of using the contentType attribute, you can write <% response.setContentType("text/plain"); %>

  24. More page-Directive Attributes • session="true|false" - use a session? • buffer="sizekb|none" • Specifies the content-buffer size (out) • errorPage="url " • Defines a JSP page that handles uncaught exceptions • The page in url must have true in the page-directive: • isErrorPage="true|false" • The variable exception holds the exception thrown by the calling JSP

  25. showTableA.jsp <HTML> <HEAD> <TITLE>Reading From Database</TITLE></HEAD> <BODY> <%@ page import="java.sql.*" %> <%@ page errorPage="errorPage.jsp" %> <% Class.forName("oracle.jdbc.driver.OracleDriver"); Connection con = DriverManager.getConnection("jdbc:oracle:thin:" + "snoopy/snoopy@sol4:1521:stud"); Statement stmt = con.createStatement(); ResultSet rs = stmt.executeQuery("Select * from a"); ResultSetMetaData md = rs.getMetaData(); int col = md.getColumnCount(); %>

  26. <TABLE border="2"> <% while (rs.next()) { %> <TR> <% for (int i = 1 ; i <= col ; i++) { %> <TD><%= rs.getString(i) %></TD> <% } %> </TR> <% } %> </TABLE> </BODY> </HTML>

  27. errorPage.jsp <HTML> <HEAD> <TITLE>Reading From Database</TITLE></HEAD> <BODY> <%@ page isErrorPage="true" %> <h1>Oops. There was an error when you accessed the database. </h1> <h2>Here is the stack trace: </h2> <font color="red"> <pre> <% exception.printStackTrace(new PrintWriter(out)); %> </pre></font> </BODY> </HTML>

  28. Table A exists!

  29. Table A does not exist!

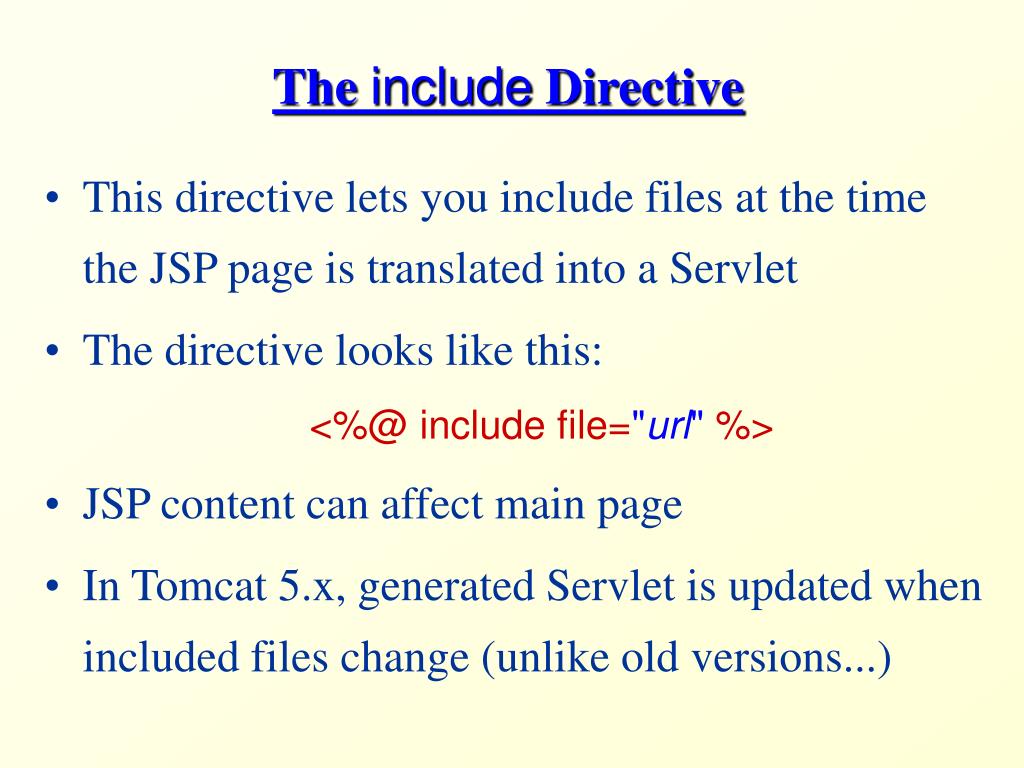

  30. The include Directive • This directive lets you include files at the time the JSP page is translated into a Servlet • The directive looks like this: <%@ include file="url" %> • JSP content can affect main page • In Tomcat 5.x, generated Servlet is updated when included files change (unlike old versions...)

  31. <HTML> <HEAD> <TITLE>Including JSP</TITLE></HEAD> <BODY> Here is an interesting page.<br><br> Bla, Bla, Bla, Bla. <br><br><br> <%@ include file="AccessCount.jsp"%> </BODY> </HTML> BlaBla.jsp <hr> Page Created for Dbi Course. Email us <a href="mailto:dbi@cs.huji.ac.il">here</a>. <br> <%! private int accessCount = 0; %> Accesses to page since server reboot: <%= ++accessCount %> AccessCount.jsp

  32. out.write("<HTML> \r\n"); out.write("<HEAD> <TITLE>Including JSP</TITLE></HEAD>\r\n"); out.write("<BODY>\r\n"); out.write("Here is an interesting page.<br><br>\r\n"); out.write("Bla, Bla, Bla, Bla. <br><br><br>\r\n"); out.write("\r\n"); out.write("<hr>\r\n"); out.write("Page Created for Dbi Course. Email us \r\n"); out.write("<a href=\"mailto:dbi@cs.huji.ac.il\">here</a>.\r\n"); out.write("<br>\r\n"); out.write(" \r\n"); out.write("Accesses to page since server reboot: \r\n"); out.print( ++accessCount ); out.write("\r\n"); out.write("</BODY>\r\n"); out.write("</HTML> ");

  33. Writing JSP in XML(and vice versa) • We can replace the JSP tags with XML tags that represent • Expressions • Scriptlets • Declarations • Directives

  34. <jsp:expression> Expression </jsp:expression> <%=Expression%> <jsp:scriptlet> Code </jsp:scriptlet> <% Code %> <jsp:declaration> Declaration </jsp:declaration> <%! Declaration %> <jsp:directive.type Attribute="value"/> <%@ Directive %>

  35. <?xml version="1.0" encoding="UTF-8"?> <jsp:root xmlns:jsp="http://java.sun.com/JSP/Page" version="2.0"> <numbers> <jsp:scriptlet> for(int i=1; i&lt;=10; ++i) { </jsp:scriptlet> <number> <jsp:expression> i </jsp:expression> </number> <jsp:scriptlet> } </jsp:scriptlet> </numbers> </jsp:root>

  36. Variables in JSP

  37. Implicit Objects • As seen before, some useful variables, like request and session are predefined • These variables are called implicit objects • Implicit objects are defined in the scope of the service method • Can these be used in JSP declarations? • Implicit objects are part of the JSP specifications

  38. The objects request and response • request and response are the HttpServletRequest and HttpServletResponse arguments of the service method • Using these objects, you can: • Read request parameters • Set response headers • etc. (everything we learned in Servlet lectures)

  39. The object out • This is the Writerused to add write output into the response body • This object implements the interface JspWriter, which supports auto-flush • Recall that you can adjust the buffer size, or turn buffering off, through use of the buffer attribute of the page directive

  40. The object page • Simply a synonym for (Object)this • page is not very useful in JSP pages • It was created as a placeholder for the time when the scripting language could be something other than Java

  41. The object pageContext • pageContext is a new object introduced by JSP • This object encapsulates use of server-specific features (e.g. higher performance JspWriters) • Access server-specific features through this class rather than directly, so your code will conform to JSP spec. and not be server dependent • This object is also used to store page-scoped Java Beans (discussed later)

  42. The object session • This is the HttpSession object associated with the request • If the session attribute in the page directive is turned off (<%@ page session="false" %>) then this object is not available • Recall that a session is created by default

  43. The object config • This is the ServletConfigof the page, as received in the init() method • Remember: Contains Servlet specific initialization parameters • Later, we will study how initialization parameters are passed to JSP pages in Tomcat • You can get the ServletContext from config
