  1. Software Engineeringweek 5 Madalina Croitoru IUT Montpellier MADALINA CROITORU croitoru@lirmm.fr

  2. Software design • Computer programs are composed of multiple, interacting modules • The goal of system design is to: • Decide what the modules are • Decide what the modules should contain • Decide how the modules should interact MADALINA CROITORU croitoru@lirmm.fr

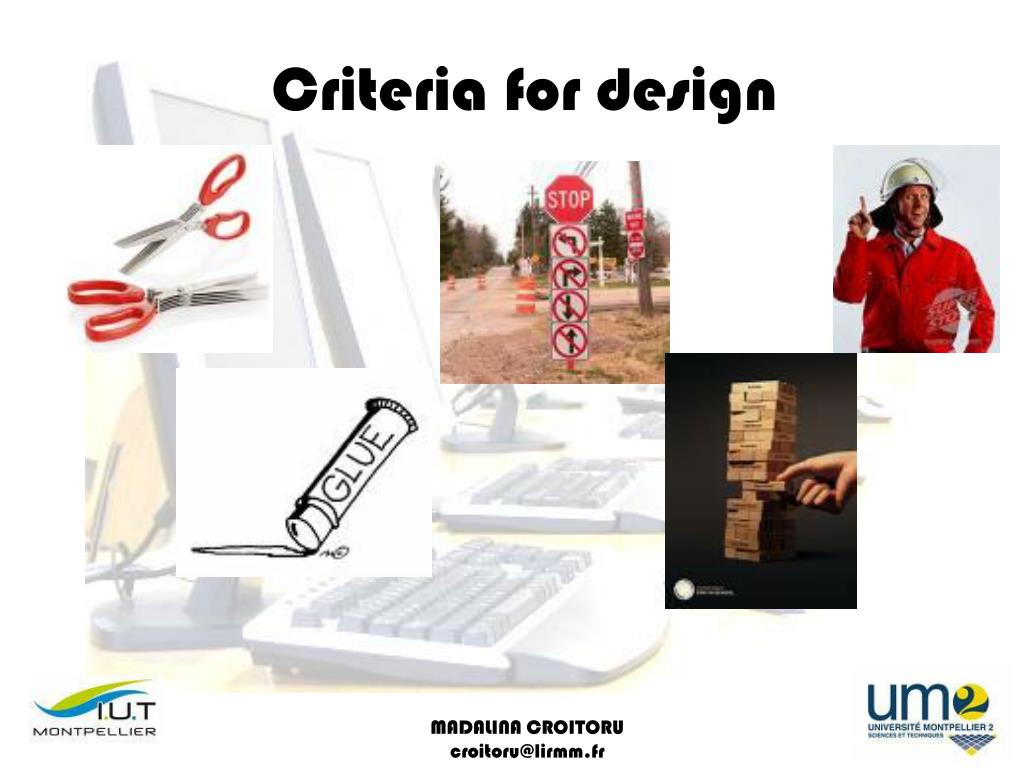

  3. Criteria for design MADALINA CROITORU croitoru@lirmm.fr

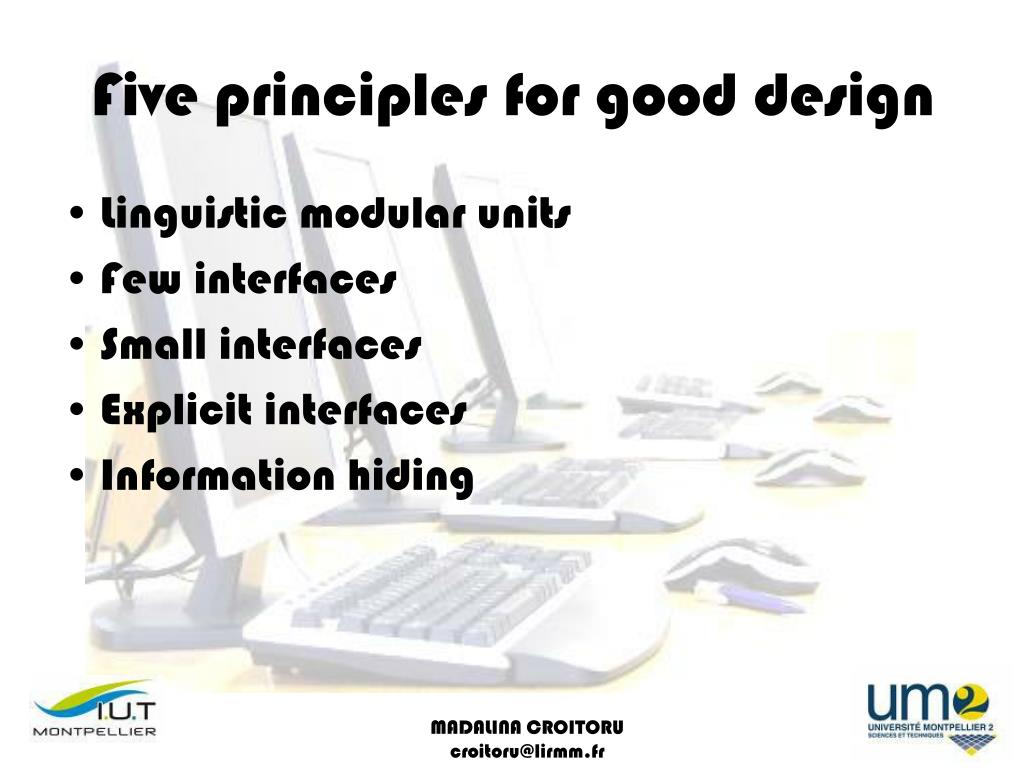

  4. Five principles for good design • Linguistic modular units • Few interfaces • Small interfaces • Explicit interfaces • Information hiding MADALINA CROITORU croitoru@lirmm.fr

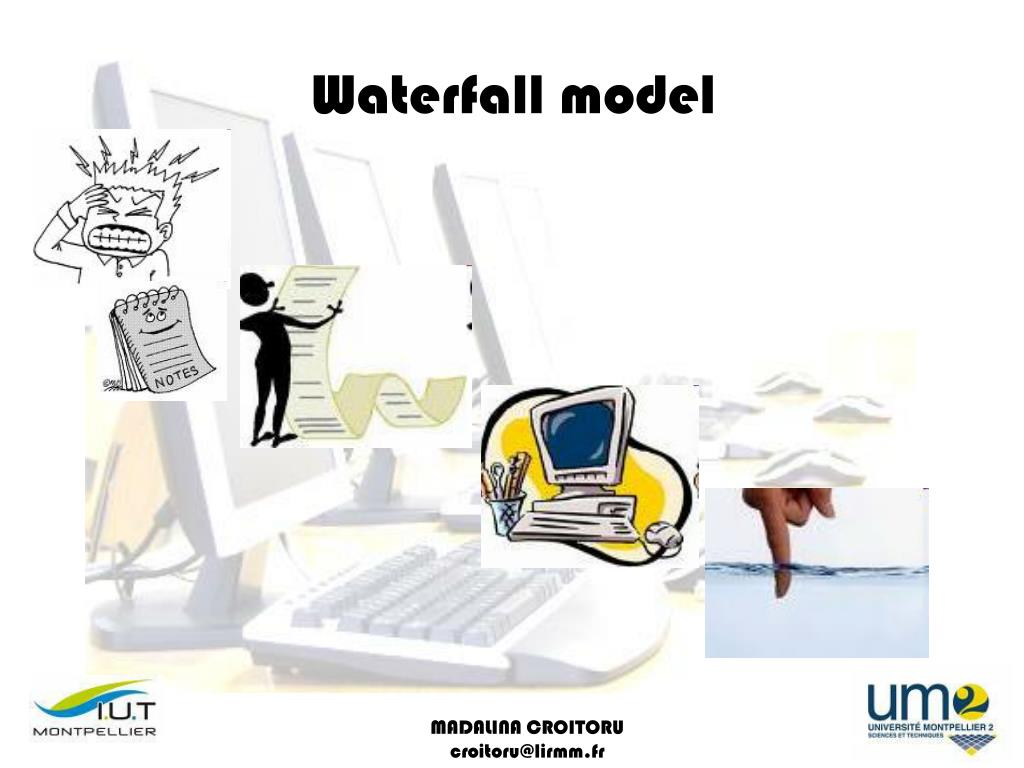

  5. Waterfall model MADALINA CROITORU croitoru@lirmm.fr

  6. Testing “Program testing can be used to show the presence of defects, but never their absence” Edsger W. Dijkstra MADALINA CROITORU croitoru@lirmm.fr

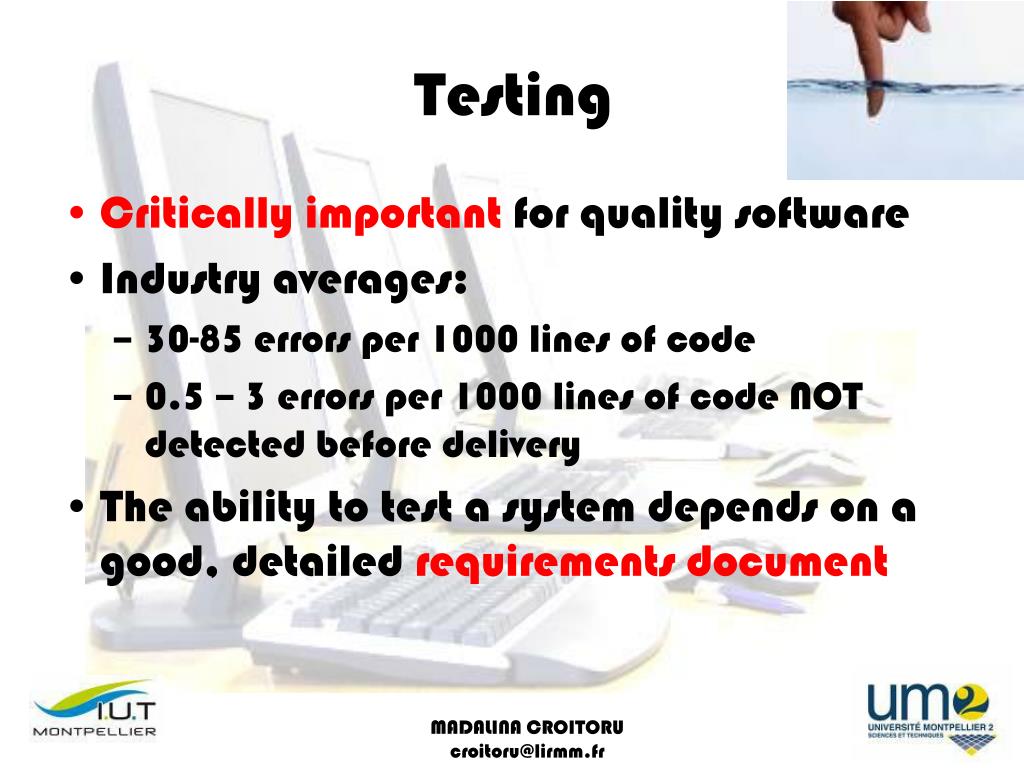

  7. Testing • Critically important for quality software • Industry averages: • 30-85 errors per 1000 lines of code • 0.5 – 3 errors per 1000 lines of code NOT detected before delivery • The ability to test a system depends on a good, detailed requirements document MADALINA CROITORU croitoru@lirmm.fr

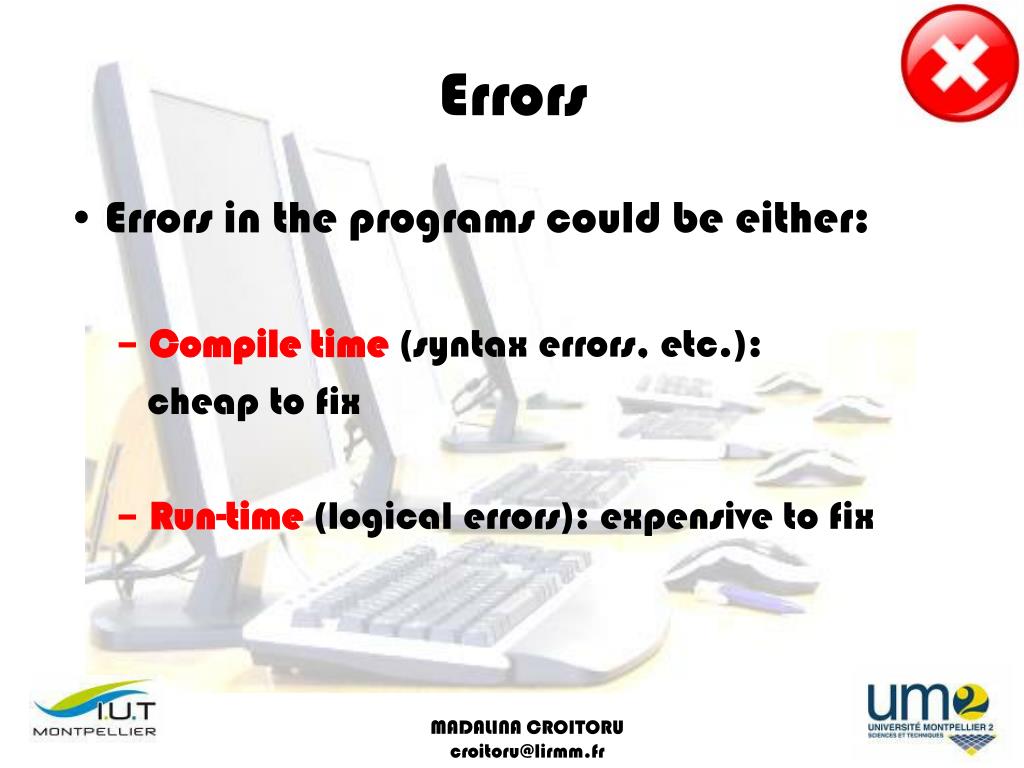

  8. Errors • Errors in the programs could be either: • Compile time (syntax errors, etc.): cheap to fix • Run-time (logical errors): expensive to fix MADALINA CROITORU croitoru@lirmm.fr

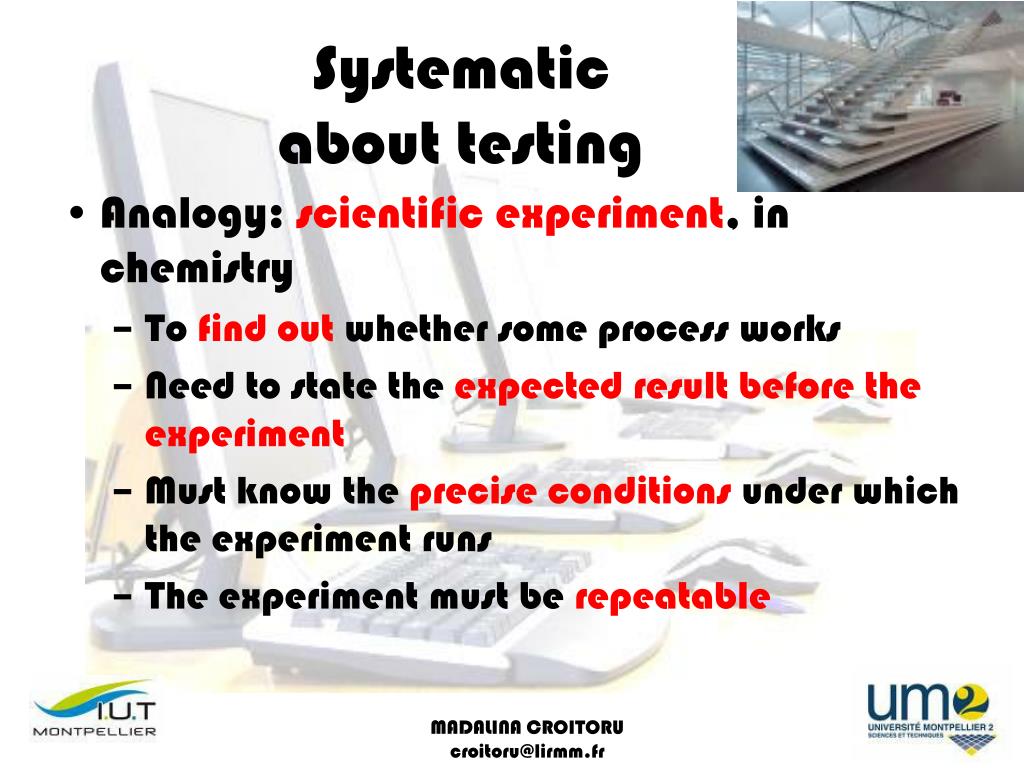

  9. Systematic about testing • Analogy: scientific experiment, in chemistry • To find out whether some process works • Need to state the expected result before the experiment • Must know the precise conditions under which the experiment runs • The experiment must be repeatable MADALINA CROITORU croitoru@lirmm.fr

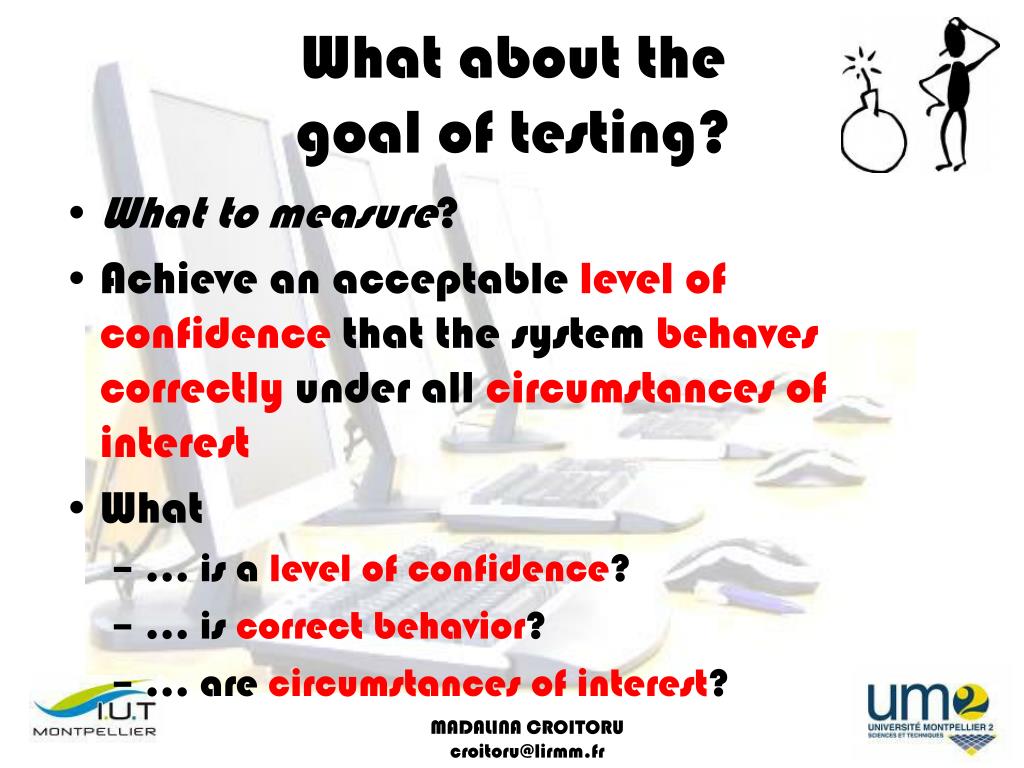

  10. What about the goal of testing? • What to measure? • Achieve an acceptable level of confidence that the system behaves correctly under all circumstances of interest • What • … is a level of confidence? • … is correct behavior? • … are circumstances of interest? MADALINA CROITORU croitoru@lirmm.fr

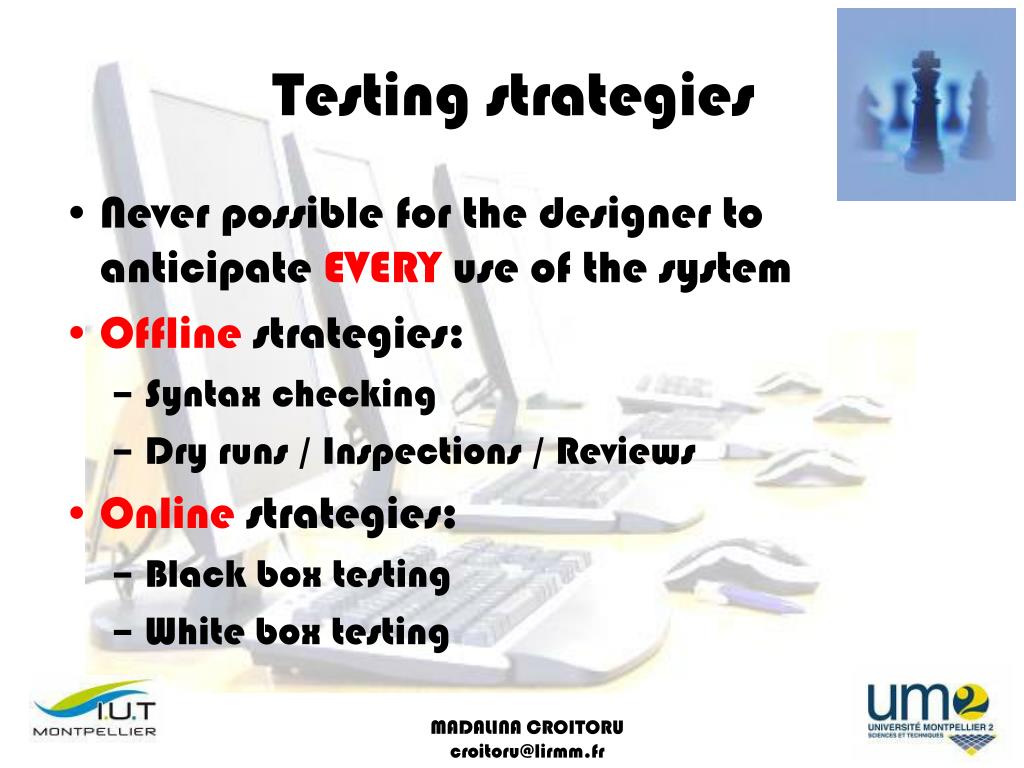

  11. Testing strategies • Never possible for the designer to anticipate EVERY use of the system • Offline strategies: • Syntax checking • Dry runs / Inspections / Reviews • Online strategies: • Black box testing • White box testing MADALINA CROITORU croitoru@lirmm.fr

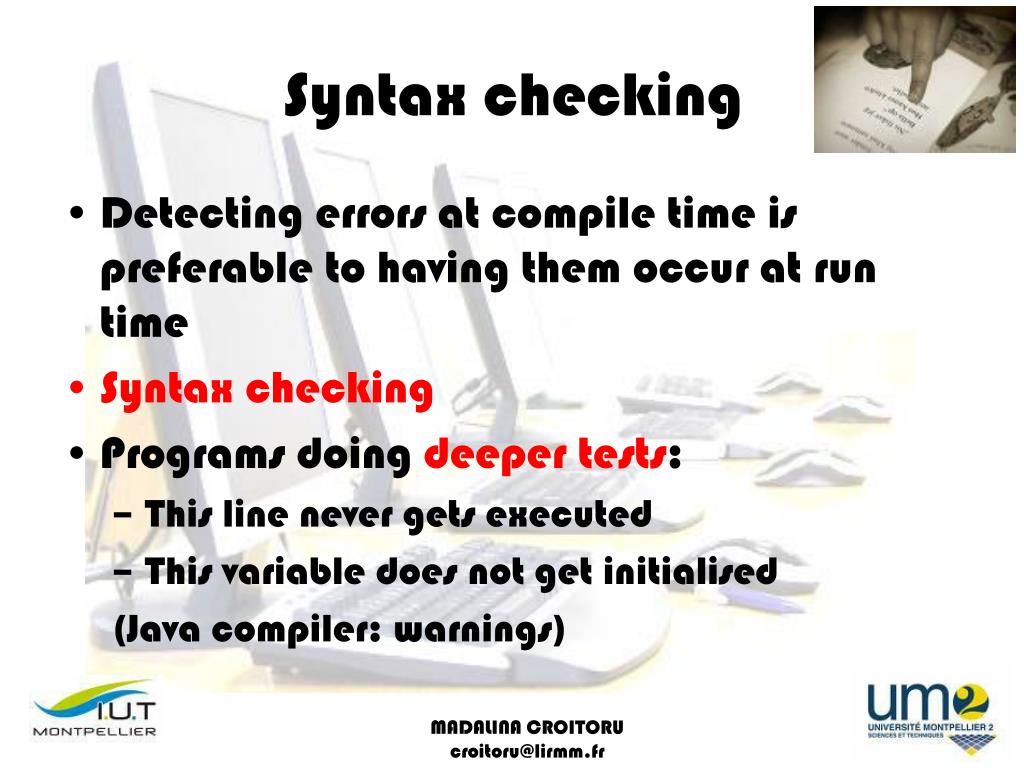

  12. Syntax checking • Detecting errors at compile time is preferable to having them occur at run time • Syntax checking • Programs doing deeper tests: • This line never gets executed • This variable does not get initialised (Java compiler: warnings) MADALINA CROITORU croitoru@lirmm.fr

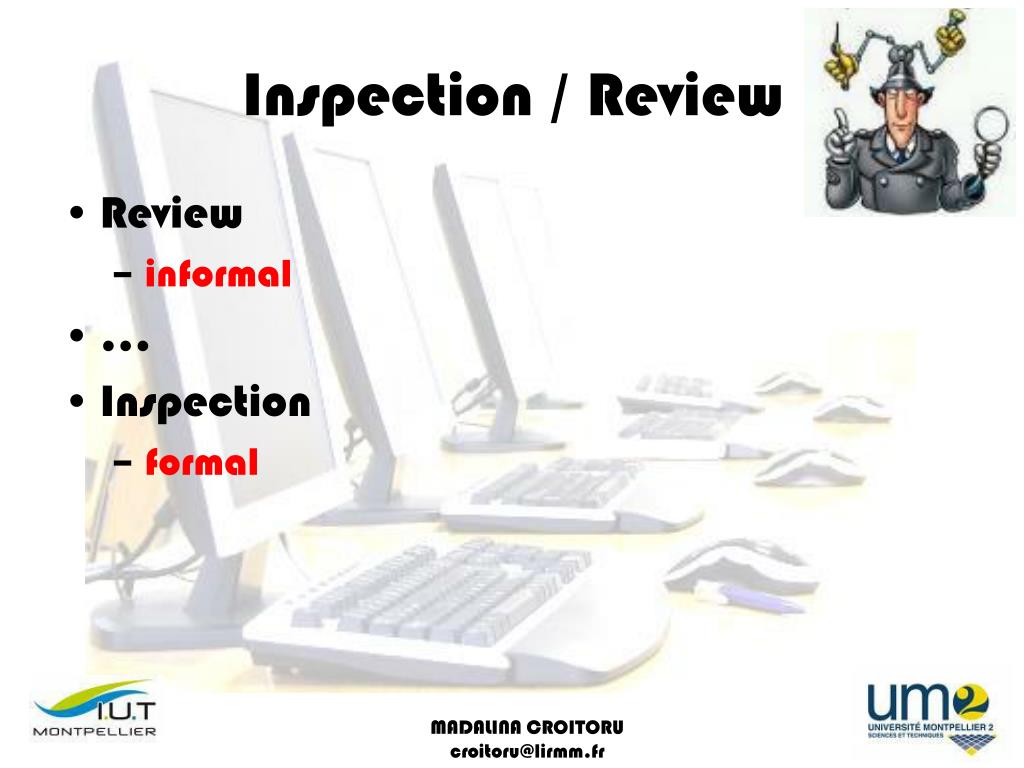

  13. Inspection / Review • Review • informal • … • Inspection • formal MADALINA CROITORU croitoru@lirmm.fr

  14. Why review? • Everyone makes mistakes • Programming is a social activity (or should be) • Find errors in program early (before it is run the first time) • Improve programming skills of all involved • Anything can be reviewed (…, use cases, documentation, …) MADALINA CROITORU croitoru@lirmm.fr

  15. How to hold a review meeting? • Purpose: evaluate a software product to • determine its suitability for its intended use • identify discrepancies from specifications and standards • Participants read documents in advance • then bring their comments to a meeting for discussion • A review • may provide recommendations and suggest alternatives • may be held at any time during a project • need not reach conclusions on all points MADALINA CROITORU croitoru@lirmm.fr

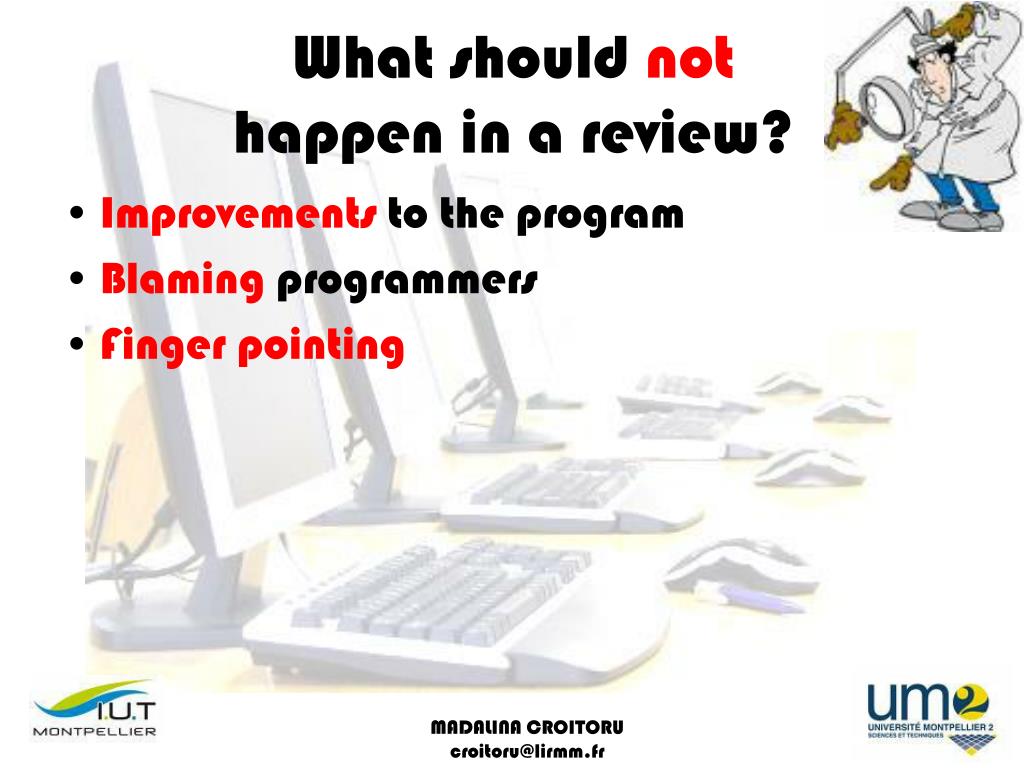

  16. What should not happen in a review? • Improvements to the program • Blaming programmers • Finger pointing MADALINA CROITORU croitoru@lirmm.fr

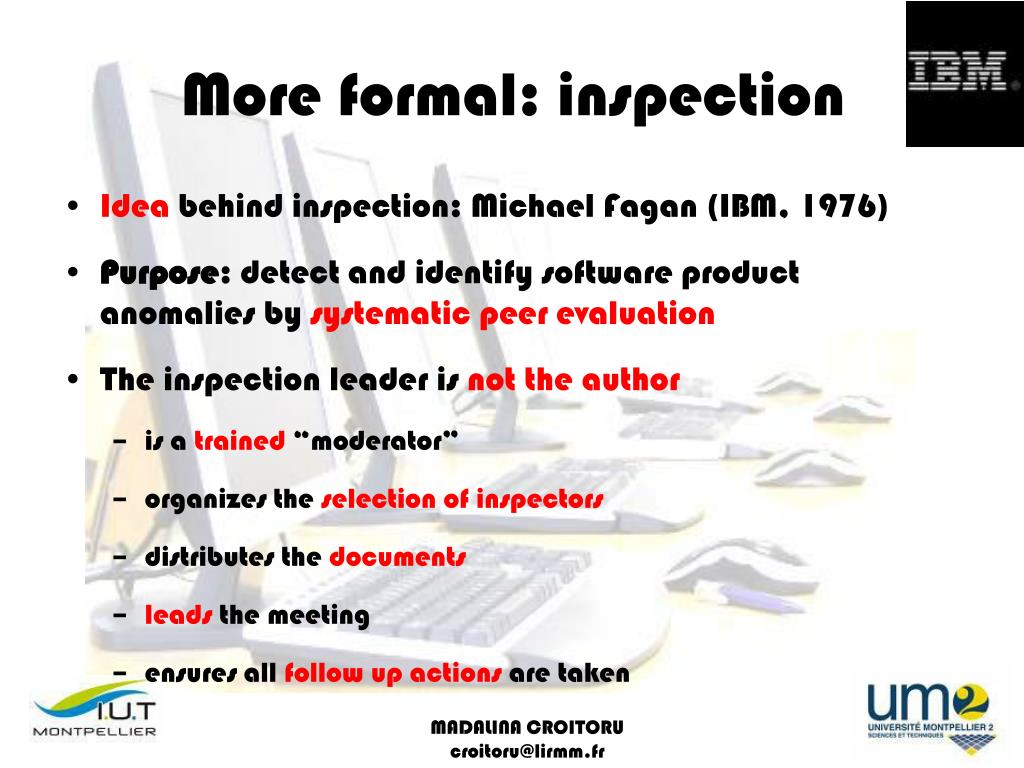

  17. More formal: inspection • Idea behind inspection: Michael Fagan (IBM, 1976) • Purpose: detect and identify software product anomalies by systematic peer evaluation • The inspection leader is not the author • is a trained “moderator” • organizes the selection of inspectors • distributes the documents • leads the meeting • ensures all follow up actions are taken MADALINA CROITORU croitoru@lirmm.fr

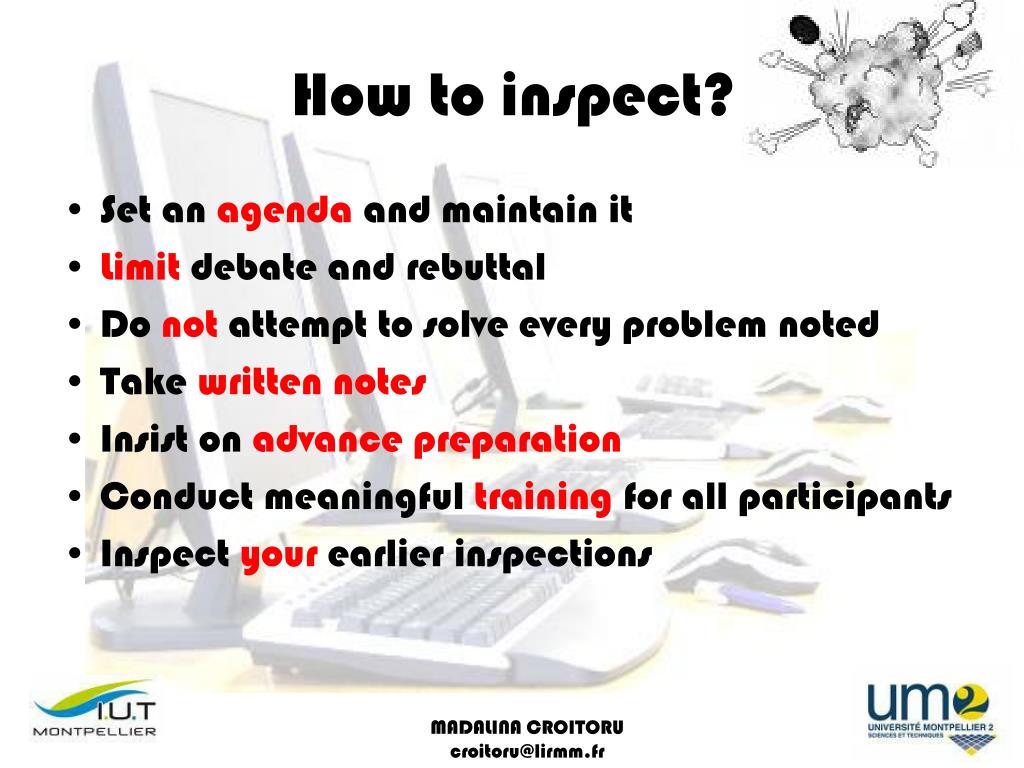

  18. How to inspect? • Set an agenda and maintain it • Limit debate and rebuttal • Do not attempt to solve every problem noted • Take written notes • Insist on advance preparation • Conduct meaningful training for all participants • Inspect your earlier inspections MADALINA CROITORU croitoru@lirmm.fr

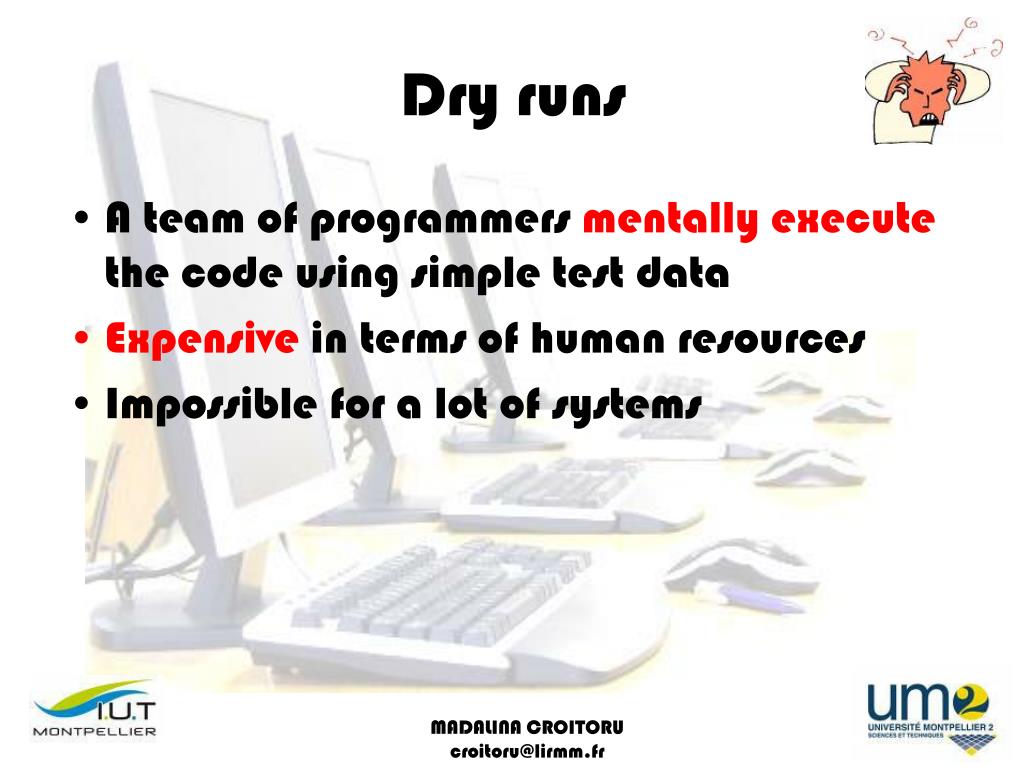

  19. Dry runs • A team of programmers mentally execute the code using simple test data • Expensive in terms of human resources • Impossible for a lot of systems MADALINA CROITORU croitoru@lirmm.fr

  20. Black box testing • We ignore the internals of the system and focus on the RELATIONSHIP between inputs and outputs • Exhaustive testing would mean examining output of system for every conceivable input – not practical • Use equivalence partitioning and boundary analysis MADALINA CROITORU croitoru@lirmm.fr

  21. BlackBox Testing • Examines all functions and compares actual to expected result • Typically used in later testing stages • System tests • Acceptance tests int binsearch (int[] a, int v) { int low = 0; int high = length - 1 while (low <= high) { int mid = (low + high) / 2; if (a[mid] > value) high = mid – 1; else if (a[mid] < value) low = mid + 1; else return mid; } return -1; } “array search” Input: int array a int v Output: index of v in a or -1 if v not in a MADALINA CROITORU croitoru@lirmm.fr

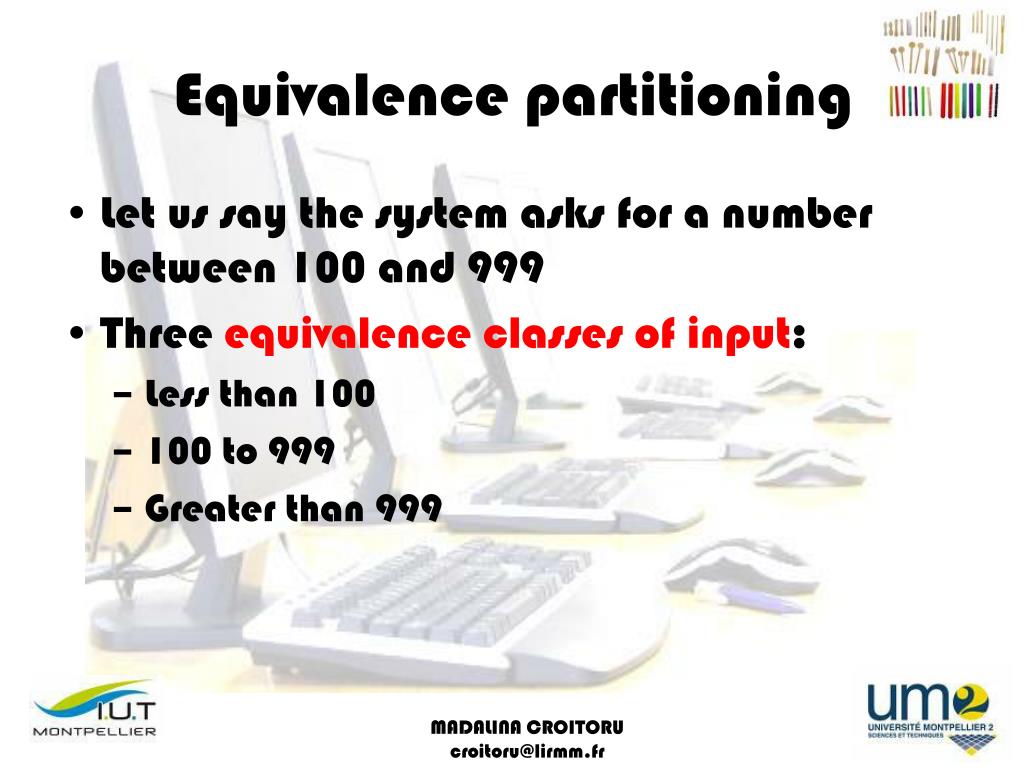

  22. Equivalence partitioning • Let us say the system asks for a number between 100 and 999 • Three equivalence classes of input: • Less than 100 • 100 to 999 • Greater than 999 MADALINA CROITORU croitoru@lirmm.fr

  23. Boundary Analysis • Most programs fail at input boundaries • The system asks for a number between 100 and 999 inclusive • The boundaries are 100 and 999 • We then use the values: 99 100 101 998 999 1000 MADALINA CROITORU croitoru@lirmm.fr

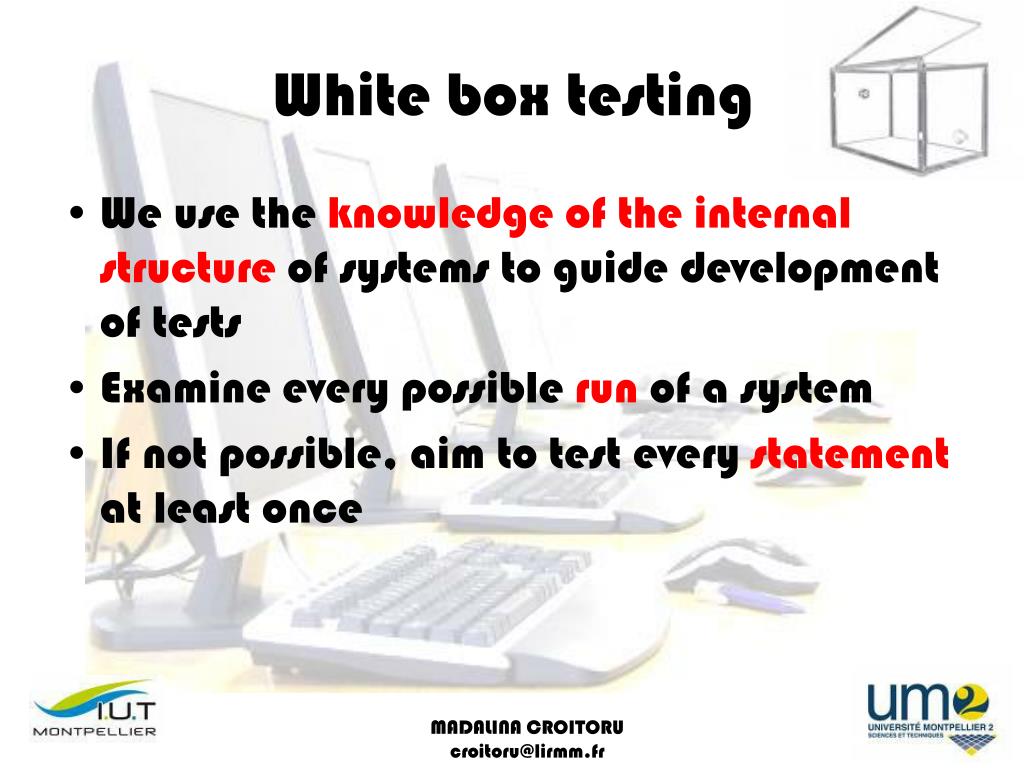

  24. White box testing • We use the knowledge of the internal structure of systems to guide development of tests • Examine every possible run of a system • If not possible, aim to test every statement at least once MADALINA CROITORU croitoru@lirmm.fr

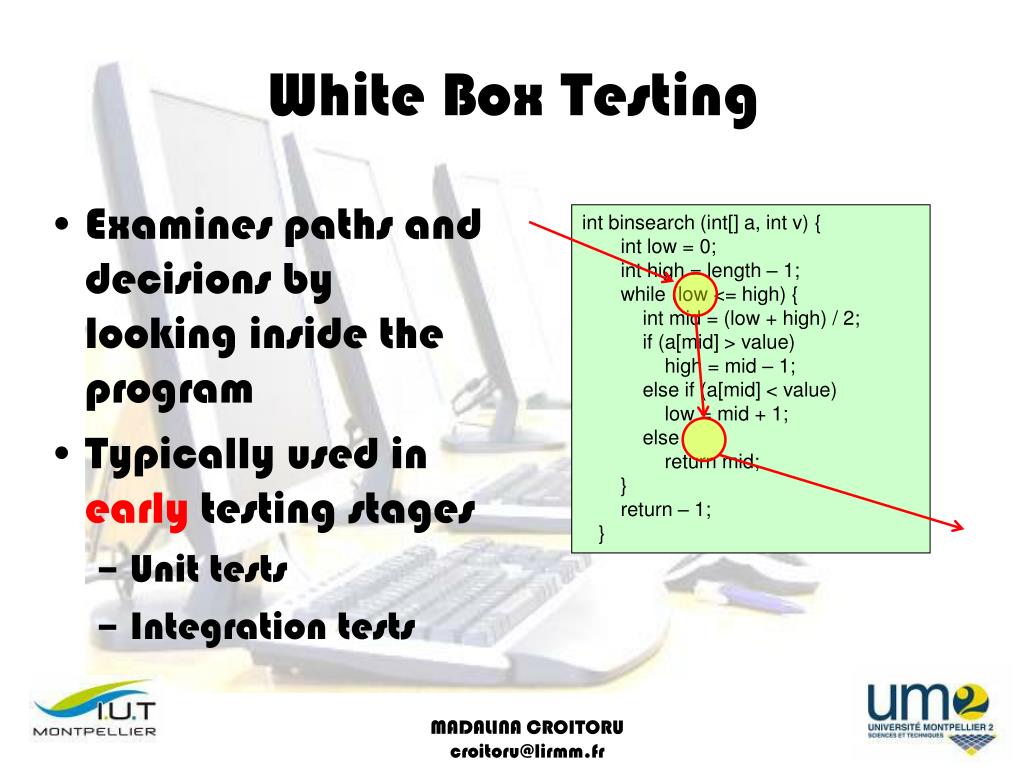

  25. WhiteBox Testing • Examines paths and decisions by looking inside the program • Typically used in early testing stages • Unit tests • Integration tests int binsearch (int[] a, int v) { int low = 0; int high = length – 1; while (low <= high) { int mid = (low + high) / 2; if (a[mid] > value) high = mid – 1; else if (a[mid] < value) low = mid + 1; else return mid; } return – 1; } MADALINA CROITORU croitoru@lirmm.fr

  26. Testing plans • Rigorous test plans have to be devised • Generated usually from requirements analysis document (for black box) and program code (for white box) • Distinguish between: • Unit tests • Integration tests • System tests MADALINA CROITORU croitoru@lirmm.fr

  27. Alpha and beta testing • In-house testing is called alpha testing • Beta testing involves distributed TESTED code to prospective customers for evaluation and use • Delivering buggy beta code is embarrassing MADALINA CROITORU croitoru@lirmm.fr
