Versatile Threaded Inserts for PCB: TH Series and Non-Threaded Solutions

DESCRIPTION

Discover our TH Series threaded inserts for PCB applications, designed to convert through holes to threaded holes for M1.0 to M3 sizes. The Taping type features an adsorption cap for vacuum picking, which should be removed after reflow. Available in both bulk packs and stand-off types, these inserts can accommodate various PCB thicknesses from 0.8t to 1.6t. Ideal for automatic recognition systems, these brass inserts with Sn/Ni plating ensure strong and reliable connections. Contact us for customization and bulk ordering options.

1 / 6

Télécharger la présentation

Versatile Threaded Inserts for PCB: TH Series and Non-Threaded Solutions

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

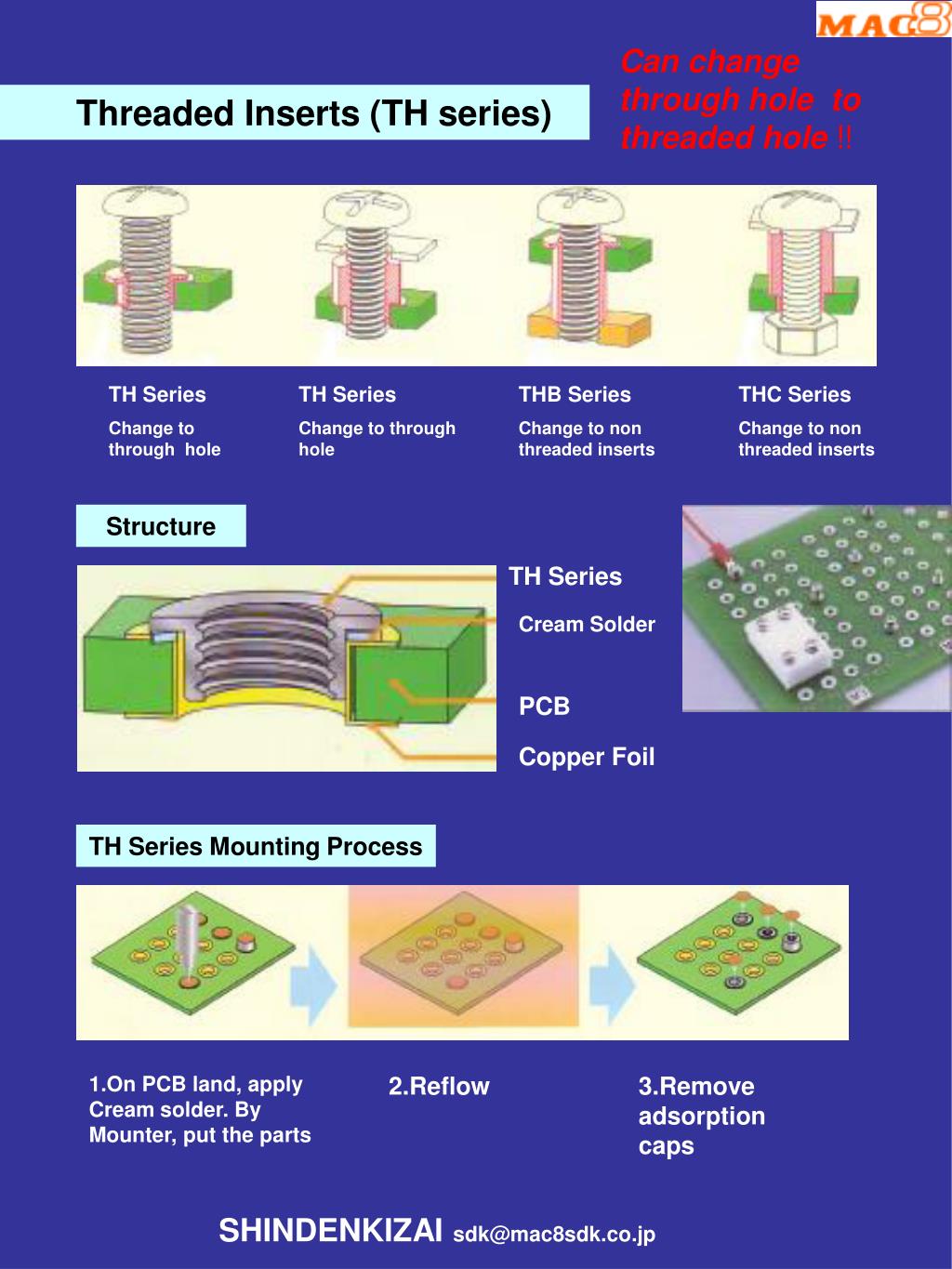

  1. Can change through hole to threaded hole !! Threaded Inserts (TH series) TH Series Change to through hole TH Series Change to through hole THB Series Change to non threaded inserts THC Series Change to non threaded inserts Structure TH Series Cream Solder PCB Copper Foil TH Series Mounting Process 1.On PCB land, apply Cream solder. By Mounter, put the parts 2.Reflow 3.Remove adsorption caps SHINDENKIZAI sdk@mac8sdk.co.jp

  2. Threaded Inserts TH series Through hole is changed to threaded hole(M1.0,M1.2,M1.4,M1.7,M2, M2.6, M3). Taping type has adsorption cap for vacuum pick. It needs to be removed after reflow. ■Material: Brass ■Finish: Sn plating over Ni ■Recommended PCB Thickness:1.6t for TH-1.6 Series, 0.8t for TH-0.8 Series ■Recommended Metal Mask Thickness:150-200μ ■Current Capacity 　　■ Tightening Torque *we can provide the bulk type *Mounter should have automatic recognition system SHINDENKIZAI sdk@mac8sdk.co.jp

  3. Threaded Inserts TH-0.8 series ■Stand-off type threaded inserts. This is mounted on PCB by inserting into through-hole. ■Screws can be inserted from both component and solder side. ■Taping type has adsorption cap for vacuum pick. It needs to be removed after reflow. ■Mounter should have automatic recognition system. ■Bulk type (100pcs/pack) is available.■Recommended PCB Thickness: 0.8-1.5t ■Current Capacity 　　 ■ Tightening Torque SHINDENKIZAI sdk@mac8sdk.co.jp

  4. Threaded Inserts TH-1.6 series ■Stand-off type threaded inserts. This is mounted on PCB by inserting into through-hole. ■Screws can be inserted from both component and solder side. ■Taping type has adsorption cap for vacuum pick. It needs to be removed after reflow. ■Mounter should have automatic recognition system. ■Bulk type (100pcs/pack) is available.■Recommended PCB Thickness: 1.6t and above ■Current Capacity 　　 ■ Tightening Torque SHINDENKIZAI sdk@mac8sdk.co.jp

  5. Threaded Inserts THB series Non-threaded type inserts for PCB through-hole. PCB is mounted above the chassis by inserting screws from the component side of PCB to tapped holes on the chassis. Taping type has adsorption cap for vacuum pick. It needs to be removed after reflow. Bulk type (100pcs/pack) is available.Bulk type does not have adsorption cap. ■Material: Brass ■Finish: Sn plating over Ni ■Recommended PCB Thickness: 1.6t SHINDENKIZAI sdk@mac8sdk.co.jp

  6. Threaded Inserts THC1.6 series ■Stand-off type non-threaded inserts. This is mounted on PCB by inserting into through-hole. ■Taping type has adsorption cap for vacuum pick. It needs to be removed after reflow. ■Mounter should have automatic recognition system. ■Bulk type (100pcs/pack) is available.■Bulk type does not have adsorption cap. ■Material: Brass ■Finish: Sn plating over Ni ■Recommended PCB Thickness: 1.6t and above *You can order THC-0.8 Series SHINDENKIZAI sdk@mac8sdk.co.jp
