  1. Queries and Lookups

  2. Simple Department Form

  3. The Simple Form Insert Save LOVBUT

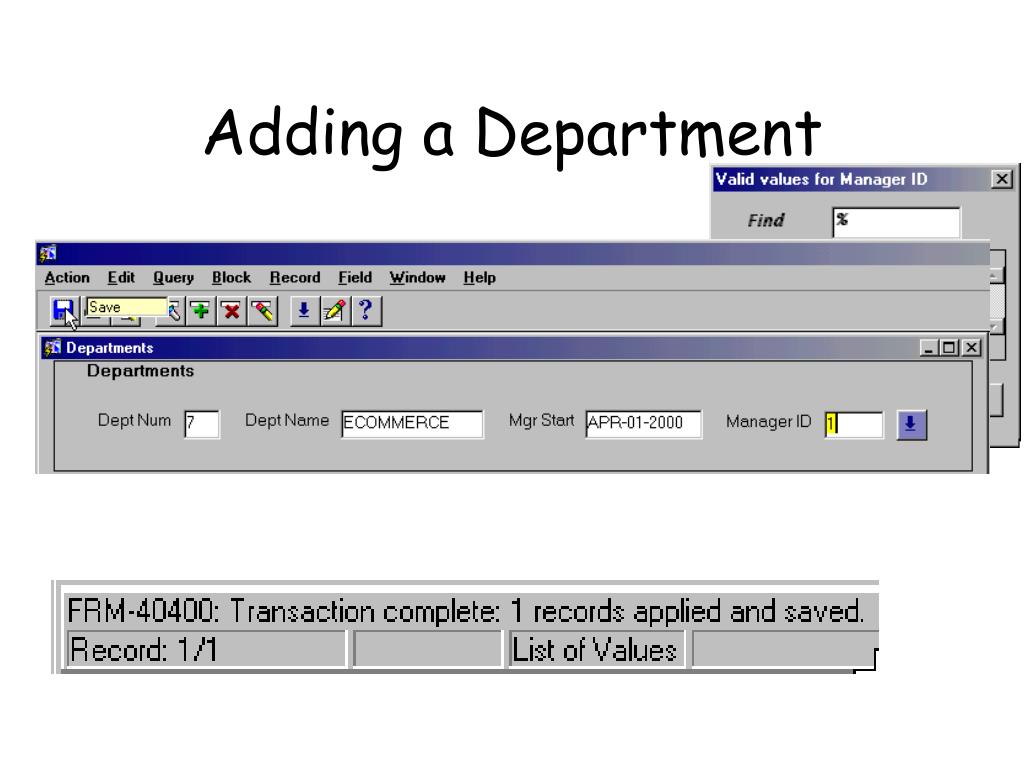

  4. Adding a Department

  5. Query By Example

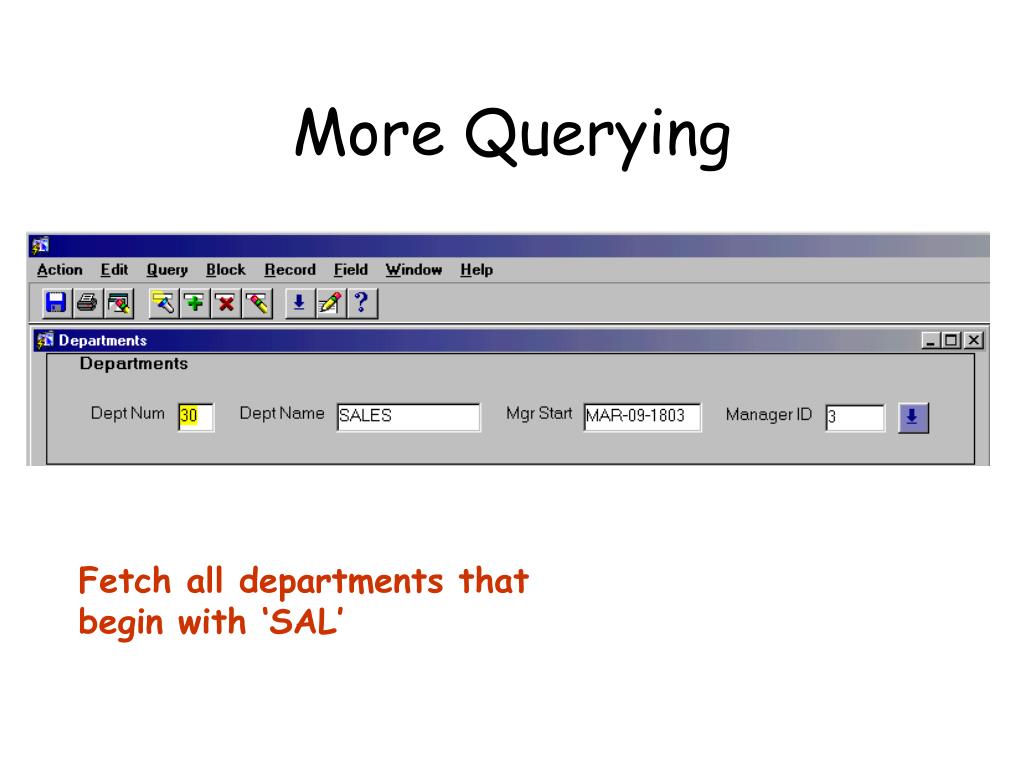

  6. More Querying Fetch all departments that begin with ‘SAL’

  7. Adding Manager Info

  8. Revised Module -- Insertion

  9. Querying with Revised Module • Manager Fields do not fill in automatically • So we would like to to improve the querying capability • Unless form is primarily for data entry. • One method: base form on a view

  10. Defining a View

  11. Basing Module on View

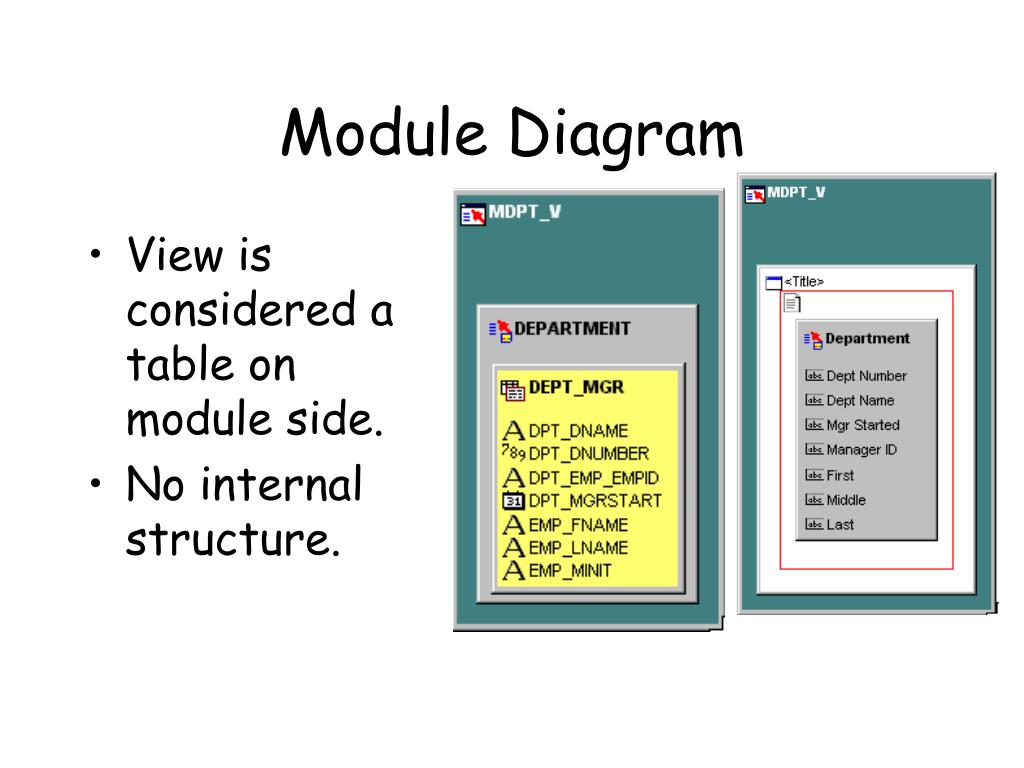

  12. Module Diagram • View is considered a table on module side. • No internal structure.

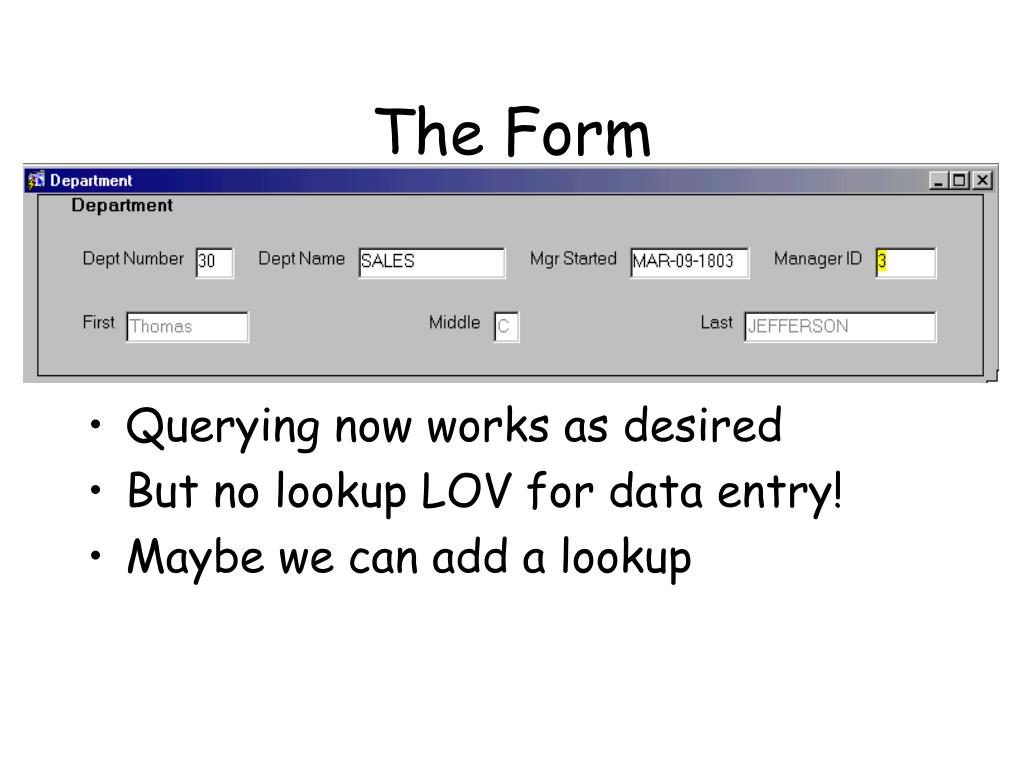

  13. The Form • Querying now works as desired • But no lookup LOV for data entry! • Maybe we can add a lookup

  14. Add a Lookup Note a view can have a primary key and foreign keys!

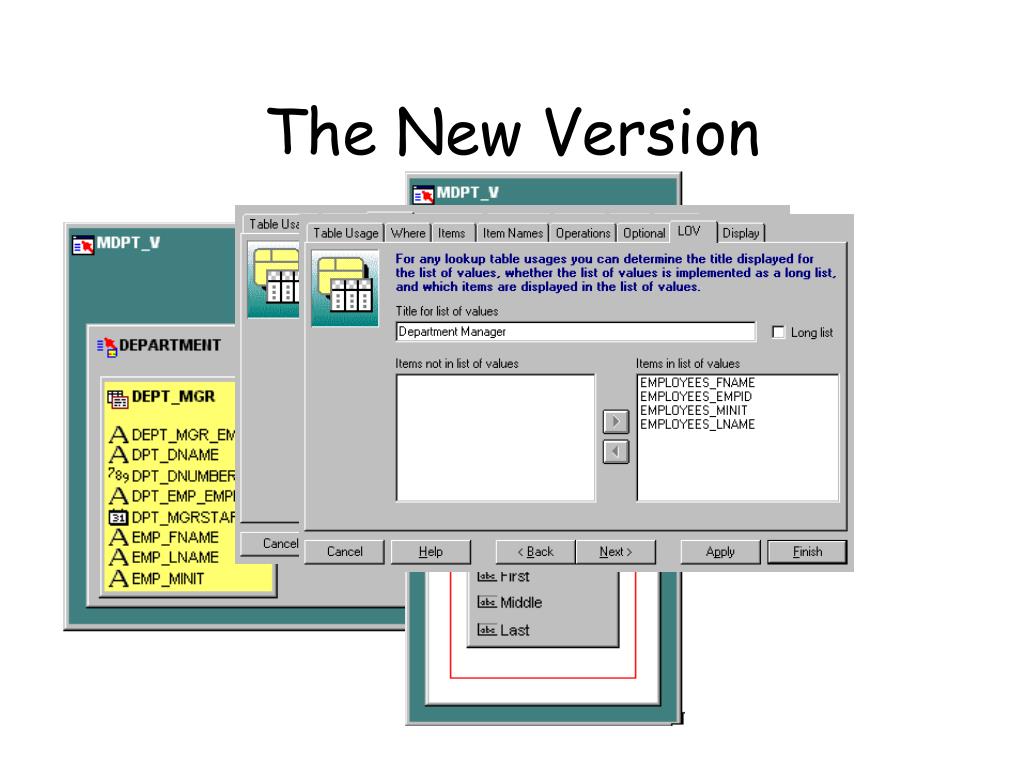

  15. The New Version

  16. Unfortunately ... • Form Compiler Blows UP • Diagnostic messages about .cpp files • ‘Tell your Oracle Representative’ • Lesson, don’t add lookups to a table already in a view! • But there is another way, closely related ...

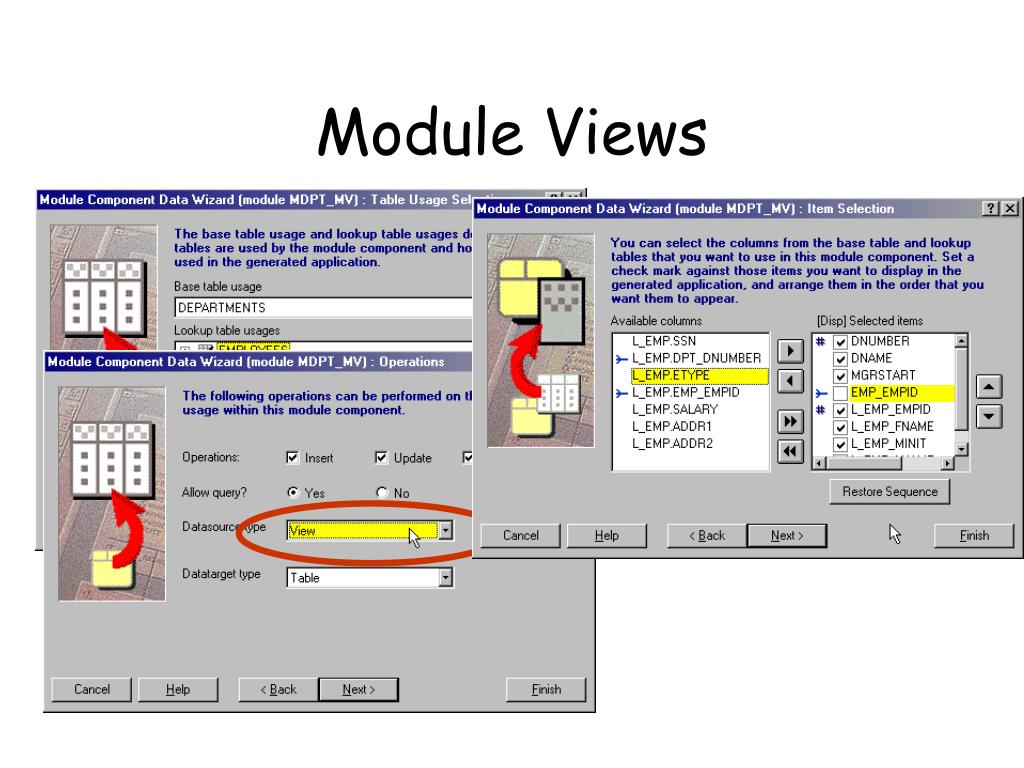

  17. Module Views

  18. Module View Looks Like Ordinary Module

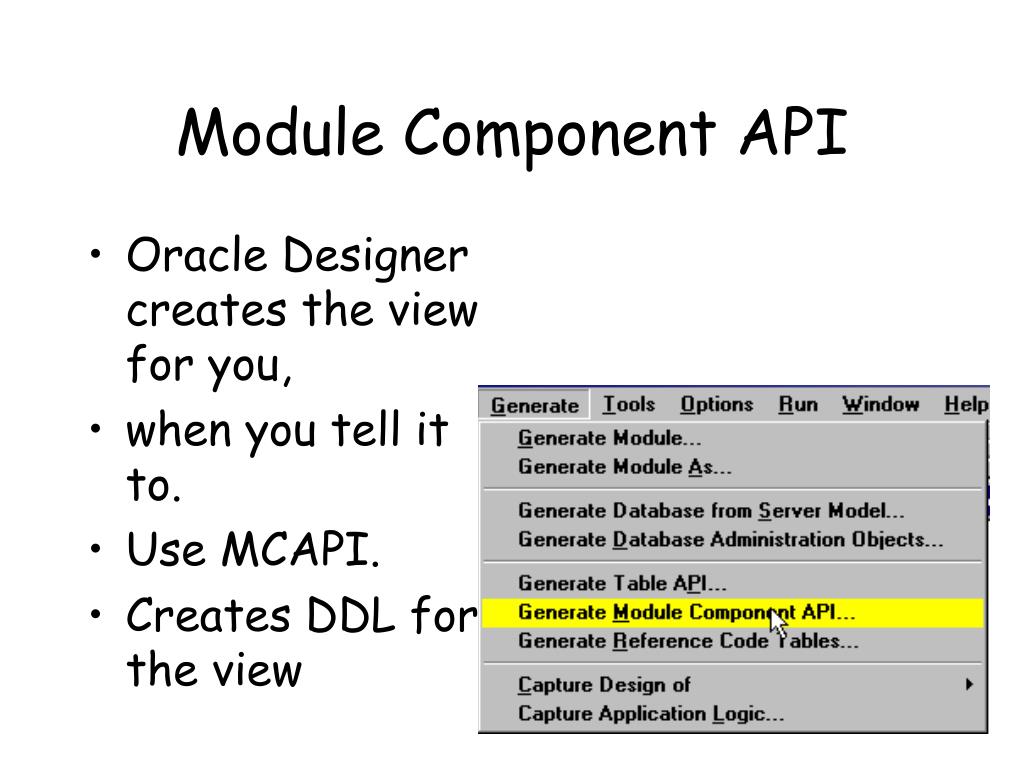

  19. Module Component API • Oracle Designer creates the view for you, • when you tell it to. • Use MCAPI. • Creates DDL for the view

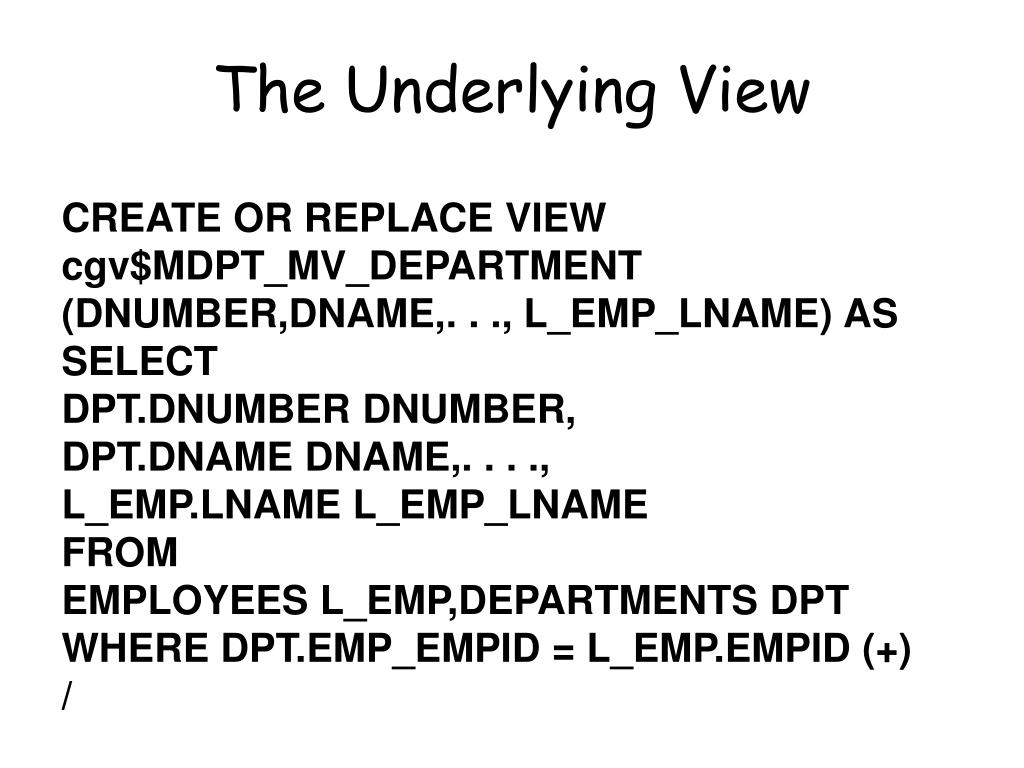

  20. The Underlying View CREATE OR REPLACE VIEW cgv$MDPT_MV_DEPARTMENT (DNUMBER,DNAME,. . ., L_EMP_LNAME) AS SELECT DPT.DNUMBER DNUMBER, DPT.DNAME DNAME,. . . ., L_EMP.LNAME L_EMP_LNAME FROM EMPLOYEES L_EMP,DEPARTMENTS DPT WHERE DPT.EMP_EMPID = L_EMP.EMPID (+) /

  21. The View Based Form

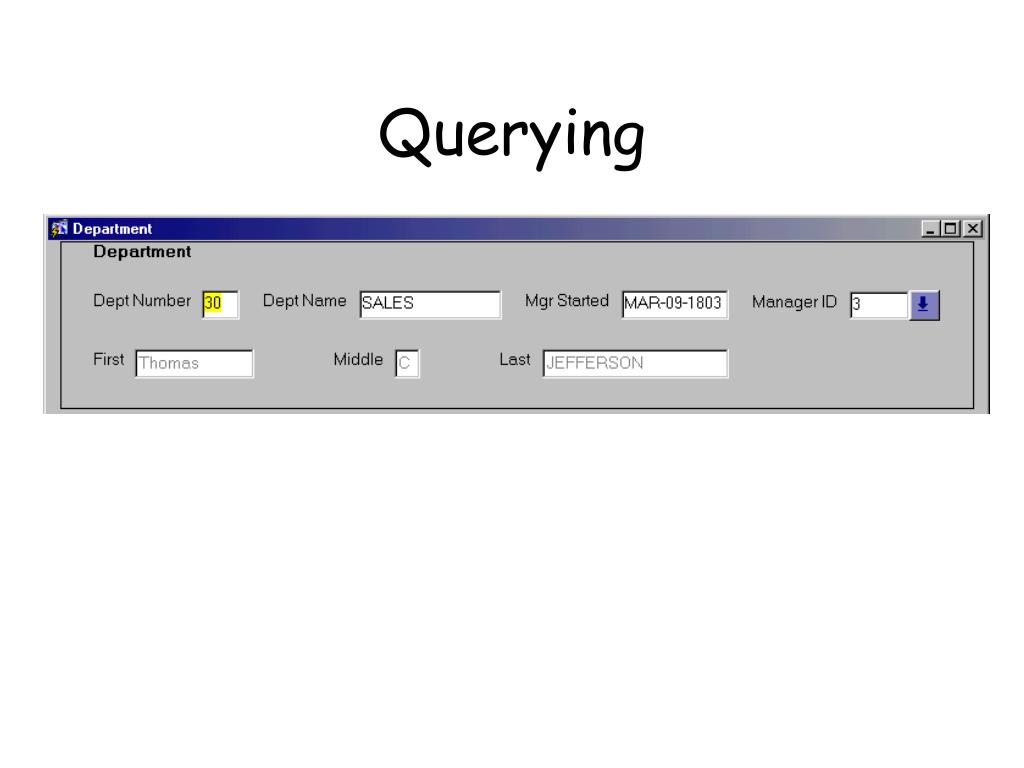

  22. Querying

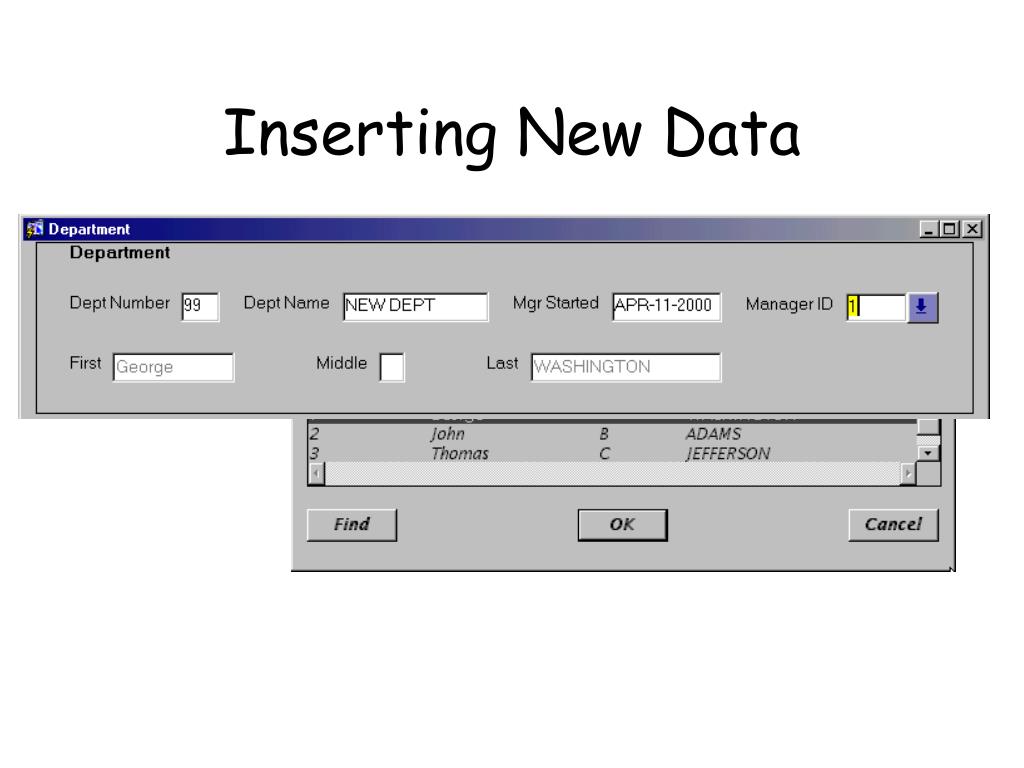

  23. Inserting New Data

  24. Adding an Item Group
